Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
1693 personas están viendo este producto

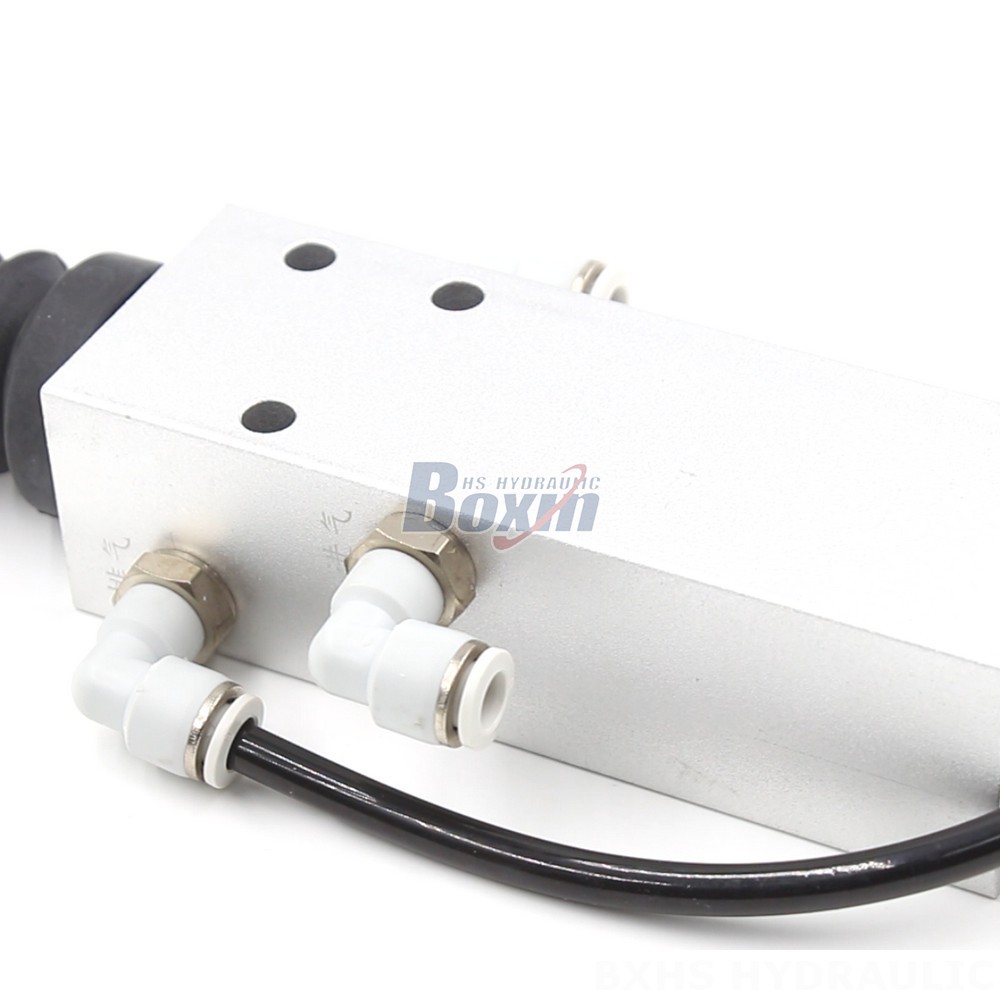

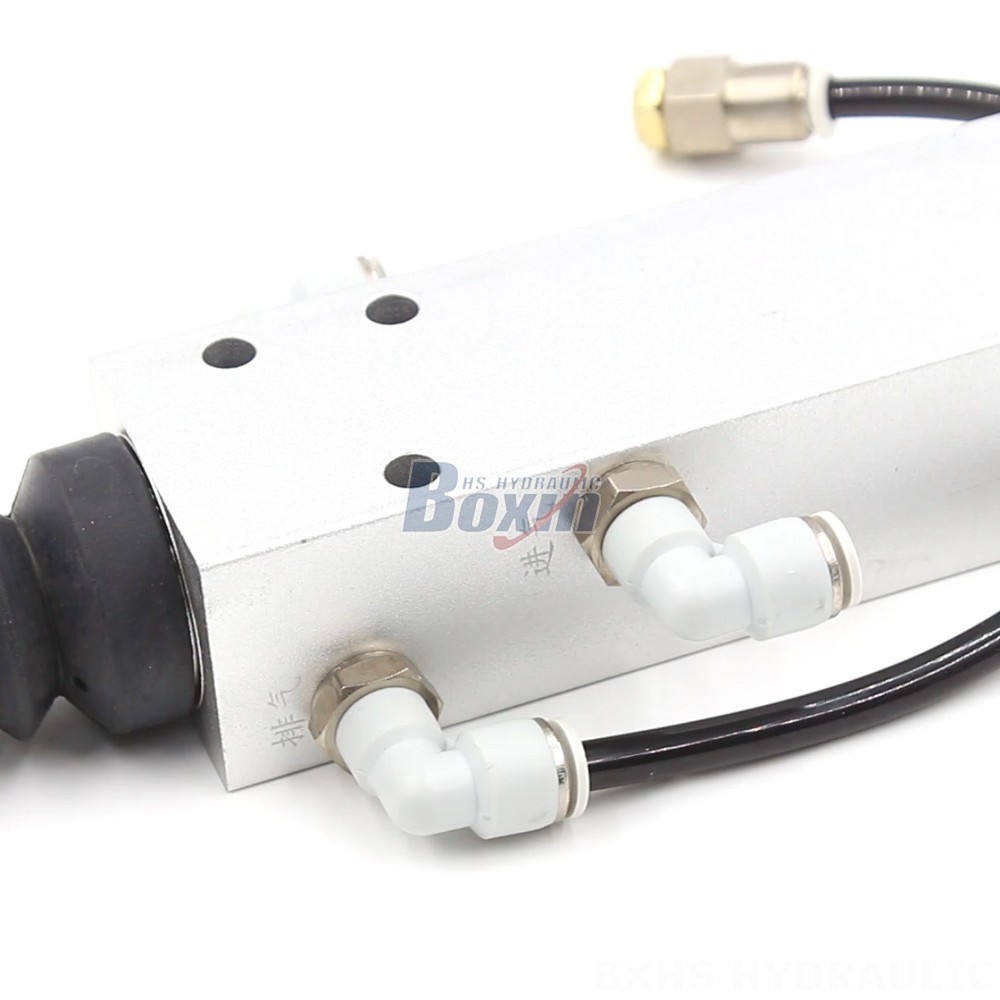

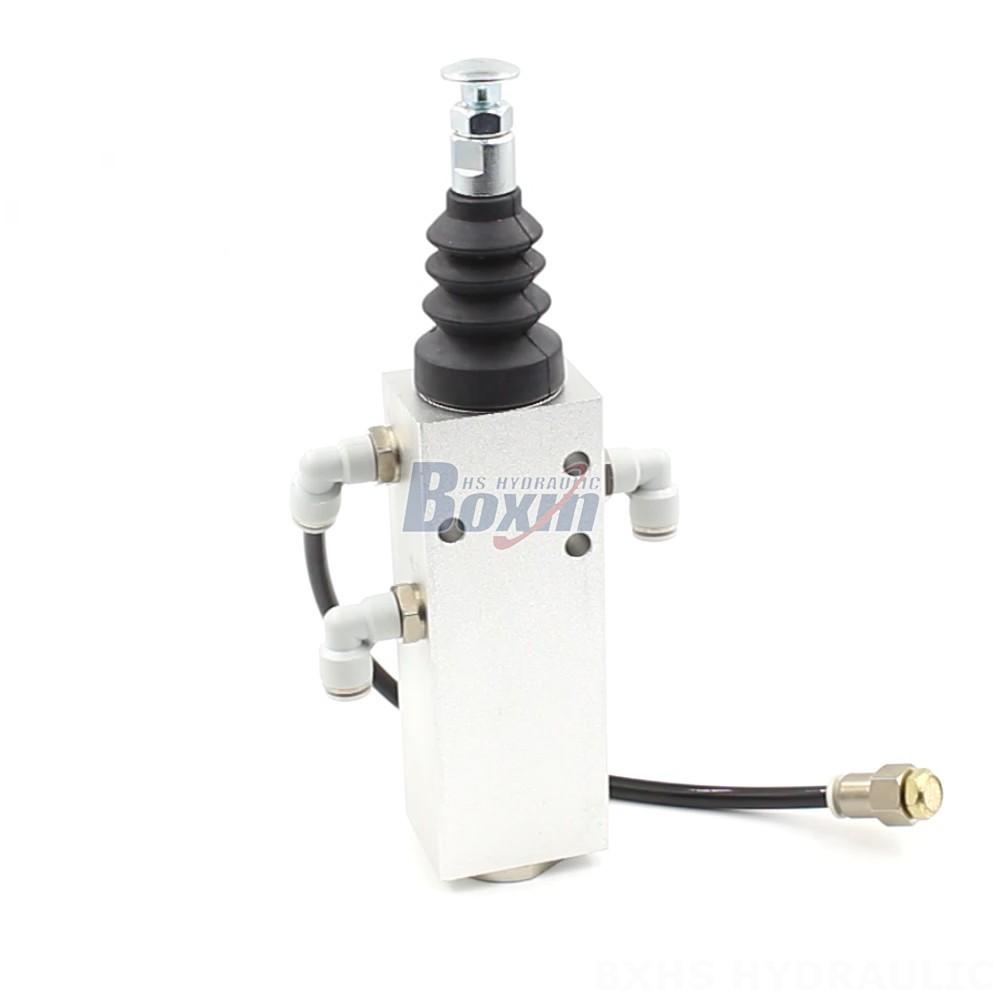

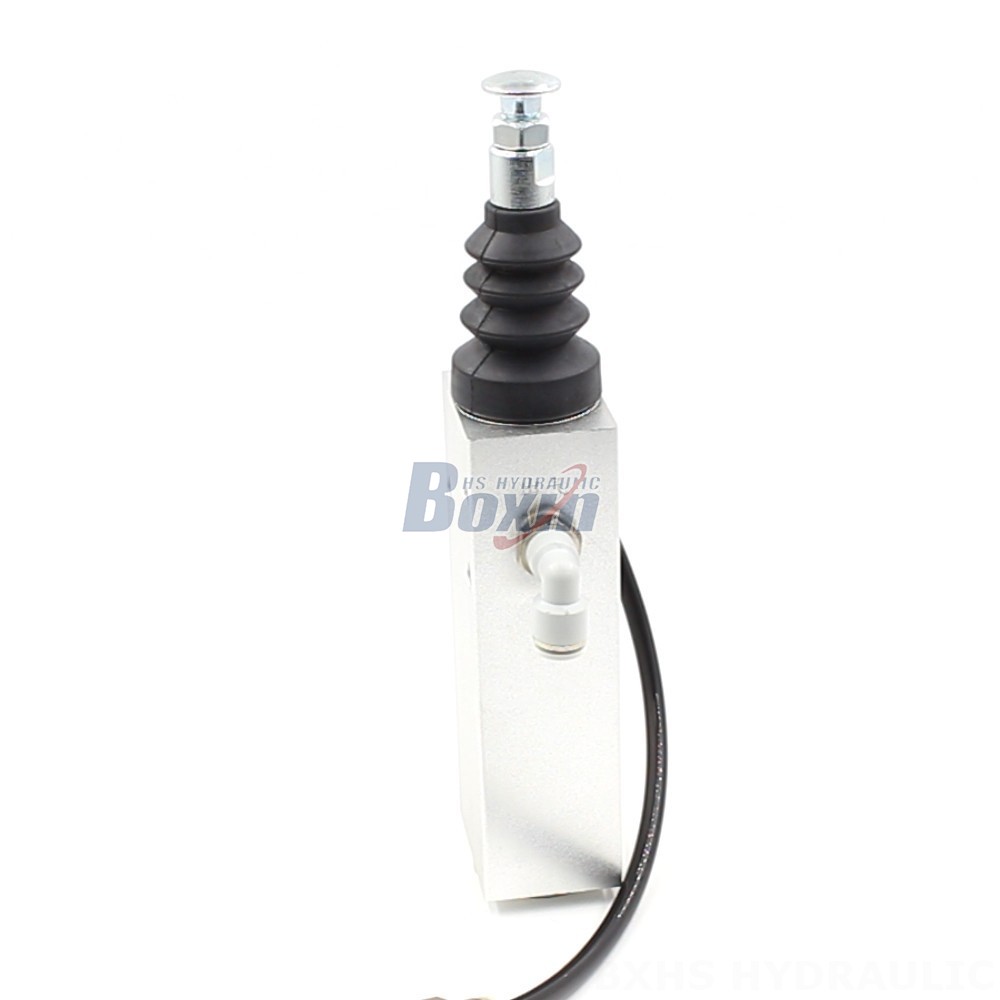

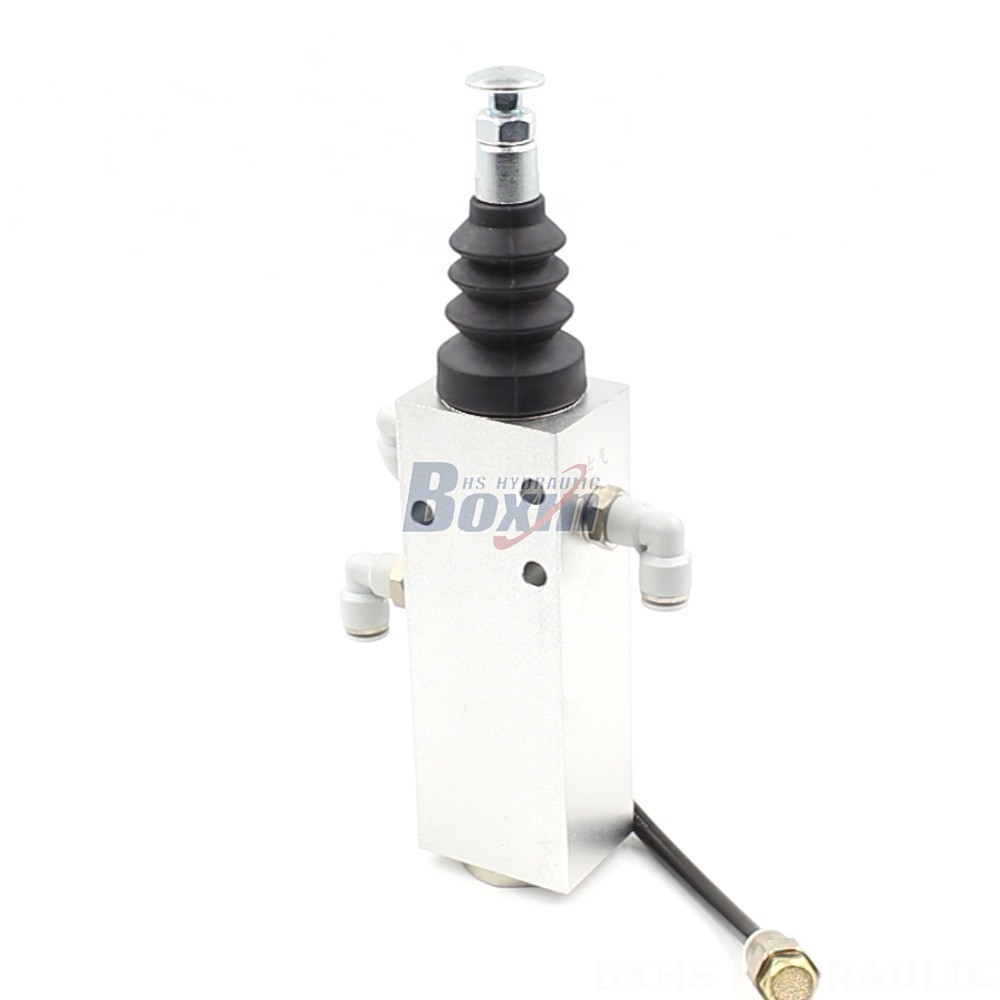

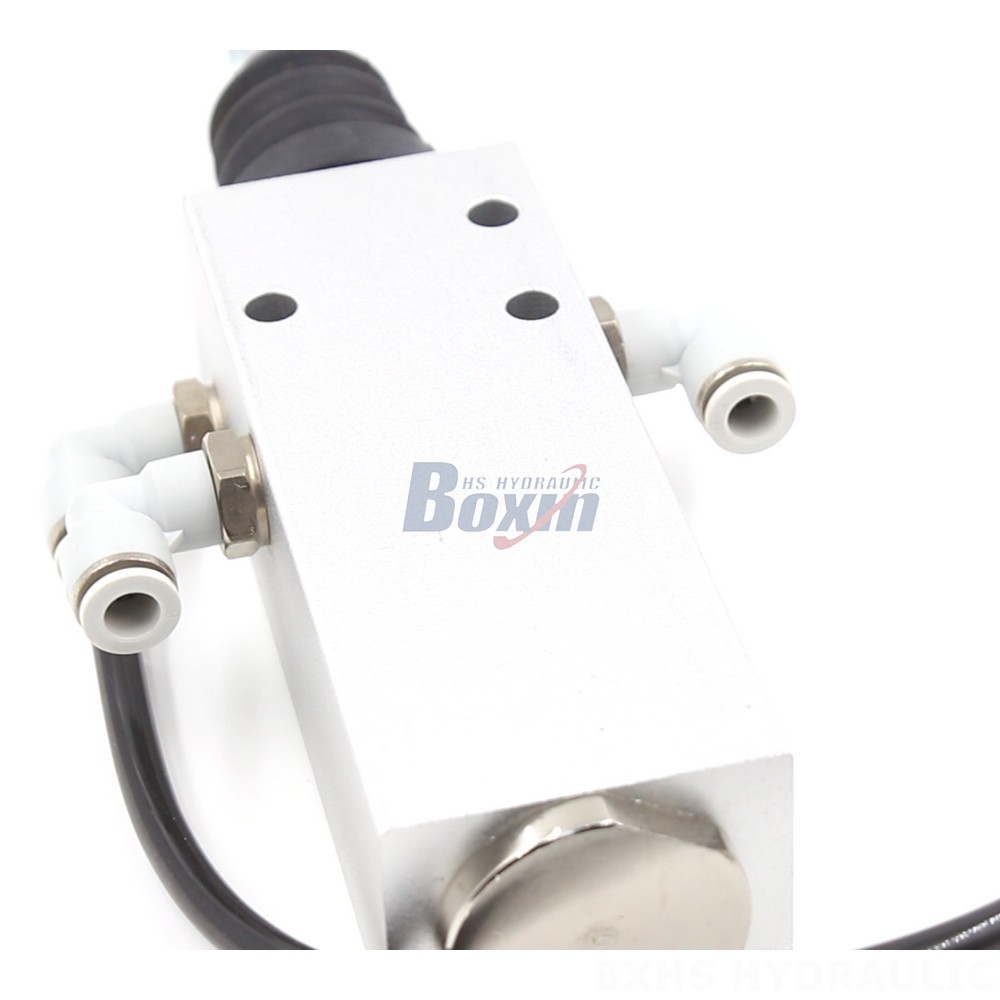

The XQF23 Pneumatic Directional Valve is a reliable and robust solution for controlling hydraulic systems in a variety of applications, including construction, agriculture, and material handling. This monoblock valve features a 1-section design, a maximum pressure of 200 bar (2900 psi), and is suitable for use with a wide range of hydraulic fluids.
| Serie XQF Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Neumático |
| Carrete | 1 carrete |
| Rango de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección |
| Rango de viscosidad de funcionamiento | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Flujo Nominal | 50 l/min (13,2 gal EE. UU./min) |
| Presión Máxima | 200 bar (2900 psi) |
| Puerto de Entrada | G1/4 |
| Puerto de Salida | G1/4 |
| Tamaño de Puerto | G1/4 |
The XQF23 Pneumatic Directional Valve is a high-performance, 1-section monoblock valve designed for use in demanding applications. It features a pneumatic control method, a maximum pressure rating of 200 bar (2900 psi), and an operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt). This valve is ideal for use in a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi excavators, and mini excavators. It offers reliable and precise control of hydraulic systems, ensuring optimal performance and efficiency in various industries.
