Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
1062 personas están viendo este producto

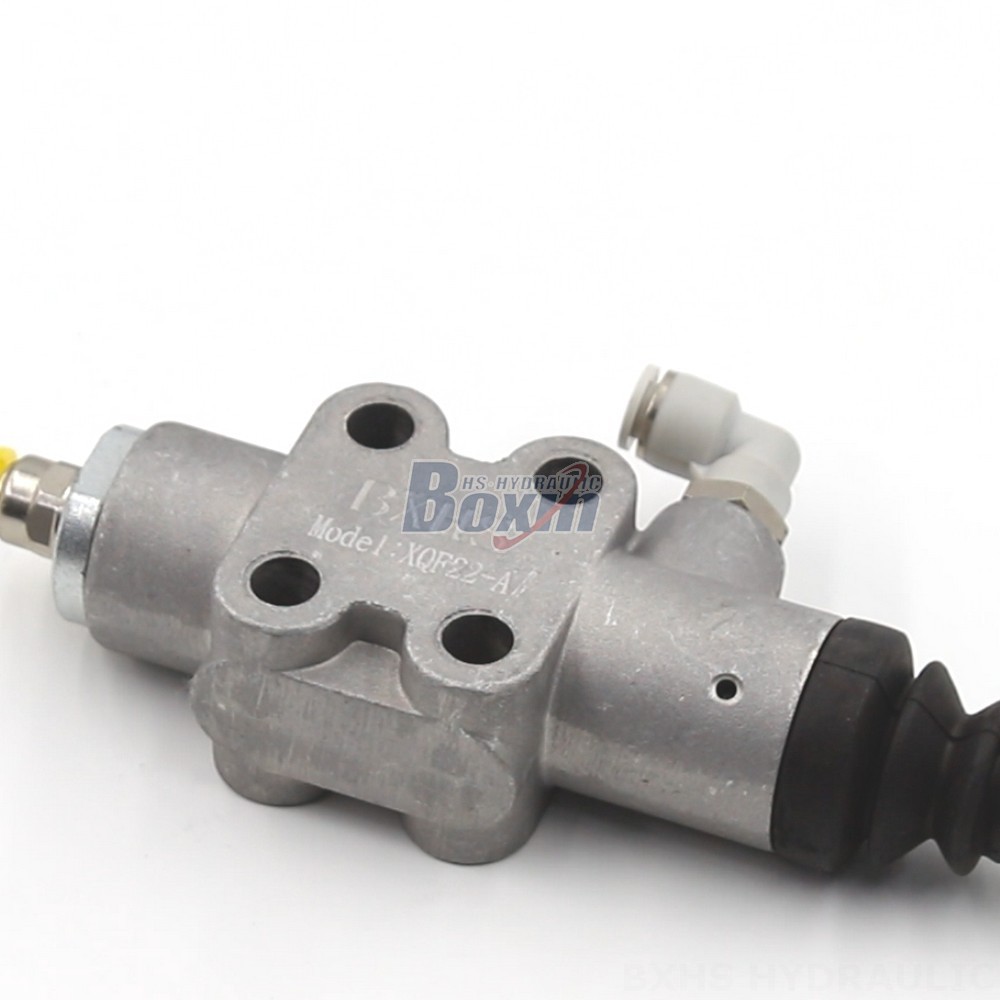

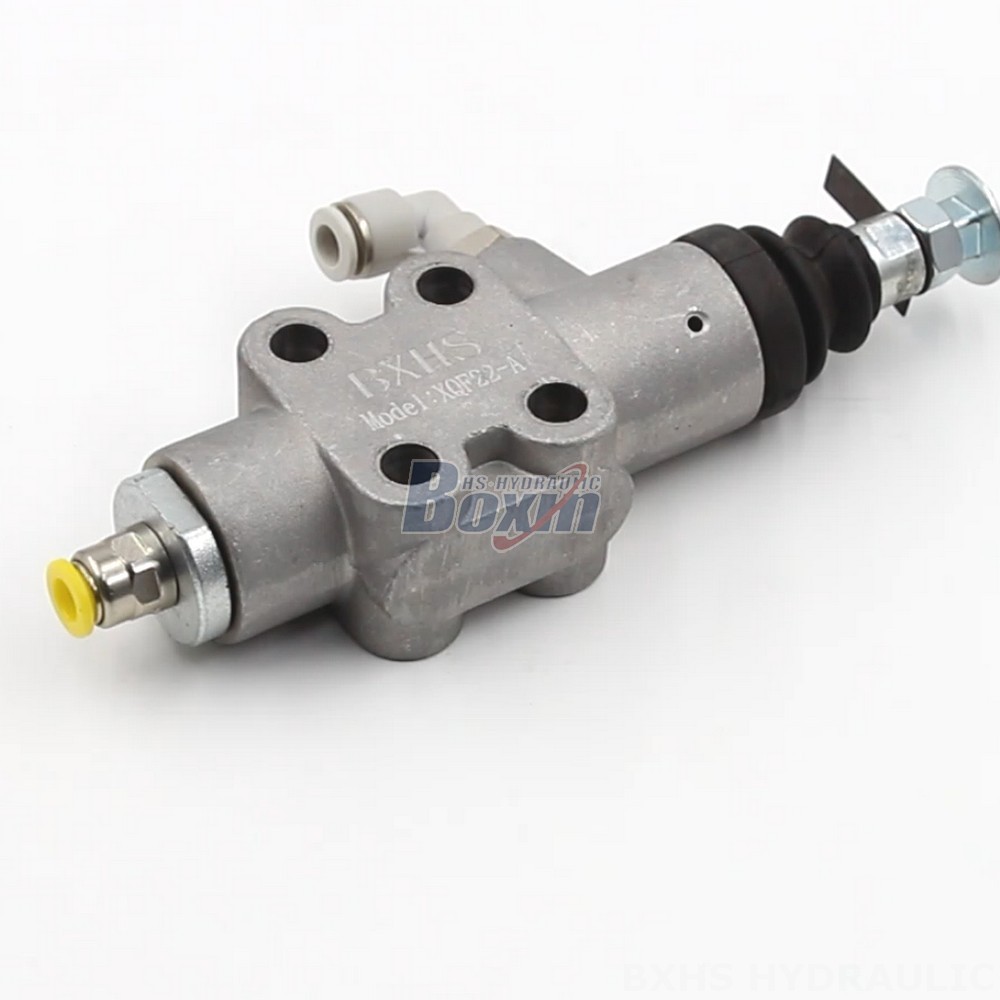

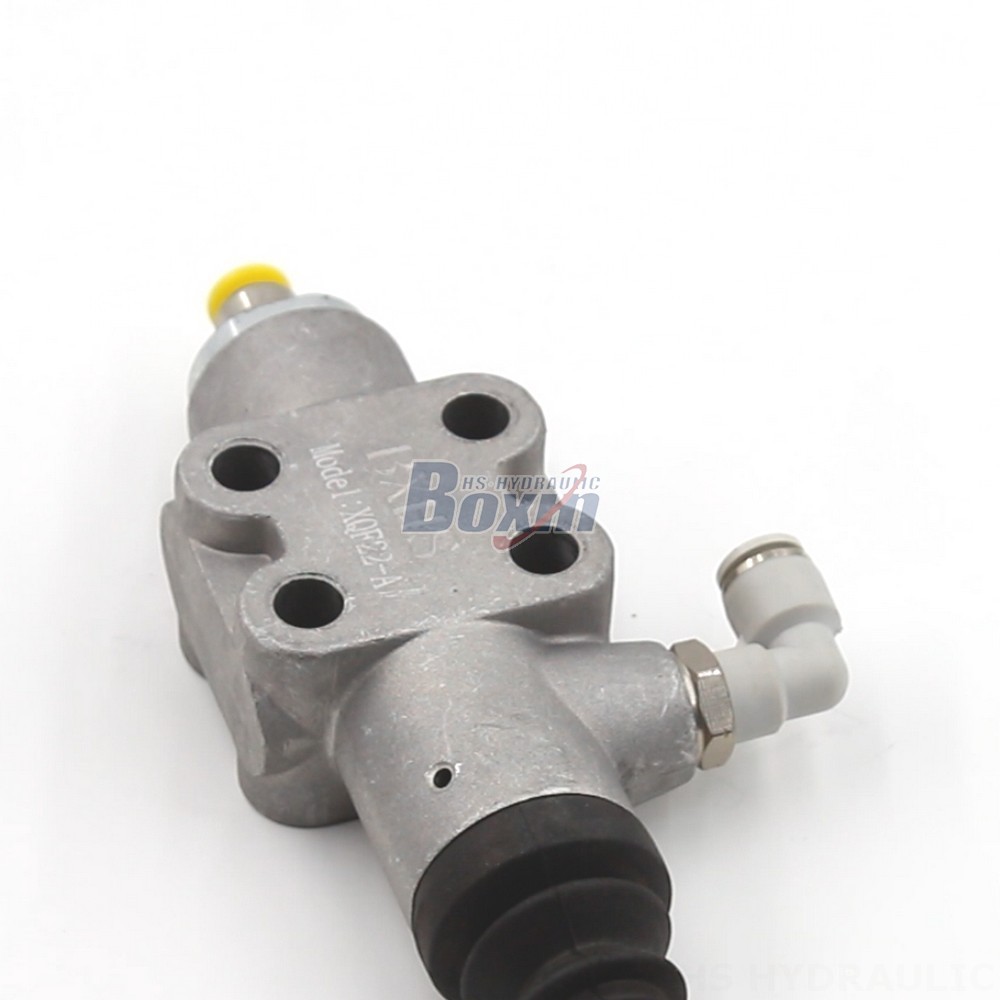

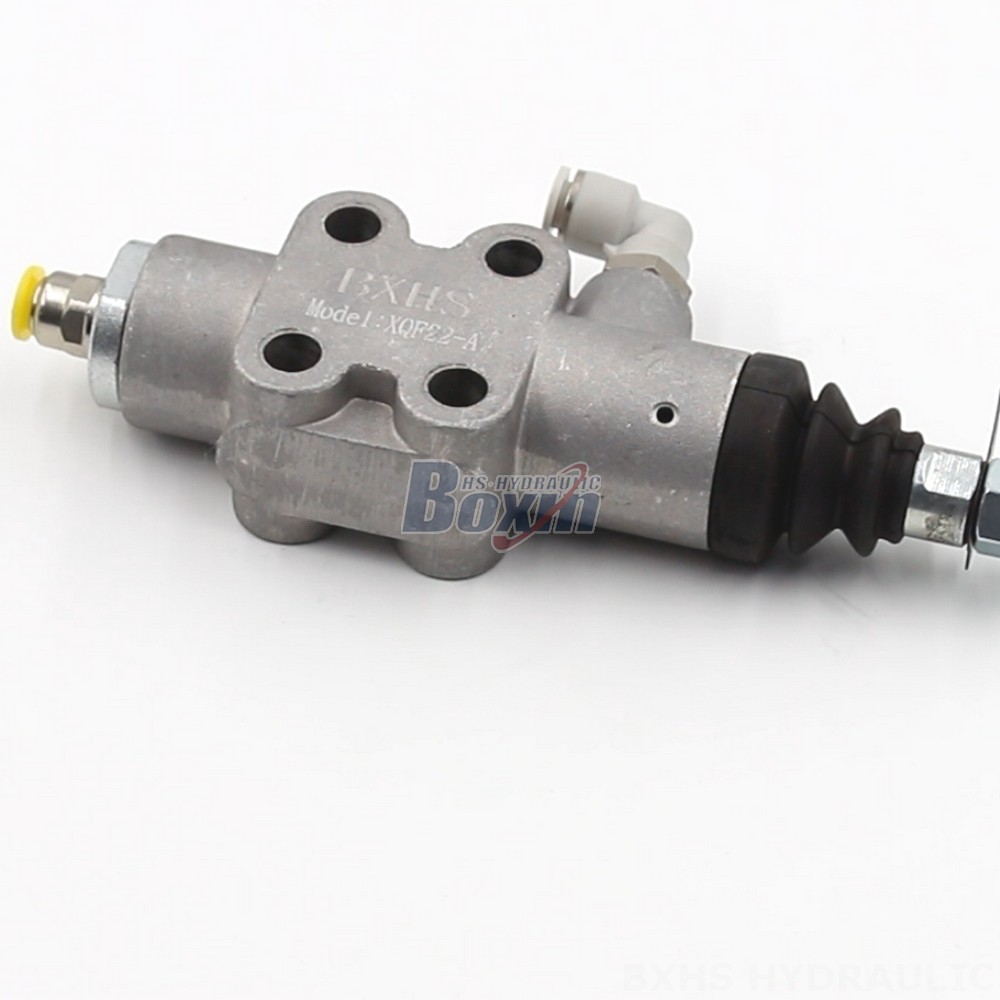

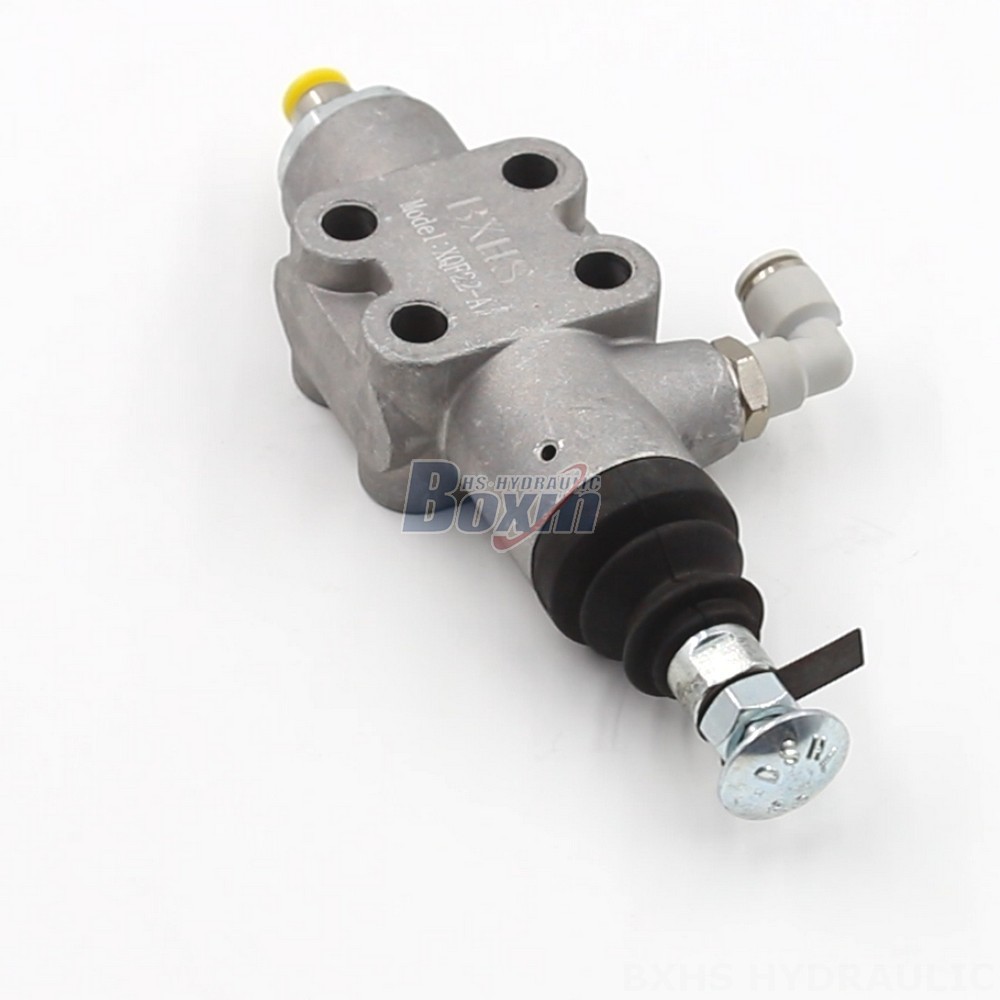

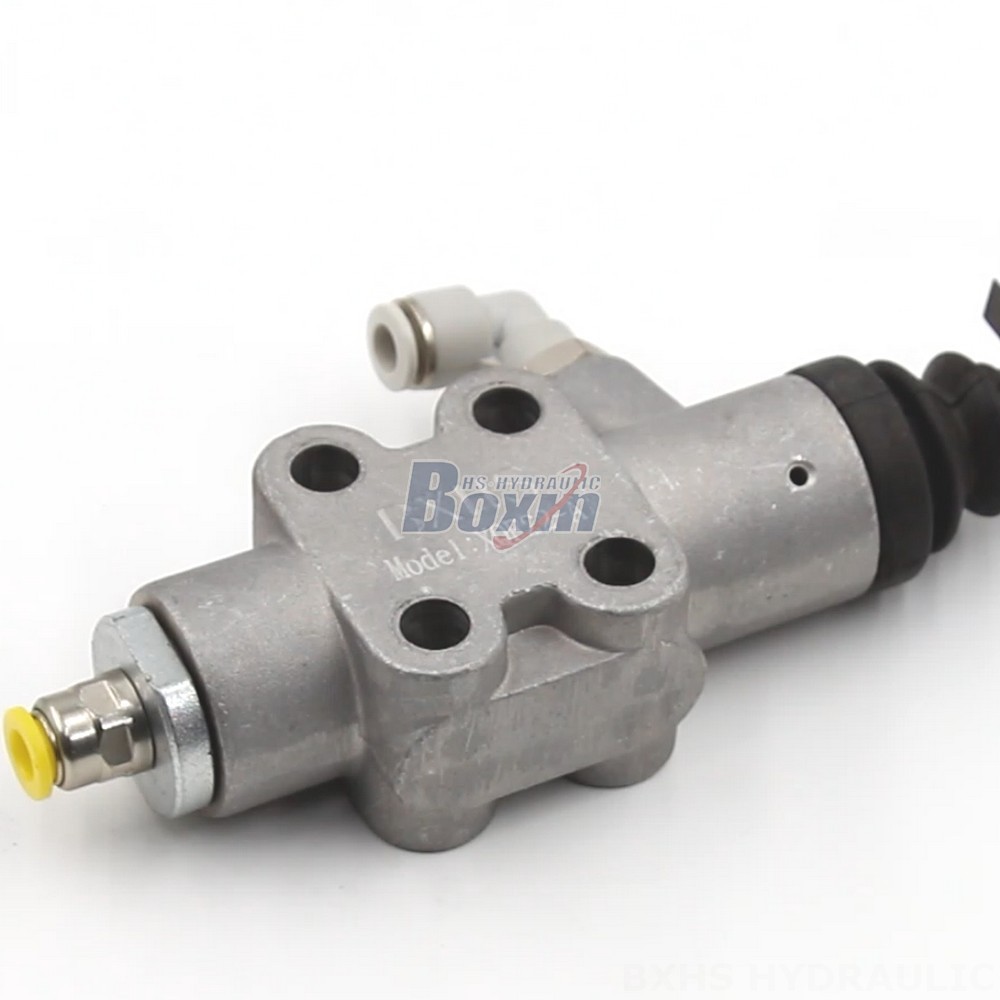

The XQF22-A Pneumatic 1 Spool Monoblock Directional Valve is a high-performance valve designed for use in a wide range of industrial applications. With a rated flow of 60 L/min and a maximum pressure of 200 bar, this valve is well-suited for handling demanding hydraulic systems. Its compact design and monoblock construction make it ideal for applications where space is limited.
| Serie XQF Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Neumático |
| Carrete | 1 carrete |
| Rango de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección |
| Rango de viscosidad de funcionamiento | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Flujo Nominal | 50 l/min (13,2 gal EE. UU./min) |
| Presión Máxima | 200 bar (2900 psi) |
| Puerto de Entrada | G1/4 |
| Puerto de Salida | G1/4 |
| Tamaño de Puerto | G1/4 |
**XQF22-A Pneumatic 1 Spool Monoblock Directional Valve**
**Control Method:** Pneumatic
**Section:** 1 Section
**Rated Flow:** 60 L/min (15.8 US gpm)
**Max Pressure:** 200 bar (2900 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:** -40°C to +60°C (-40°F to +140°F)
**Spool:** 1 Spool
**Series:** XQF22-A Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER,TRACTOR AND FRONT-END LOADER
The XQF22-A Pneumatic 1 Spool Monoblock Directional Valve is a versatile and reliable valve that is well-suited for a wide range of applications. Its compact design and high performance make it an ideal choice for demanding hydraulic systems.
