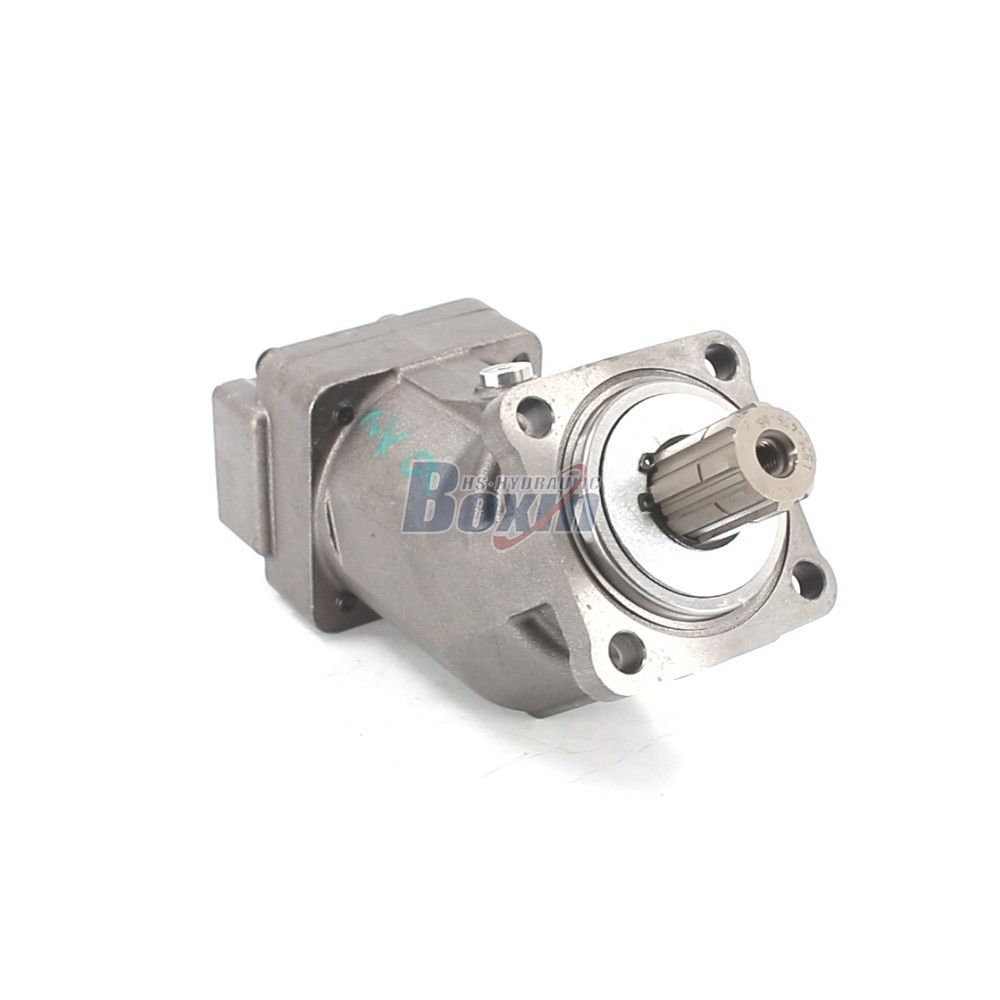

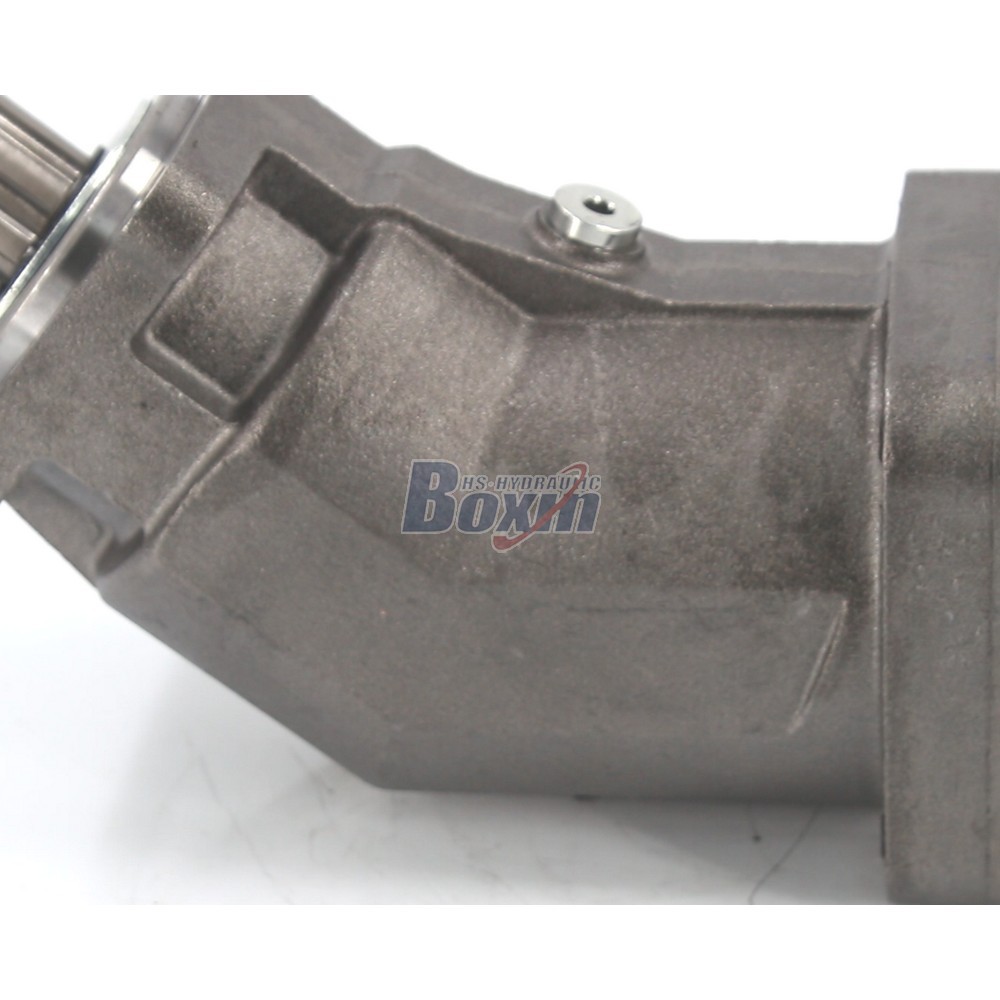

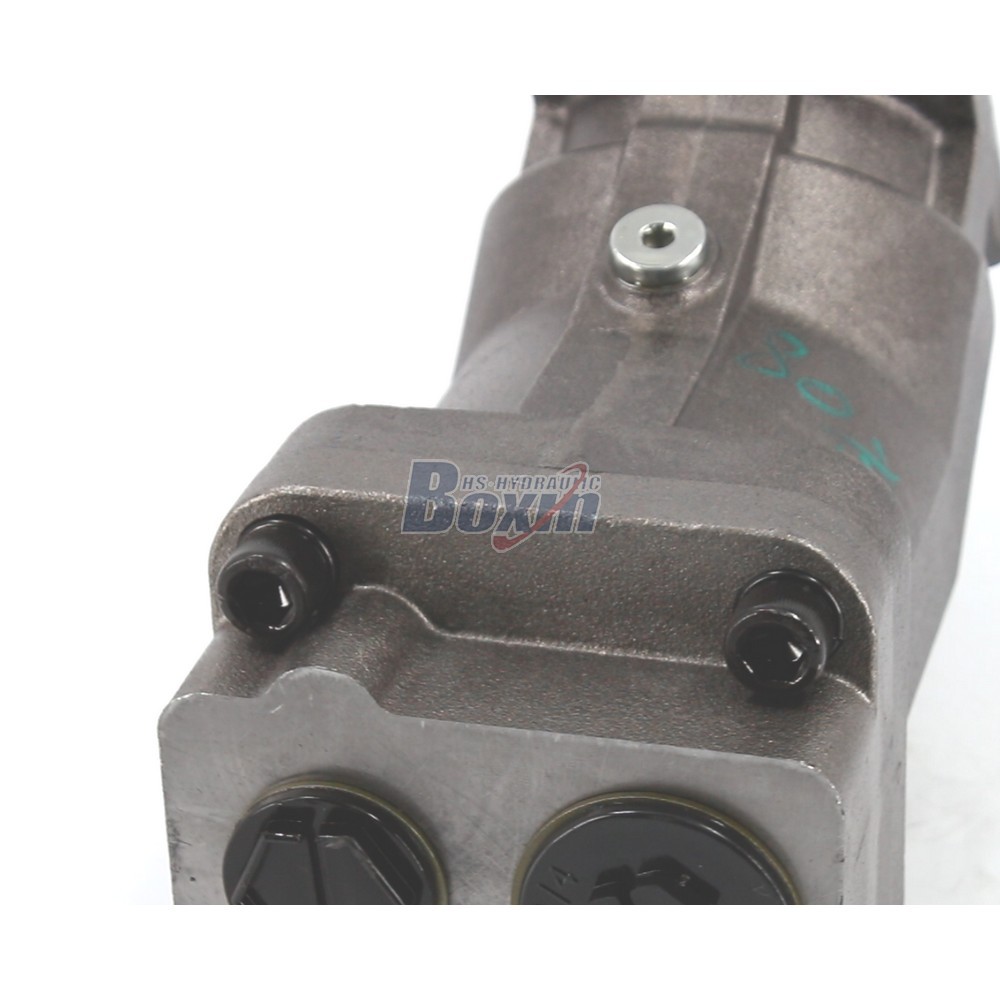

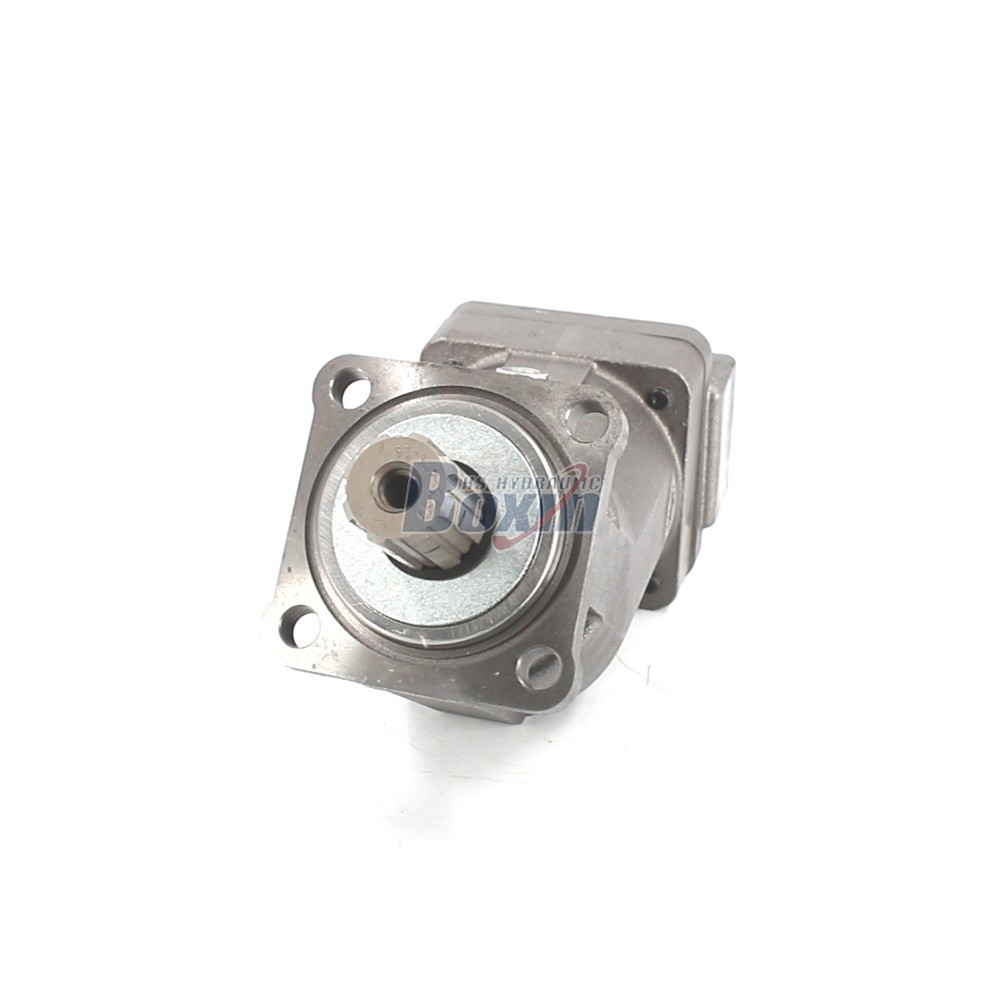

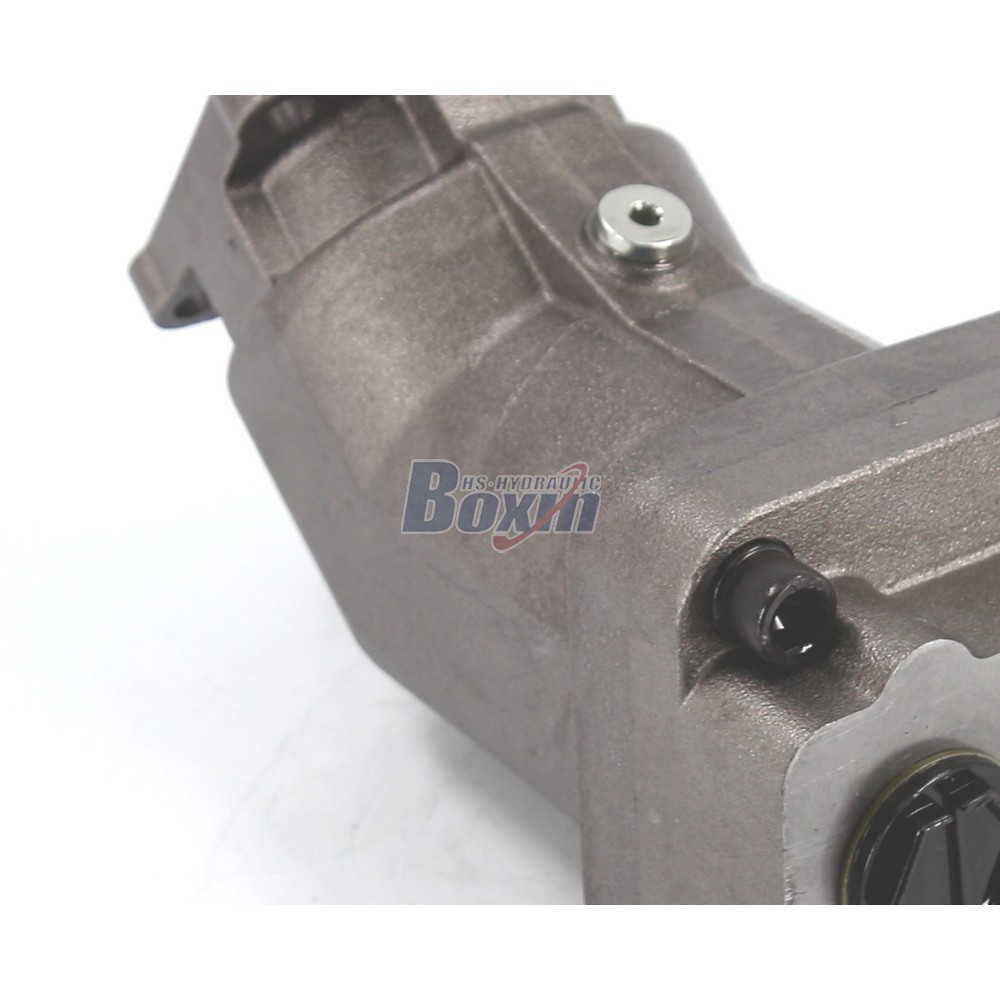

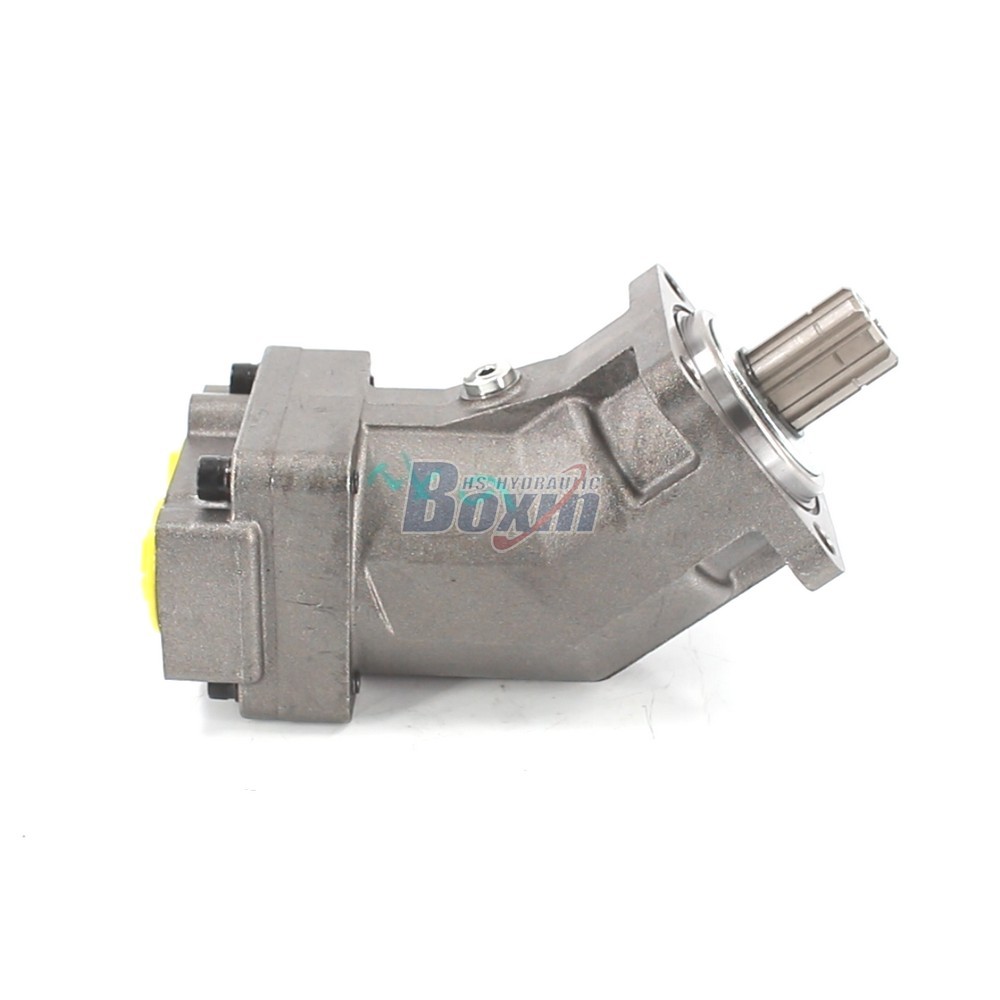

The XPI-108L Series is a high-performance 108 cc/rev fixed displacement axial piston pump designed for demanding hydraulic systems. Operating at a rated pressure of 38 MPa with peaks up to 42 MPa, this left-hand rotation pump is engineered for durability and efficiency in heavy-duty applications ranging from construction machinery to agricultural equipment.
| Serie XPI Bomba de pistón hidráulico Parámetros | |
|---|---|
| Desplazamiento | 32 cc/rev, 40 cc/rev, 45 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 25 cc/rev, 108 cc/rev |
| Presión Nominal | 38 MPa (5511 psi) |
| Presión Máxima | 42 MPa (6091 psi) |
| Velocidad Nominal | 1600 r/min |
| Velocidad Máxima | 1900 r/min |
| Rotación | L: Izquierda (antihorario), R: Derecha (horario) |
| Material | Hierro fundido |
| Estructura | Plato oscilante |
| Versión de brida | ISO-4 Orificios de montaje |
| Tipo eje | H: Estría rectangular |
As a leading large-scale manufacturer of hydraulic solutions, we offer the XPI-108L Series Hydraulic Piston Pump, specifically engineered for high-pressure environments. With a displacement of 108 cc/rev and a maximum speed of 1900 r/min, this pump is ideal for concrete boom pumps, wheel loaders, mini-excavators, and truck-mounted cranes. We provide comprehensive manufacturing services including OEM, private labeling, and custom engineering to meet specific technical requirements. Our factory direct supply ensures competitive wholesale pricing for global markets. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Whether you need bulk procurement or specialized customization for material handling and earthmoving equipment, our facility provides reliable support and consistent quality. Join our global distribution network and benefit from our extensive manufacturing expertise in industrial vehicle and agricultural hydraulic systems.
