The P40-G12-G38-4OT Manual Monoblock Directional Valve is a high-performance hydraulic component designed to control the flow of fluid in hydraulic systems. Manufactured directly by our factory, this valve offers exceptional value and reliability for various applications across industries.
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

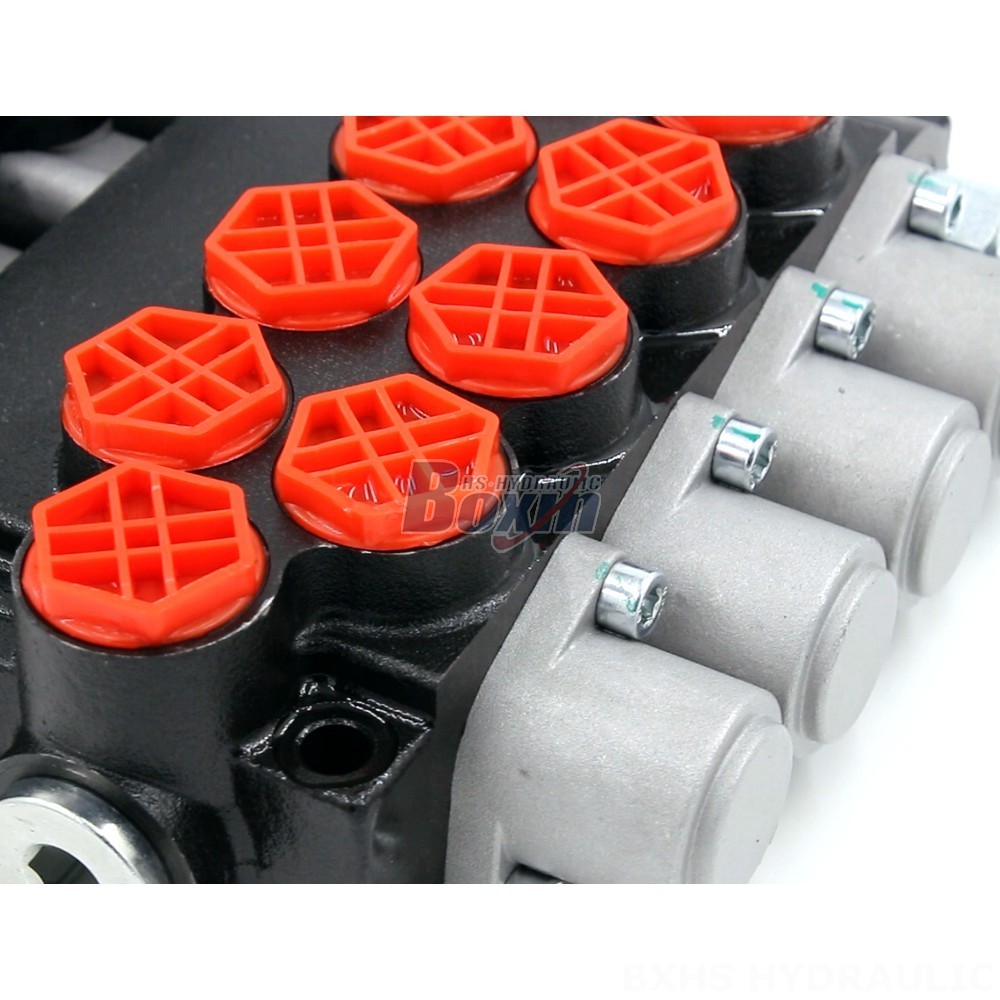

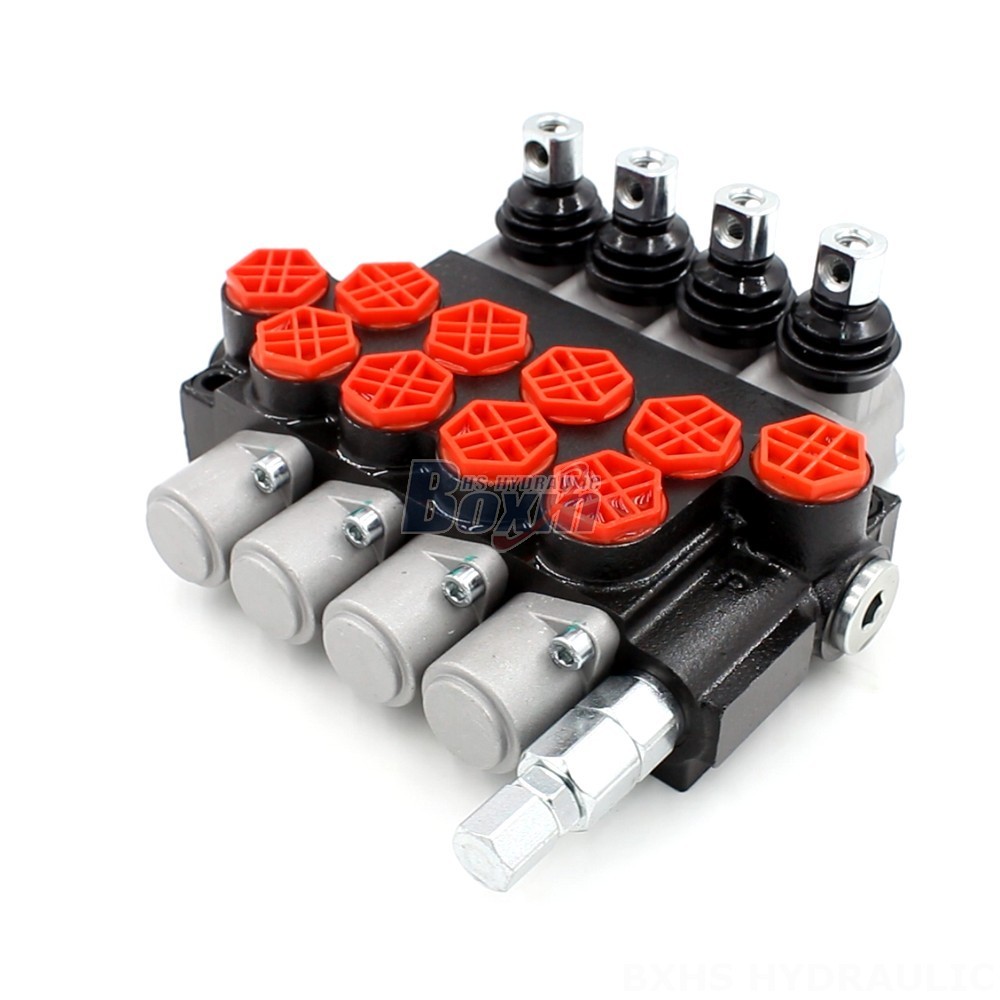

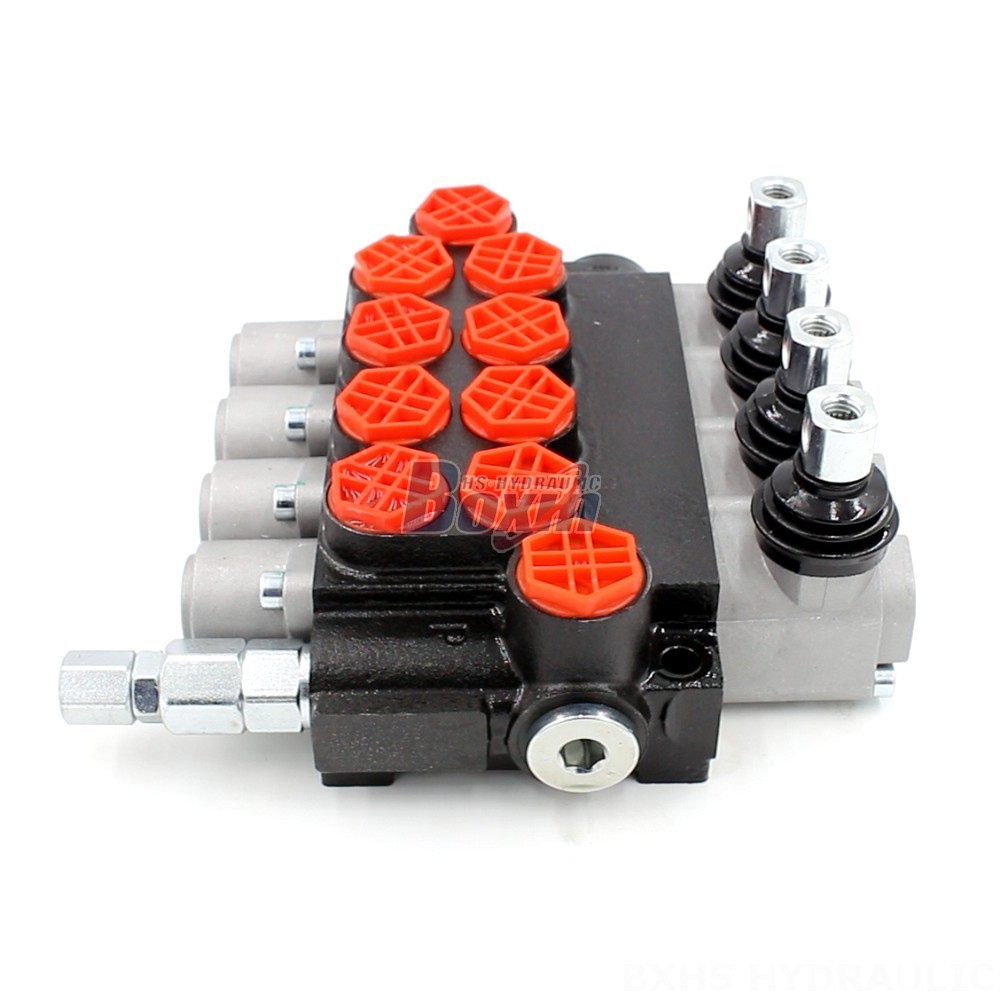

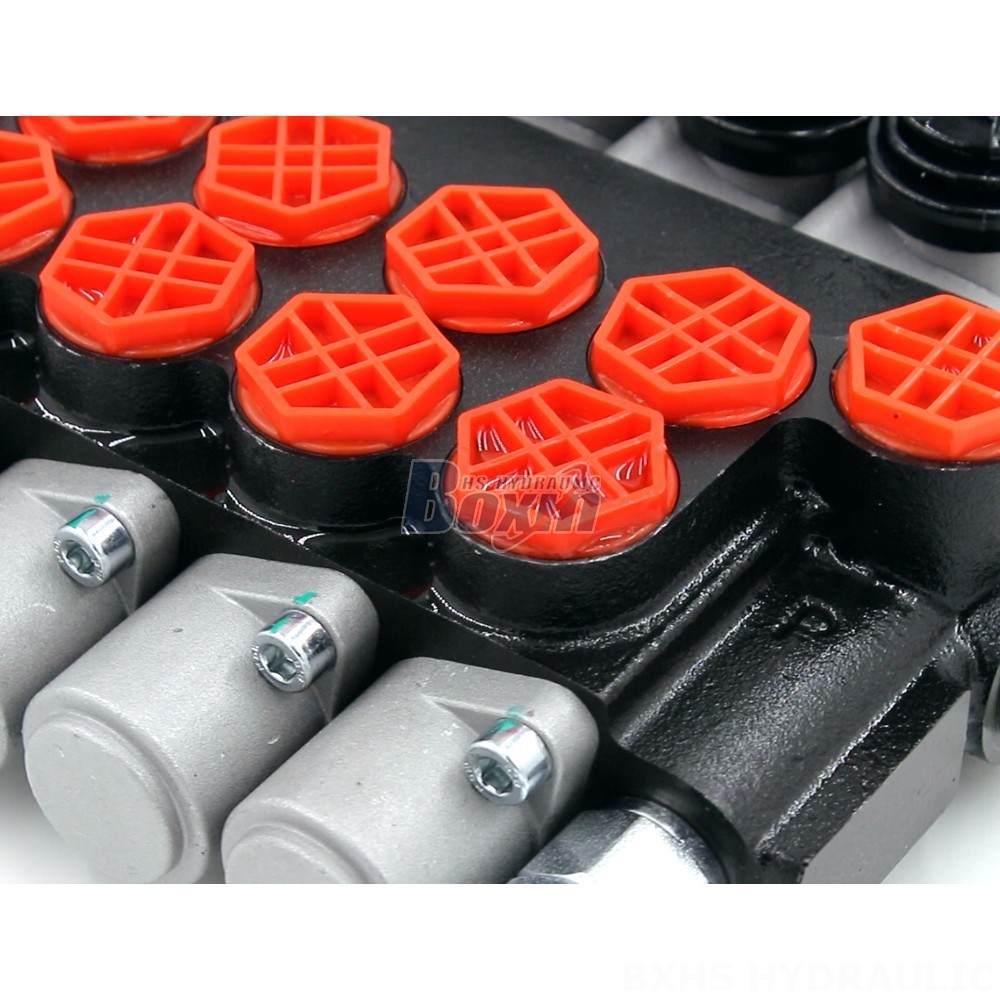

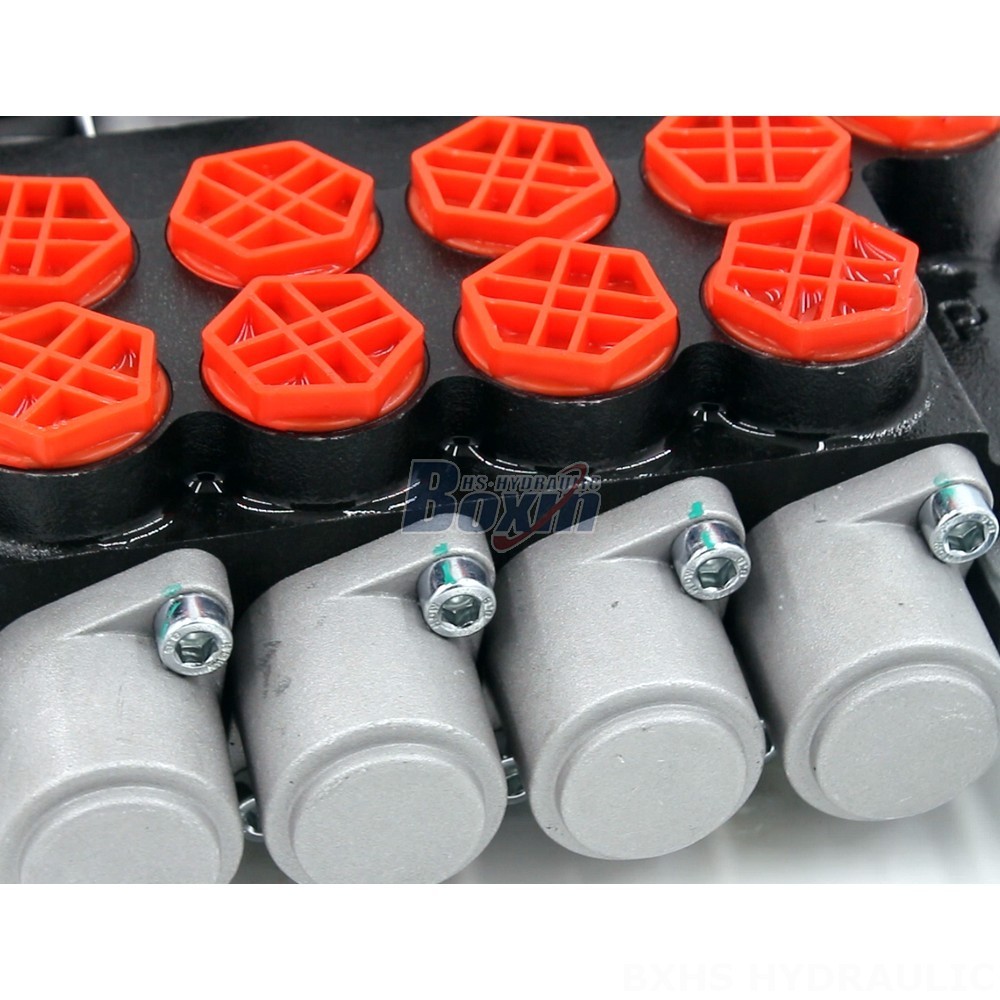

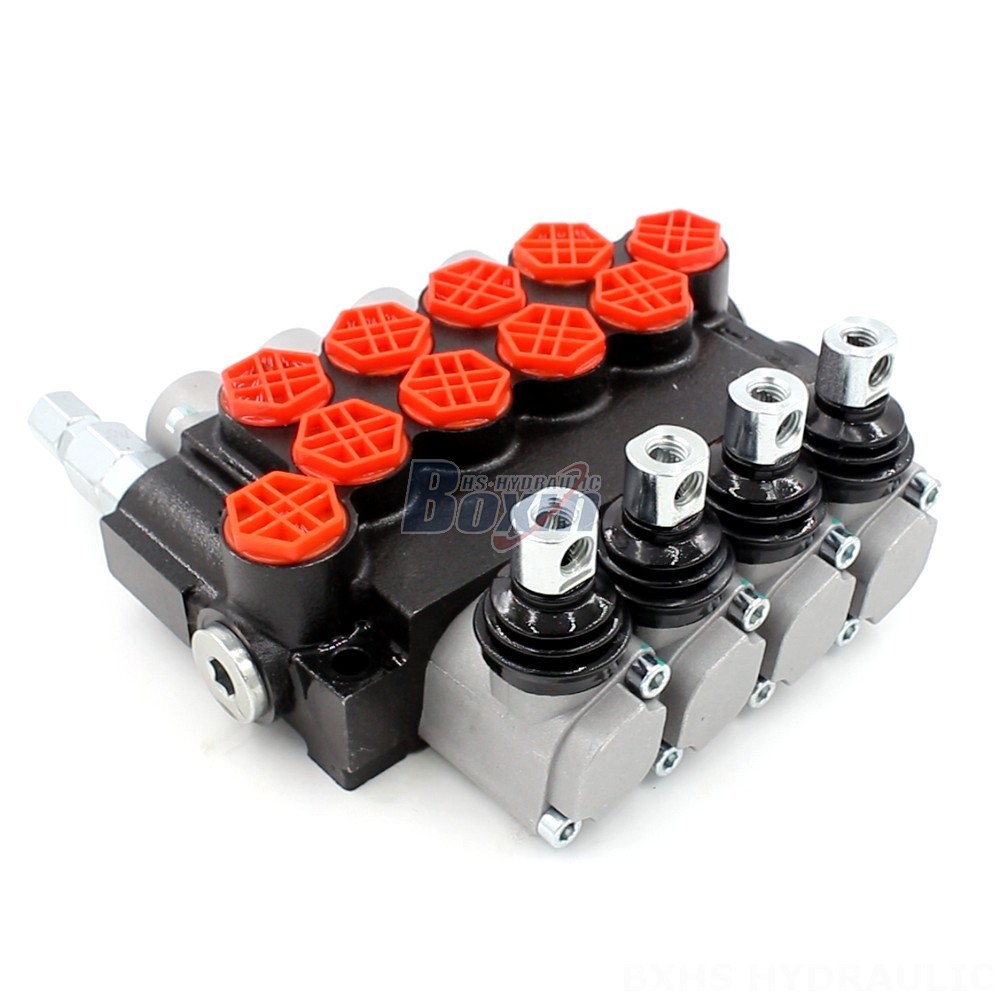

**P40-G12-G38-4OT Manual Monoblock Directional Valve**
**Factory-Direct Supply for Value and Reliability**
As a leading manufacturer of hydraulic products, we offer factory-direct supply of the P40-G12-G38-4OT Manual Monoblock Directional Valve, ensuring competitive pricing and quality control from the source.
**Product Specifications**
- Control Method: Manual
- Section: 4 Section
- Structure Type: Monoblock Valve
- Rated Flow: 40 L/min (10.5 US gpm)
- Max Pressure: 250 bar (3600 psi)
- Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
- Spool: 4 Spool
- Series: P40 Series
**Versatile Applications**
The P40-G12-G38-4OT Manual Monoblock Directional Valve finds applications in various industries, including:
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Quality Assurance**
Our P40 Series valves are ISO and CE certified, guaranteeing adherence to international quality standards. We prioritize customer satisfaction and provide comprehensive after-sales support to ensure optimal performance and longevity of our products.
