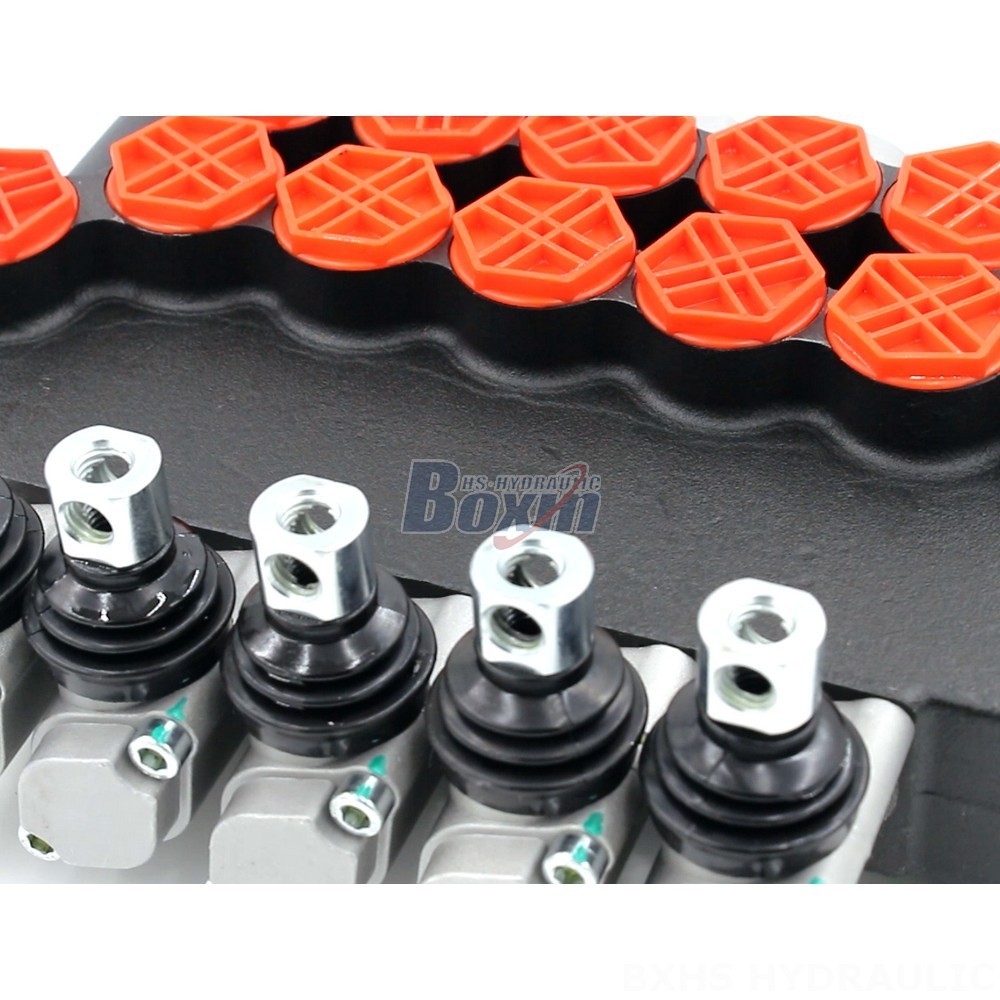

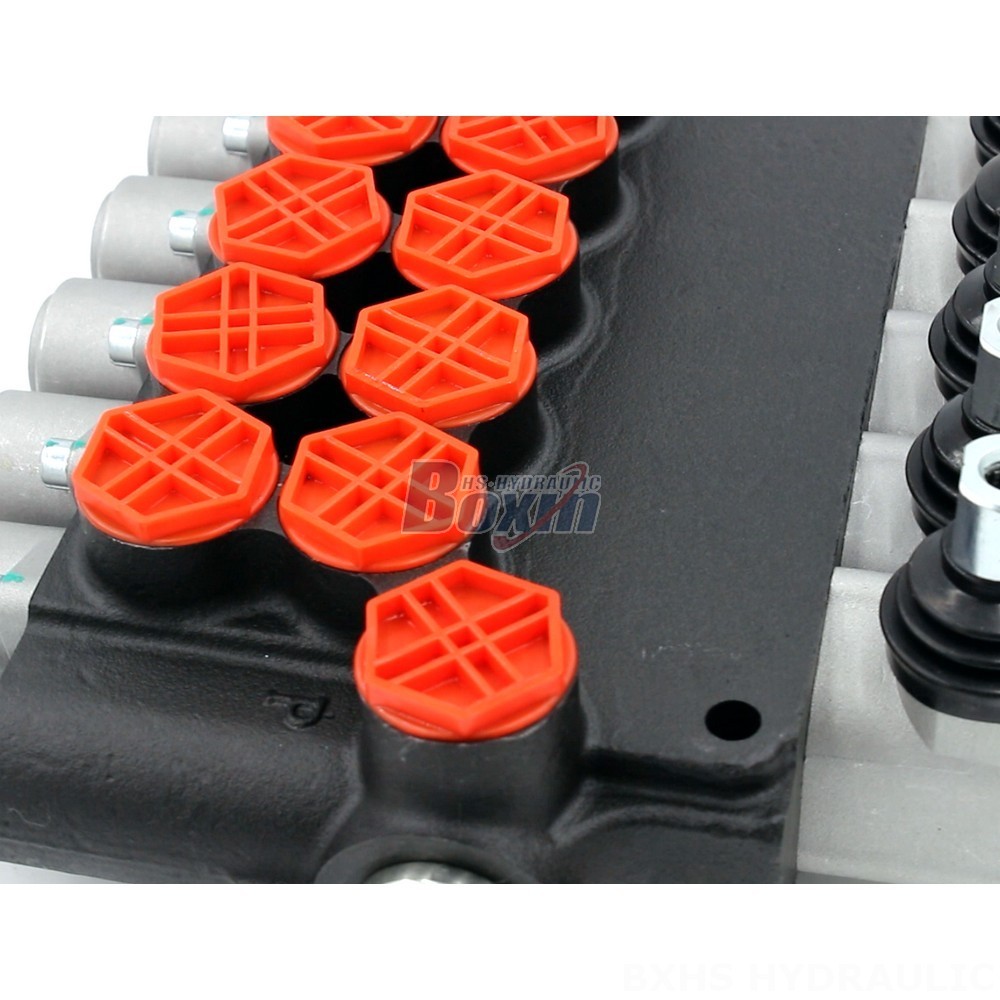

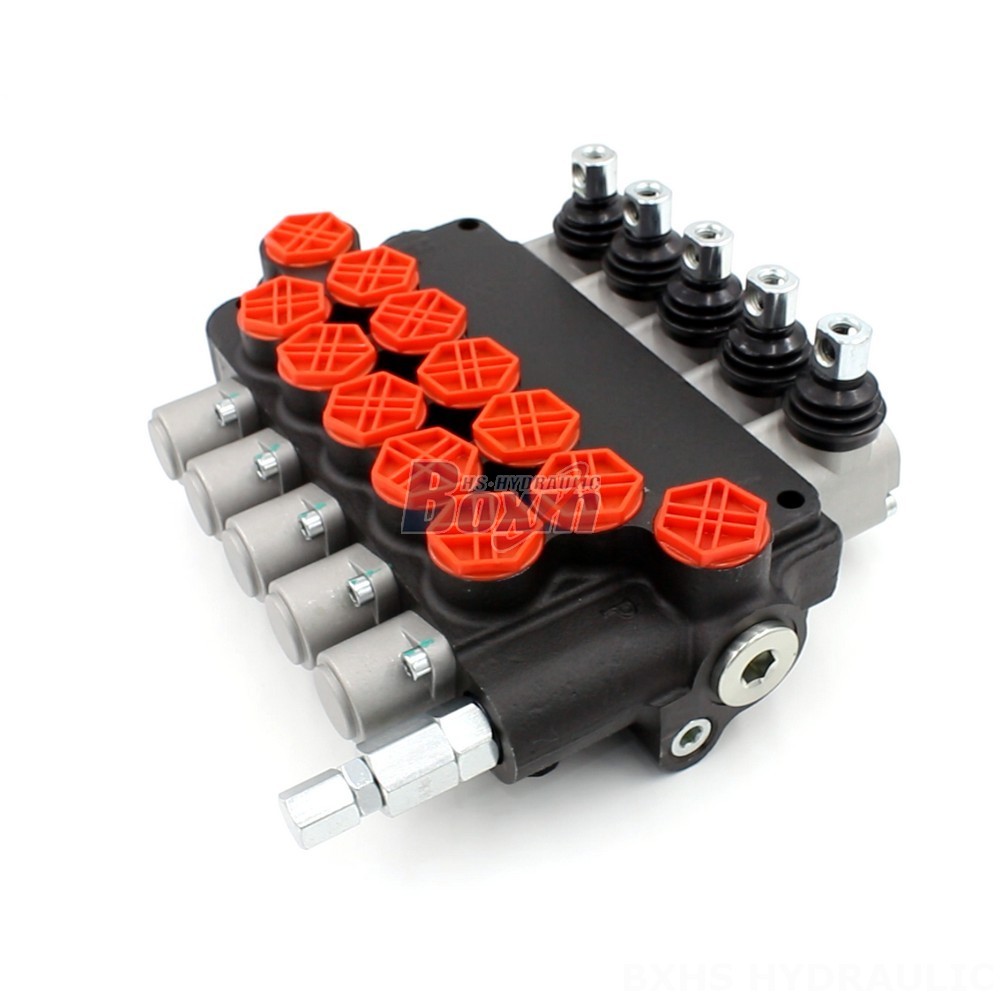

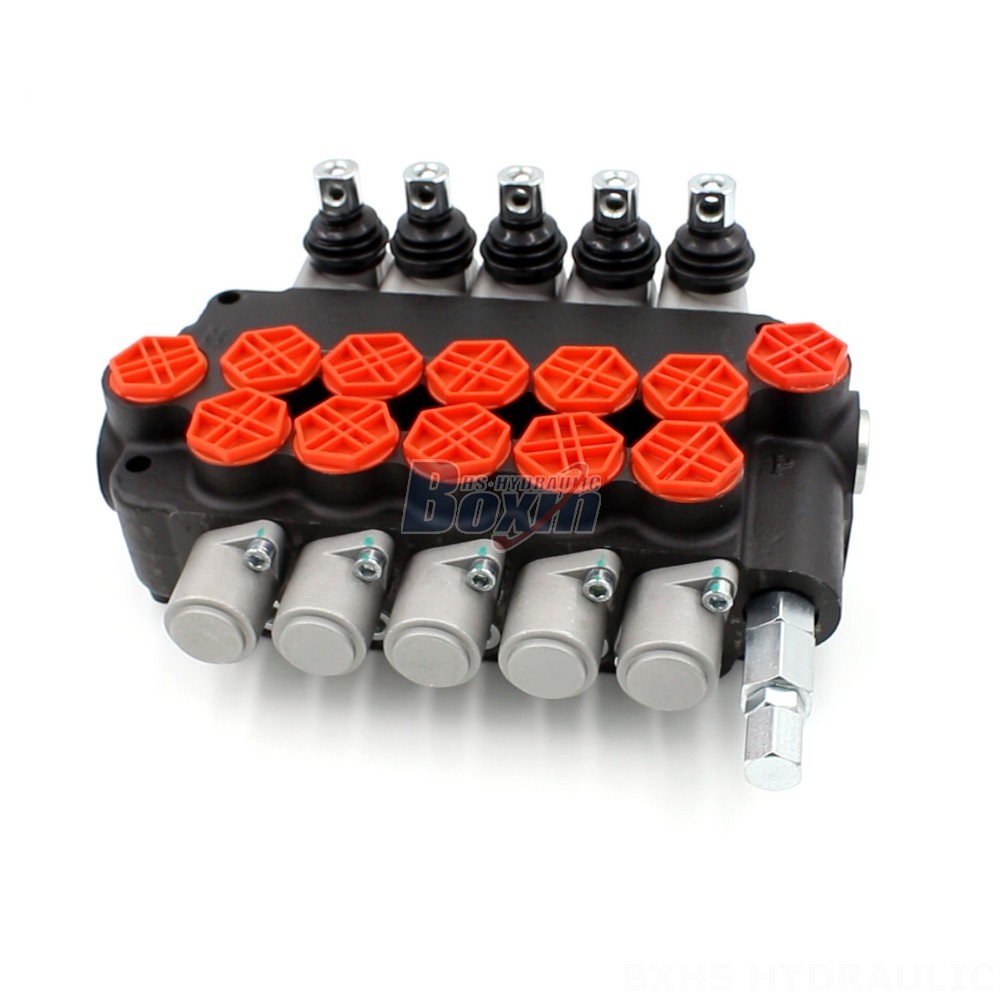

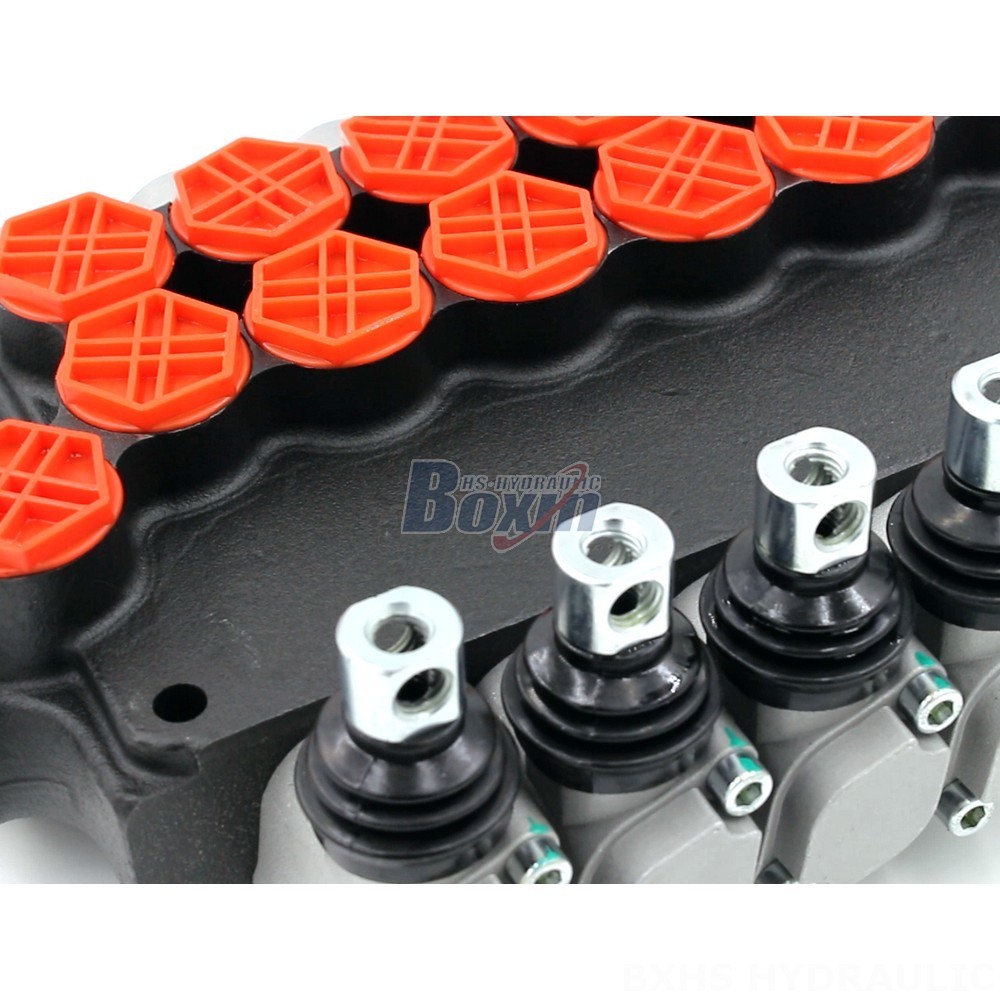

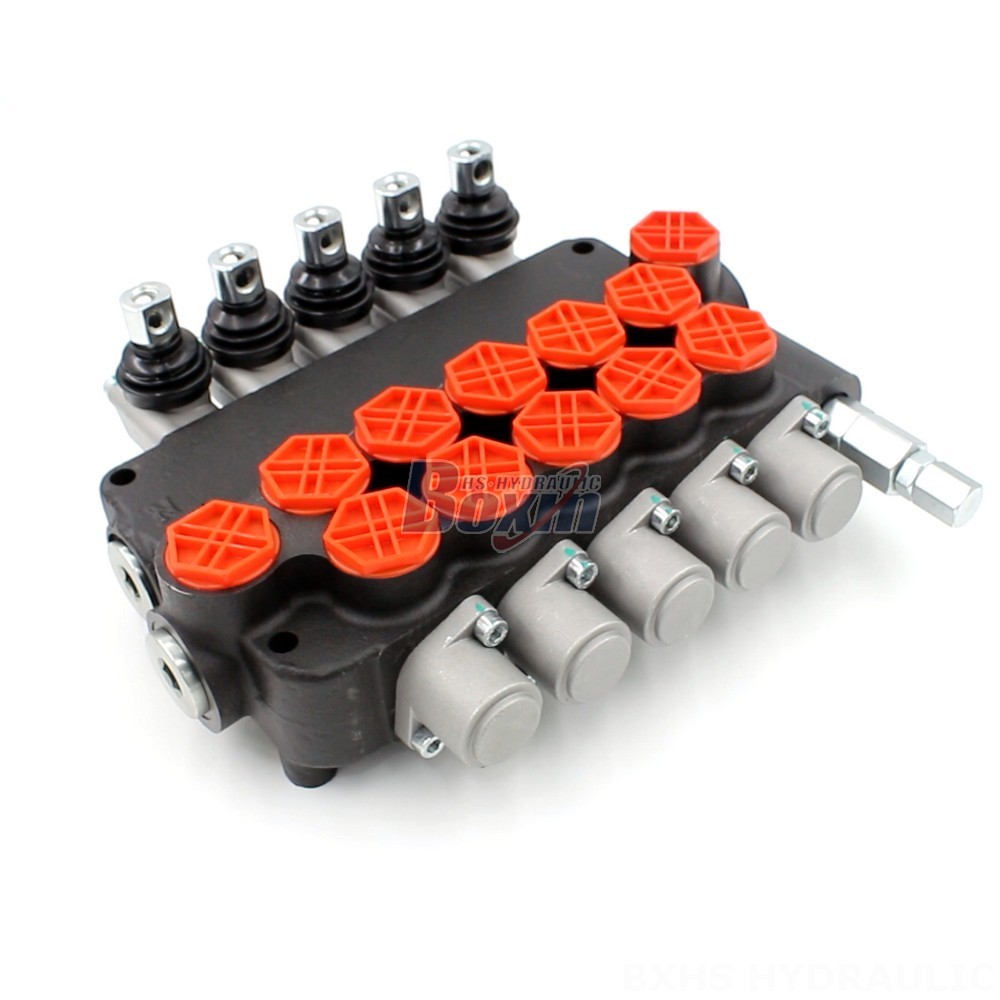

Top Manufacturer of P80-G34-5OT 5 Spool Directional Valve

Método de control:Manual

Carrete:5 carretes

Flujo Nominal:80 l/min (21,2 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G3/4

Puerto de Salida:G3/4

Tamaño de Puerto:G3/4

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P80 Válvula Direccional Monobloque

Tamaño del embalaje:26*30*11

Peso bruto:16.00 kg

Disponibilidad: En stock

1145 personas están viendo este producto

Top Manufacturer of P80-G34-5OT 5 Spool Directional Valve

Top Manufacturer of P80-G34-5OT 5 Spool Directional Valve

Top Manufacturer of P80-G34-5OT 5 Spool Directional Valve drawing image

The P80-G34-5OT 5 Spool Directional Valve is a heavy-duty, high-performance hydraulic valve designed for use in a wide range of construction, agricultural, and industrial applications. This 5-section monoblock valve features manual control, 80 L/min flow rate, and 250 bar maximum pressure, making it ideal for demanding tasks.

Serie P80 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 80 l/min (21,2 gal EE. UU./min)
Presión Máxima 315 bar (4600 psi)
Puerto de Entrada G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Puerto de Salida G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Tamaño de Puerto G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80 series auxiliary hydraulic valve is a top-of-the-line product manufactured for global markets. It is a 5-spool directional valve with manual control, designed for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. The valve is a monoblock structure with a rated flow of 80 L/min and a maximum pressure of 250 bar. It is suitable for a wide range of operating viscosity, from 15 to 75 mm²/s, and can withstand ambient temperatures from -40°C to +80°C. The valve is designed for use in a variety of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, face drill rigs, concrete boom pumps, pave rollers, rotary drilling, crushers, and stone cutters. This high-quality valve offers durability, reliability, and high performance, making it an excellent choice for demanding applications.
