Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
Innovation drives development Technology forges future
1121 personas están viendo este producto

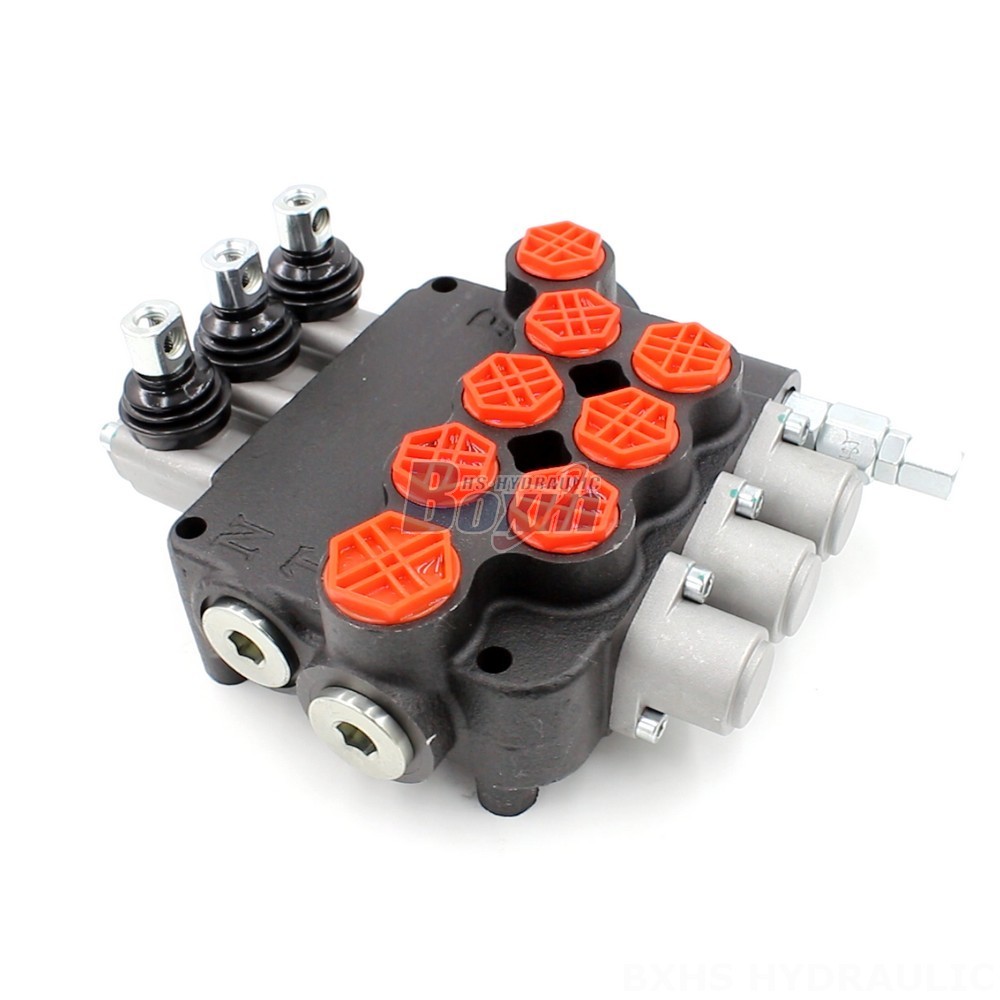

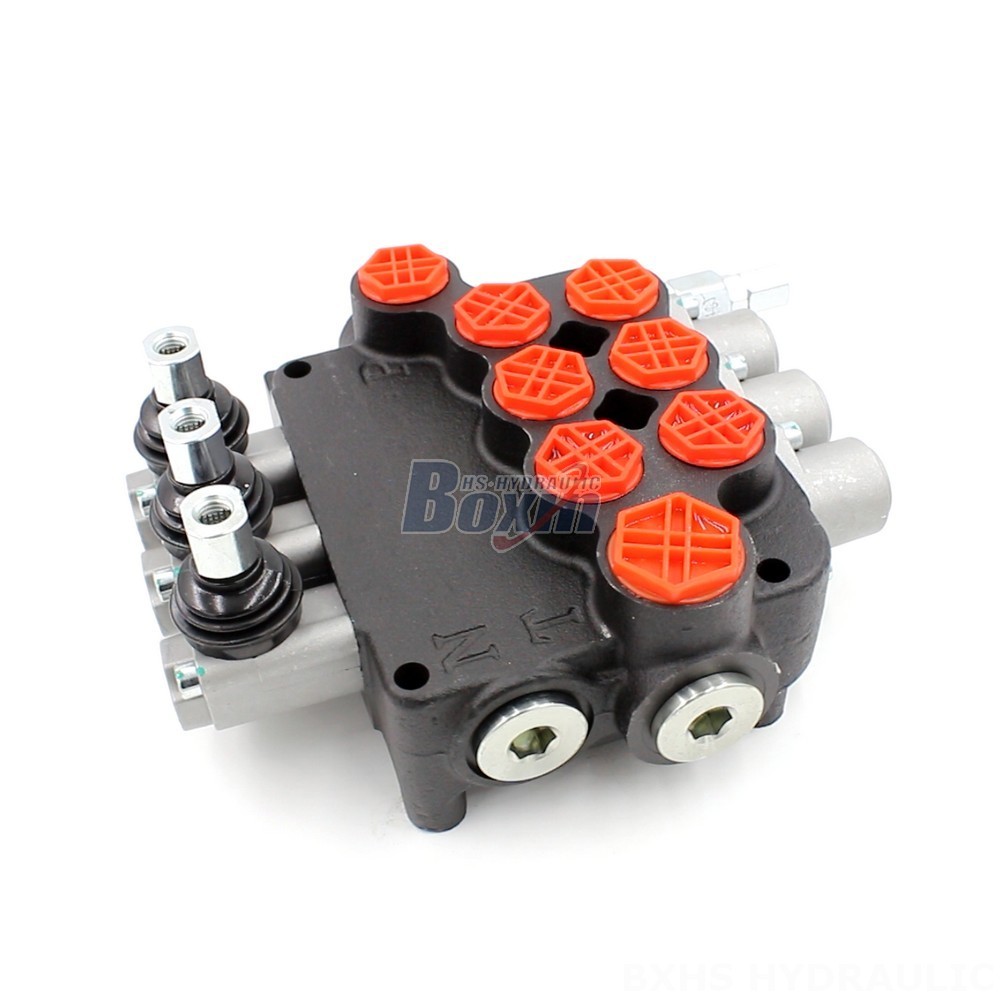

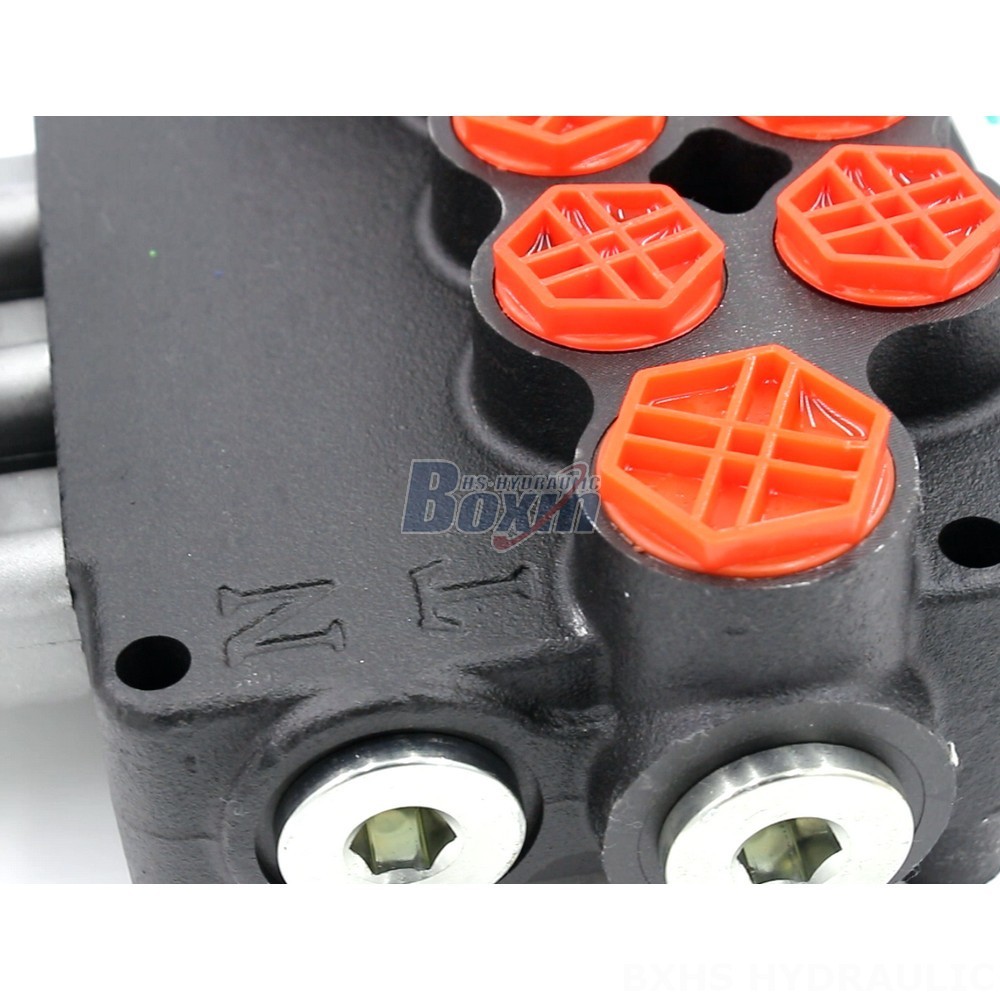

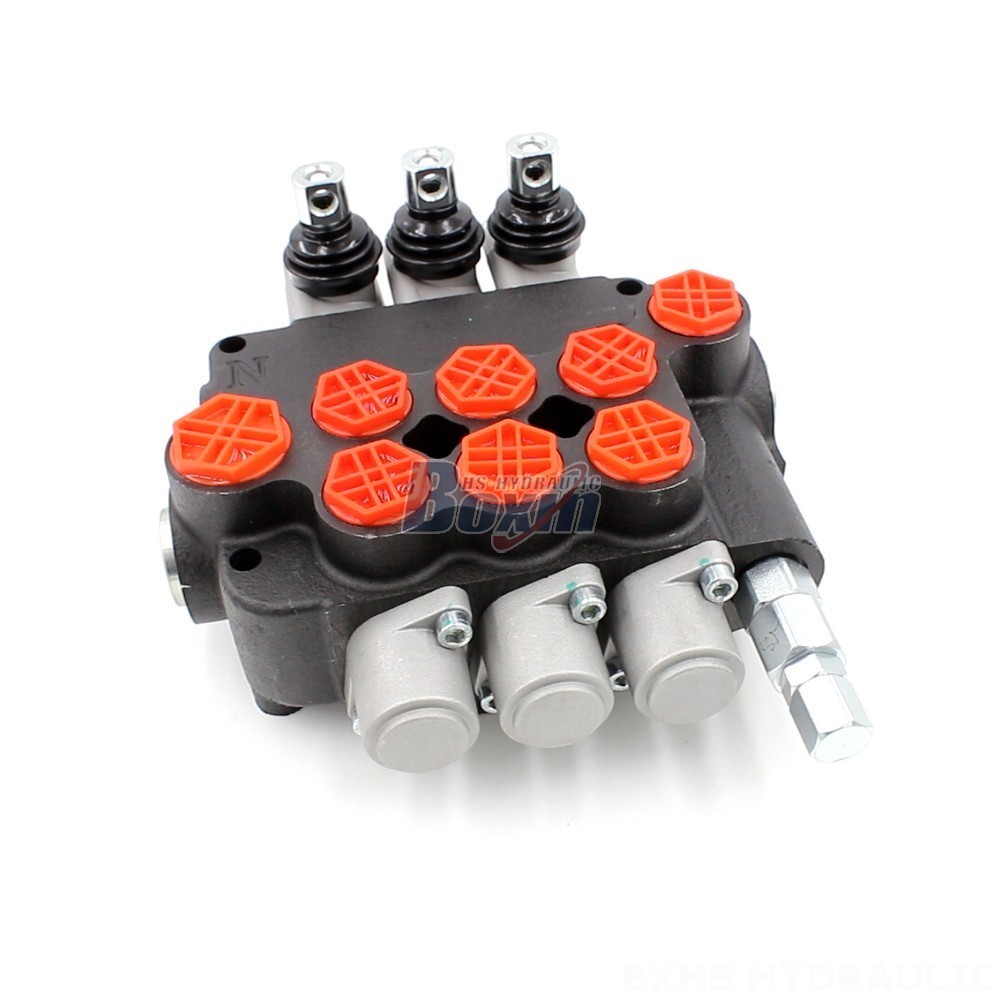

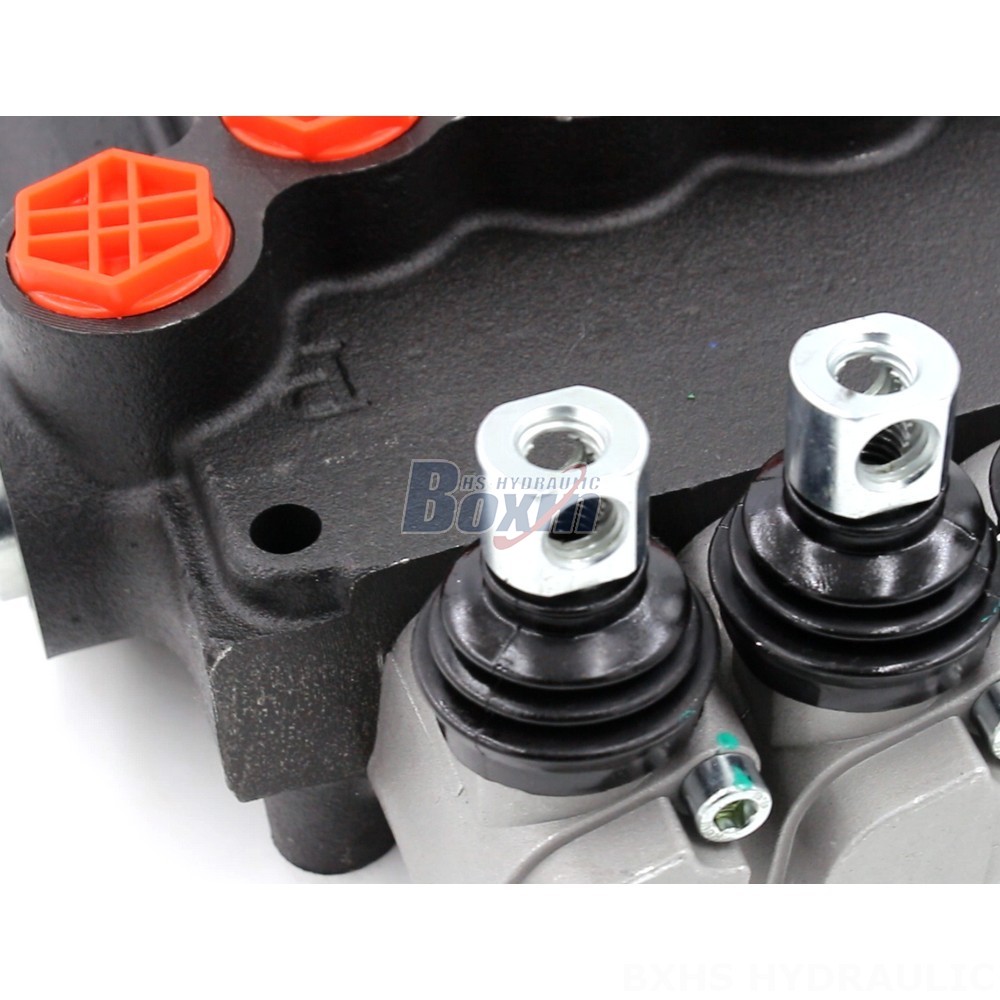

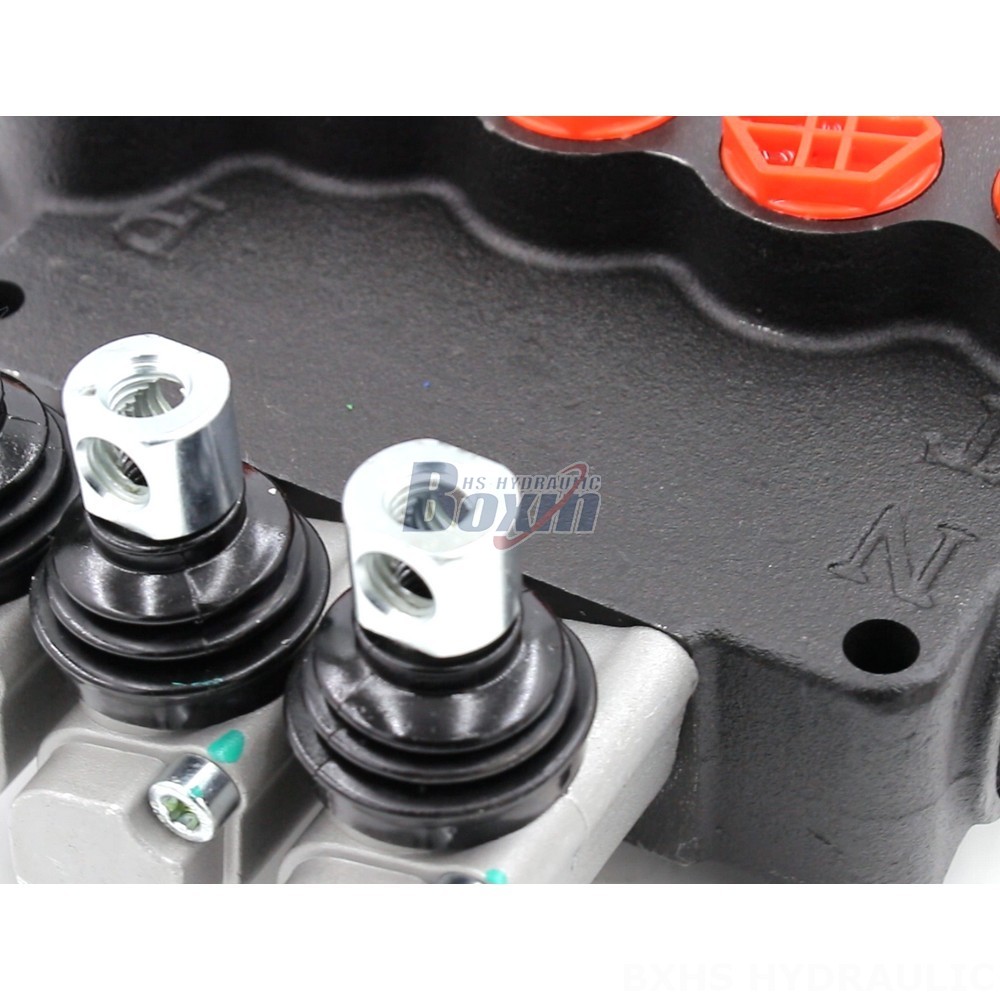

Tailor-Made P80-G34-G12-OT Hydraulic Valves are customizable hydraulic valves designed to meet specific requirements. They offer precise control, high flow rates, and durability for various applications.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**P80-G34-G12-OT Hydraulic Valves: Tailor-Made for Your Unique Specifications**
**Versatile Control Solution:**
- Manual control for precise operation
- 3-section design enables simultaneous control of multiple functions
**Robust Construction:**
- Monoblock valve structure ensures high strength and durability
- Rated flow of 80 L/min (21.2 US gpm) for efficient performance
- Maximum pressure of 250 bar (3600 psi) withstands demanding applications
**Wide Applicability:**
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) supports various fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) ensures reliable operation in diverse environments
**OEM, ODM, and Customization Services:**
- Tailor-made solutions to meet your specific requirements
- OEM and ODM services for branding and customization
- Dedicated team for design, engineering, and manufacturing
**Applications:**
- Material handling equipment (forklifts, telehandlers)
- Construction and earthmoving machinery (excavators, skid steer loaders)
- Agricultural machinery
- Industrial vehicles (aerial platforms, motor graders)
