Standard P80A-OX 1 Spool Monoblock Hydraulic Directional Valve

Método de control:Manual

Carrete:1 carrete

Flujo Nominal:80 l/min (21,2 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G3/4

Puerto de Salida:G3/4

Tamaño de Puerto:G3/4

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P80A Válvula Direccional Monobloque

Tamaño del embalaje:26*15*11

Peso bruto:3.90 kg

Disponibilidad: En stock

248 personas están viendo este producto

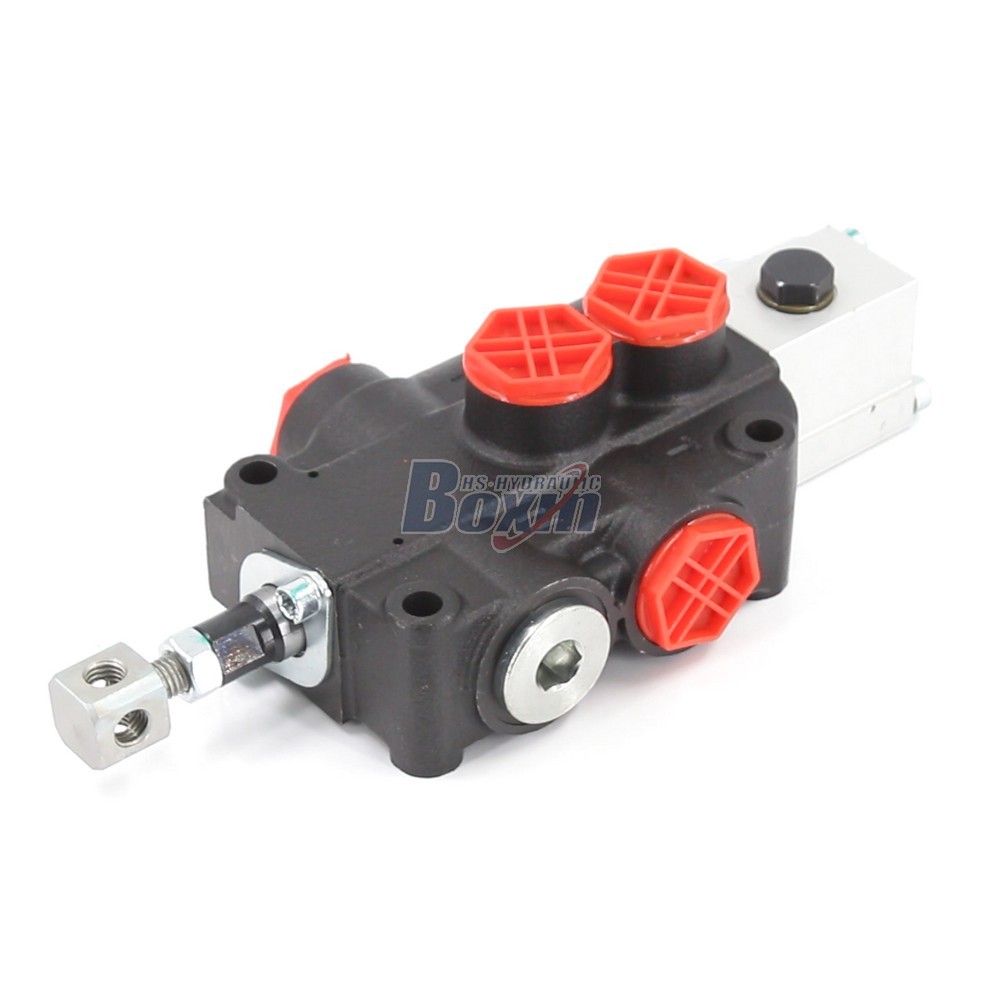

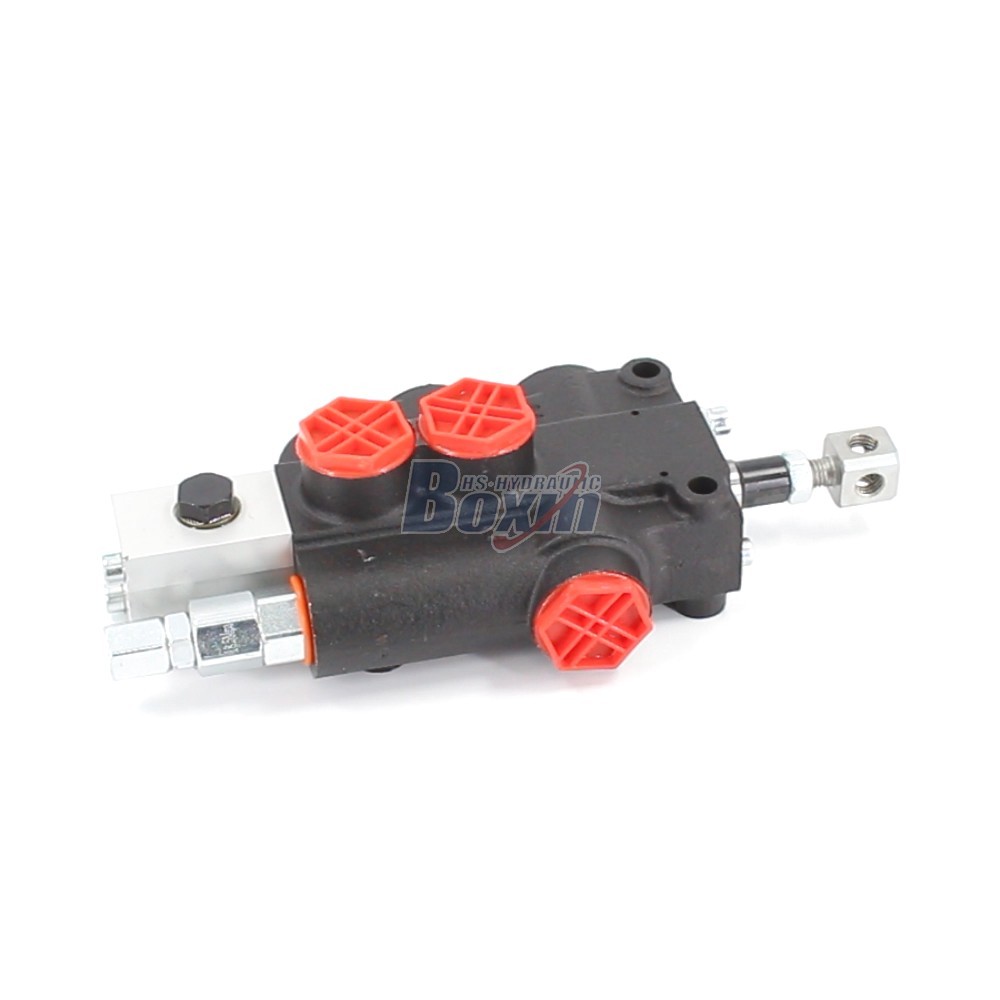

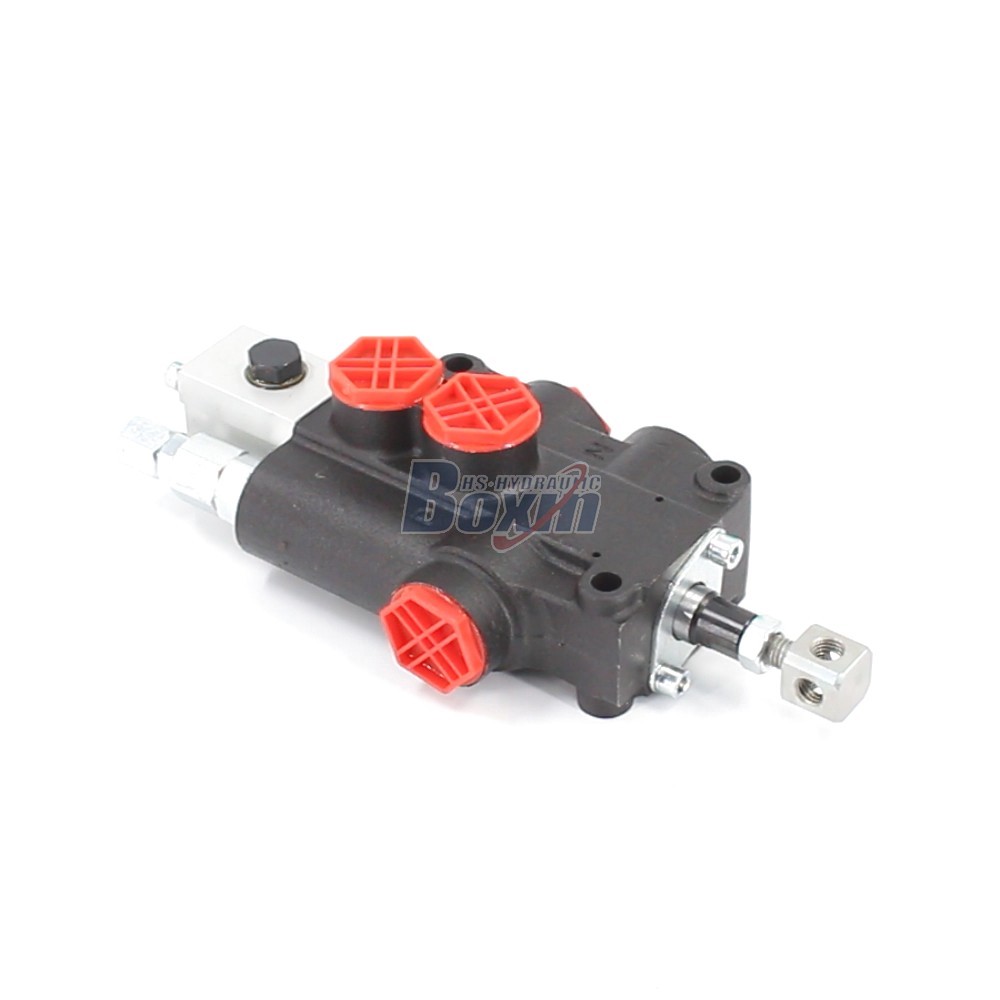

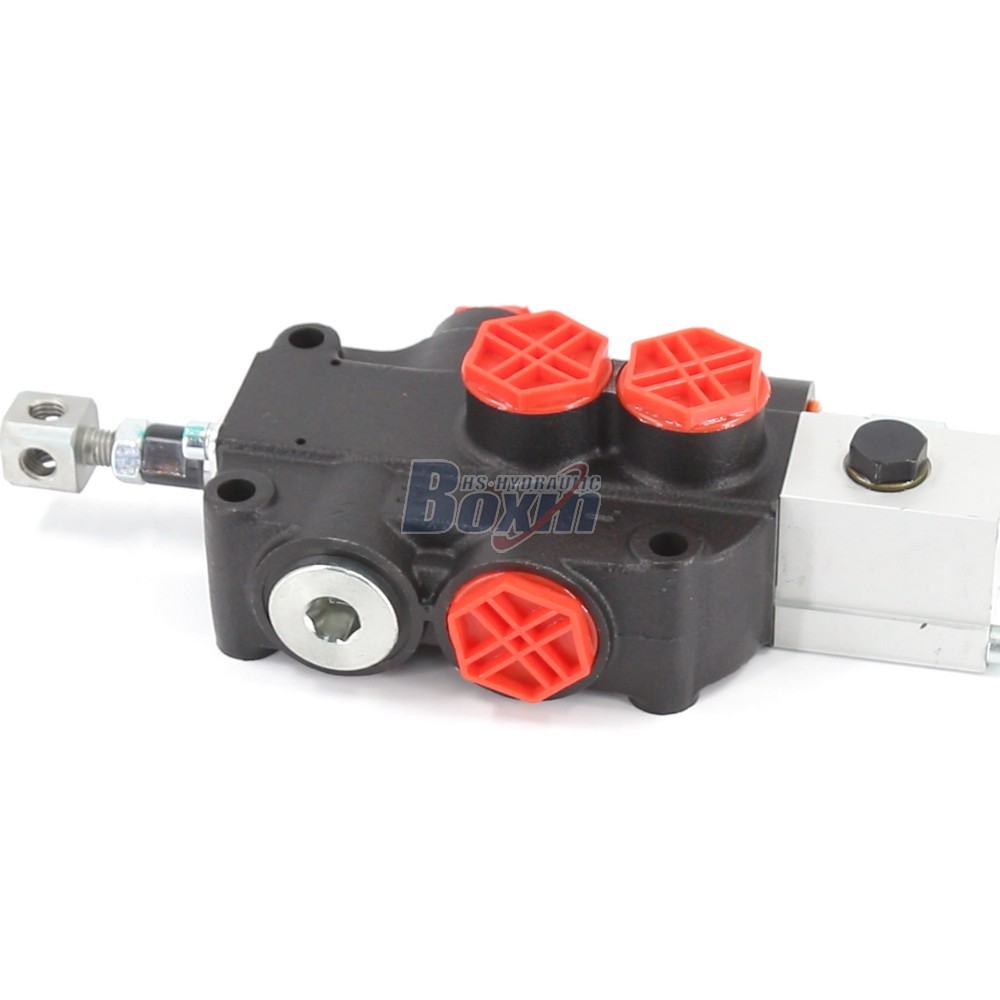

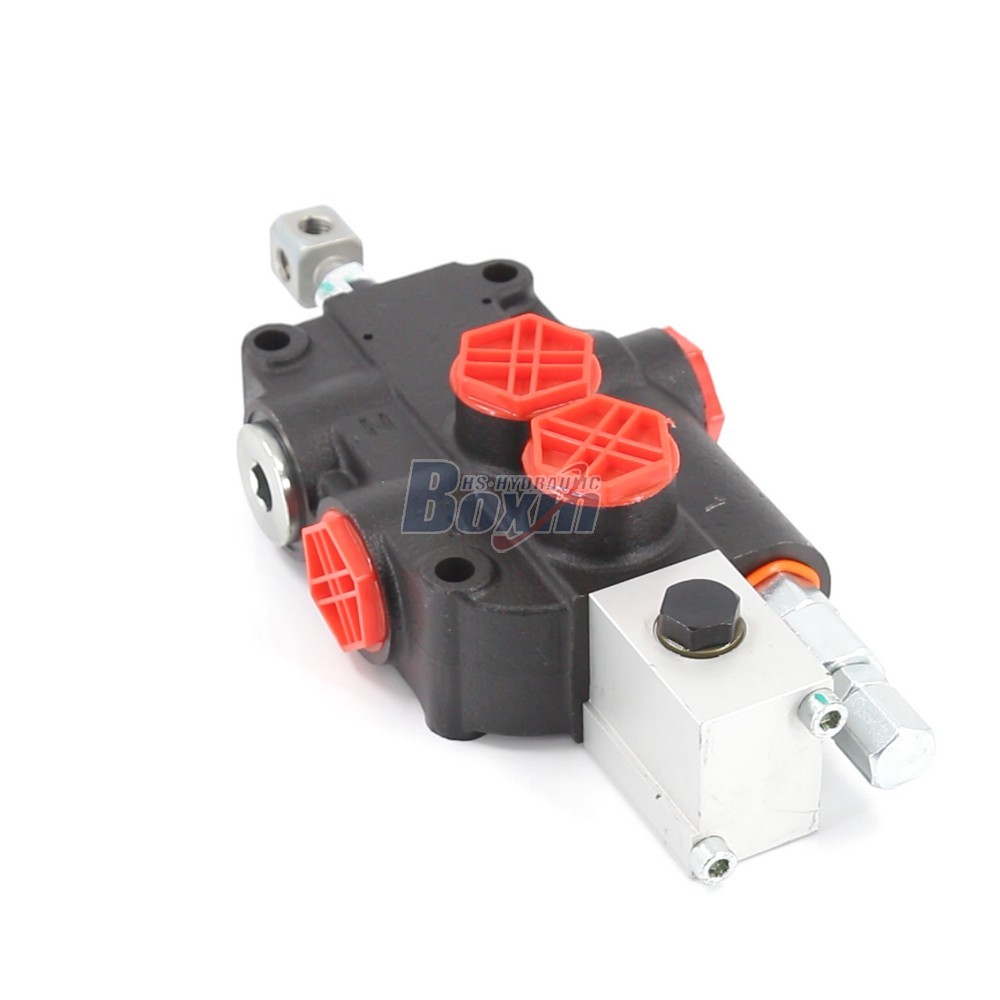

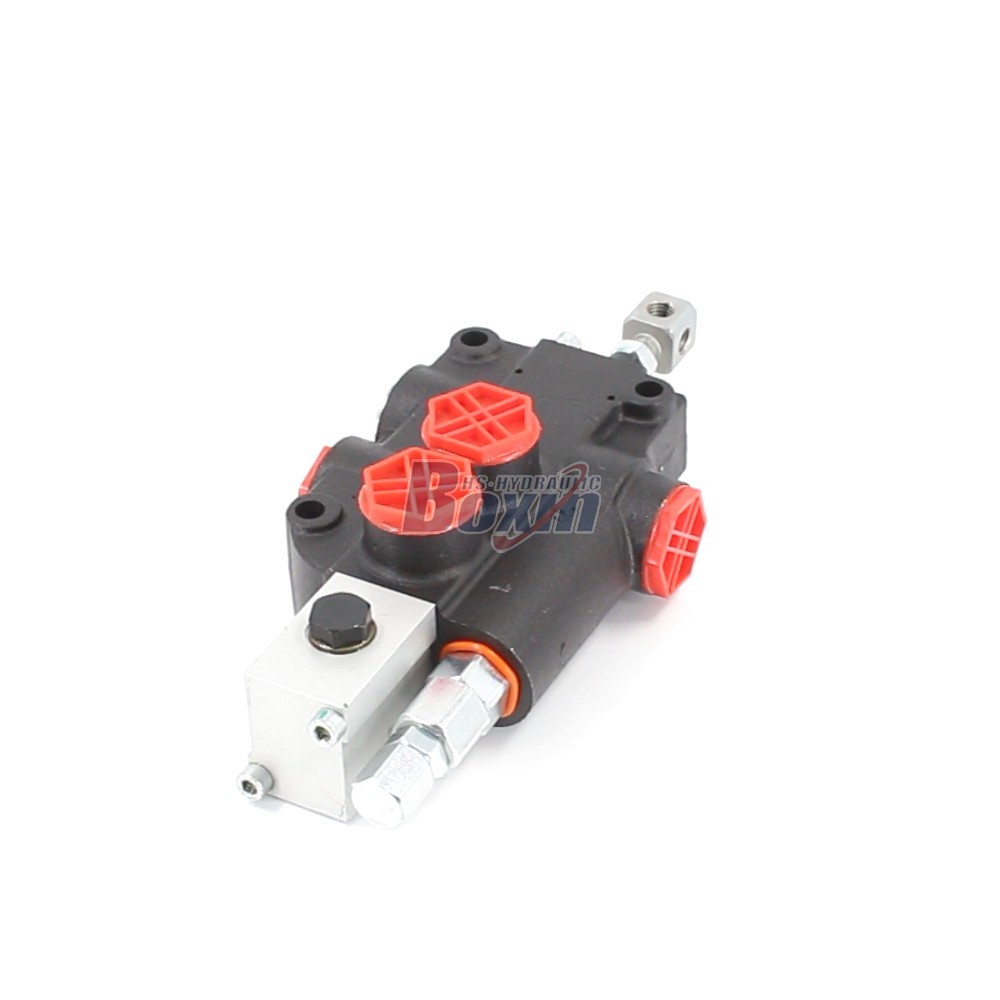

Standard P80A-OX 1 Spool Monoblock Hydraulic Directional Valve

Standard P80A-OX 1 Spool Monoblock Hydraulic Directional Valve

Standard P80A-OX 1 Spool Monoblock Hydraulic Directional Valve drawing image

This P80A-OX 1 Spool Monoblock Directional Valve features an 80 L/min flow rate and 250 bar max pressure, ideal for mini-excavators and skid steers. Manufactured by a 25-year ISO-certified factory with 1.5M annual capacity, it ensures reliable hydraulic control for construction and agricultural machinery.

Serie P80A Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Eléctrico, 在这里输入键名的翻译, Solenoide y joystick, Manual y joystick
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 80 l/min (21,2 gal EE. UU./min)
Presión Máxima 315 bar (4600 psi)
Puerto de Entrada G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Puerto de Salida G1/2, G3/4, M27×2.0, SAE 12, 1/2 NPT, 3/4 NPT
Tamaño de Puerto G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

**1. Factory Direct Sales of Monoblock Directional Valve**
- Engineered for high-demand applications, this valve handles a rated flow of 80 L/min (21.2 US gpm) and withstands pressures up to 250 bar (3600 psi).
- Sourced directly from our 68,000 sqm facility, ensuring competitive pricing without compromising on the strict IATF 16949 quality standards.

**2. Professional Manufacturer of Hydraulic Control Valve**
- Backed by 25+ years of expertise and 260+ CNC machines, we guarantee dimensional accuracy and surface finish for seamless integration.
- Every unit undergoes 100% bench testing for pressure, flow, and sealing integrity before shipment, minimizing field failure risks for your clients.

**3. OEM/ODM Available for P80 Series Valve Customization**
- Our team of 35+ senior engineers supports tailored solutions, including custom spool configurations, port adjustments, and laser-logo branding.
- Ideal for distributors seeking private label opportunities; we offer flexible MOQs and comprehensive technical support for specific machine adaptations.

**4. Wholesale Hot Sale 1 Spool Hydraulic Valve for Heavy Duty Use**
- Specifically designed for compact equipment like mini-excavators, skid steer loaders, and wood splitters, providing precise manual control.
- Features G3/4 inlet/outlet ports for easy installation, serving as a cost-effective, direct replacement for major international brands in the aftermarket.

**5. Exported Worldwide with Certified Quality Assurance**
- Products carry CE compliance and SGS certification, meeting global safety and performance requirements for diverse industrial and agricultural sectors.
- Secured with anti-rust treatment and heavy-duty wooden crate packaging, ensuring safe delivery and maintaining product integrity during long-distance transit.
