Source ZT20 Directional Control Valves from a Trusted Manufacturer

Método de control:Manual

Carrete:2 carretes

Flujo Nominal:90 l/min (23,8 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G3/4

Puerto de Salida:G3/4

Tamaño de Puerto:G3/4

Marca:BXHS

Tipo de producto:Válvula de Control Hidráulico

Serie de productos:Serie ZT20 Válvula de Control Hidráulico

Tamaño del embalaje:23*18*11

Peso bruto:7.91 kg

Disponibilidad: En stock

1144 personas están viendo este producto

Source ZT20 Directional Control Valves from a Trusted Manufacturer

Source ZT20 Directional Control Valves from a Trusted Manufacturer

Source ZT20 Directional Control Valves from a Trusted Manufacturer drawing image

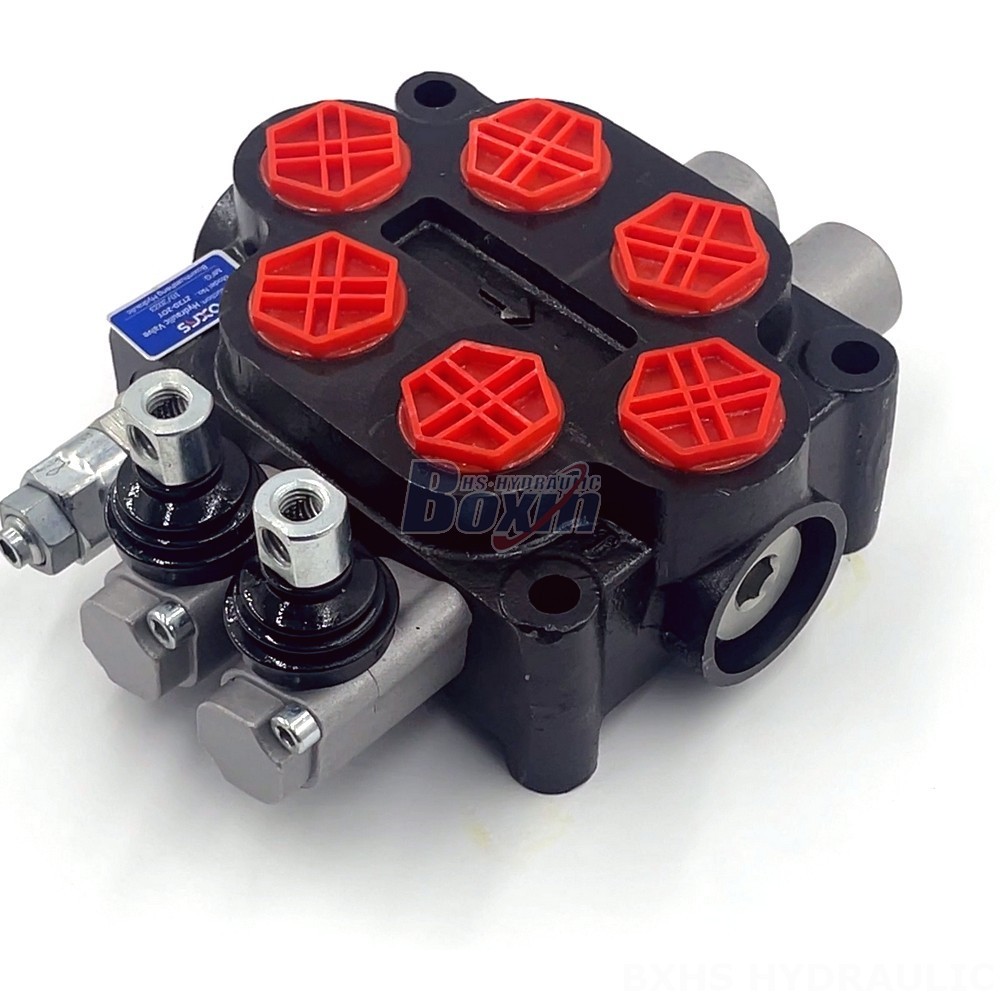

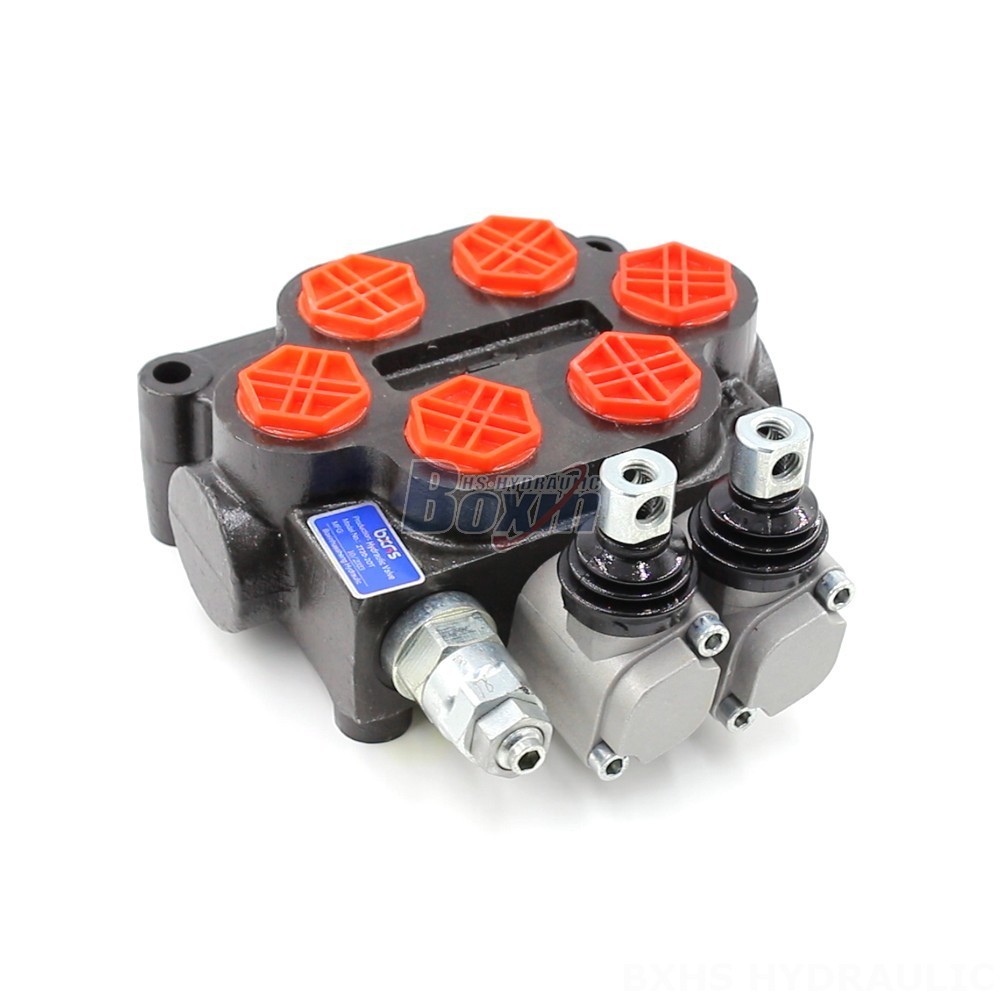

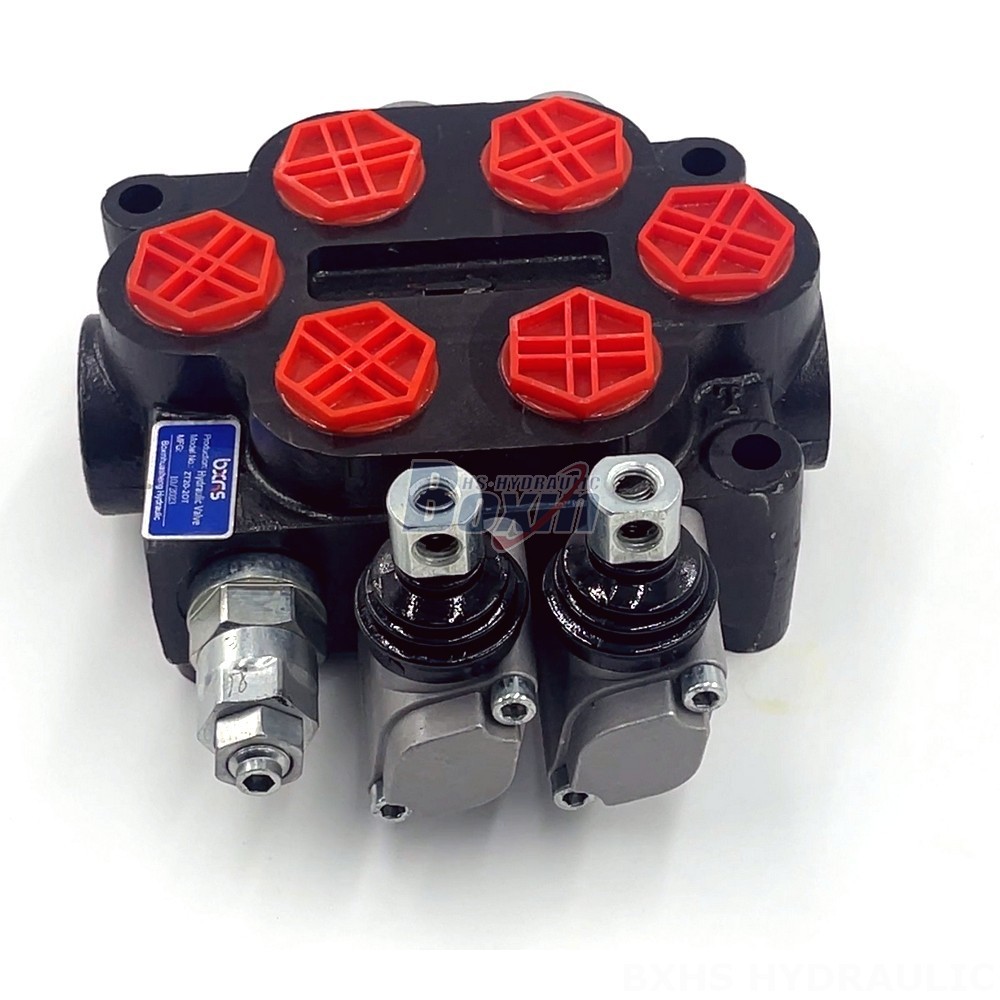

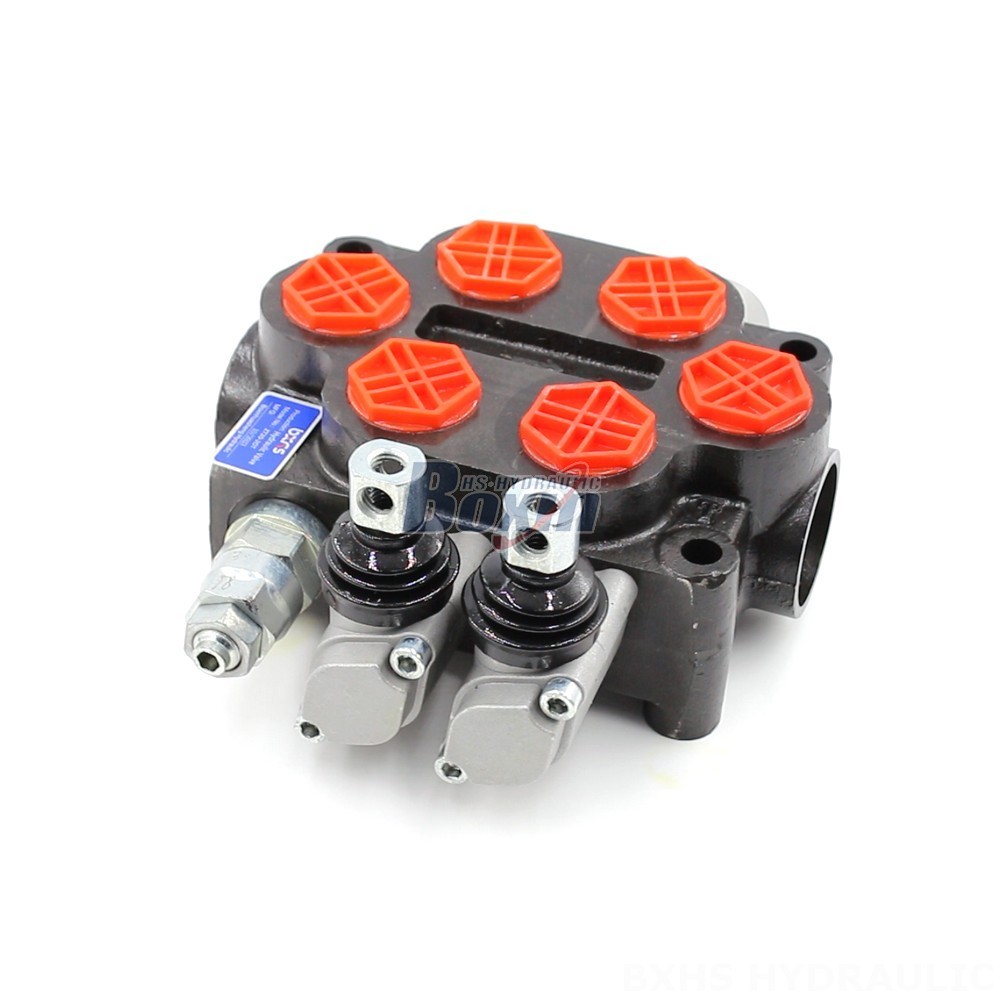

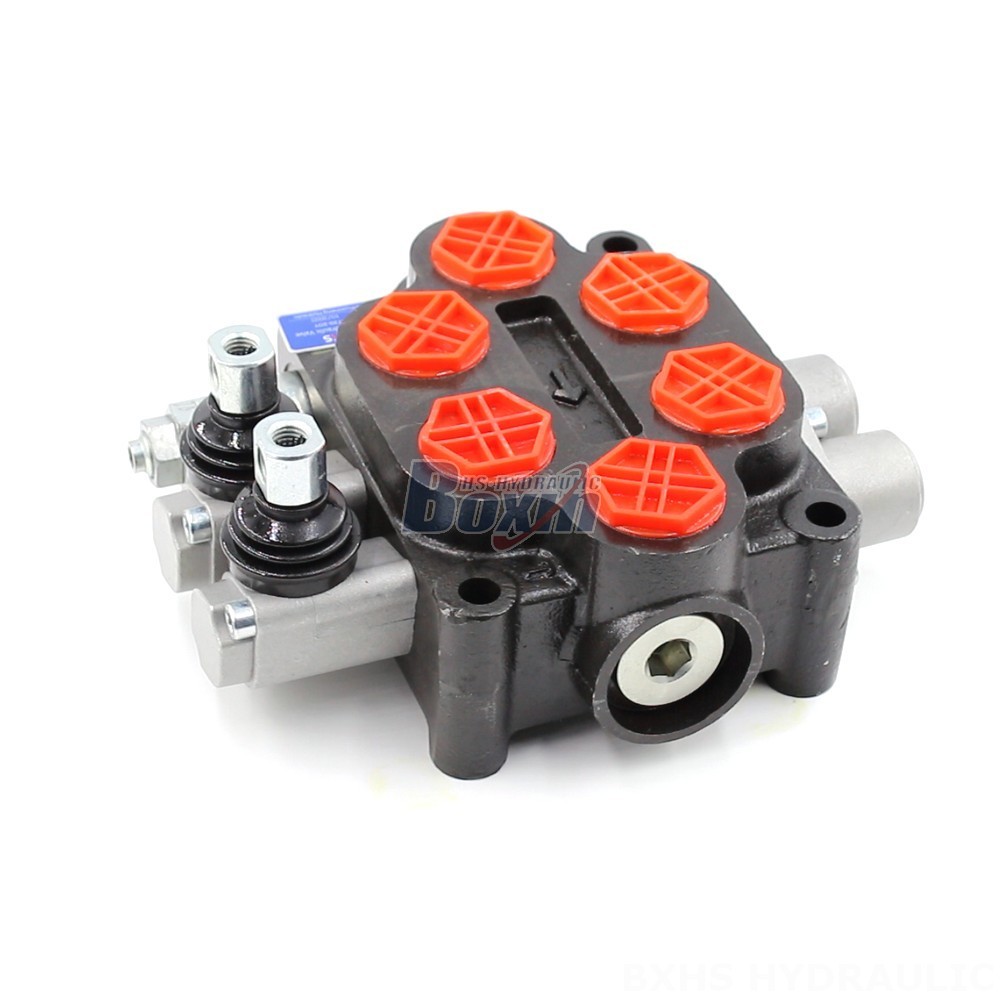

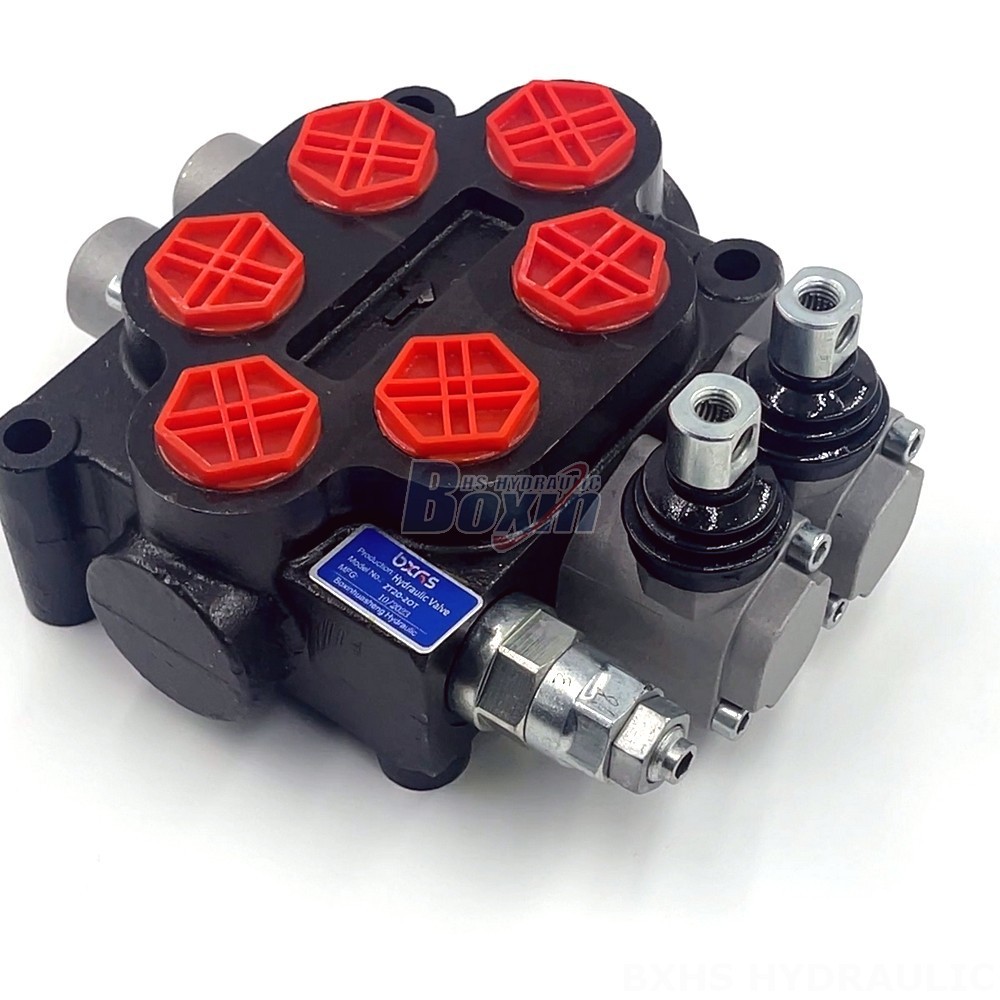

The ZT20 Series Directional Control Valve is a high-performance, 2-section monoblock valve designed for a variety of applications in material handling, construction, agriculture, and industrial vehicles. It features manual control, 100 L/min rated flow, and 250 bar maximum pressure.

Serie ZT20 Válvula de Control Hidráulico Parámetros
Método de control Manual, Cable, Joystick, Manual y joystick
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes
Flujo Nominal 100 l/min (26,5 gal EE. UU./min)
Presión Máxima 250 bar (3600 psi)
Puerto de Entrada G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Puerto de Salida G1/2, G3/4, M22×1.5, M27×2.0, SAE 8, SAE 10, 1/2 NPT, 3/4 NPT
Tamaño de Puerto G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones
Tipo de estructura Válvulas monobloc
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)

This ZT20 Series Directional Control Valve is a reliable and durable solution for your hydraulic system needs. It features a compact, monoblock design with a 2-section configuration, offering precise control and efficient operation. With a rated flow of 100 L/min and a maximum pressure of 250 bar, this valve is suitable for a wide range of applications. Its manual control allows for easy operation and adjustment. The valve is designed for use in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. It is particularly well-suited for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. With a robust construction and high-quality materials, this ZT20 Series valve delivers long-lasting performance and reliability.
