Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
1173 personas están viendo este producto

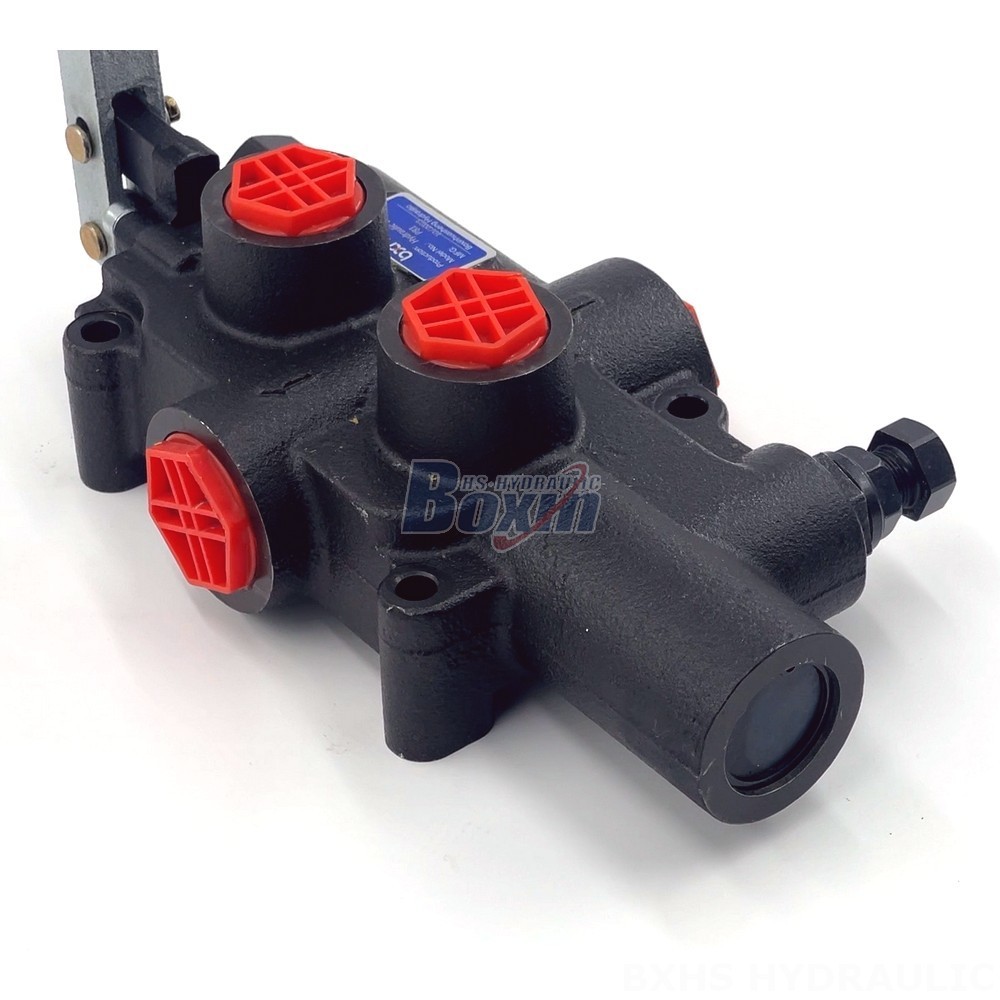

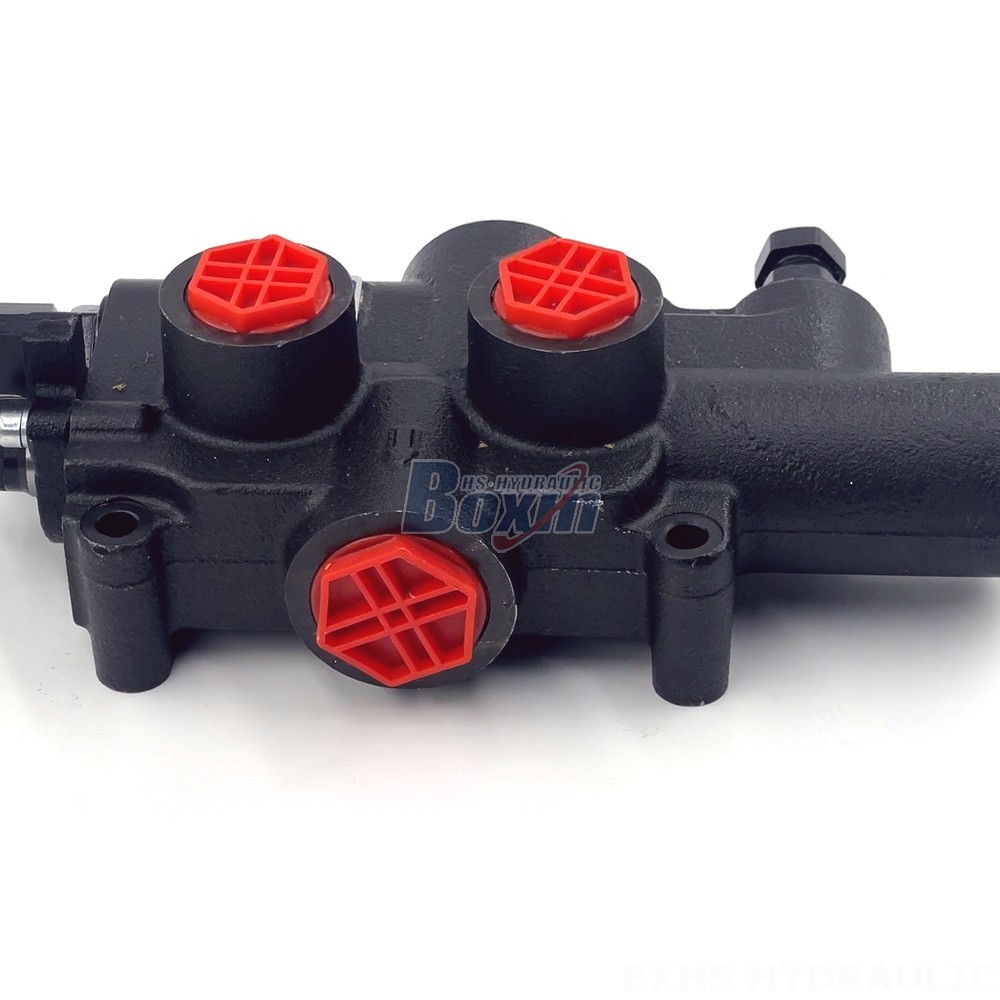

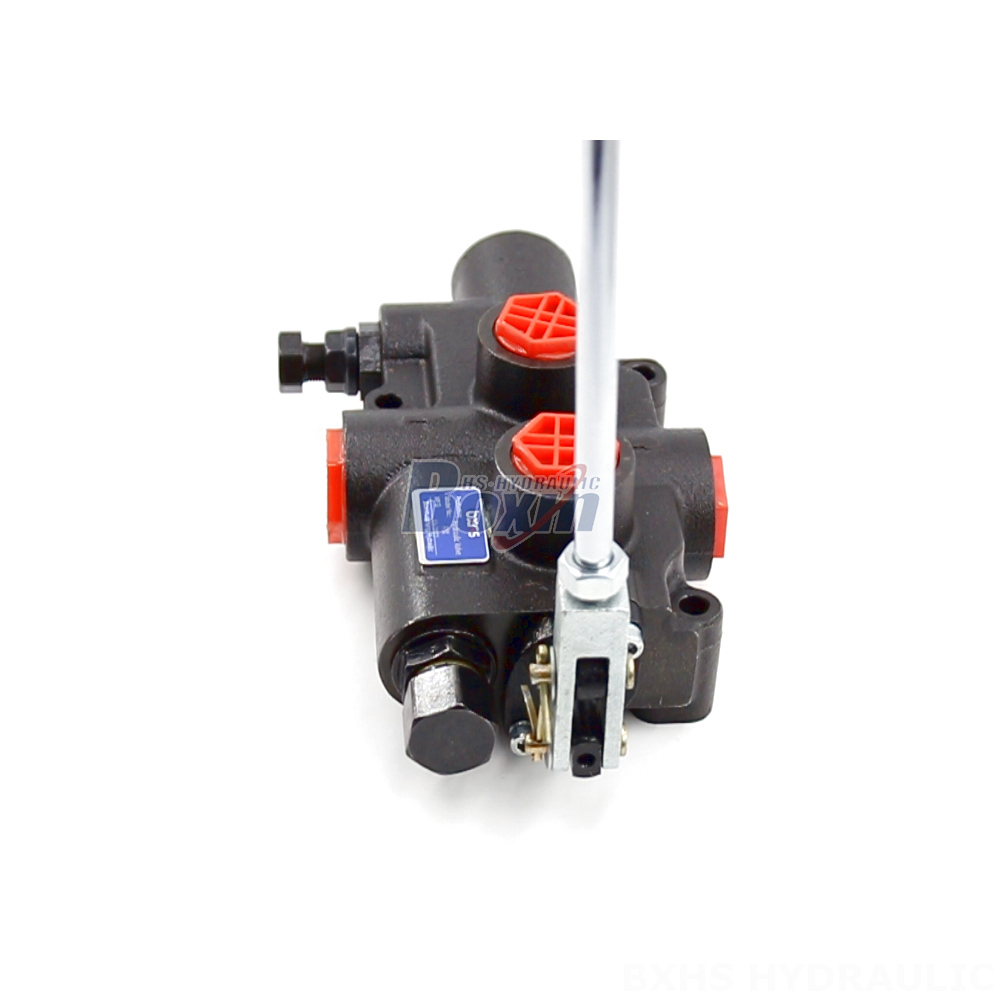

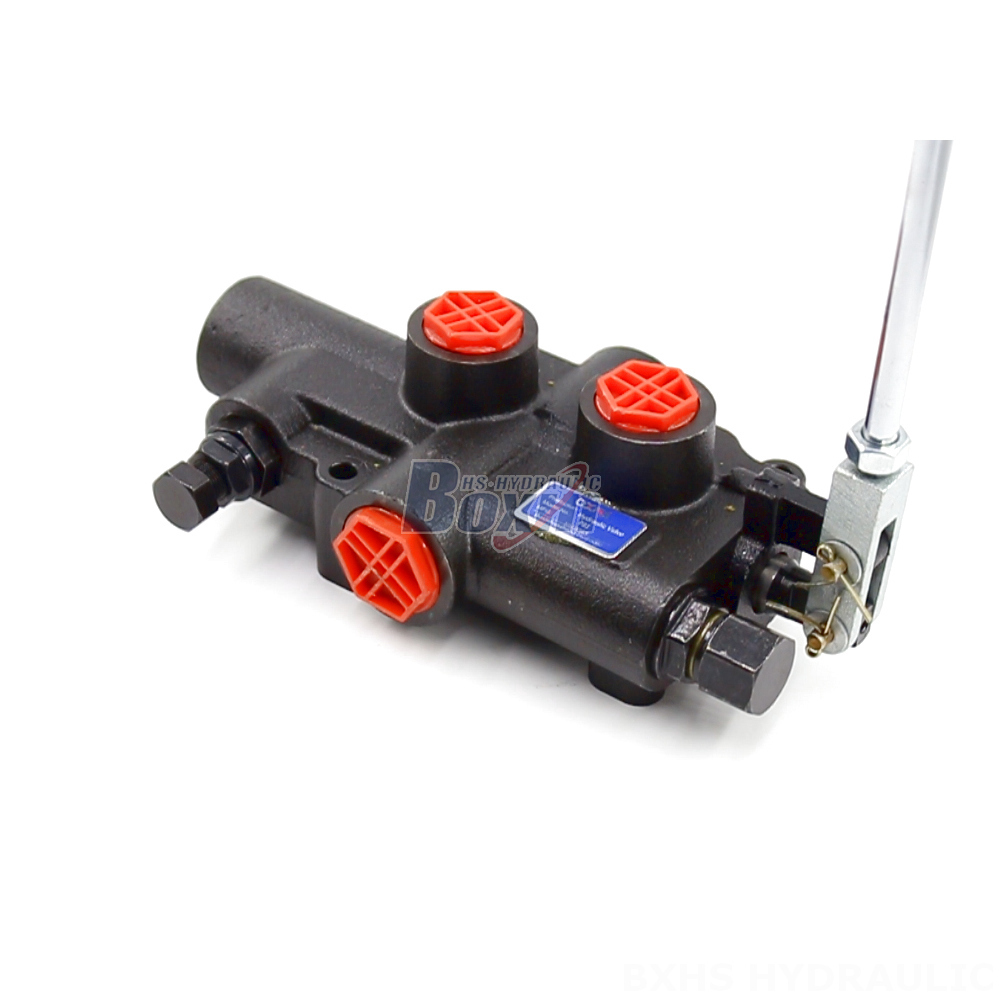

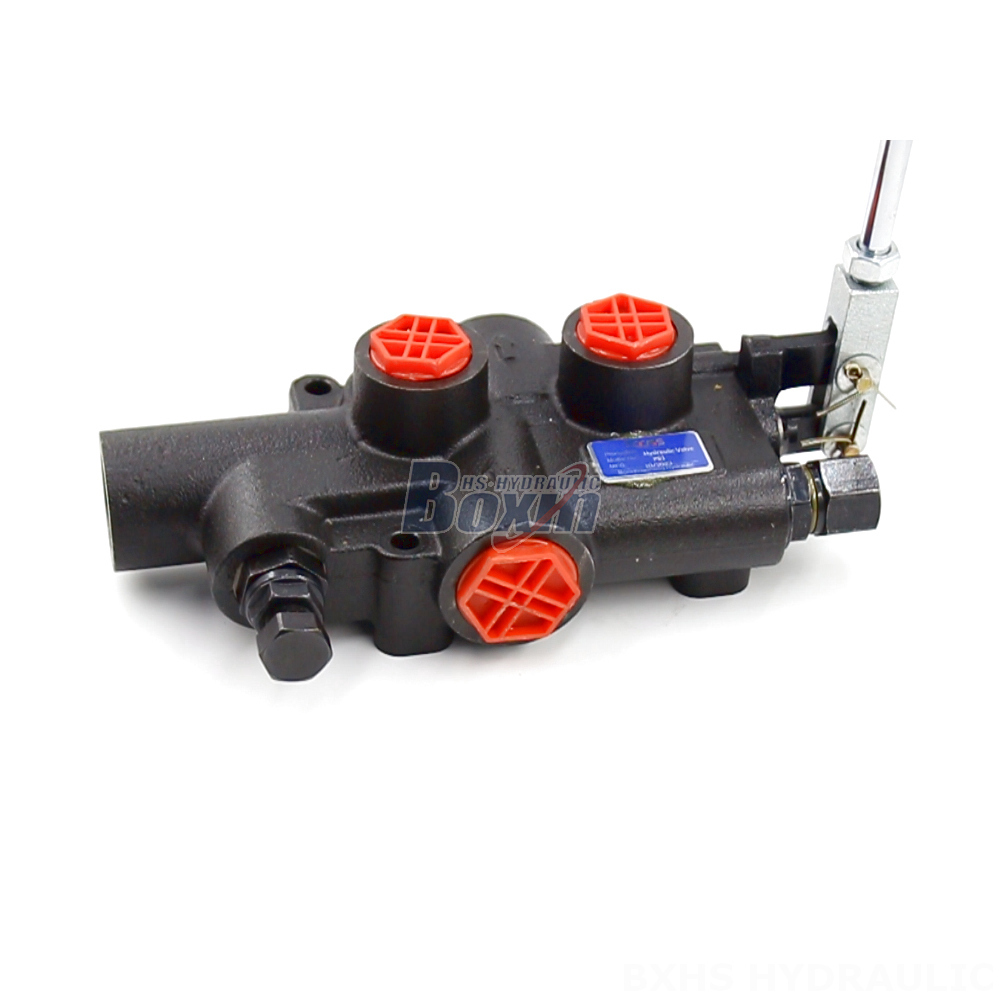

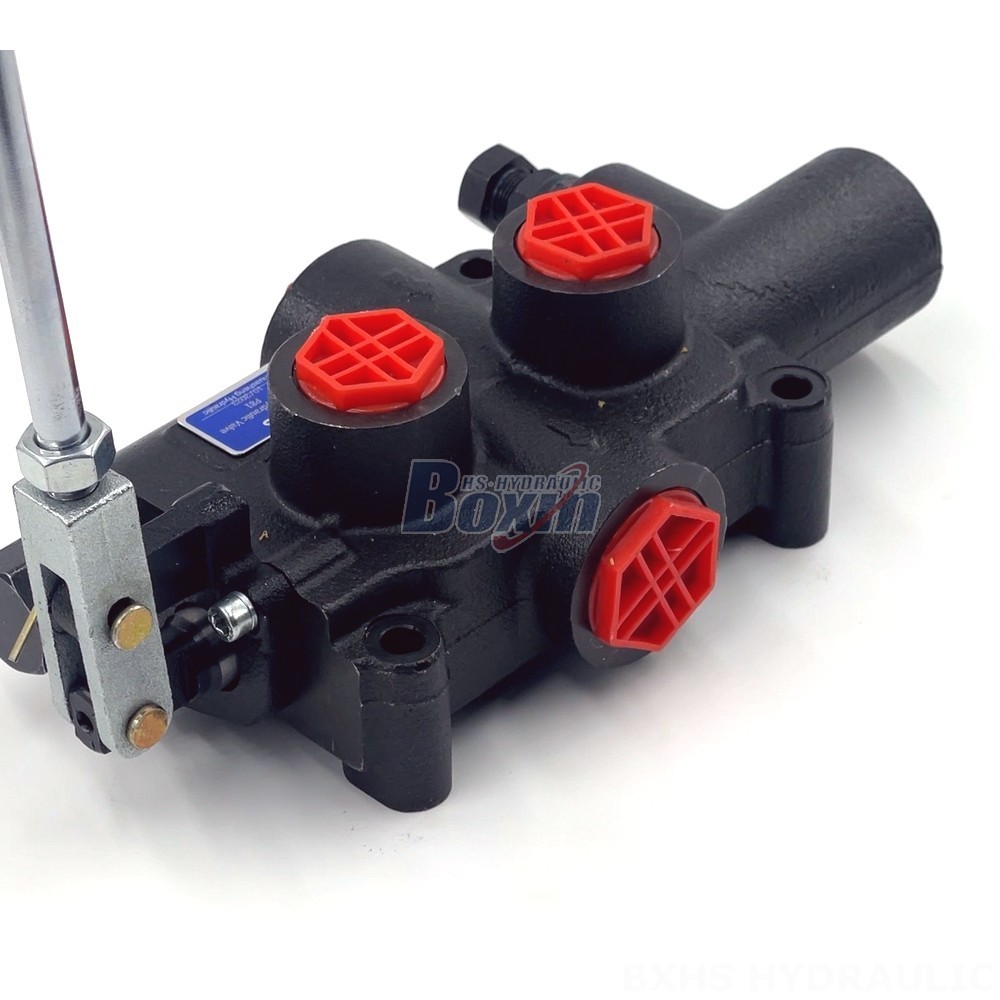

The P81 Series Hydraulic Control Valve is a high-performance, manual joystick-controlled valve designed specifically for log splitter applications. It features a monoblock construction for durability, high flow rate (80 L/min), and high pressure rating (250 bar), making it suitable for demanding industrial applications.
| Serie P81 Válvula para divisor de troncos Parámetros | |
|---|---|
| Método de control | Manual |
| Carrete | 1 carrete |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min), 95 l/min (25,1 gal EE. UU./min) |
| Presión Máxima | Presión máxima |
| Puerto de Entrada | G1/2 |
| Puerto de Salida | G1/2 |
| Tamaño de Puerto | G3/4 |
The P81 Series Hydraulic Control Valve is a robust and reliable solution for controlling hydraulic log splitters. It is a single-section, monoblock valve with a single spool and manual joystick control. The valve offers a high flow rate of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi). Its kick-out setting pressure is adjustable between 70 and 140 bar (1015-2030 psi) for precise operation. The valve is designed for demanding industrial applications and operates reliably within a wide ambient temperature range of -40°C to +80°C (-40°F to +176°F). It is compatible with a wide range of hydraulic fluids with operating viscosity ranging from 15 to 75 mm²/s (15 cSt to 75 cSt). The P81 Series Hydraulic Control Valve is a high-quality, durable, and easy-to-operate solution that provides reliable control for log splitting operations.
