Source Your P120 Directional Control Valves from a Trusted Manufacturer

Método de control:Manual

Carrete:2 carretes

Flujo Nominal:120 L/min (31.7 US gpm)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G1

Puerto de Salida:G1

Tamaño de Puerto:G1

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P120 Válvula Direccional Monobloque

Tamaño del embalaje:30*39*17

Peso bruto:19.00 kg

Disponibilidad: En stock

1111 personas están viendo este producto

Source Your P120 Directional Control Valves from a Trusted Manufacturer

Source Your P120 Directional Control Valves from a Trusted Manufacturer

Source Your P120 Directional Control Valves from a Trusted Manufacturer drawing image

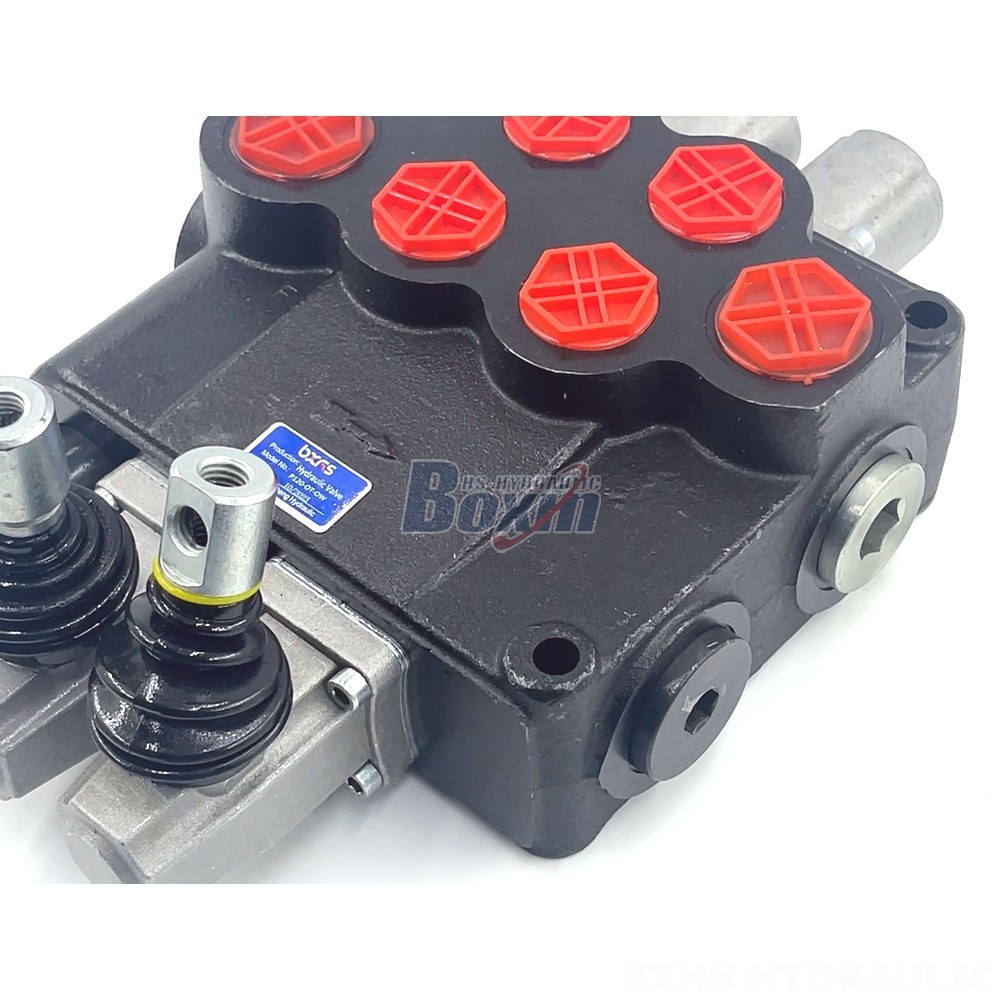

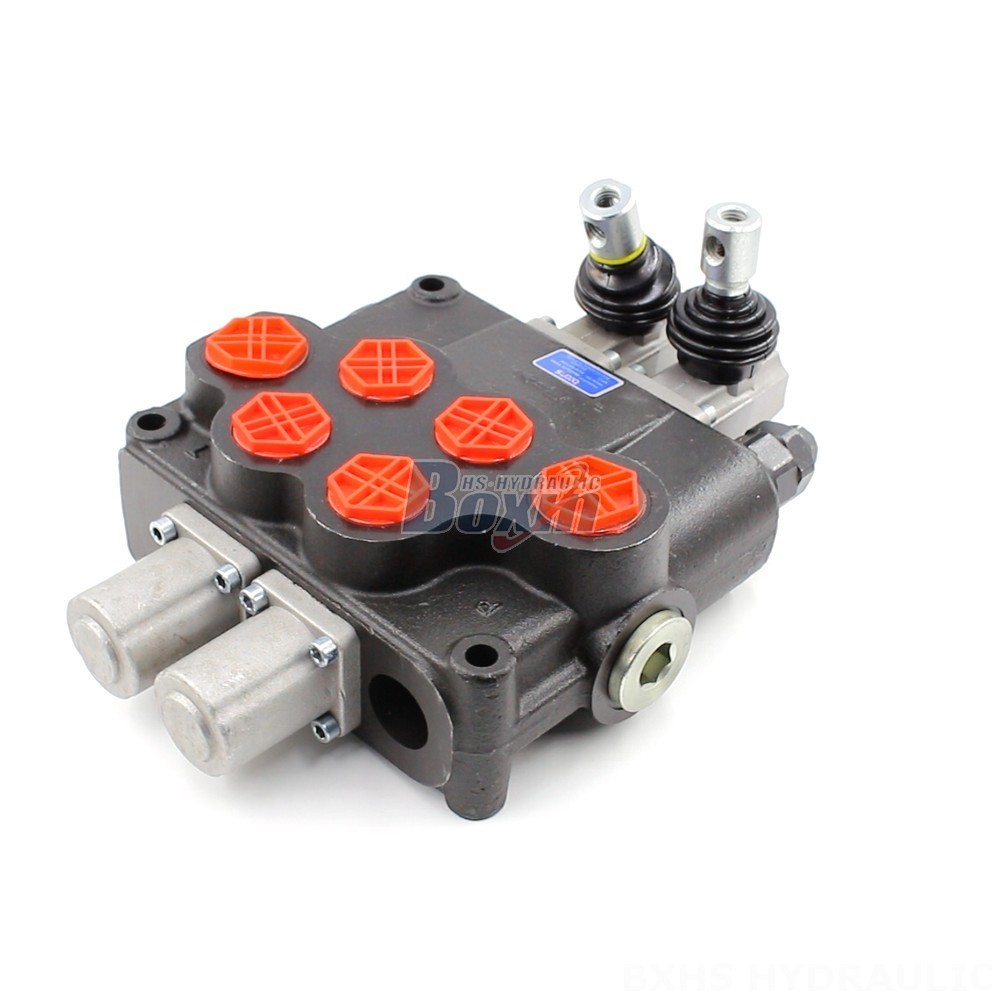

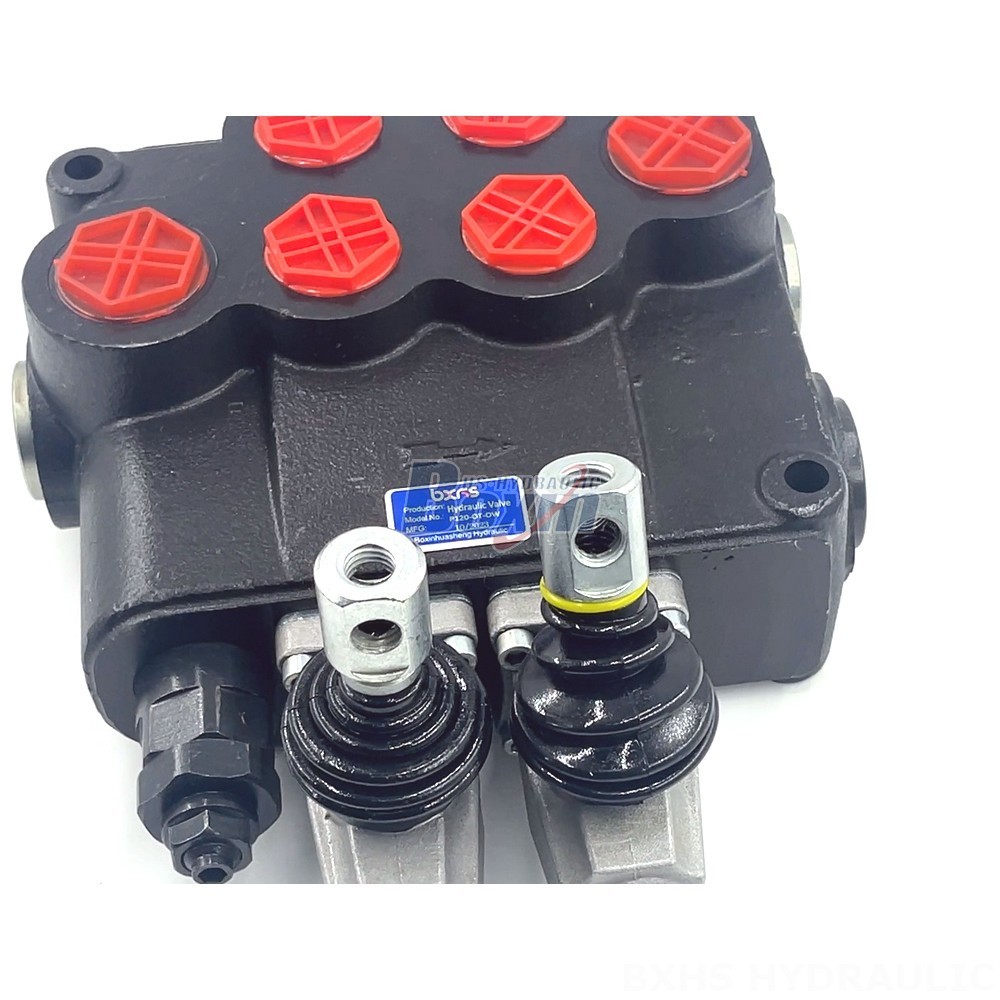

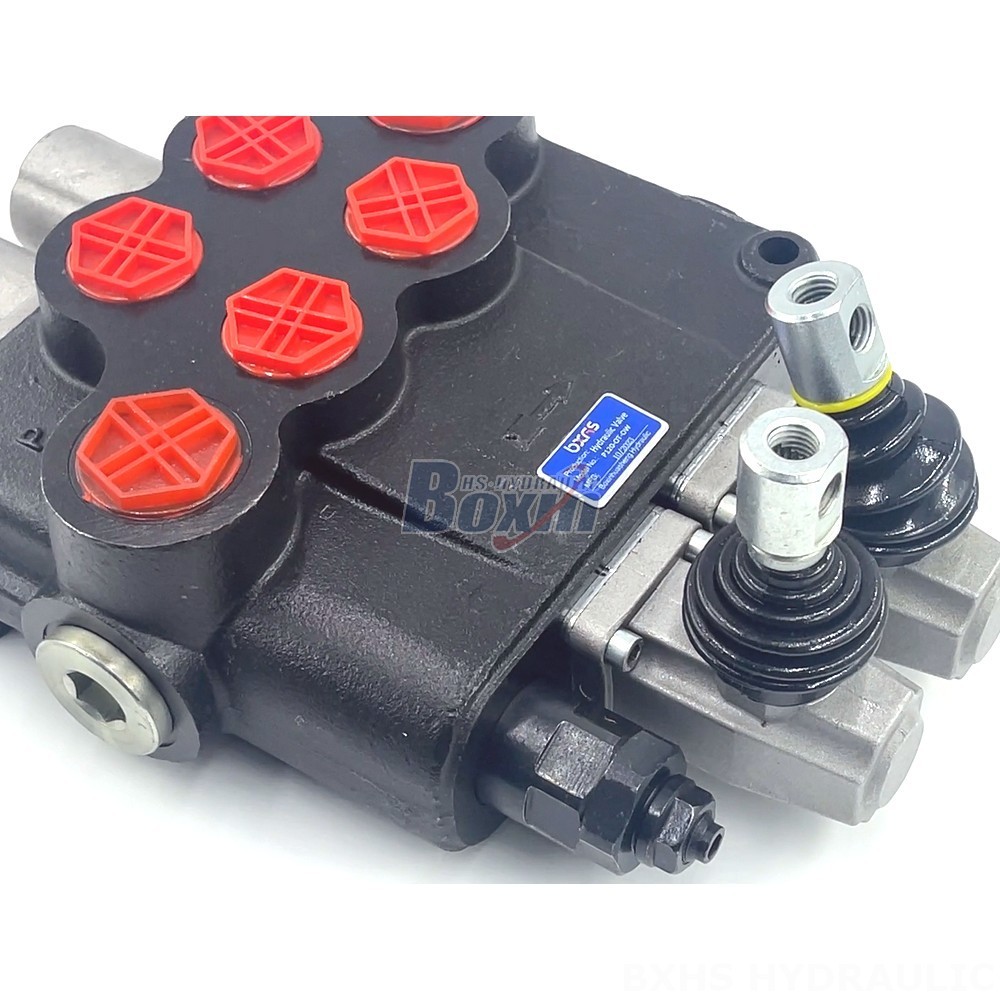

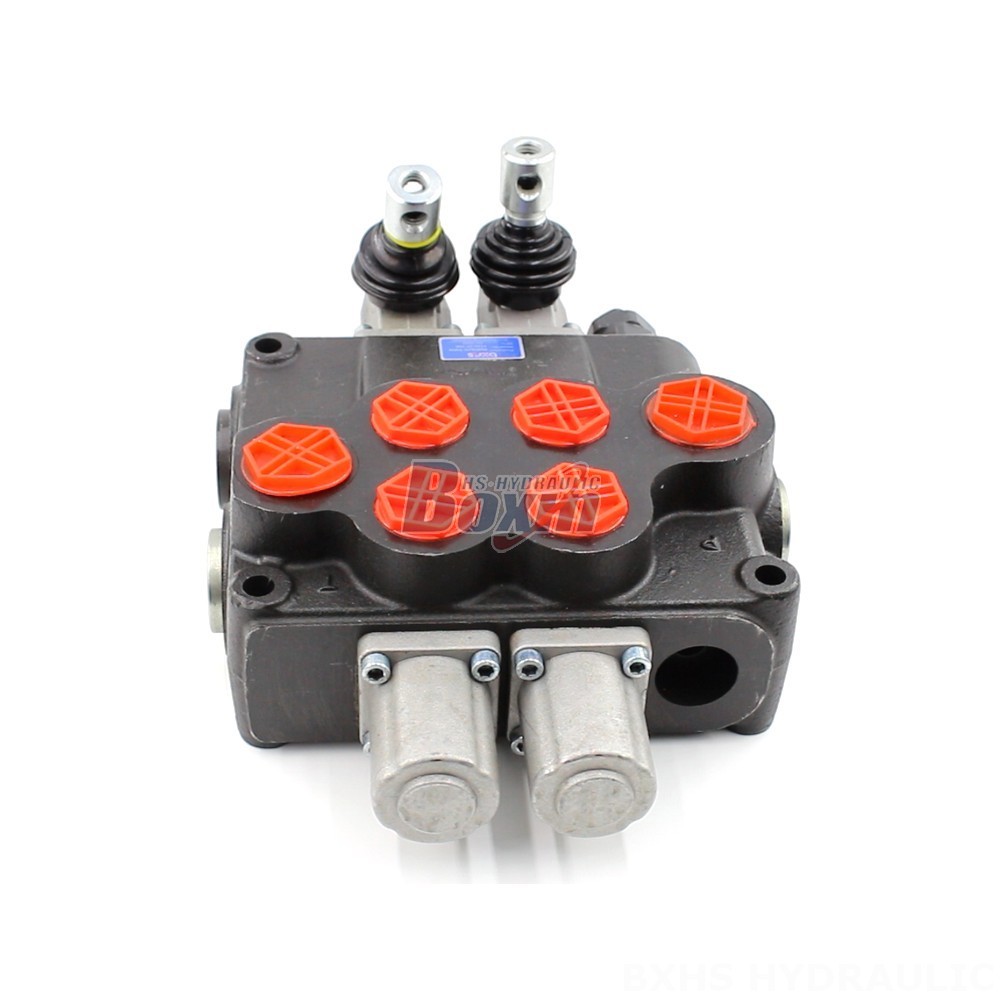

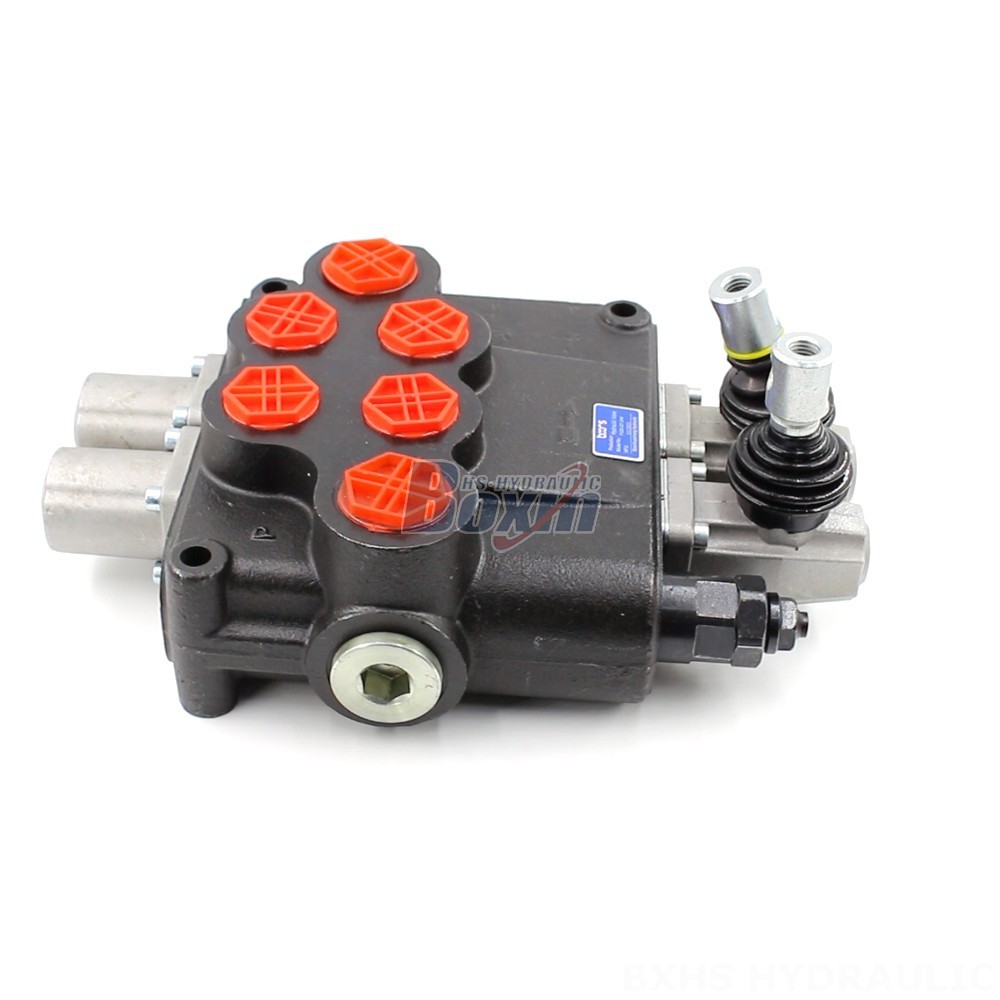

This P120 Series 12V Hydraulic Spool Valve is a 2-section, monoblock valve designed for directional control applications. It offers a rated flow of 120 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of machinery, including material handling, construction, agriculture, and industrial vehicles.

Serie P120 Válvula Direccional Monobloque Parámetros
Método de control Manual, Cable, Joystick, Manual y joystick
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes
Flujo Nominal 120 L/min (31.7 US gpm)
Presión Máxima 250 bar (3600 psi)
Puerto de Entrada G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
Puerto de Salida G1, SAE 16, 1 NPT, M36×2
Tamaño de Puerto G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones
Tipo de estructura Válvulas monobloc
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)

The P120 Series 12V Hydraulic Spool Valve is a reliable and durable solution for your directional control needs. This manual control valve features a 2-section, monoblock design with a rated flow of 120 L/min and a maximum pressure of 250 bar. It is suitable for operating viscosities from 15 to 75 mm²/s and can operate in ambient temperatures ranging from -40°C to +80°C. This valve is ideal for a variety of applications, including material handling equipment like telehandlers and forklifts, construction machinery such as all-terrain cranes and excavators, agricultural equipment, and industrial vehicles. With its robust construction and high performance, this P120 Series valve ensures reliable operation in demanding environments.
