Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
1006 personas están viendo este producto

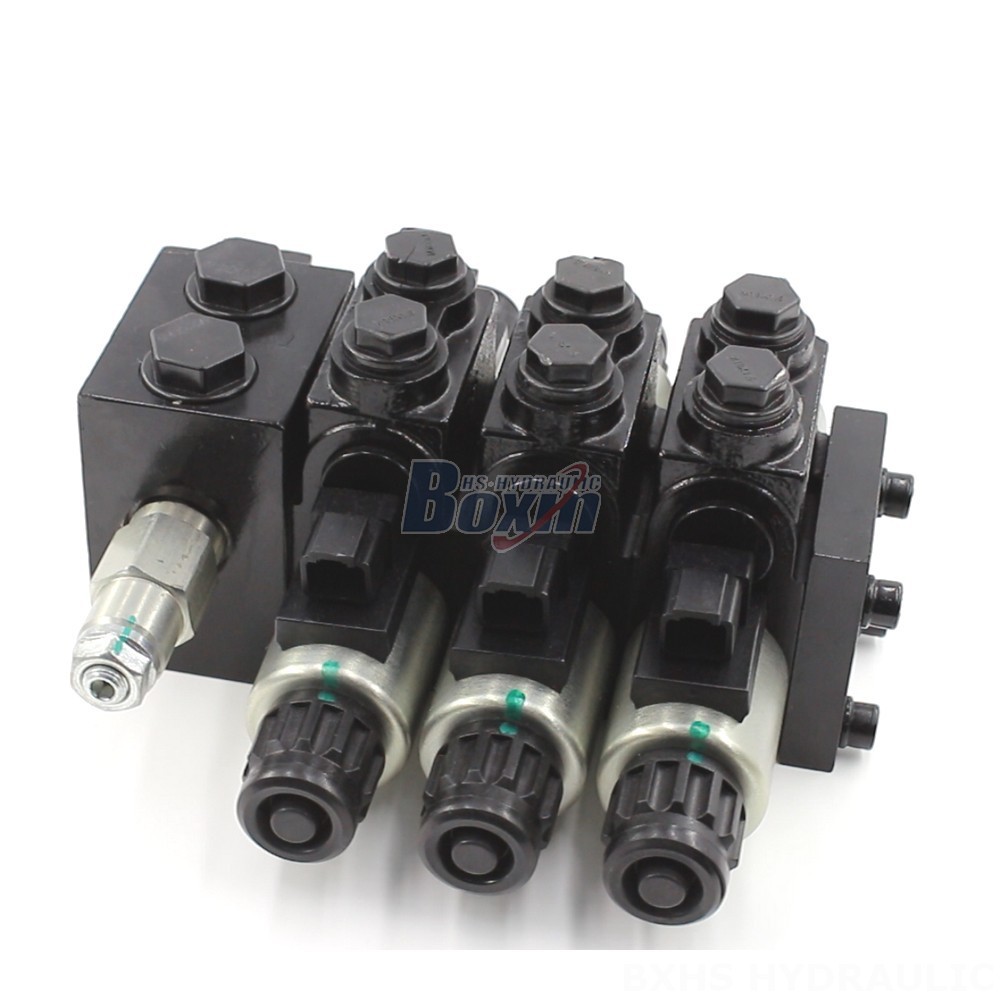

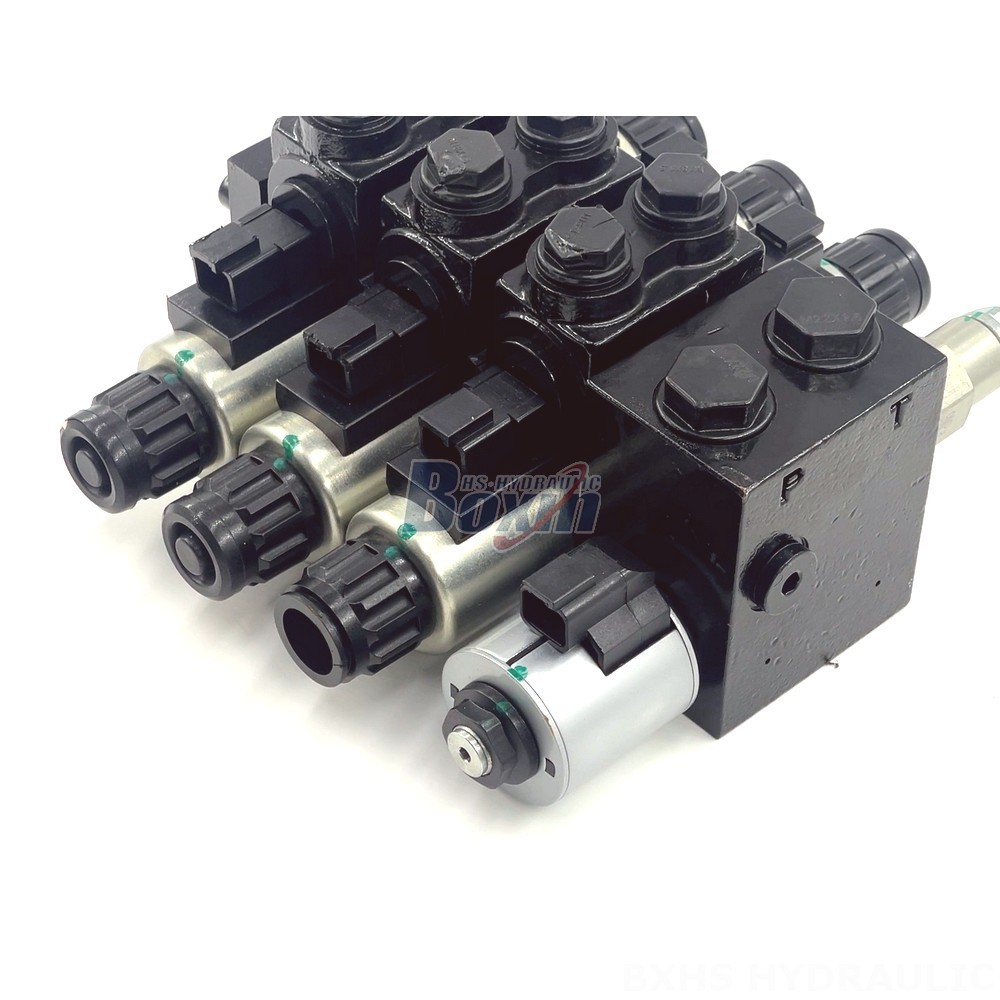

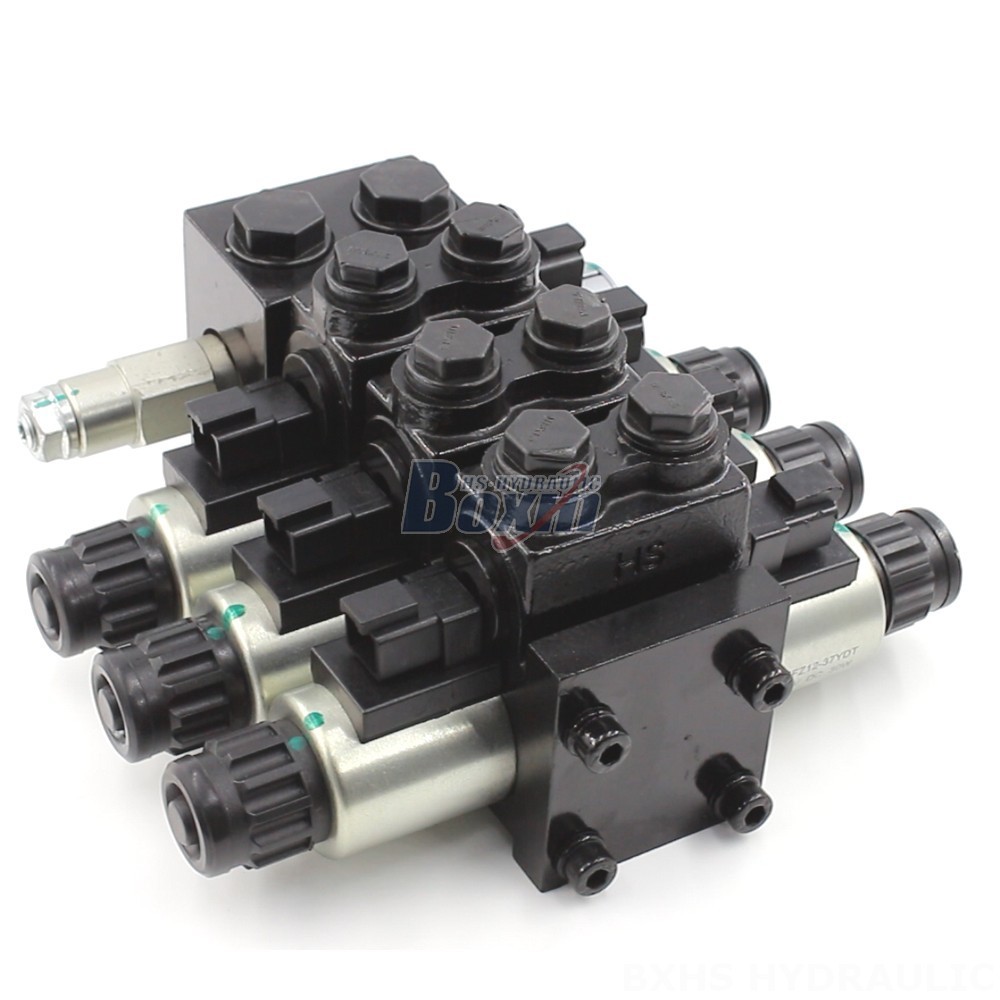

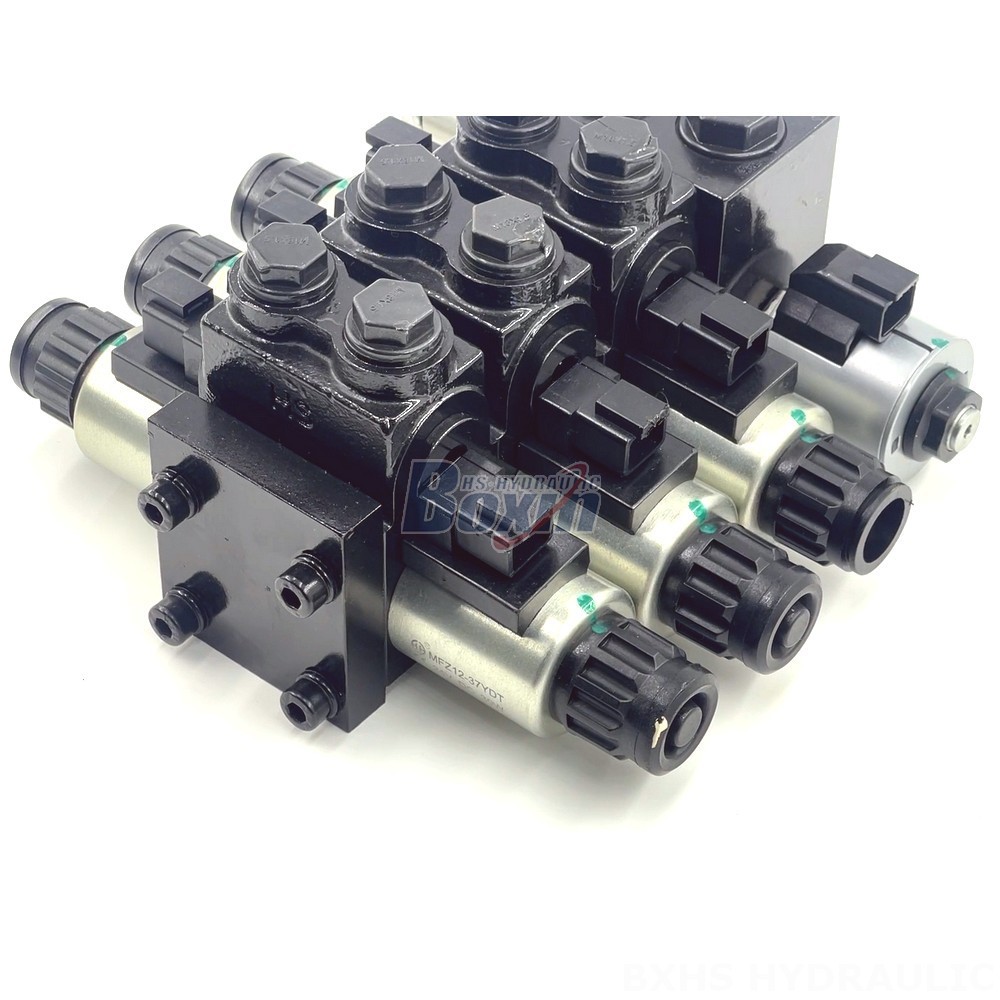

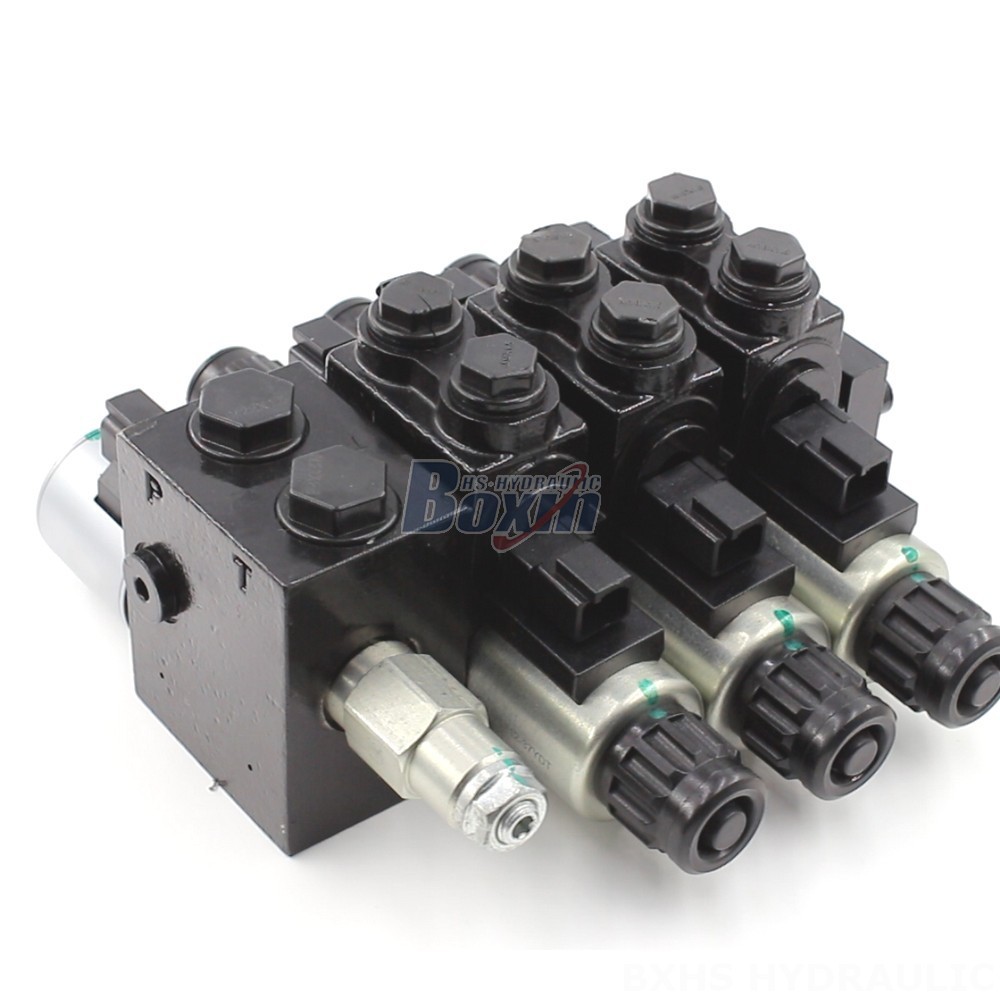

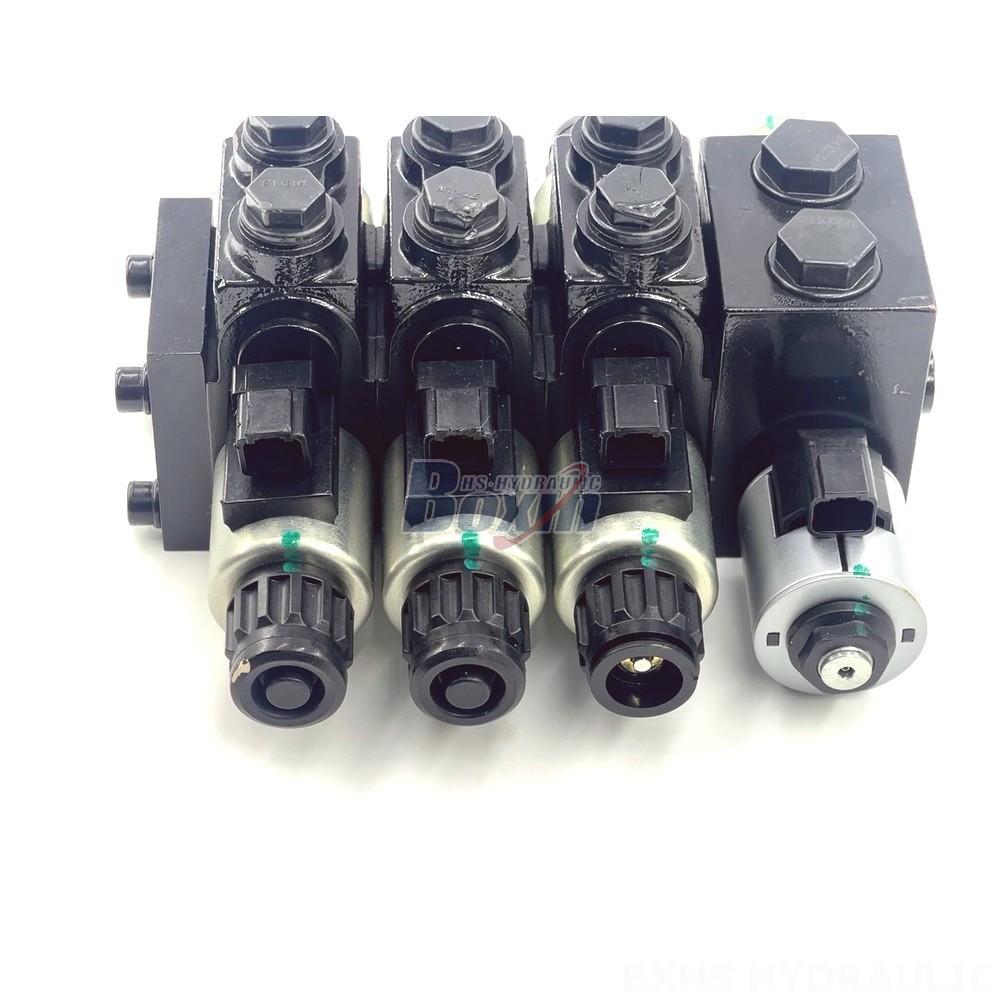

The HDCF50 series hydraulic block valve is a 3-section solenoid controlled valve designed for heavy-duty applications in construction, agriculture, and industrial vehicles. It offers a rated flow of 50 L/min and a maximum pressure of 160 bar, making it suitable for various equipment like forklifts, telehandlers, and excavators.
| Serie HDCF50 Válvula de control de solenoide Parámetros | |
|---|---|
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes |
| Método de control | Solenoide |
| Tamaño de Puerto | M22×1.5, SAE 8 |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones |
| Rango de temperatura ambiente | -20°C a +80°C |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Puerto de Salida | M18×1.5, M22×1.5, SAE 8 |
| Presión Máxima | 160 bar (2300 psi) |
| Flujo Nominal | 50 l/min (13,2 gal EE. UU./min) |
| Tipo de estructura | Válvulas seccionales |
| Puerto de Entrada | M18×1.5, M22×1.5, SAE 8 |
This HDCF50 series hydraulic block valve is a reliable and durable solution for demanding applications. Featuring a 3-section design and solenoid control, it provides precise and efficient hydraulic control. With a rated flow of 50 L/min and a maximum pressure of 160 bar, it is suitable for a wide range of equipment in construction, agriculture, and industrial vehicles. Its compact size and robust construction make it ideal for tight spaces and demanding environments. The HDCF50 valve is available in 12V and 24V versions for compatibility with various electrical systems. It is also designed for a wide operating viscosity range and ambient temperature range, ensuring reliable performance in diverse conditions.
