Source Directly & Save: SD5 Solenoid Valves from the Manufacturer

Método de control:Solenoide

Carrete:2 carretes

Flujo Nominal:45 l/min (11,8 gal EE. UU./min)

Presión Máxima:315 bar (4600 psi)

Puerto de Entrada:G3/8

Puerto de Salida:G3/8

Tamaño de Puerto:G3/8

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie SD5 Válvula Direccional Monobloque

Tamaño del embalaje:30*18*15

Peso bruto:7.00 kg

Disponibilidad: En stock

1294 personas están viendo este producto

Source Directly & Save: SD5 Solenoid Valves from the Manufacturer

Source Directly & Save: SD5 Solenoid Valves from the Manufacturer

Source Directly & Save: SD5 Solenoid Valves from the Manufacturer drawing image

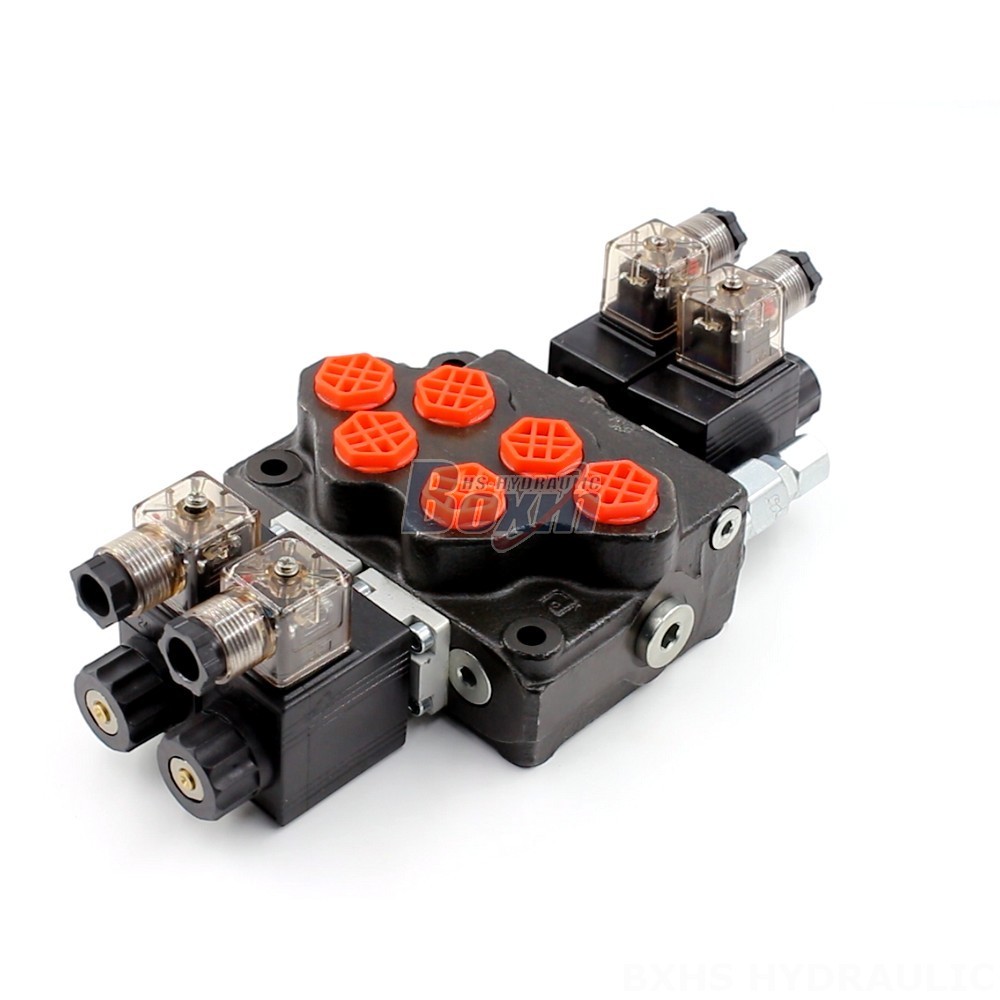

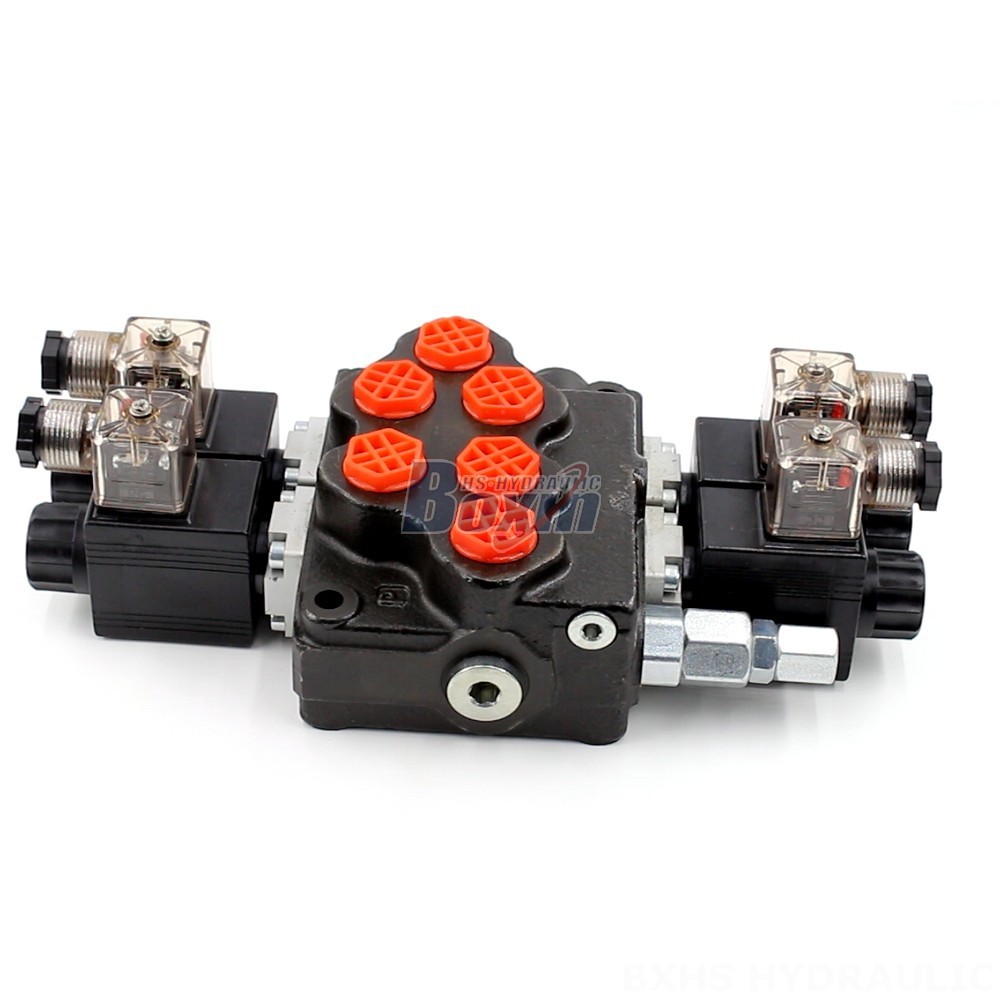

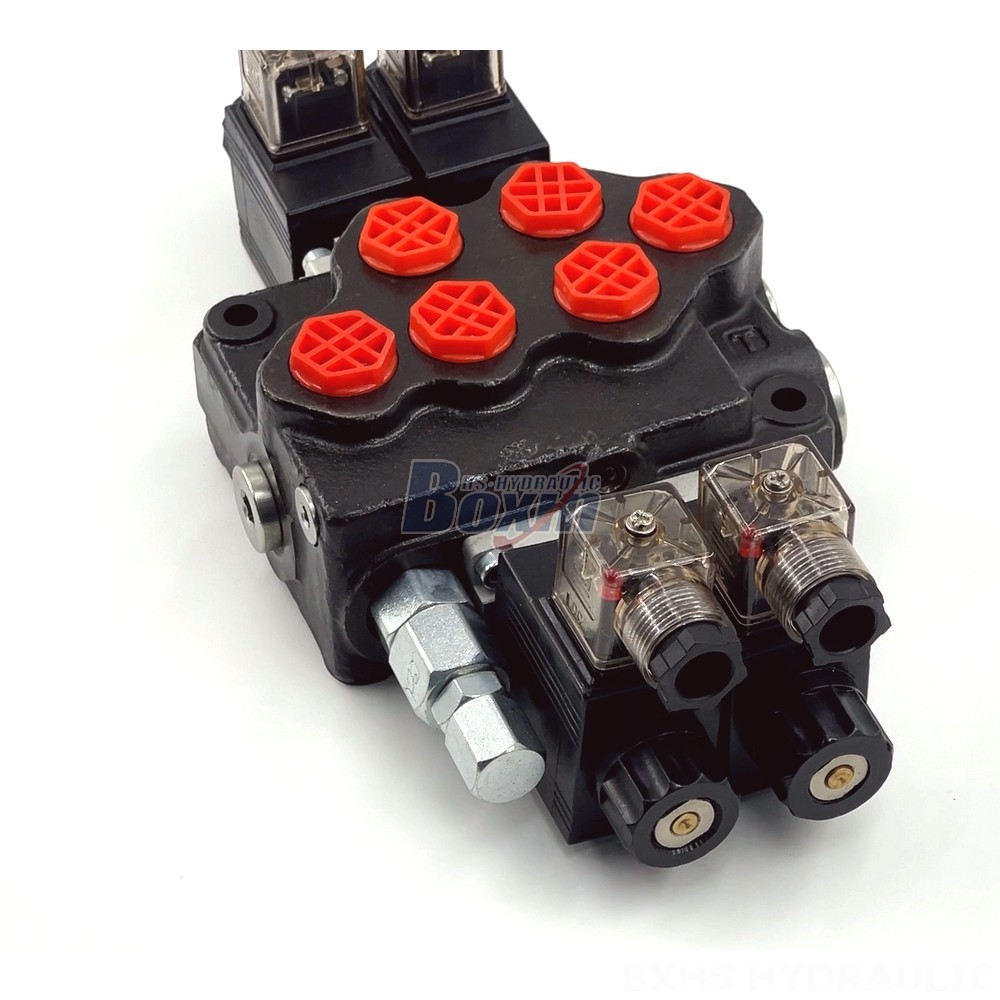

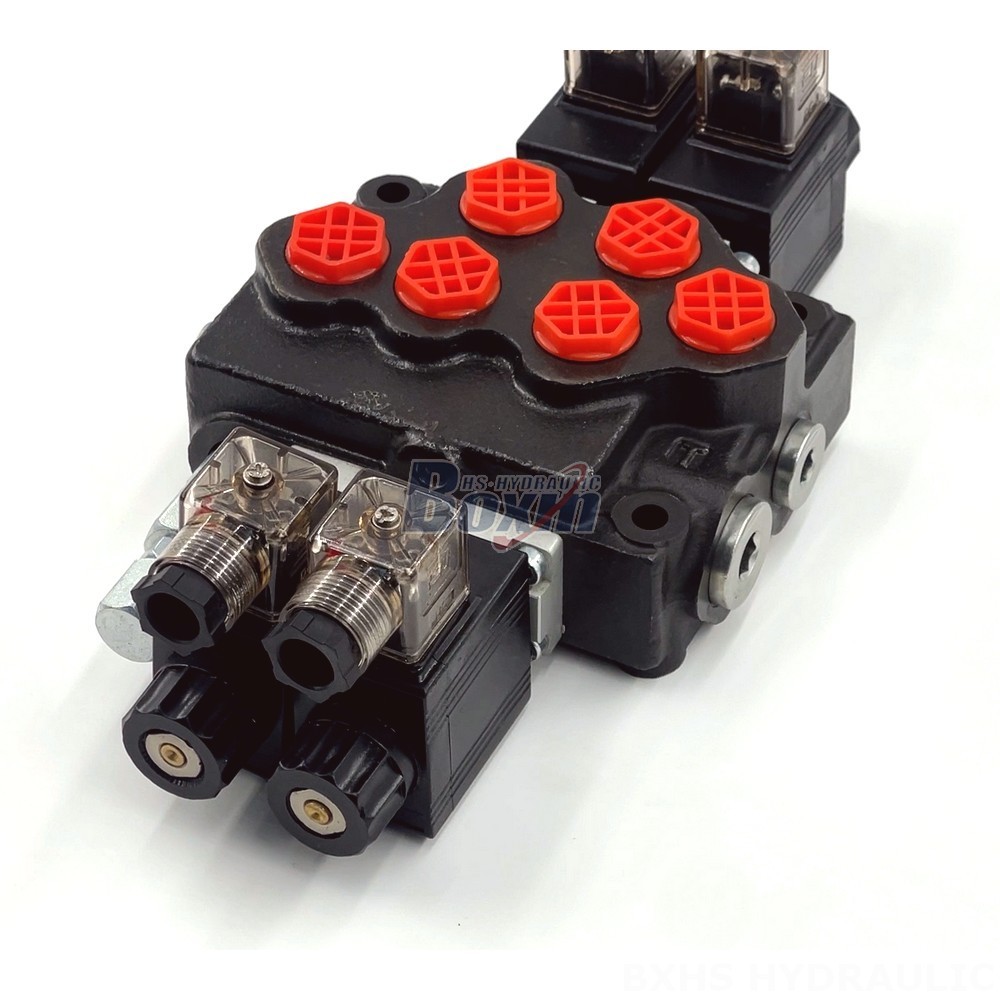

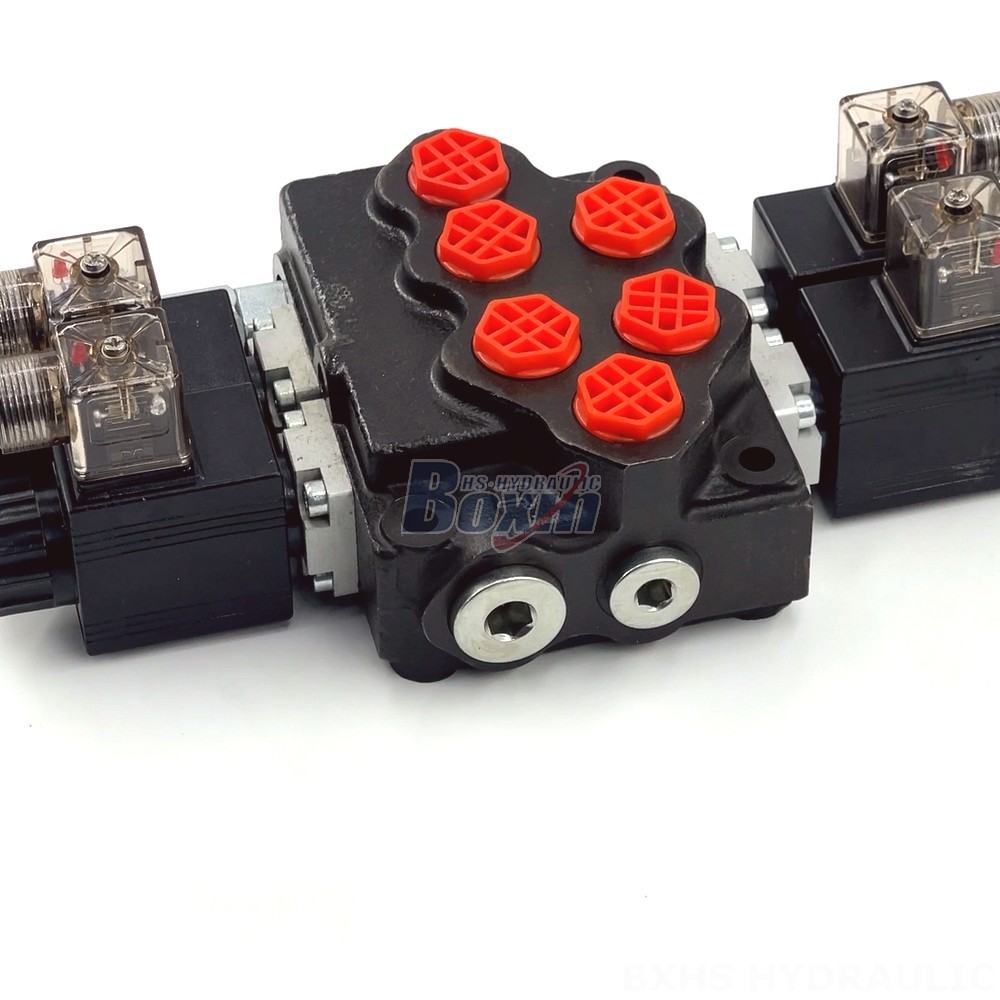

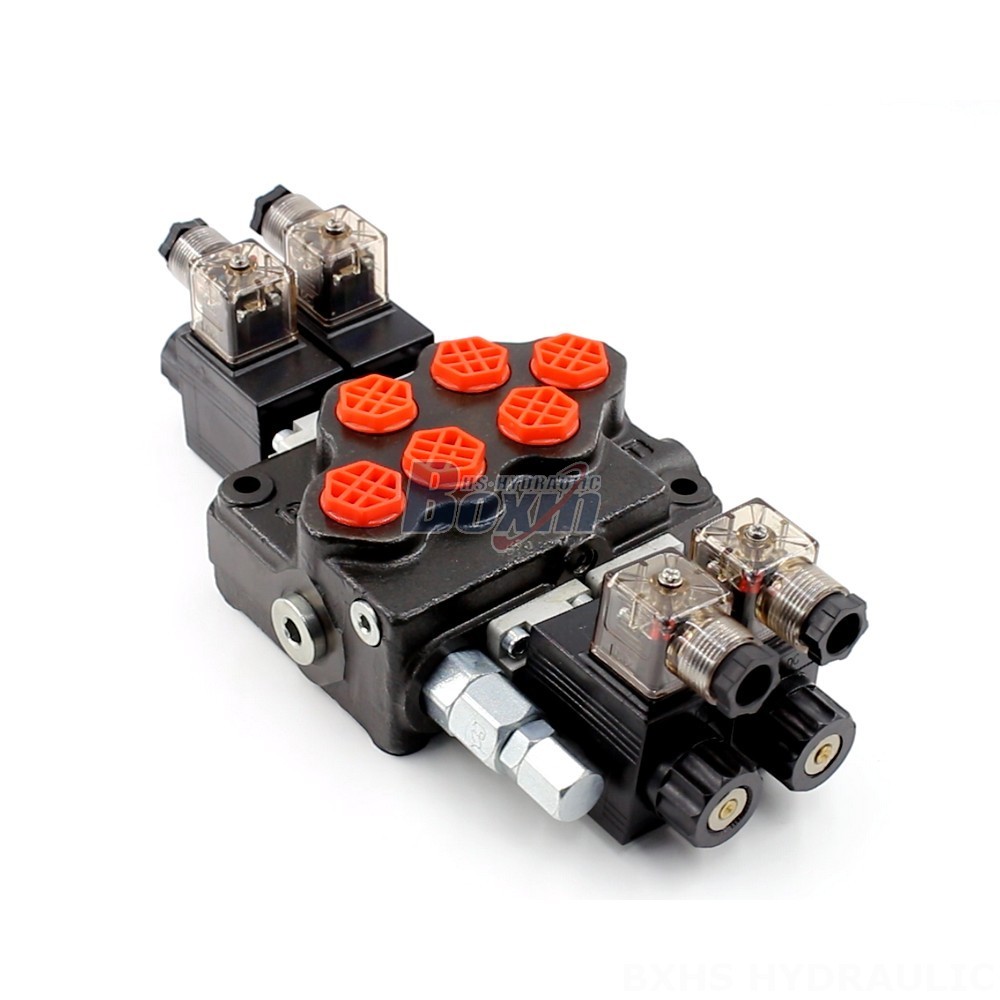

The SD5 Solenoid Valve is a high-quality hydraulic spool valve designed for tractors and other heavy-duty equipment. It offers a reliable and efficient way to control hydraulic flow, providing smooth operation and long service life. This valve is available in a variety of configurations to meet your specific application requirements.

Serie SD5 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +60 °C (-40 °F a +140 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 40 l/min (10,5 gal EE. UU./min)
Presión Máxima 305 bar (4400 psi)
Puerto de Entrada G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Puerto de Salida G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Tamaño de Puerto G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The SD5 Series Solenoid Valve is a high-performance hydraulic valve manufactured for tractors and other heavy-duty machinery. This 2-section monoblock valve is built to withstand demanding conditions with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi). The valve features a solenoid control method, offering precise and responsive operation. It is suitable for a wide range of applications, including material handling, construction and earthmoving, agriculture, and industrial vehicles. We are a manufacturer, offering factory supply, factory wholesale, and customized options to meet your specific needs. Our commitment to quality and customer satisfaction ensures that you receive a reliable and durable product that exceeds your expectations.
