Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
1141 personas están viendo este producto

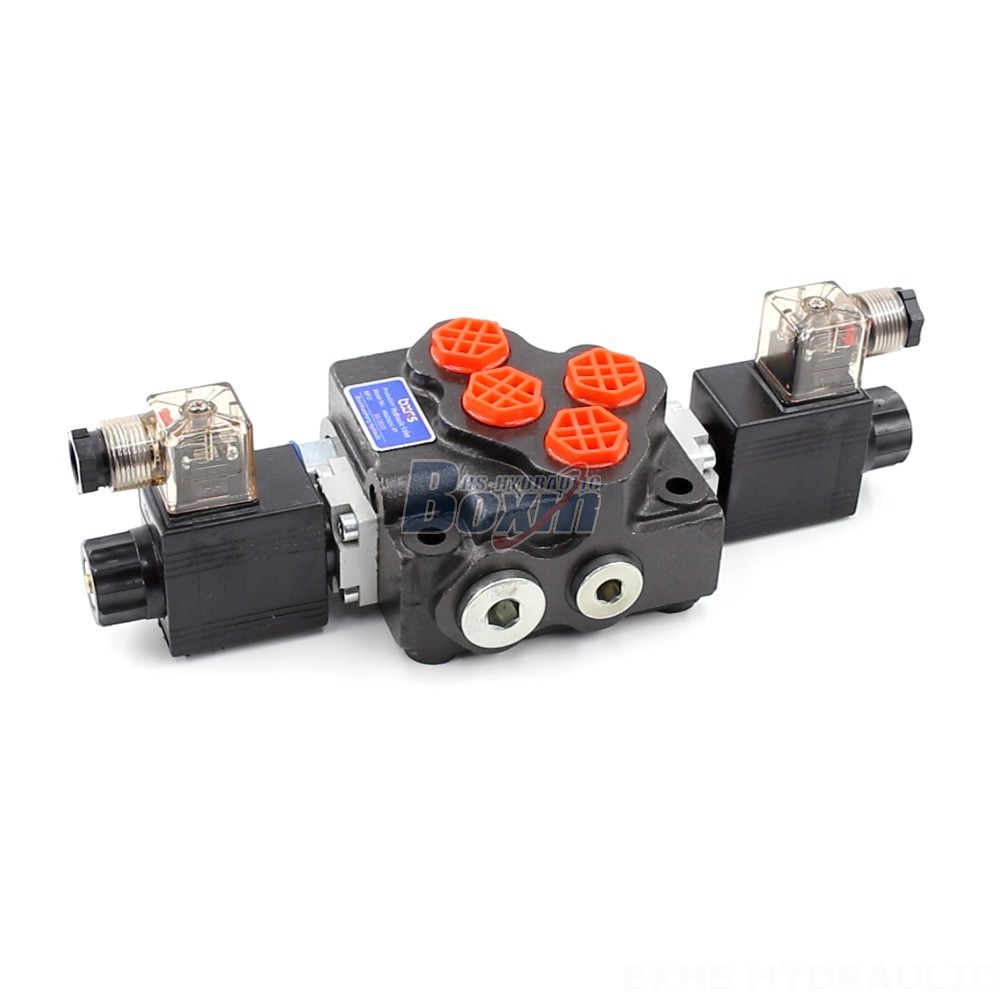

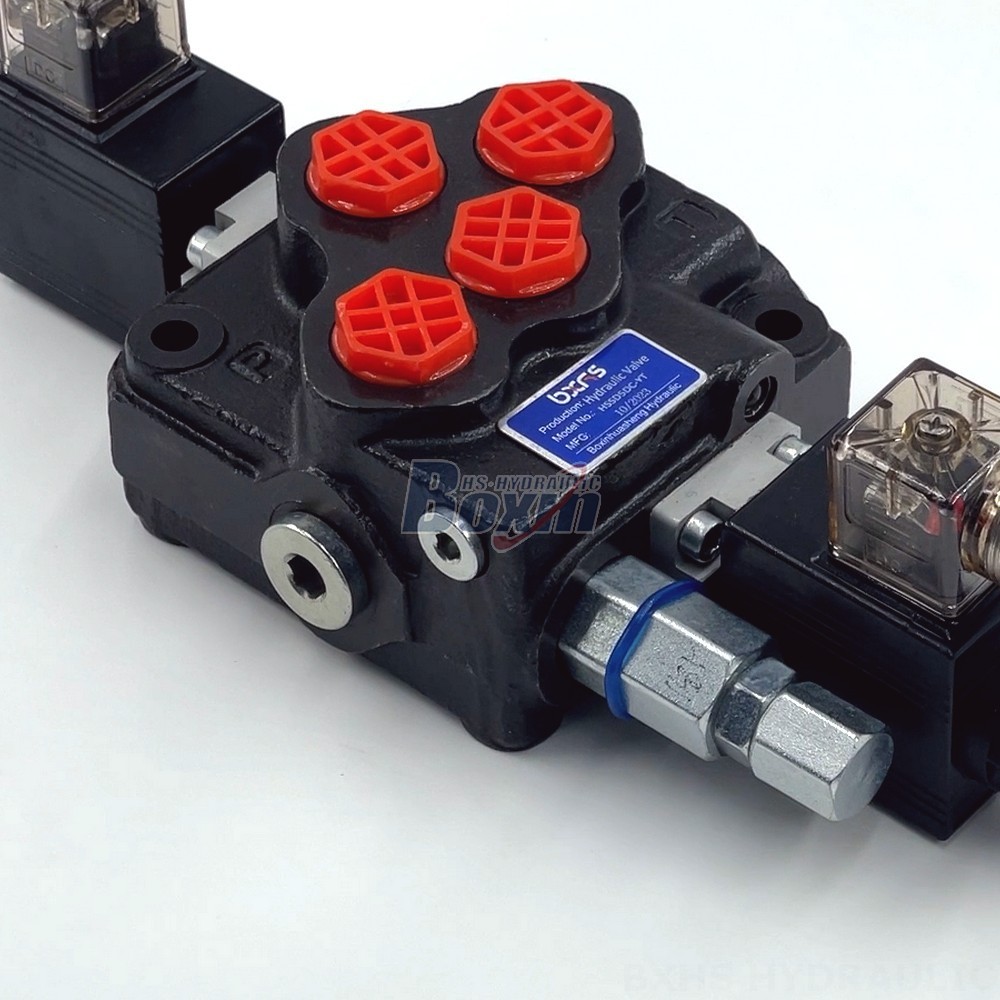

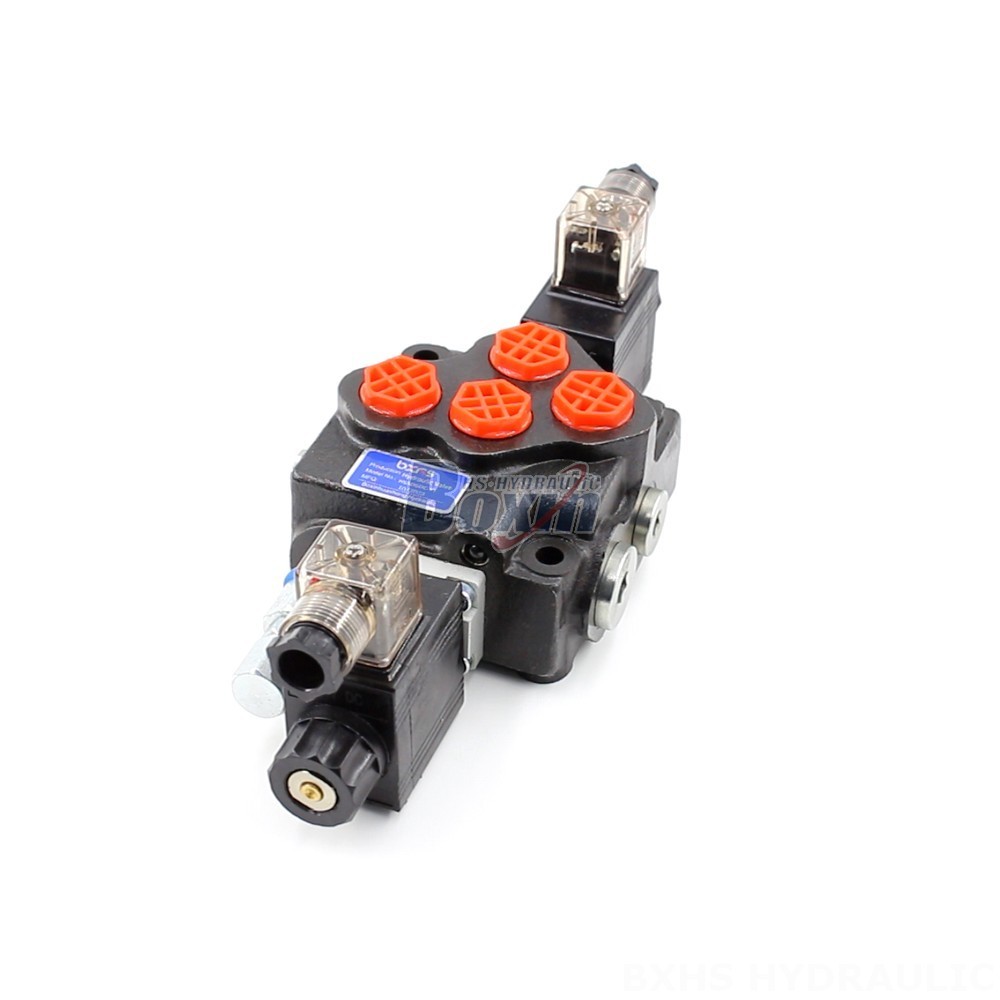

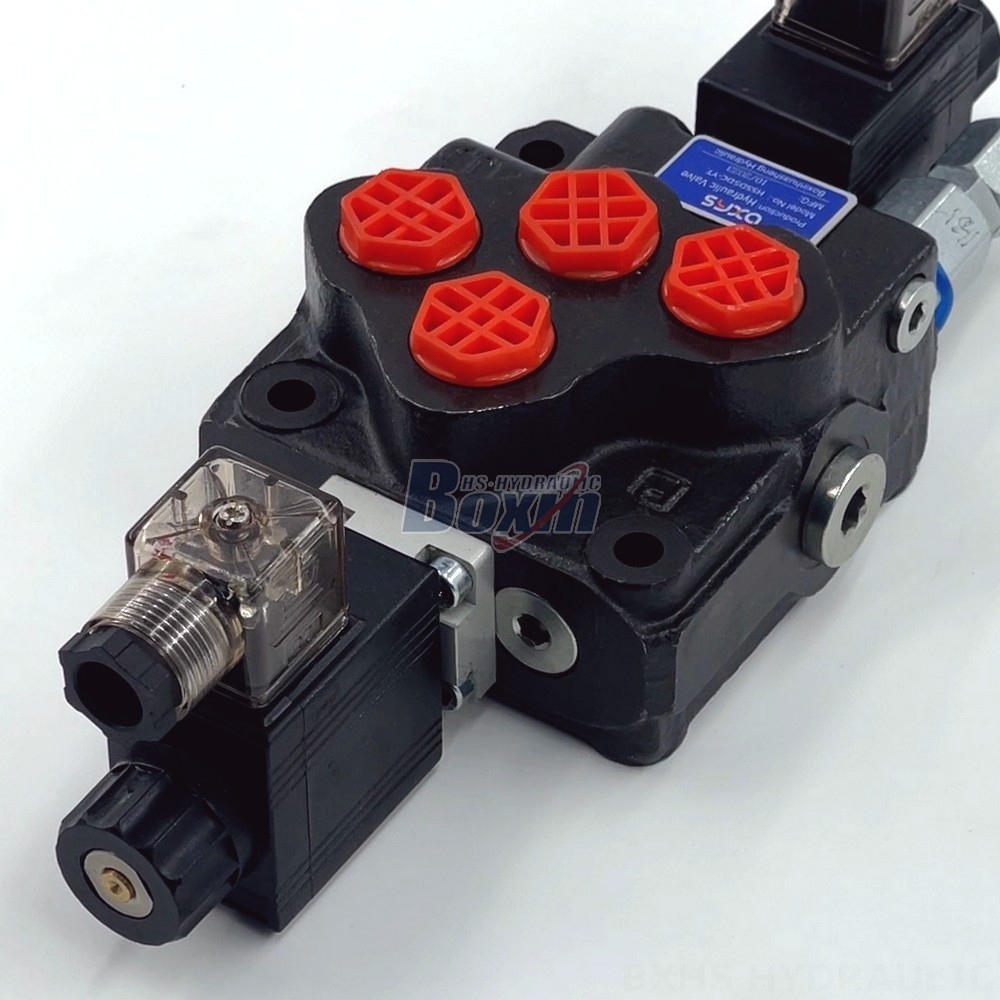

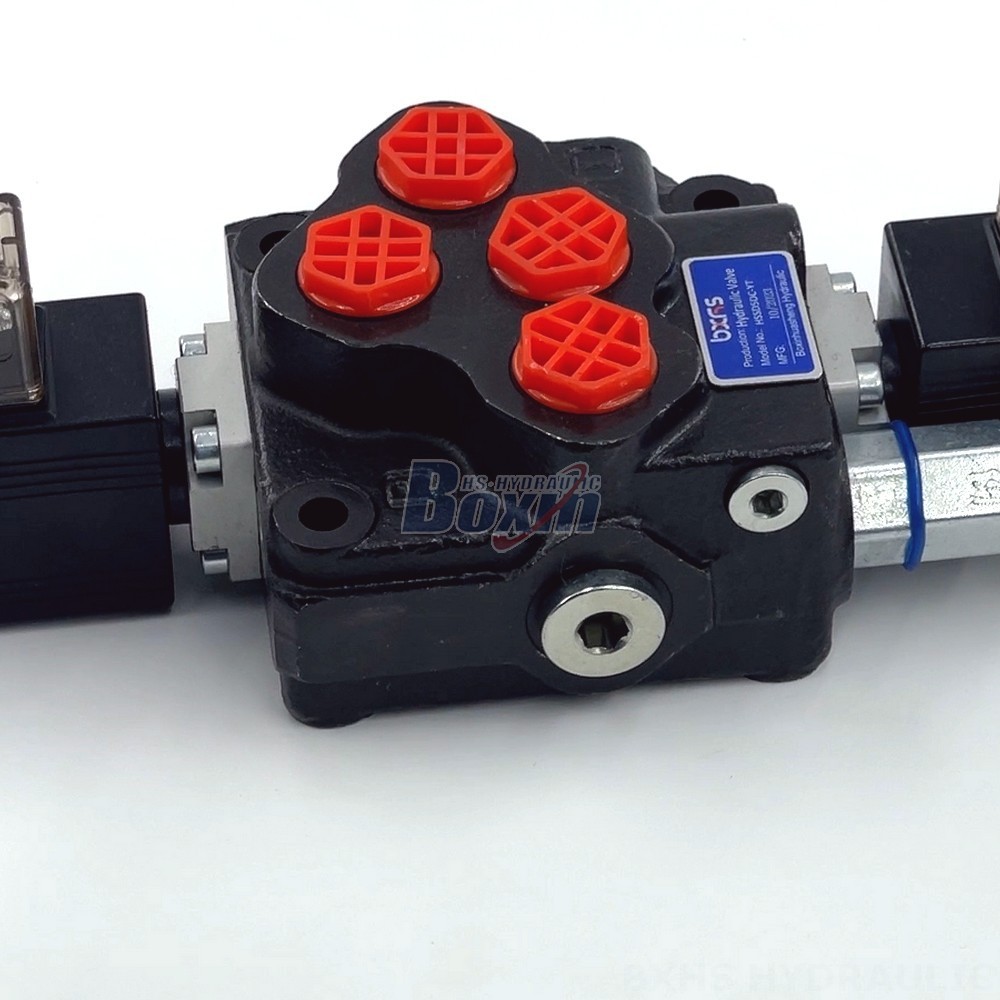

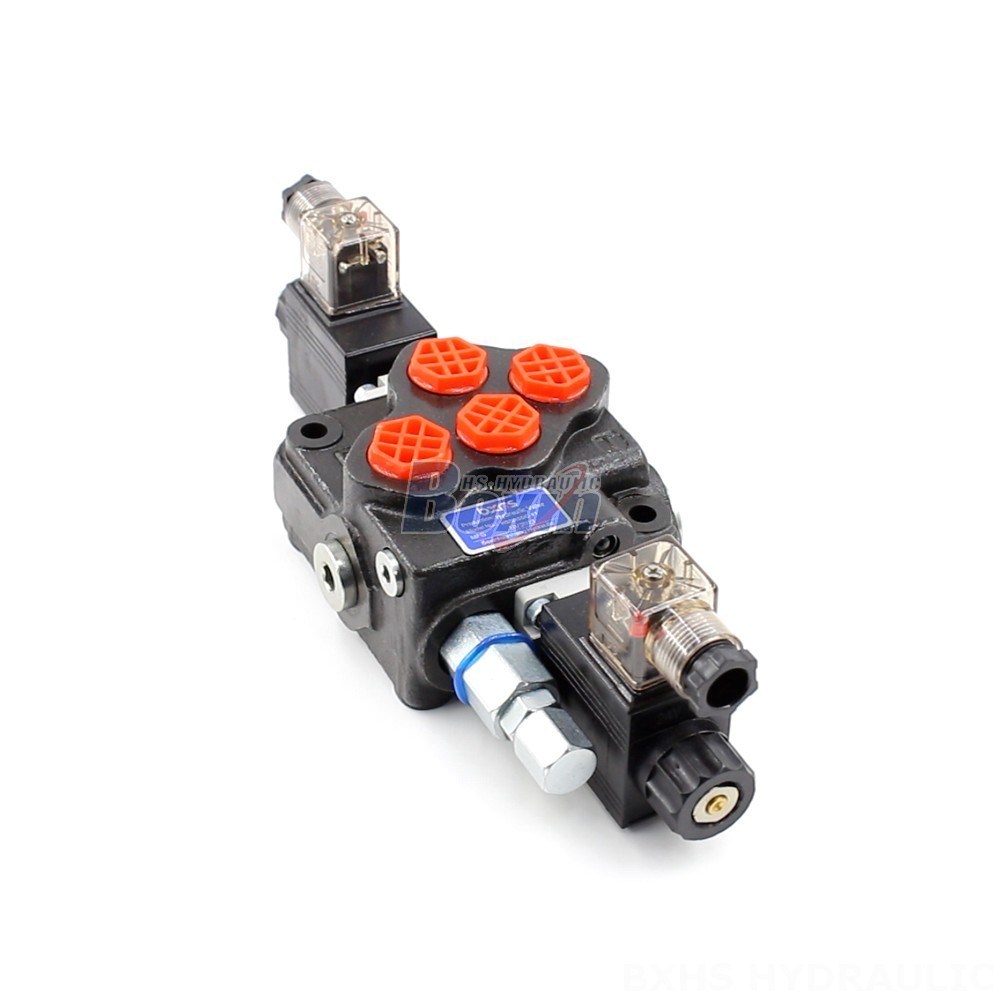

The SD5 Series Proportional Hydraulic Valve is a high-performance, compact monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features solenoid control, a 40 L/min flow rate, and a maximum pressure of 305 bar. This valve is available direct from the manufacturer, offering factory prices and wholesale options.
| Serie SD5 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 305 bar (4400 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 Series Proportional Hydraulic Valve is a reliable and efficient solution for controlling hydraulic systems in a wide range of applications. Directly sourced from the manufacturer, this valve offers exceptional quality and value. Its monoblock construction ensures robust performance, while its compact design allows for easy installation. The SD5 valve is perfect for applications requiring precise and responsive control, such as forklifts, telehandlers, mini excavators, skid steer loaders, and more. We offer competitive factory pricing and wholesale options to meet the needs of our global customer base.
