Solenoid Hydraulic Valve | P40-DKL | Contact Us for Specifications

Método de control:Solenoide

Carrete:3 carretes

Flujo Nominal:40 l/min (10,5 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G1/2

Puerto de Salida:G1/2

Tamaño de Puerto:G3/8

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P40-DKL Válvula Direccional Monobloque

Tamaño del embalaje:31*21*17

Peso bruto:9.00 kg

Disponibilidad: En stock

1302 personas están viendo este producto

Solenoid Hydraulic Valve | P40-DKL | Contact Us for Specifications

Solenoid Hydraulic Valve | P40-DKL | Contact Us for Specifications

Solenoid Hydraulic Valve | P40-DKL | Contact Us for Specifications drawing image

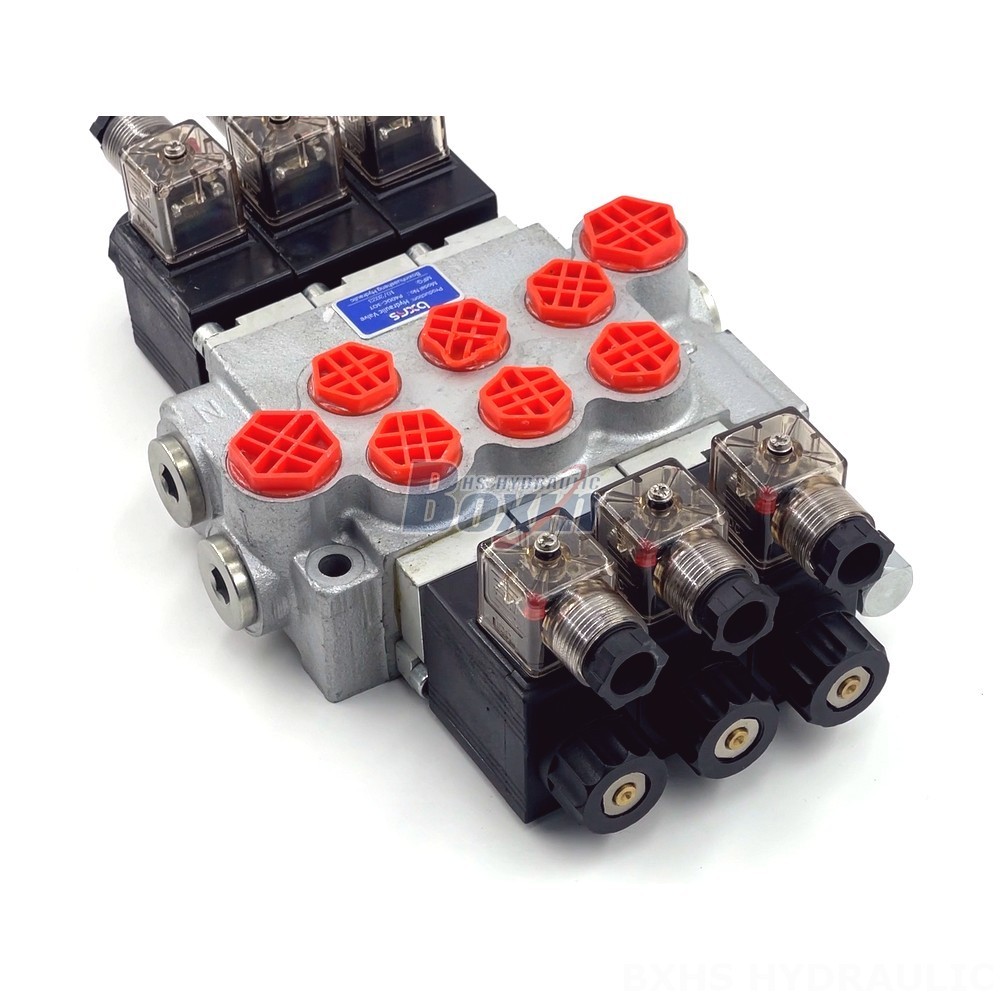

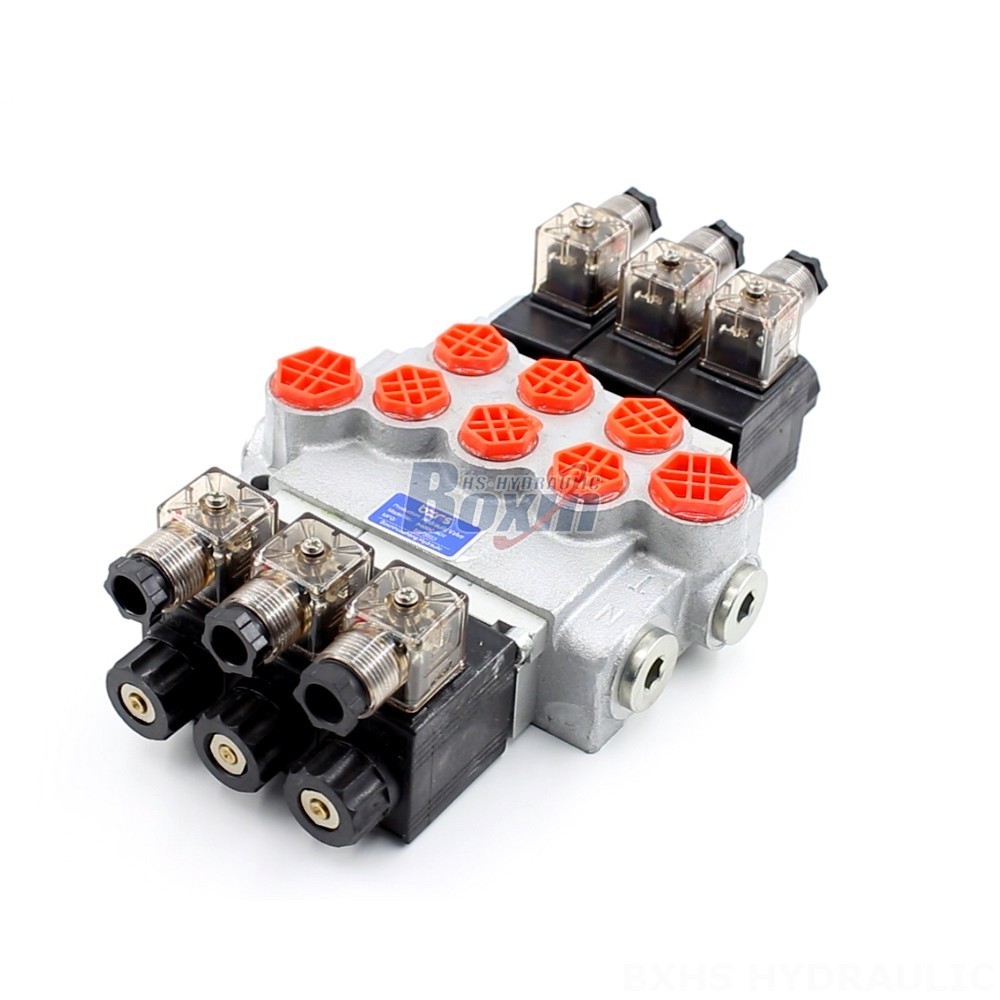

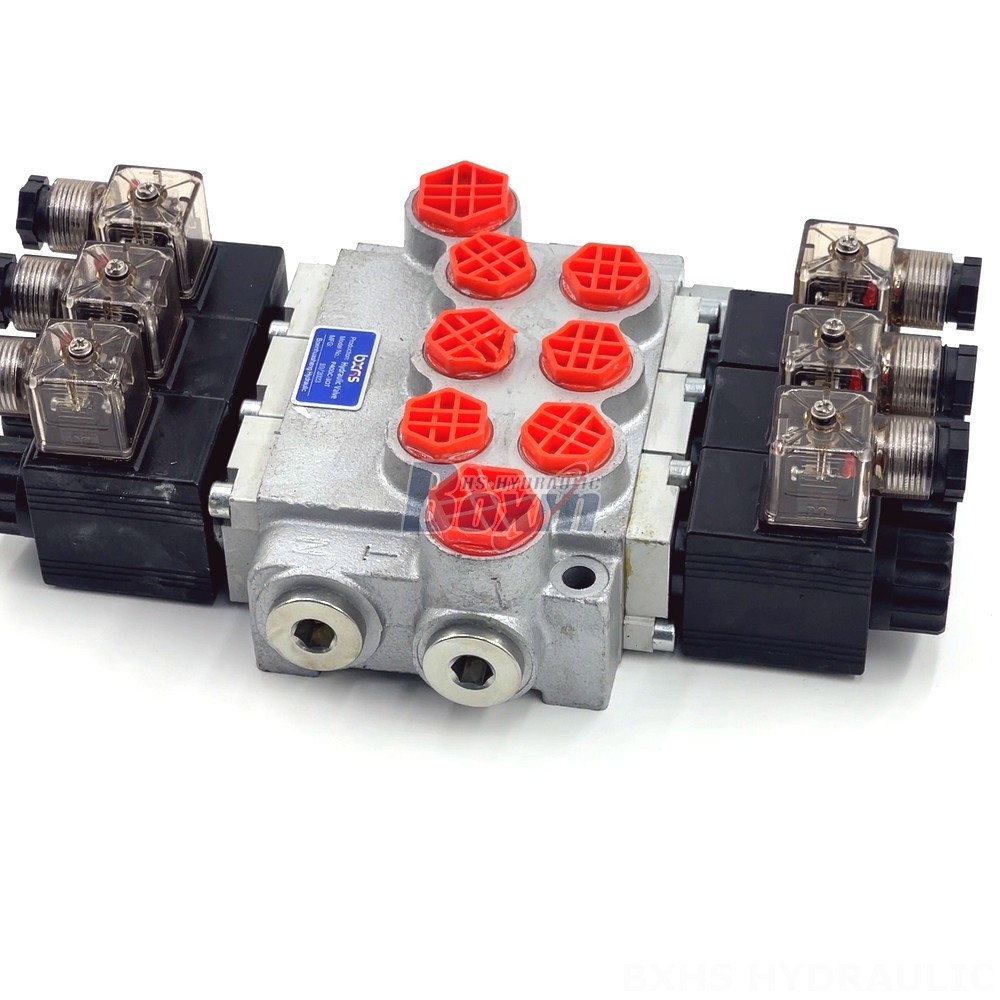

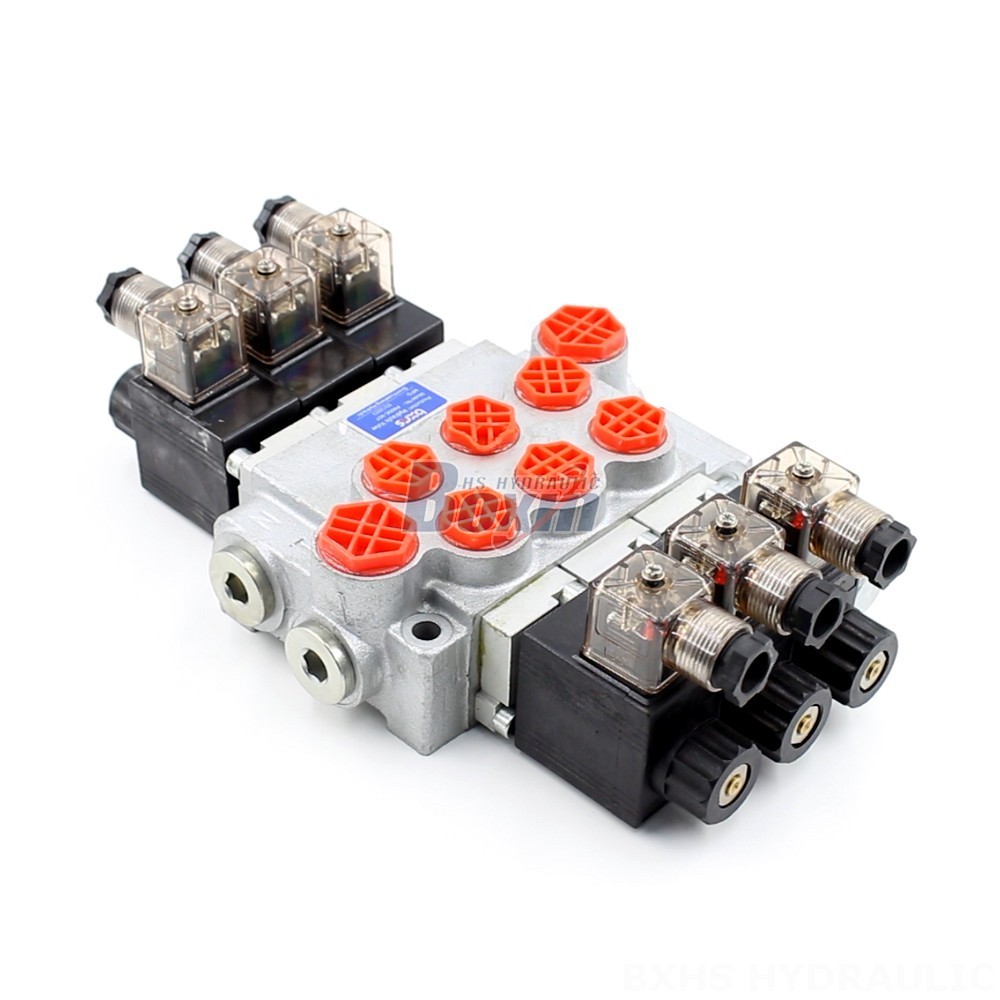

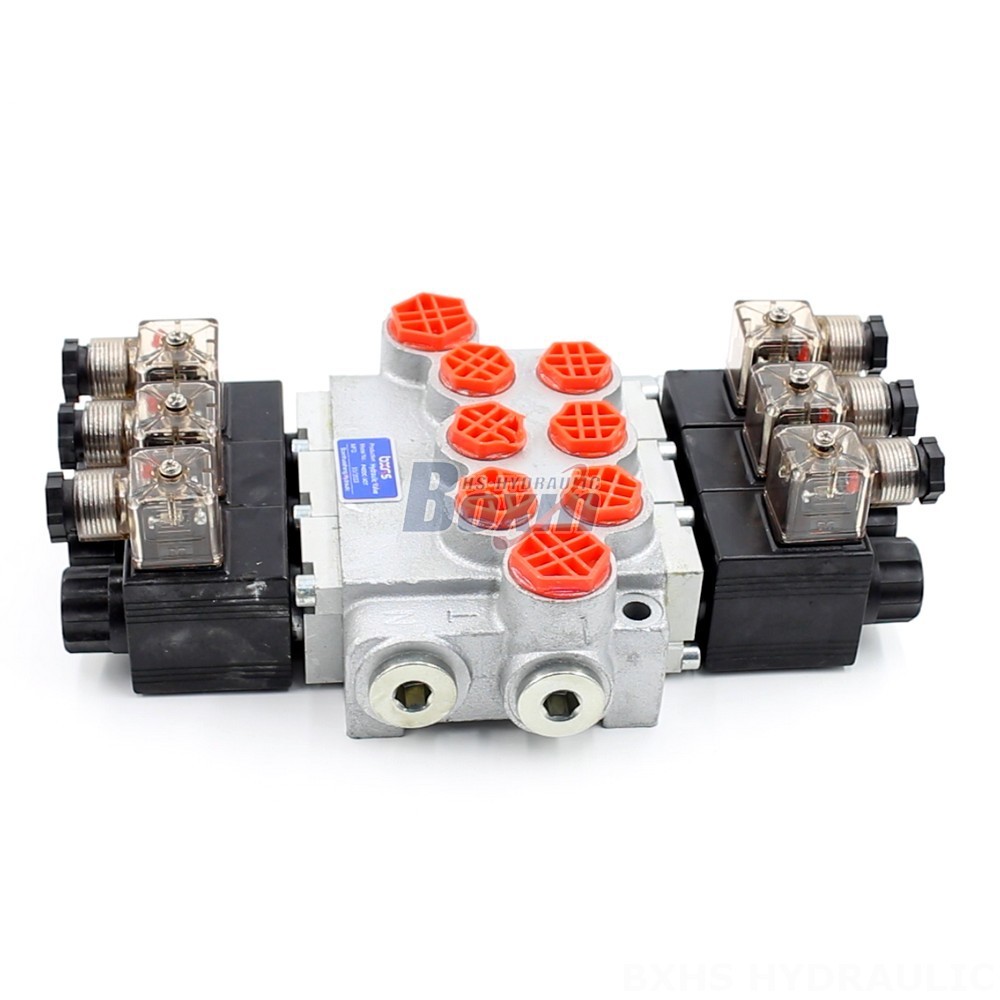

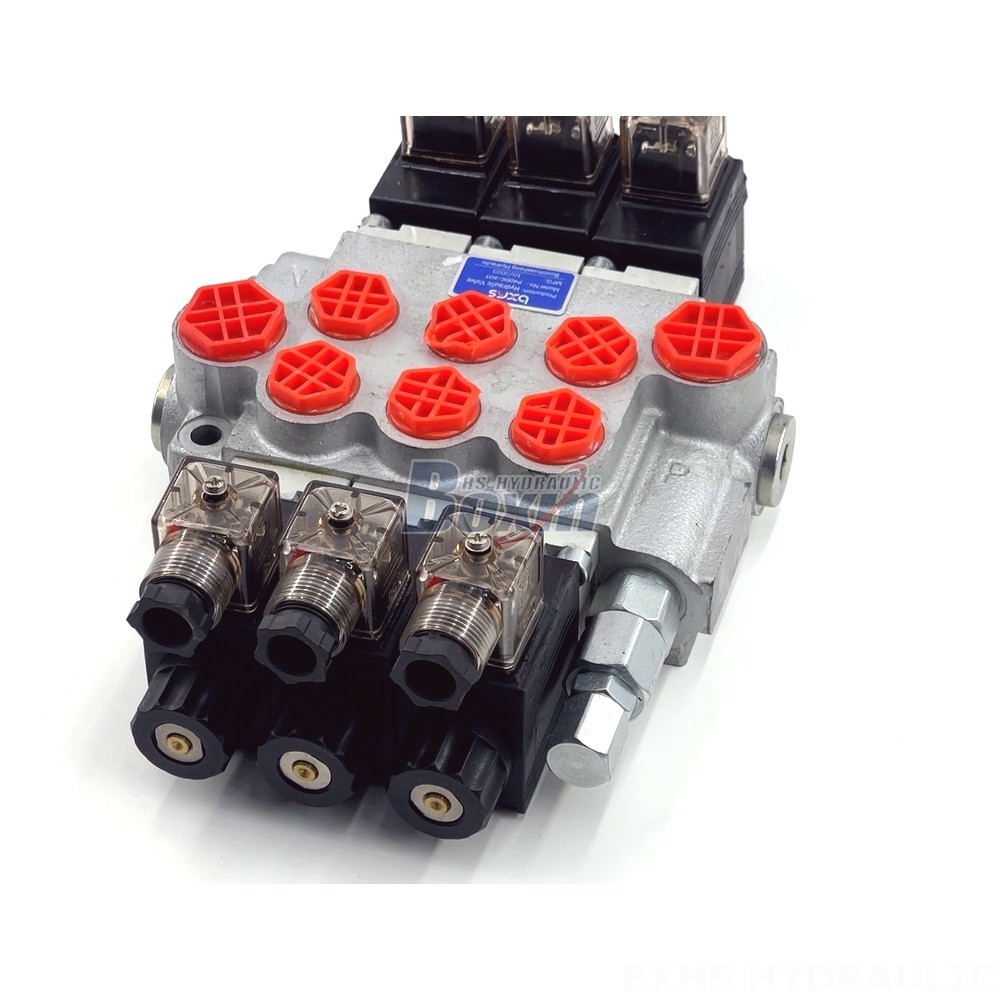

The P40-DKL series is a 3-section monoblock solenoid valve designed for heavy-duty applications in material handling, construction, and agriculture. With a rated flow of 40 L/min and a max pressure of 250 bar, this valve is ideal for controlling hydraulic actuators in a variety of equipment, including telehandlers, forklifts, and excavators.

Serie P40-DKL Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Flujo Nominal 40 l/min (10,5 gal EE. UU./min)
Presión Máxima 250 bar (3600 psi)
Puerto de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Puerto de Salida G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamaño de Puerto G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Tipo de estructura Válvulas monobloc
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)

This P40-DKL series tractor 3-point control valve features a solenoid actuation method for precise control of hydraulic functions. Its 3-section design provides separate control of multiple hydraulic circuits. The valve is constructed with a robust monoblock design, ensuring long-lasting durability in demanding applications. With a rated flow of 40 L/min and a max pressure of 250 bar, this valve is suitable for a wide range of equipment in industries such as material handling, construction, and agriculture. The P40-DKL series is compatible with a variety of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
