Seeking Global Distributorship for P40-U78 Monoblock Valve

Método de control:Manual

Carrete:3 carretes

Flujo Nominal:40 l/min (10,5 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:SAE 10

Puerto de Salida:SAE 10

Tamaño de Puerto:SAE 10

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P40 Válvula Direccional Monobloque

Tamaño del embalaje:24*21*13

Peso bruto:6.60 kg

Disponibilidad: En stock

1085 personas están viendo este producto

Seeking Global Distributorship for P40-U78 Monoblock Valve

Seeking Global Distributorship for P40-U78 Monoblock Valve

Seeking Global Distributorship for P40-U78 Monoblock Valve drawing image

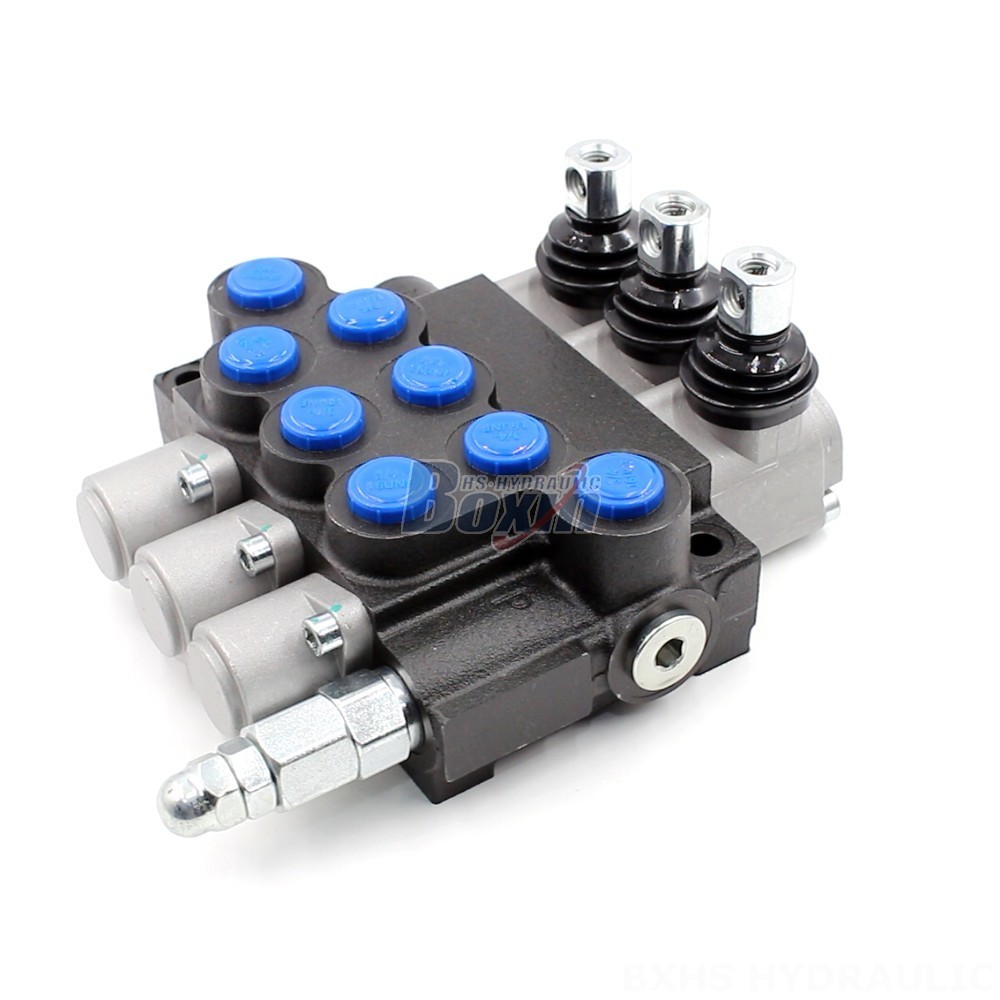

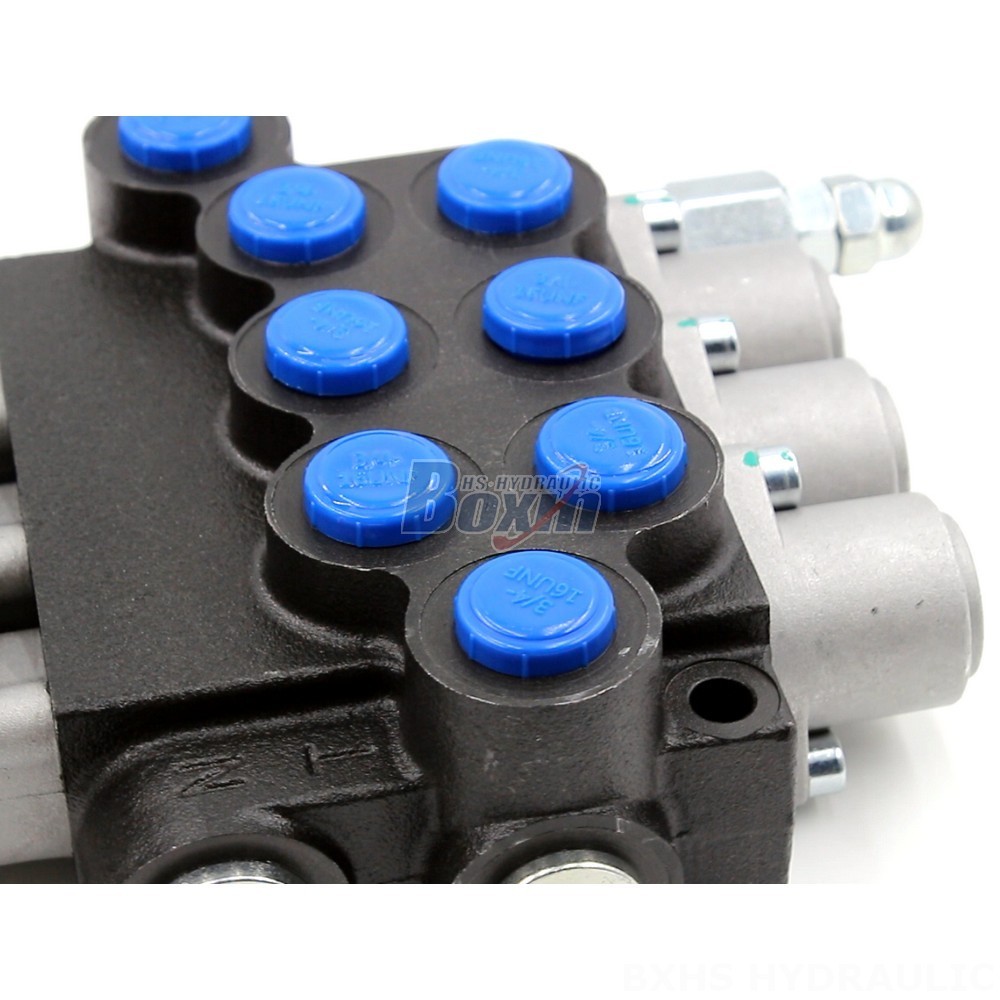

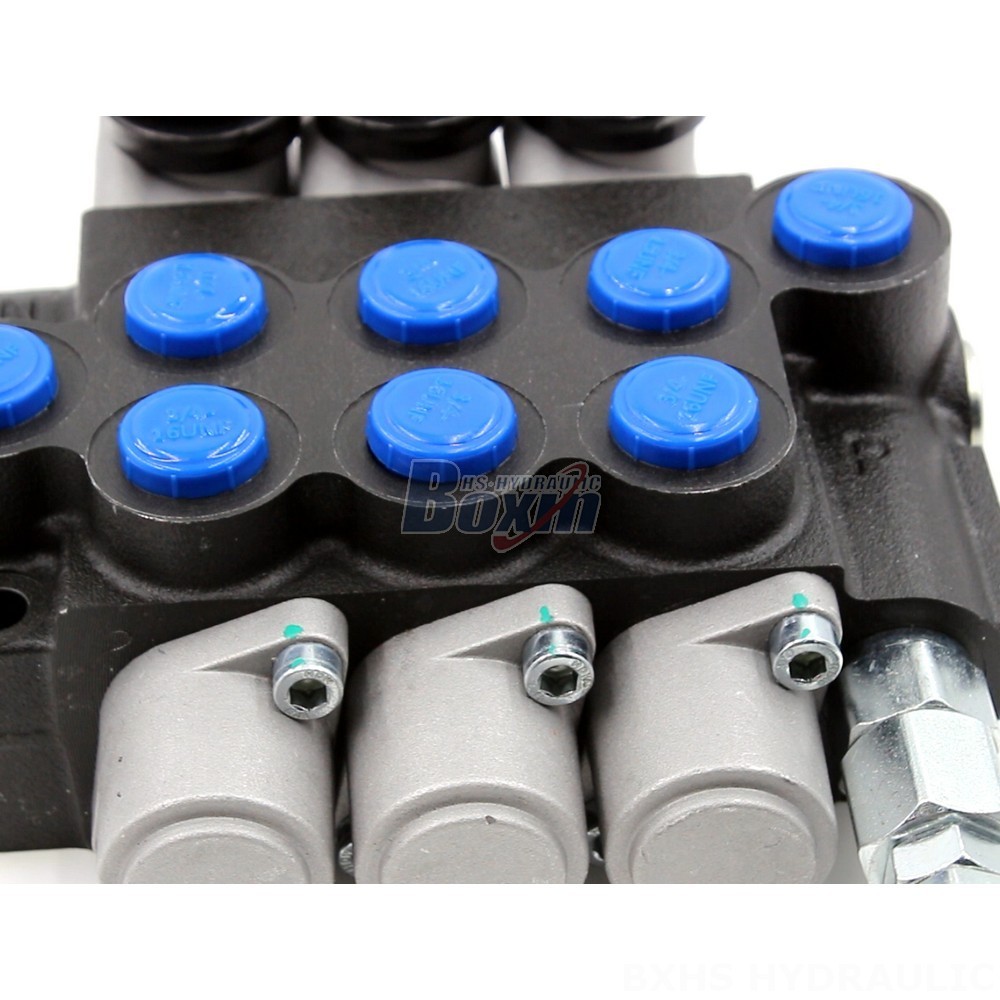

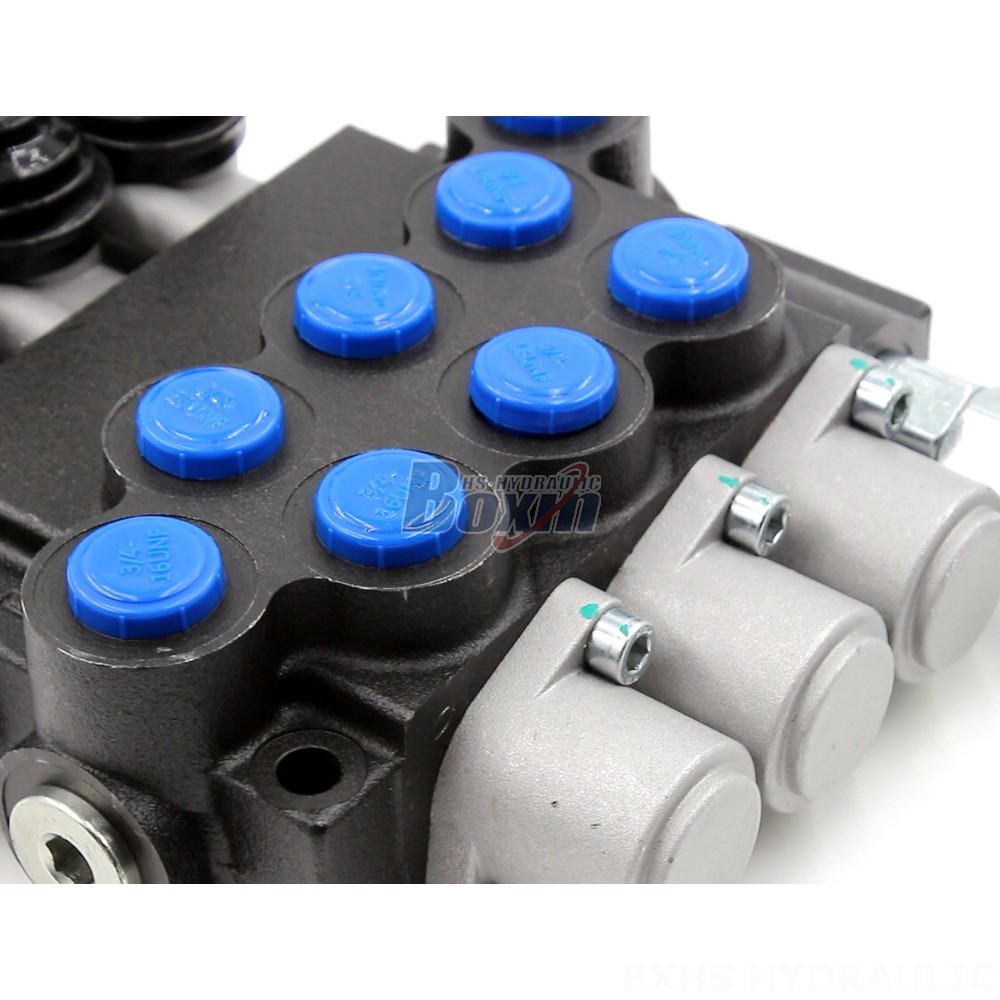

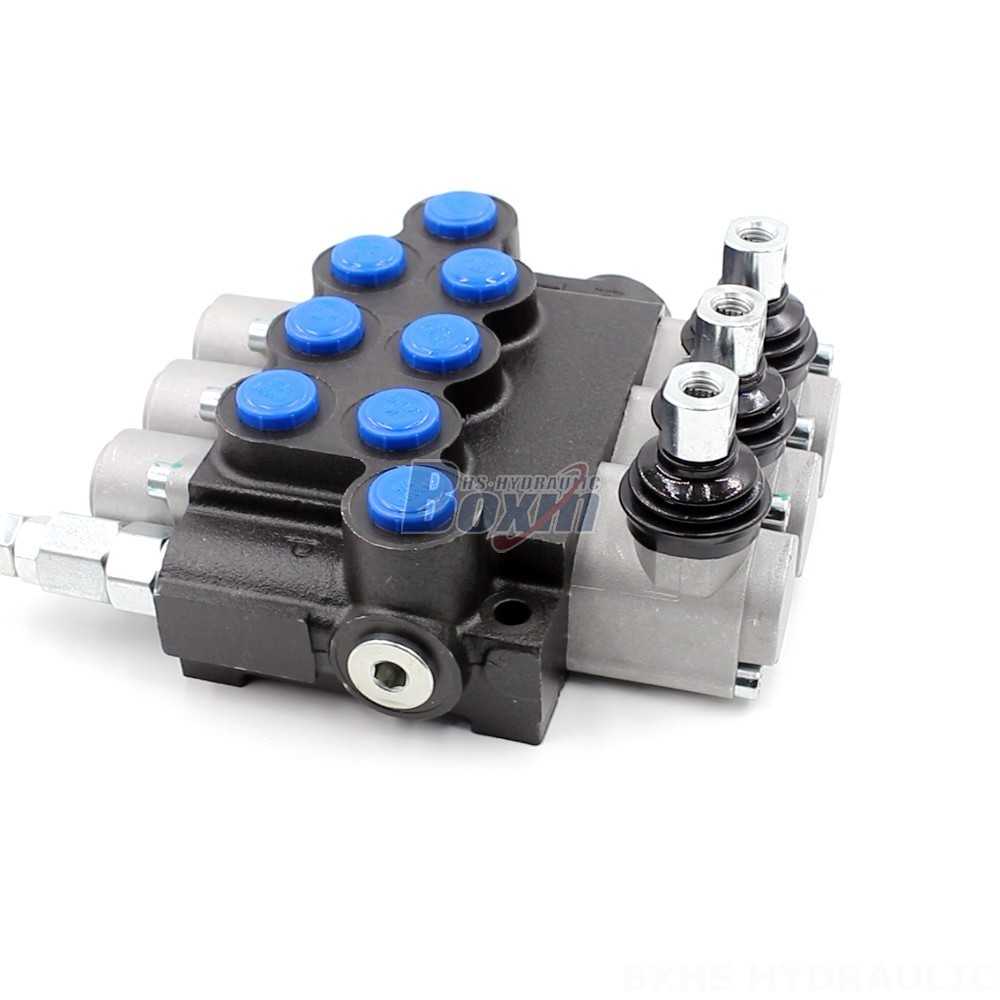

The P40-U78 Monoblock Valve is a high-performance, remote-controlled hydraulic control valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Featuring a compact design, 3 sections, and a 40 L/min flow rate, this valve is built to withstand high pressures (up to 250 bar) and challenging environments.

Serie P40 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 40 l/min (10,5 gal EE. UU./min)
Presión Máxima 250 bar (3600 psi)
Puerto de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Puerto de Salida G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamaño de Puerto G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 Series hydraulic control valve boasts a robust monoblock construction, offering superior durability and reliability. The valve's remote control capability provides for convenient operation, while its 3-section design ensures versatility in controlling hydraulic systems. With a rated flow of 40 L/min and a maximum pressure rating of 250 bar, this valve is well-suited for various heavy-duty applications. It is compatible with a wide range of equipment, including telehandlers, forklifts, cranes, excavators, loaders, and more. The P40-U78 Monoblock Valve operates within a viscosity range of 15-75 mm²/s and can withstand ambient temperatures from -40°C to +80°C, ensuring optimal performance across a variety of operating conditions.
