Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
269 personas están viendo este producto

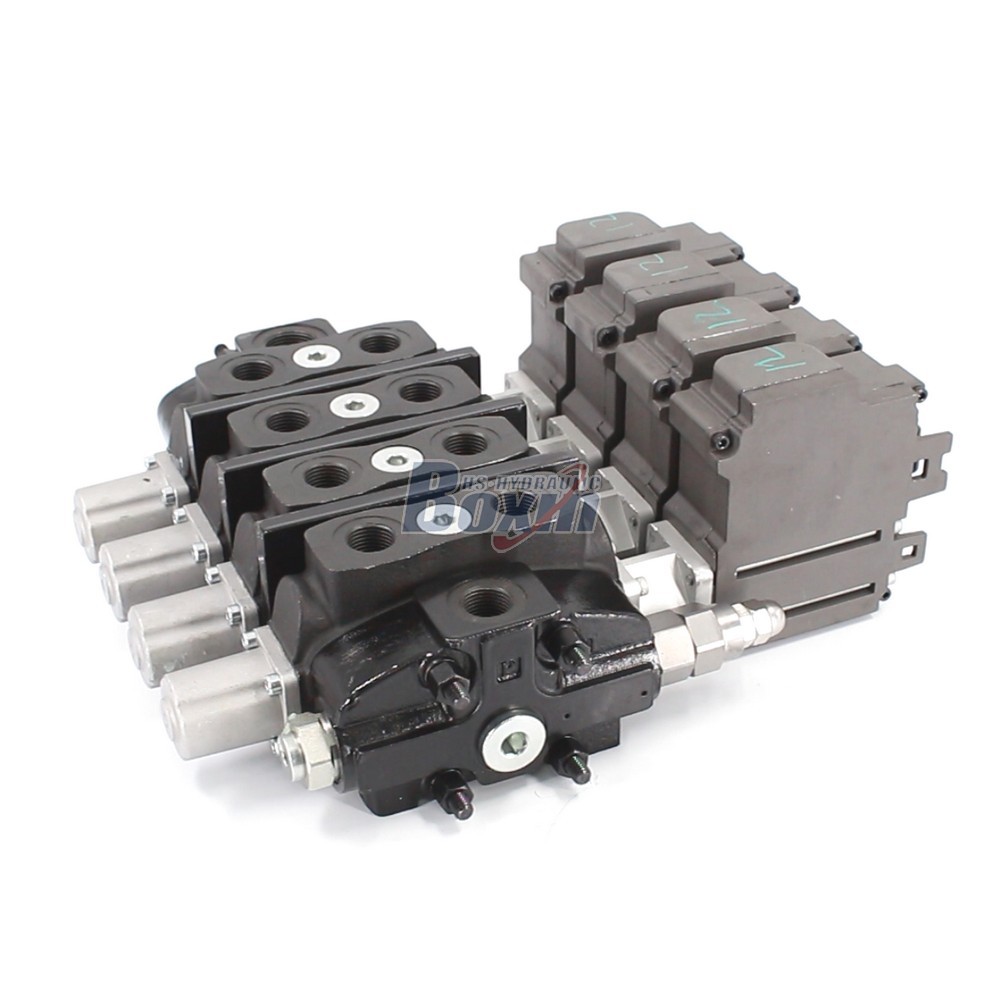

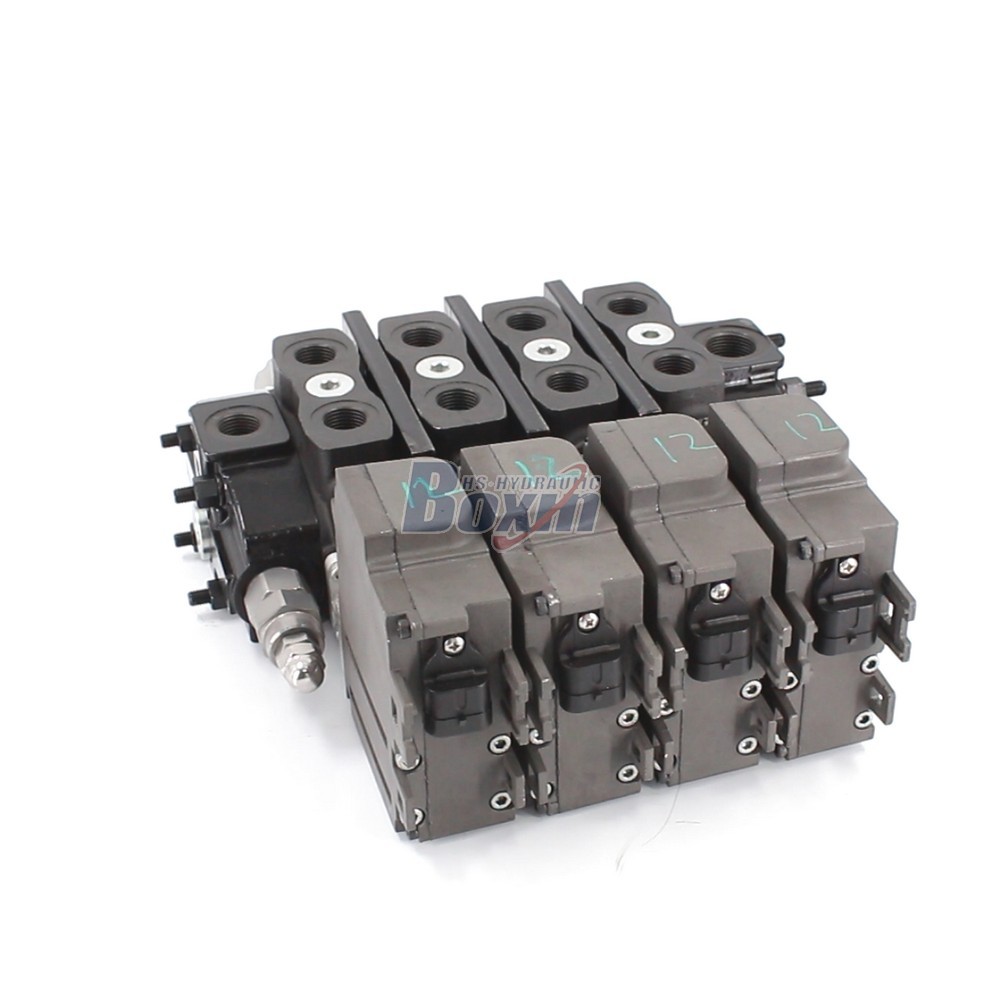

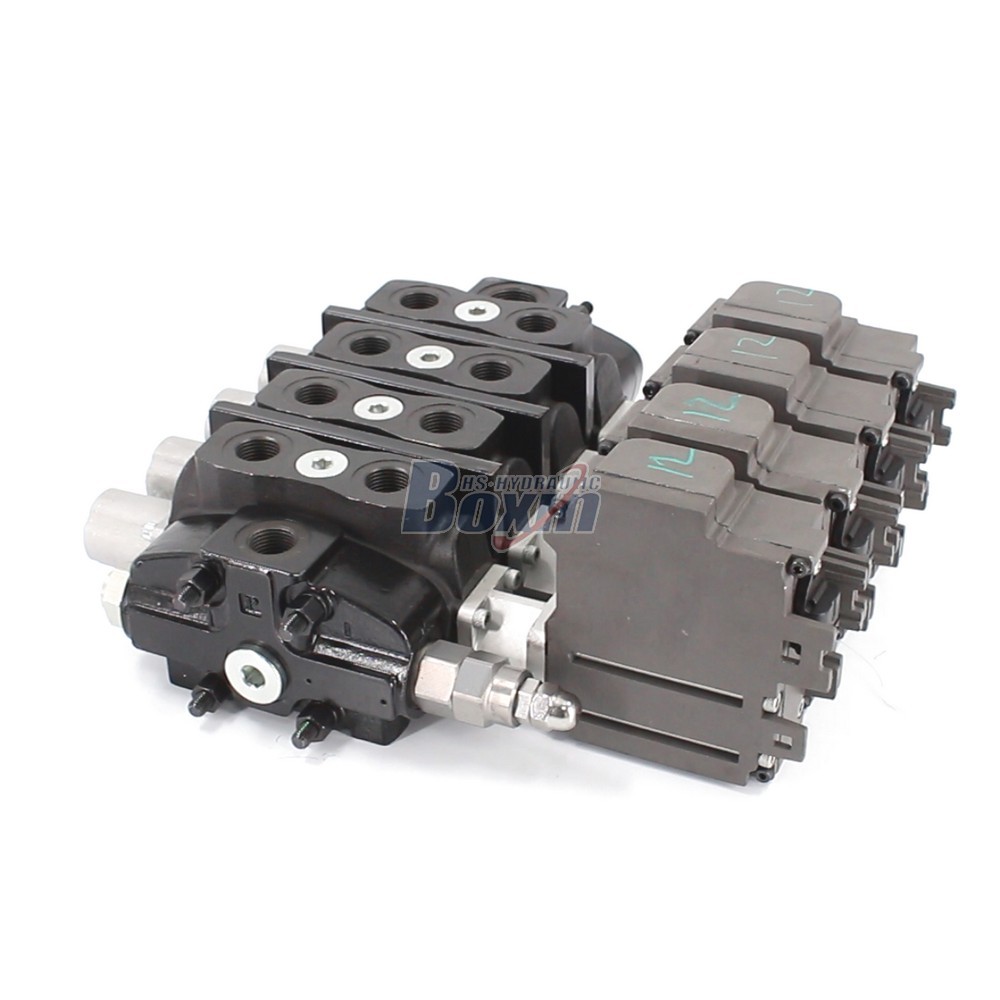

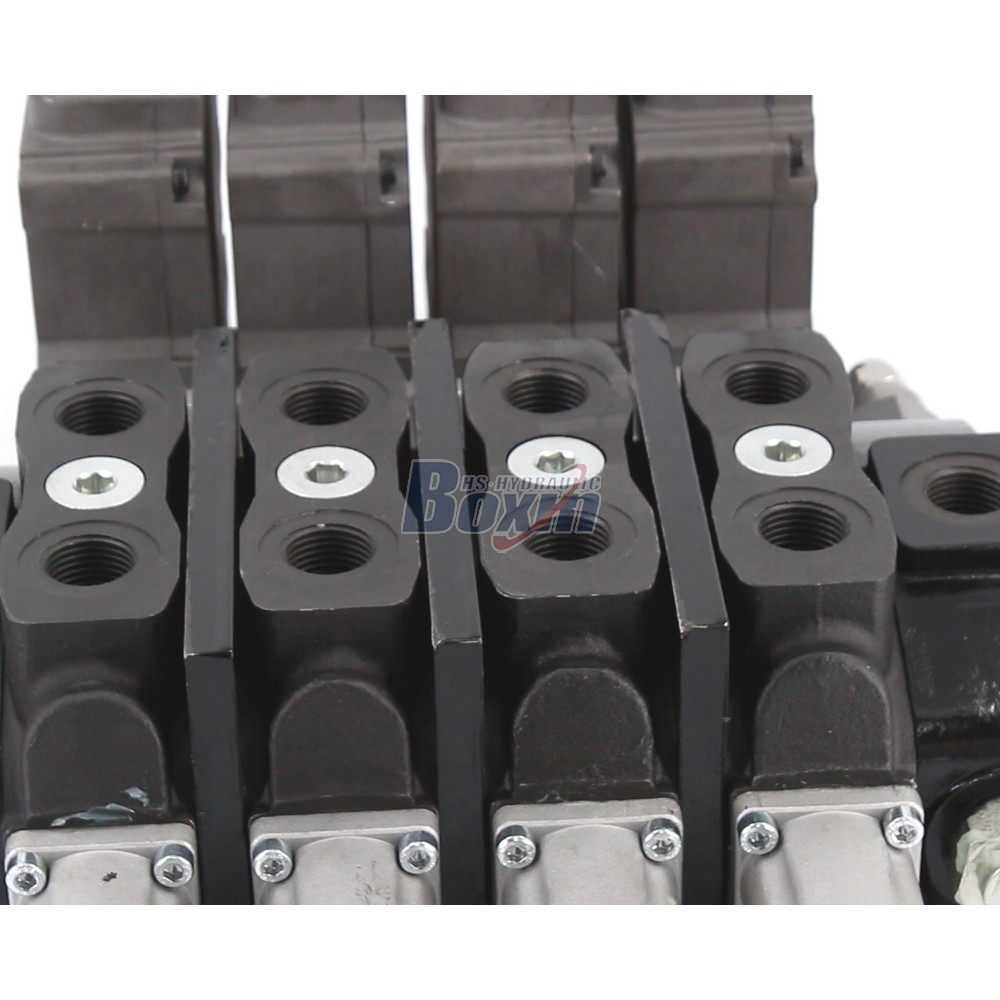

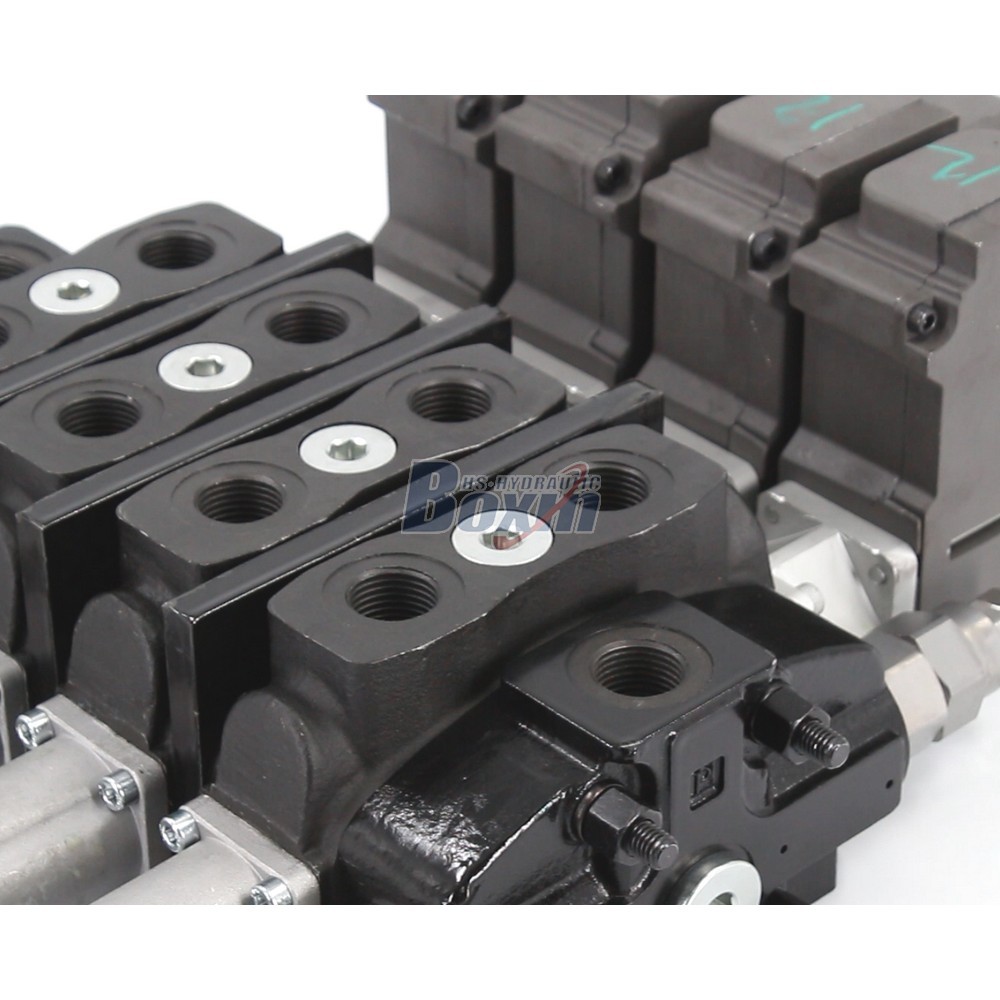

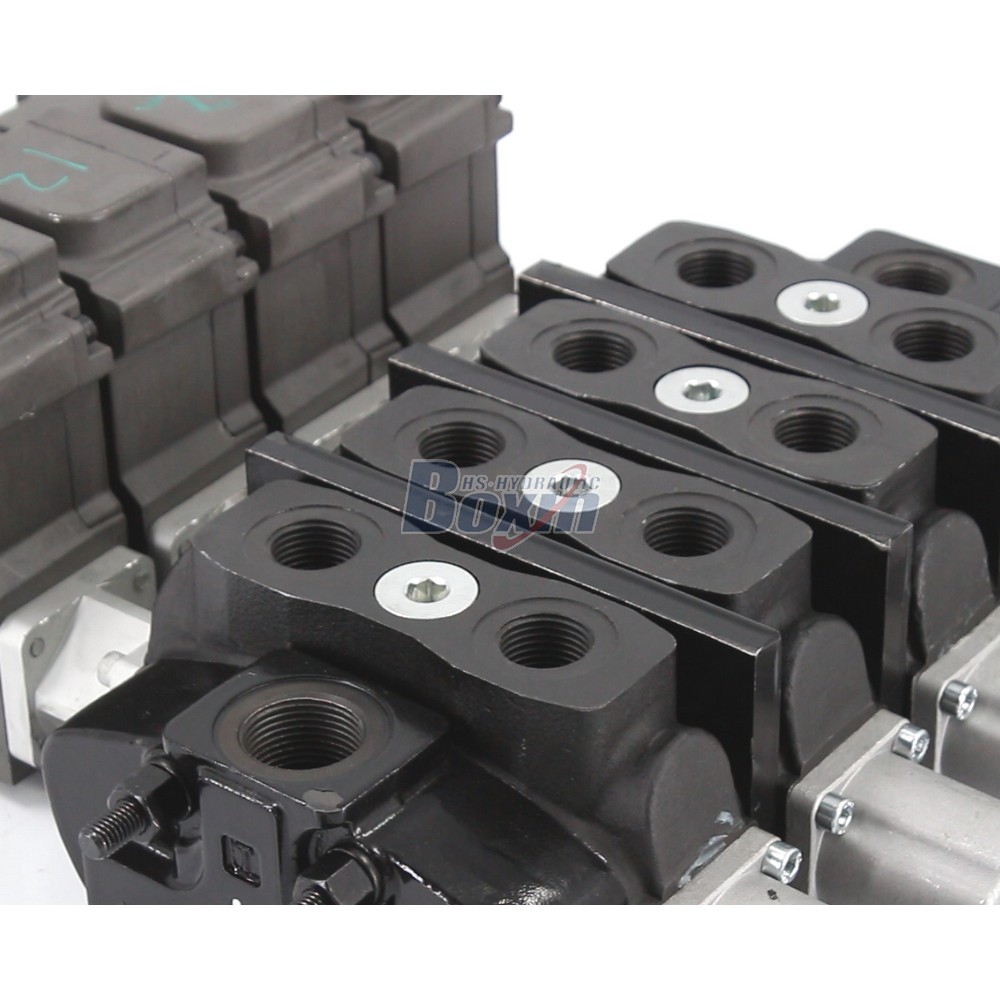

This SD8 Series Sectional Directional Valve features a 4-spool electric motor control design, handling 90 L/min flow at 315 bar max pressure. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for telehandlers, forklifts, and agricultural machinery with full OEM/ODM support.
| Serie SD8 Válvula direccional seccional Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Motor eléctrico |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas seccionales |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones |
| Rango de viscosidad de funcionamiento | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Flujo Nominal | 90 l/min (23,8 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M22×1.5, SAE 10 |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT |
| Tamaño de Puerto | G1/2, M22×1.5, SAE 10 |
**1. High-Flow Sectional Directional Valve Specifications**
- Engineered for demanding applications with a rated flow of 90 L/min (23.8 US gpm) and a maximum working pressure of 315 bar (4600 psi).
- Features M22×1.5 inlet and M27×2.0 outlet ports, ensuring seamless integration into high-pressure hydraulic circuits for construction and industrial vehicles.
**2. Reliable Electric Hydraulic Valve Operation**
- Equipped with a precise electric motor control method for the 4-spool configuration, offering accurate and responsive directional control.
- Ideal for automation in material handling equipment like aerial platforms and wood splitters, reducing manual effort while enhancing operational safety.
**3. Versatile 4 Spool Directional Control Valve Applications**
- Specifically designed to fit mini-excavators, skid steer loaders, compact wheel loaders, and backhoe loaders.
- The modular SD8 series structure allows for easy expansion or replacement, providing a cost-effective solution for maintaining diverse fleets of earth-moving machinery.
**4. Factory Direct Sales Quality Assurance**
- Produced in our 68,000 sqm facility with 260+ vertical machining centers, every unit undergoes 100% bench testing for pressure, flow, and sealing integrity.
- Backed by IATF 16949 certification and CE compliance, our Wholesale China Factory ensures consistent quality with 25+ patents and SGS verified standards.
**5. OEM/ODM Available Customization Services**
- Leverage our 35+ senior engineers for tailored solutions, including custom castings, appearance modifications, and laser logo marking for your Private Label.
- As a leading Wholesale Hot Sale supplier since 2001, we offer robust packaging and global logistics support, making us the preferred partner for distributors seeking stable supply chains.
