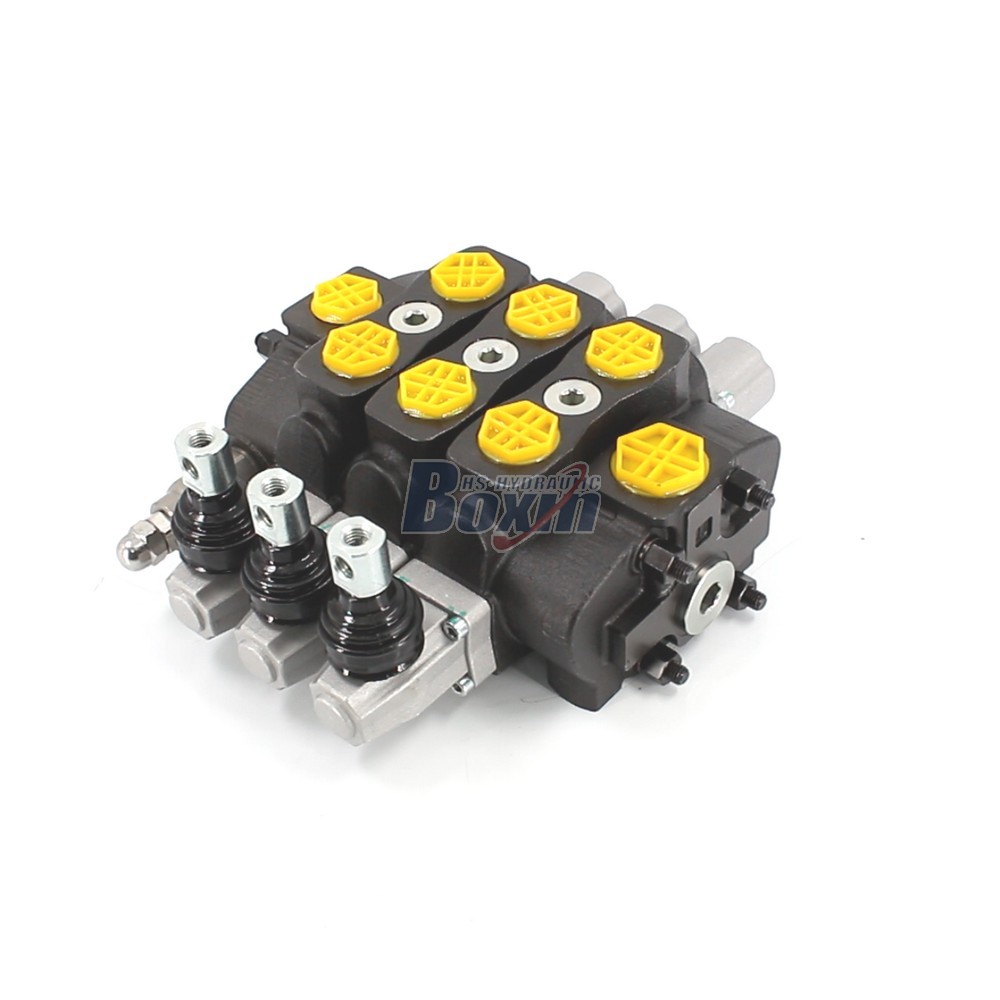

SD8 Series 3 Spool Sectional Directional Hydraulic Valve

Método de control:Manual

Carrete:3 carretes

Flujo Nominal:90 l/min (23,8 gal EE. UU./min)

Presión Máxima:315 bar (4600 psi)

Puerto de Entrada:G1/2

Puerto de Salida:G3/4

Tamaño de Puerto:G1/2

Marca:BXHS

Tipo de producto:Válvula direccional seccional

Serie de productos:Serie SD8 Válvula direccional seccional

Tamaño del embalaje:26*36*16

Peso bruto:14.50 kg

Disponibilidad: En stock

96 personas están viendo este producto

SD8 Series 3 Spool Sectional Directional Hydraulic Valve

SD8 Series 3 Spool Sectional Directional Hydraulic Valve

SD8 Series 3 Spool Sectional Directional Hydraulic Valve drawing image

The SD8 Series 3 Spool Sectional Directional Hydraulic Valve is a high-performance manual control solution designed for versatile applications in agriculture, construction, and material handling. Featuring a rated flow of 80 L/min and a maximum pressure capacity of 250 bar, this valve provides precise fluid management for machinery like mini-excavators, tractors, and forklifts.

Serie SD8 Válvula direccional seccional Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas seccionales
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones
Rango de viscosidad de funcionamiento 12 - 400 mm²/s (12 cSt a 400 cSt)
Flujo Nominal 90 l/min (23,8 gal EE. UU./min)
Presión Máxima 315 bar (4600 psi)
Puerto de Entrada G1/2, G3/4, SAE 10
Puerto de Salida G1/2, G3/4, SAE 10, 3/4 NPT
Tamaño de Puerto G1/2, SAE 10

As a leading manufacturer of premium hydraulic products, we offer the SD8 Series 3 Spool Sectional Directional Hydraulic Valve, engineered for durability and precision. This manual control valve supports a rated flow of 80 L/min (21.2 US gpm) and operates efficiently under pressures up to 250 bar (3600 psi), making it suitable for front-end loaders, skid steers, and wood splitters. Our factory provides comprehensive solutions including OEM, ODM, and customized manufacturing to meet specific technical requirements. We specialize in bulk wholesale and factory-direct supply for global markets. We are actively seeking long-term partnerships with professional distributors, wholesalers, agents, and traders. Whether you need private labeling (OEM) or specific port configurations (G1/2 inlet, G3/4 outlet), our production facility ensures reliable quality and consistent supply for industrial and mobile hydraulic sectors. Enhance your inventory with our versatile SD8 series valves designed for backhoes, telehandlers, and harvesters.
