The SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. With a rated flow of 90 L/min and a maximum pressure of 350 bar, it provides precise and reliable control of hydraulic systems.
| Serie SD8 Válvula direccional seccional Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas seccionales |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones |
| Rango de viscosidad de funcionamiento | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Flujo Nominal | 90 l/min (23,8 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, SAE 10 |
| Puerto de Salida | G1/2, G3/4, SAE 10, 3/4 NPT |
| Tamaño de Puerto | G1/2, SAE 10 |

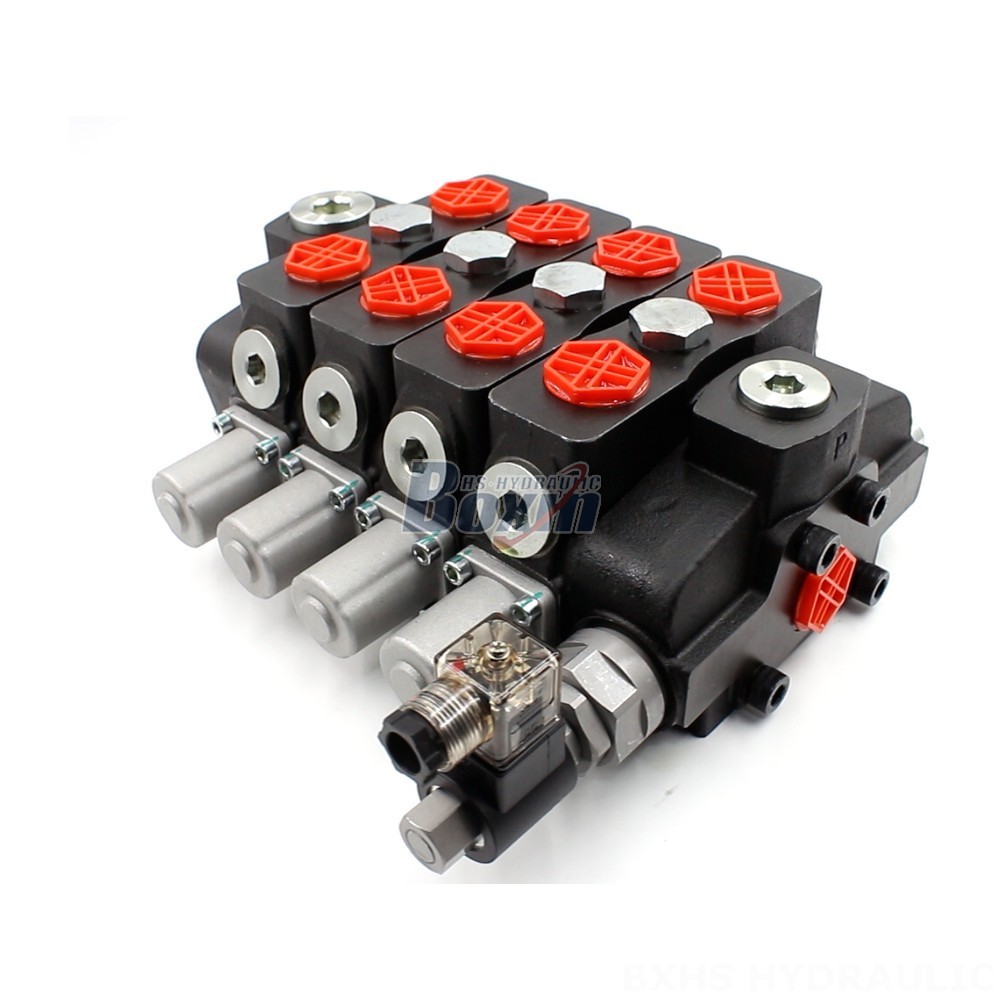

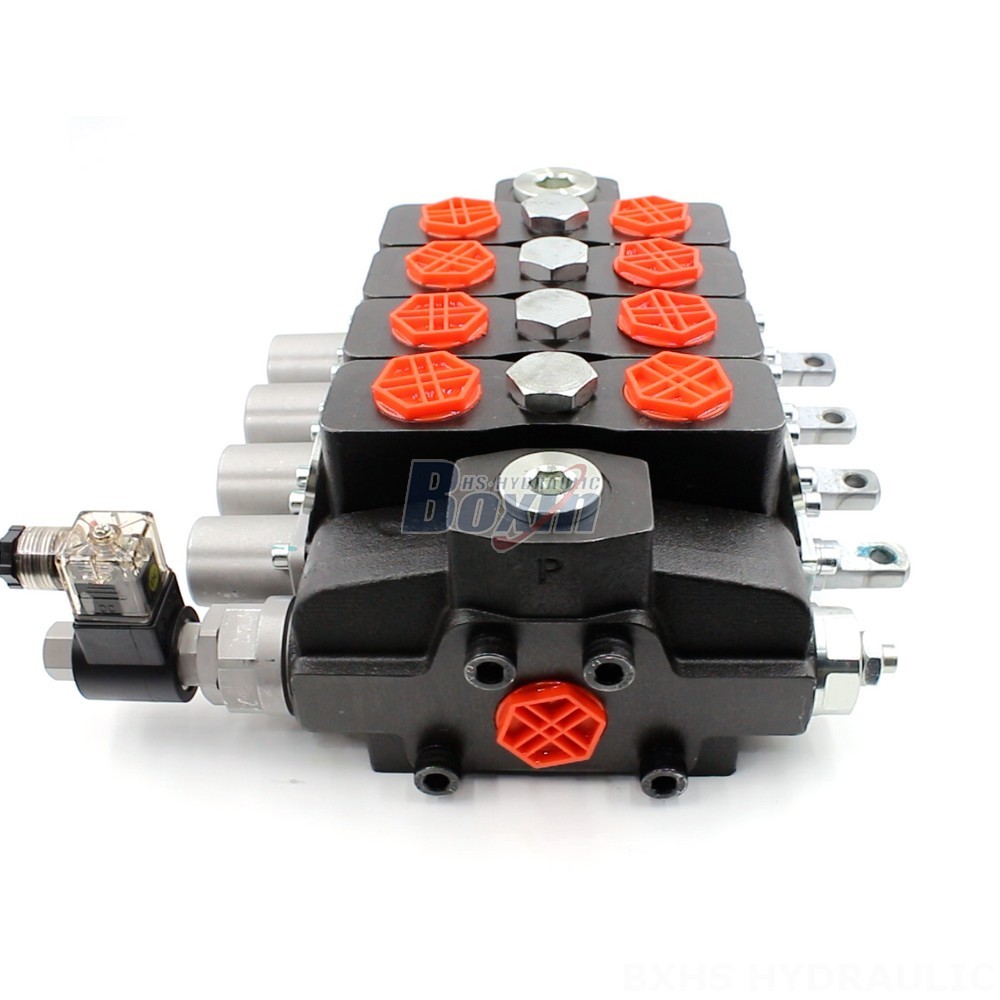

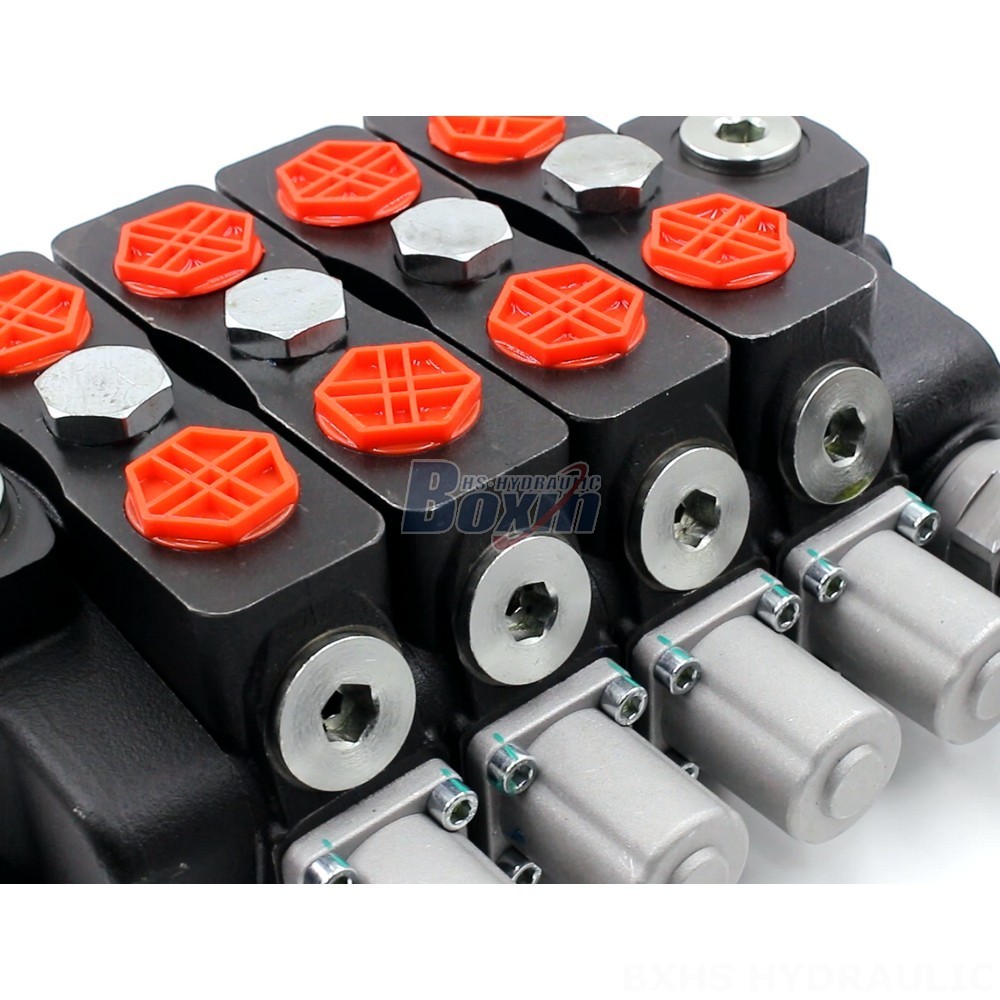

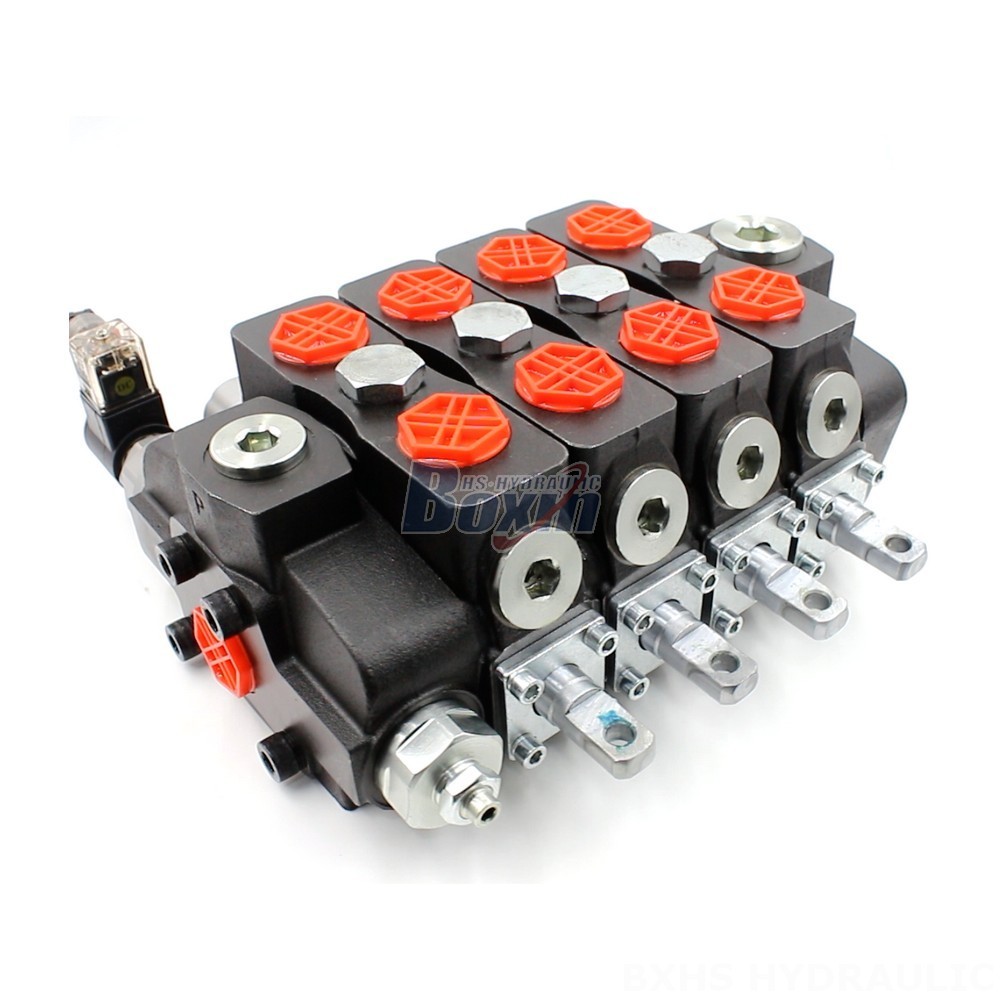

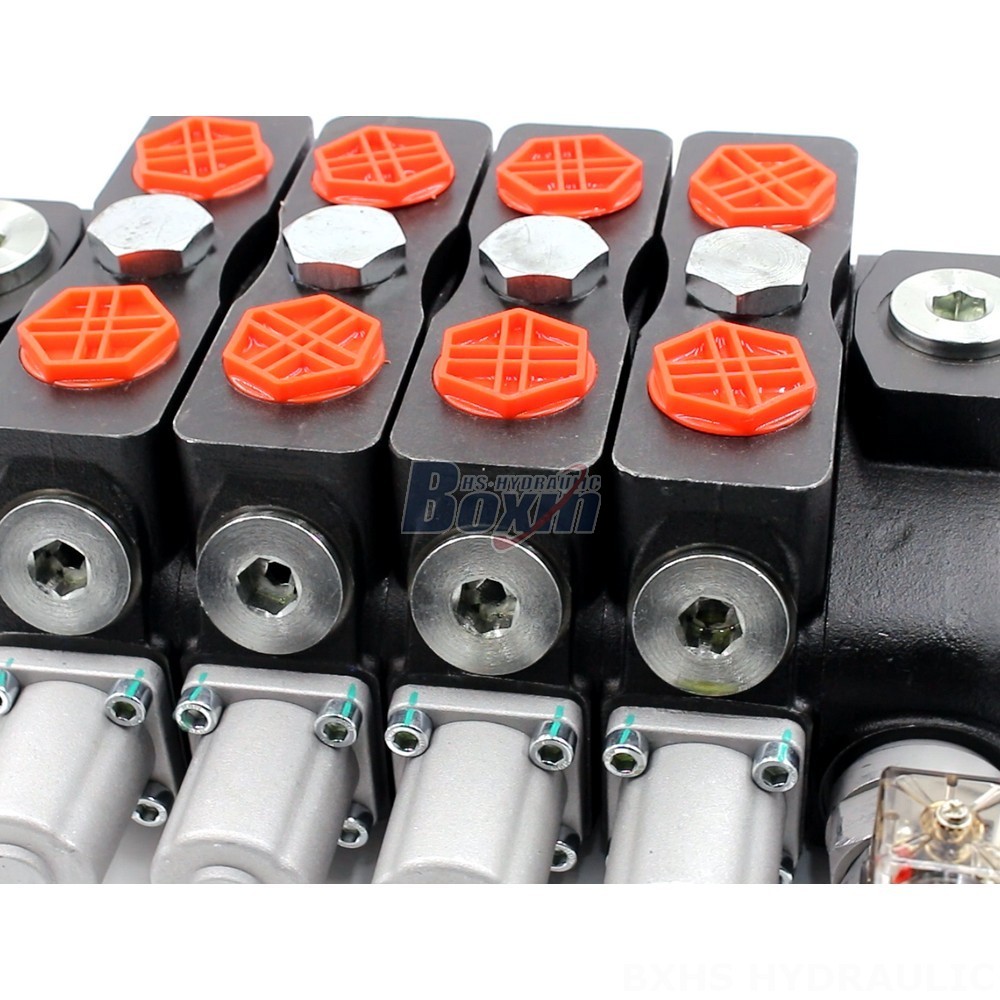

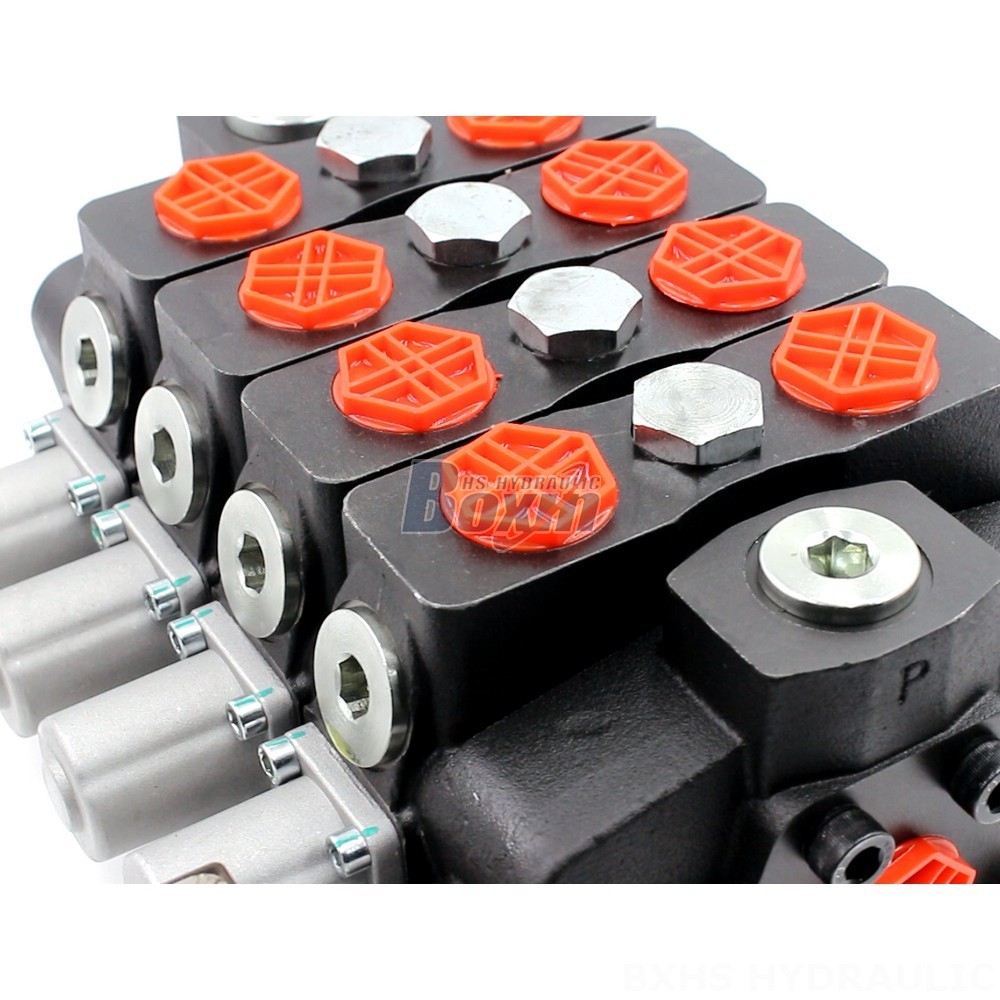

**SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve**
**Control Method:** Manual
**Section:** 4 Section
**Structure Type:** Sectional valve
**Rated Flow:** 90 L/min (23.8 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Spool:** 4 Spool
**Series:** SD8 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER,TRACTOR AND FRONT-END LOADER
The SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve is a versatile and durable valve that is suitable for a wide range of applications. Its sectional design allows for easy customization and maintenance, making it a cost-effective solution for demanding hydraulic systems.
