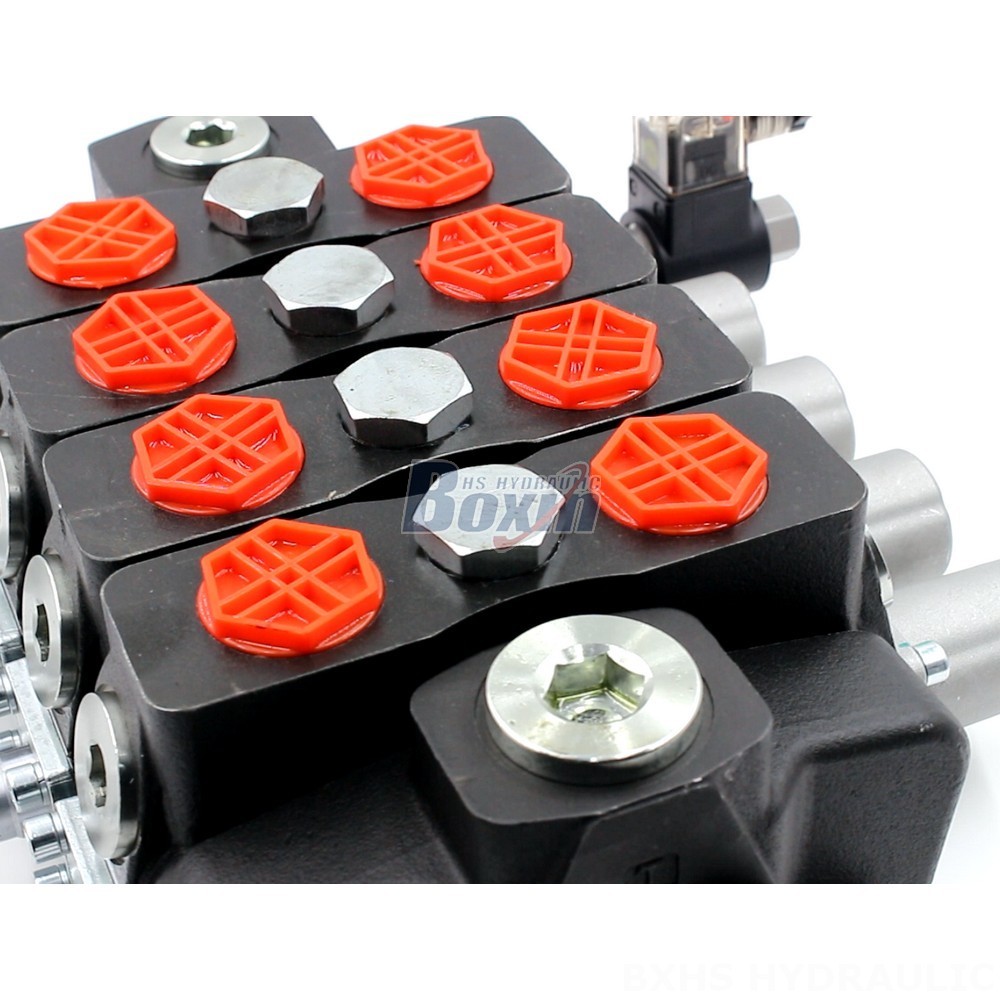

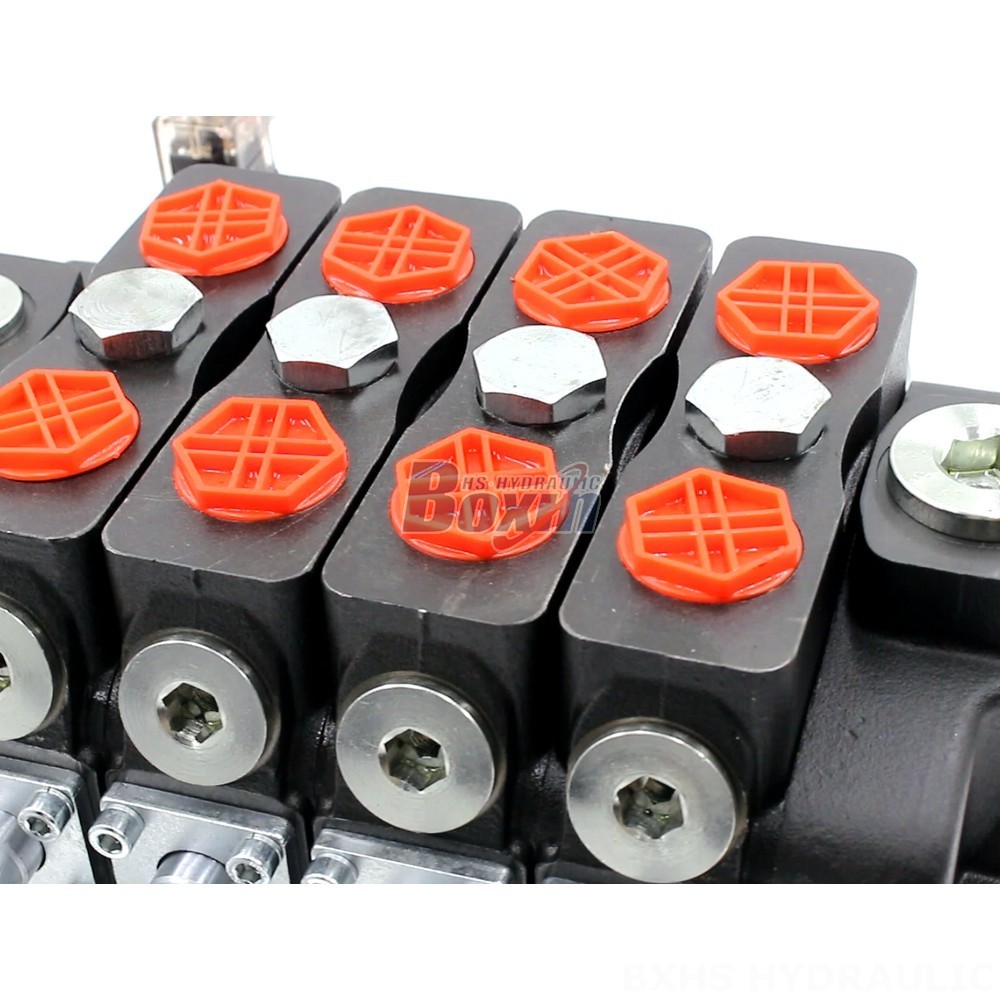

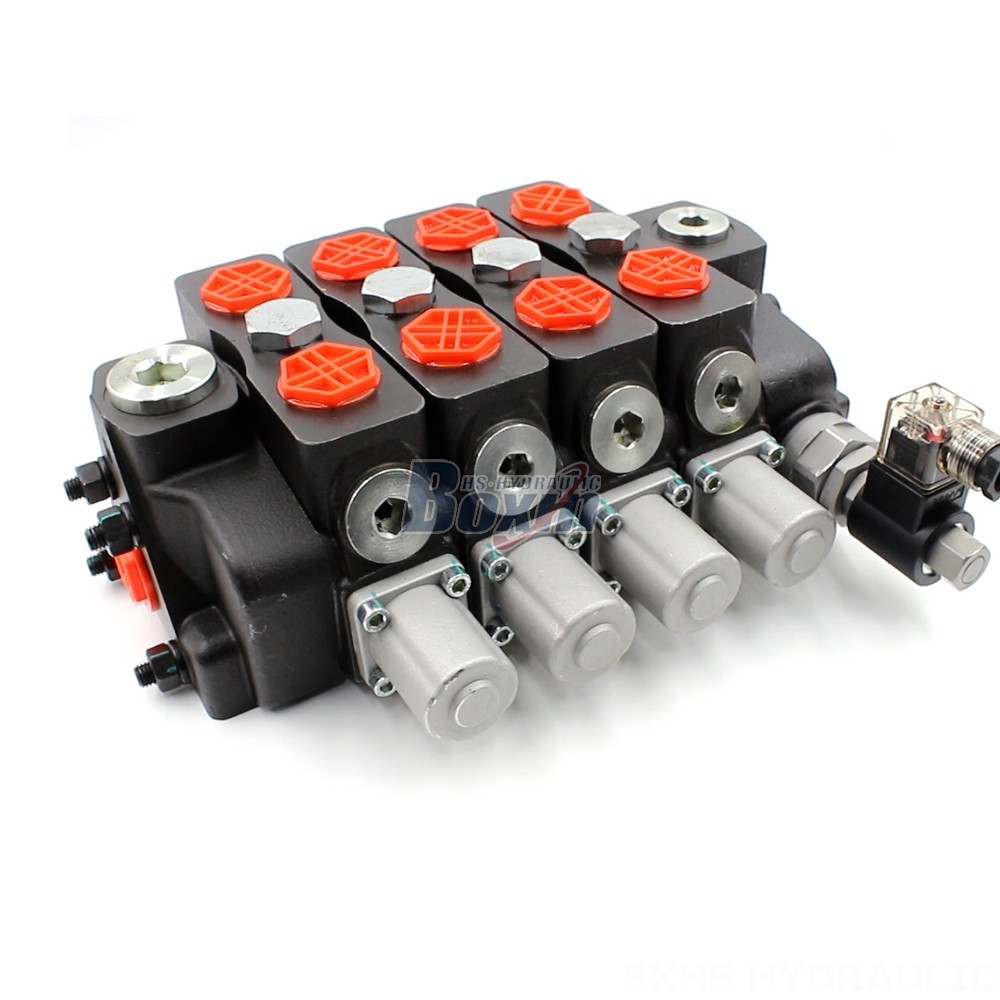

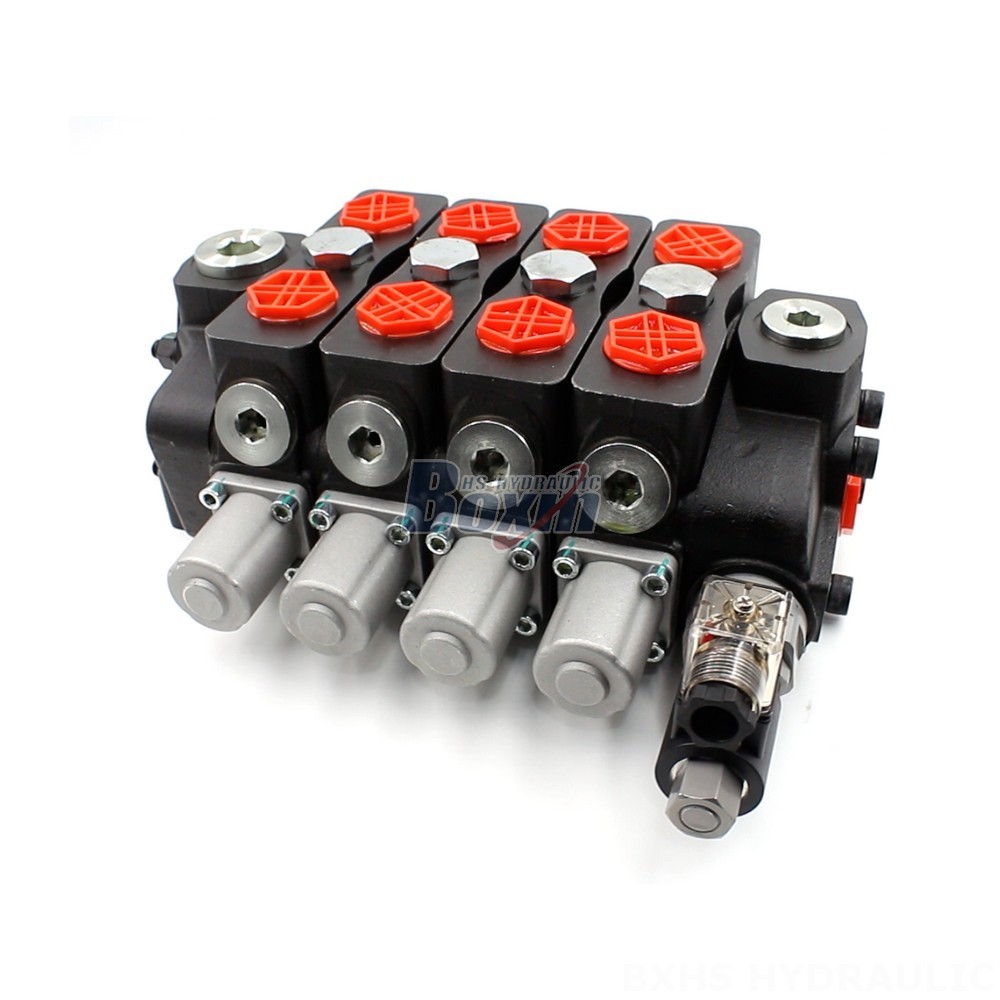

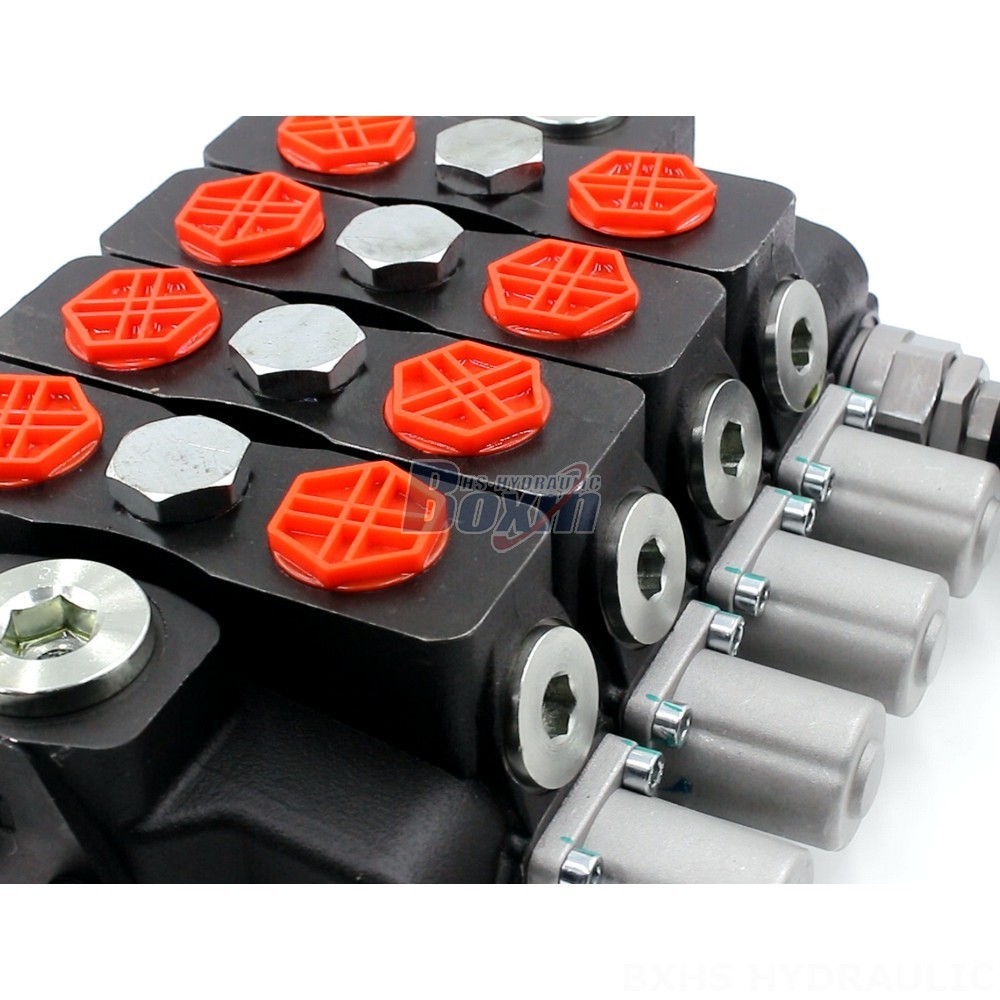

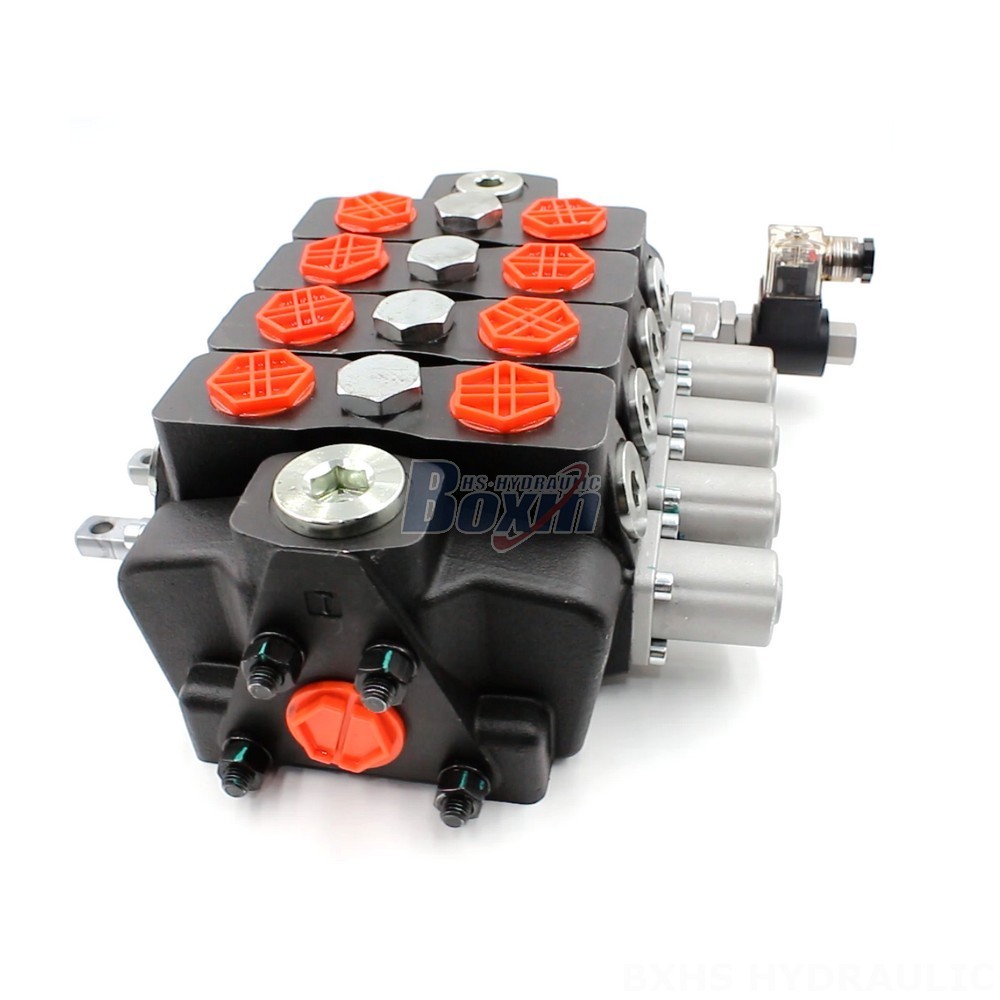

The SD8-Electric unloading valve is a 4-spool, manually controlled sectional directional valve designed for hydraulic systems in various applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 90 L/min and a maximum pressure of 350 bar, this valve provides precise and efficient control of hydraulic functions.
| Serie SD8 Válvula direccional seccional Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas seccionales |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones |
| Rango de viscosidad de funcionamiento | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Flujo Nominal | 90 l/min (23,8 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, SAE 10 |
| Puerto de Salida | G1/2, G3/4, SAE 10, 3/4 NPT |
| Tamaño de Puerto | G1/2, SAE 10 |
**SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve**
**Control Method:** Manual
**Section:** 4 Section
**Structure Type:** Sectional valve
**Rated Flow:** 90 L/min (23.8 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Spool:** 4 Spool
**Series:** SD8 Series
The SD8-Electric unloading valve is a versatile and reliable solution for a wide range of hydraulic applications. Its robust design and high-quality components ensure long-lasting performance and durability. The valve's compact size and modular design make it easy to integrate into existing systems or design new ones.
**Key Features:**
* Manual control for precise operation
* High flow capacity (90 L/min)
* High pressure rating (350 bar)
* Suitable for various applications
* Compact and modular design
* Durable and reliable construction
