The SD8-Electric Unloading Valve is a 5-position, 4-solenoid, 12v/24v hydraulic directional control valve with a rated flow of 90 L/min and a maximum pressure of 350 bar. It is suitable for various applications including material handling, construction, agriculture, and industrial vehicles.
| Serie SD8 Válvula direccional seccional Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes, 8 carretes, 9 carretes, 10 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas seccionales |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones, 8 secciones, 9 secciones, 10 secciones |
| Rango de viscosidad de funcionamiento | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Flujo Nominal | 90 l/min (23,8 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, SAE 10 |
| Puerto de Salida | G1/2, G3/4, SAE 10, 3/4 NPT |
| Tamaño de Puerto | G1/2, SAE 10 |

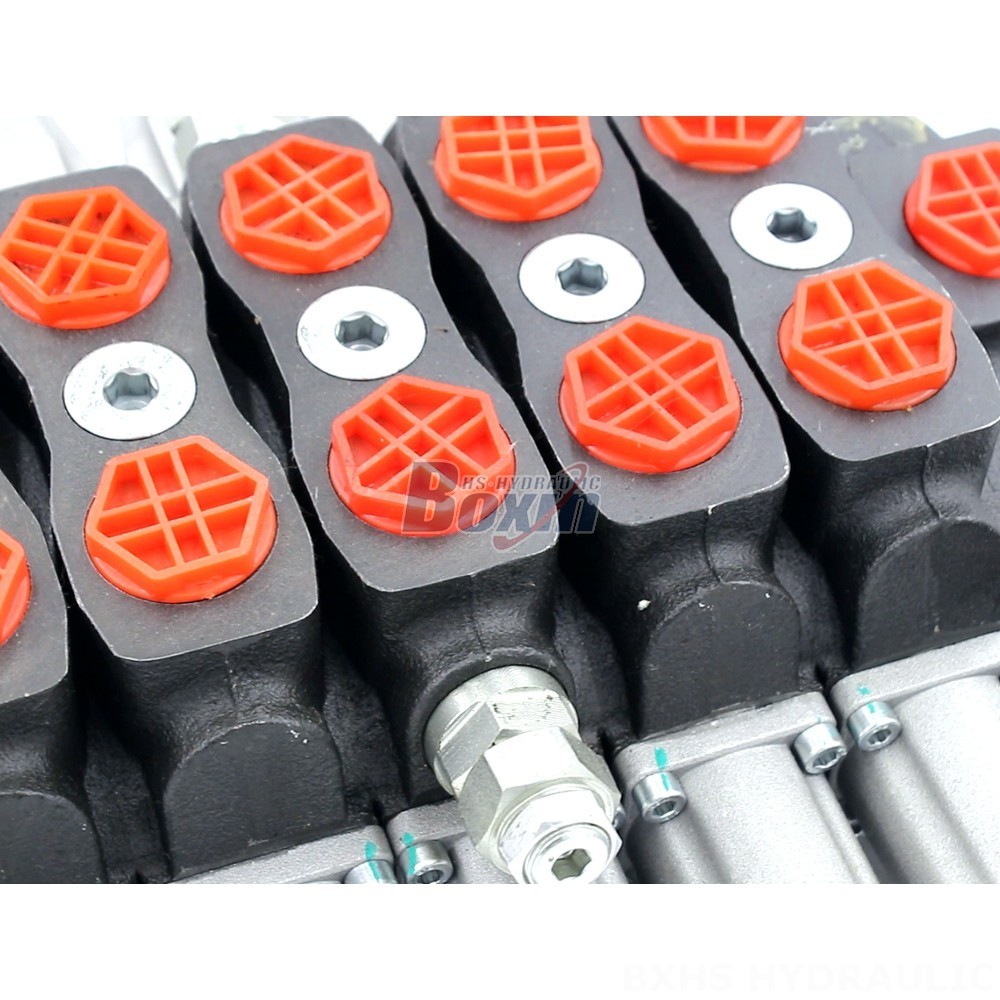

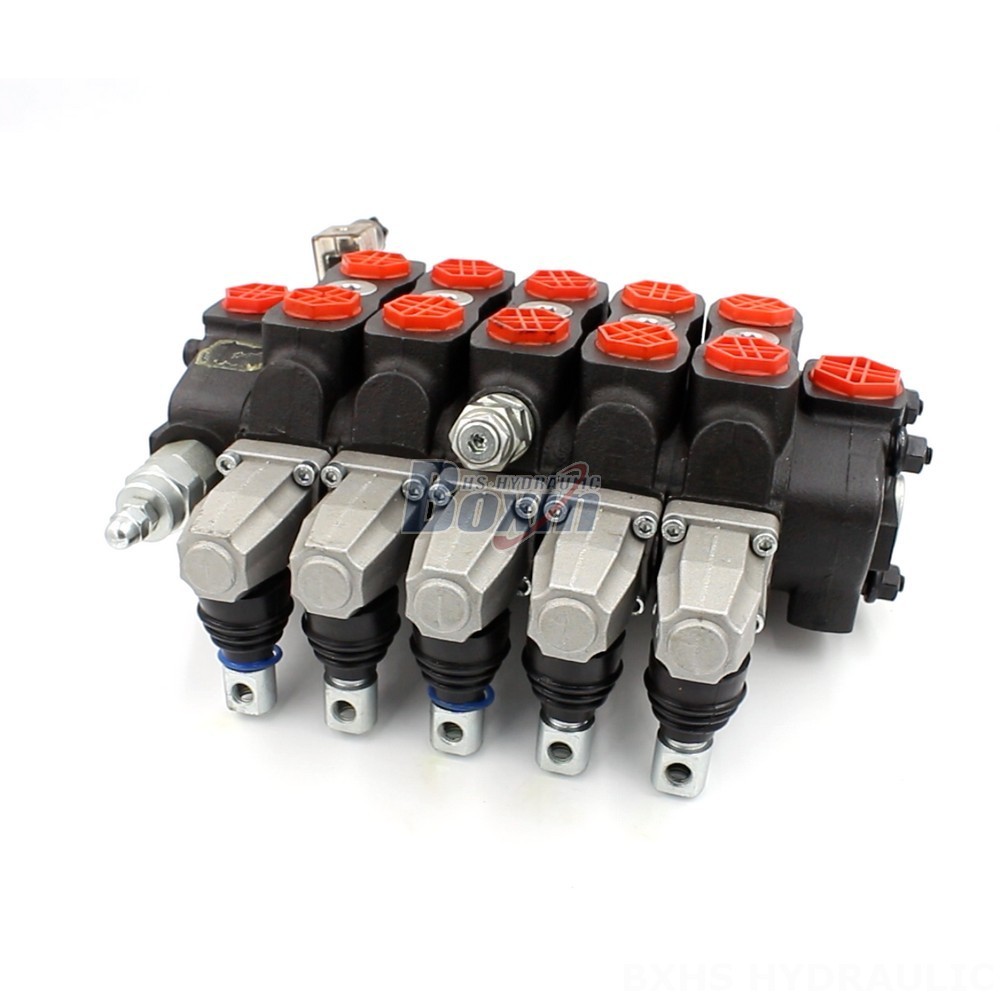

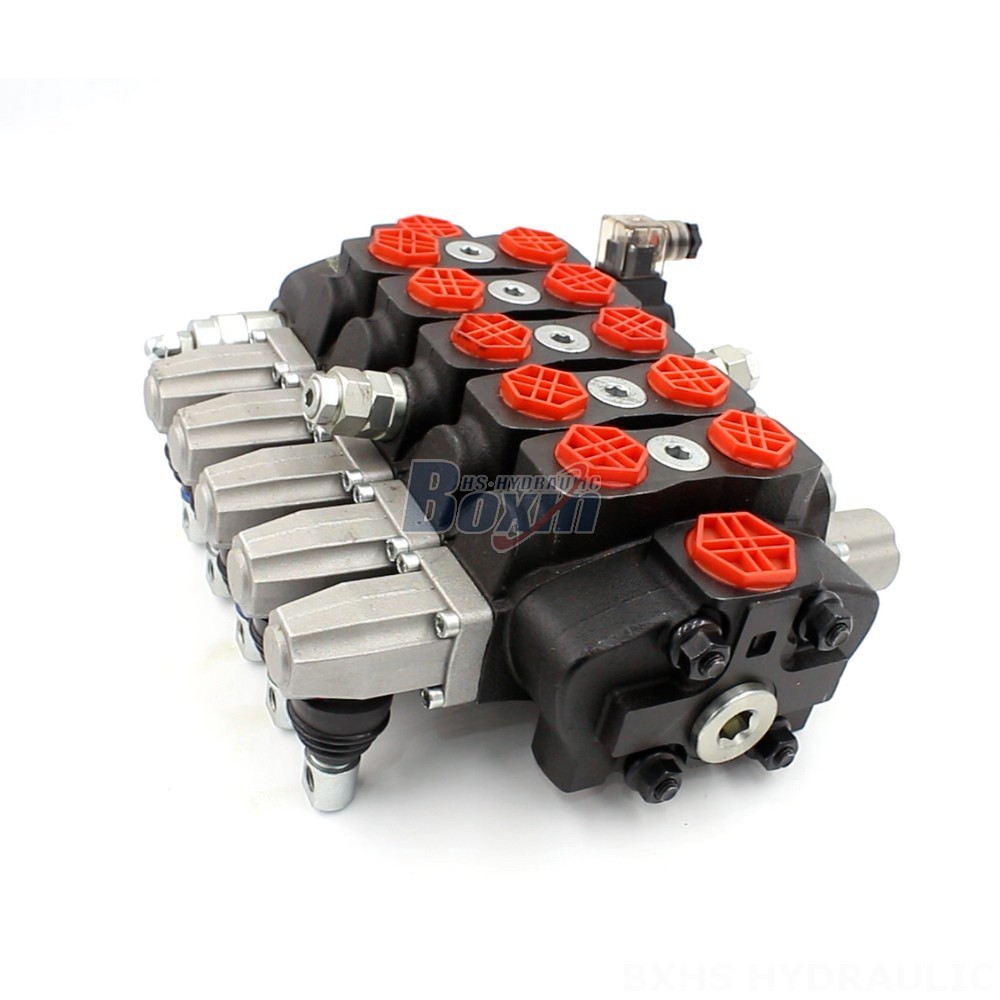

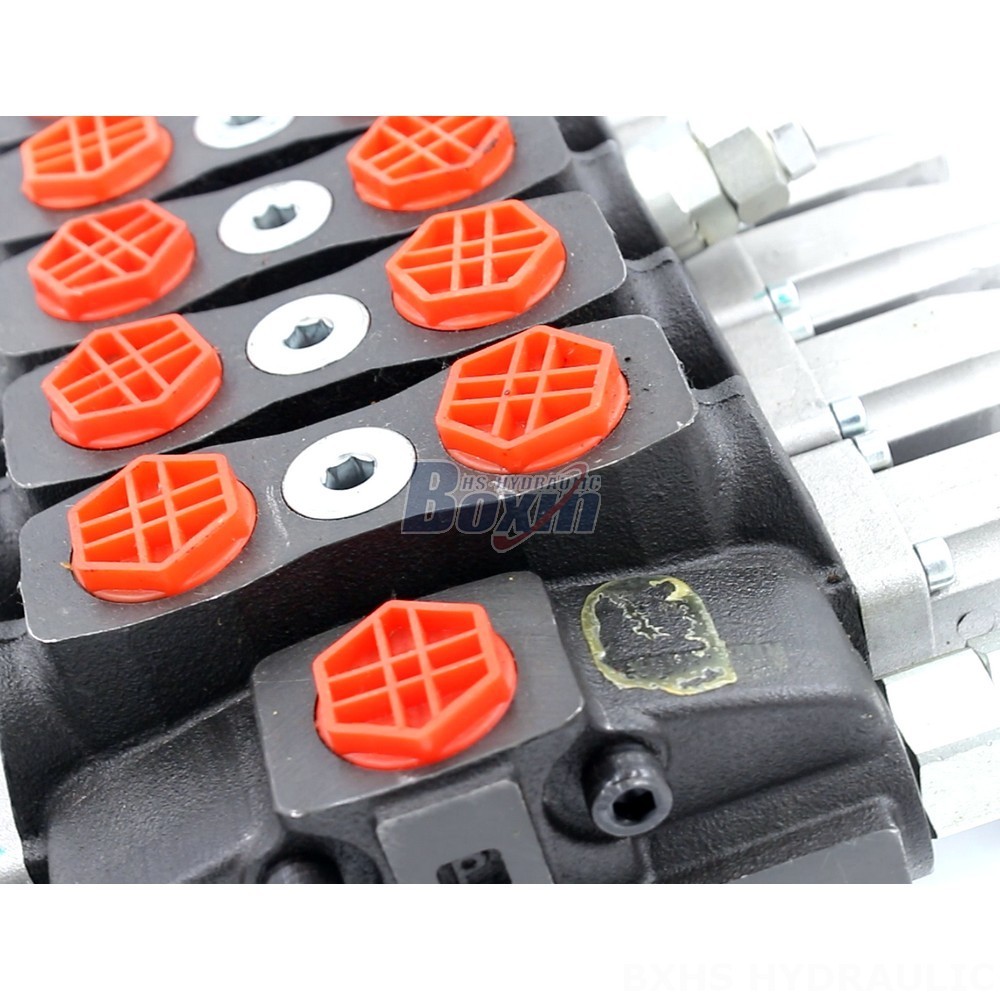

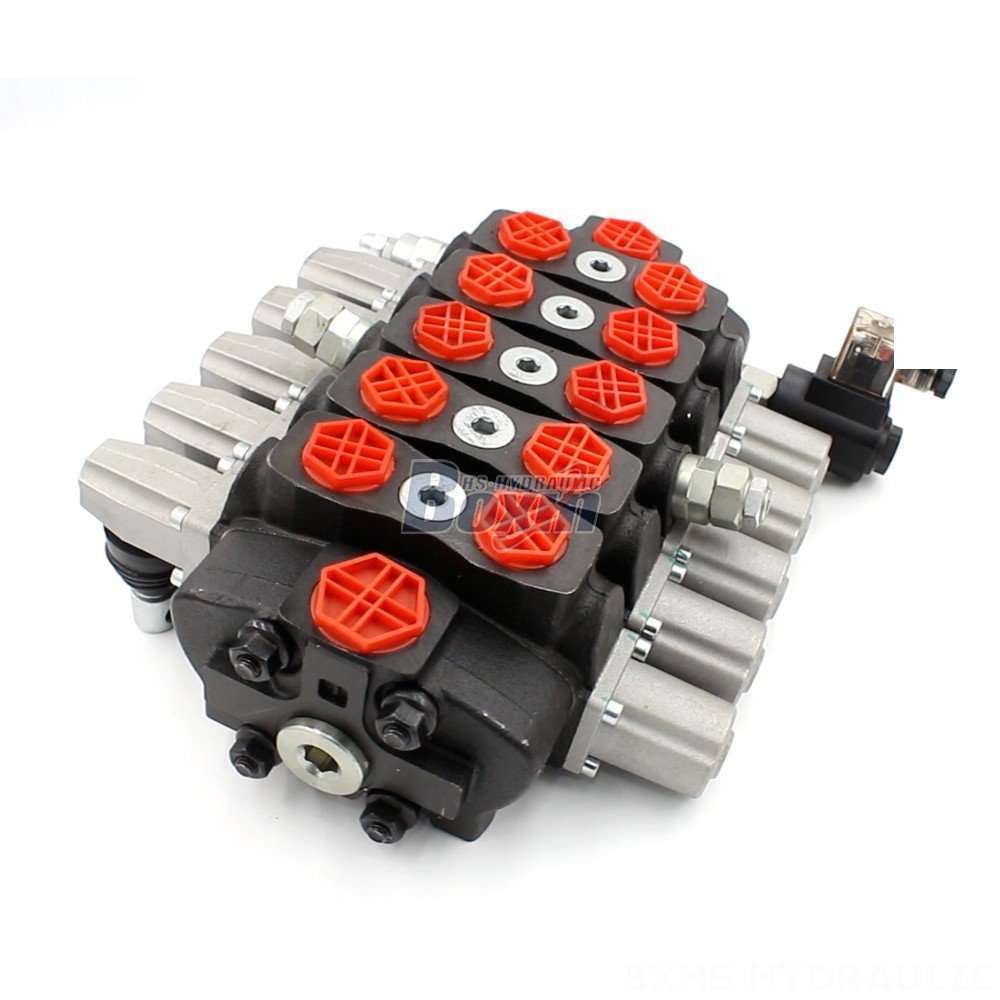

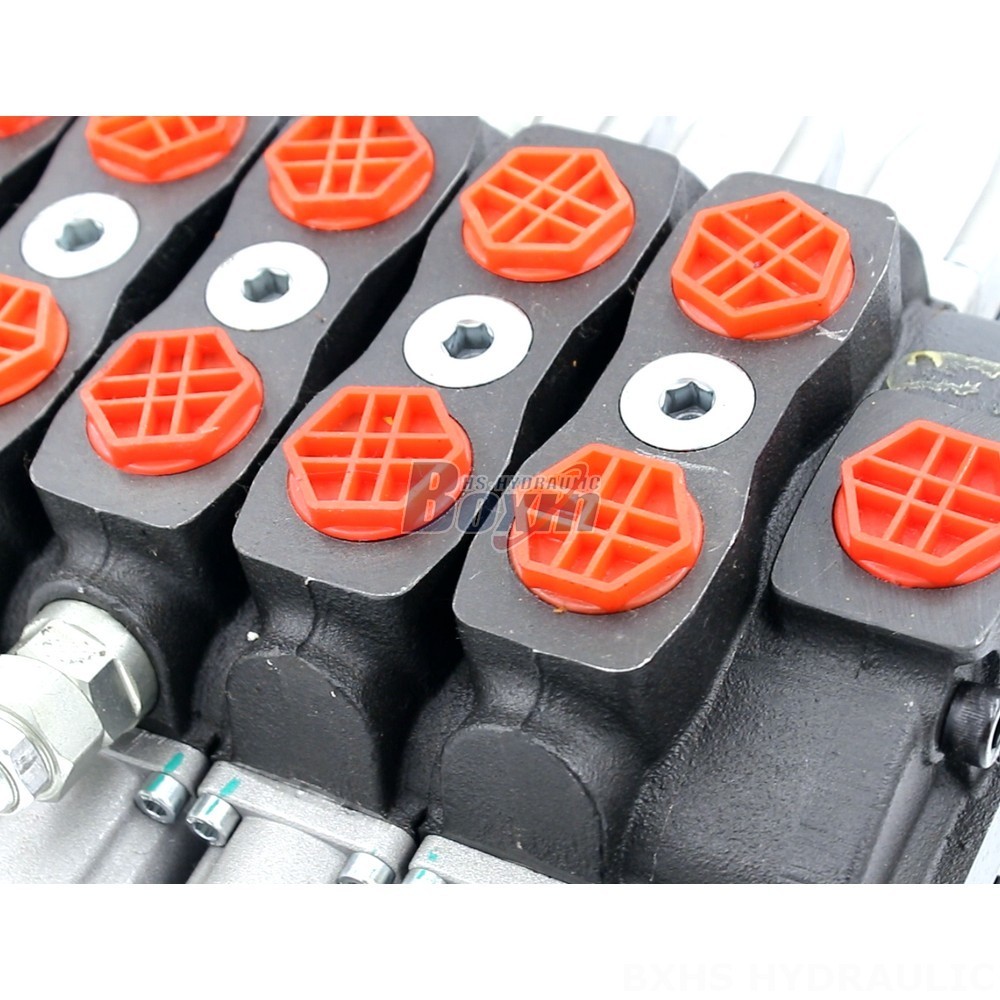

**SD8-Electric Unloading Valve**
The SD8-Electric Unloading Valve is a high-performance hydraulic directional control valve designed for a wide range of applications. With its 5-position, 4-solenoid configuration, it offers precise and reliable control of hydraulic systems. The valve is available in 12v and 24v options, making it suitable for use in various electrical systems.
**Key Features:**
* 5-position, 4-solenoid configuration
* Rated flow of 90 L/min
* Maximum pressure of 350 bar
* Manual control
* Compact and durable design
* Suitable for various applications, including material handling, construction, agriculture, and industrial vehicles
The SD8-Electric Unloading Valve is an excellent choice for applications requiring high flow capacity, precise control, and reliable performance. Its robust construction and high-quality components ensure long-lasting operation even in demanding conditions.
