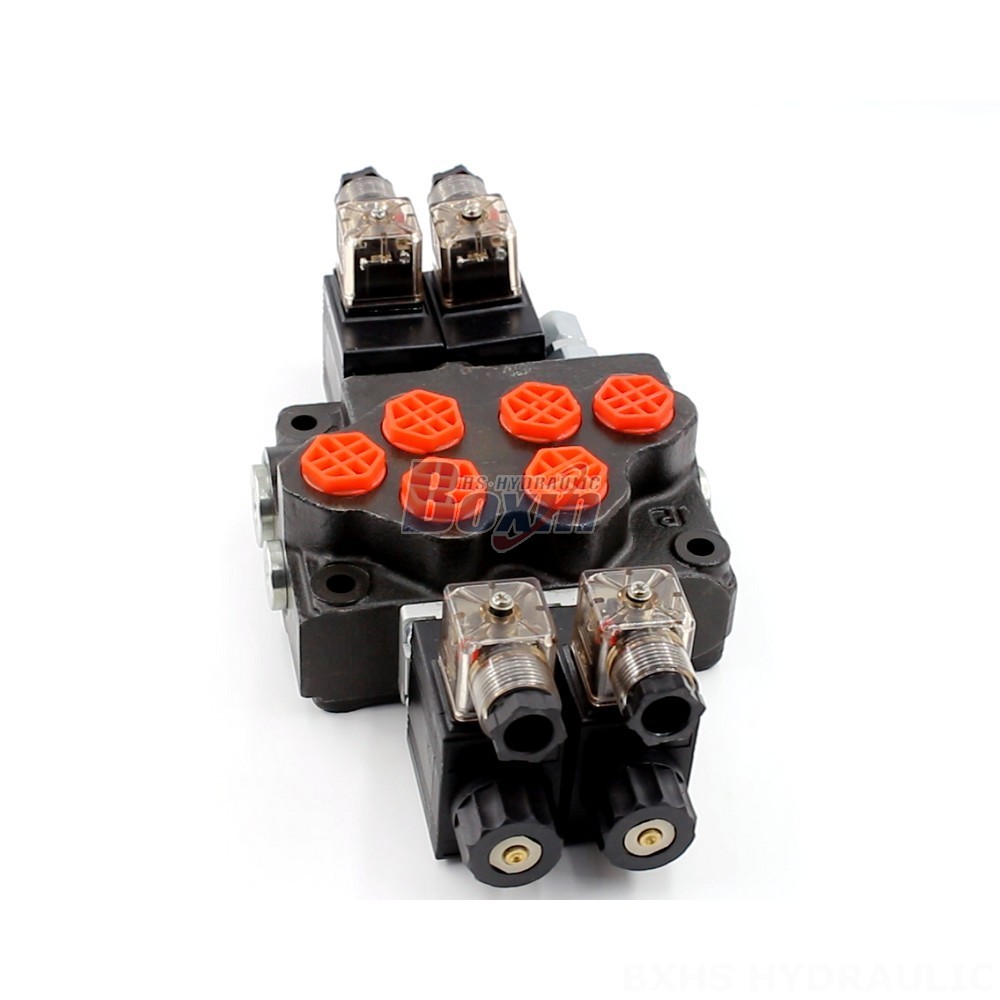

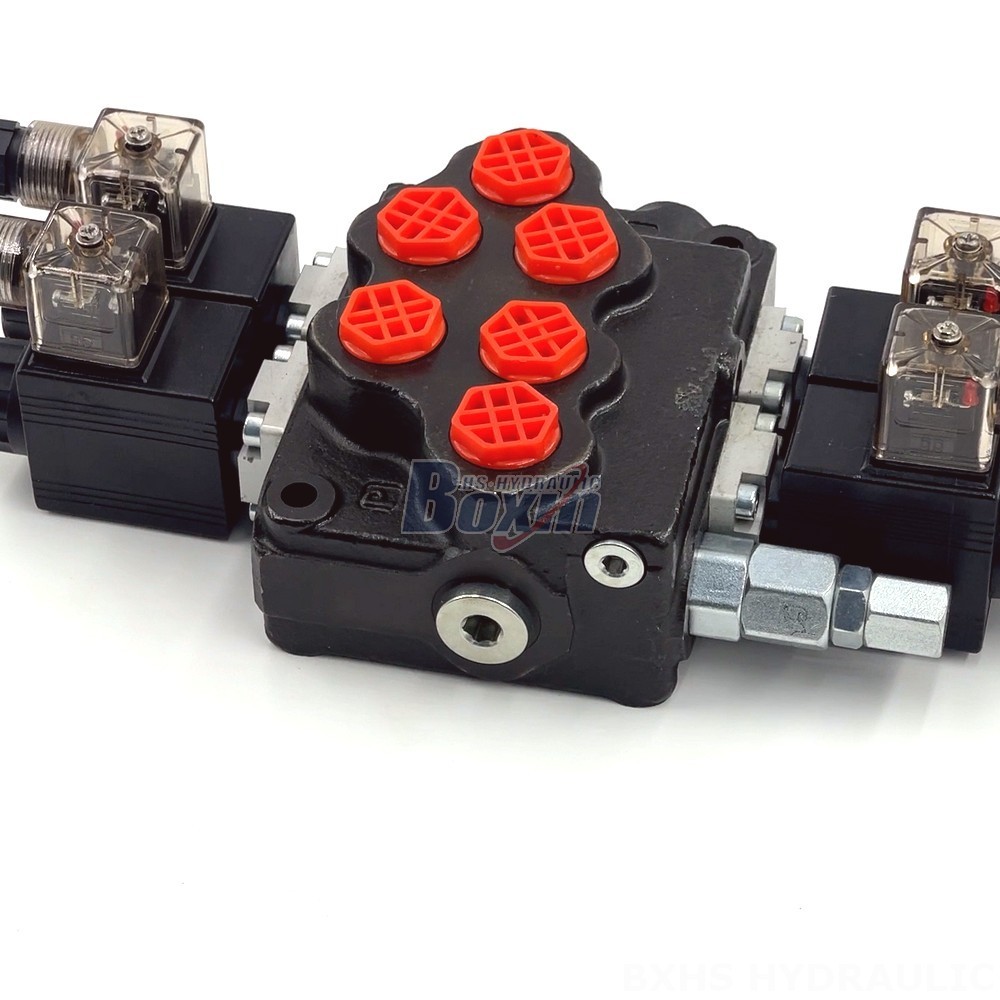

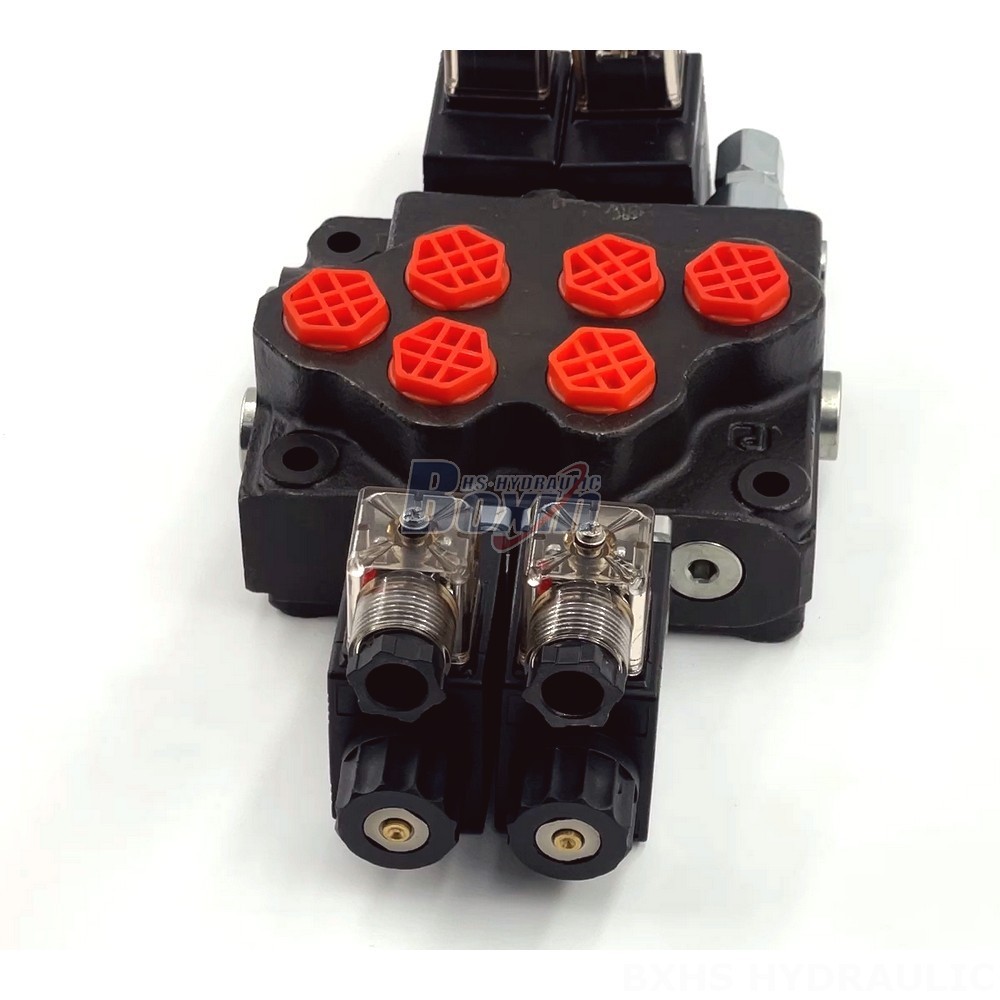

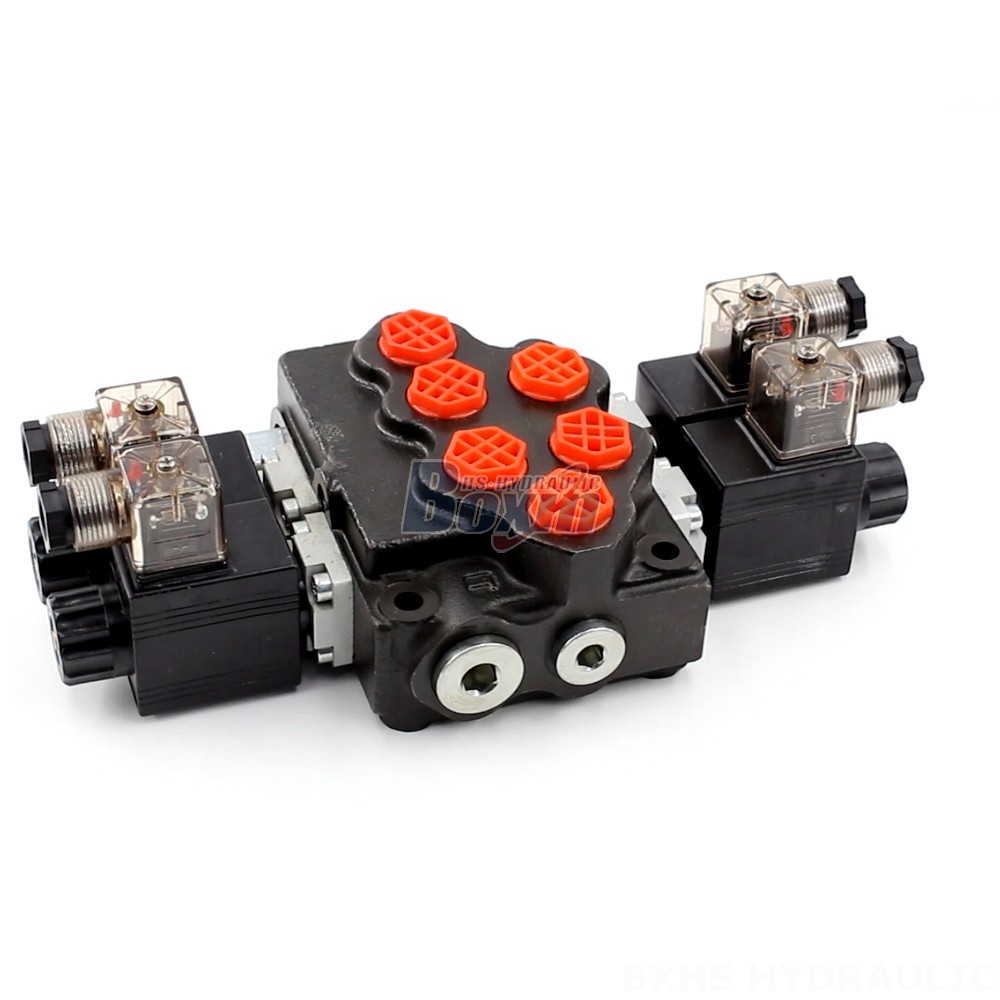

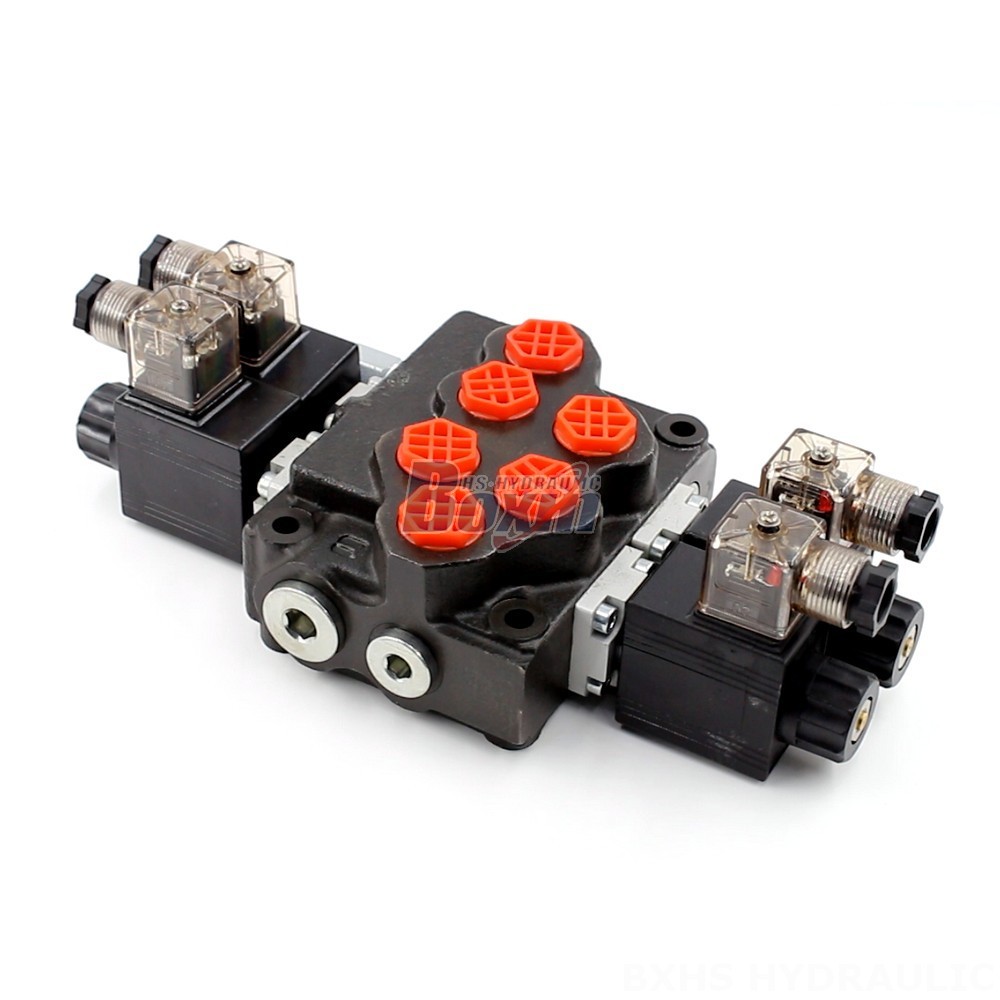

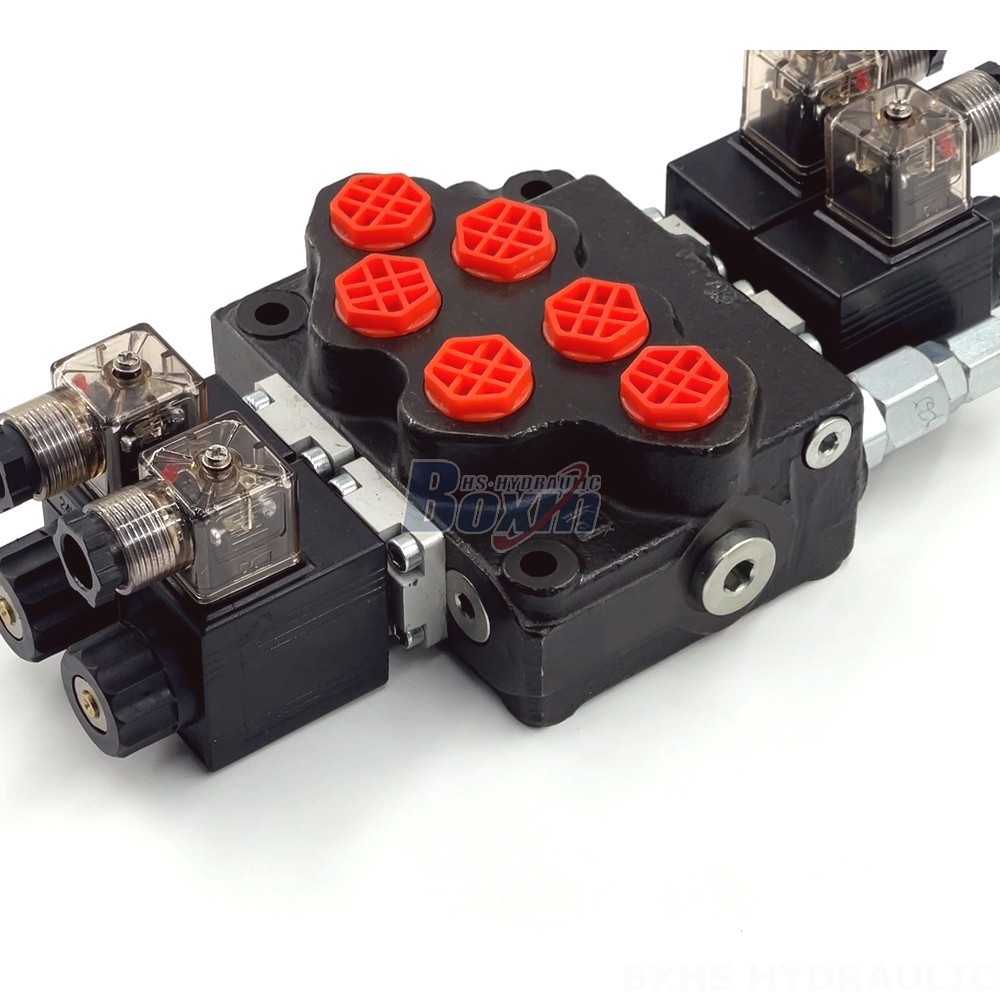

The SD5 Series Hydraulic 4/3 Valve is a solenoid directional control valve designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It features a monoblock valve structure, a rated flow of 40 L/min (10.5 US gpm), and a maximum pressure of 305 bar (4400 psi).
| Serie SD5 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 305 bar (4400 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
This high-performance SD5 Series Hydraulic 4/3 Valve is a solenoid directional control valve designed for use in demanding applications. It features a robust monoblock valve structure, providing high reliability and durability. The valve boasts a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi), making it suitable for a wide range of hydraulic systems. The valve's operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), allowing it to function effectively in various temperature conditions (-40°C to +60°C/-40°F to +140°F). The SD5 Series Hydraulic 4/3 Valve is ideal for use in a variety of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
