Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
112 personas están viendo este producto

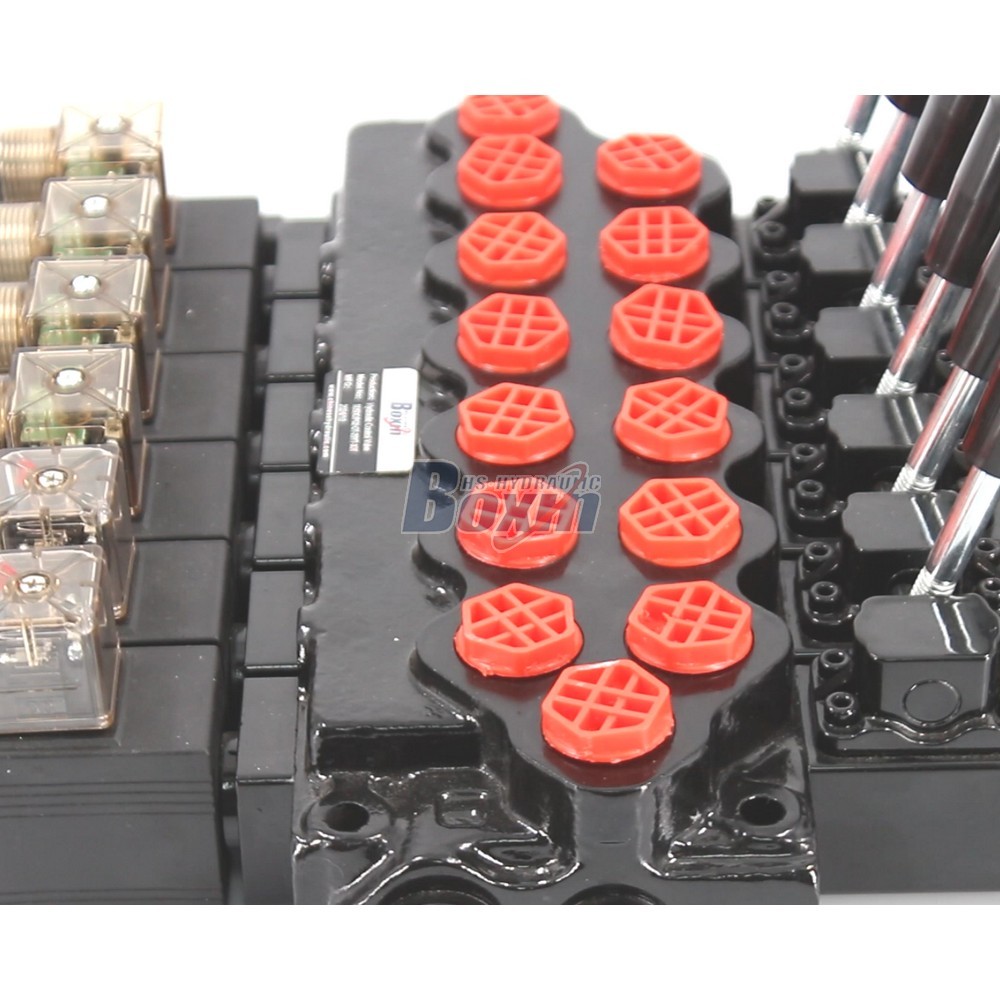

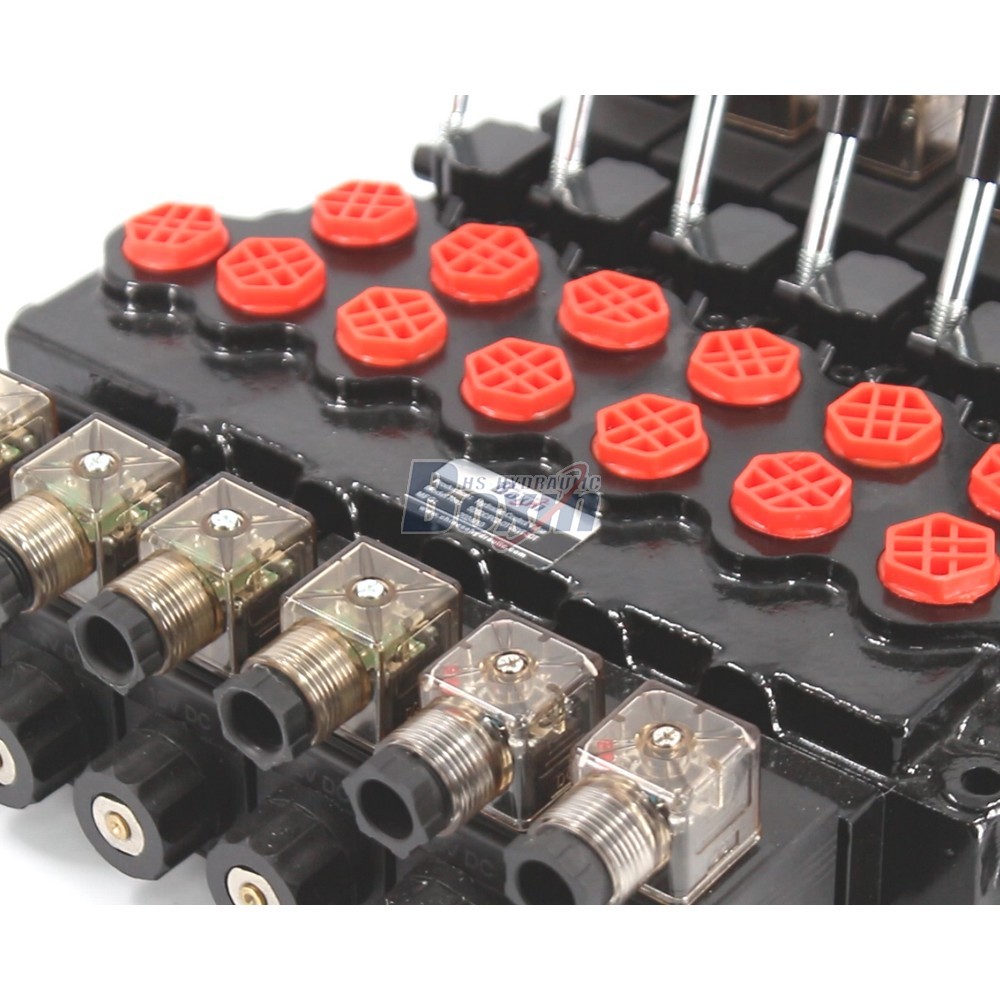

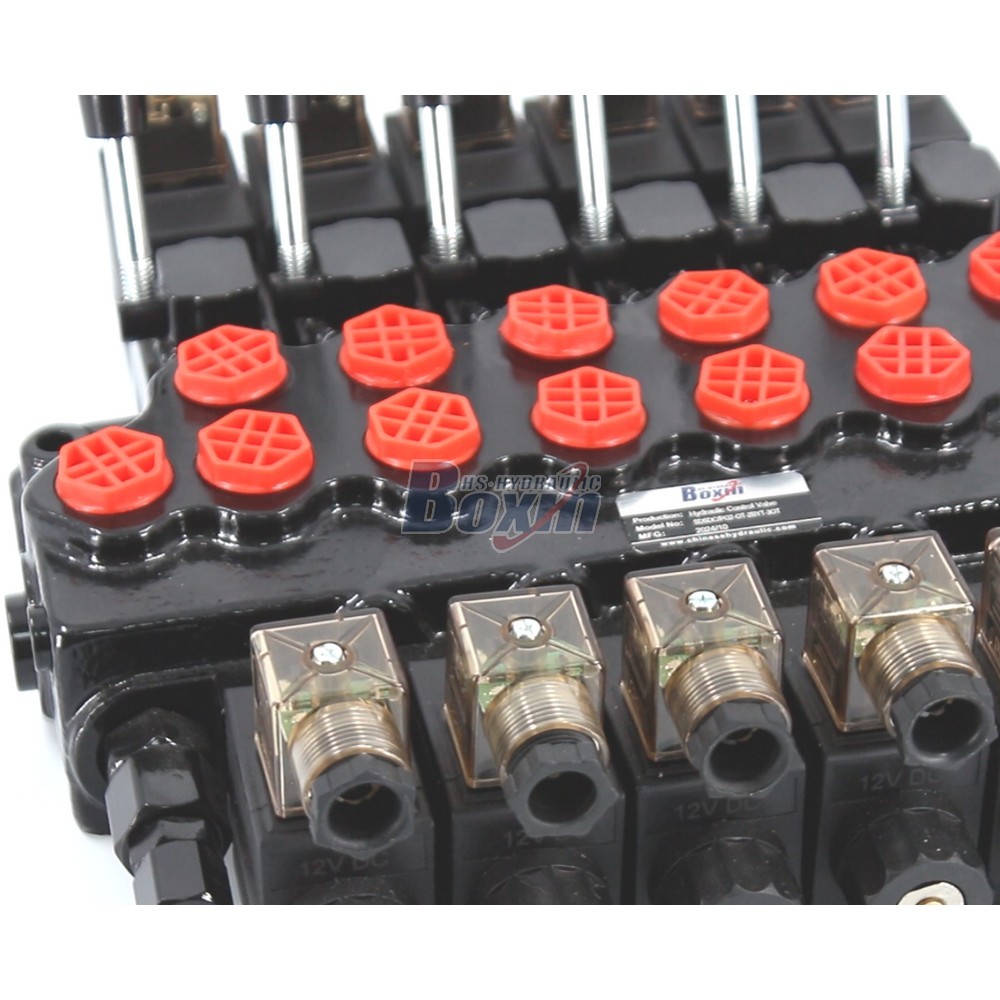

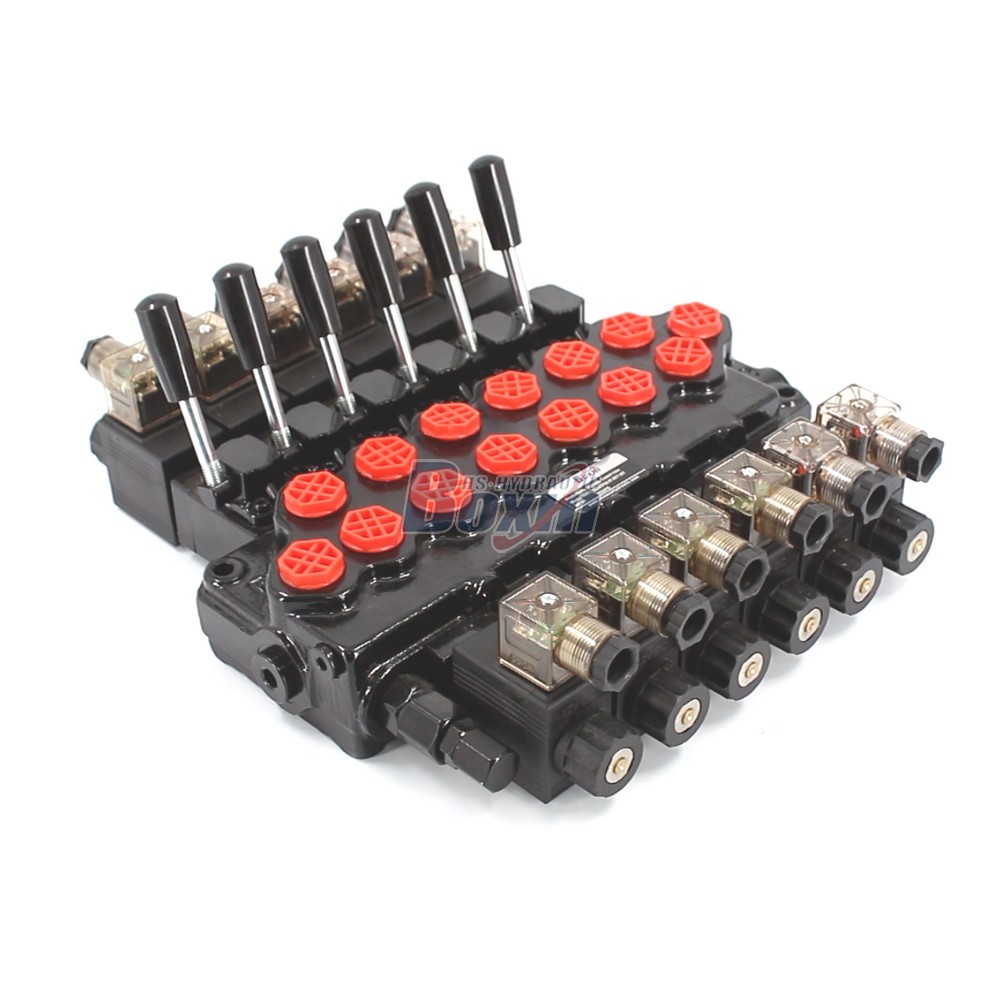

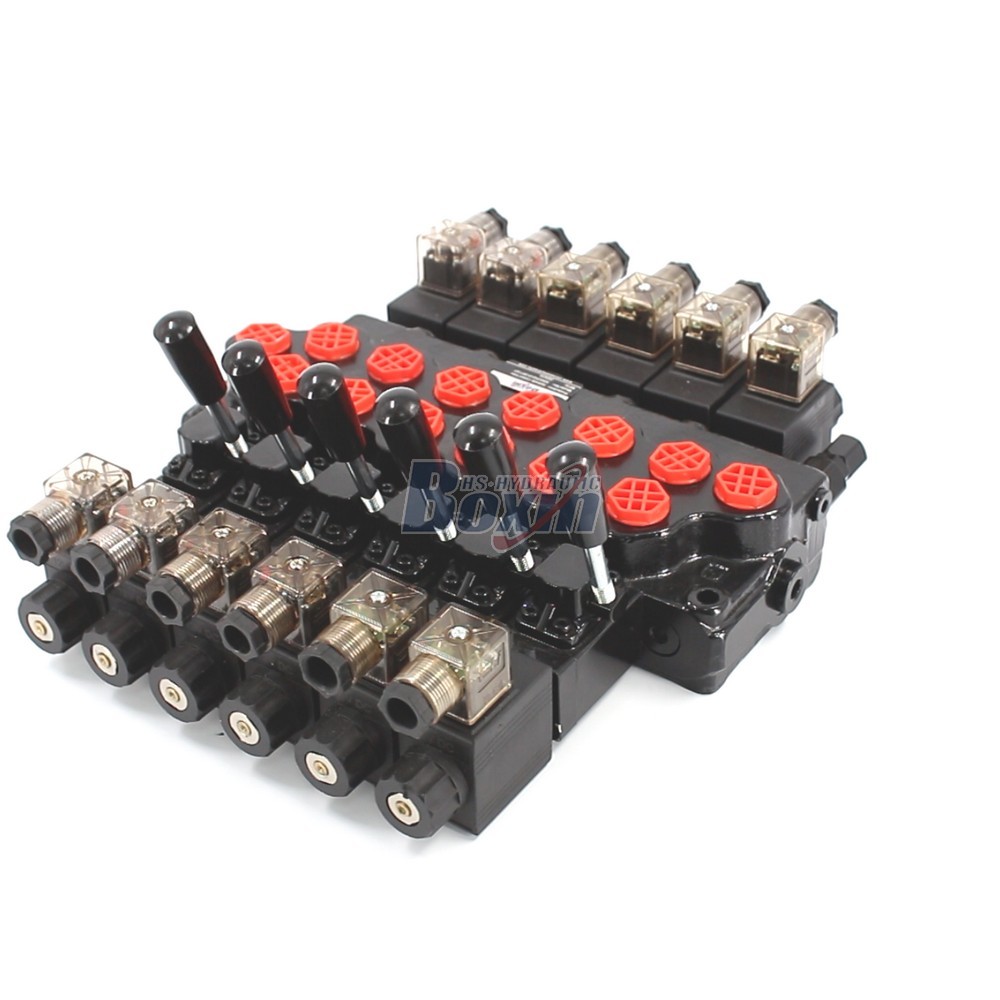

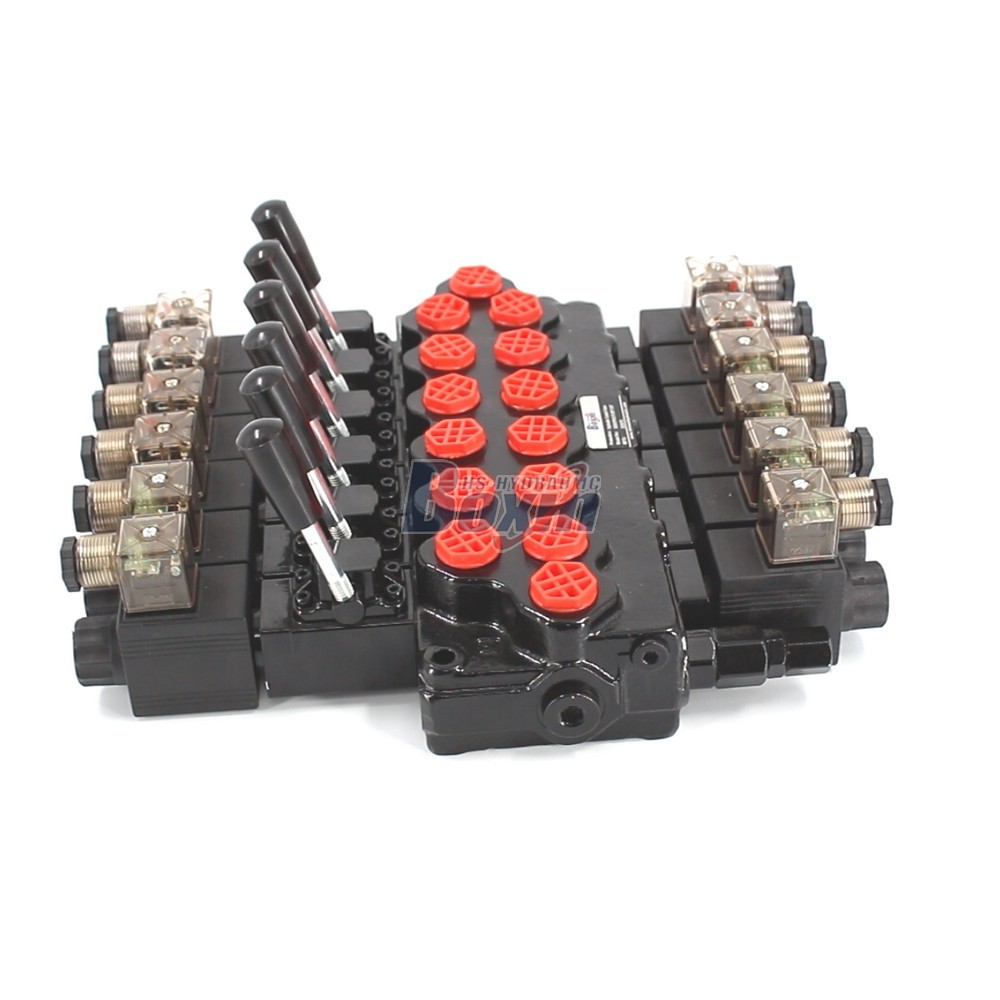

The SD5-PG2 is a high-performance, 6-spool solenoid-controlled monoblock hydraulic valve designed for versatile mobile applications. With a rated flow of 45 L/min and pressure handling up to 315 bar, it provides precise fluid control for demanding tasks in construction, agriculture, and material handling machinery.
| Serie SD5 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 305 bar (4400 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
As a large-scale manufacturer, we specialize in providing high-quality SD5-PG2 solenoid-controlled monoblock valves. Engineered for efficiency and durability, this 6-spool valve is ideal for tractors, forklifts, mini-excavators, and skid steer loaders. We offer comprehensive solutions including OEM/ODM services, private labeling, and custom manufacturing to meet your specific technical requirements. Our factory-direct supply chain ensures competitive wholesale pricing for global distributors, wholesalers, and trade partners. We are actively seeking long-term partnerships with distributors, agents, and traders who require reliable, high-pressure hydraulic components. Benefit from our extensive production capacity, rigorous quality control, and dedication to supply chain excellence. Contact us to discuss bulk orders, custom engineering, or partnership opportunities to support your market growth.
