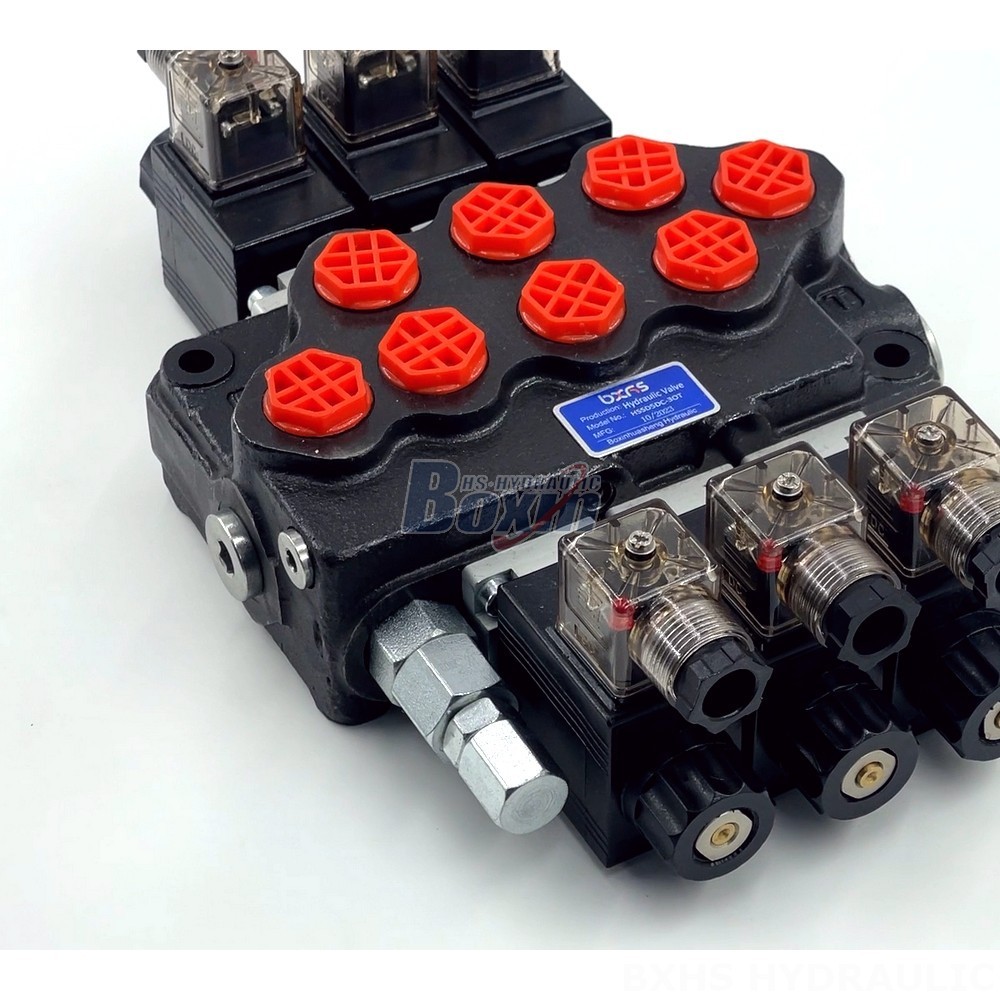

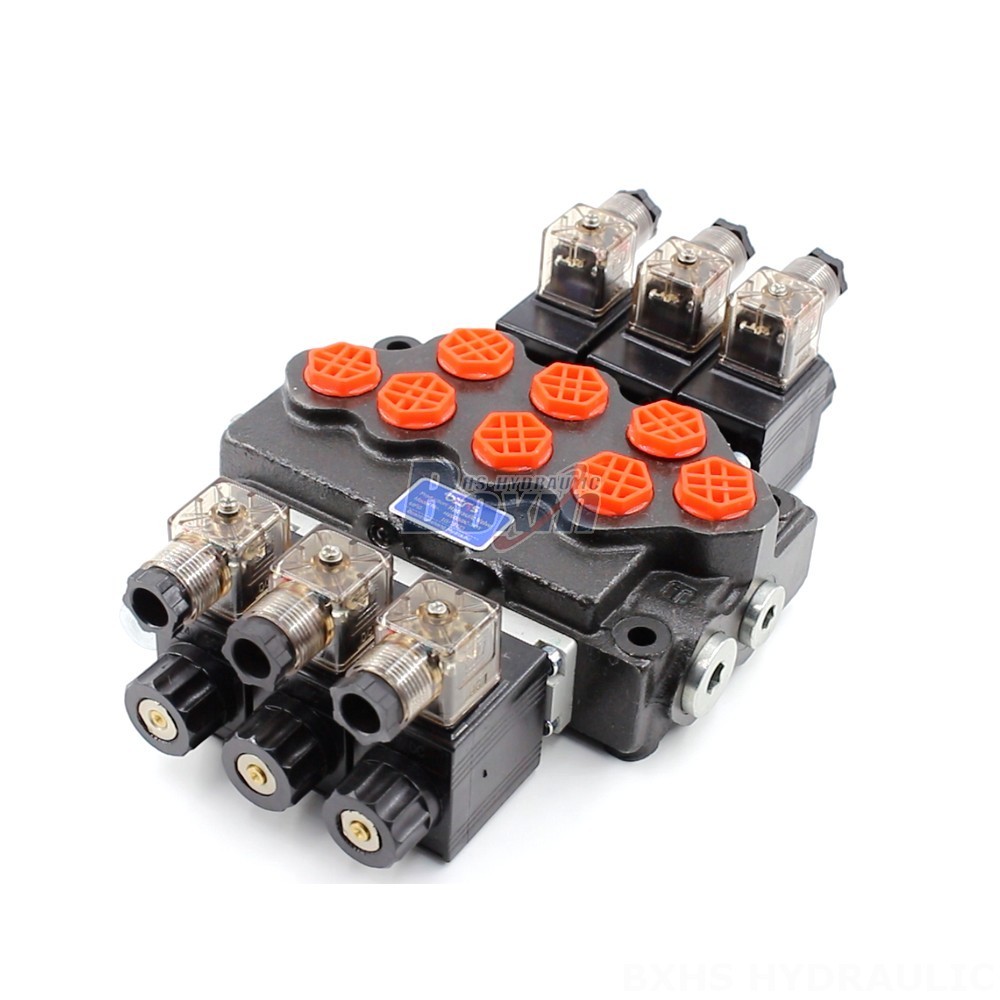

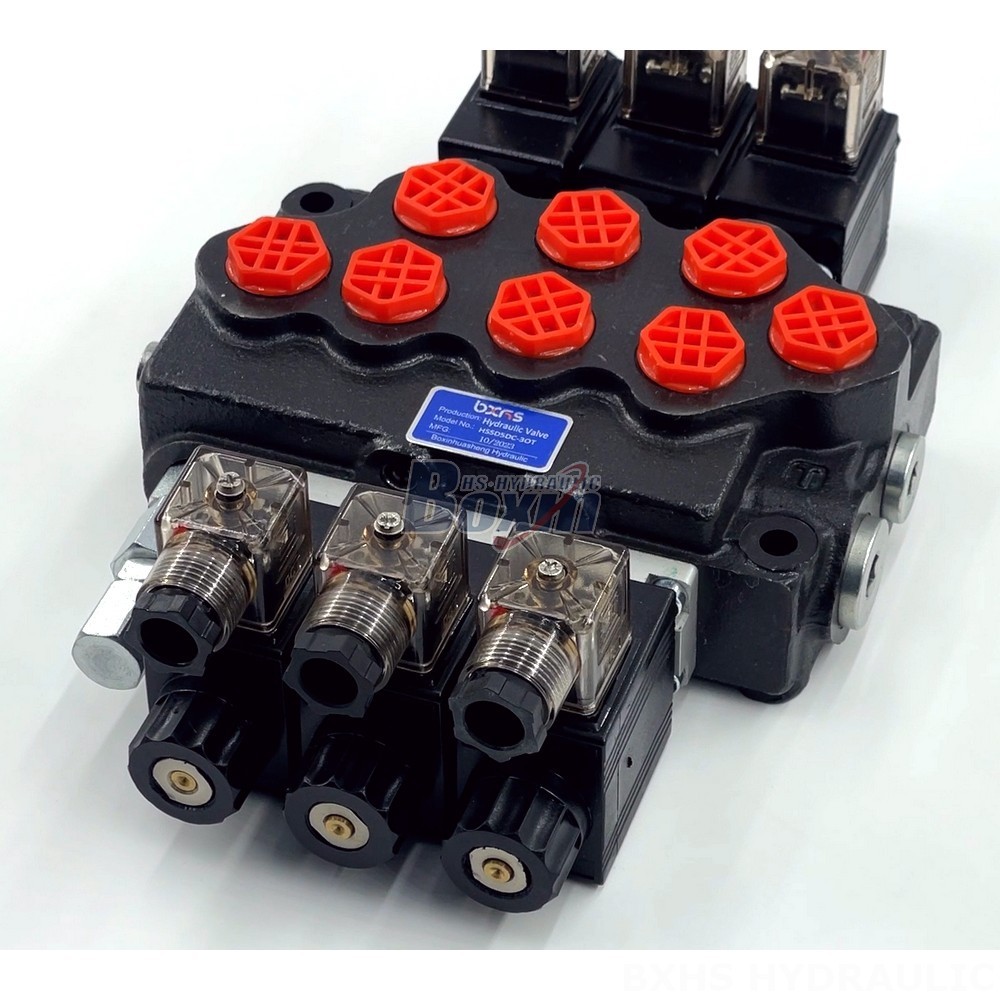

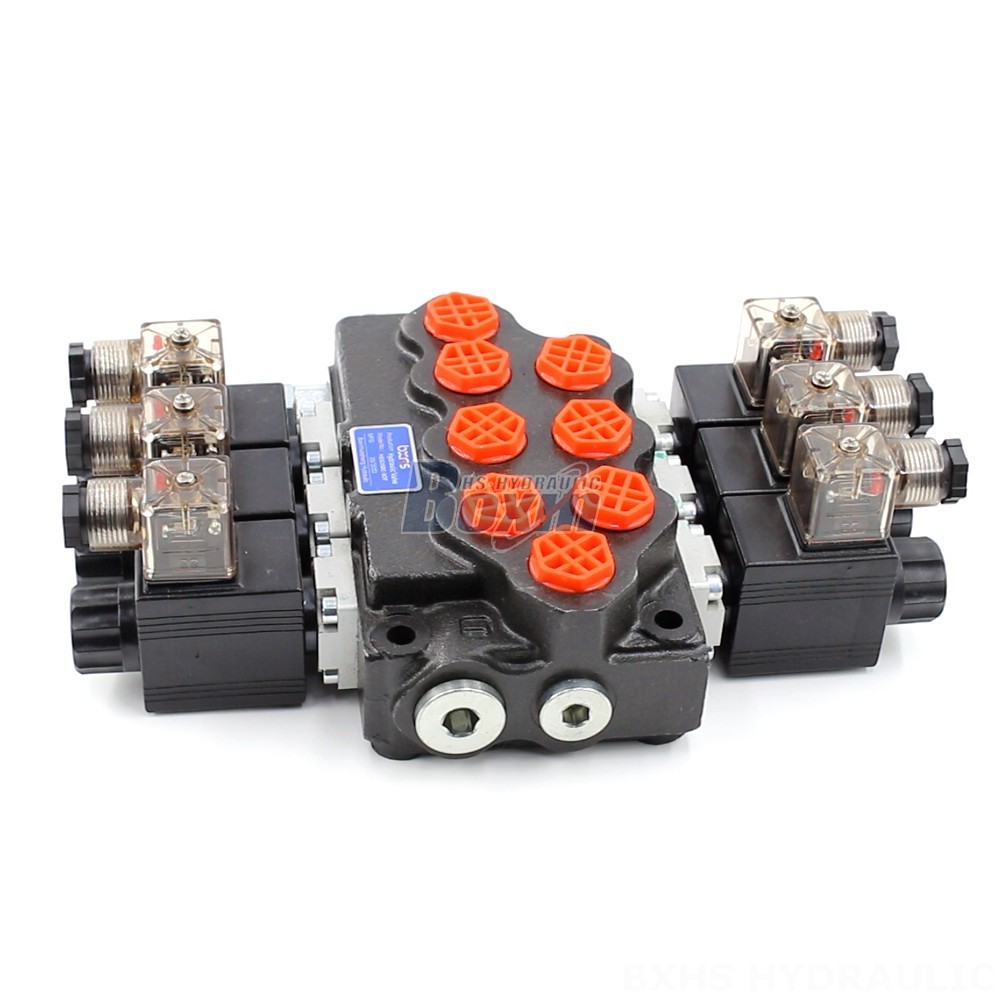

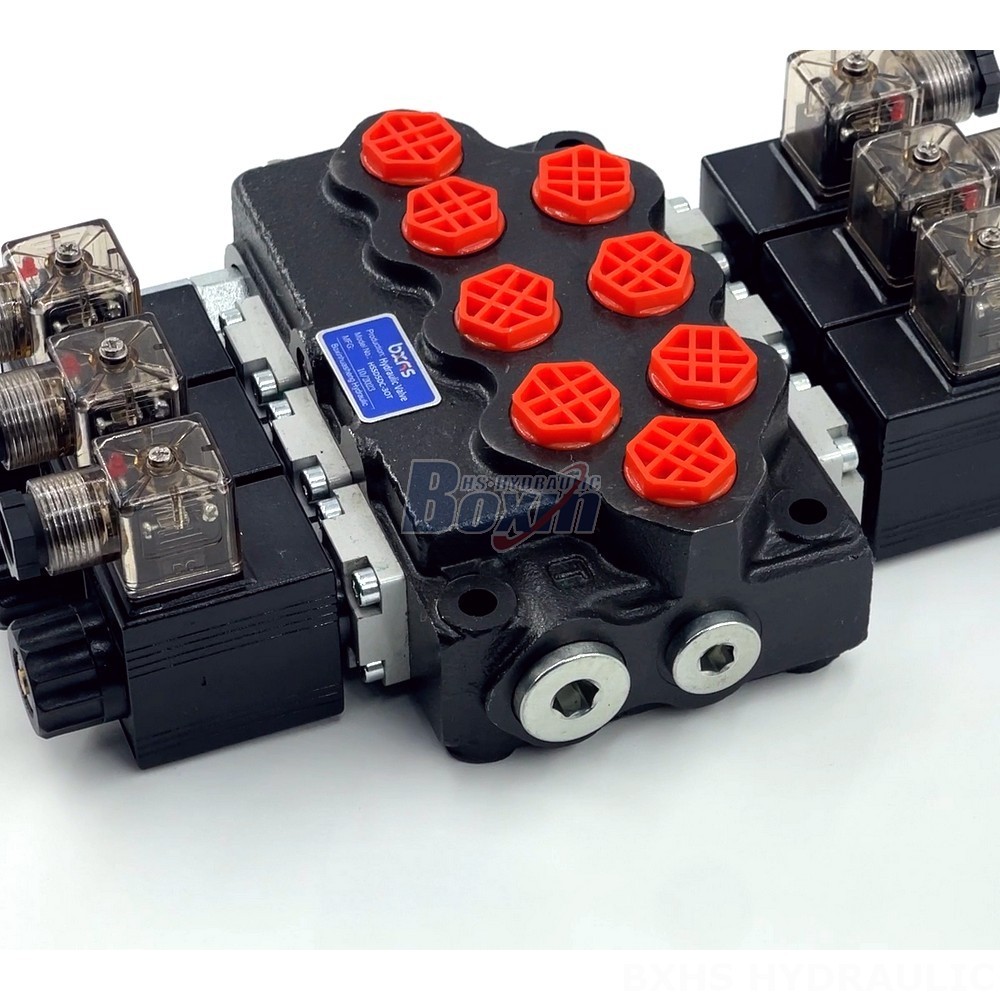

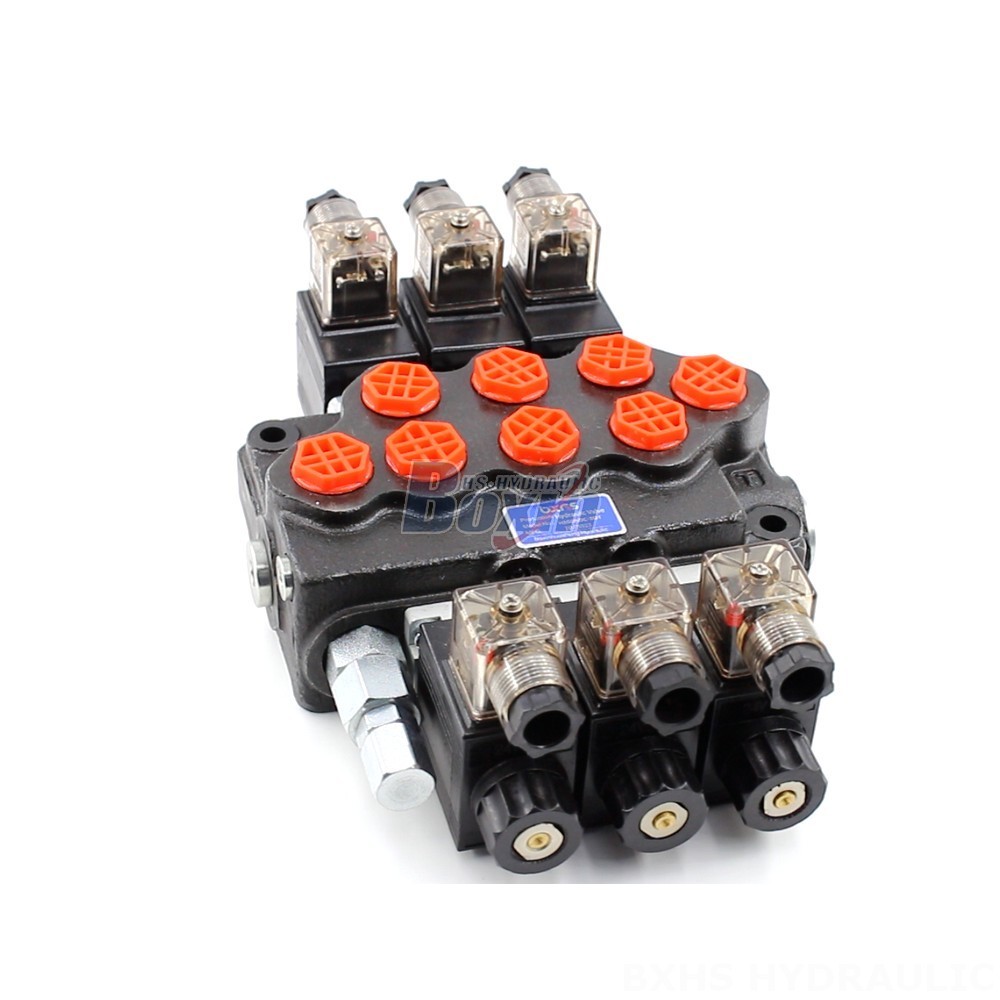

The SD5 Hydraulic Valve is a high-performance solenoid-controlled monoblock valve designed for use in agricultural machinery, construction equipment, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 305 bar, it's ideal for applications demanding reliable hydraulic control.
| Serie SD5 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 305 bar (4400 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
This 3-section SD5 Series valve offers exceptional control with its solenoid operation and robust construction. Designed for demanding environments, it boasts an operating viscosity range of 15 - 75 mm²/s and a wide ambient temperature range from -40°C to +60°C. With its 3 spools and 40 L/min rated flow, it's perfect for controlling hydraulic systems in a variety of agricultural machinery, including telehandlers, forklifts, mini-excavators, skid steer loaders, and more. Its monoblock design ensures durability and reliable performance, making it a valuable asset for any hydraulic system.
