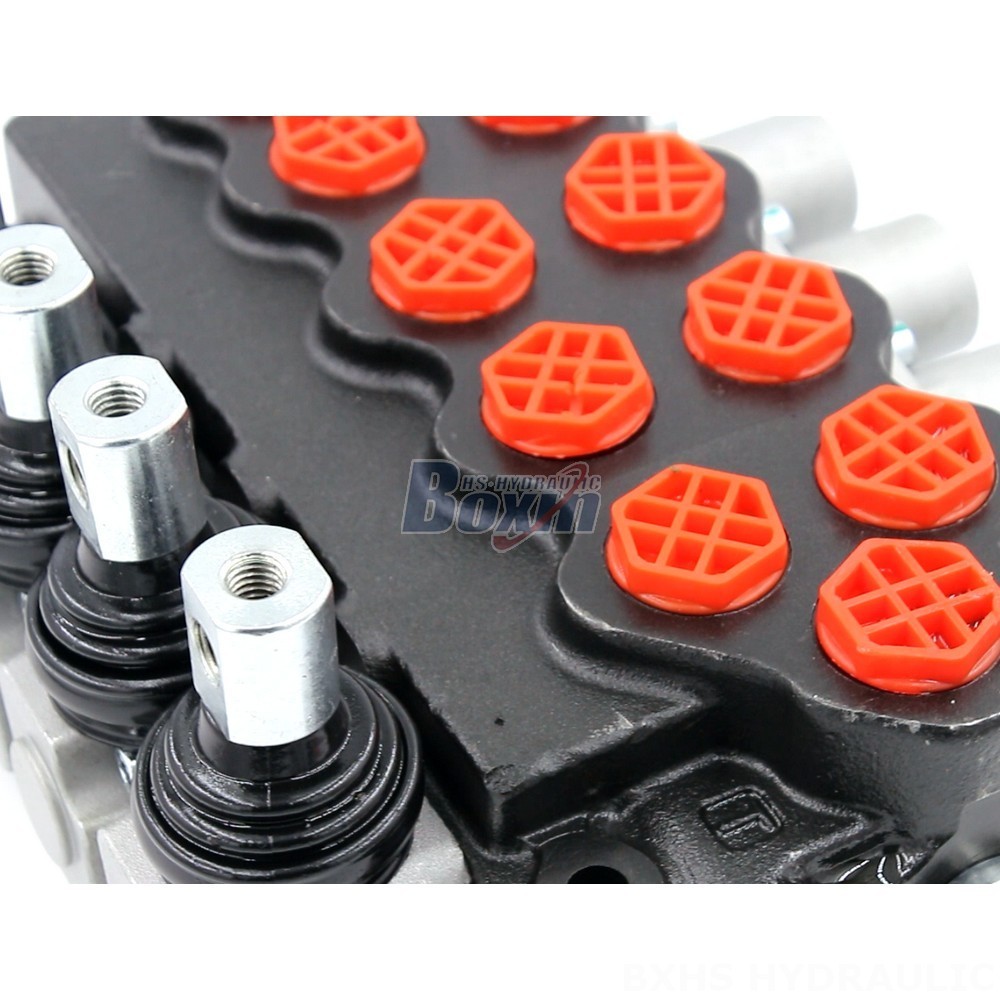

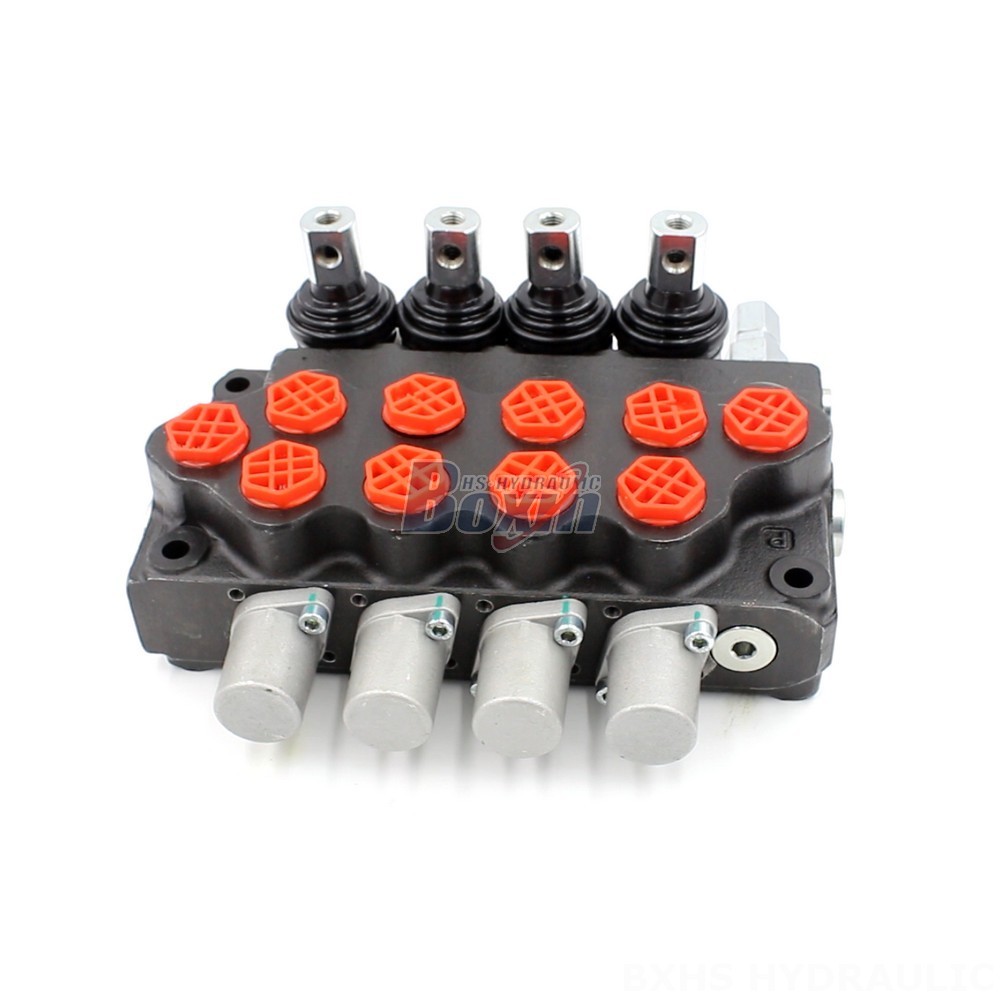

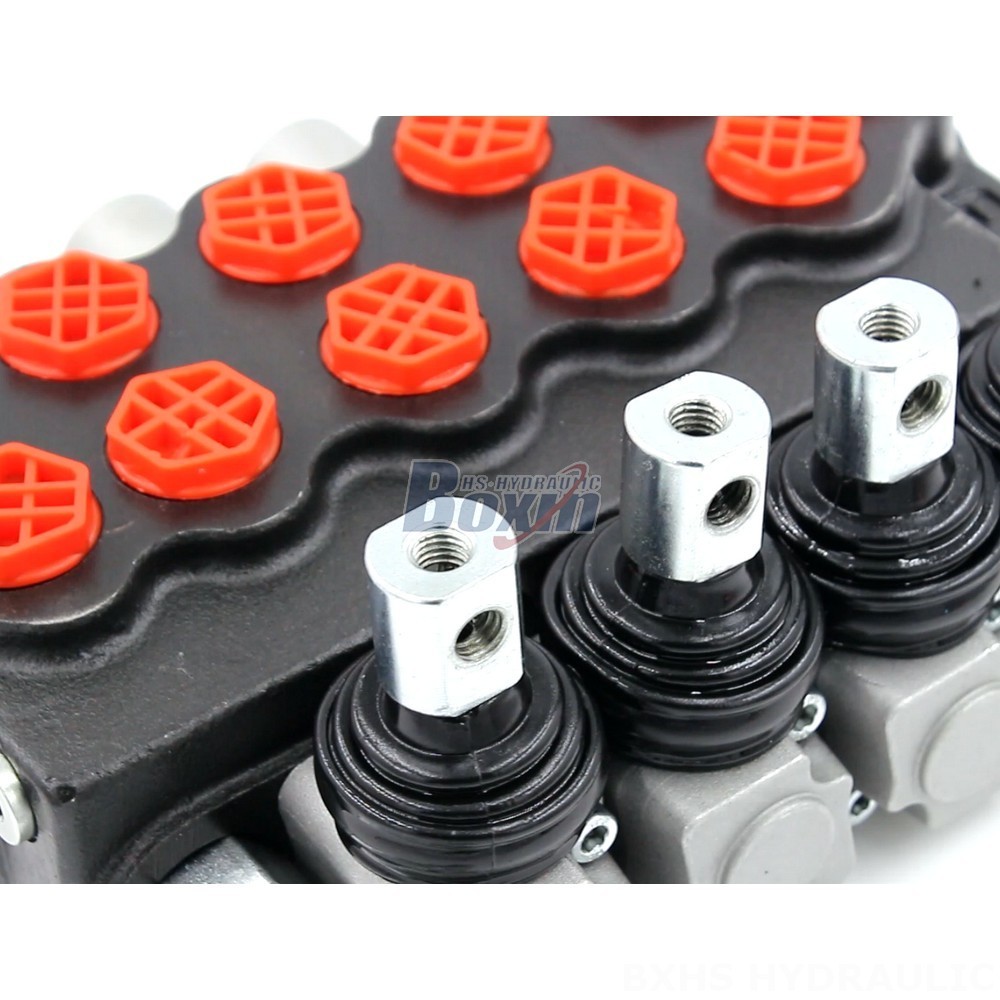

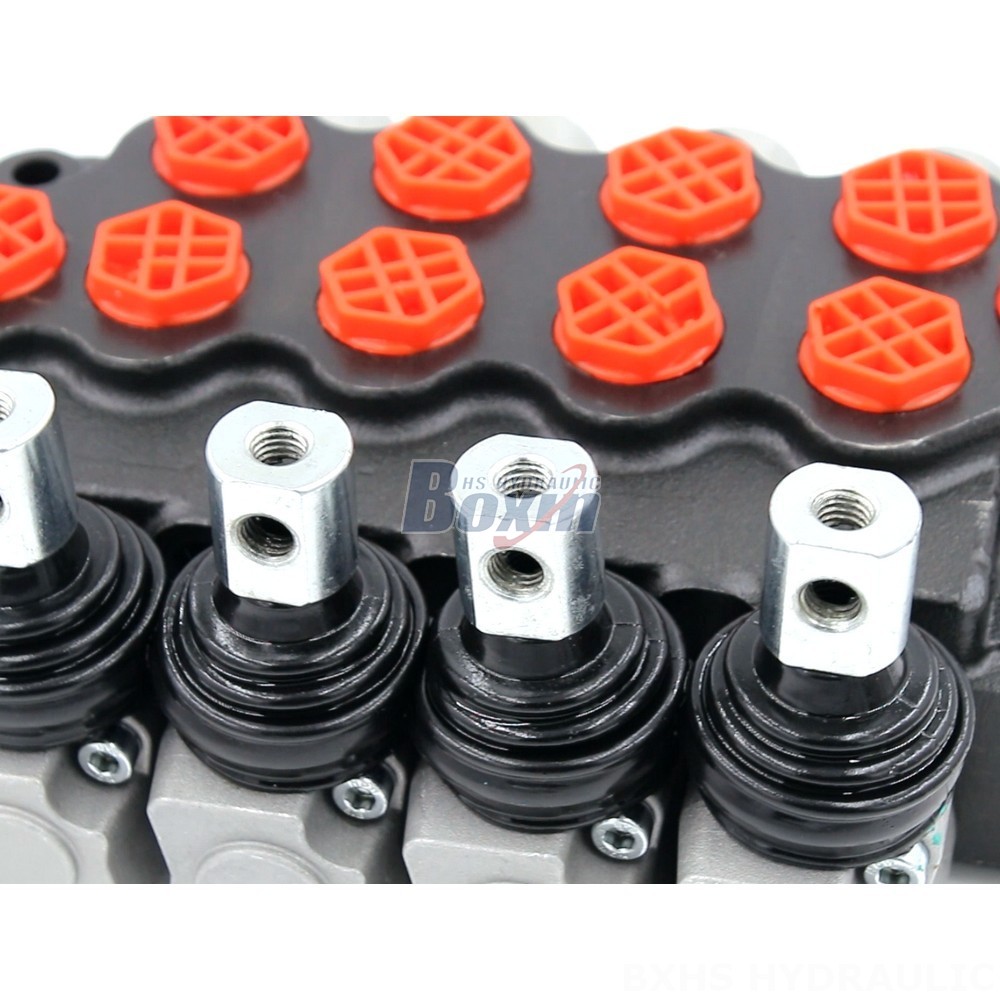

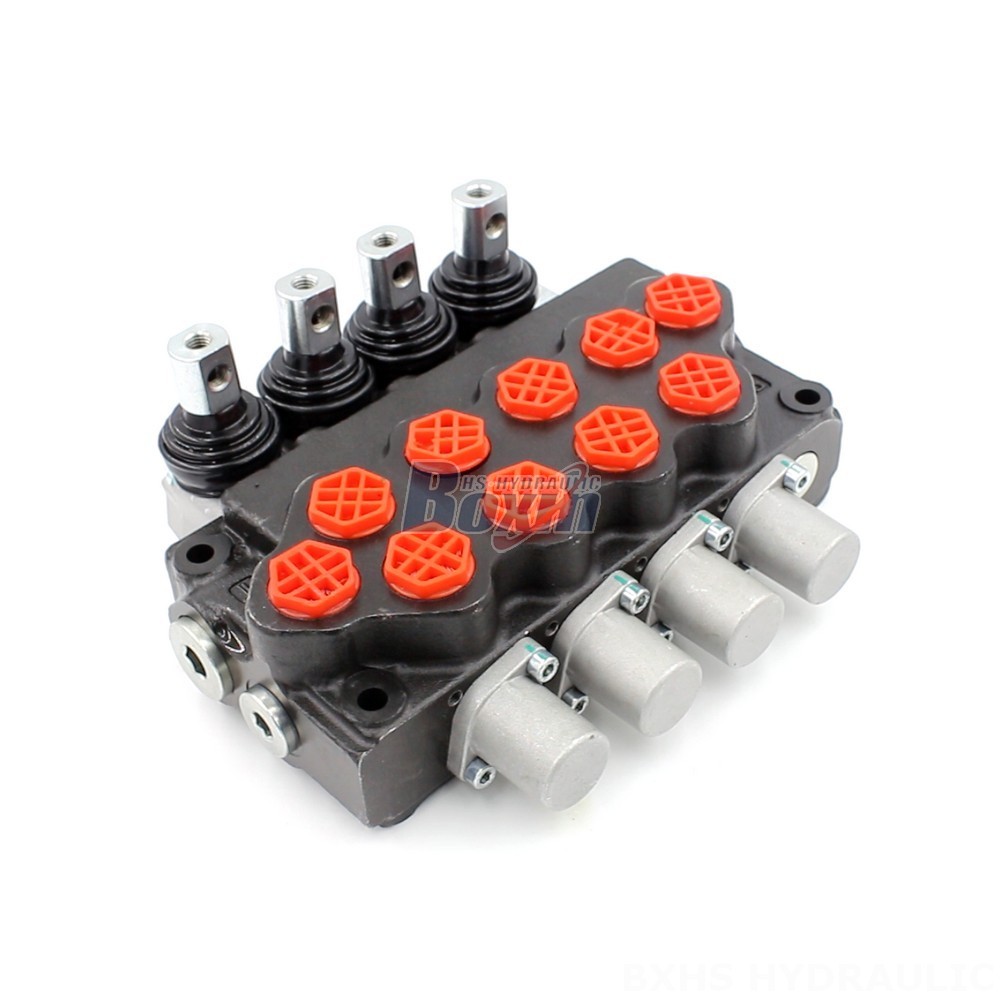

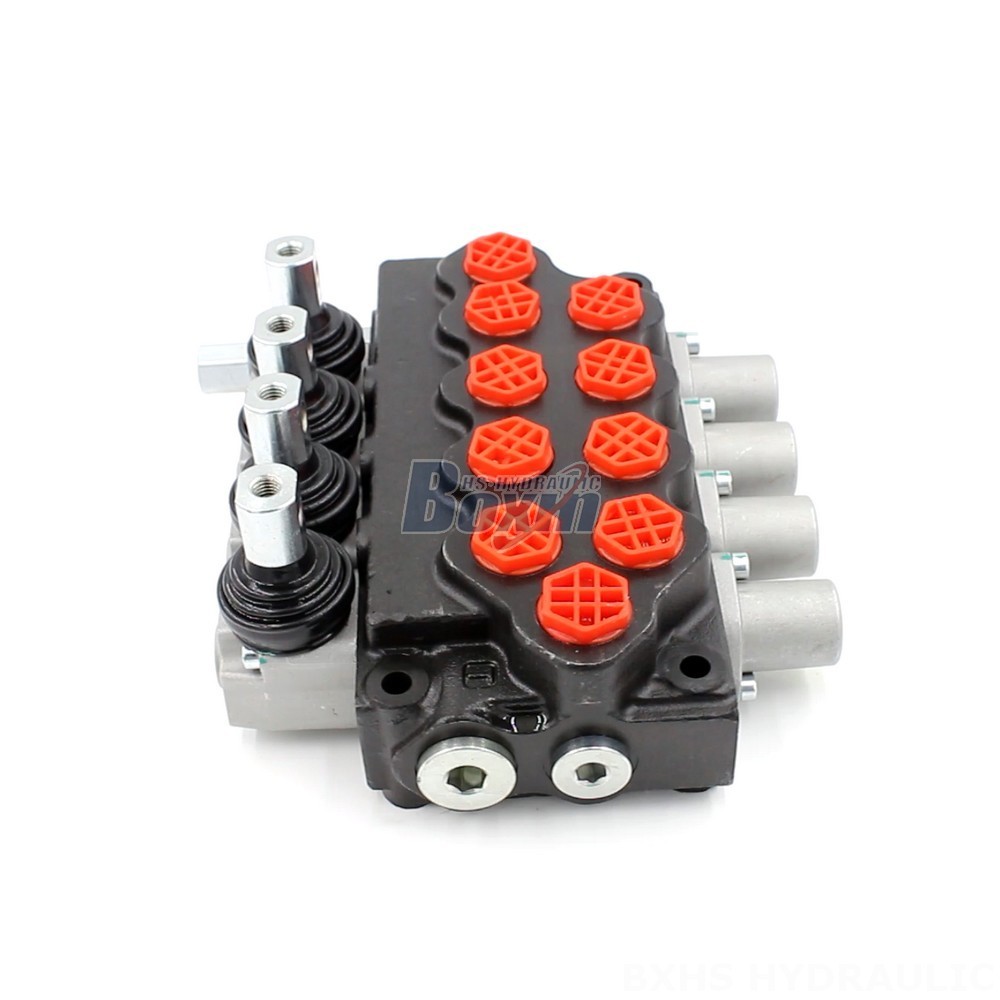

The SD5-G38 Manual 4 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With its robust monoblock construction, manual control, and high pressure capacity, this valve offers reliable and precise flow control.
| Serie SD5 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 305 bar (4400 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
**Key Features:**
* Manual control for precise flow adjustment
* Monoblock construction for durability and leak-free performance
* 4 spool design for versatile flow control
* Rated flow of 40 L/min (10.5 US gpm)
* Maximum pressure of 305 bar (4400 psi)
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Wide ambient temperature range (-40°C to +60°C / -40°F to +140°F)
**Applications:**
* Material handling equipment (e.g., forklifts, telehandlers)
* Construction and earth moving machinery (e.g., excavators, loaders)
* Agricultural machinery (e.g., tractors, harvesters)
* Industrial vehicles (e.g., sweepers, scrubbers)
**Benefits:**
* Improved flow control and efficiency
* Enhanced system performance and reliability
* Reduced maintenance and downtime
* Suitable for a wide range of hydraulic applications
