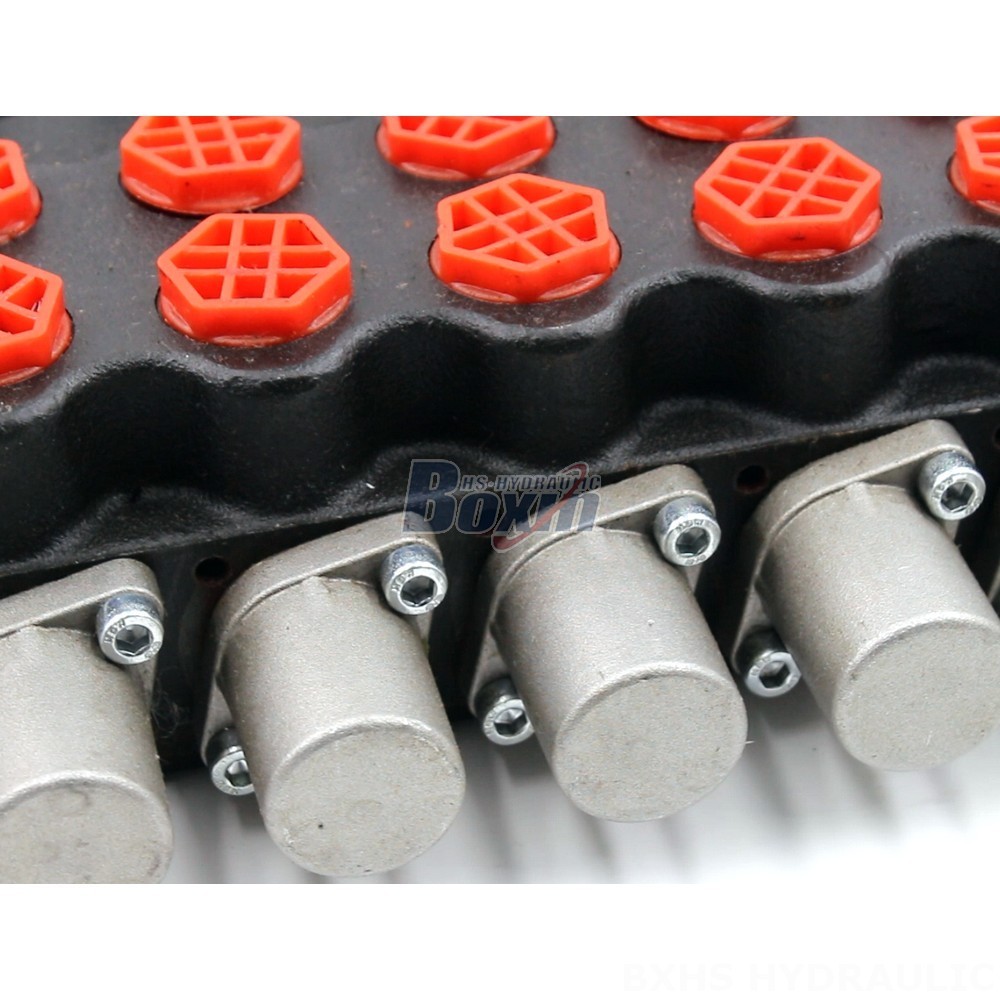

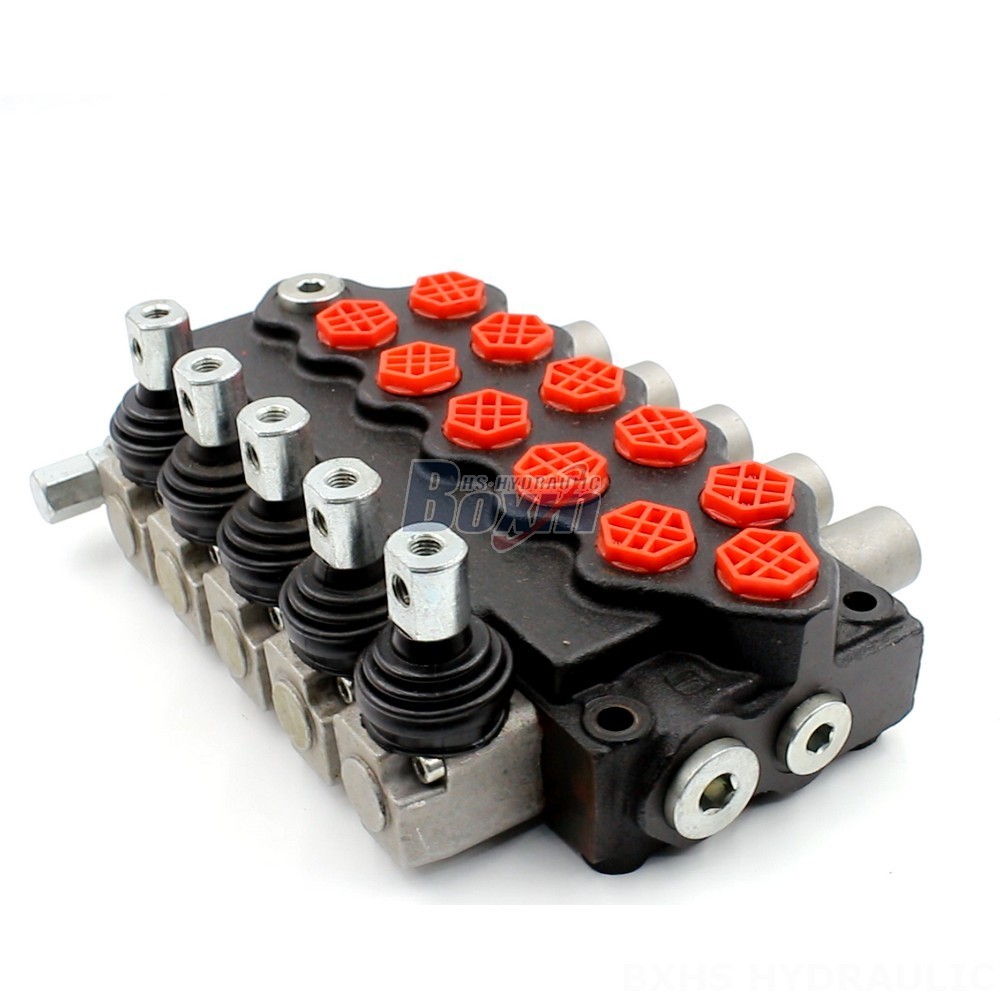

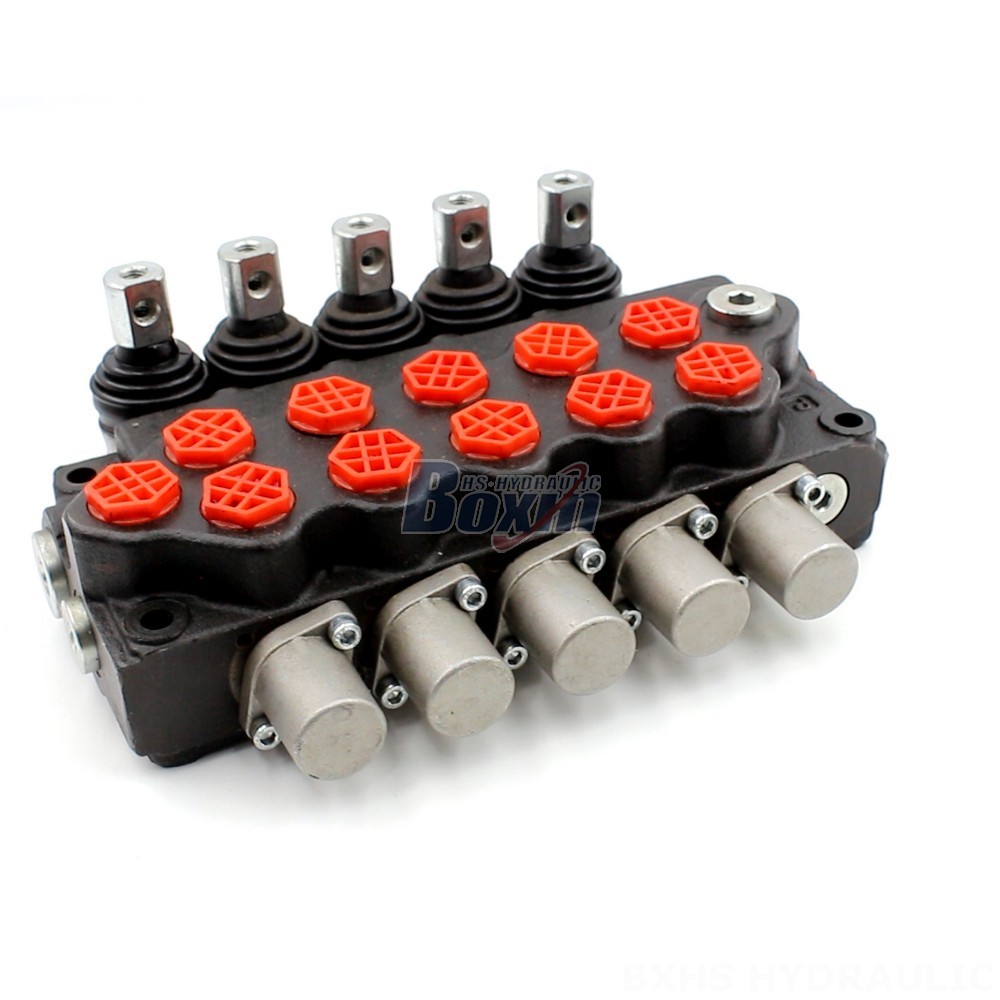

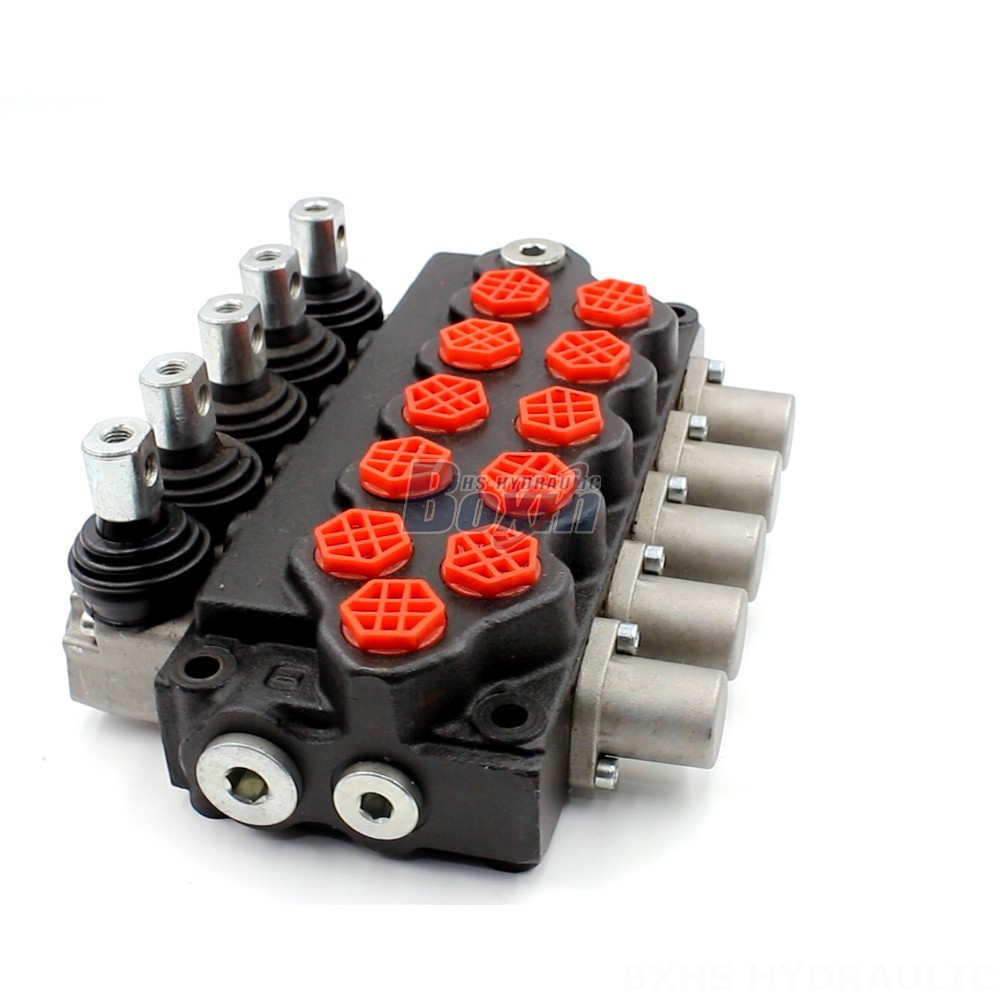

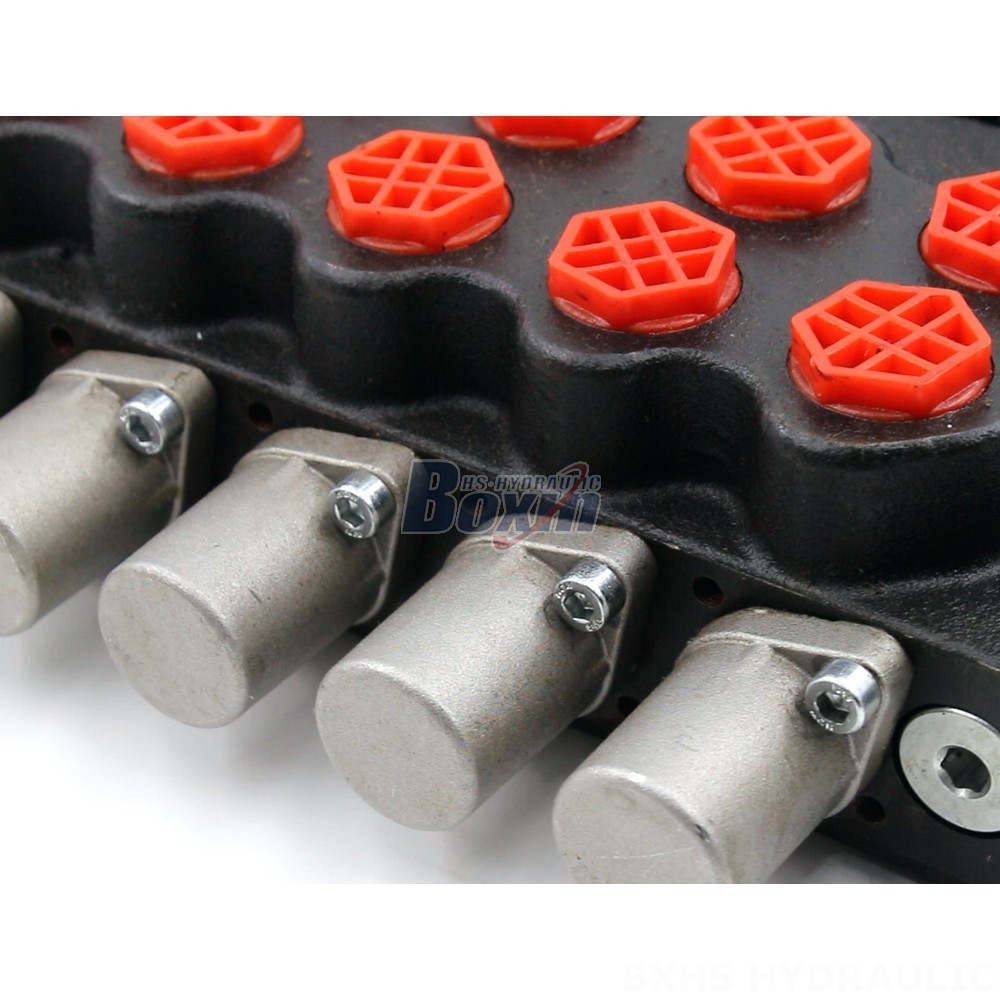

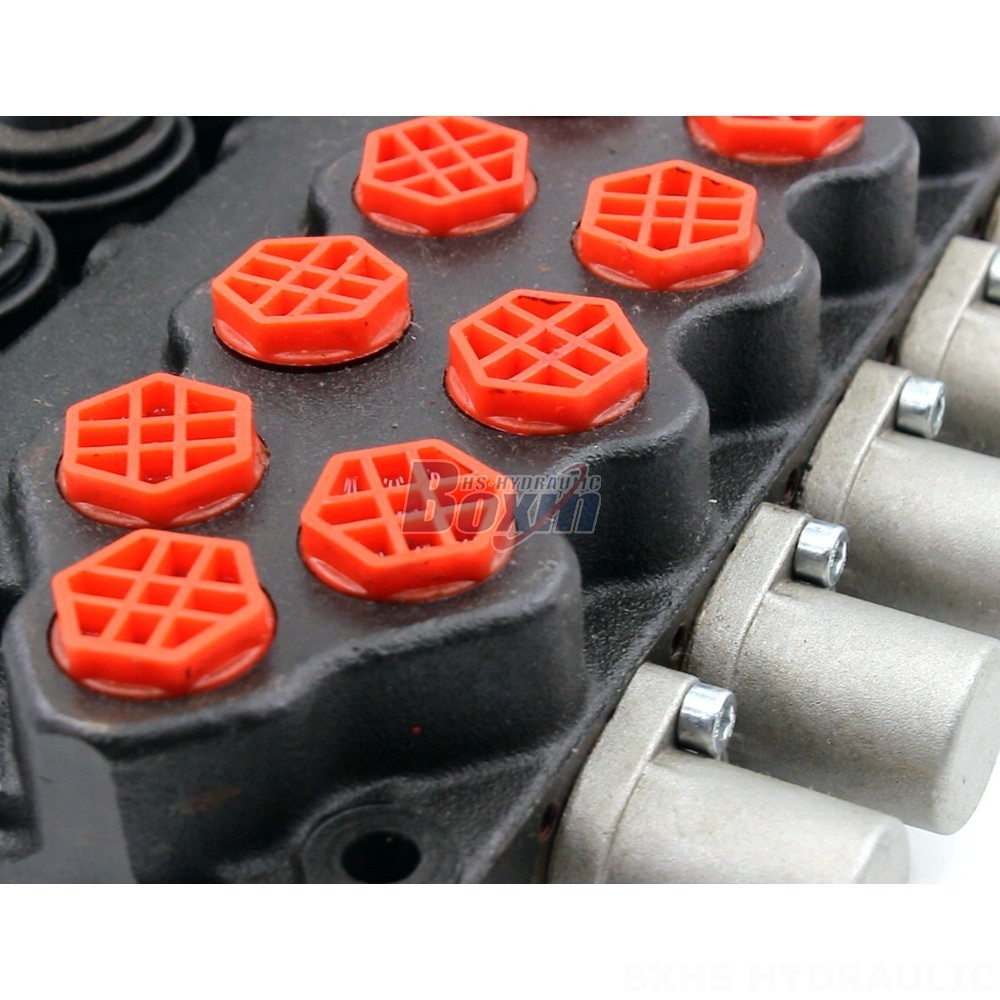

The SD5-G38 5-Spool Hydraulic Directional Valve is a high-performance valve designed for use in a variety of applications. It features a manual control, 5 sections, and a monoblock valve structure. The valve has a rated flow of 40 L/min and a max pressure of 305 bar. It has an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +60°C. The valve is available with 5 spools and is part of the SD5 Series. It is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicles applications.
| Serie SD5 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 305 bar (4400 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5-G38 5-Spool Hydraulic Directional Valve is a versatile and reliable valve that is ideal for a variety of applications. Its manual control provides precise and responsive operation, while its 5 sections allow for complex control of hydraulic systems. The monoblock valve structure ensures durability and longevity, while the rated flow of 40 L/min and max pressure of 305 bar make it suitable for even the most demanding applications. The valve's operating viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +60°C make it suitable for use in a wide range of environments. The valve is available with 5 spools and is part of the SD5 Series, which is known for its high quality and performance. It is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicles applications, including telehandlers, forklifts, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, and harvesters.
