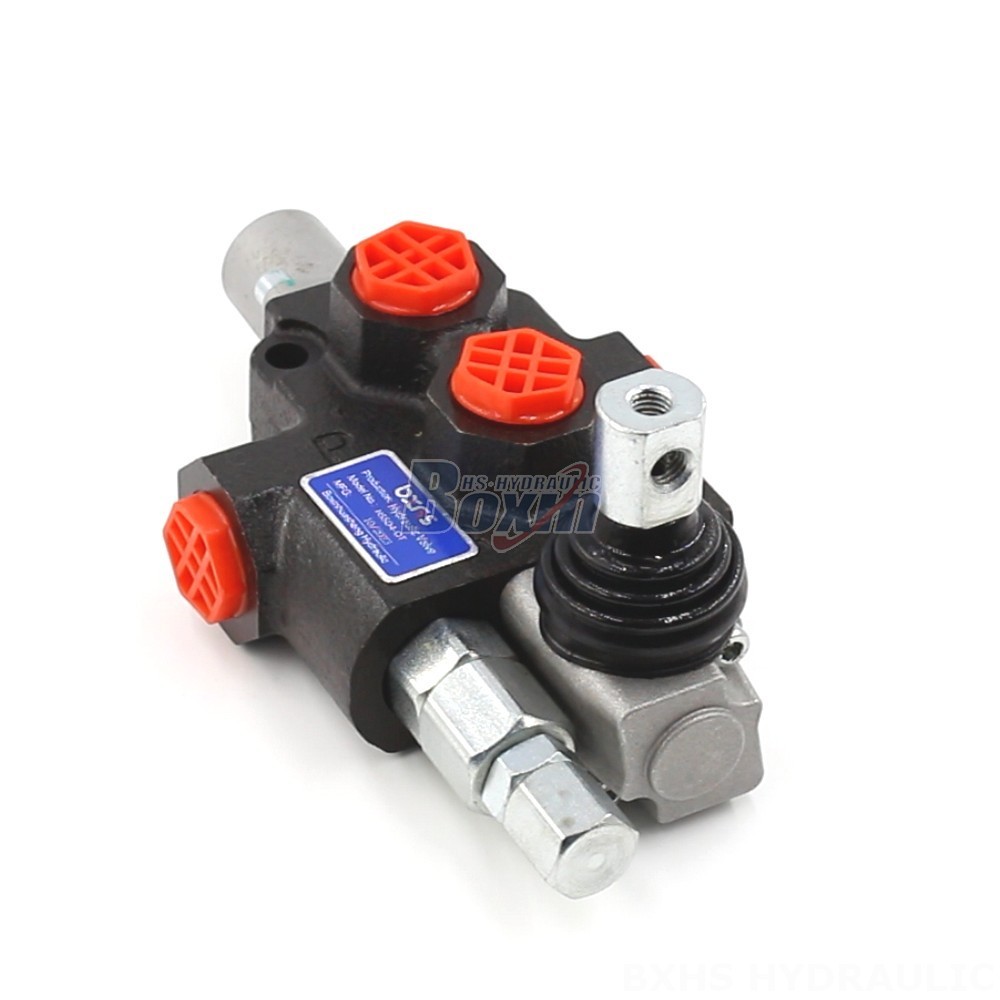

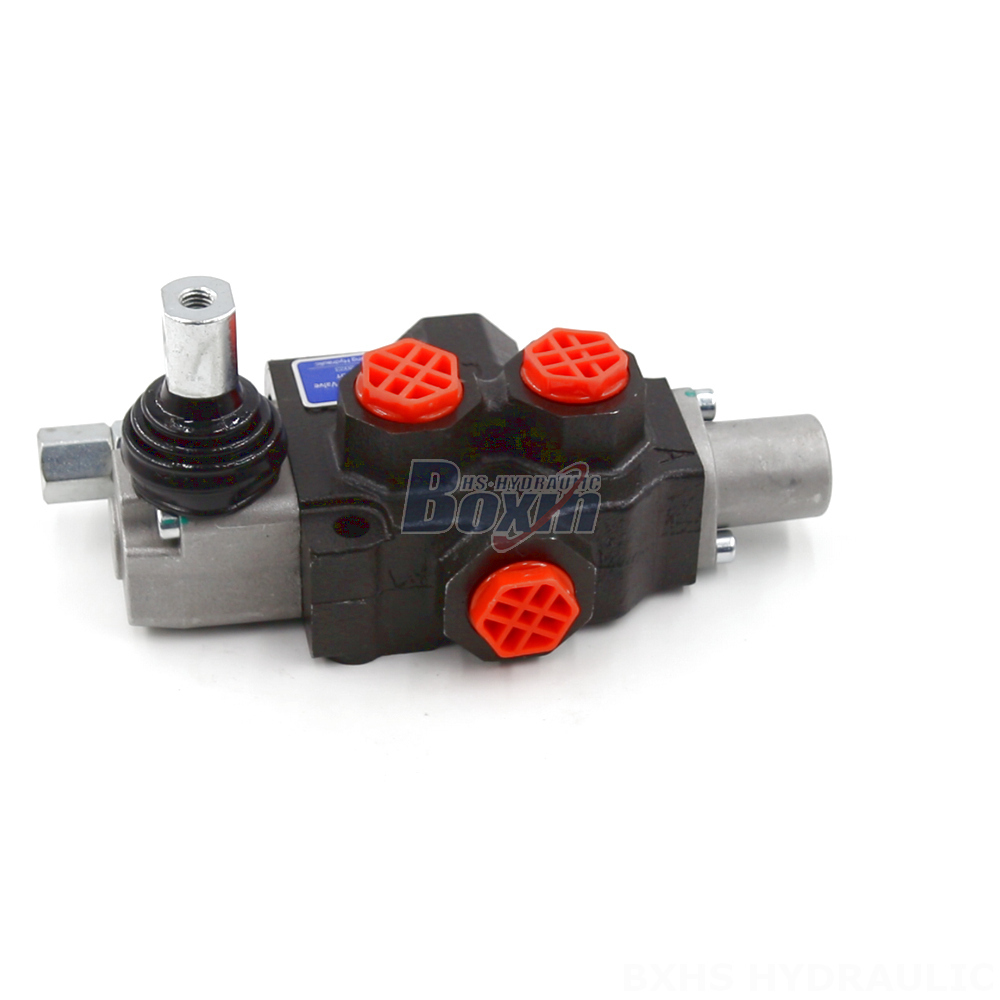

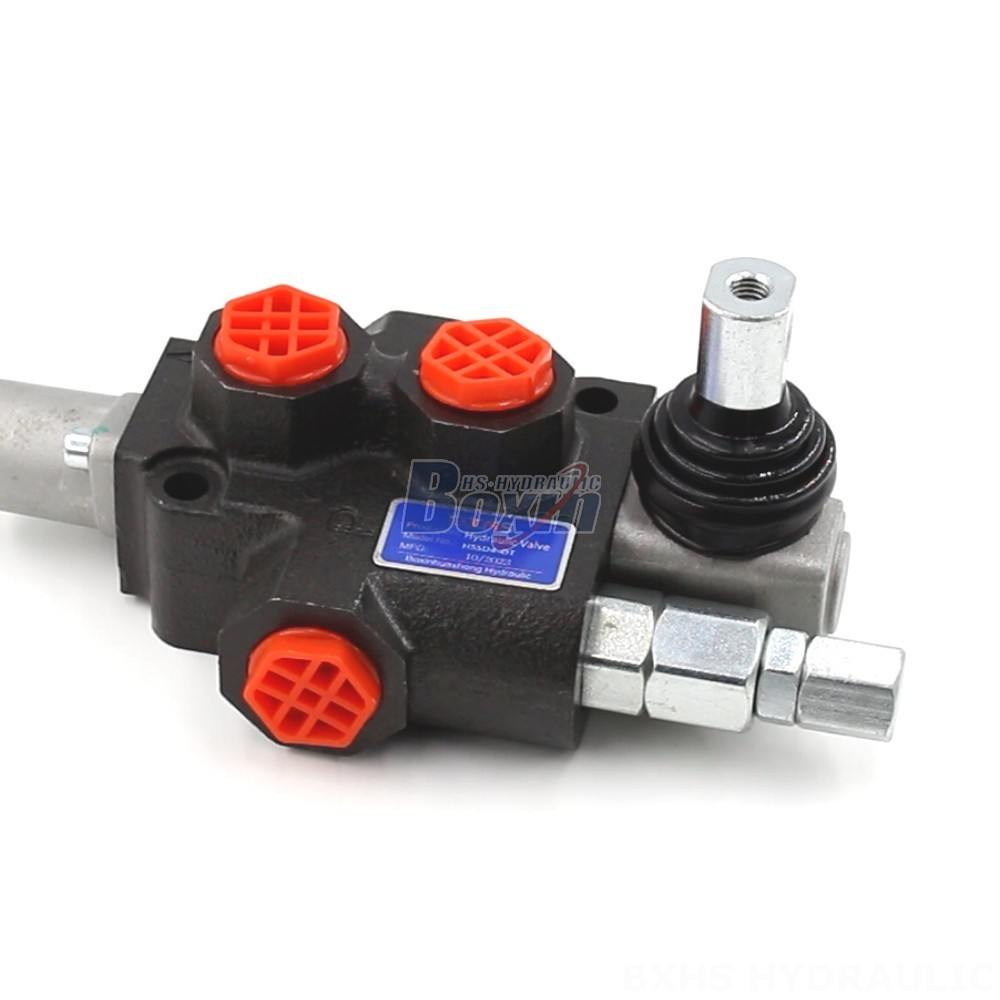

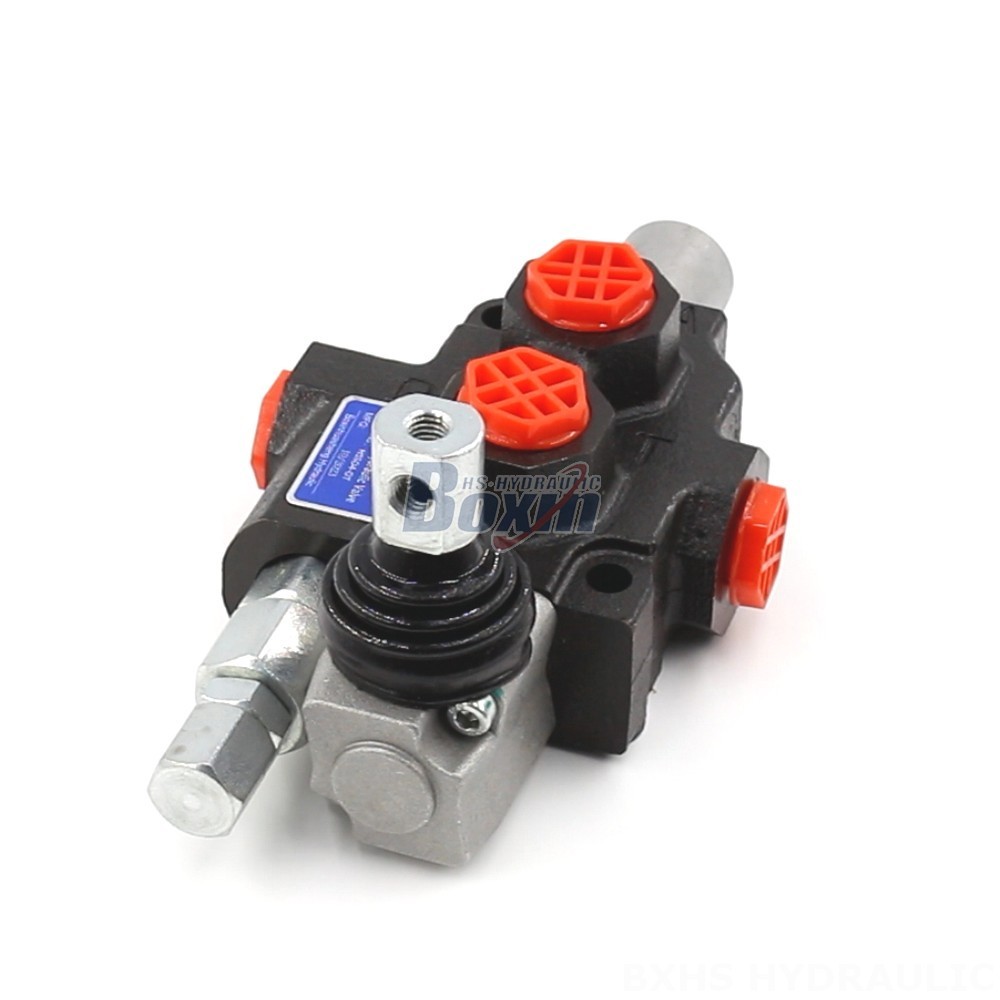

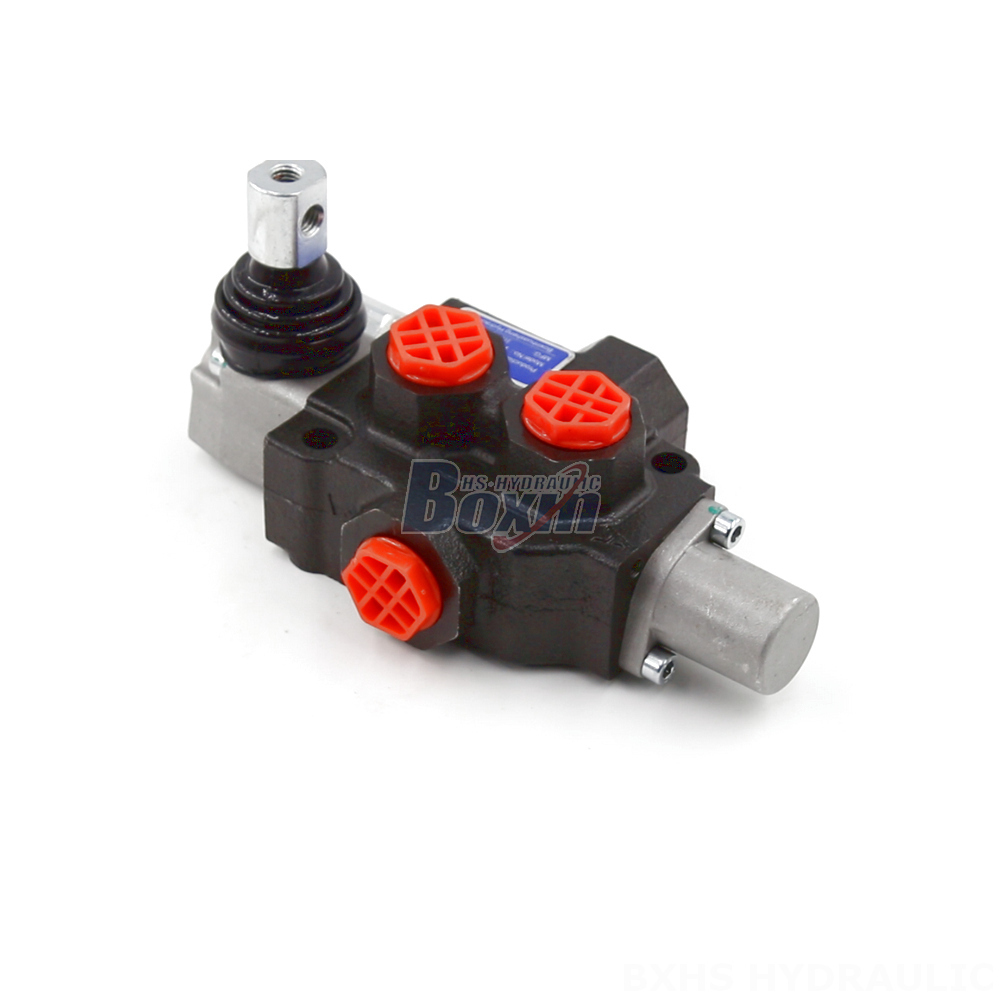

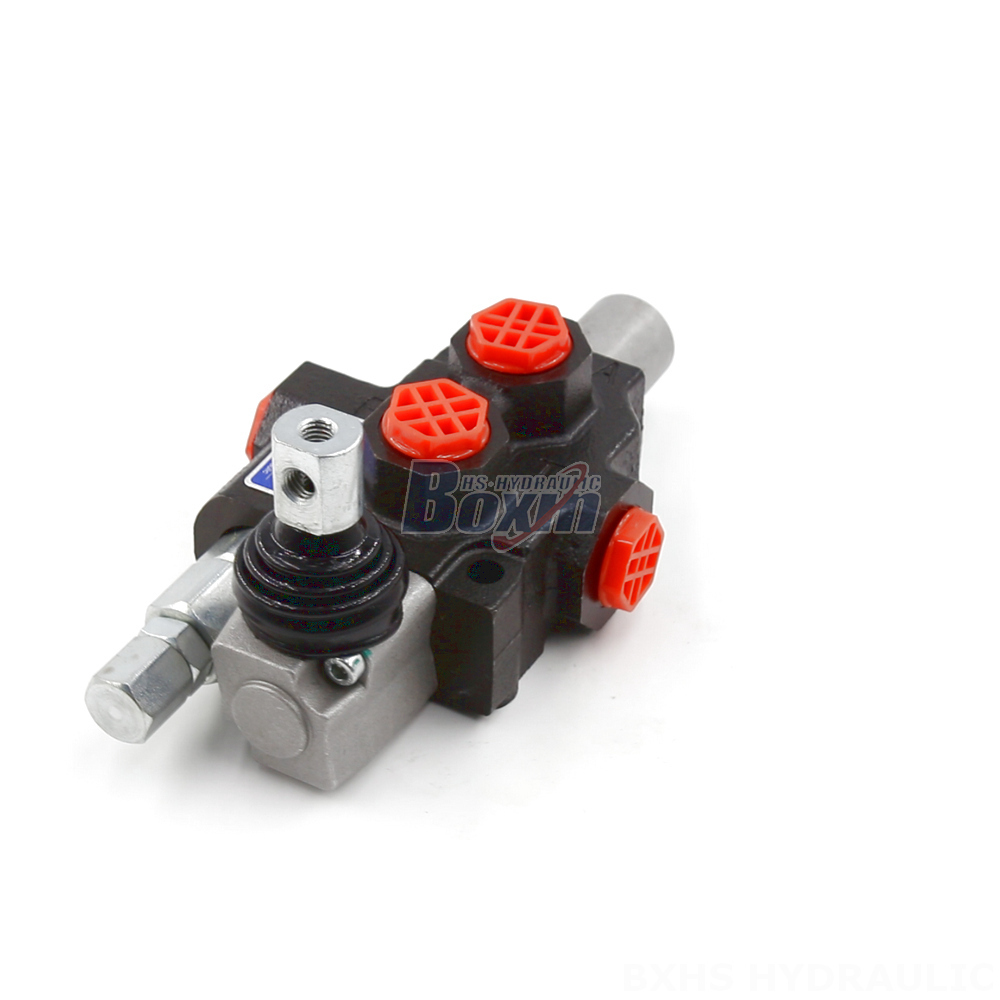

The SD4 Series Directional Valve Block is a high-performance, manually controlled hydraulic valve designed for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. We offer flexible manufacturing options, including OEM, ODM, and private label.
| Serie SD4 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual |
| Carrete | 1 carrete |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi), 305 bar (4400 psi) |
| Puerto de Entrada | G3/8, SAE 6 |
| Puerto de Salida | G3/8, SAE 6 |
| Tamaño de Puerto | G3/8, SAE 6 |
| Sección | 1 sección |
| Tipo de estructura | Válvulas monobloc |
| Rango de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
The SD4 Series Directional Valve Block is a robust and reliable hydraulic valve that features a monoblock structure, a rated flow of 40 L/min, and a maximum pressure of 230 bar. The valve is designed for demanding environments and offers a wide operating viscosity range and ambient temperature range. As a manufacturer of hydraulic products, we offer flexible manufacturing options to meet your specific needs. Whether you require OEM, ODM, or private label services, we can customize our products to meet your specifications. We also offer wholesale options for distributors, wholesalers, agents, and traders.
