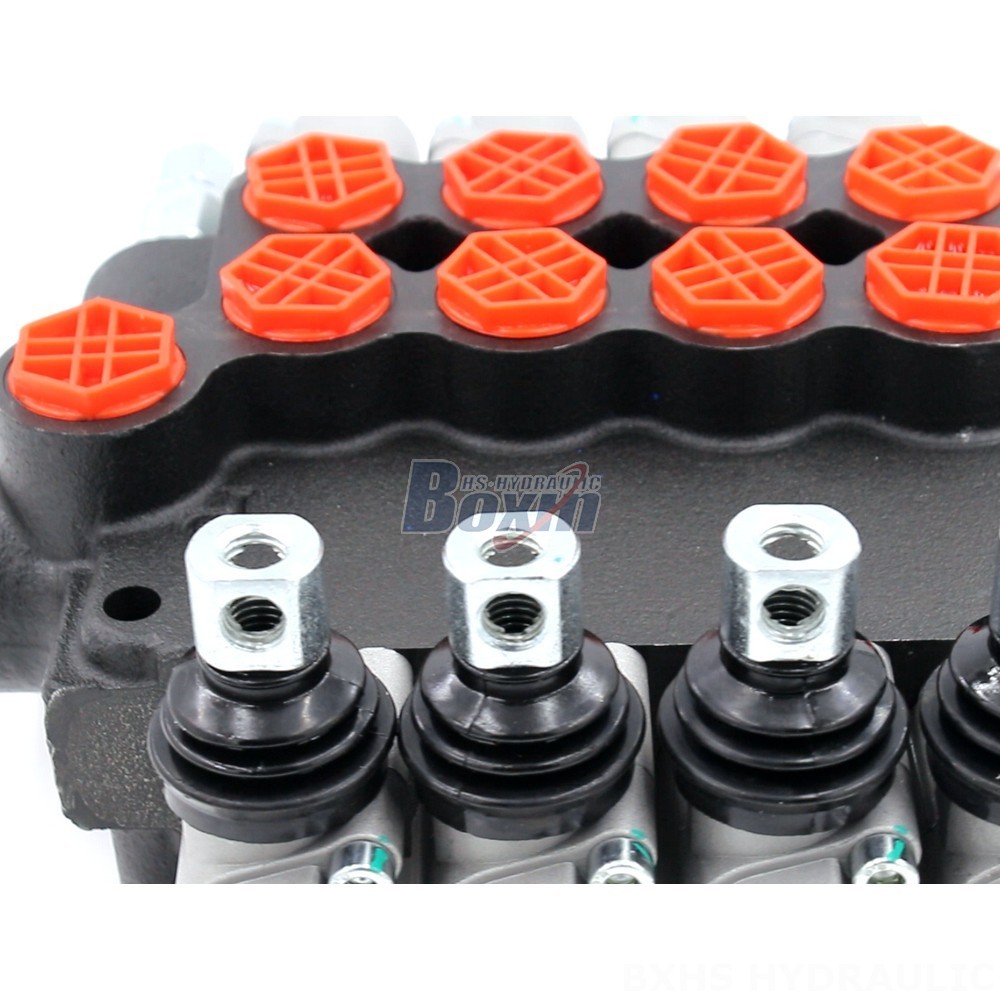

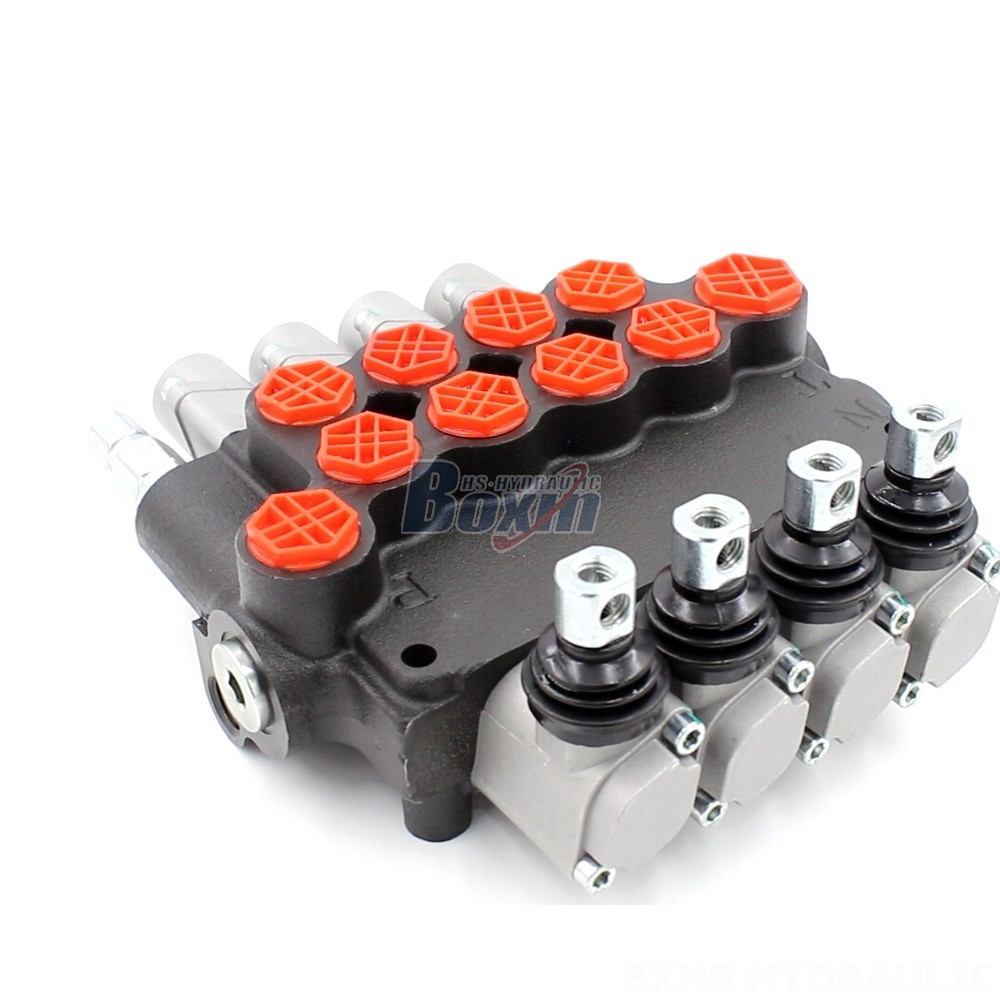

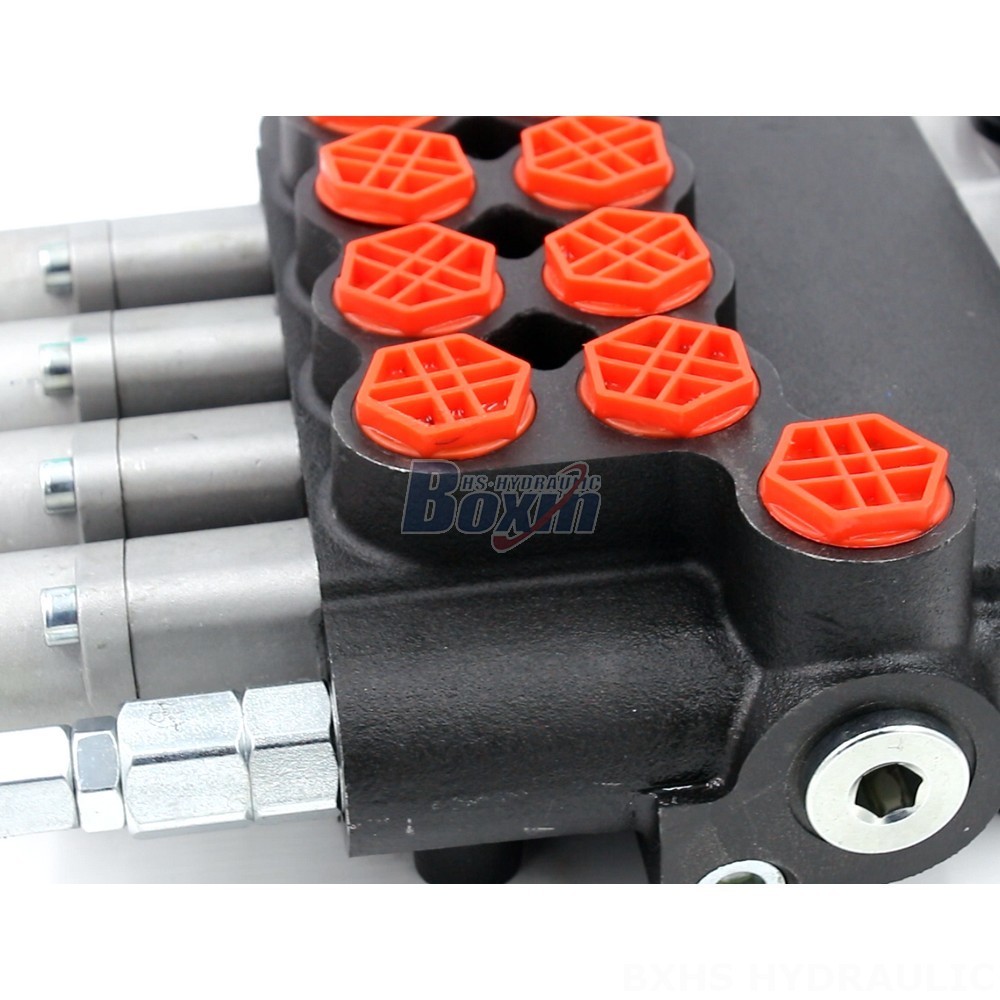

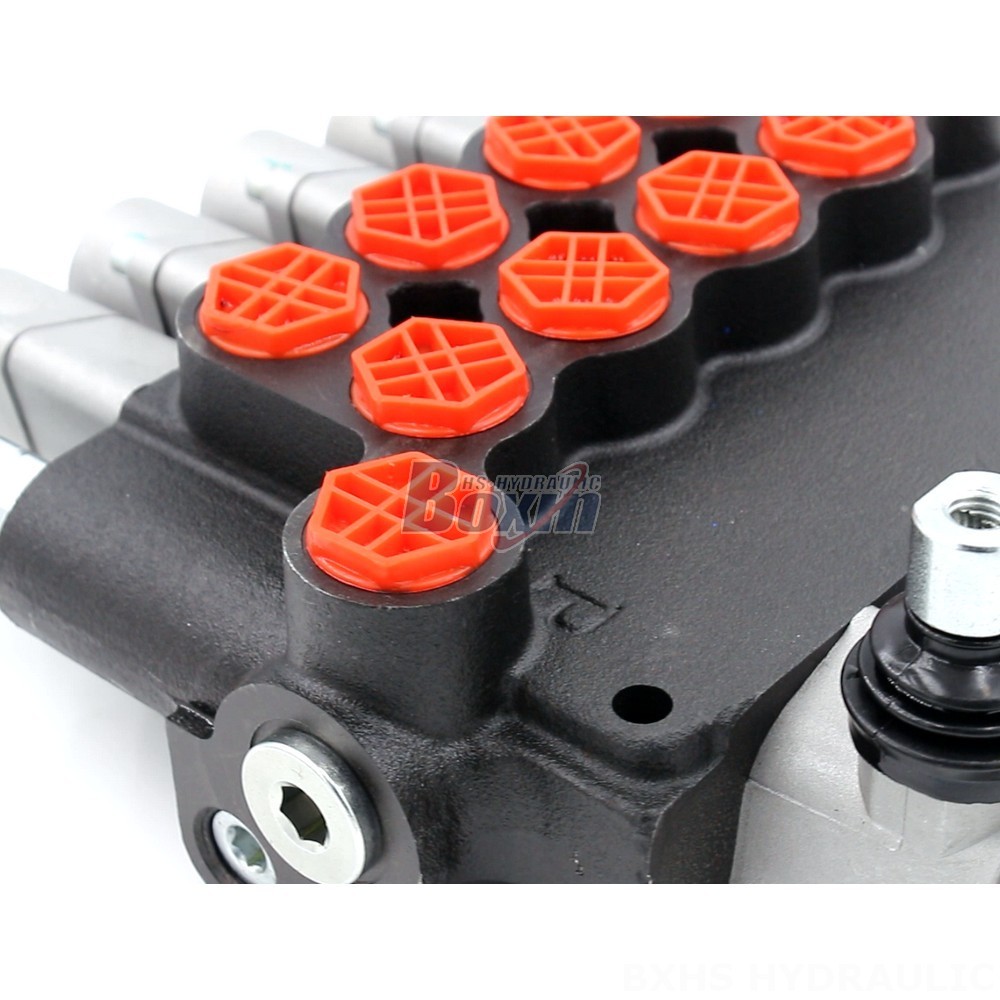

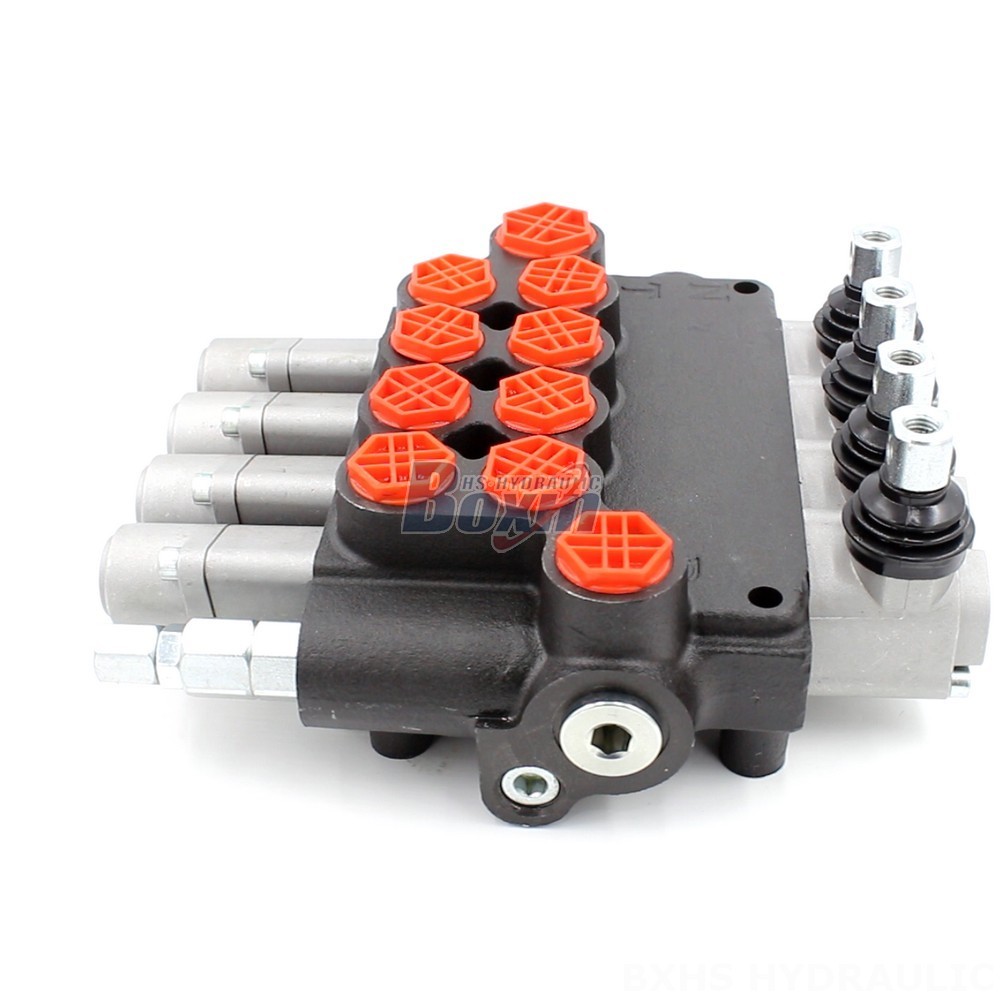

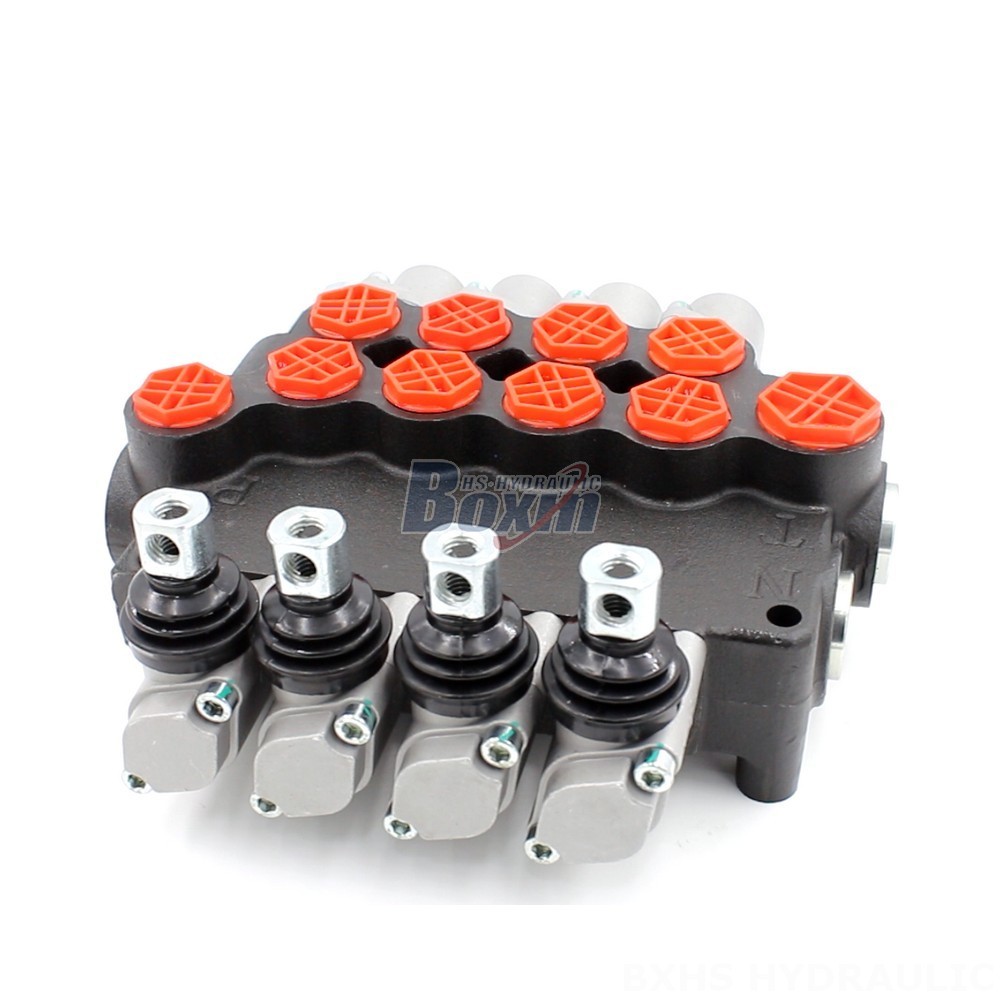

The Reliable and Efficient P80-G12-G34-OT Valve is a trusted hydraulic valve designed for various industries. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it ensures efficient operation. Its compact monoblock design and 4-section, 4-spool configuration provide versatility and adaptability.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**P80-G12-G34-OT Valve: A Reliable and Efficient Hydraulic Solution**
The P80-G12-G34-OT Valve is a high-performance hydraulic valve engineered to meet the demanding requirements of industries worldwide. Its key features include:
* **Monoblock Valve Design:** Compact and robust construction for durability and space optimization.
* **4 Section, 4 Spool Configuration:** Versatile valve body with multiple control options for complex hydraulic systems.
* **Rated Flow of 80 L/min:** Ensures efficient flow rates for demanding applications.
* **Maximum Pressure of 250 bar:** Handles high-pressure hydraulic systems with ease.
* **Manual Control:** Precise and reliable manual operation for precise control.
* **Wide Operating Viscosity Range (15 - 75 mm²/s):** Suitable for various hydraulic fluids and operating conditions.
* **Broad Temperature Range (-40°C to +80°C):** Performs effectively in extreme temperatures.
**Applications:**
The P80-G12-G34-OT Valve finds applications in diverse industries, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
This valve is compatible with a wide range of equipment, such as:
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
* Backhoe Loaders
**Trustworthy and Efficient:**
The P80-G12-G34-OT Valve is a reliable and efficient hydraulic component that meets the highest industry standards. Its exceptional performance, durability, and adaptability make it an ideal choice for demanding hydraulic applications.
