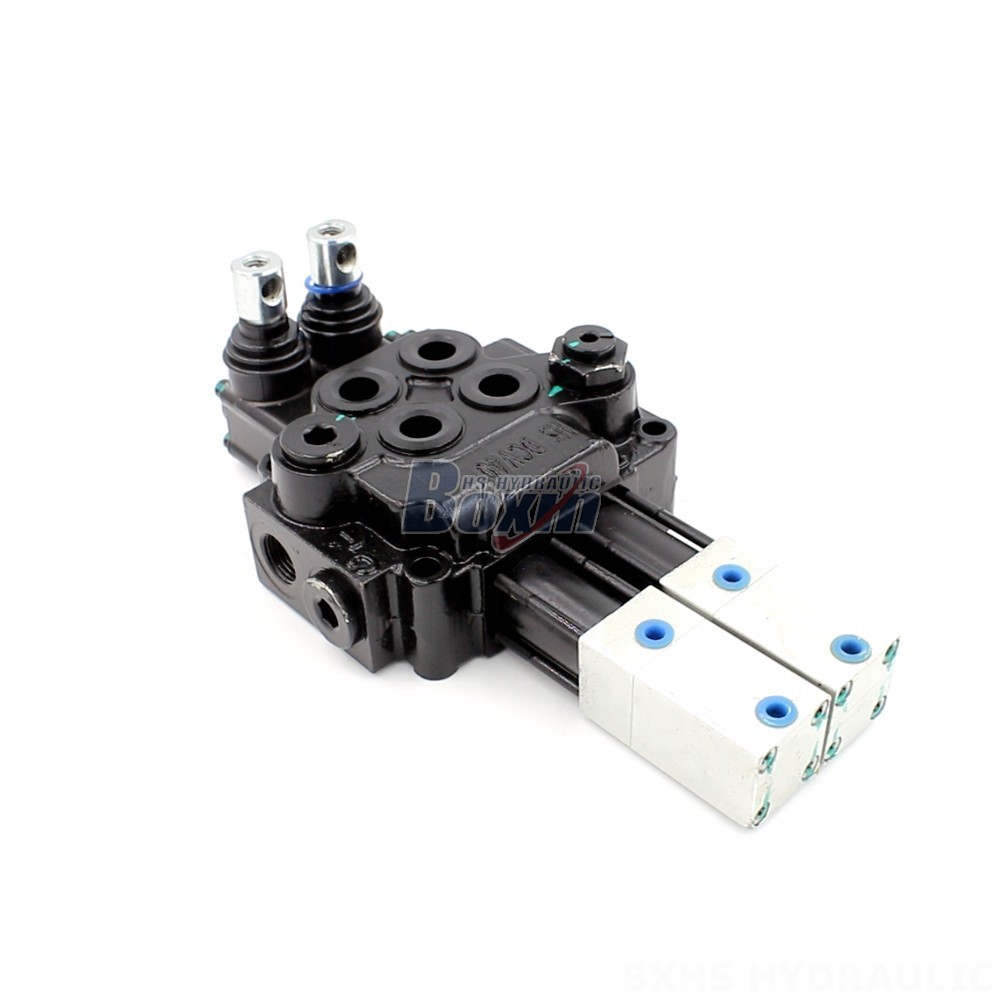

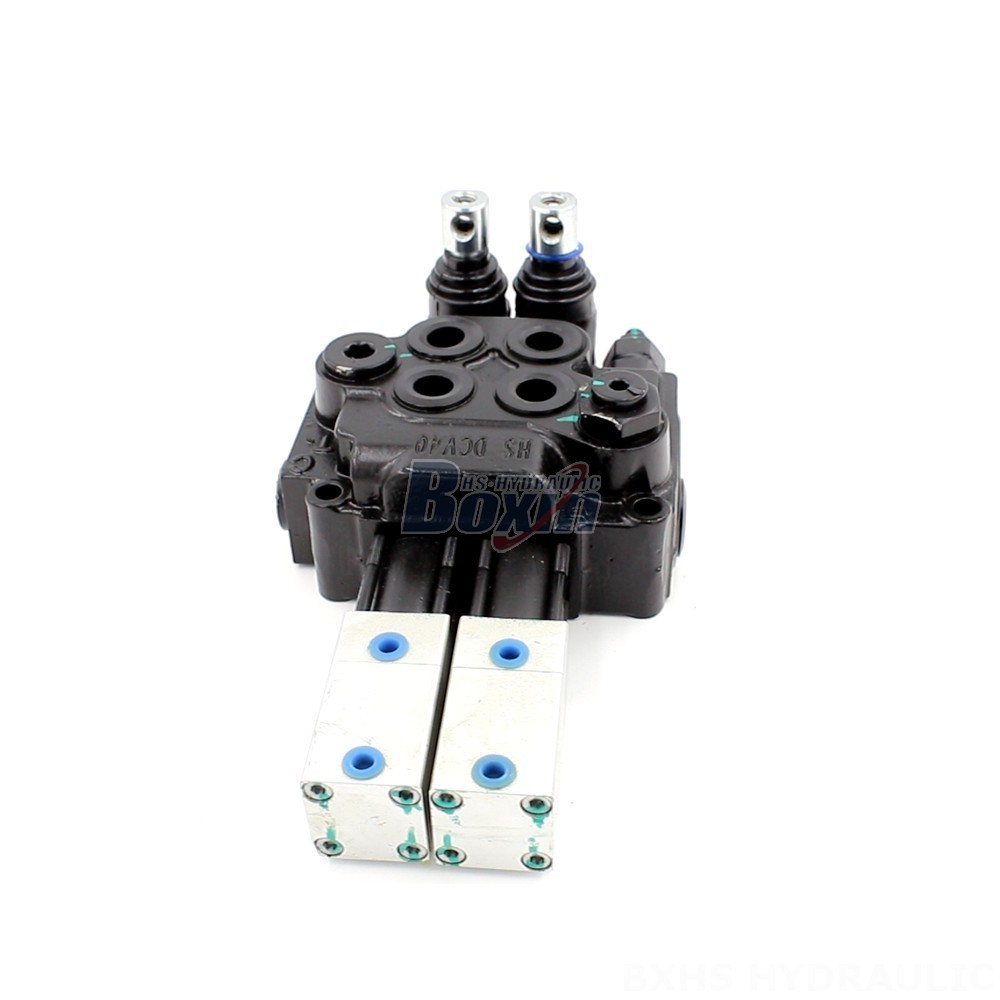

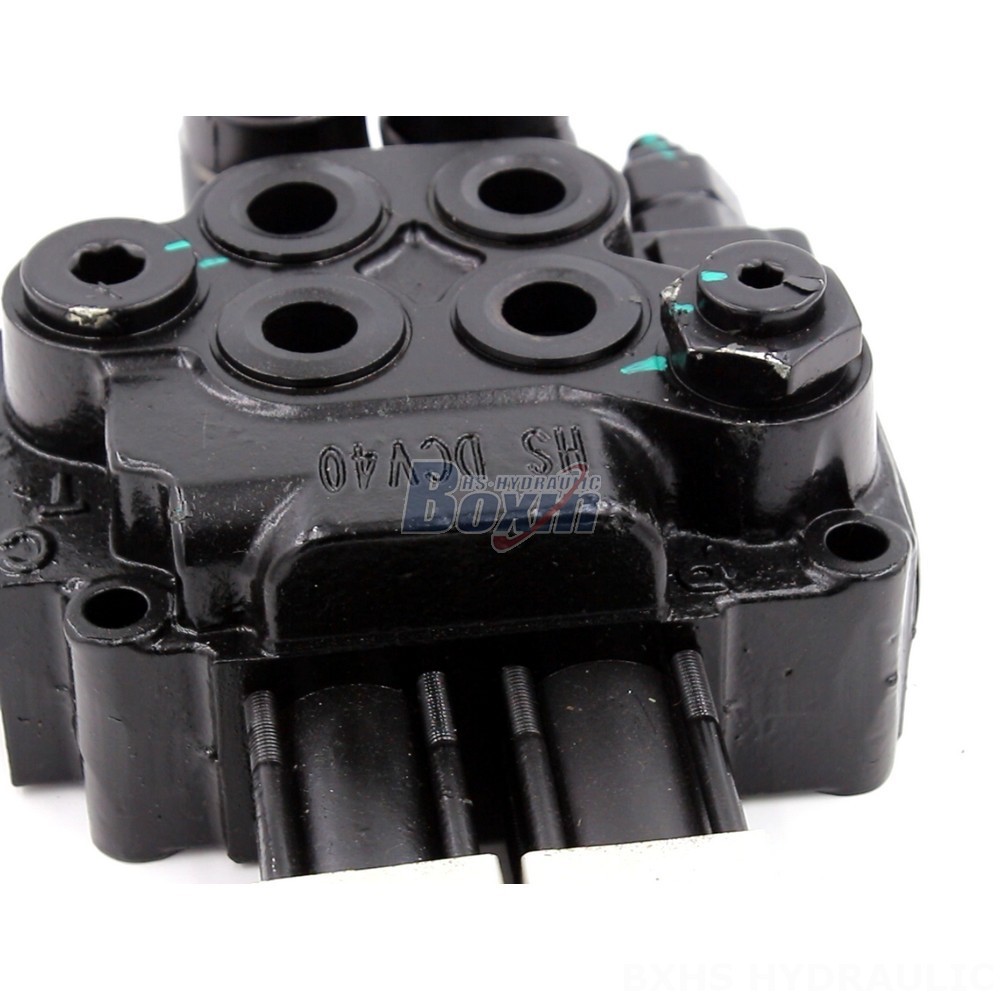

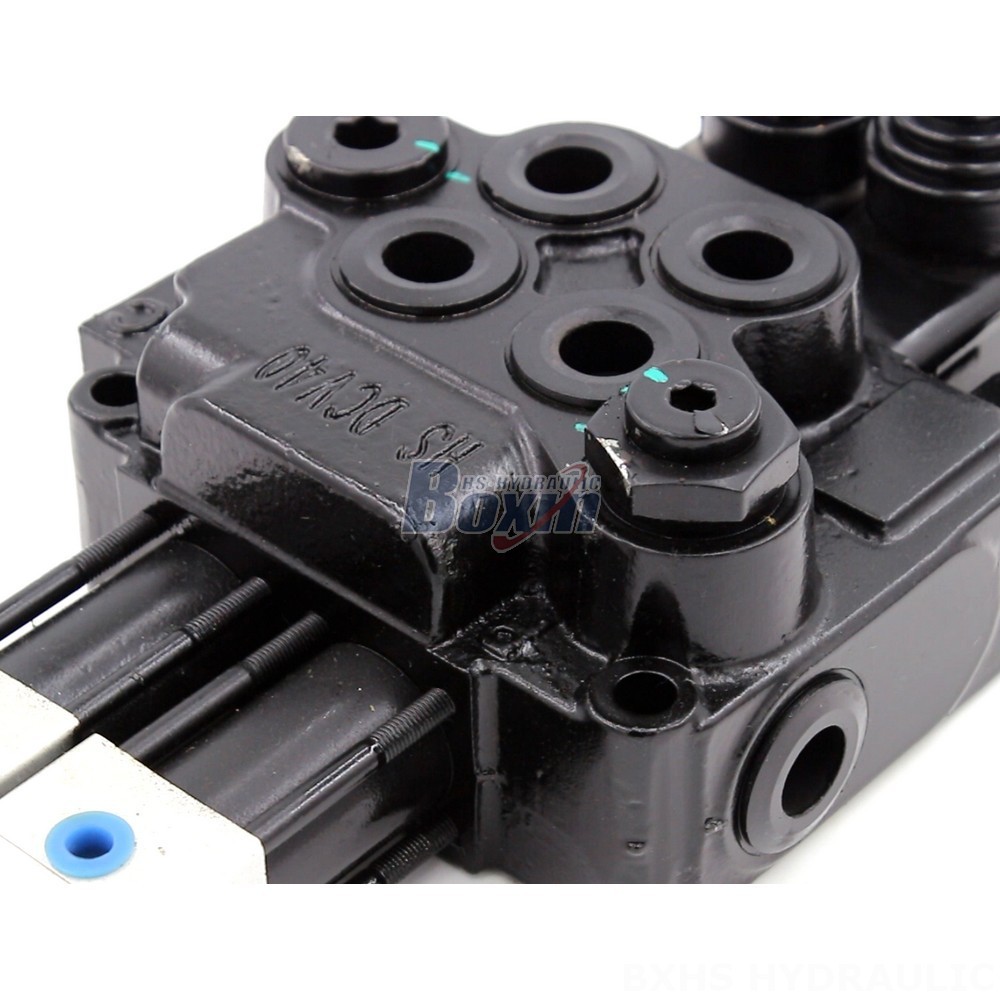

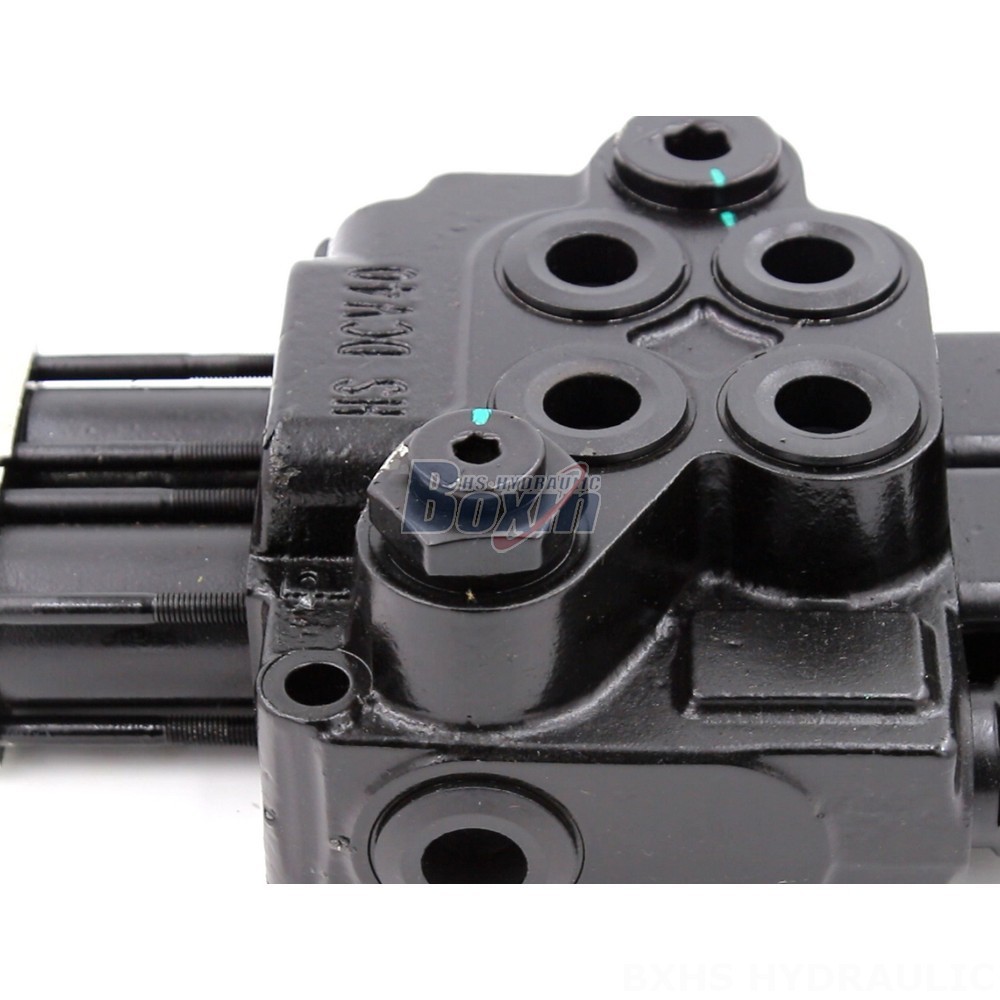

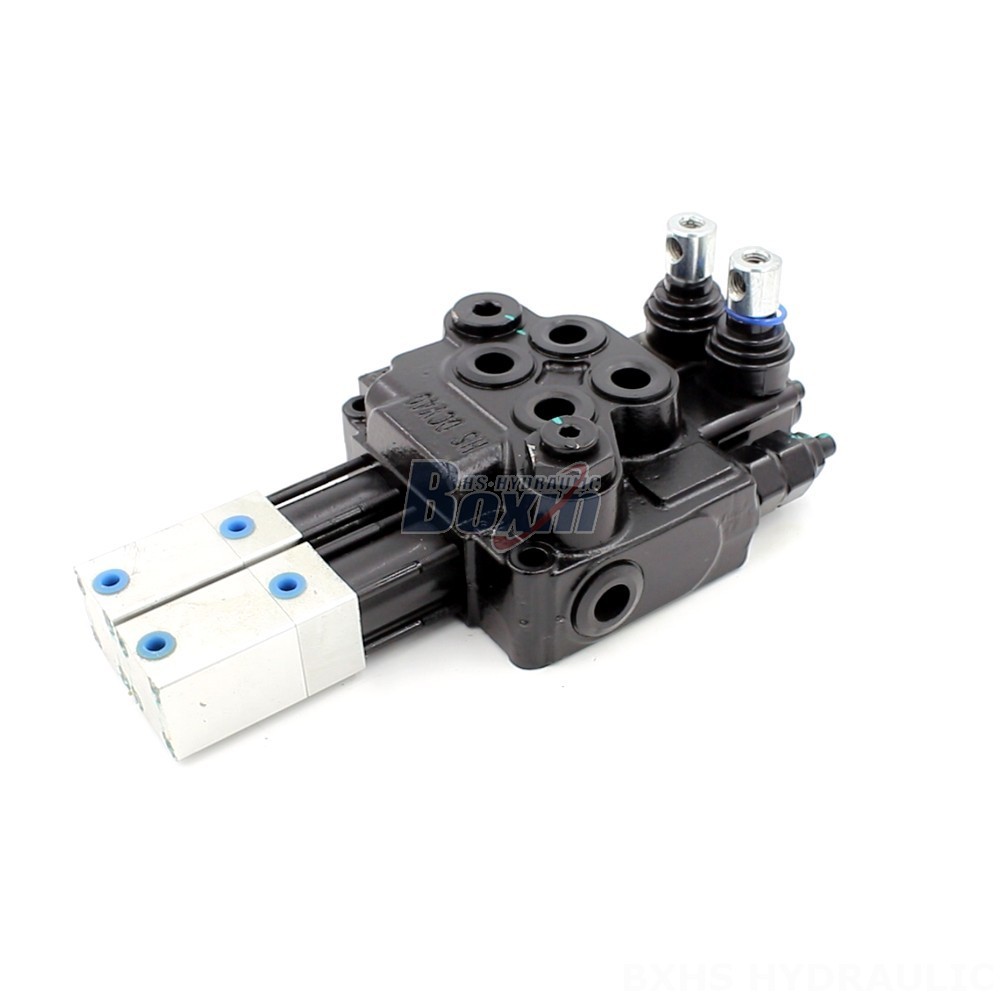

The DCV40 Directional Valve from Pneumatic Control Solutions is a high-performance valve designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. With its compact design, high flow capacity, and robust construction, the DCV40 offers exceptional control and reliability.
| Serie DCV40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, 在这里输入键名的翻译, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 350 bar (5100 psi) |
| Puerto de Entrada | G3/8, G1/2, SAE 8, SAE 14, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G1/2, M18×1.5, M22×1.5, SAE 8, SAE 14, 1/2 NPT |
| Tamaño de Puerto | G1/2, M18×1.5, M22×1.5, SAE 8, SAE 14, 3/8 NPT, 1/2 NPT |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Tipo de estructura | Válvulas monobloc |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
The DCV40 Directional Valve features a monoblock design for increased durability and reduced leakage. Its two sections provide independent control of fluid flow, while the two spools ensure precise and responsive operation. The valve's rated flow capacity of 40 L/min (10.5 US gpm) and maximum pressure of 350 bar (5100 psi) make it suitable for a wide range of applications. Additionally, the DCV40 has an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F), ensuring reliable operation in various environmental conditions.
