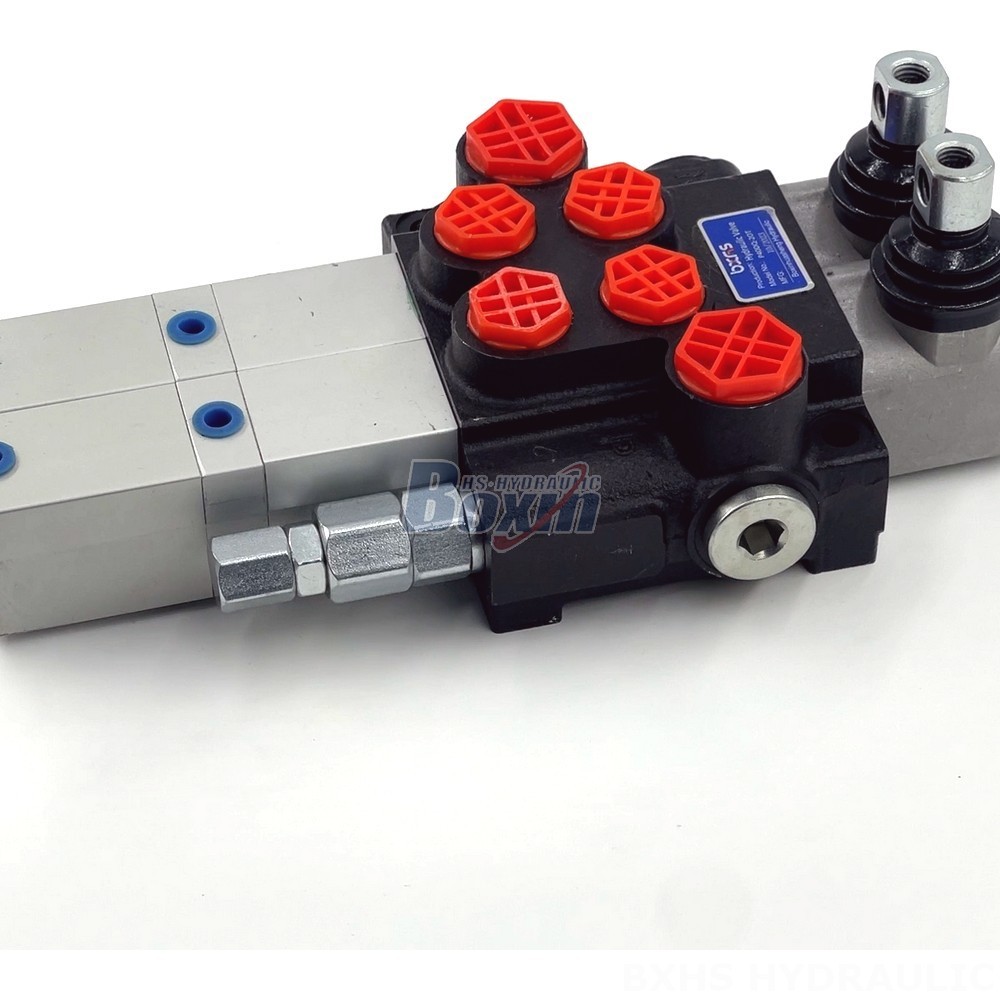

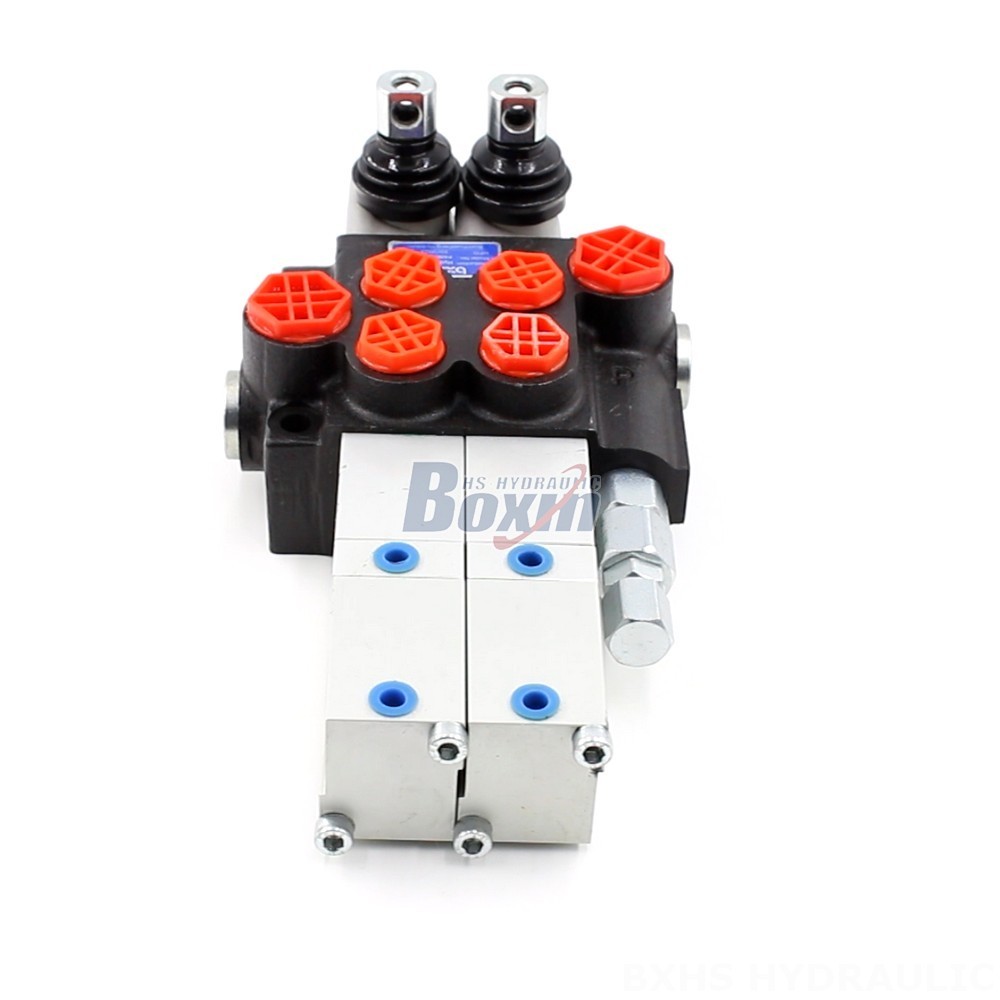

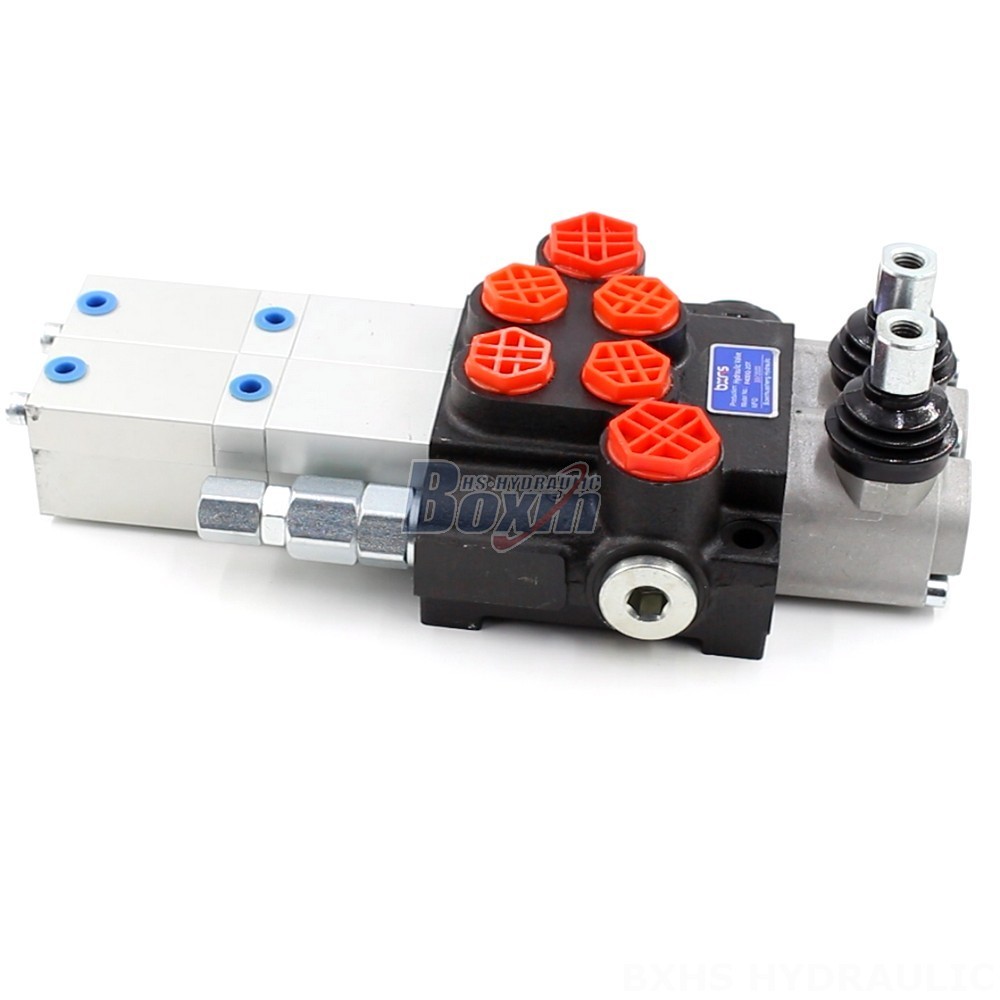

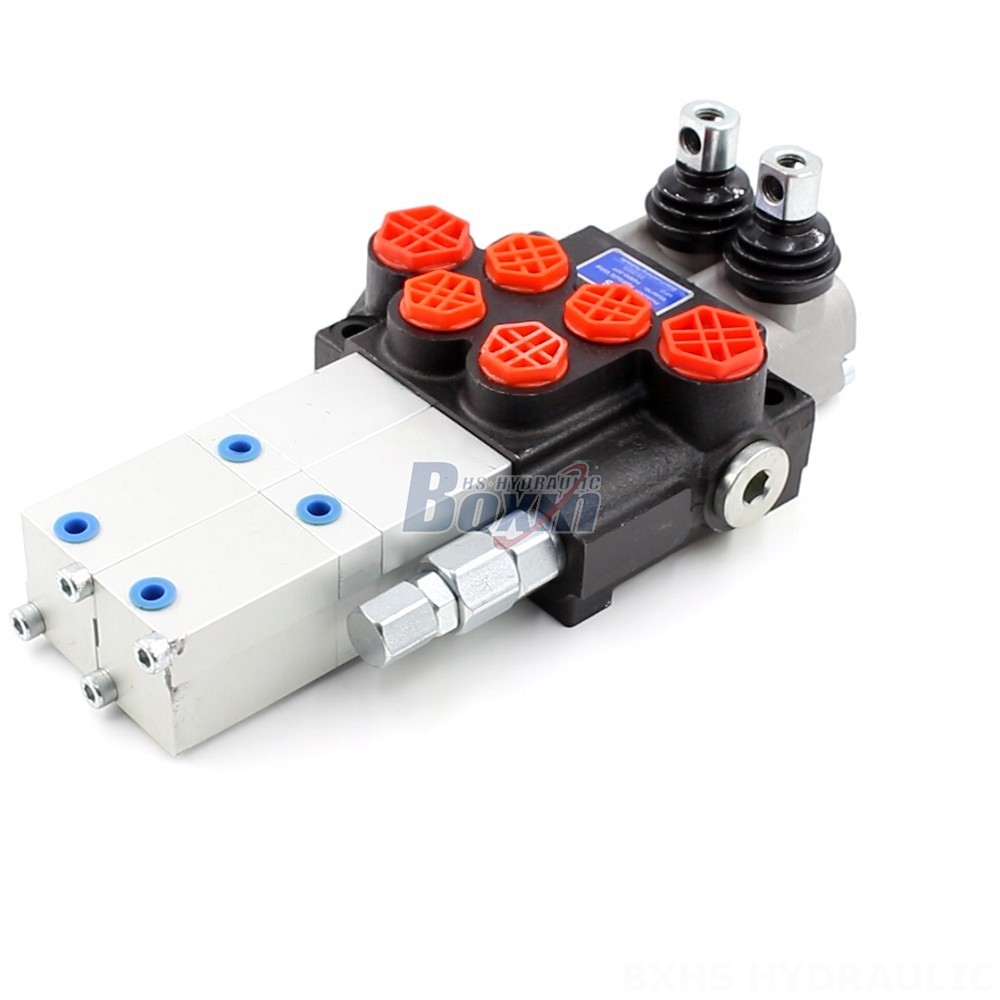

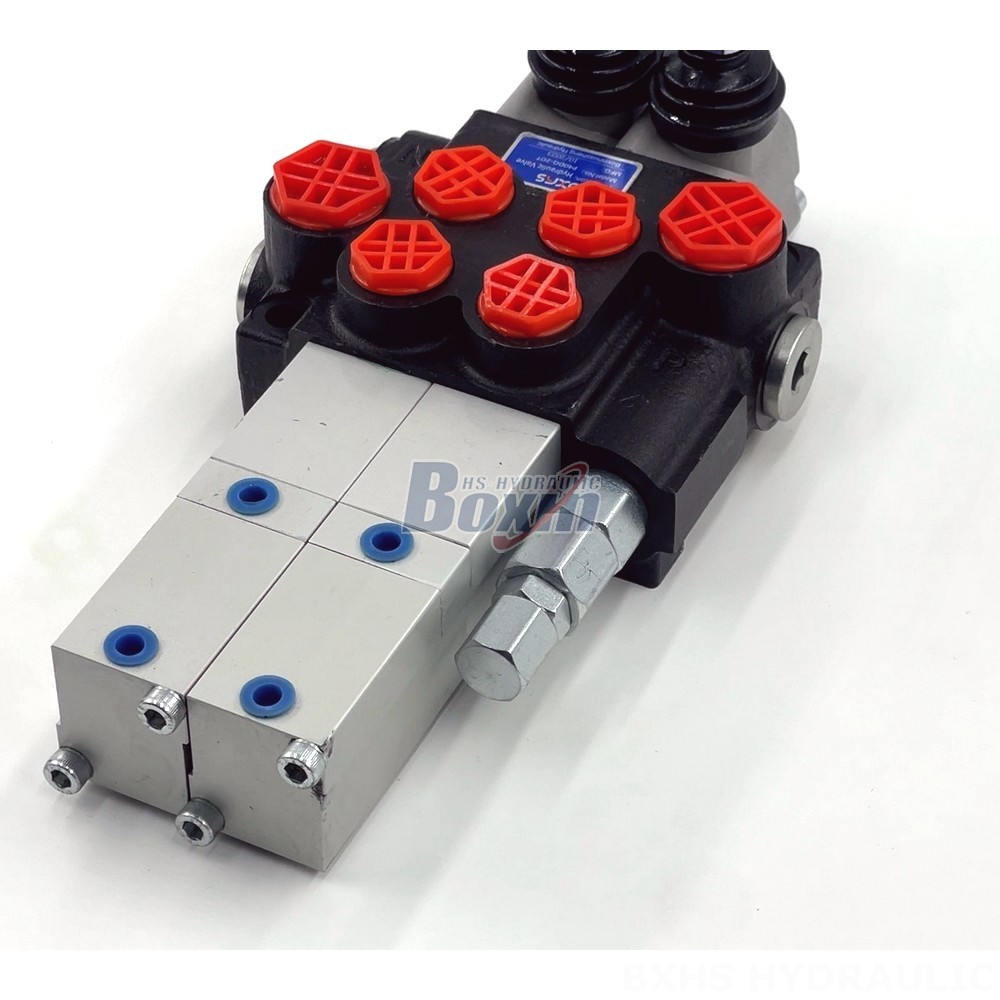

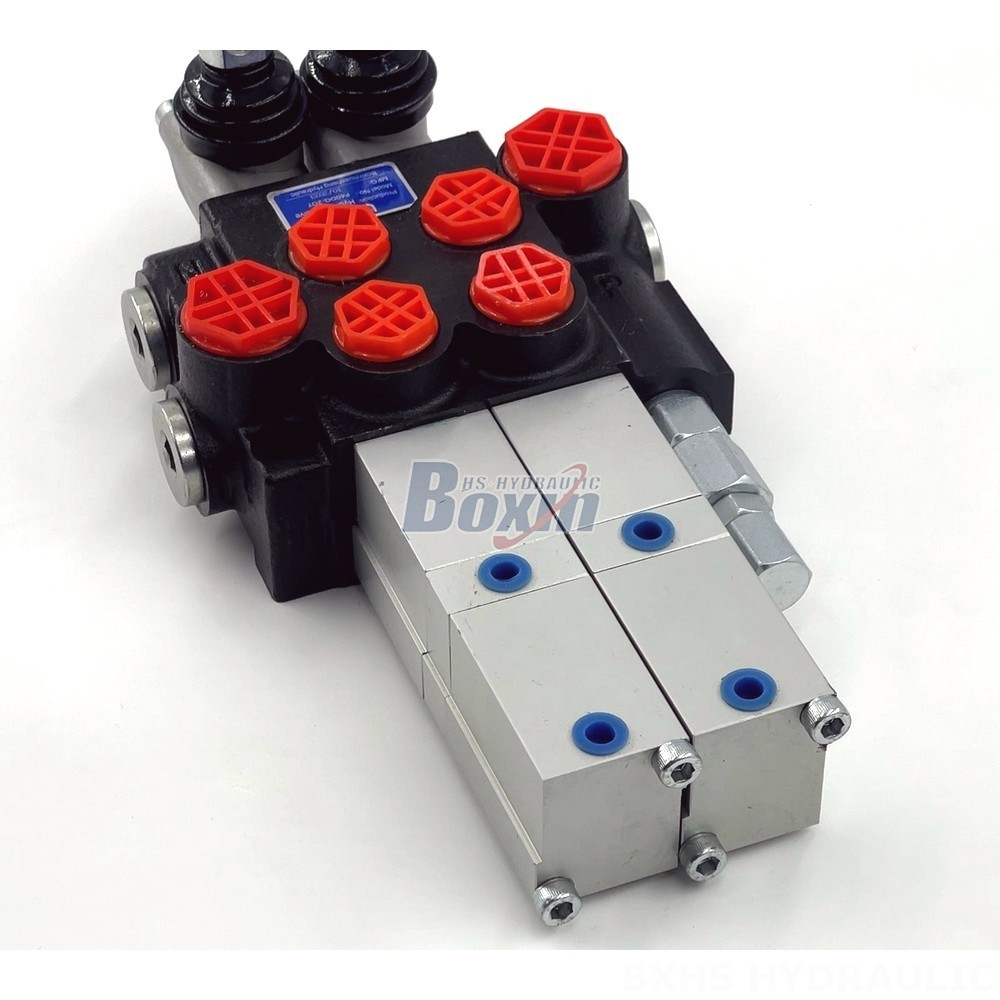

The P40 Series Proportional Directional Control Valve is a high-performance, 2 spool valve designed for use in a variety of material handling, construction and industrial applications. It features pneumatic control, a monoblock valve structure, and a rated flow of 40 L/min (10.5 US gpm).
| Serie P40 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Solenoide y joystick, Manual y joystick, Solenoide y cable |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 40 l/min (10,5 gal EE. UU./min) |
| Presión Máxima | 250 bar (3600 psi) |
| Puerto de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Puerto de Salida | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamaño de Puerto | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series Proportional Directional Control Valve is a 2 spool, monoblock valve designed for precise and reliable control of hydraulic circuits in a variety of applications. It features pneumatic control, allowing for smooth and responsive actuation. The valve has a rated flow of 40 L/min (10.5 US gpm) and a maximum operating pressure of 250 bar (3600 psi). It is designed to operate in a wide range of temperatures, from -40°C to +80°C (-40°F to +176°F). This robust valve is ideally suited for use in material handling, construction, and industrial vehicles, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.
