Producción y entrega
Plazo de ejecución de producción de 15 a 30 días

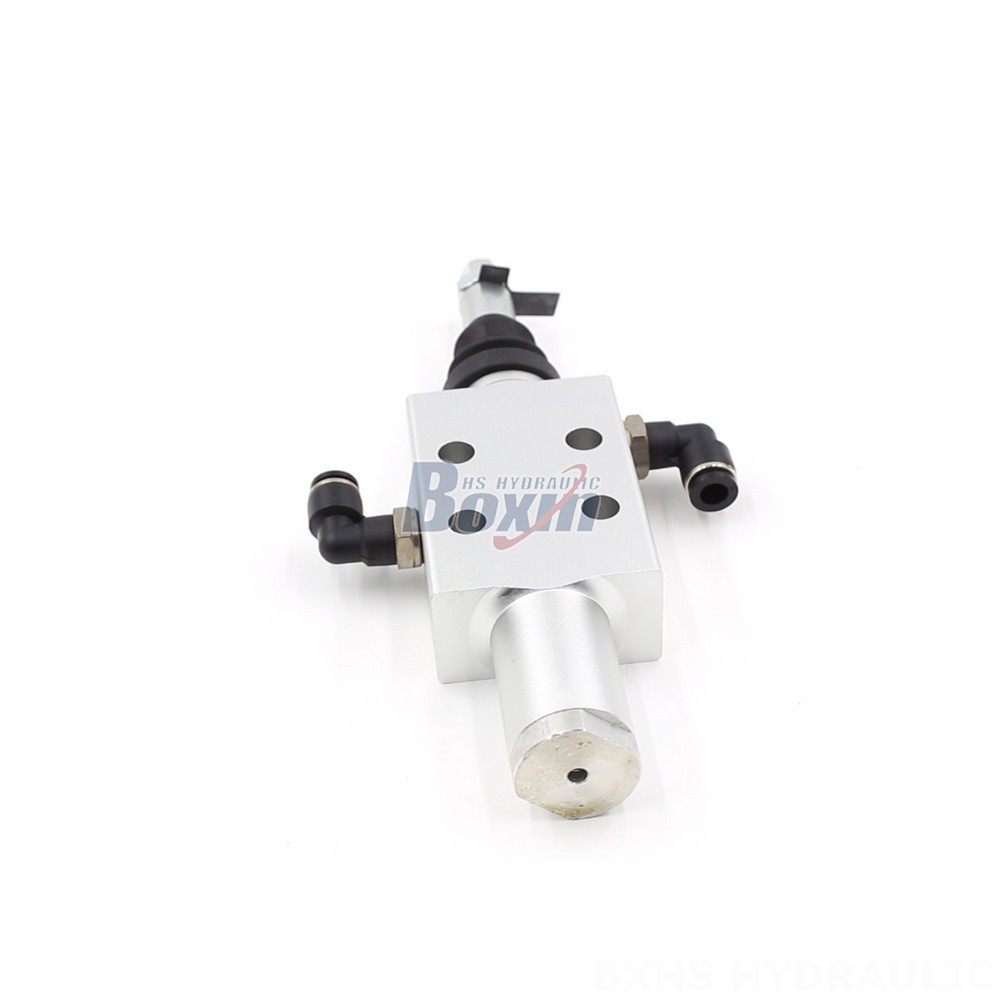

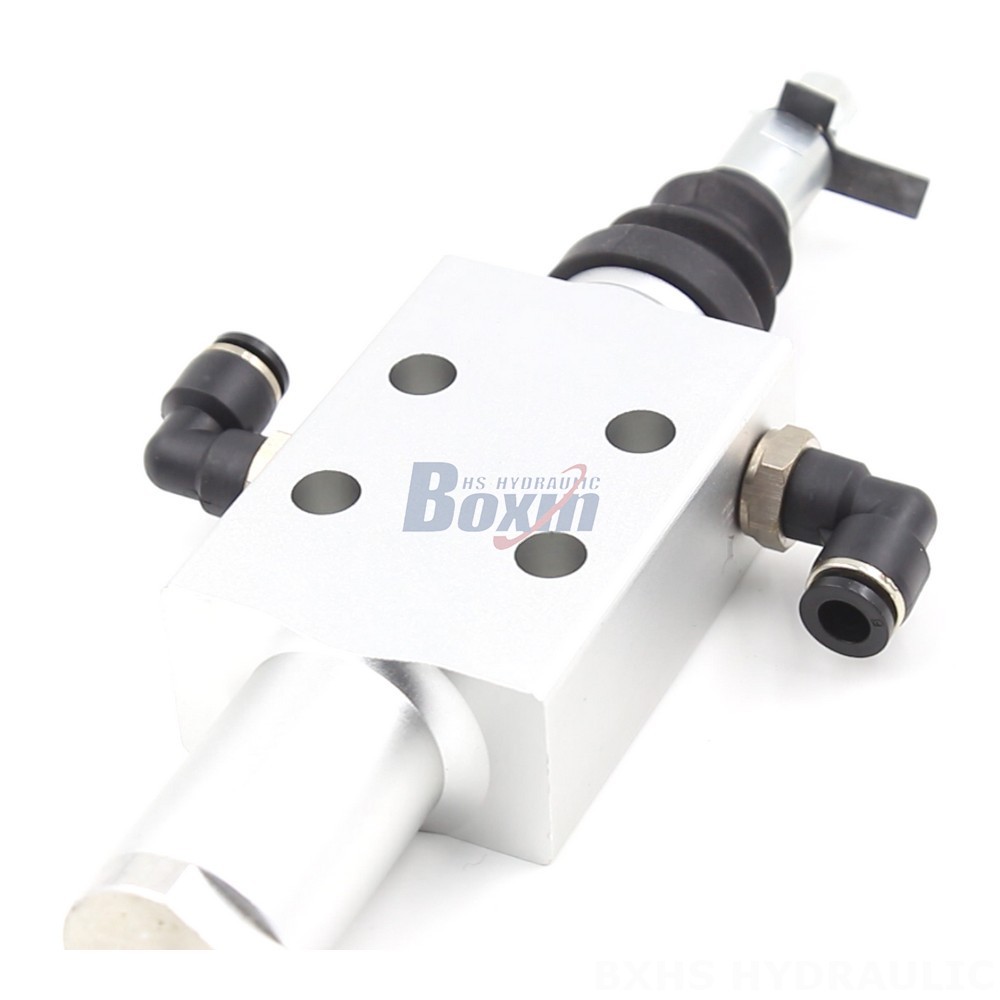

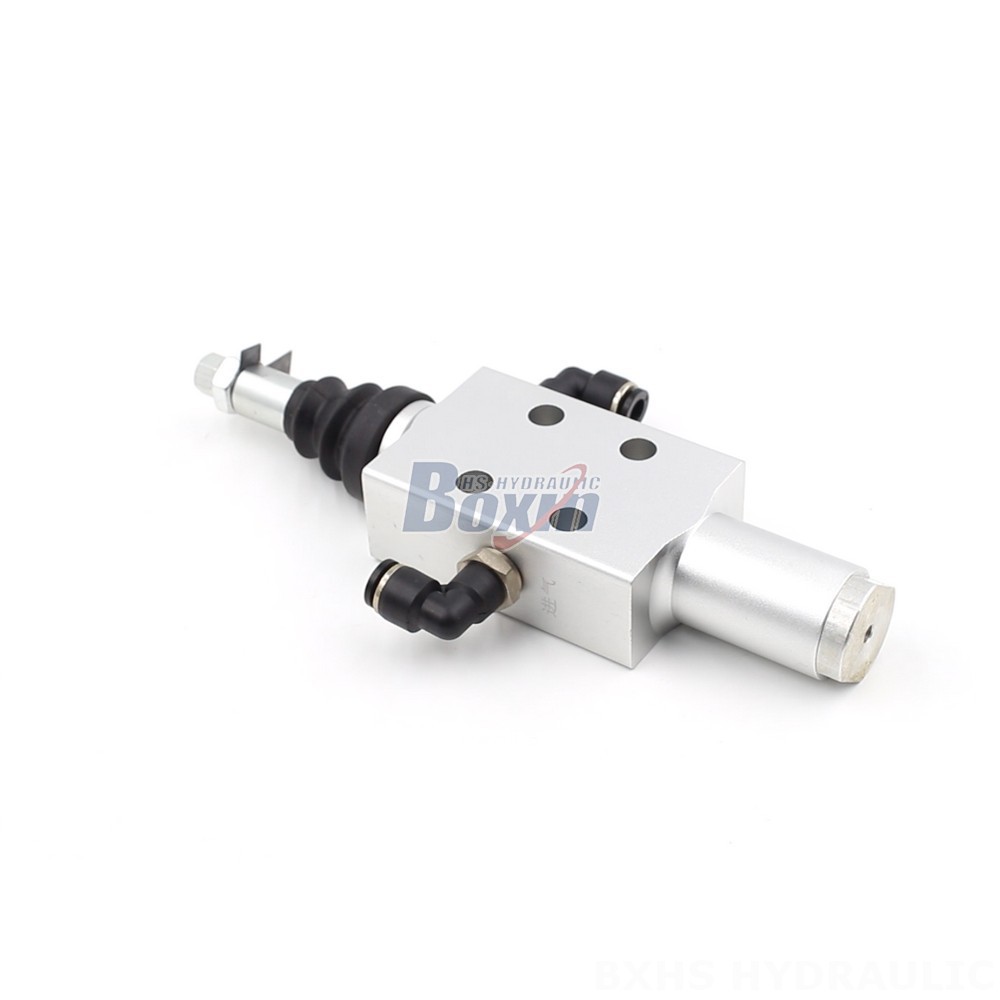

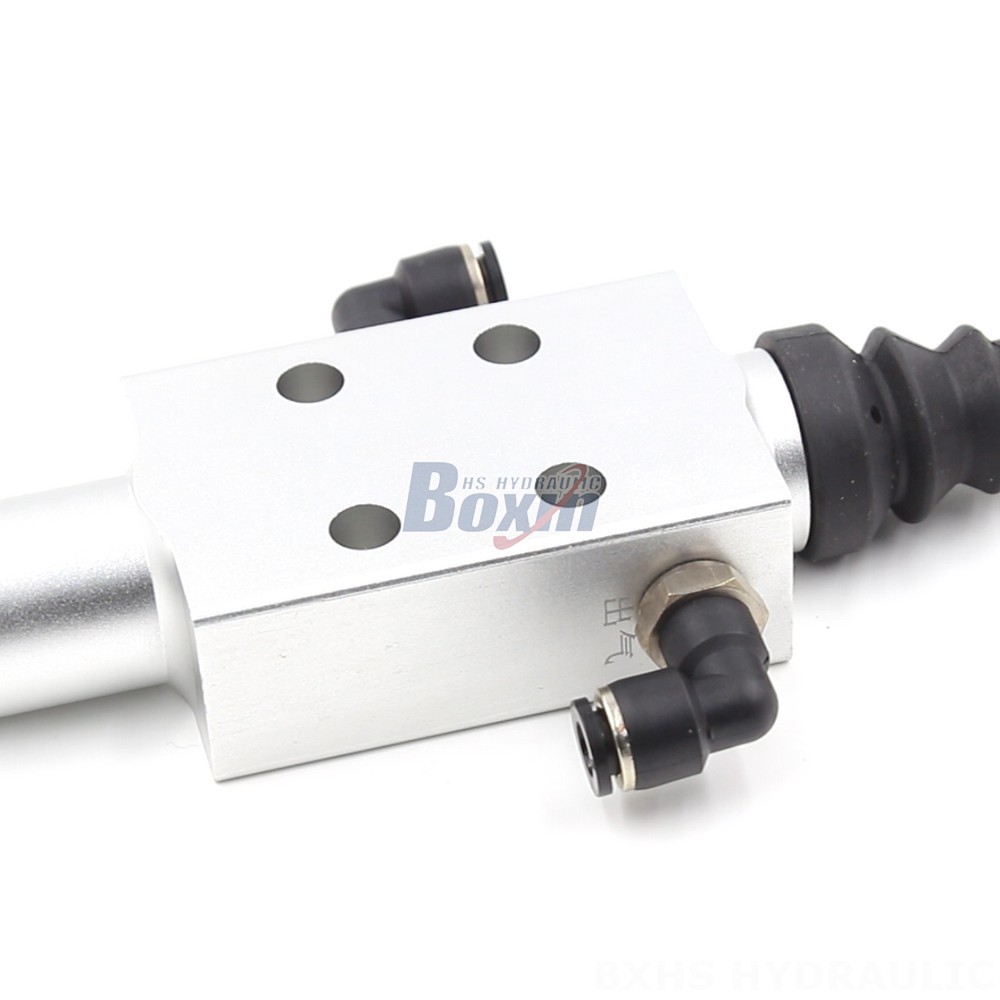

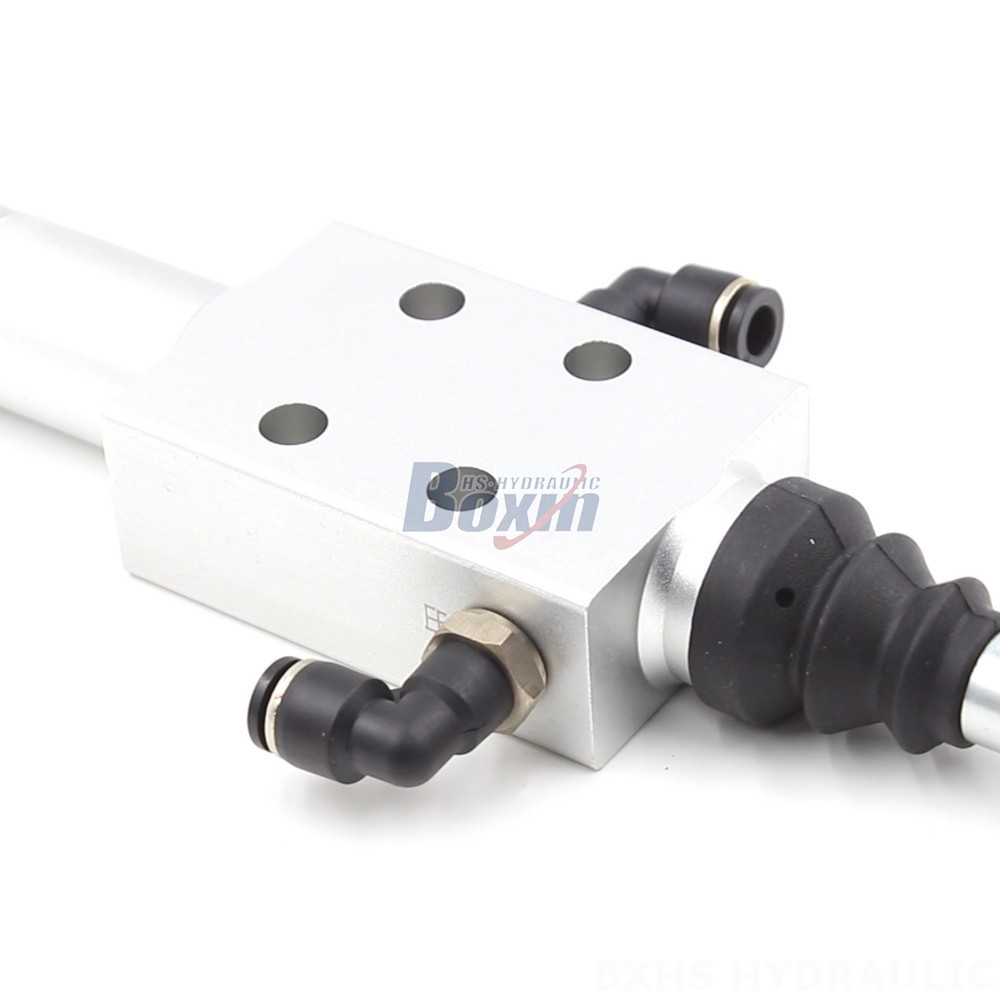

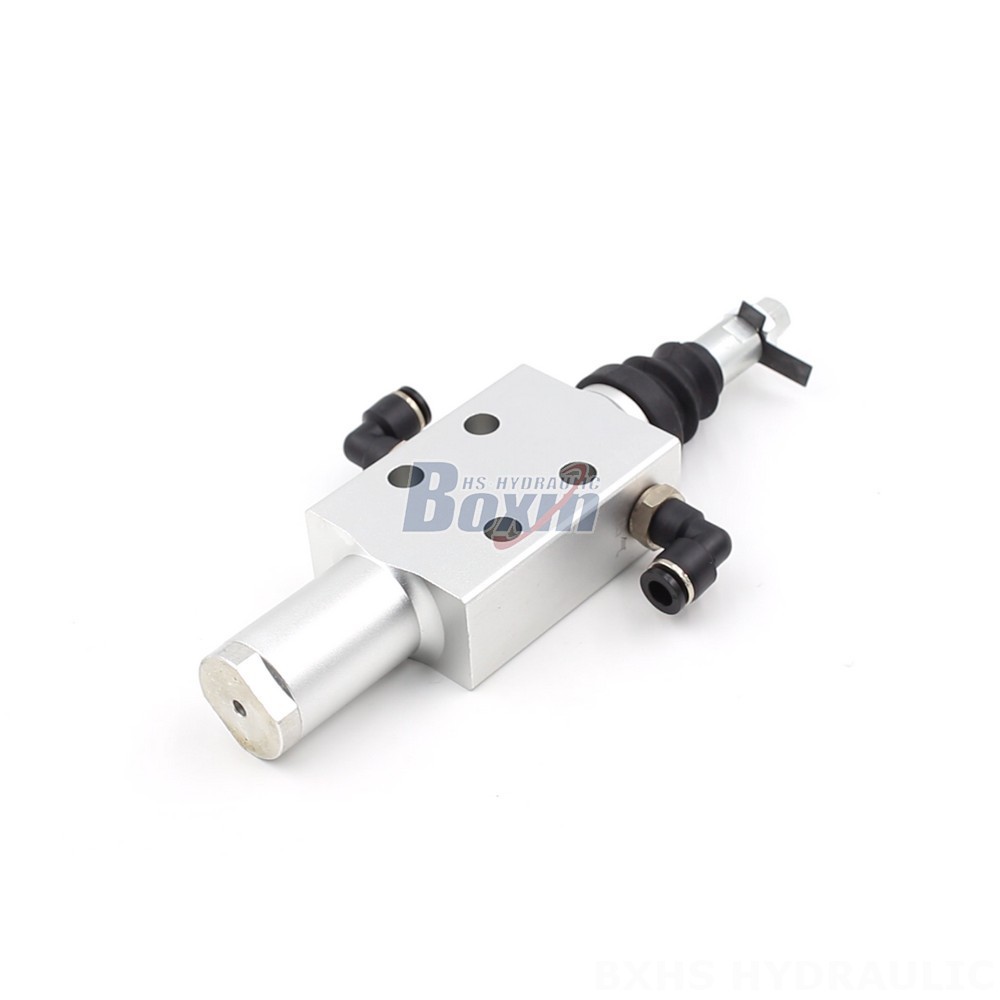

Our XQF Series Directional Spool Valve Pneumatic 1 Spool Monoblock Directional Valve is a high-performance, reliable hydraulic valve designed for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. Available in factory direct supply, this valve is perfect for manufacturers, OEMs, and distributors seeking a cost-effective and efficient solution.
| Serie XQF Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Neumático |
| Carrete | 1 carrete |
| Rango de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección |
| Rango de viscosidad de funcionamiento | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Flujo Nominal | 50 l/min (13,2 gal EE. UU./min) |
| Presión Máxima | 200 bar (2900 psi) |
| Puerto de Entrada | G1/4 |
| Puerto de Salida | G1/4 |
| Tamaño de Puerto | G1/4 |
This XQF Series Directional Spool Valve Pneumatic 1 Spool Monoblock Directional Valve is a high-quality, factory direct supply product manufactured to the highest standards. Designed for maximum performance and reliability, it features a compact monoblock structure, a single spool, and a maximum pressure rating of 200 bar (2900 psi). This valve is suitable for a wide range of applications, including material handling equipment, construction machinery, agricultural equipment, and industrial vehicles. It offers superior performance, excellent durability, and exceptional cost-effectiveness. We offer manufacturing, OEM, private labeling, customization, and wholesale services. Contact us today to learn more about our products and services and to find a distributor, wholesaler, agent, or trader for your specific needs.
