P81 Manual 1 Spool Log Splitter Valve | Manufacturer & Global Supplier

Método de control:Manual

Carrete:1 carrete

Flujo Nominal:80 l/min (21,2 gal EE. UU./min)

Presión Máxima:Presión máxima

Puerto de Entrada:G1/2

Puerto de Salida:G3/4

Tamaño de Puerto:G3/4

Marca:BXHS

Tipo de producto:Válvula para divisor de troncos

Serie de productos:Serie P81 Válvula para divisor de troncos

Tamaño del embalaje:27*16*12

Peso bruto:4.80 kg

Disponibilidad: En stock

1869 personas están viendo este producto

P81 Manual 1 Spool Log Splitter Valve | Manufacturer & Global Supplier

P81 Manual 1 Spool Log Splitter Valve | Manufacturer & Global Supplier

P81 Manual 1 Spool Log Splitter Valve | Manufacturer & Global Supplier drawing image

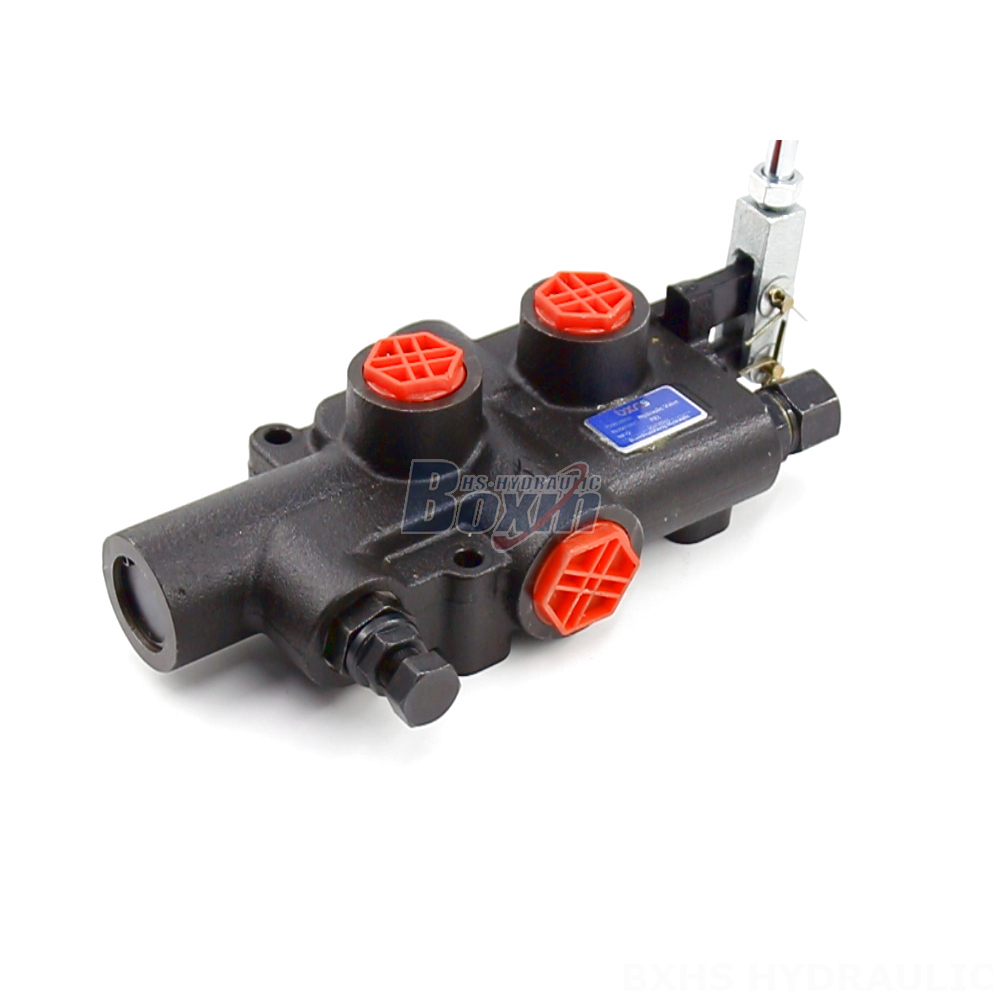

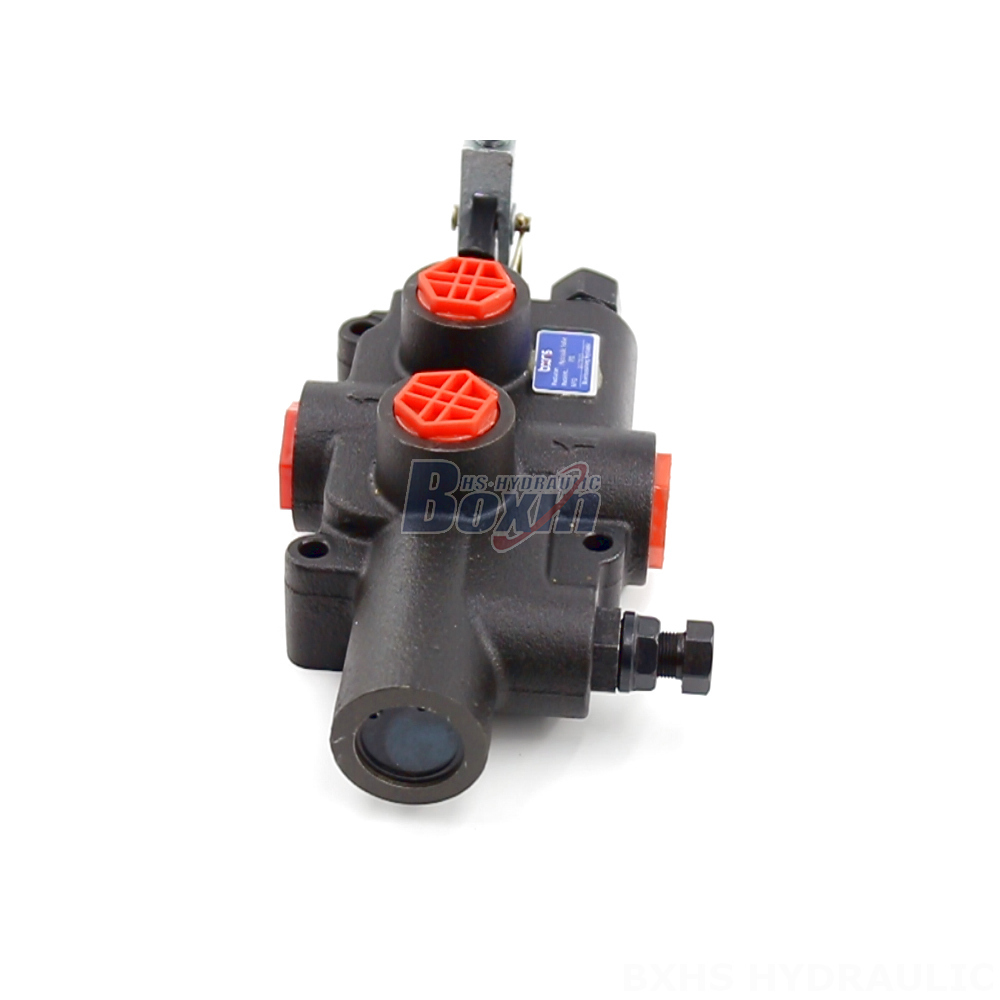

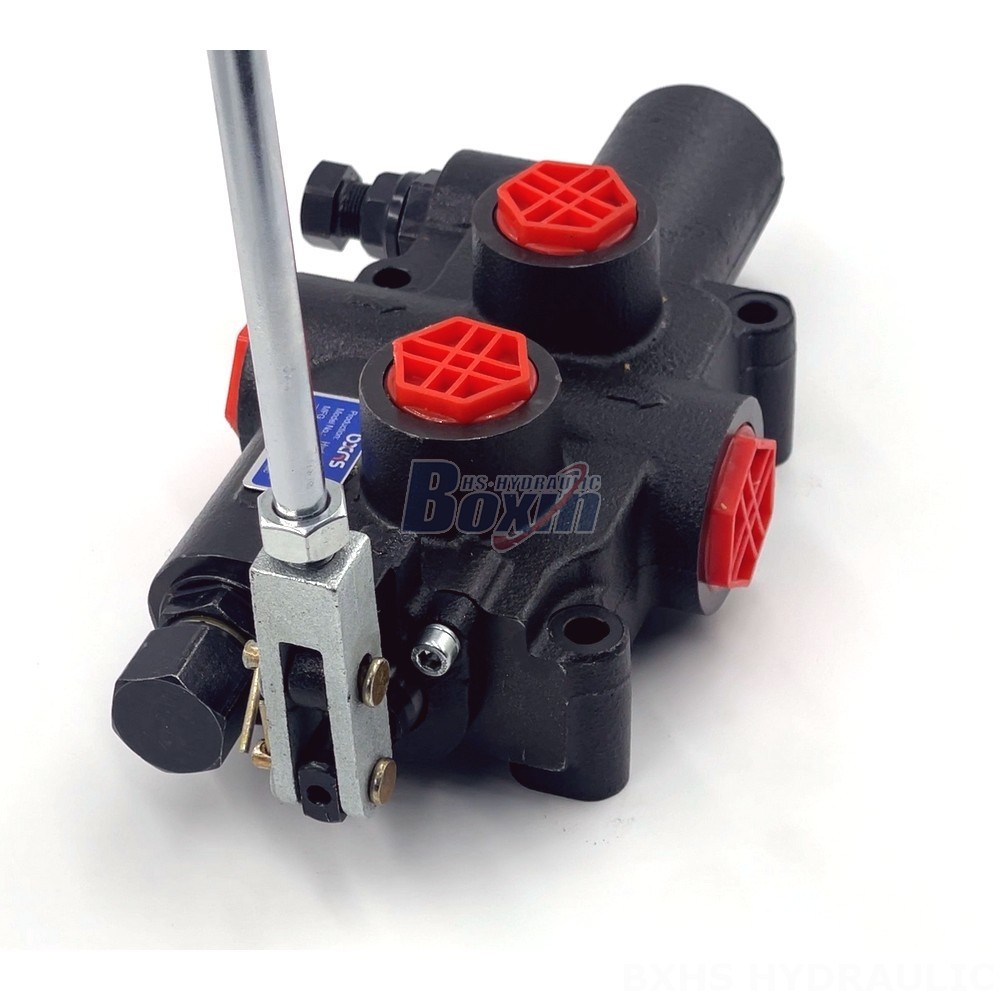

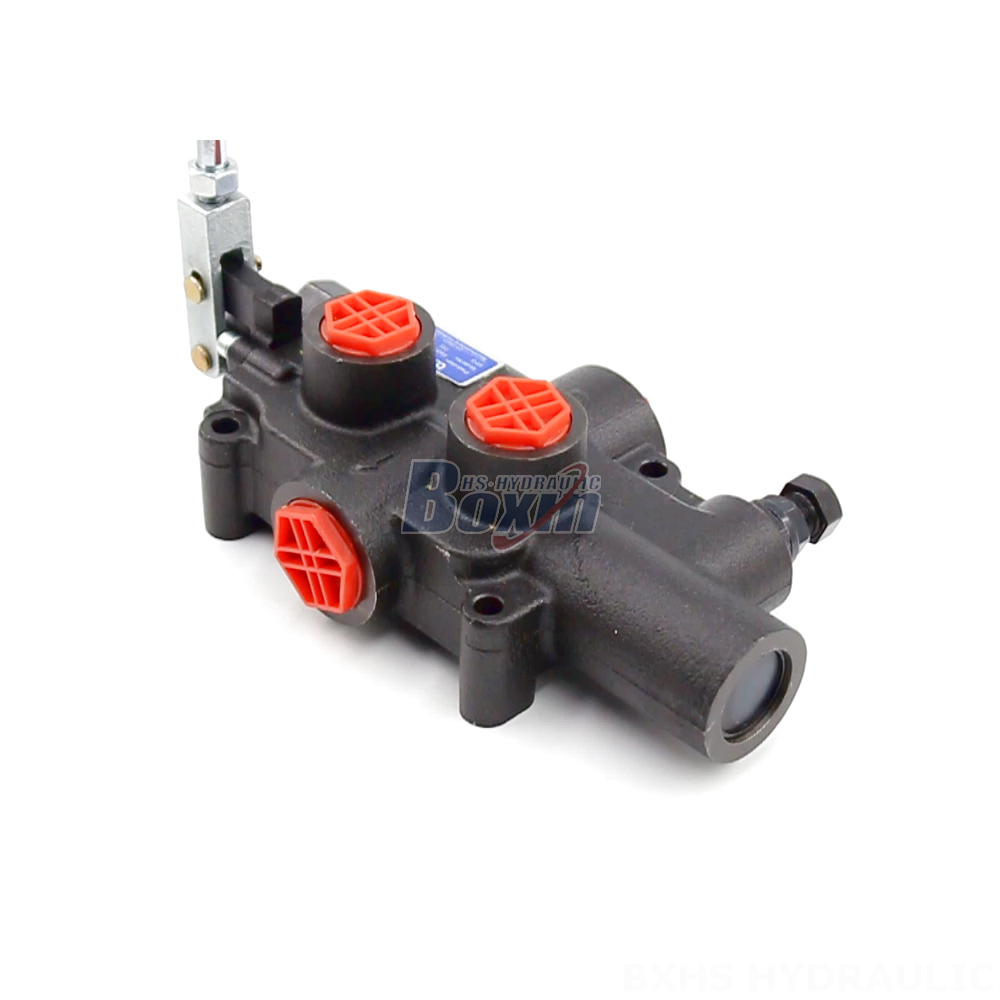

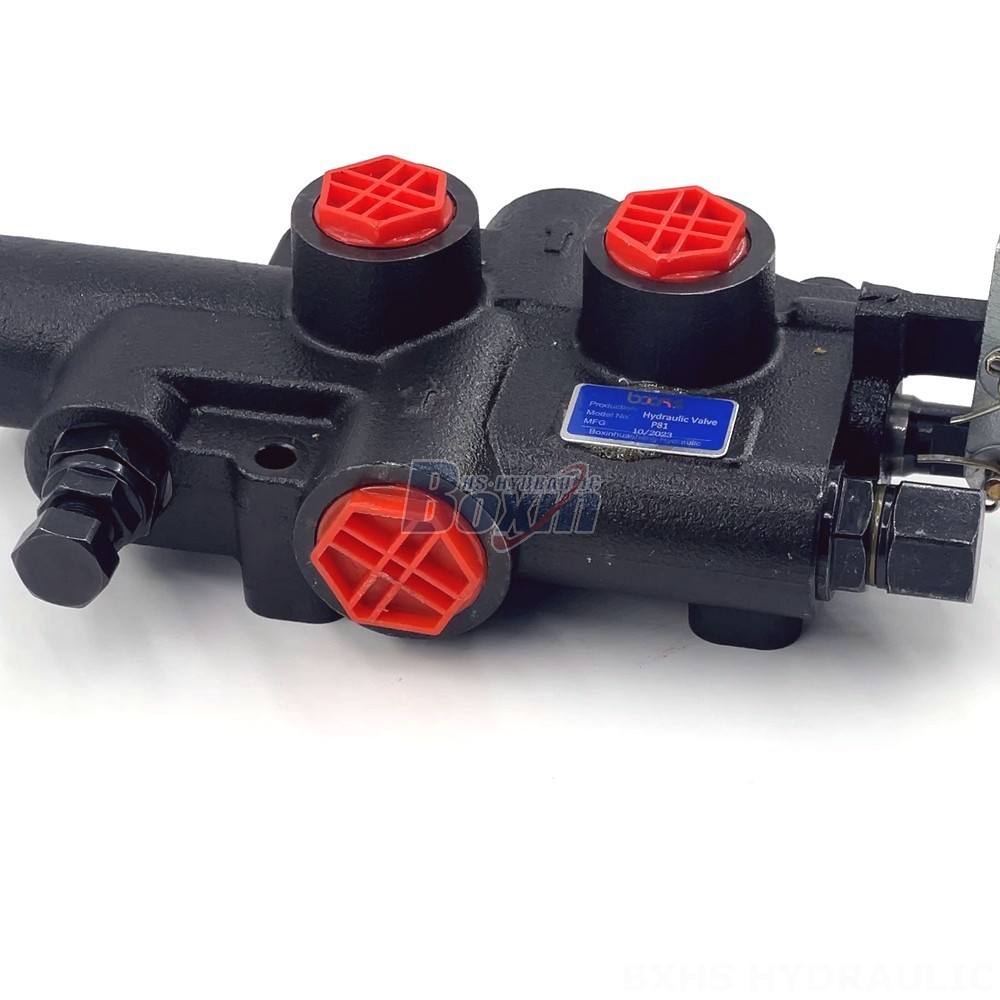

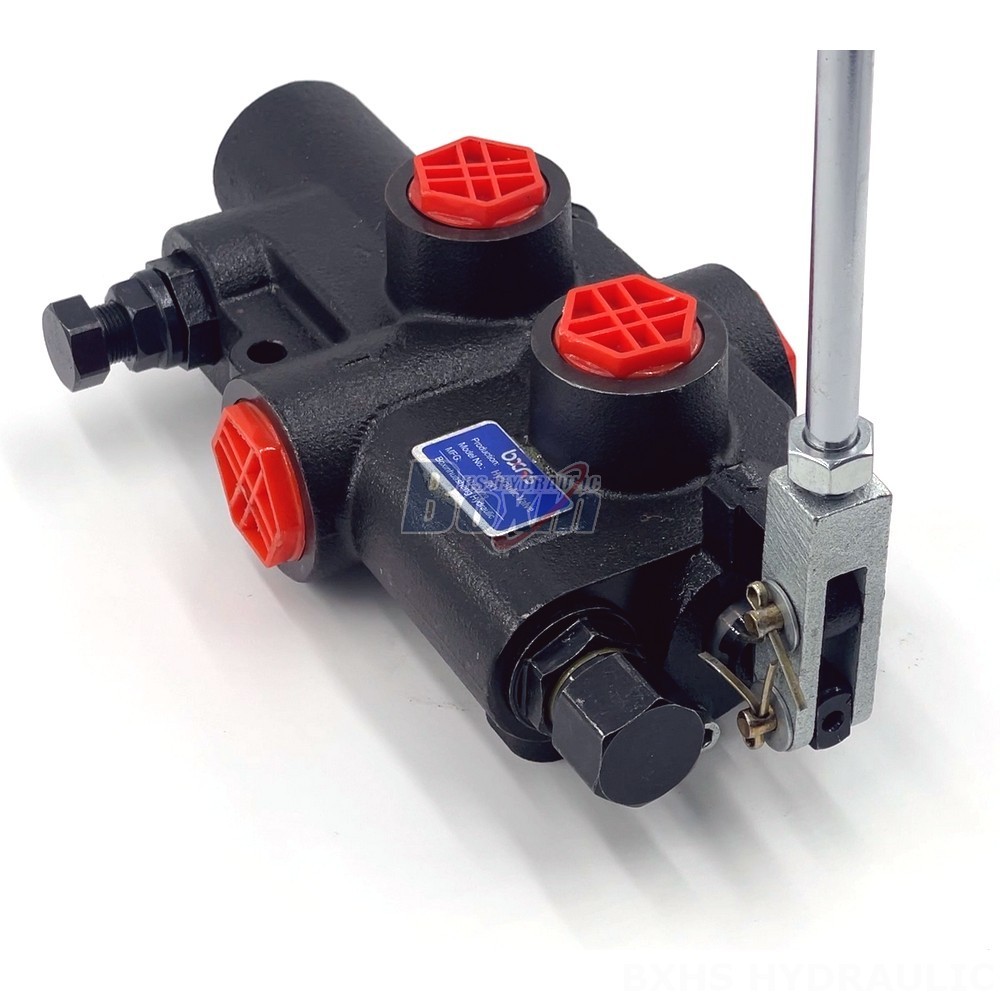

This P81 Series Hydraulic 2 Way Valve is a manual, 1-spool, monoblock valve designed for log splitter applications. It features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve is suitable for industrial vehicles and offers a kick-out setting pressure range of 70~140bar (1015-2030psi).

Serie P81 Válvula para divisor de troncos Parámetros
Método de control Manual
Carrete 1 carrete
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 80 l/min (21,2 gal EE. UU./min), 95 l/min (25,1 gal EE. UU./min)
Presión Máxima Presión máxima
Puerto de Entrada G1/2
Puerto de Salida G1/2
Tamaño de Puerto G3/4

The Hydraulic 2 Way Valve P81 Manual 1 Spool Log Splitter Valve is a high-performance valve designed for use in log splitting equipment. It is a manual, 1-spool, monoblock valve that offers a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve features a kick-out setting pressure range of 70~140bar (1015-2030psi), providing reliable and efficient control of hydraulic fluid flow. Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and it can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This robust valve is ideal for industrial vehicle applications where durability and performance are critical. The P81 Series valve is designed specifically for wood splitting equipment, offering optimal performance and reliability for this demanding task.
