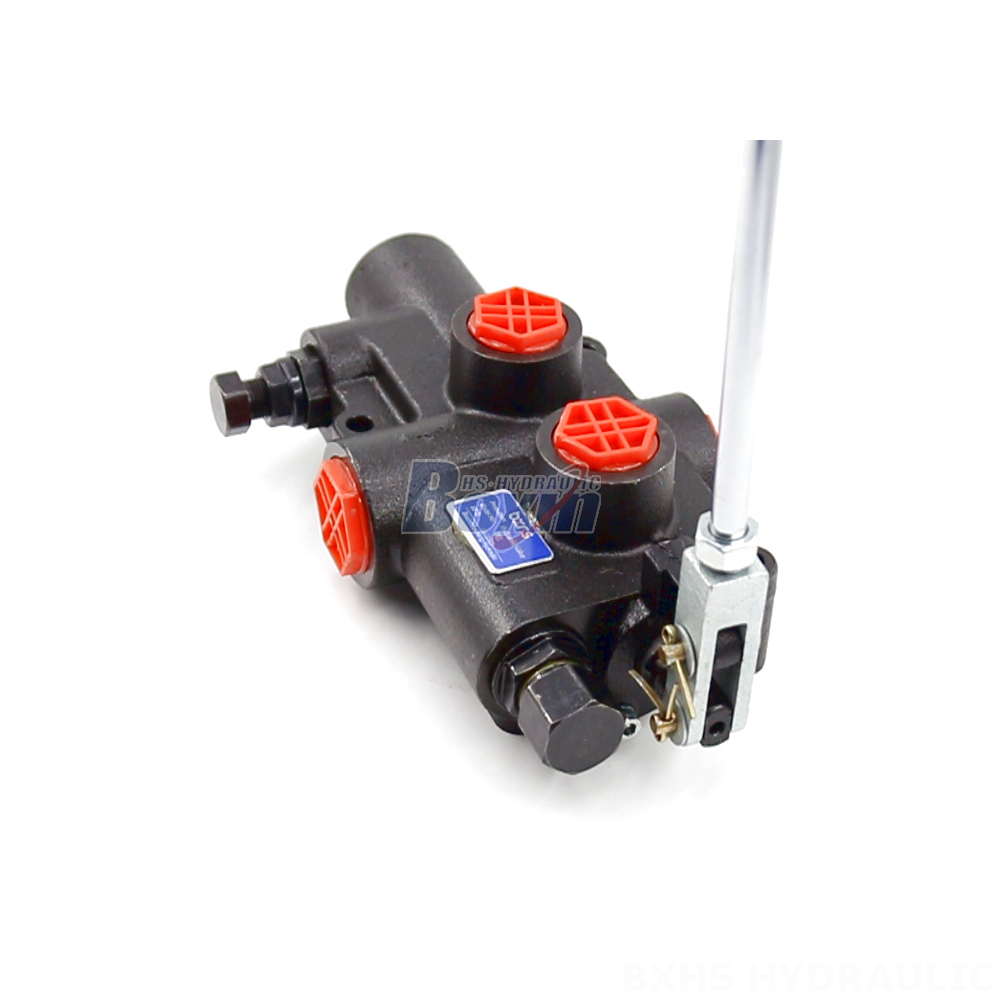

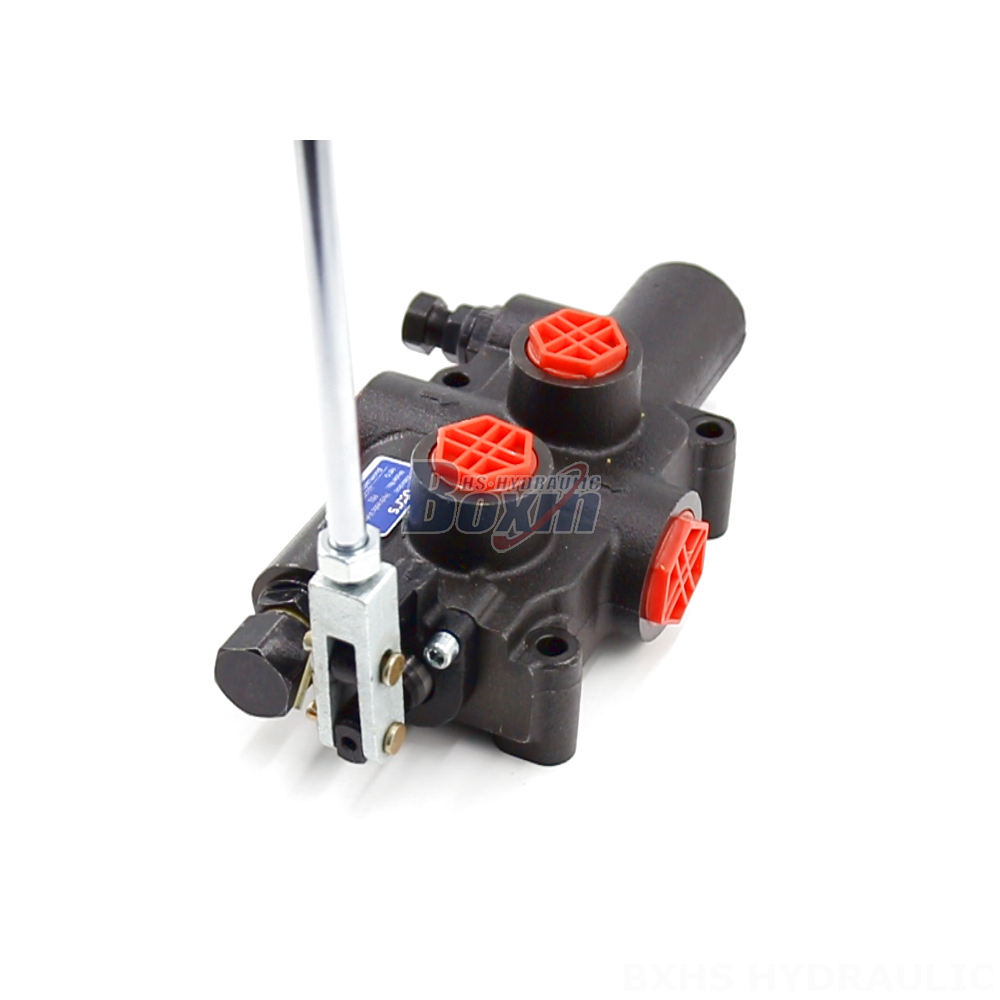

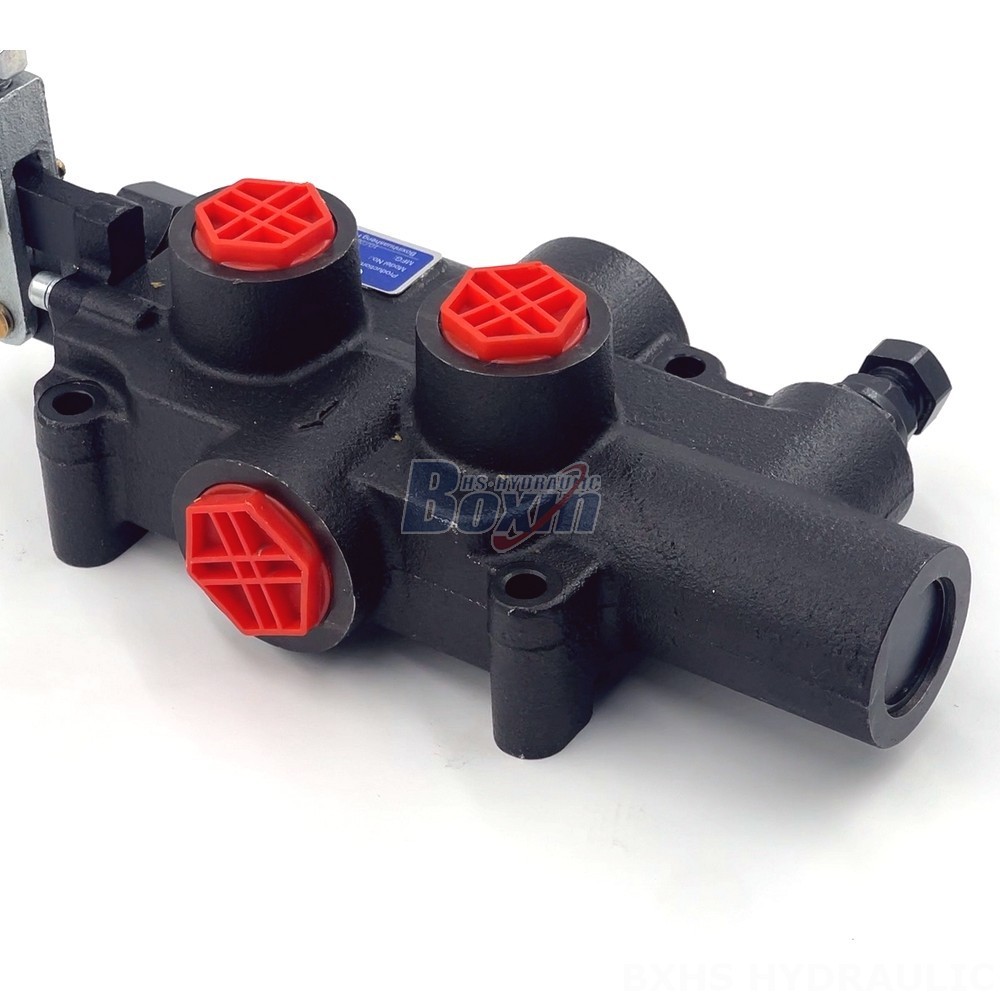

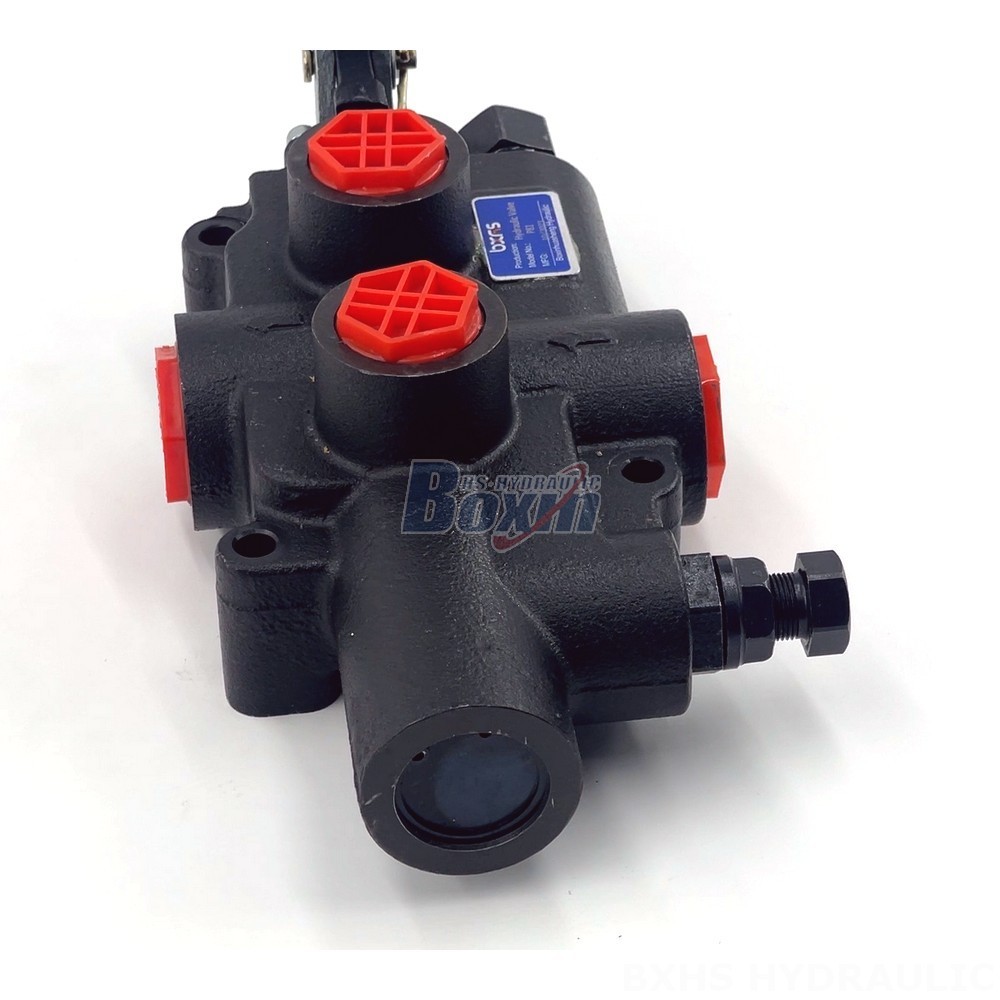

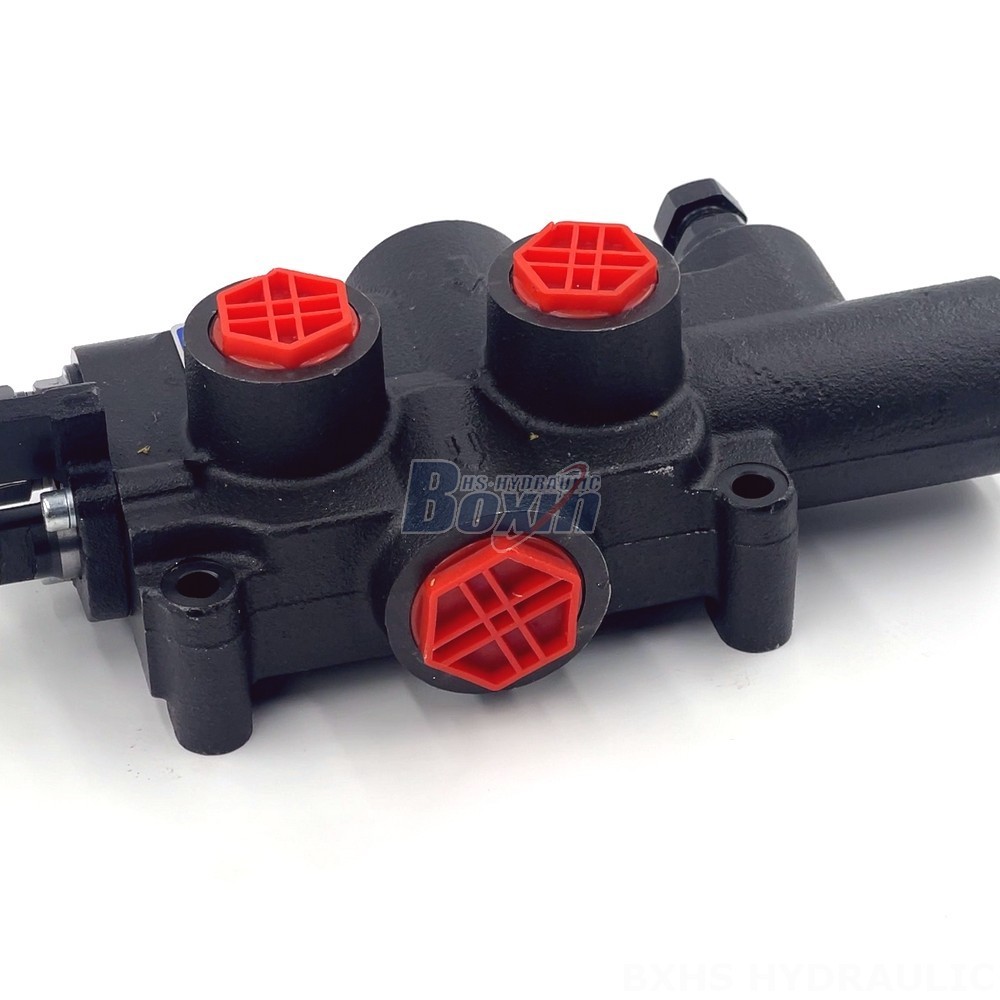

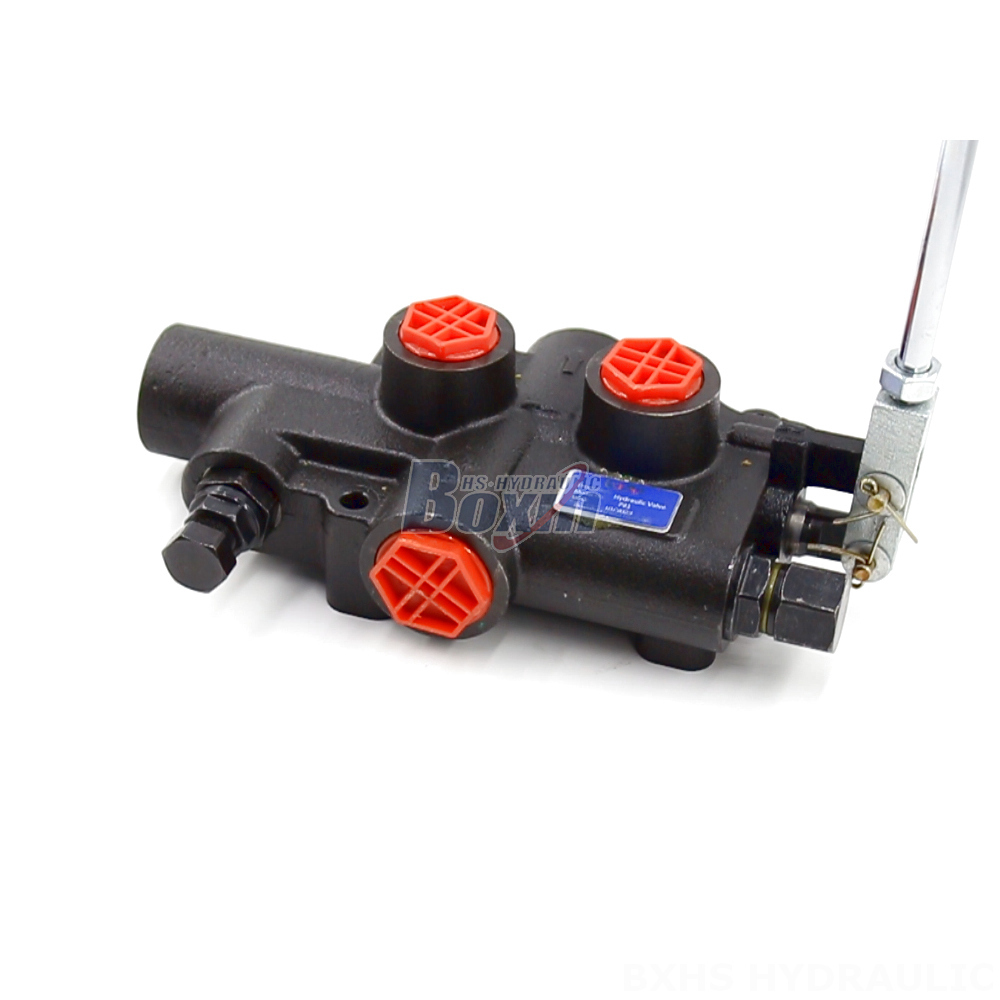

The P81 Series 3/2 Directional Control Valve is a high-performance, reliable hydraulic valve specifically designed for wood splitters. This manual control monoblock valve features a rated flow of 80 L/min, a maximum pressure of 250 bar, and a kick-out setting pressure of 70~140 bar, making it ideal for demanding industrial applications.
| Serie P81 Válvula para divisor de troncos Parámetros | |
|---|---|
| Método de control | Manual |
| Carrete | 1 carrete |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min), 95 l/min (25,1 gal EE. UU./min) |
| Presión Máxima | Presión máxima |
| Puerto de Entrada | G1/2 |
| Puerto de Salida | G1/2 |
| Tamaño de Puerto | G3/4 |
The P81 Series 3/2 Directional Control Valve is a robust and reliable hydraulic valve designed for use in wood splitters. This manual control monoblock valve features a single spool and a rated flow of 80 L/min, making it capable of handling demanding hydraulic systems. Its maximum pressure rating of 250 bar ensures durability and performance in demanding applications. The kick-out setting pressure of 70~140 bar provides adjustable protection for the system and its components. This valve is designed for industrial vehicles and is built to withstand harsh operating conditions. The operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and the ambient temperature range is -40°C to +80°C (-40°F to +176°F). This valve is an excellent choice for anyone looking for a high-quality, reliable, and high-performance hydraulic valve for their wood splitter.
