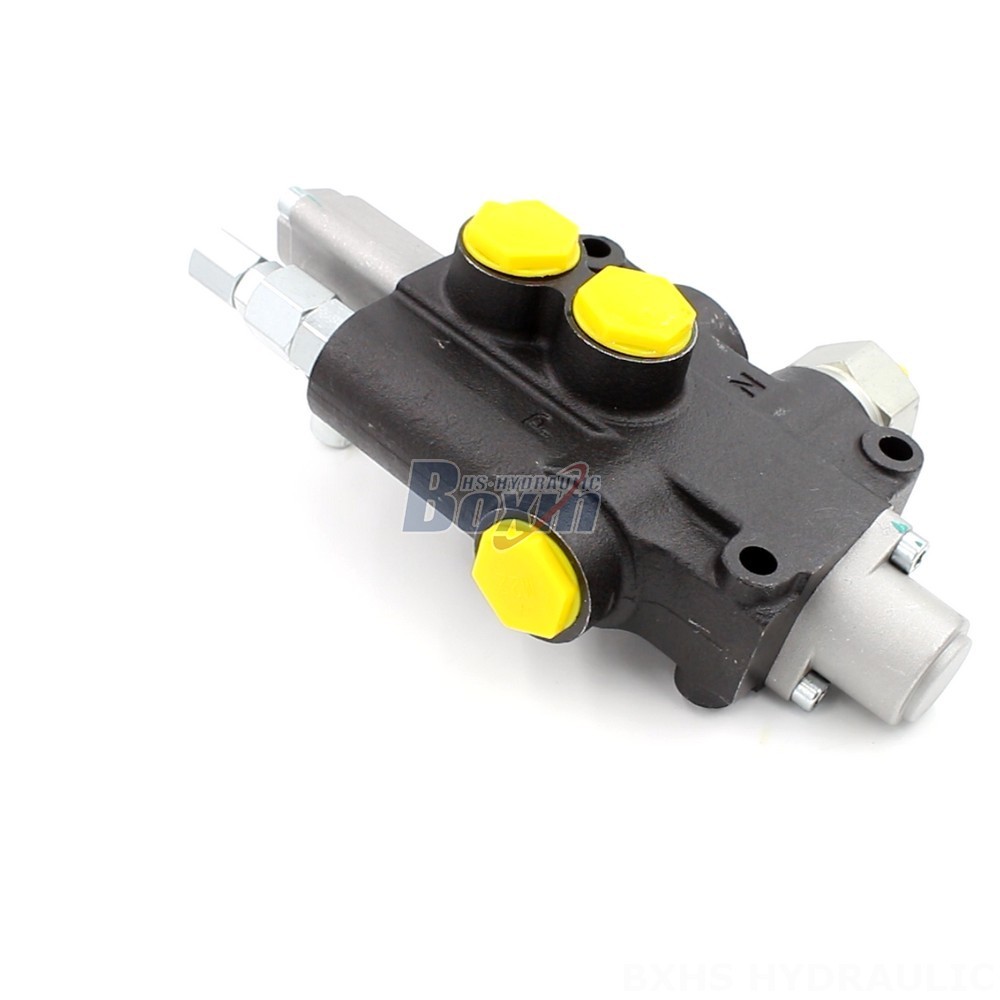

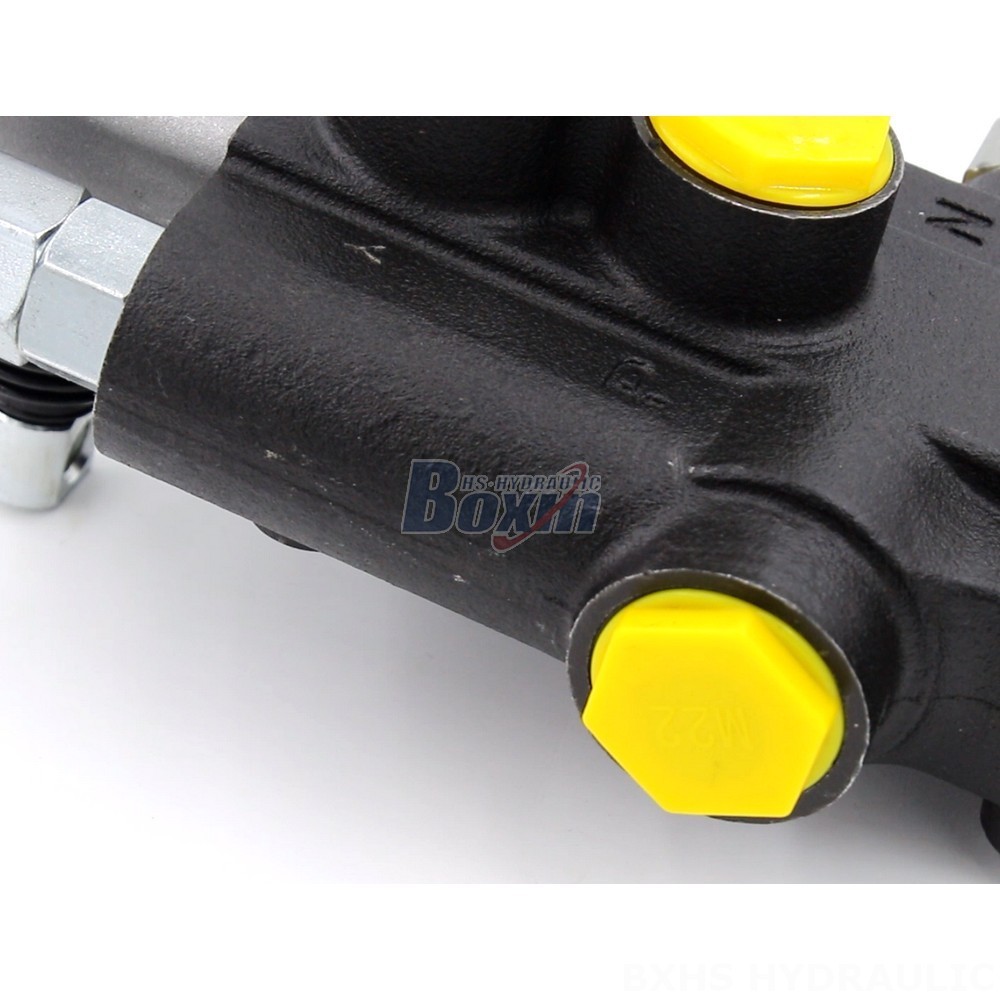

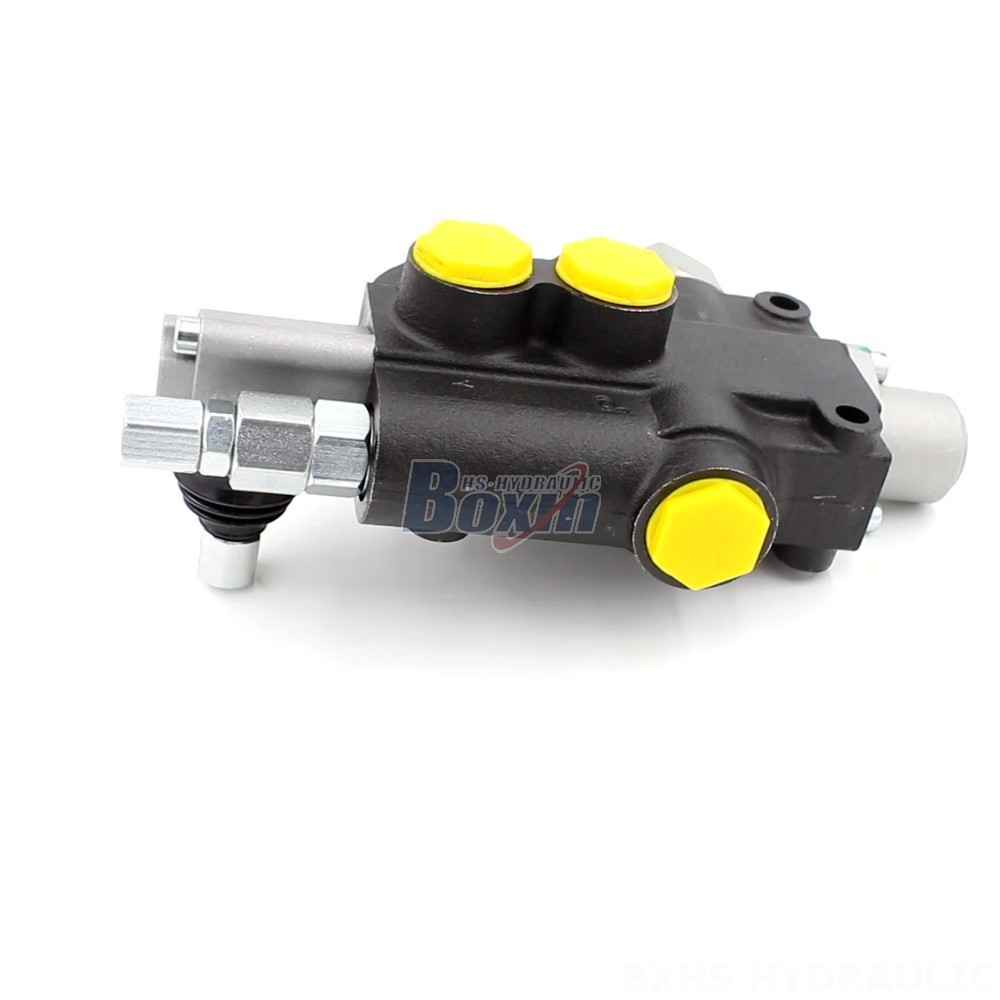

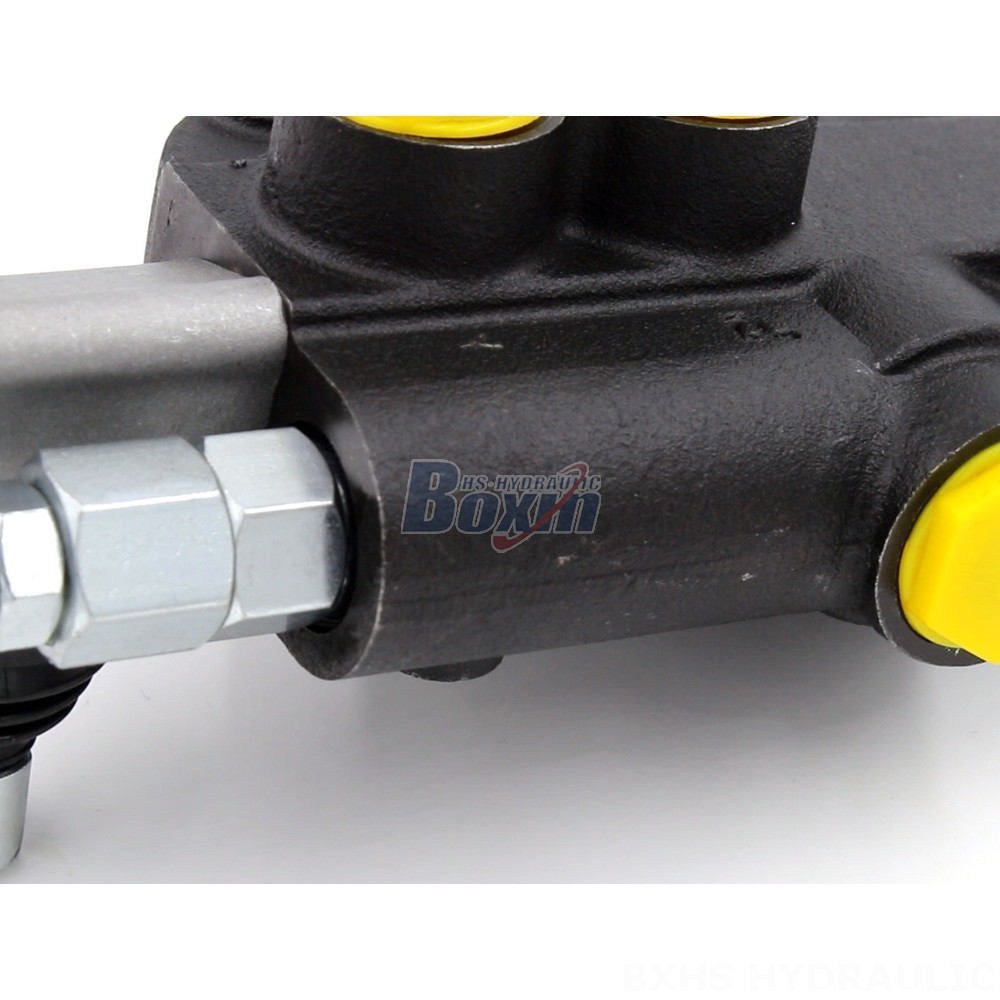

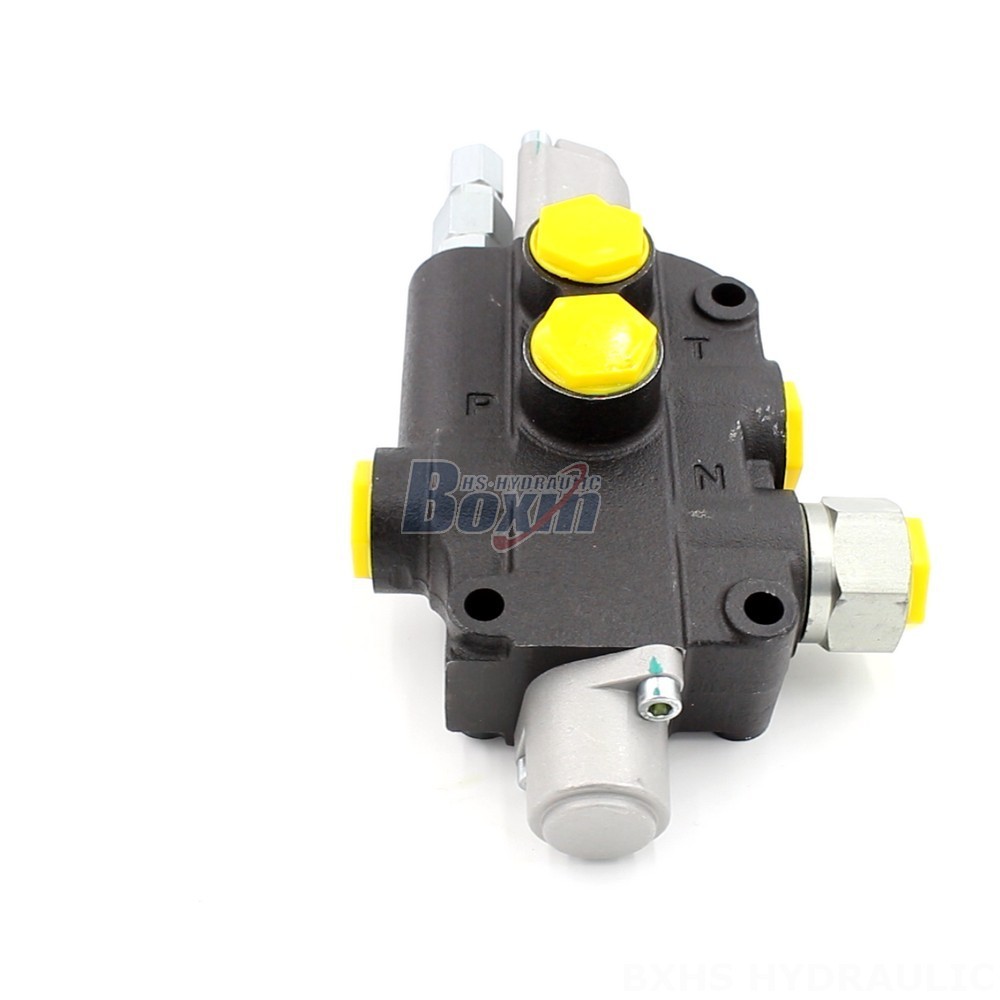

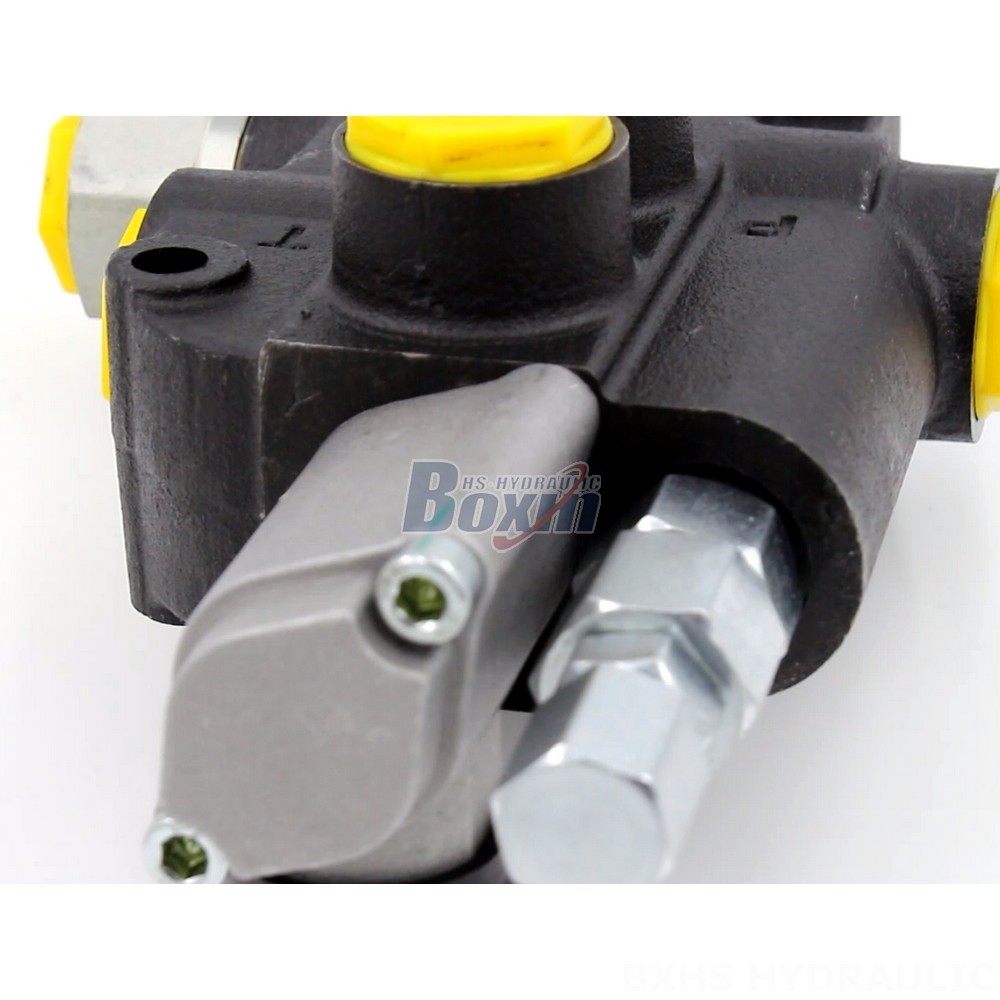

The P80J Series Control Valve is a manual, monoblock directional valve designed for a variety of applications, including material handling, construction, and agriculture. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this 1-spool valve is a reliable and efficient solution for your hydraulic needs.
| Serie P80J Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Eléctrico, 在这里输入键名的翻译, Solenoide y joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M20×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M20×1.5, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
This P80J Series Control Valve is a manual, monoblock directional valve with 1 spool. It is designed for applications requiring a rated flow of 80 L/min and a maximum pressure of 250 bar. This valve is suitable for a wide range of applications, including material handling, construction, and agriculture. It can be used in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. As a hydraulic supplier, we offer manufacturing, OEM, private labeling, customization, and wholesale services. We are also seeking distributors, wholesalers, agents, and traders for our products.
