P80F-G34 Hydraulic Control Valve is a monoblock valve designed for various applications. With a rated flow of 80 L/min and a max pressure of 250 bar, it offers reliable performance in demanding hydraulic systems.
| Serie P80F Válvula Direccional Monobloque Parámetros | |
|---|---|
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick |
| Tamaño de Puerto | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT |
| Presión Máxima | 315 bar (4600 psi) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Tipo de estructura | Válvulas monobloc |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |

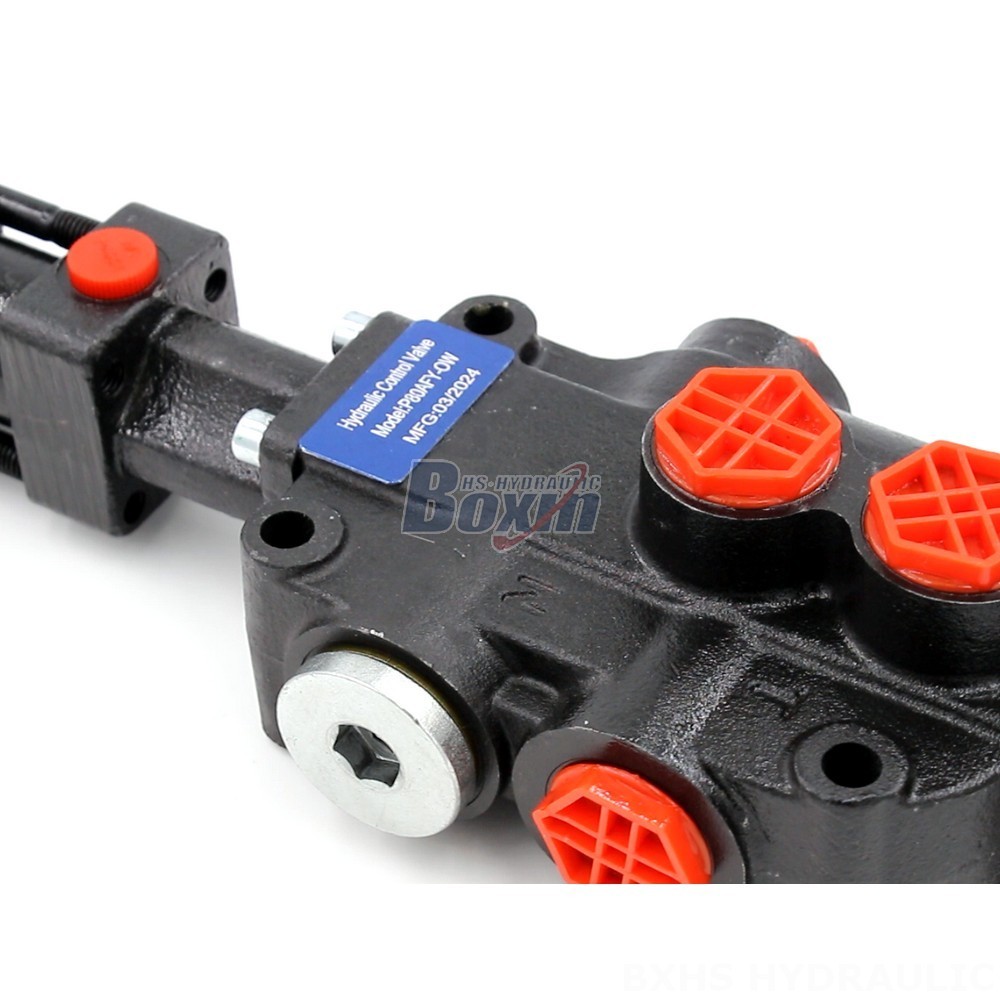

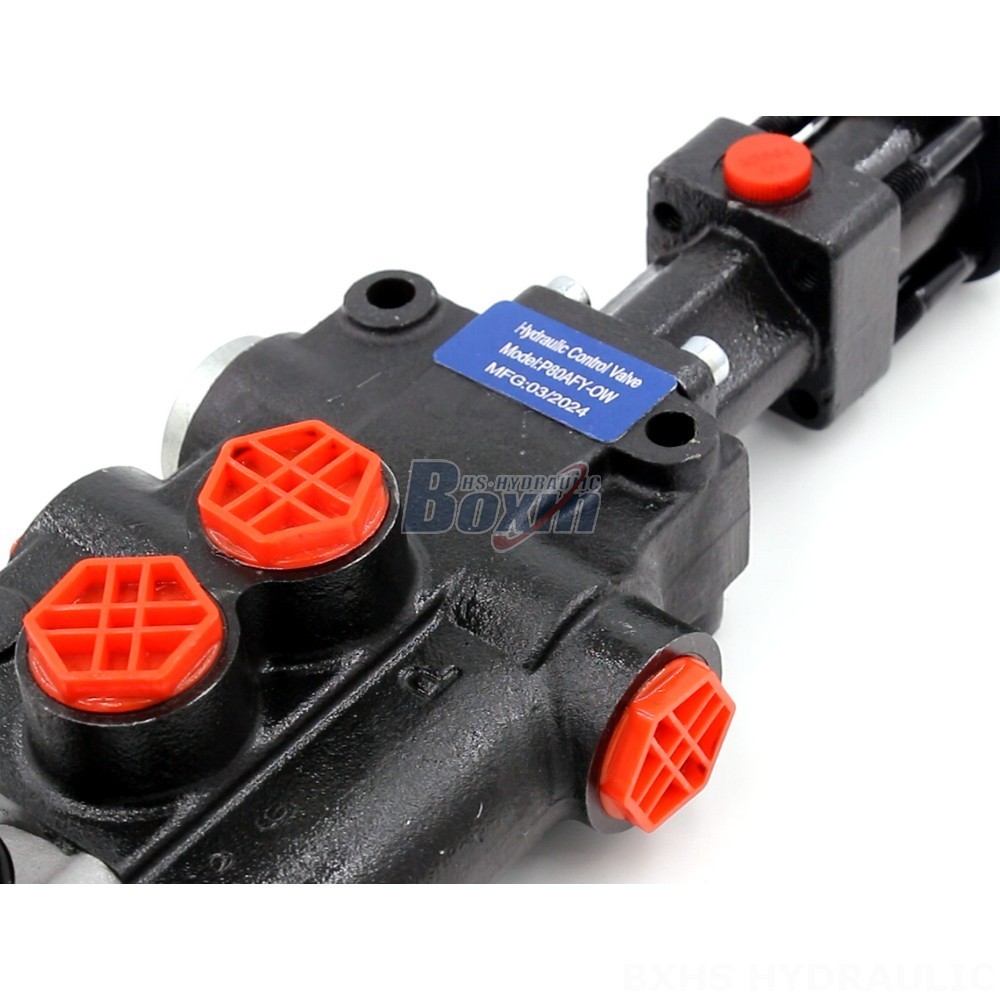

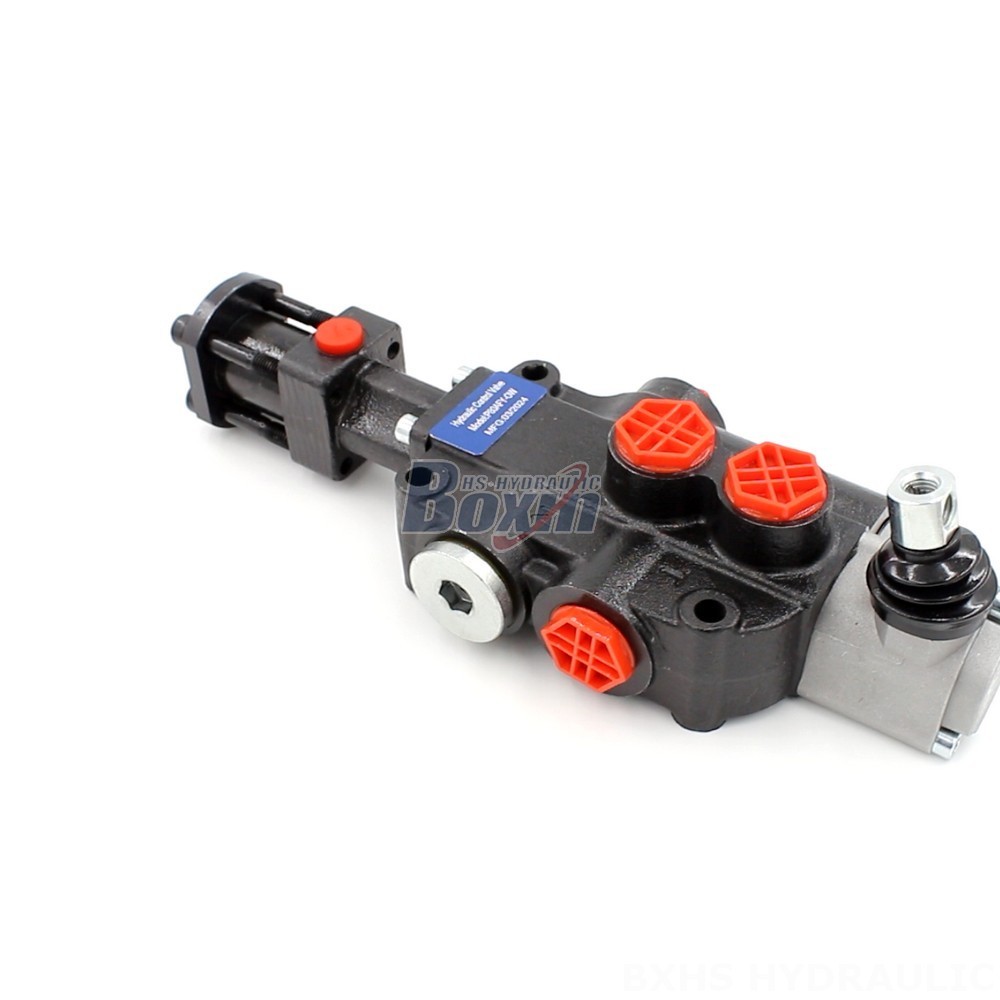

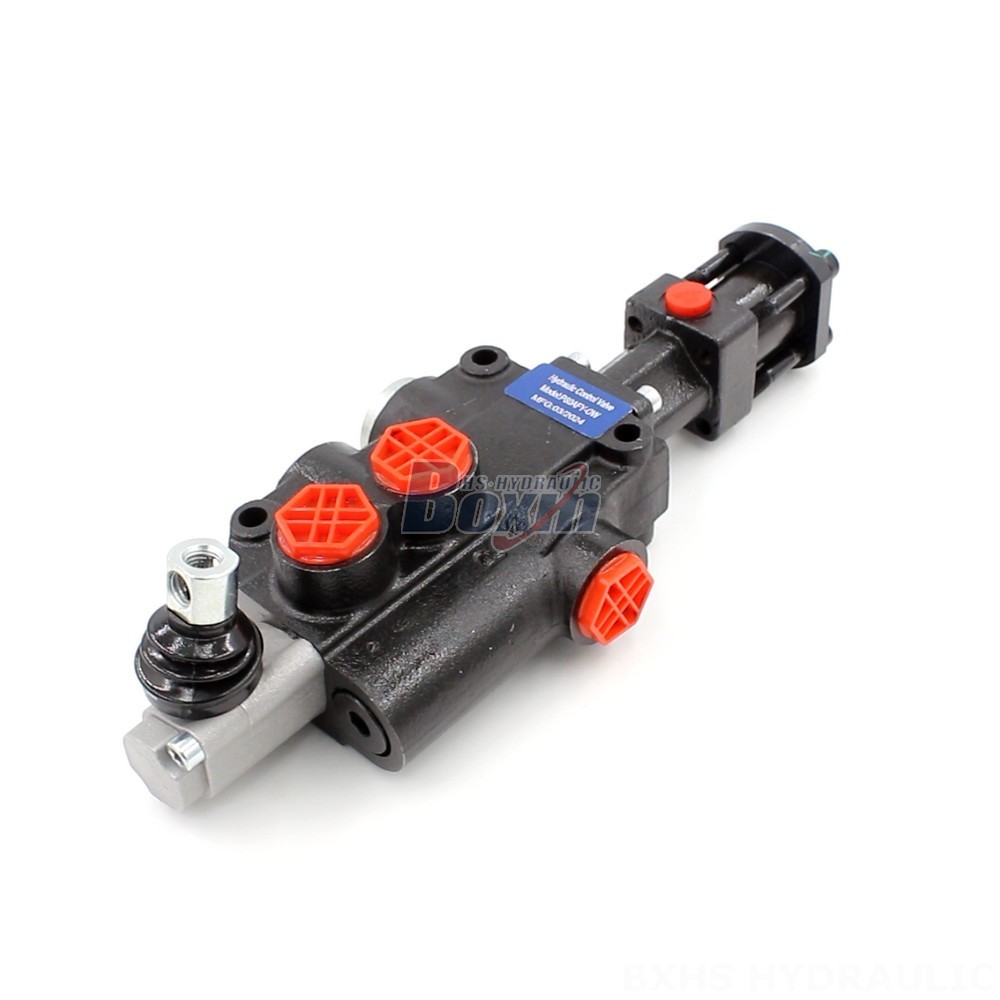

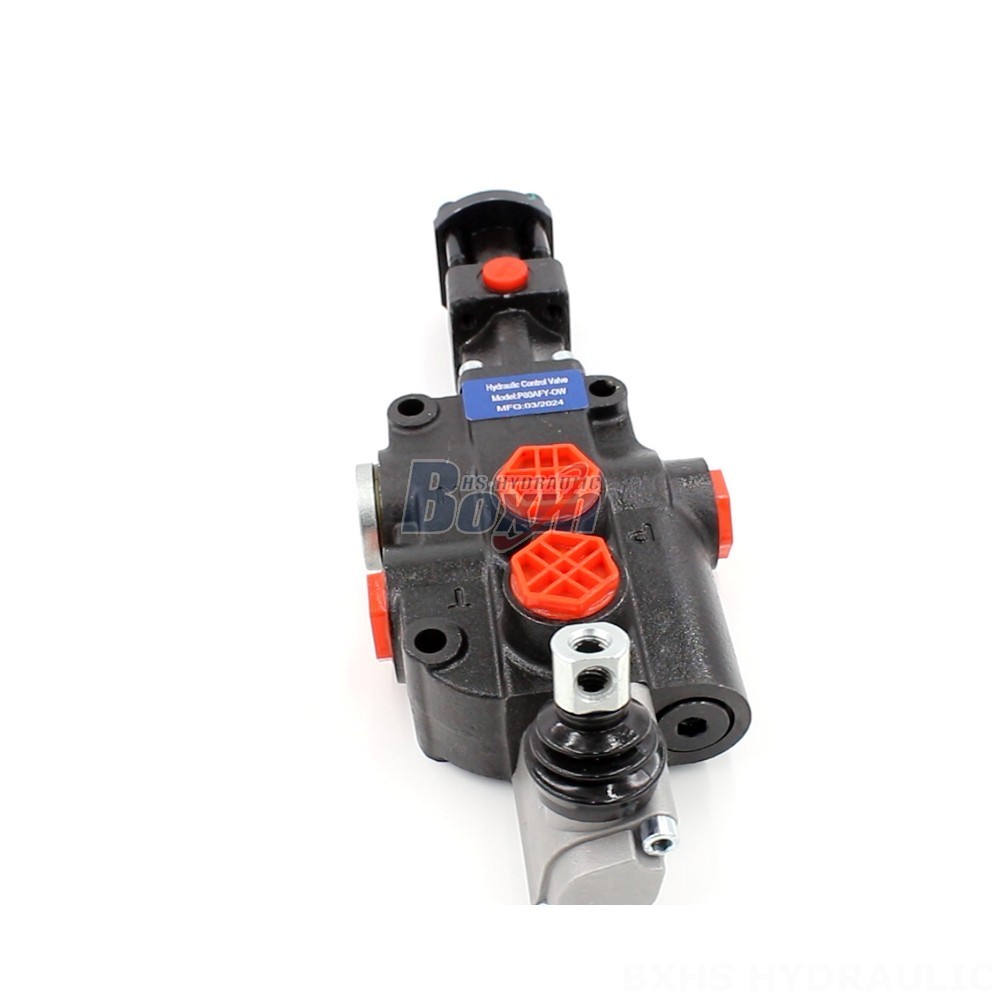

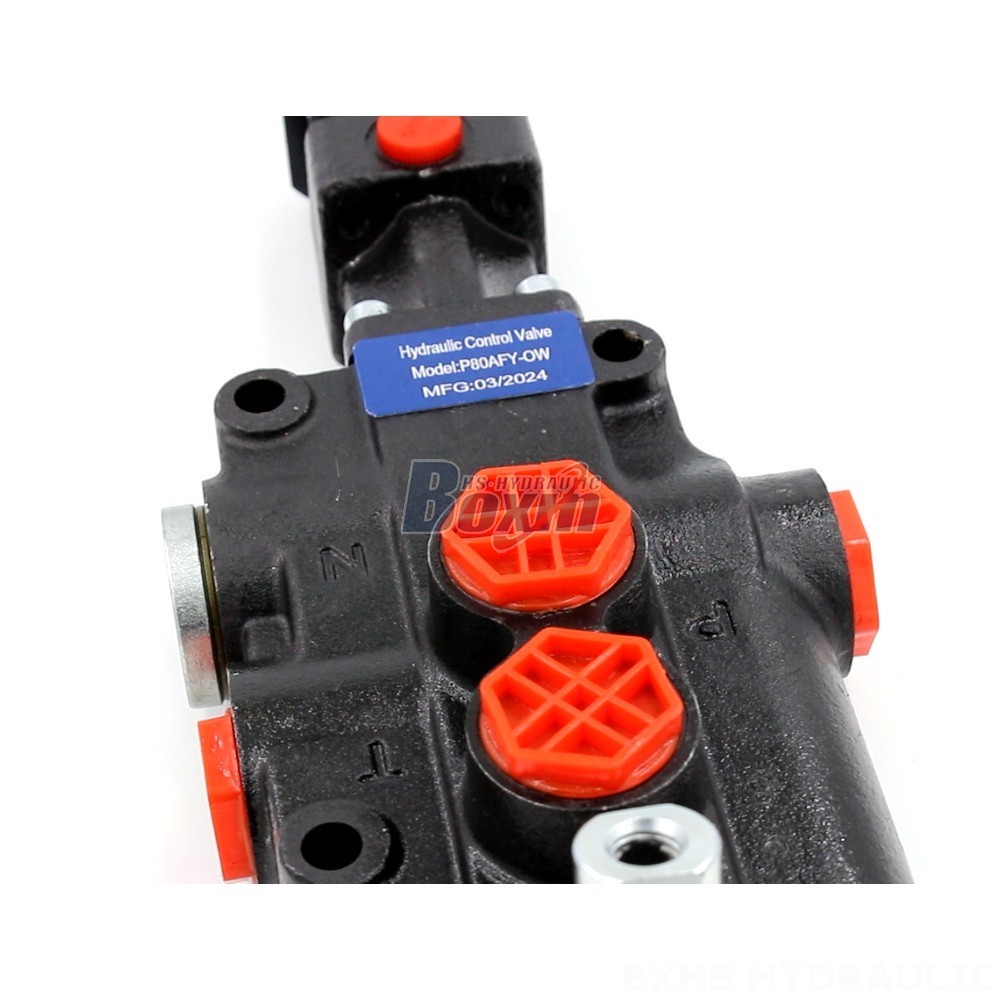

**P80F-G34 Hydraulic Control Valve**
**Key Features:**
- Monoblock valve design for compact and efficient installation
- Rated flow of 80 L/min (21.2 US gpm) for high flow capacity
- Max pressure of 250 bar (3600 psi) for demanding applications
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for wide compatibility
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for harsh environments
- Single spool for precise control
- Customisable and private label solutions available
**Applications:**
- Material Handling: Telehandlers, forklifts, stackers, aerial platforms
- Construction and Earth Moving: Motor graders, excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers
- Agriculture: Tractors, harvesters, sprayers
- Industrial Vehicles: Concrete boom pumps, pave rollers, rotary drilling rigs, crushers, stone cutters
The P80F-G34 Hydraulic Control Valve is an ideal choice for a wide range of hydraulic systems, providing reliable performance, customisability, and durability.
