P80A Hydraulic System Components | Factory Supply & Distribution

Método de control:Manual

Carrete:2 carretes

Flujo Nominal:80 l/min (21,2 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G1/2

Puerto de Salida:G1/2

Tamaño de Puerto:G1/2

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P80A Válvula Direccional Monobloque

Tamaño del embalaje:28*30*13

Peso bruto:8.00 kg

Disponibilidad: En stock

1052 personas están viendo este producto

P80A Hydraulic System Components | Factory Supply & Distribution

P80A Hydraulic System Components | Factory Supply & Distribution

P80A Hydraulic System Components | Factory Supply & Distribution drawing image

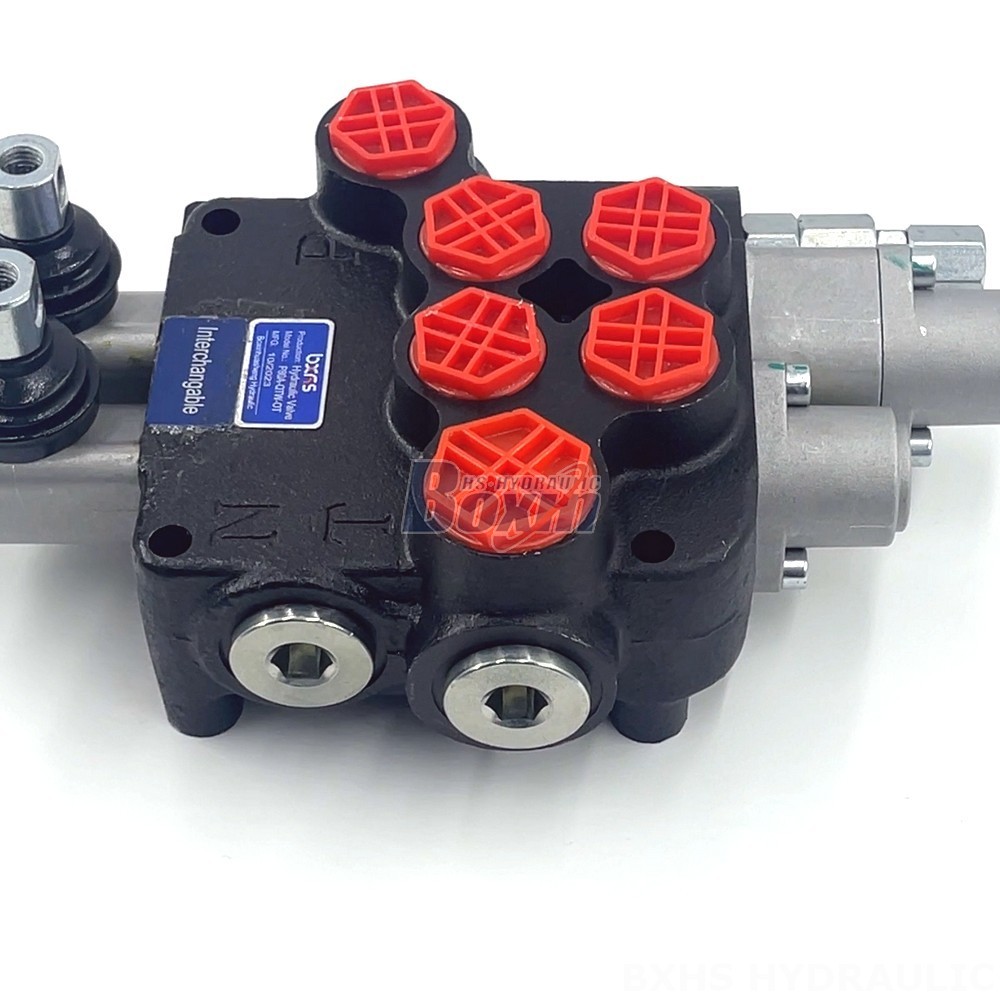

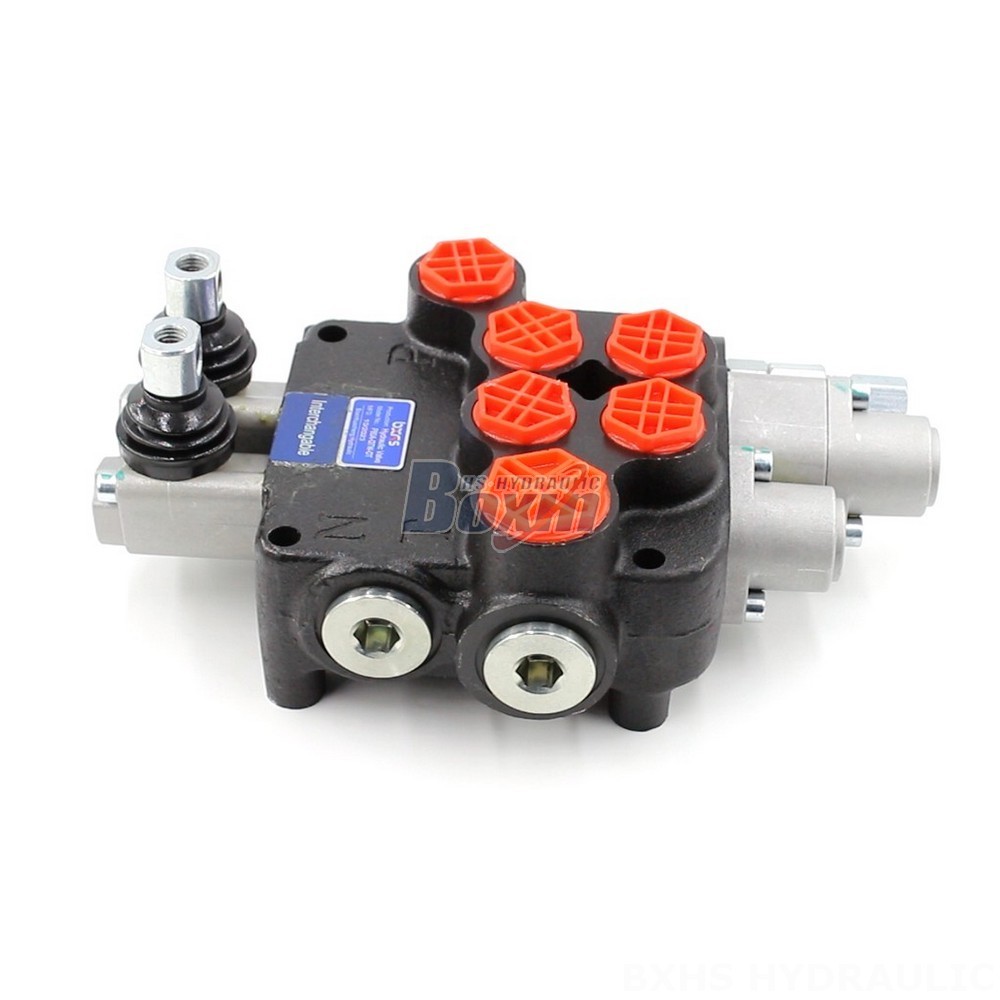

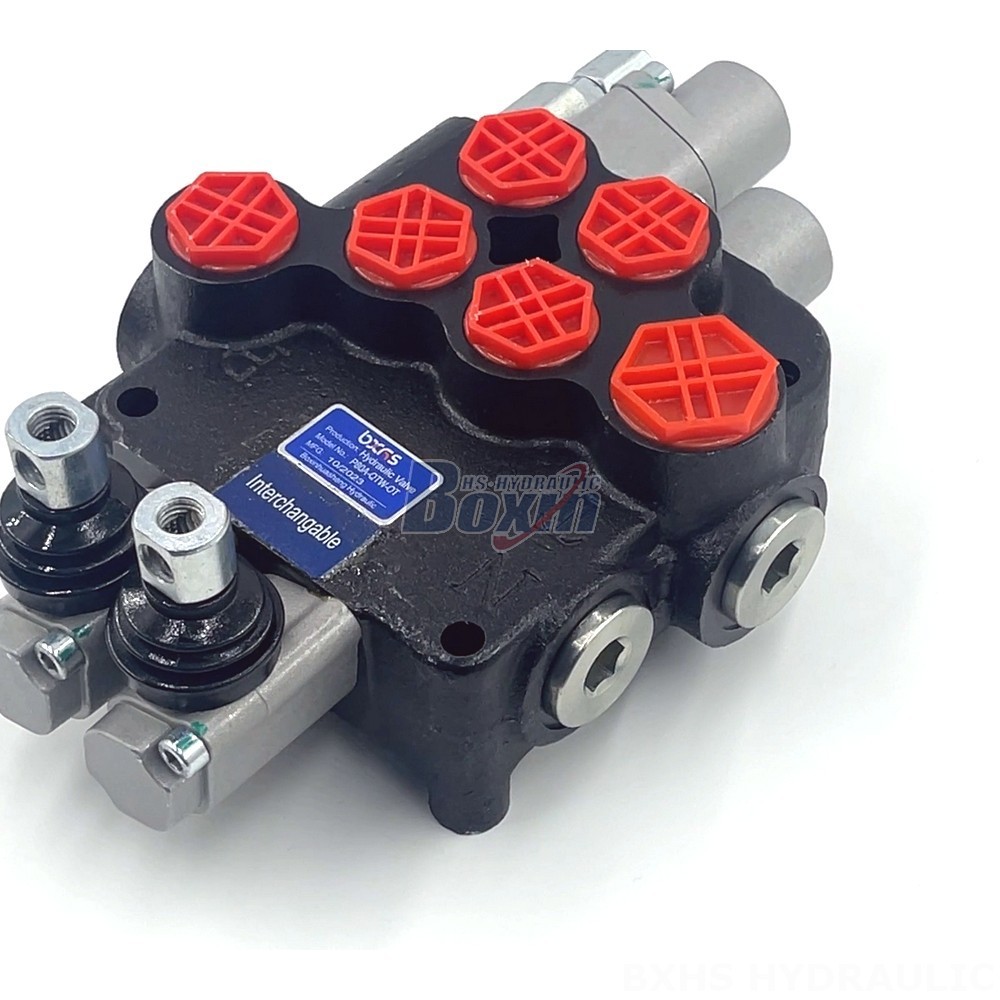

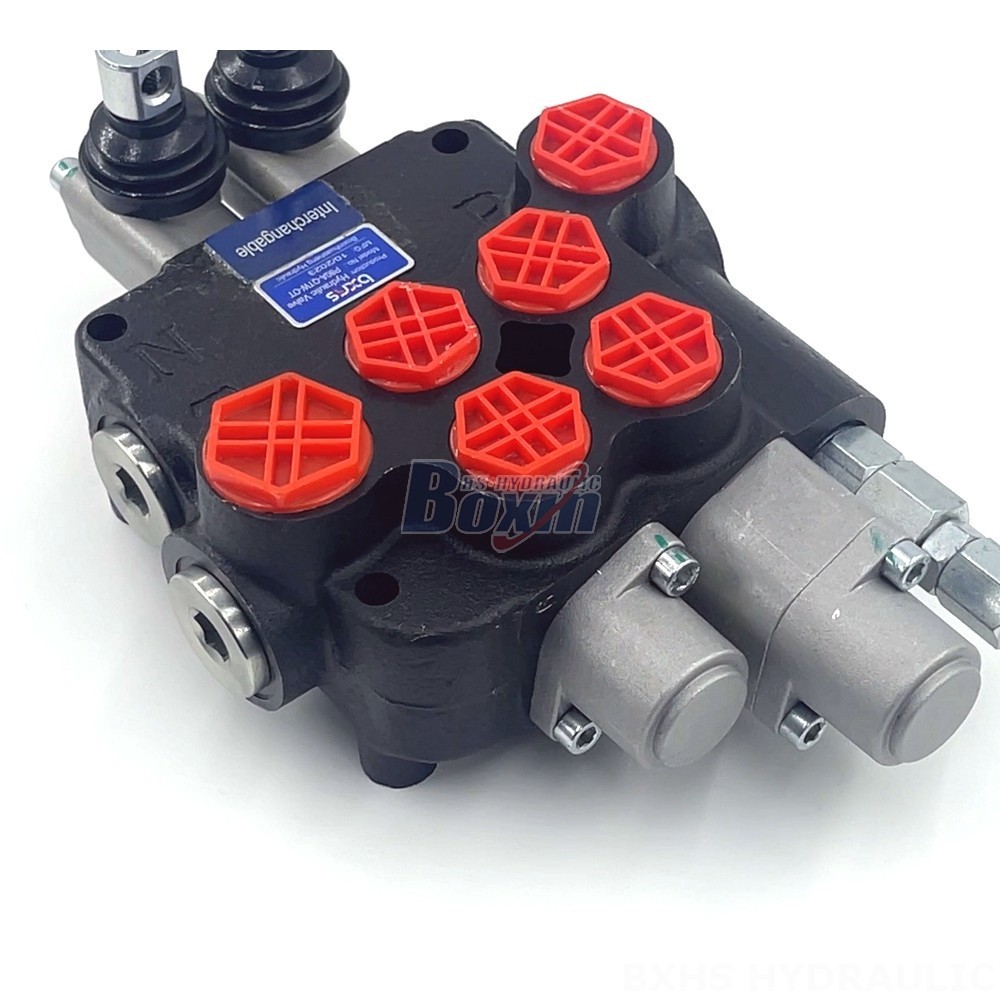

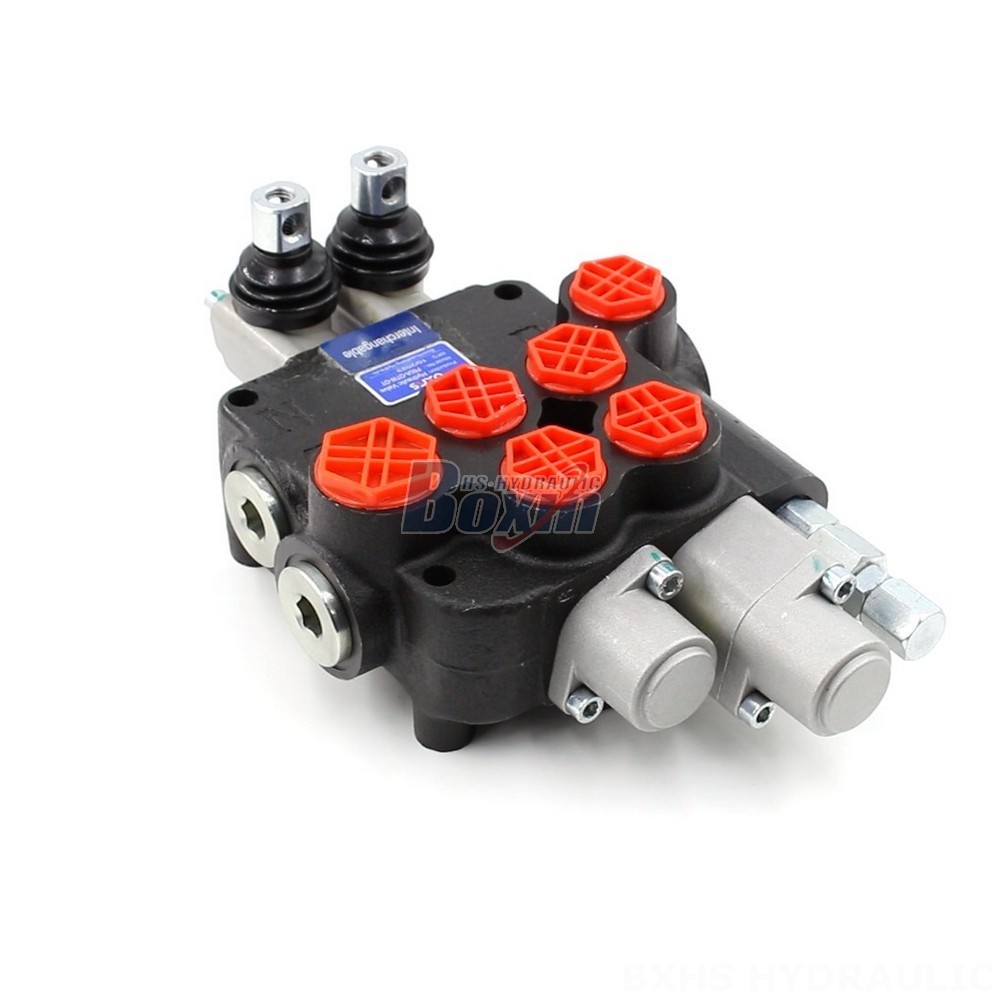

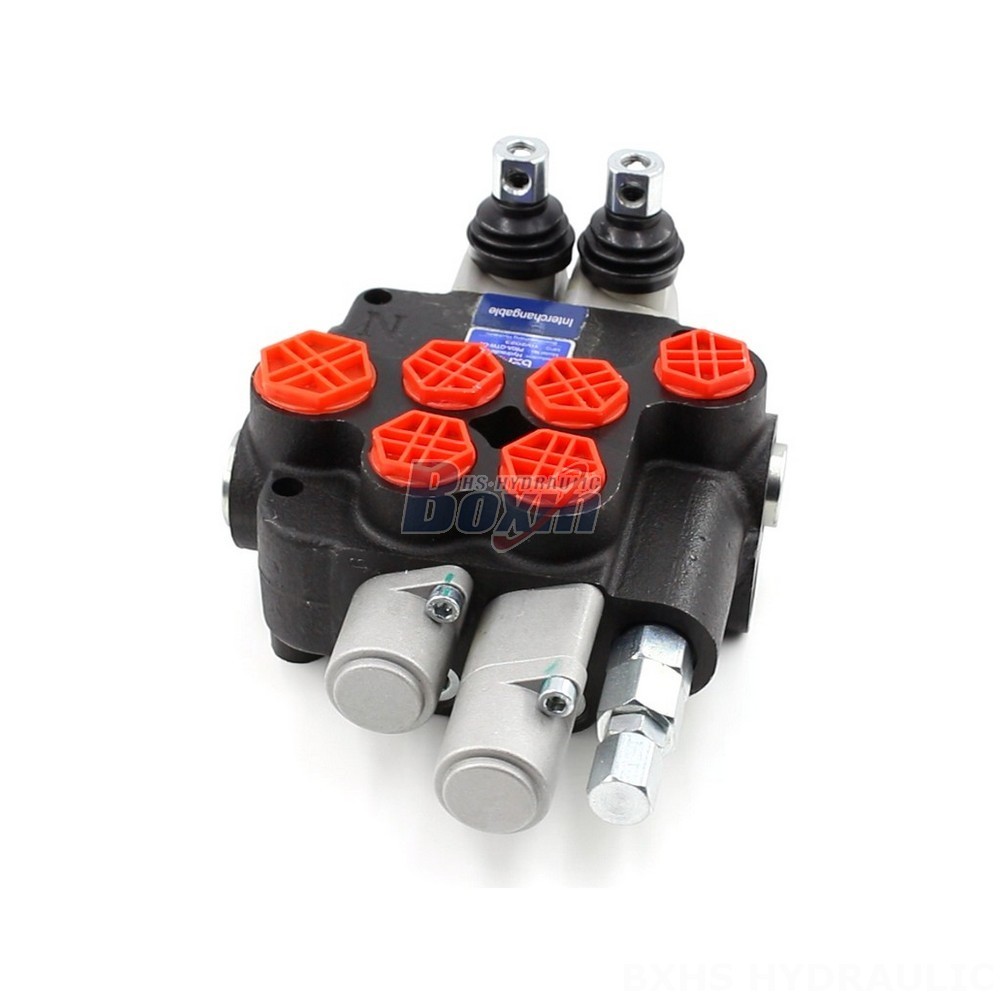

The P80A Series Hydraulic Control Valve is a high-performance, 2-section monoblock valve designed for manual control of hydraulic systems. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it's ideal for various applications in material handling, construction, and agriculture.

Serie P80A Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Eléctrico, 在这里输入键名的翻译, Solenoide y joystick, Manual y joystick
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 80 l/min (21,2 gal EE. UU./min)
Presión Máxima 315 bar (4600 psi)
Puerto de Entrada G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Puerto de Salida G1/2, G3/4, M27×2.0, SAE 12, 1/2 NPT, 3/4 NPT
Tamaño de Puerto G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

The P80A Series Hydraulic Control Valve is a reliable and durable solution for a wide range of hydraulic applications. It features a robust monoblock construction, a manual control method, and a 2-section design for versatile operation. The valve is rated for a flow of 80 L/min and can withstand a maximum pressure of 250 bar, making it suitable for heavy-duty applications. Its 2-spool configuration allows for precise control of hydraulic functions. The P80A Series is ideal for use in a variety of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, and mini-excavators. We offer manufacturing, OEM, private label, and customization options to meet your specific requirements. We are also looking for distributors, wholesalers, agents, and traders worldwide to partner with us in bringing our high-quality hydraulic products to a wider audience.
