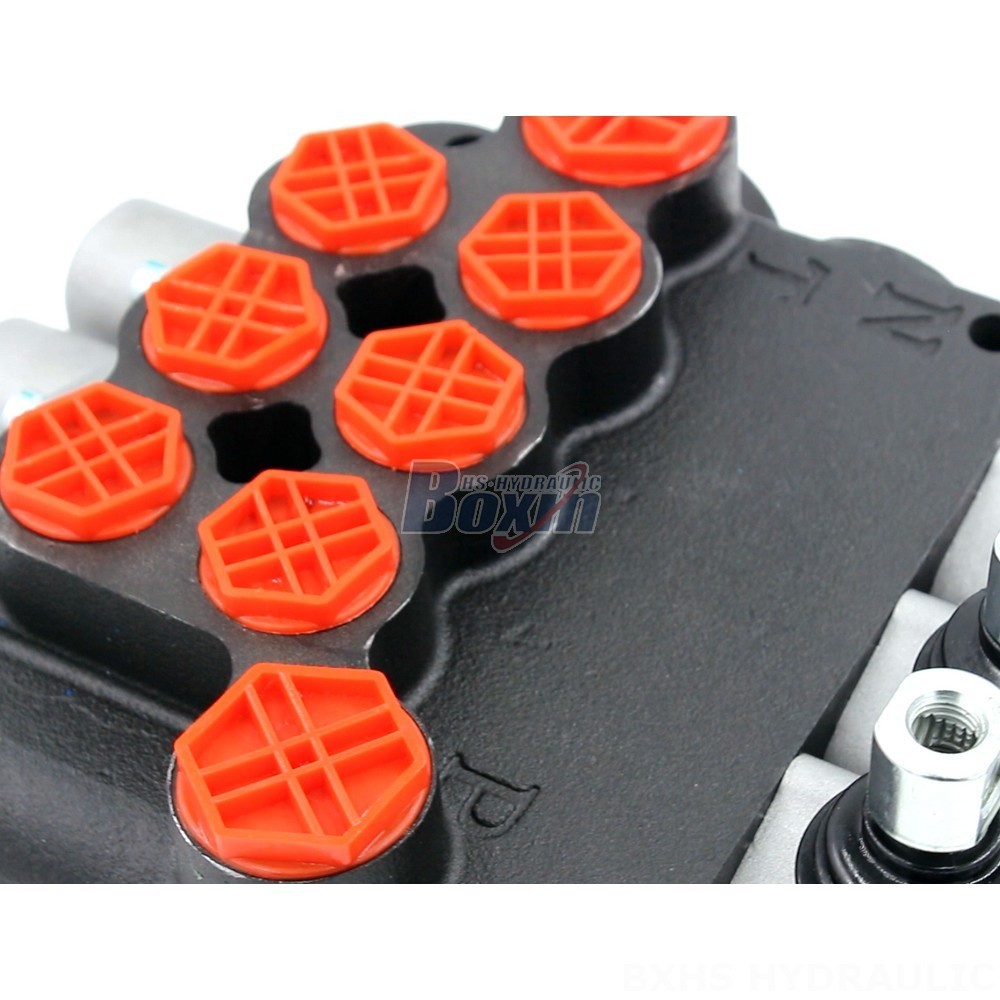

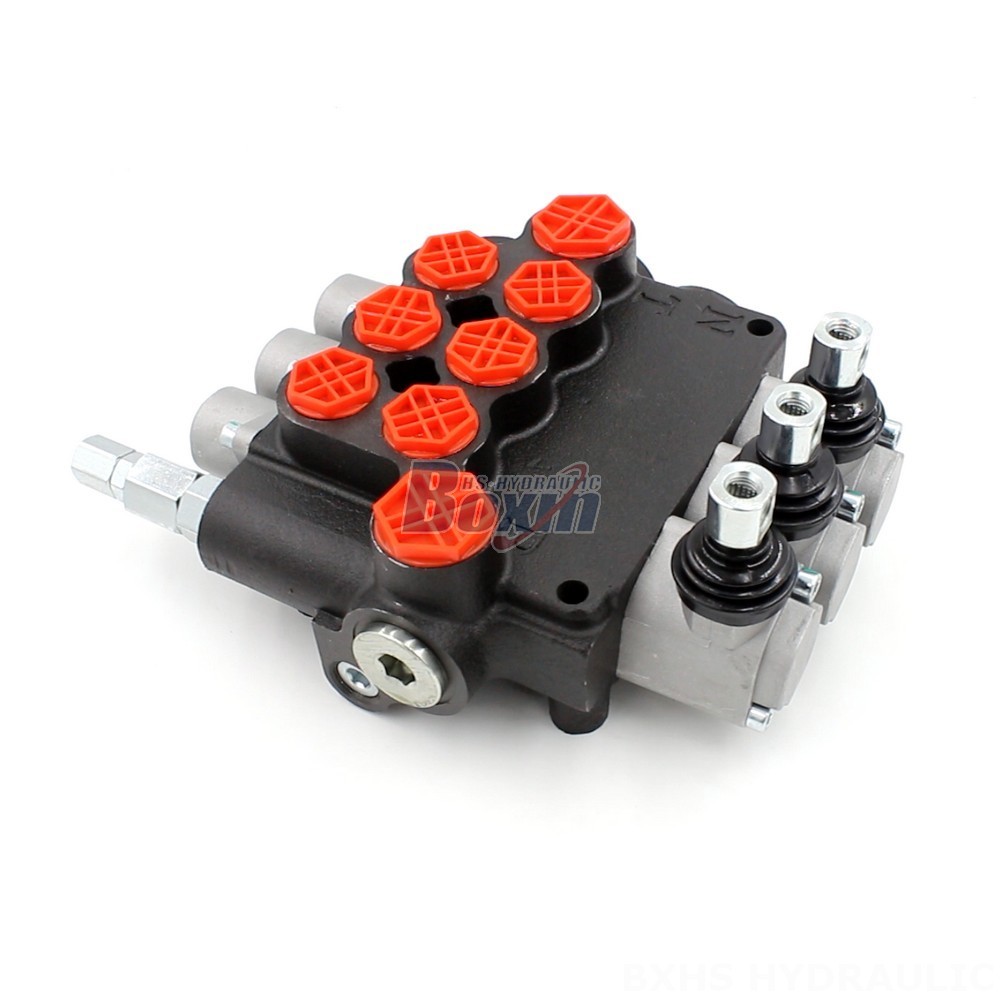

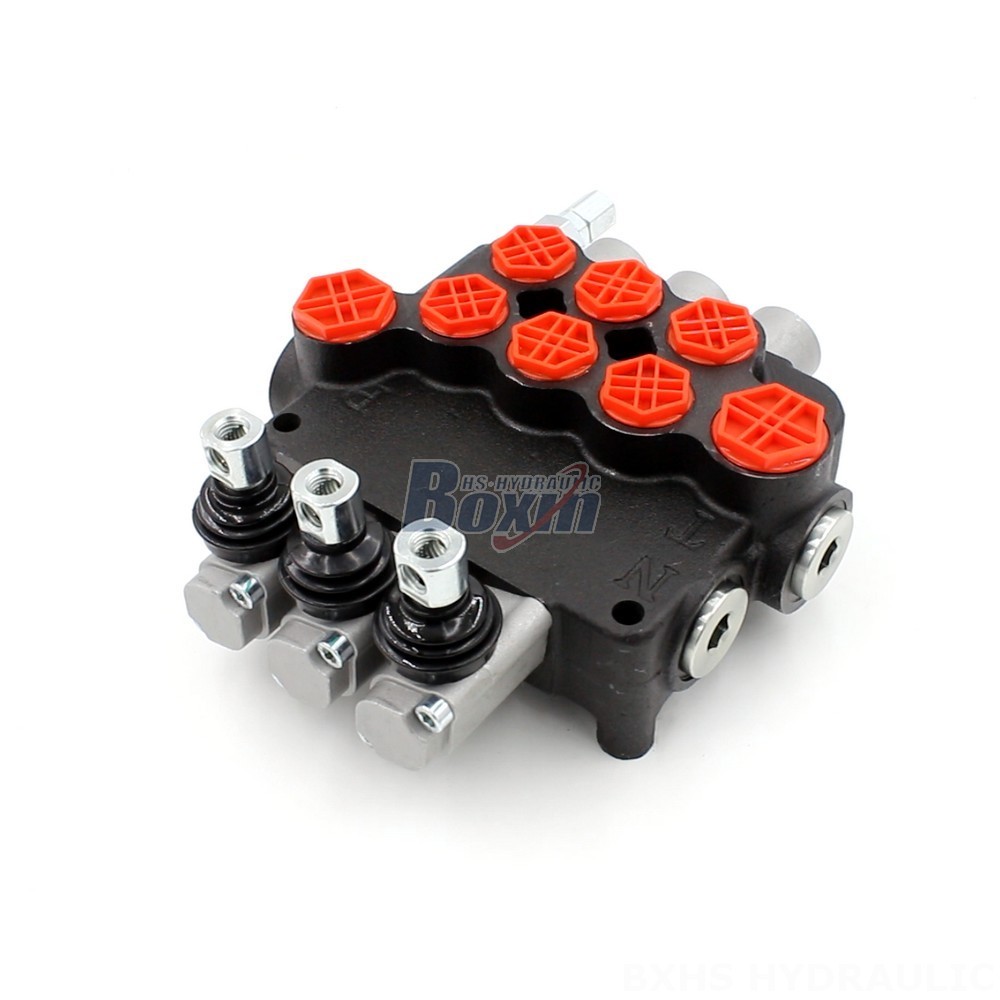

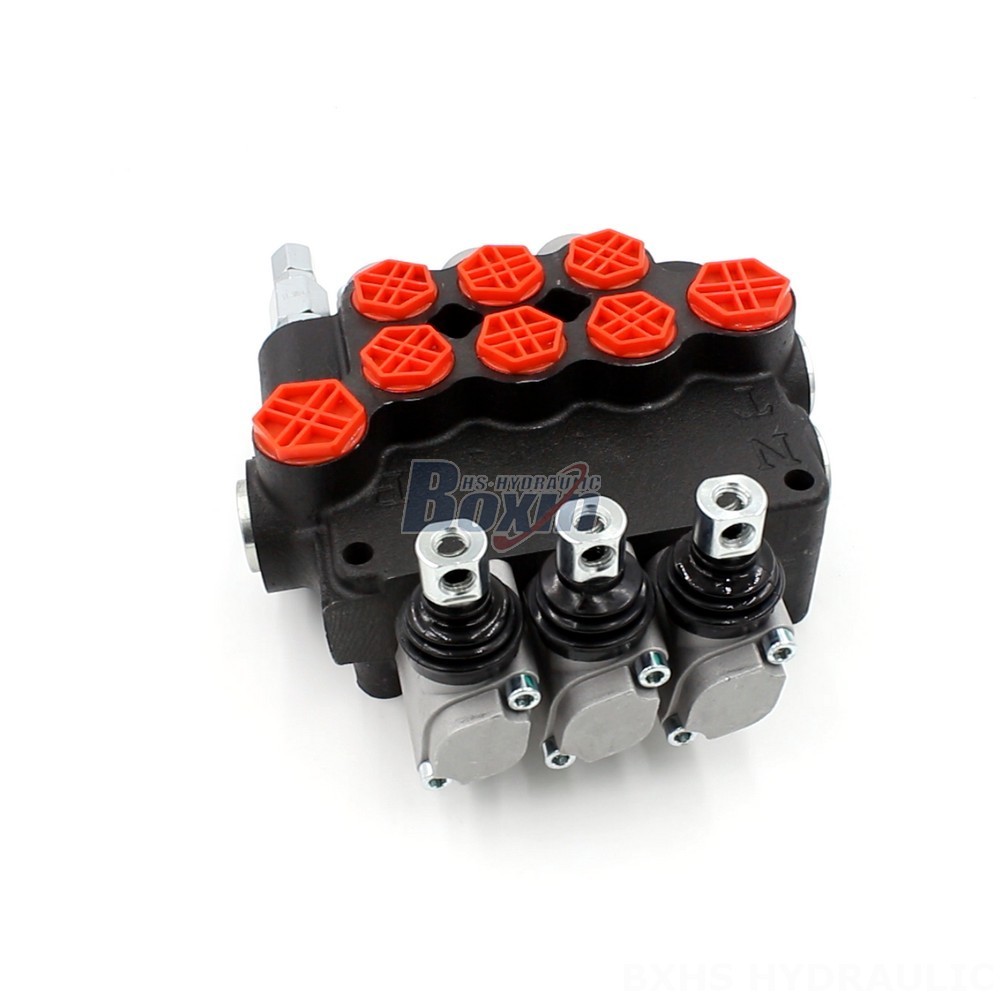

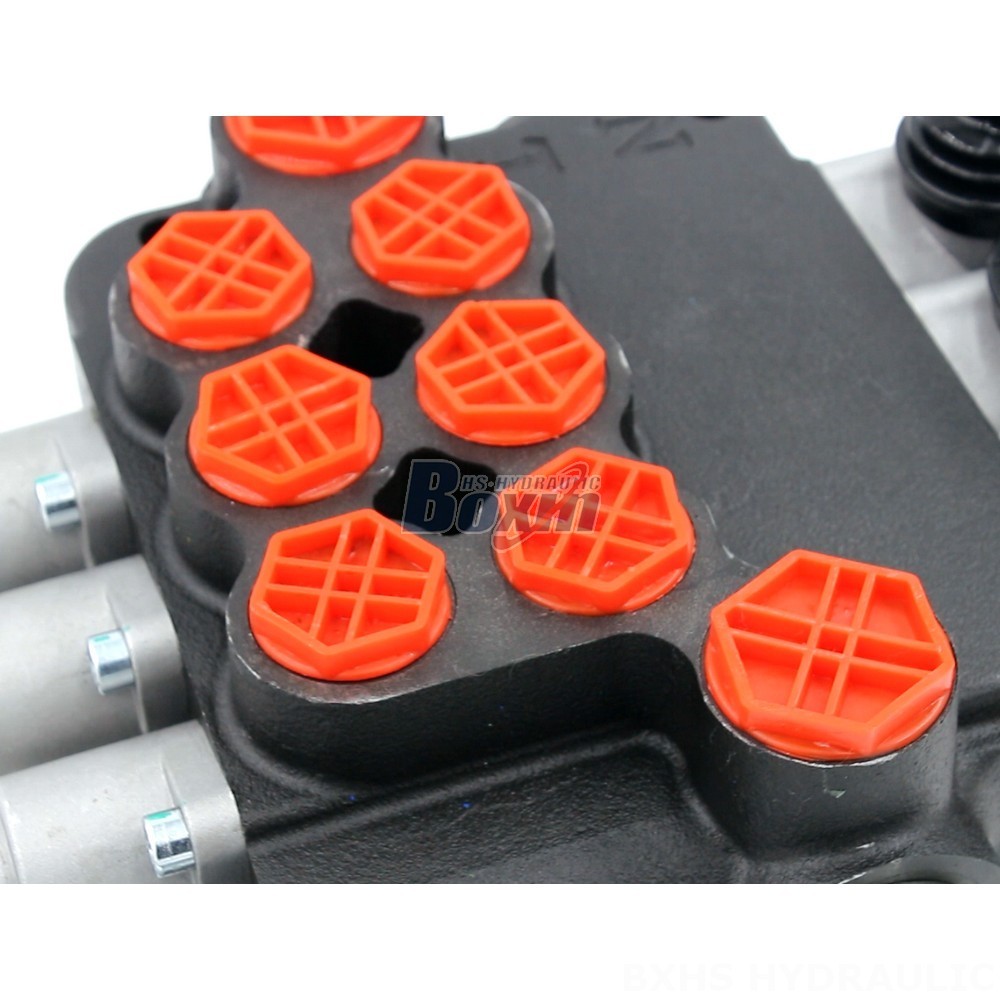

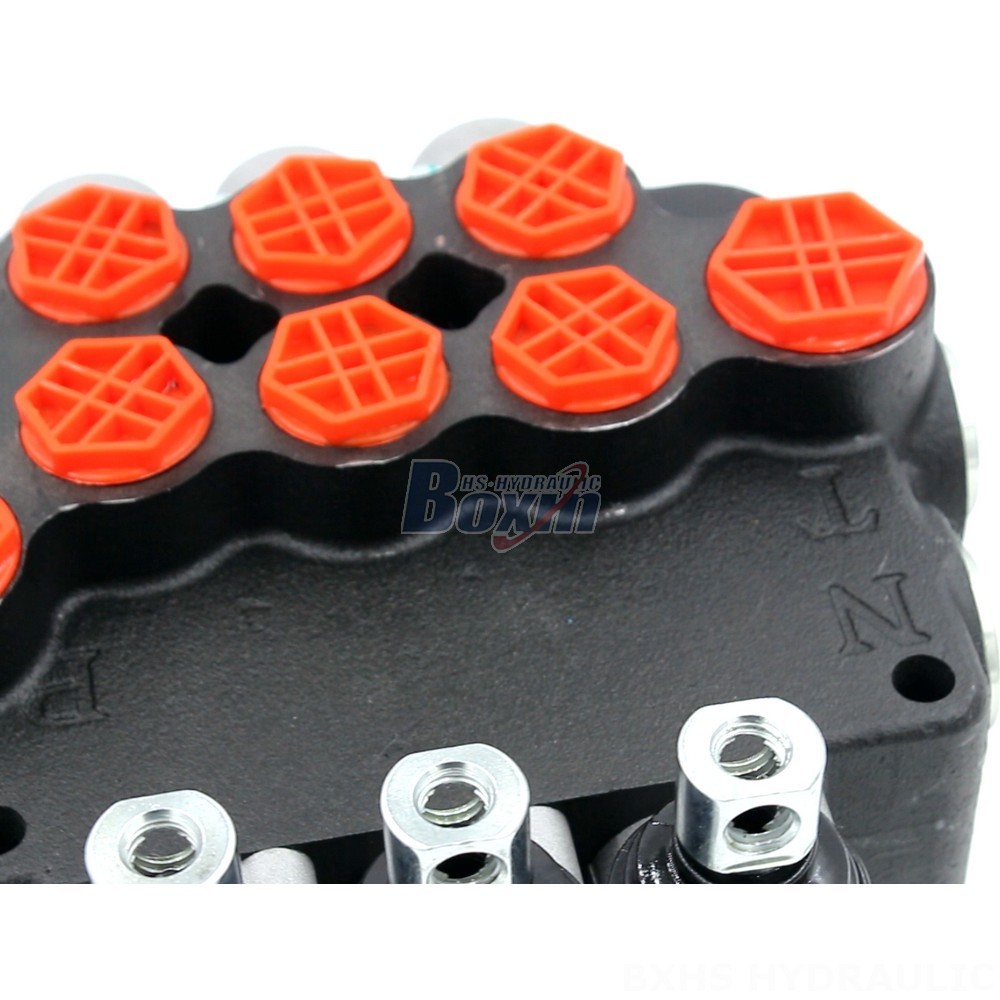

The Dump Truck P80A 2-Spool Hydraulic Directional Valve is a high-performance, heavy-duty valve designed for demanding applications in construction, material handling, and industrial vehicles. It features a 3-section, monoblock construction, a rated flow of 80 L/min, and a maximum pressure of 250 bar.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This manual control, 3-spool valve is a reliable and efficient solution for operating hydraulic systems in a wide range of vehicles. With a robust design and operating temperature range from -40°C to +80°C, it is suitable for various demanding environments. The Dump Truck P80A valve is available in customizable options, making it a versatile solution for diverse applications. This valve is specifically designed for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. Its high performance and durability make it a reliable choice for manufacturers and users seeking a robust and adaptable hydraulic valve.
