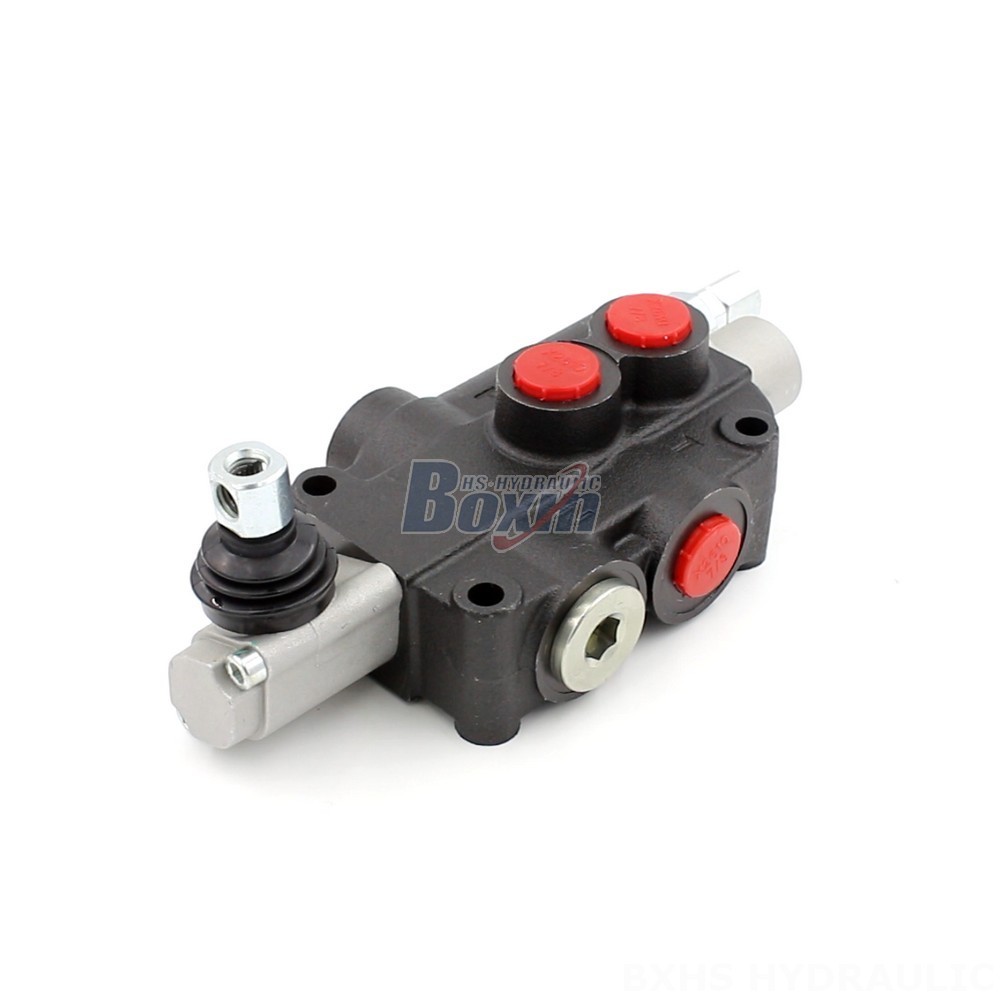

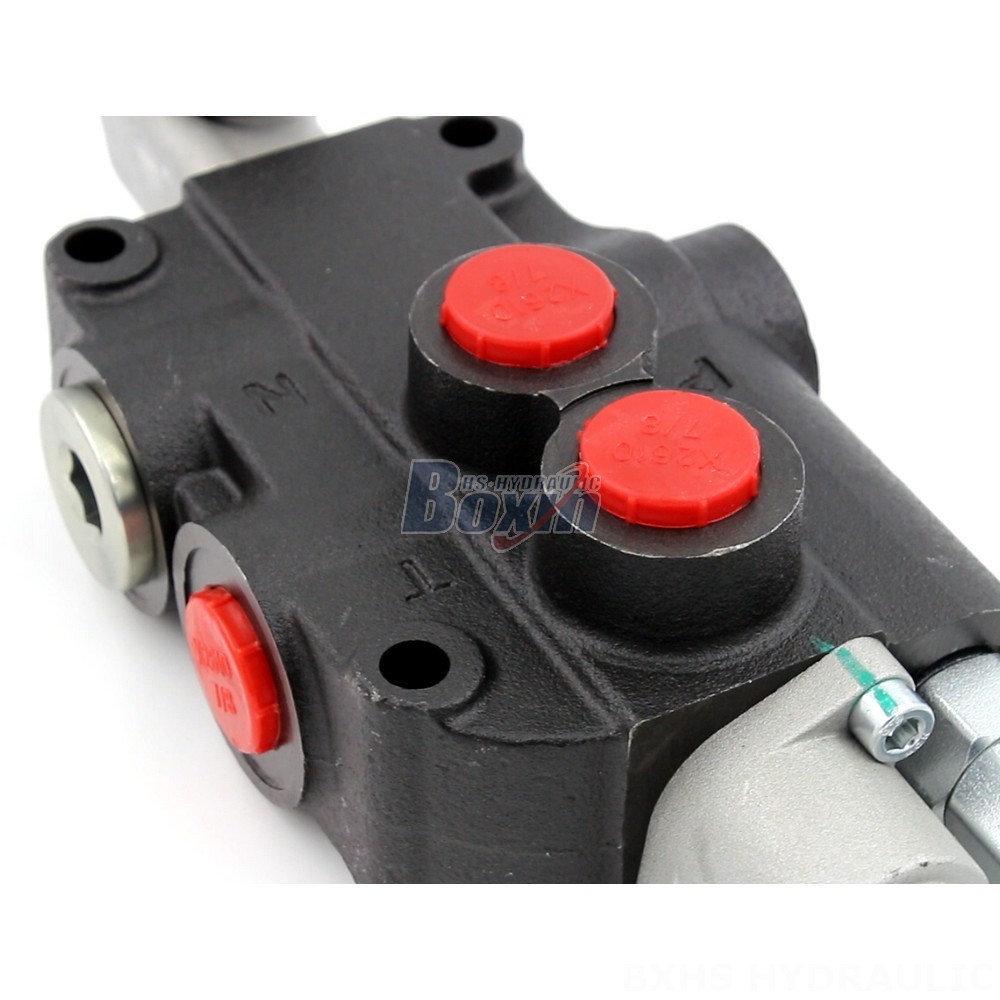

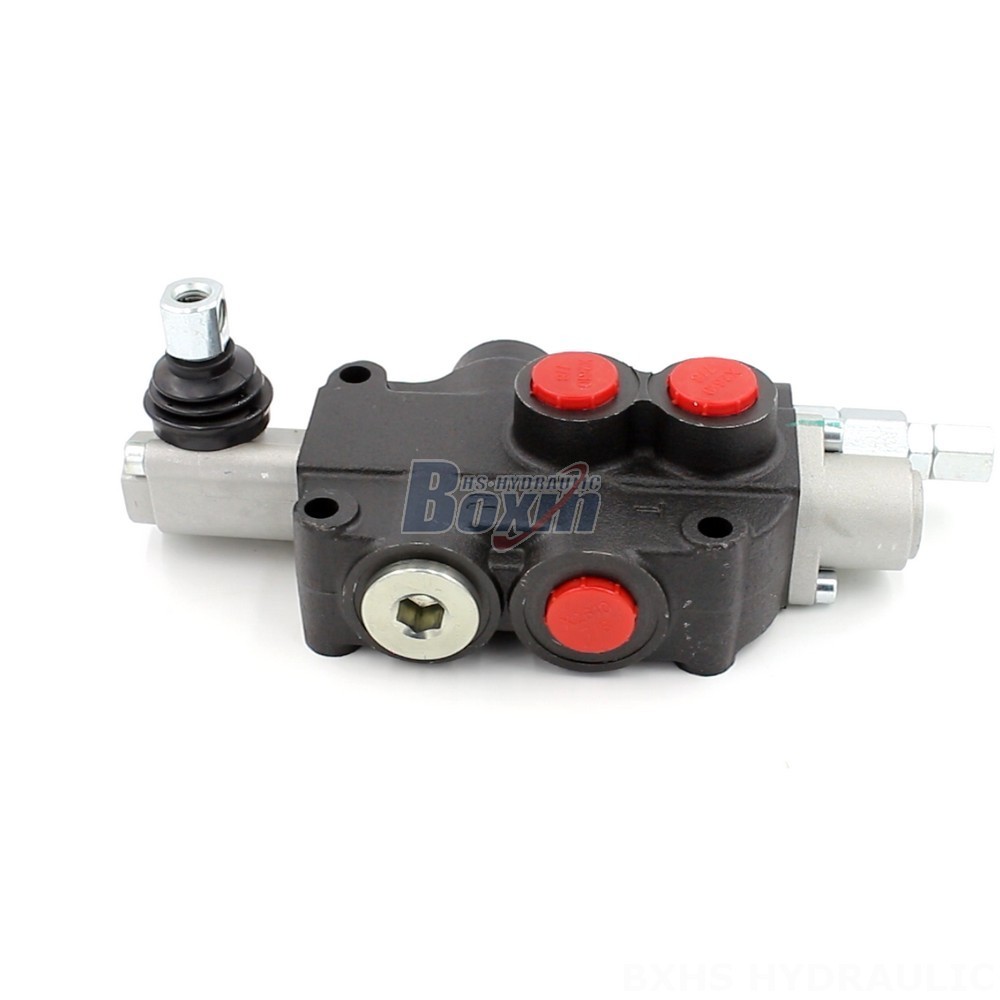

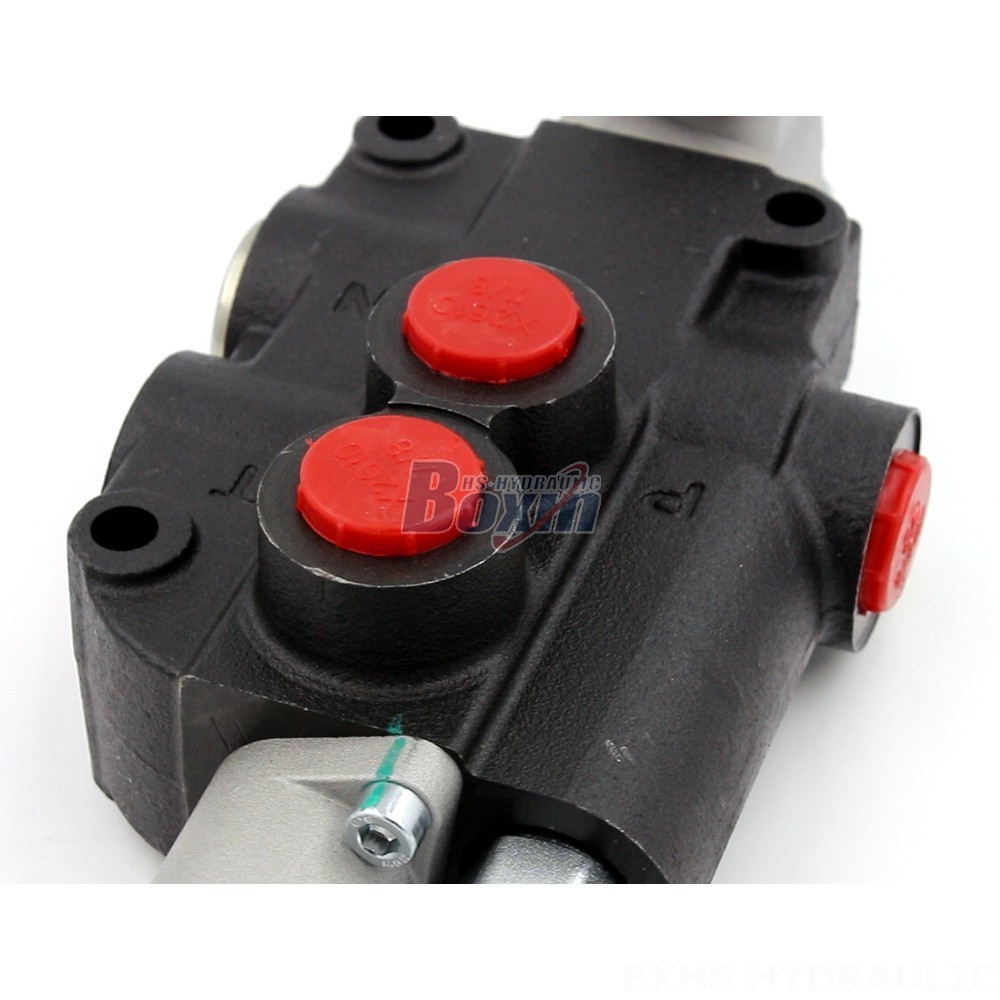

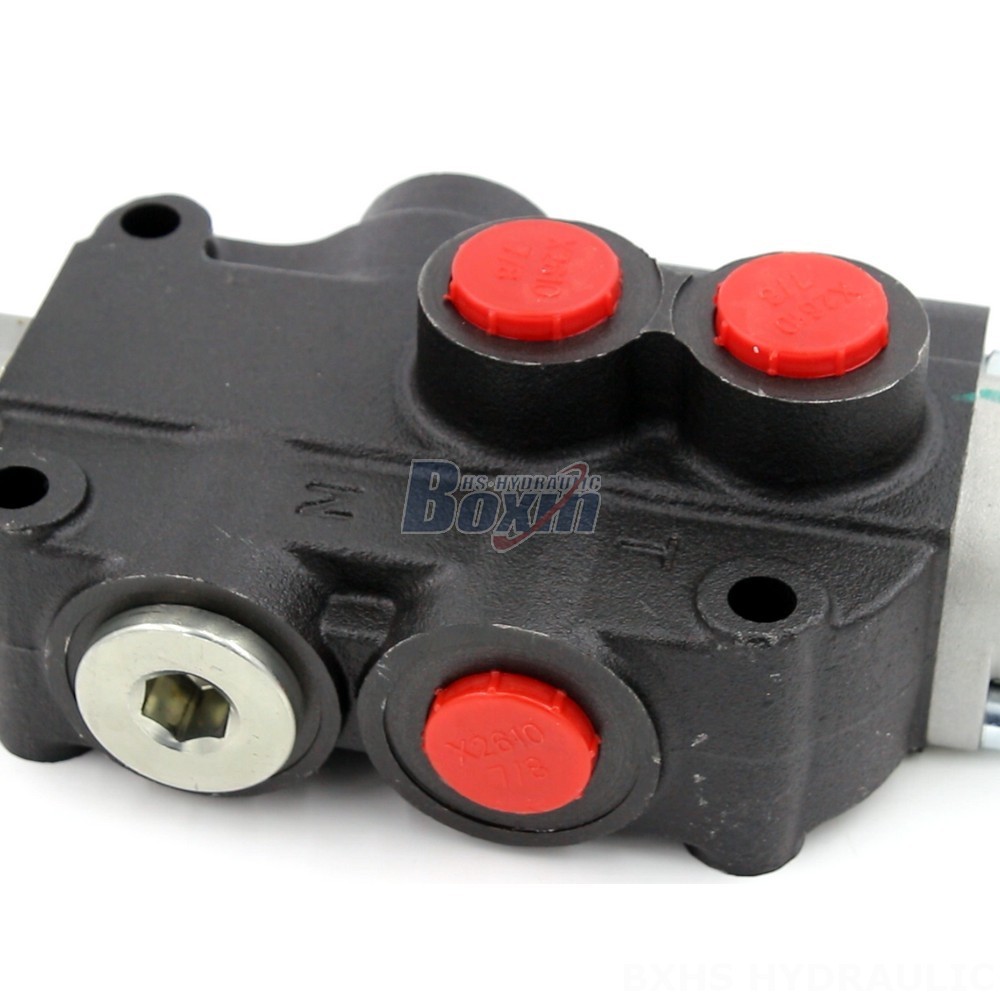

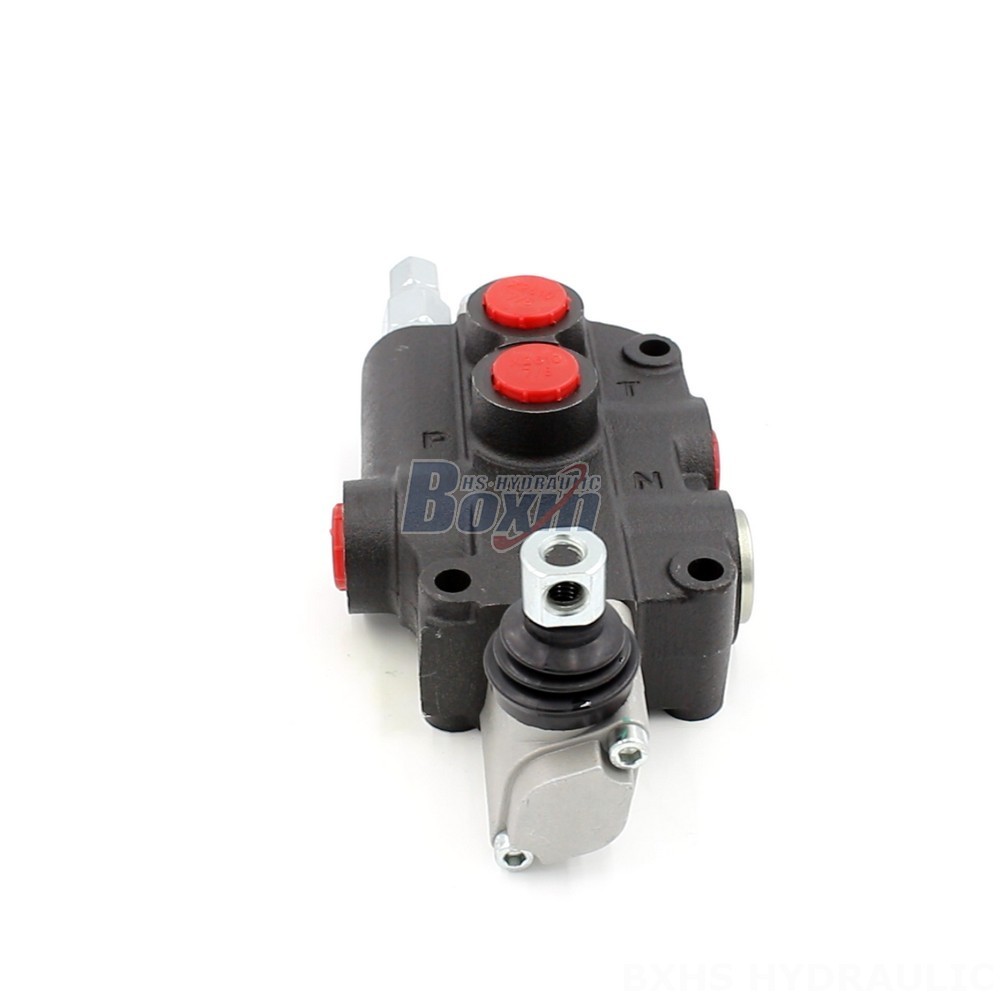

P80-U78-OT hydraulic directional valve is a high-performance valve designed for material handling applications, particularly in forklifts. It is a monoblock valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. The valve operates within a viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. It is a 1-spool, 1-section valve that is part of the P80 series.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-U78-OT hydraulic directional valve is a reliable and efficient choice for demanding material handling operations. Its compact design and robust construction make it suitable for harsh environments. The valve is manufactured to the highest quality standards and undergoes rigorous testing to ensure its performance and durability. This valve is available for factory direct supply and global distribution, making it easily accessible to customers worldwide.
