Manual 5 Spool Monoblock Directional Valve, part of the P80 series, is ideally suited for various industries including material handling, construction, and agriculture. With a rated flow of 80 l/min and a max pressure of 250 bar, it ensures efficient and reliable operation in demanding applications.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

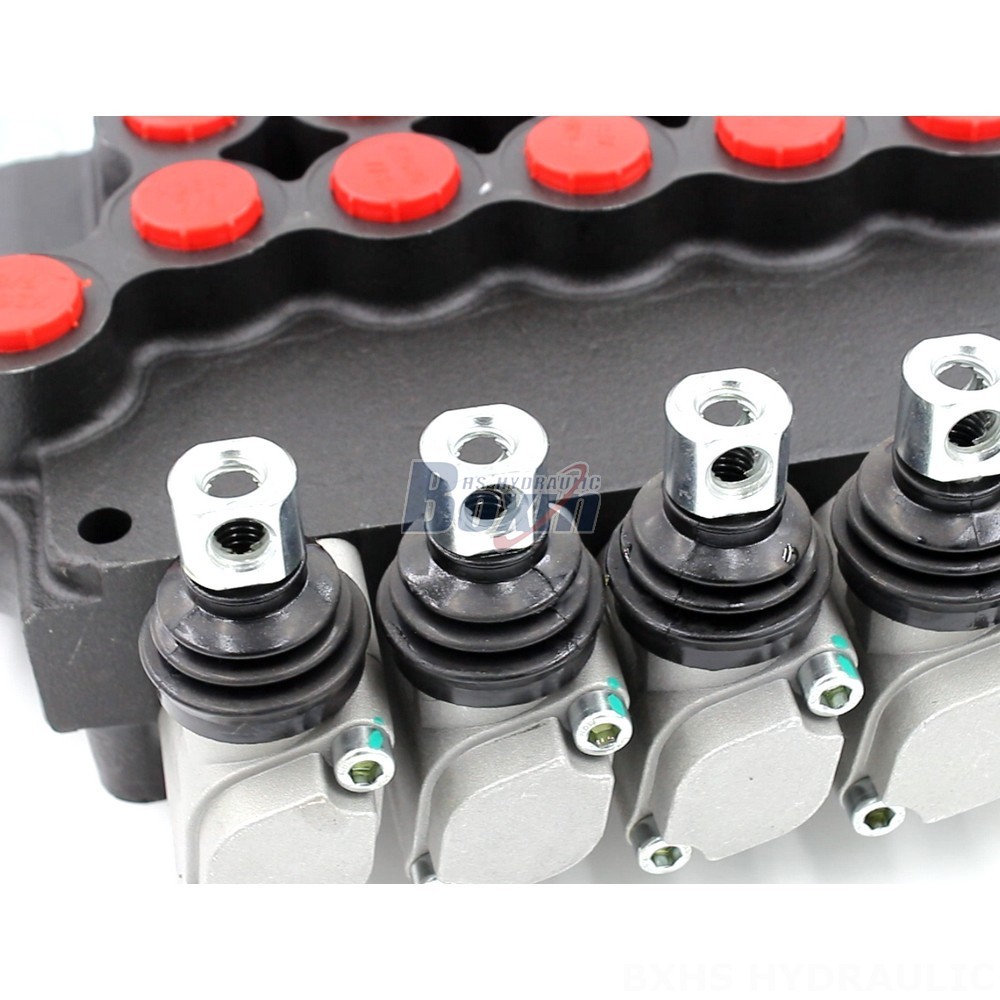

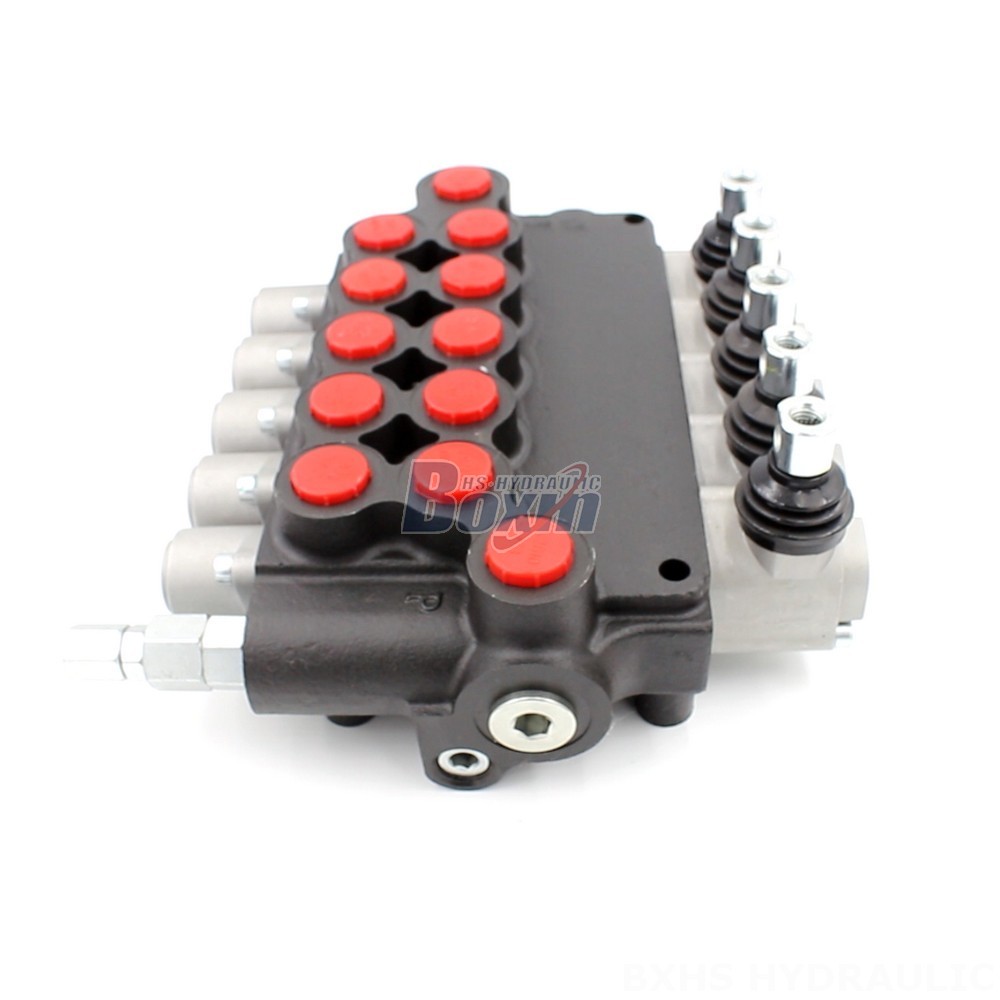

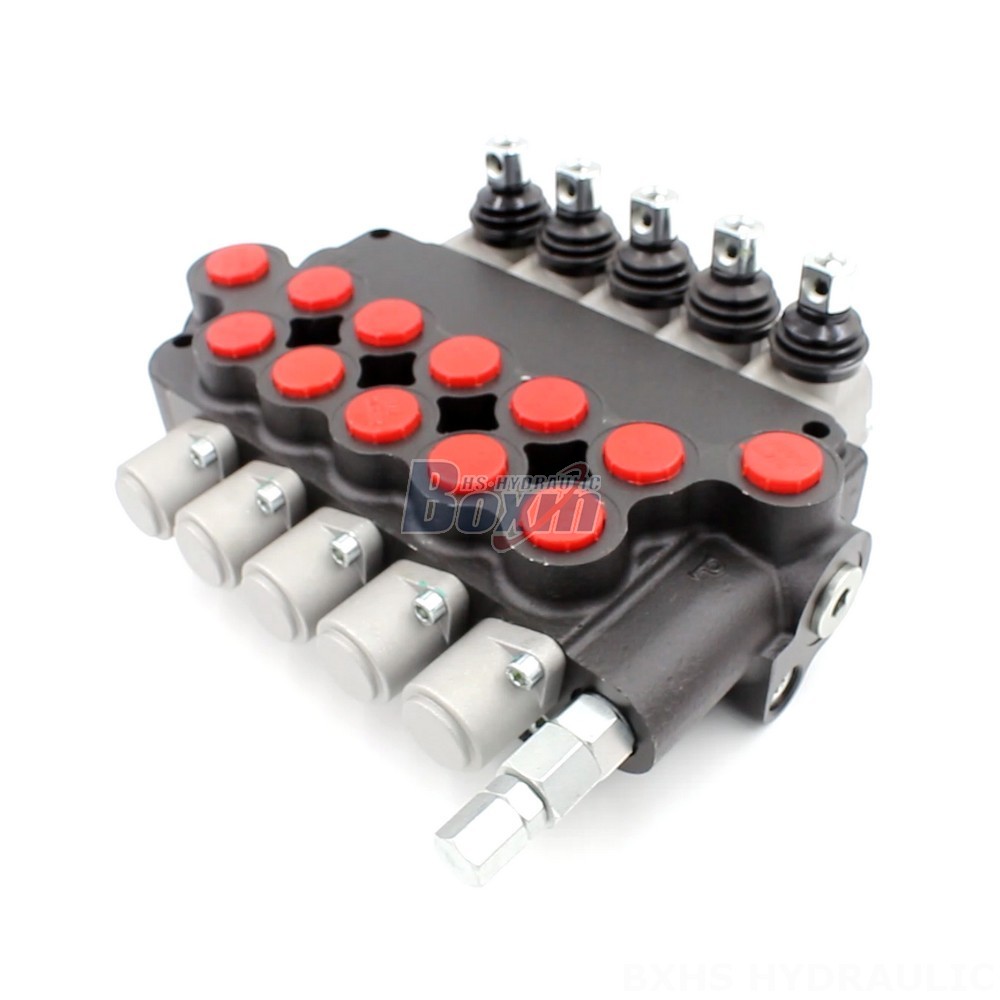

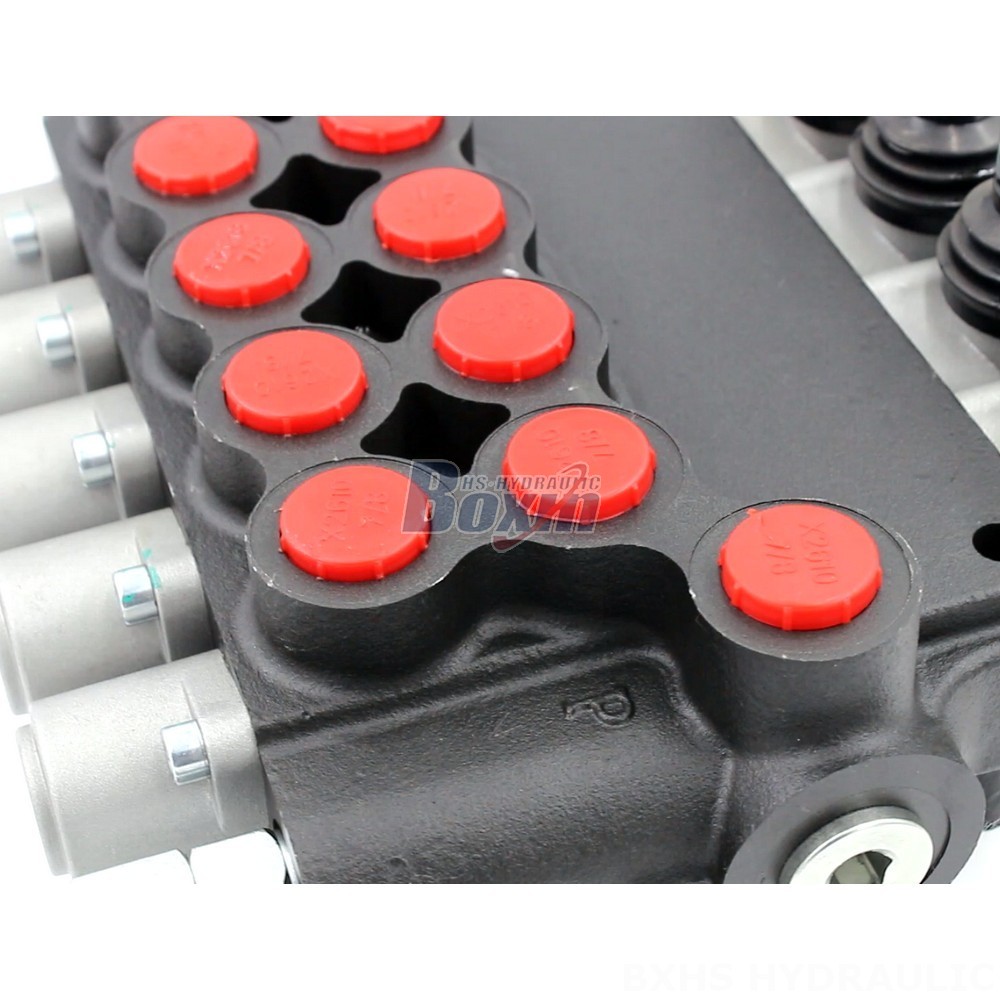

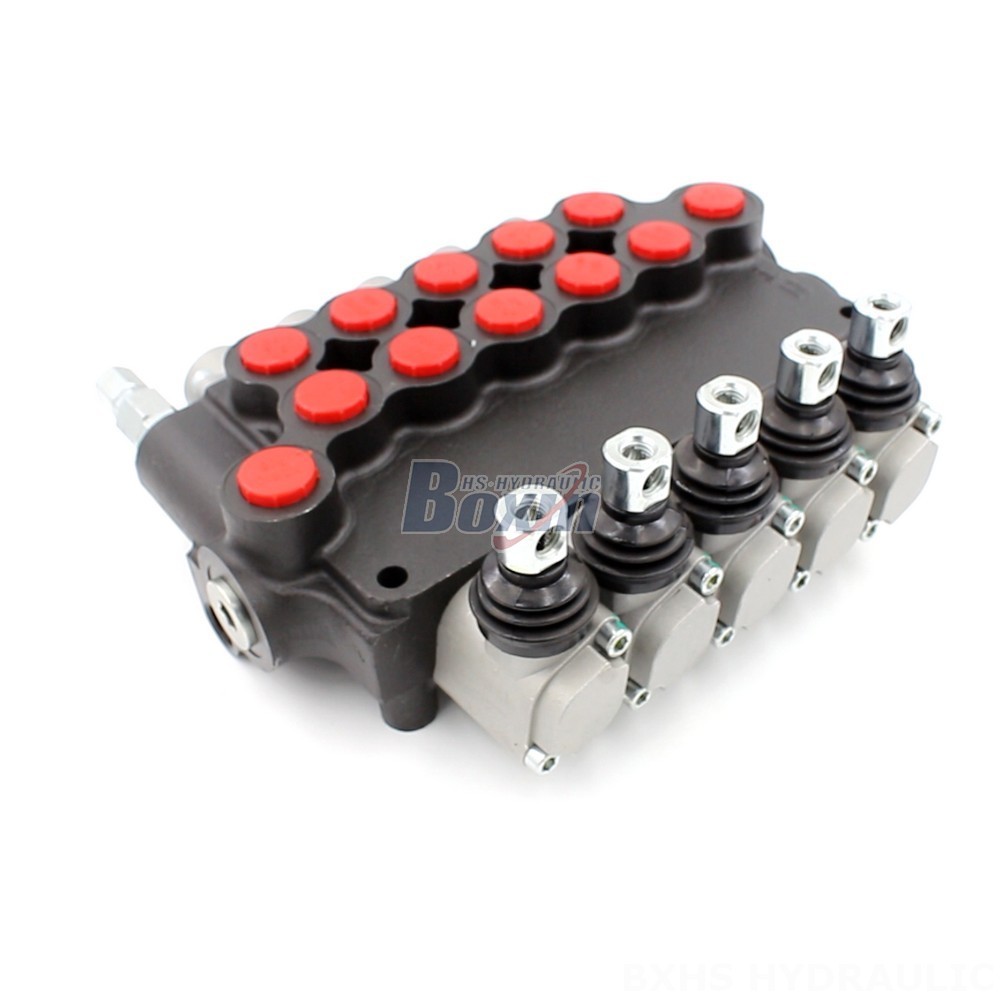

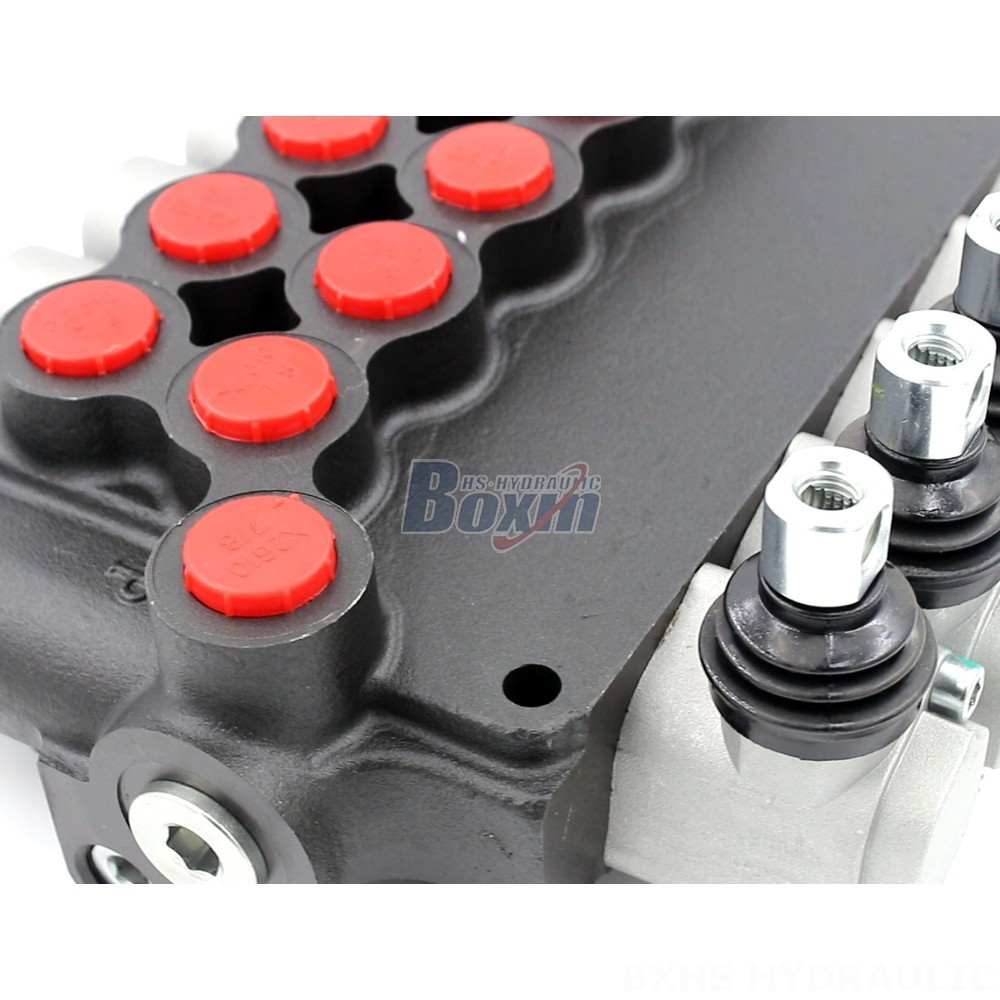

**P80-U116-U78-OT Manual 5 Spool Monoblock Directional Valve**
This valve features a manual control method and a monoblock structure, providing high durability and ease of maintenance. It boasts a 5 section design, enabling precise control of multiple hydraulic functions simultaneously. The valve's operating viscosity range (15 - 75 mm²/s) and ambient temperature range (-40°C to +80°C) ensure optimal performance in diverse operating conditions.
**Key Features:**
- Manual control method for precise operation
- Monoblock design for enhanced durability and compactness
- 5 spool configuration for versatile hydraulic control
- Rated flow of 80 l/min for efficient hydraulic system operation
- Max pressure of 250 bar for demanding applications
- Wide operating viscosity range (15 - 75 mm²/s) for adaptability to various hydraulic fluids
- Extended ambient temperature range (-40°C to +80°C) for reliable performance in harsh environments
**Applications:**
This valve finds application in a wide range of industries, including:
- Material handling: forklifts, telehandlers, stackers
- Construction and earth moving: excavators, wheel loaders, motor graders
- Agriculture: tractors, harvesters, sprayers
- Industrial vehicles: aerial platforms, sweepers, scrubbers
