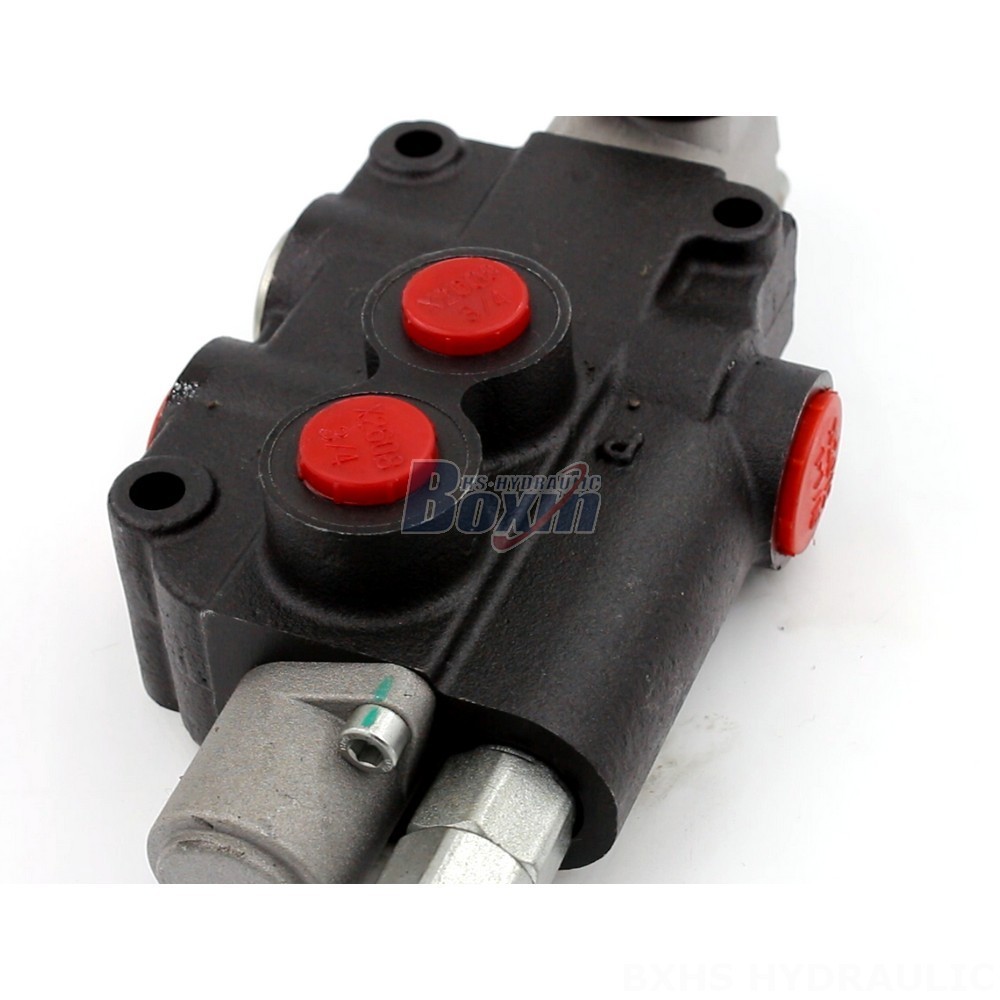

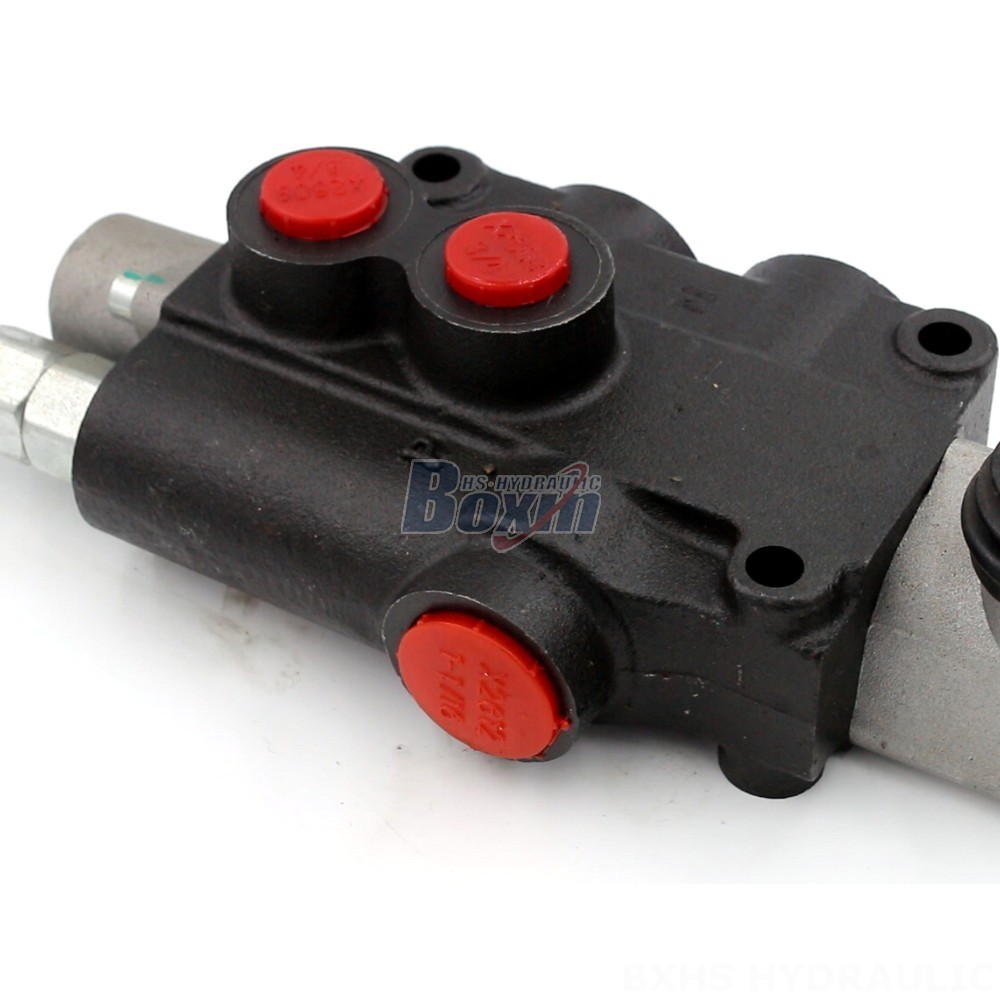

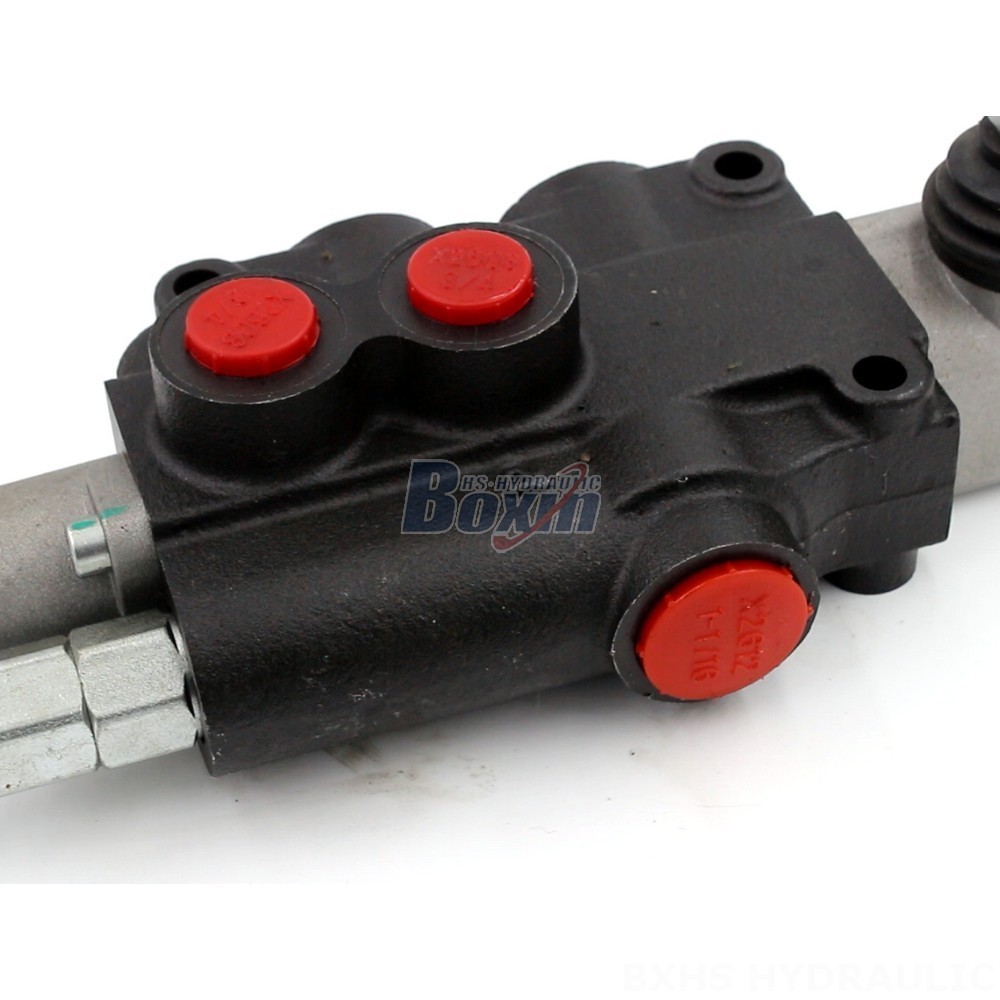

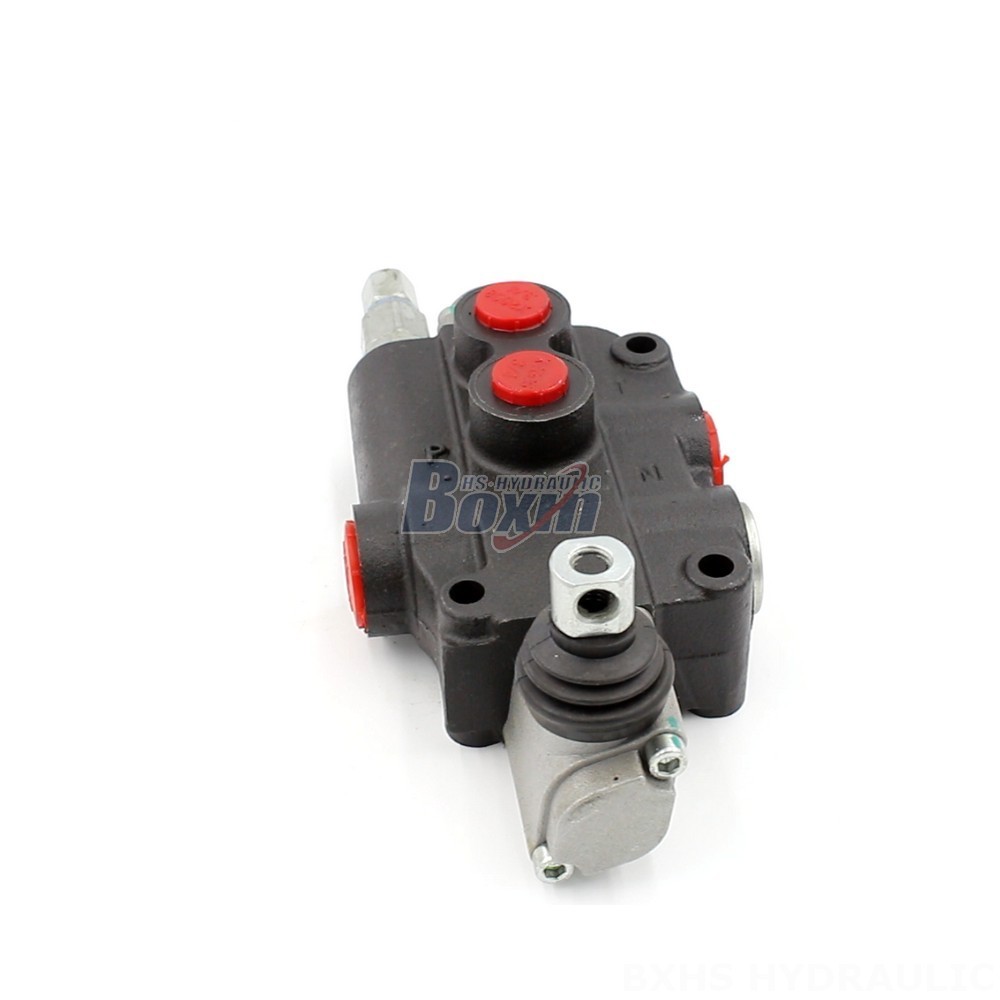

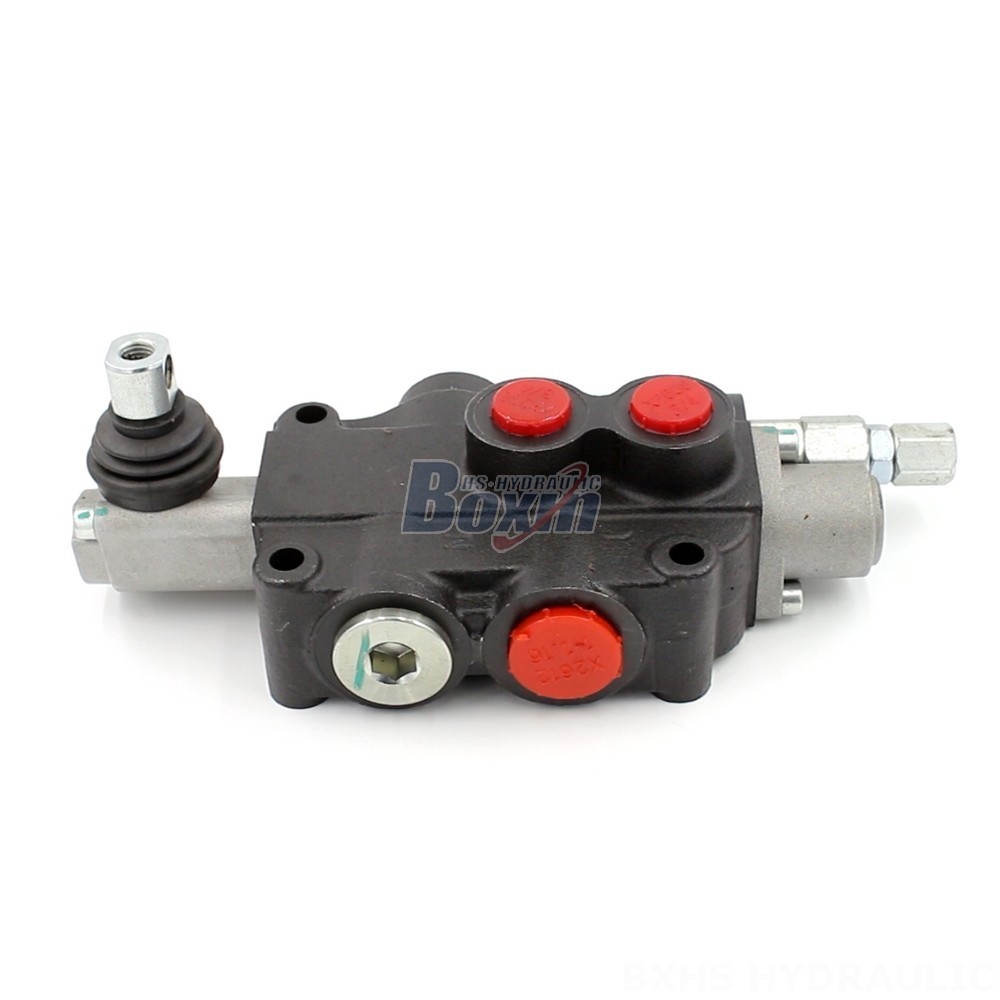

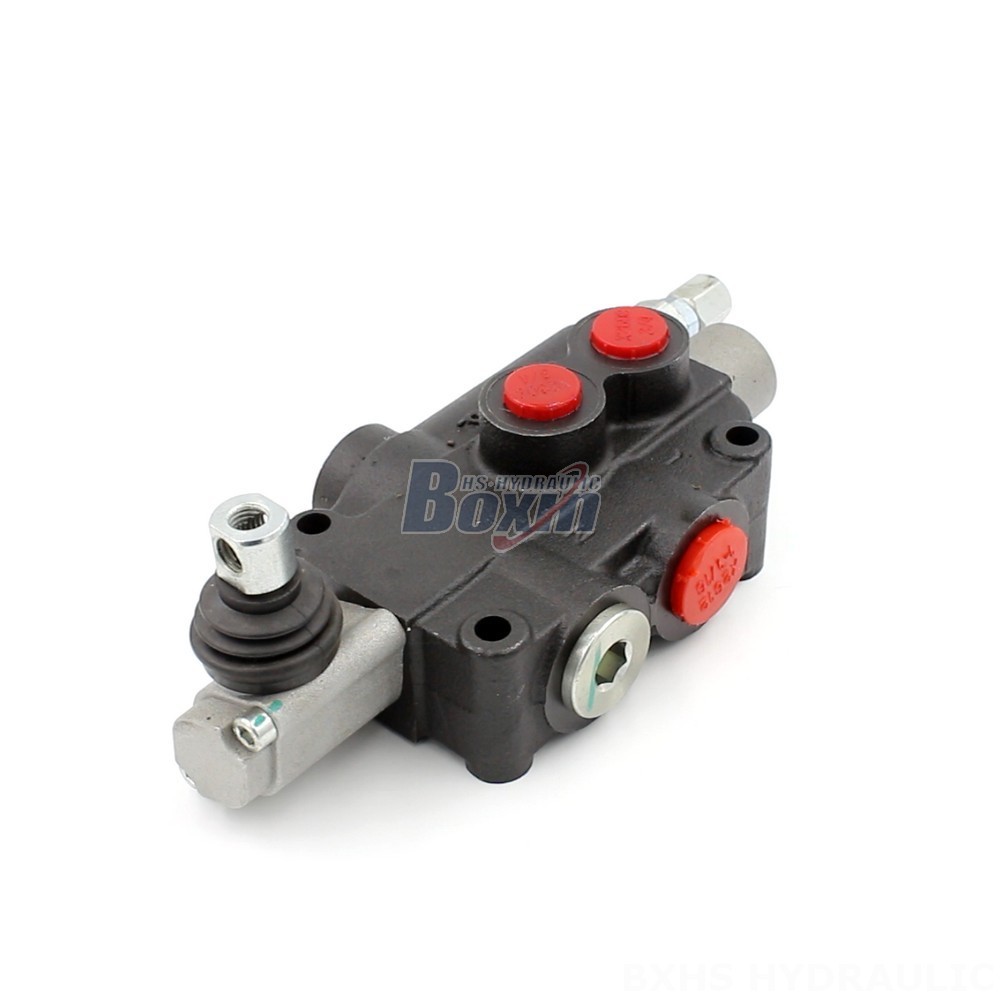

The P80-U116-U78 Hydraulic Valve is a monoblock valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. It is suitable for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-U116-U78 Hydraulic Valve is a manually controlled, 1-section, monoblock valve. It has a rated flow of 80 L/min and a maximum pressure of 250 bar. The valve's operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and its ambient temperature range is -40°C to +80°C (-40°F to +176°F). The valve has 1 spool and is part of the P80 Series. It is suitable for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. Some specific examples of applicable models include telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
