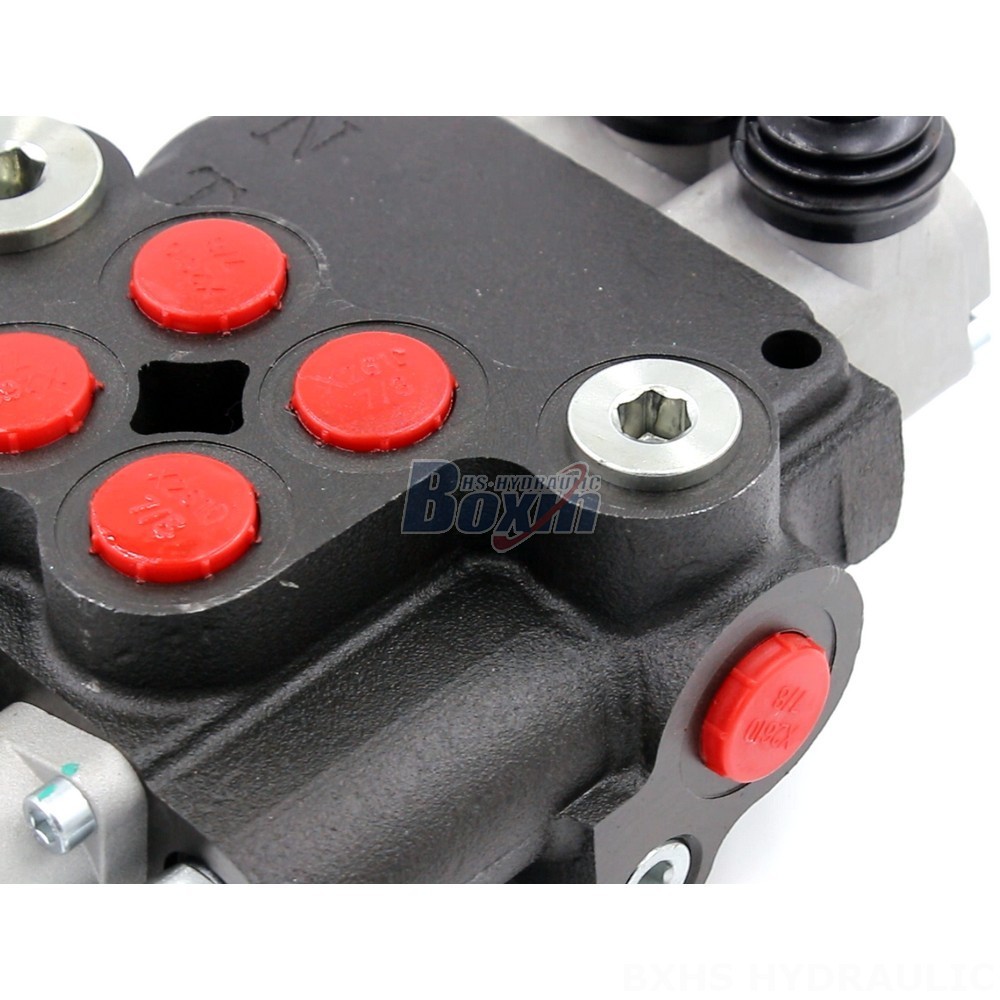

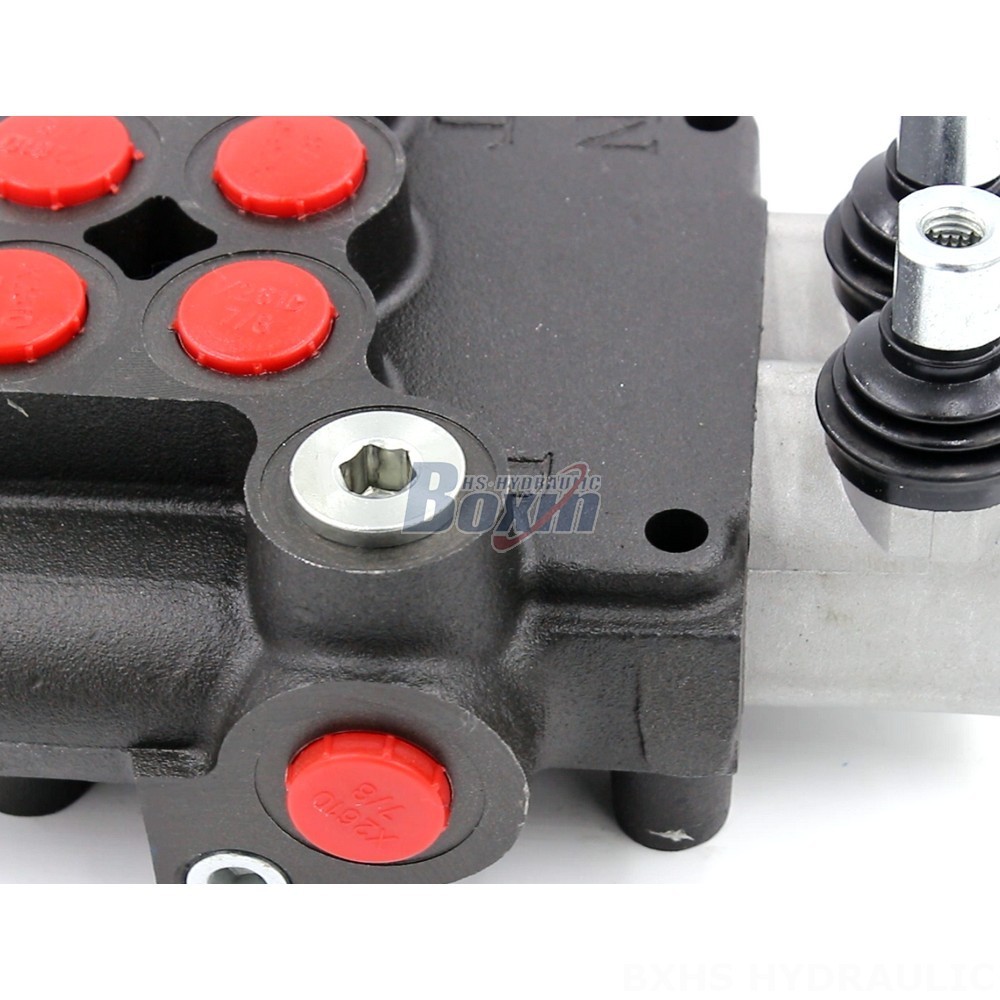

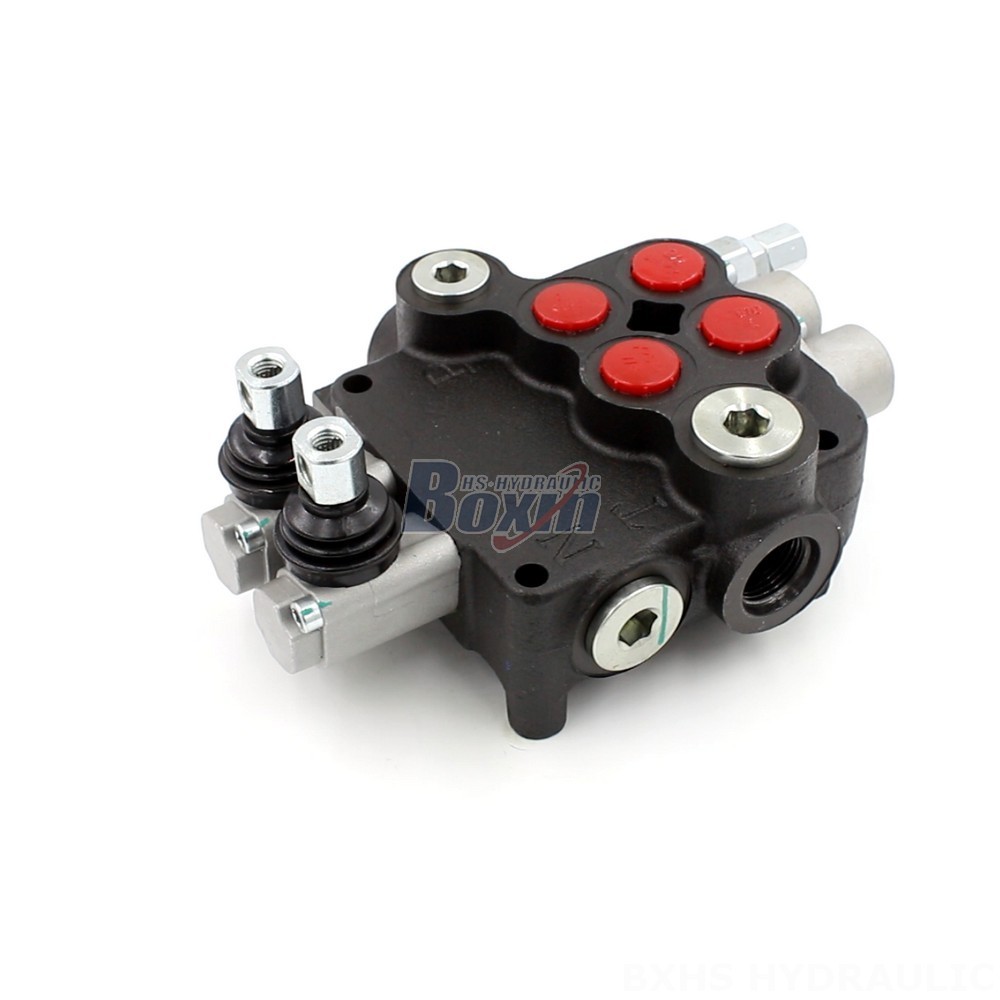

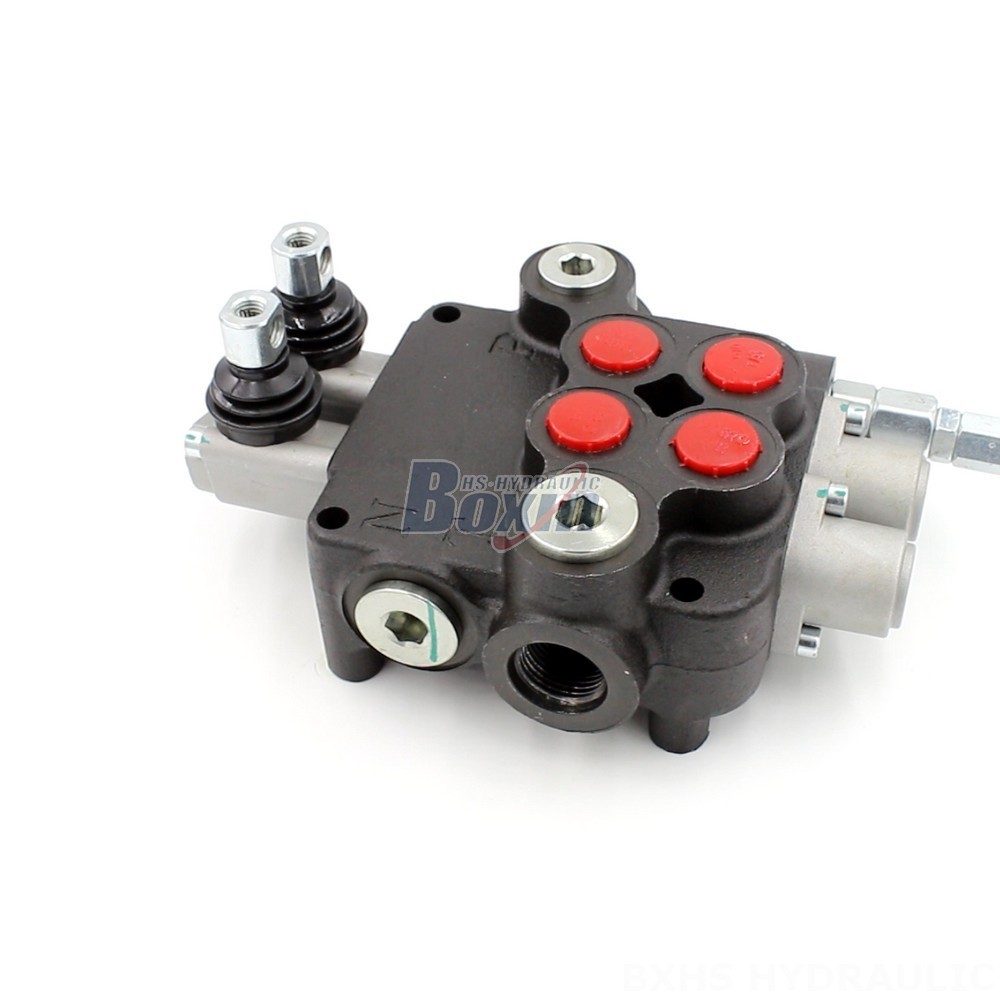

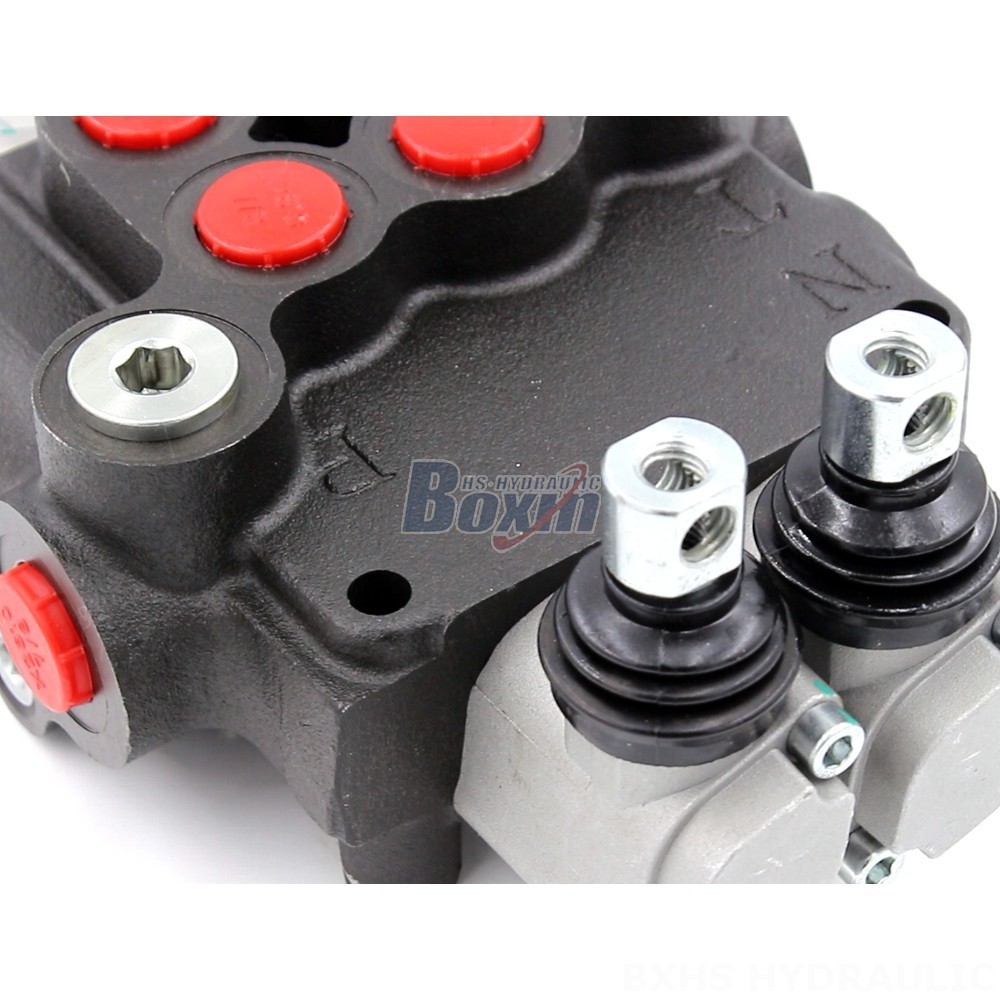

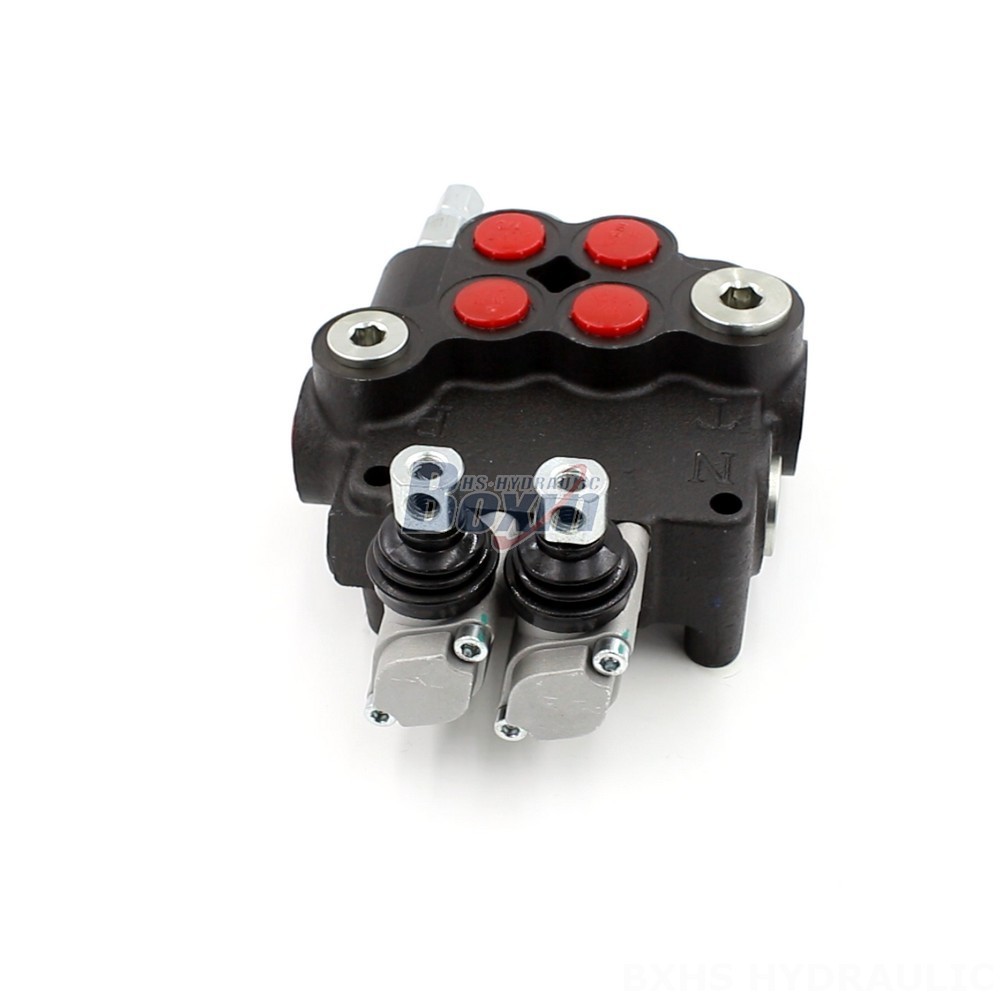

P80-U116-U78-2OT Hydraulic Valve: Private Label & Bespoke Production

Método de control:Manual

Carrete:2 carretes

Flujo Nominal:80 l/min (21,2 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:SAE 10

Puerto de Salida:SAE 12

Tamaño de Puerto:SAE 10

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P80 Válvula Direccional Monobloque

Tamaño del embalaje:26*18*11

Peso bruto:8.00 kg

Disponibilidad: En stock

970 personas están viendo este producto

P80-U116-U78-2OT Hydraulic Valve: Private Label & Bespoke Production

P80-U116-U78-2OT Hydraulic Valve: Private Label & Bespoke Production

P80-U116-U78-2OT Hydraulic Valve: Private Label & Bespoke Production drawing image

The P80 Series Pressure Reducing Valve is a high-performance hydraulic valve designed for use in a variety of applications, including construction equipment, material handling, agriculture, and industrial vehicles. It features a manual control, monoblock construction, and a rated flow of 80 L/min (21.2 US gpm). The valve is also available with private label and bespoke production options.

Serie P80 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 80 l/min (21,2 gal EE. UU./min)
Presión Máxima 315 bar (4600 psi)
Puerto de Entrada G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Puerto de Salida G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Tamaño de Puerto G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80-U116-U78-2OT Hydraulic Valve is a pressure reducing valve designed for precise control of hydraulic pressure in a variety of applications. This manual control valve features a compact monoblock construction and a rated flow of 80 L/min (21.2 US gpm). It is designed to withstand a maximum pressure of 250 bar (3600 psi) and operates within a viscosity range of 15-75 mm²/s (15 cSt to 75 cSt). The valve is suitable for a wide range of ambient temperatures, from -40°C to +80°C (-40°F to +176°F). The P80 Series valve is ideal for use in construction equipment, material handling, agriculture, and industrial vehicles. Specifically, it is compatible with telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and other similar machines. This valve offers private label and bespoke production options, allowing customization to meet specific requirements. This makes it an excellent choice for manufacturers seeking to differentiate their products and provide tailored solutions to their customers.
