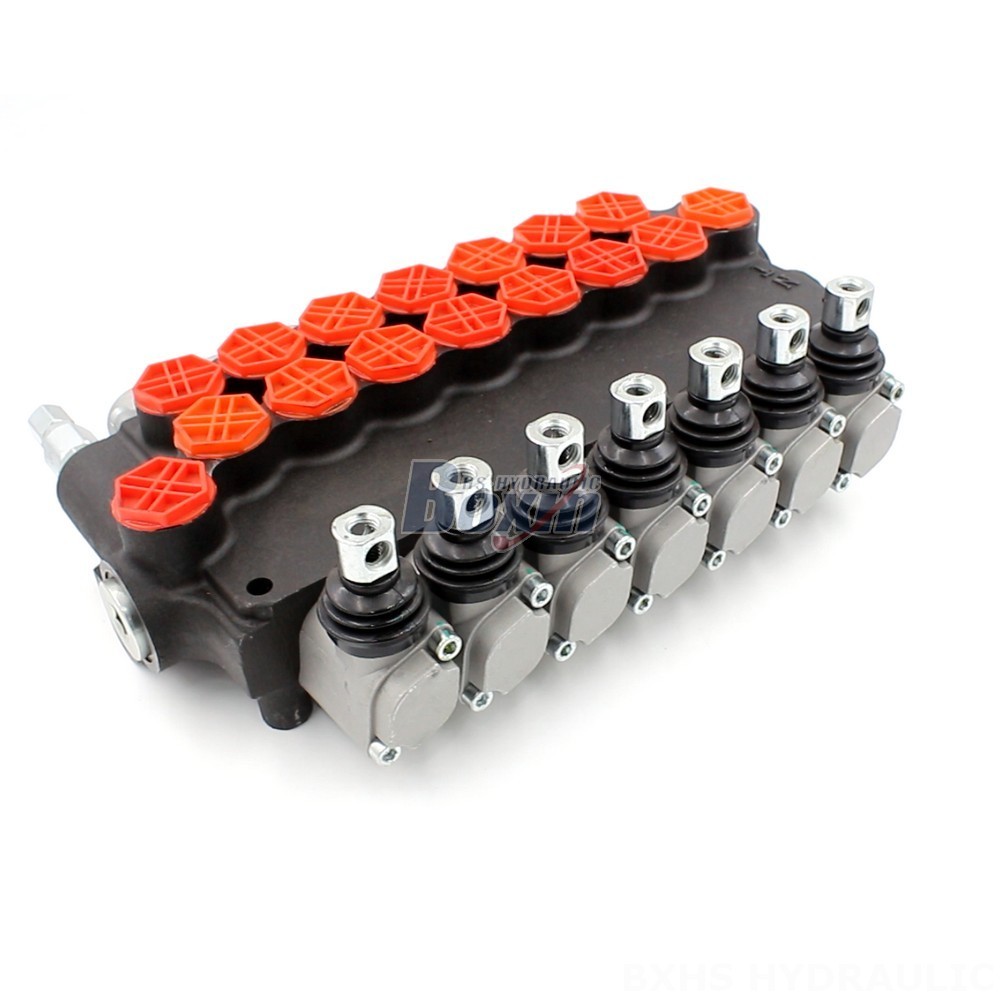

The P80-G34-OT Hydraulic Directional Valve is a high-performance, 7-section monoblock valve designed for a wide range of construction and industrial applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it is ideal for demanding tasks.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This P80 Series hydraulic directional valve features a manual control method and is built for durability and reliability. It is suitable for various applications including material handling, construction and earthmoving, agriculture, and industrial vehicles. The valve is designed for use with telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve offers exceptional performance and efficiency. The operating viscosity range of 15 - 75 mm²/s and the ambient temperature range of -40°C to +80°C ensure reliable operation in diverse environments.
