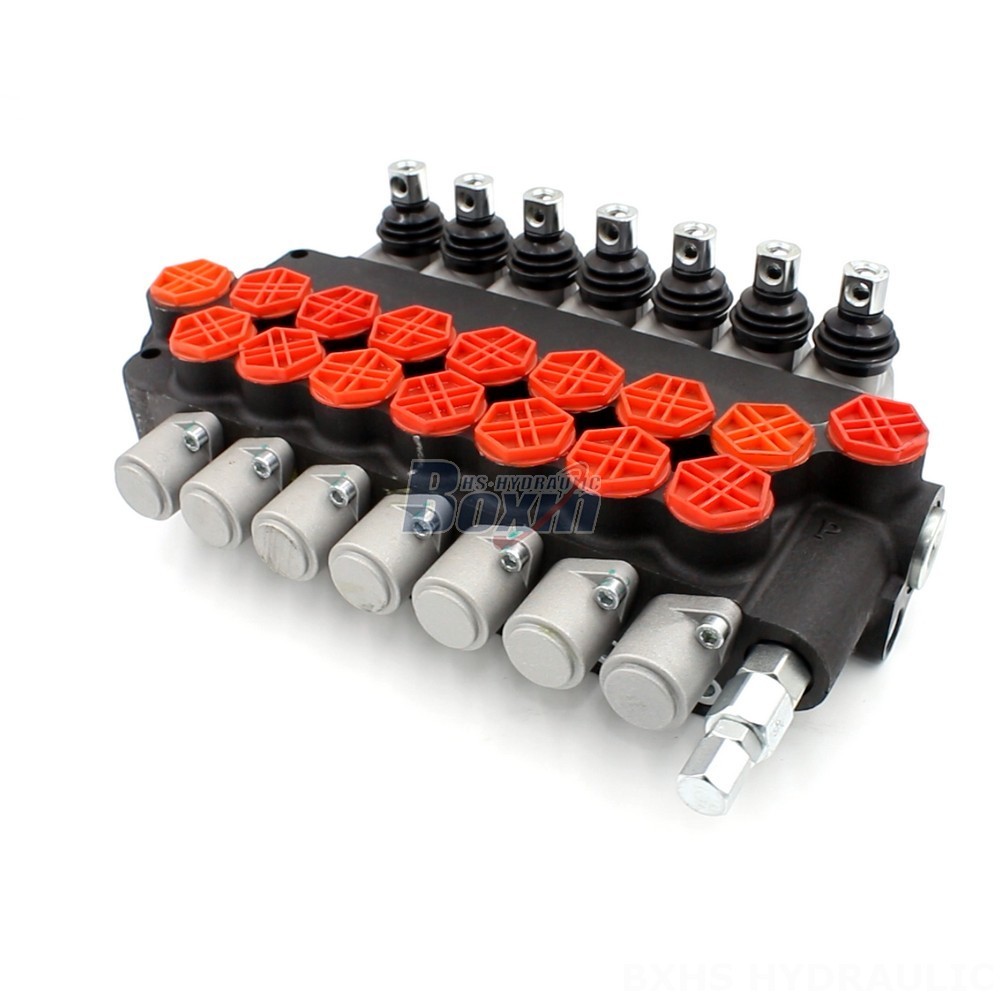

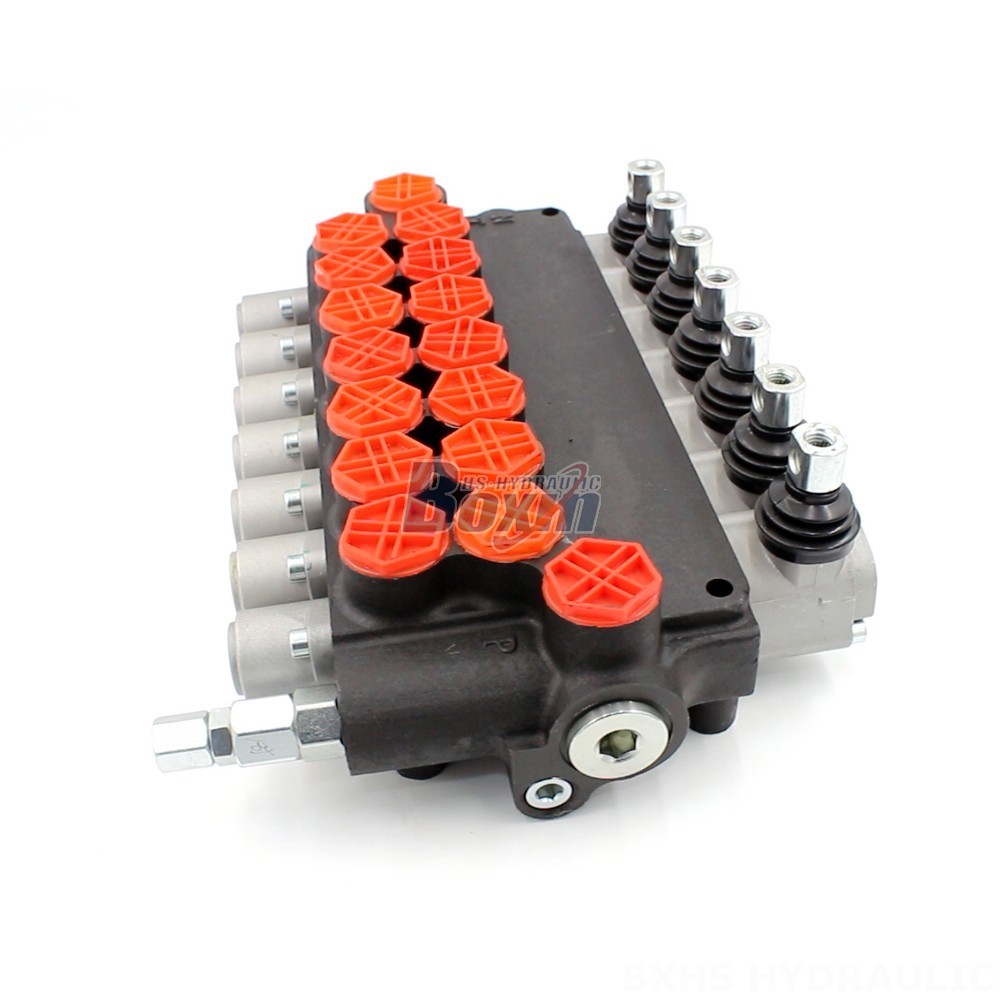

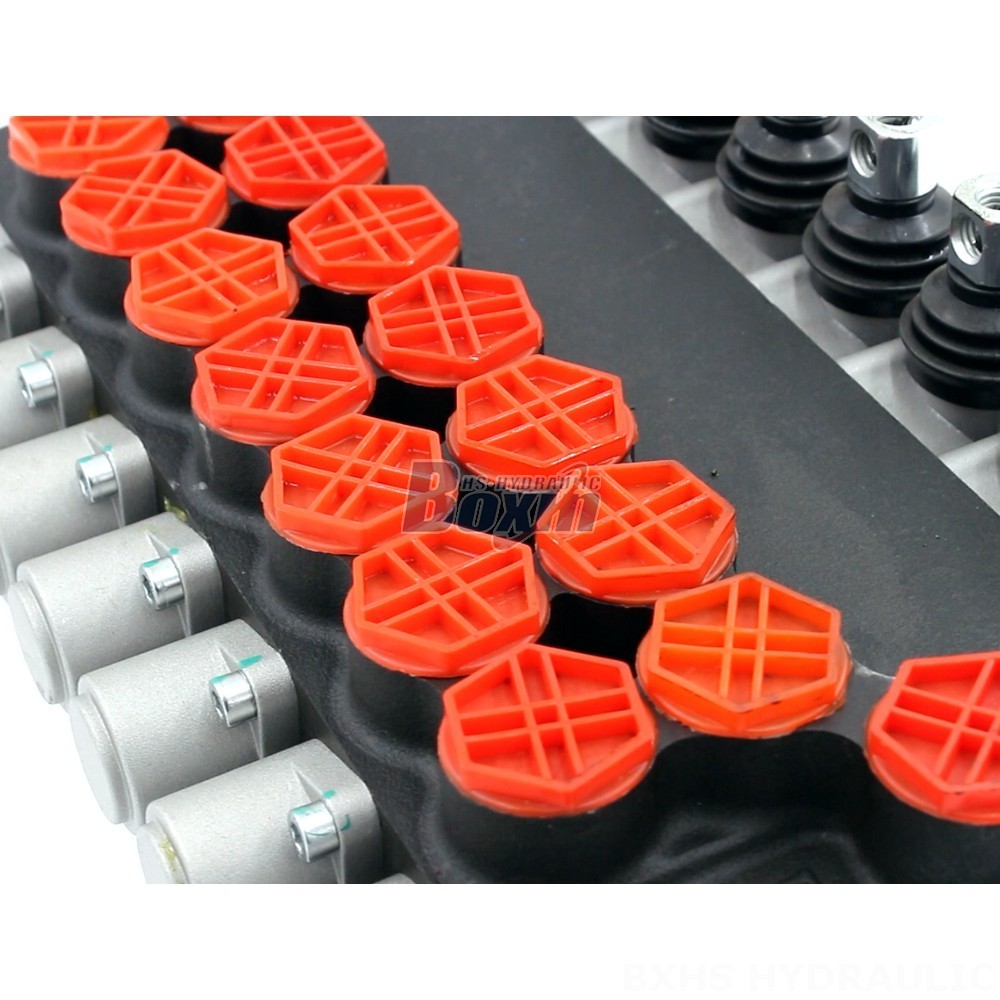

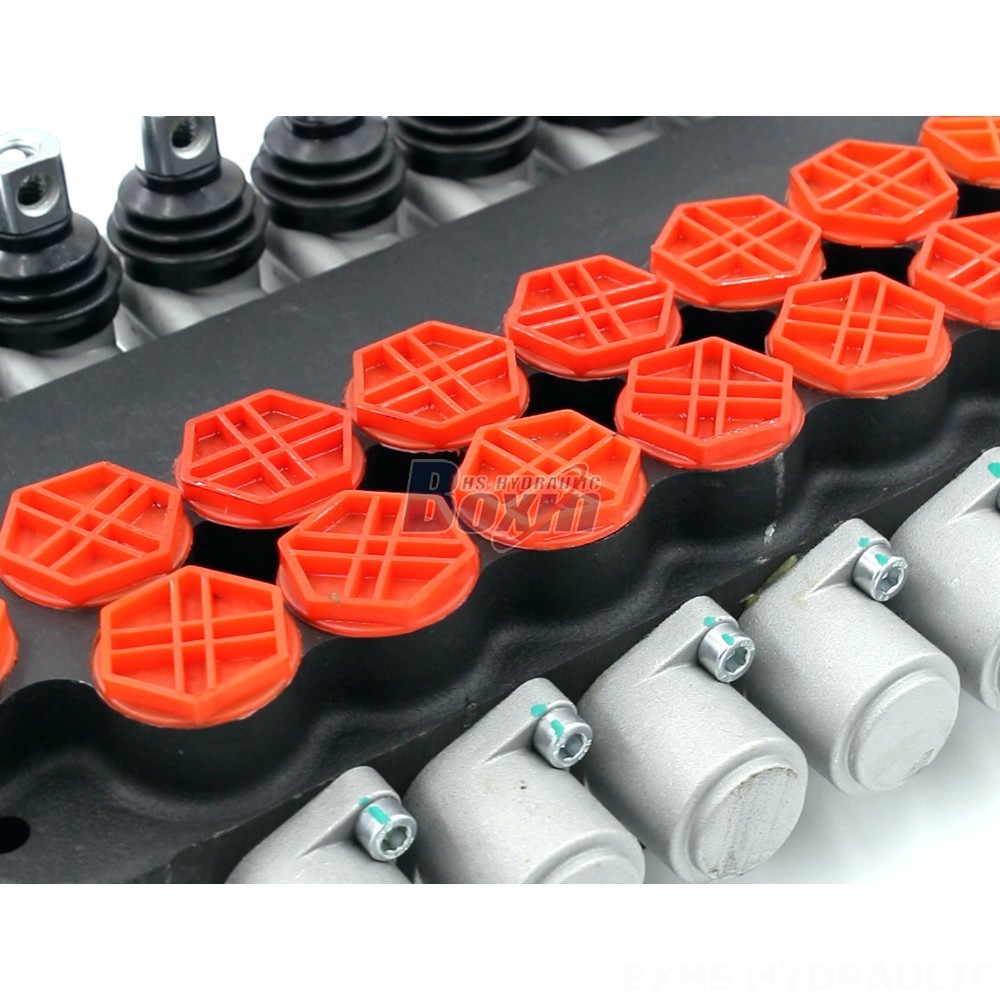

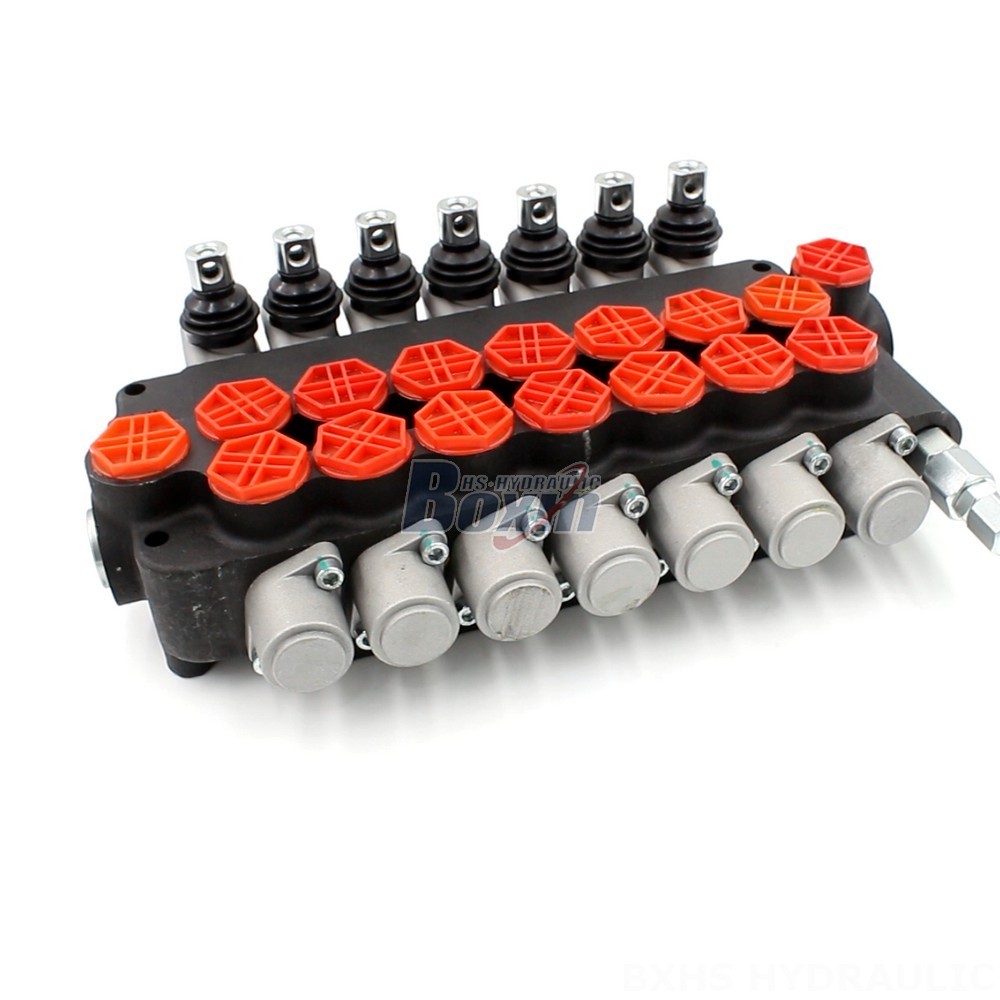

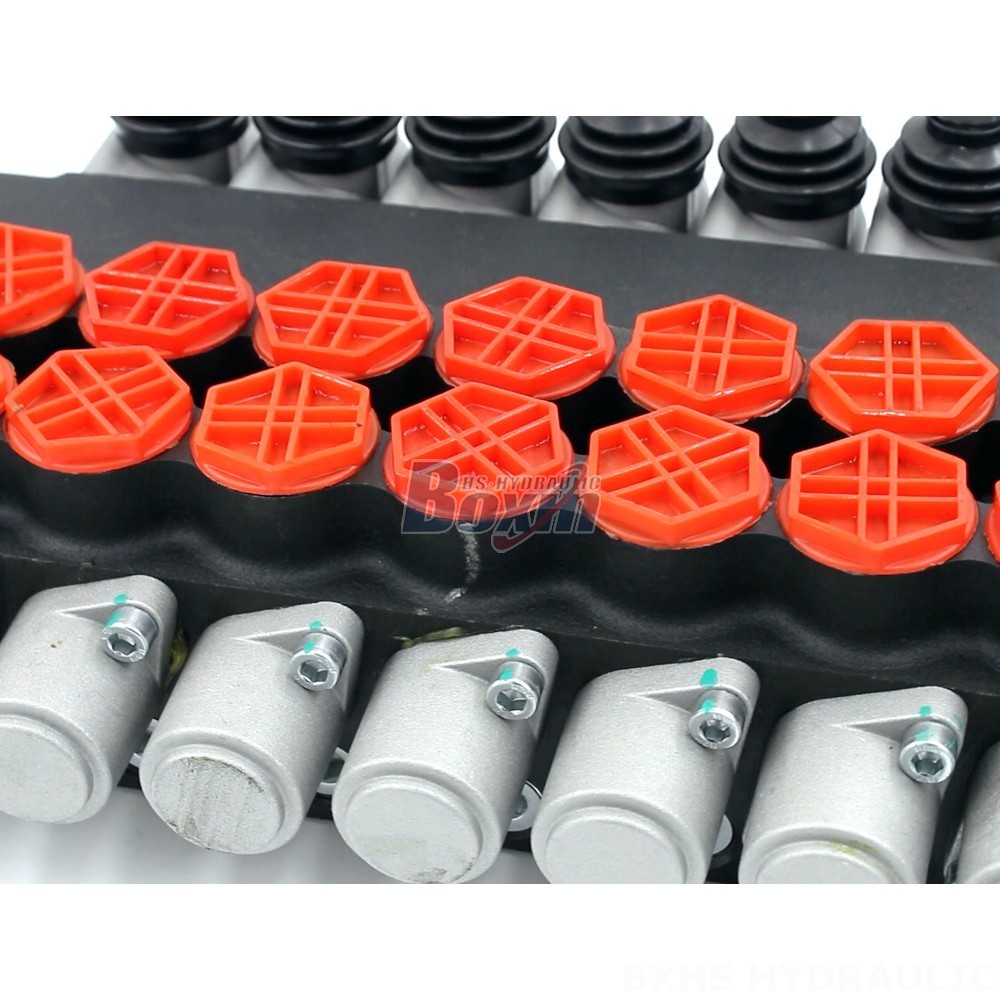

The P80-G34-OT Directional Valve is a high-performance hydraulic lock valve designed for cranes, offering enhanced efficiency and durability. Featuring a monoblock construction and manual control, it provides reliable operation in demanding applications.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-G34-OT Directional Valve is a 7-section monoblock valve designed for use in a variety of heavy equipment applications, including cranes, telehandlers, forklifts, and more. It offers a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for demanding applications. The valve features manual control and a 7-spool design for precise operation. It is designed for use in a wide range of operating conditions, with an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The P80-G34-OT Directional Valve is a reliable and durable solution for your hydraulic system needs.
