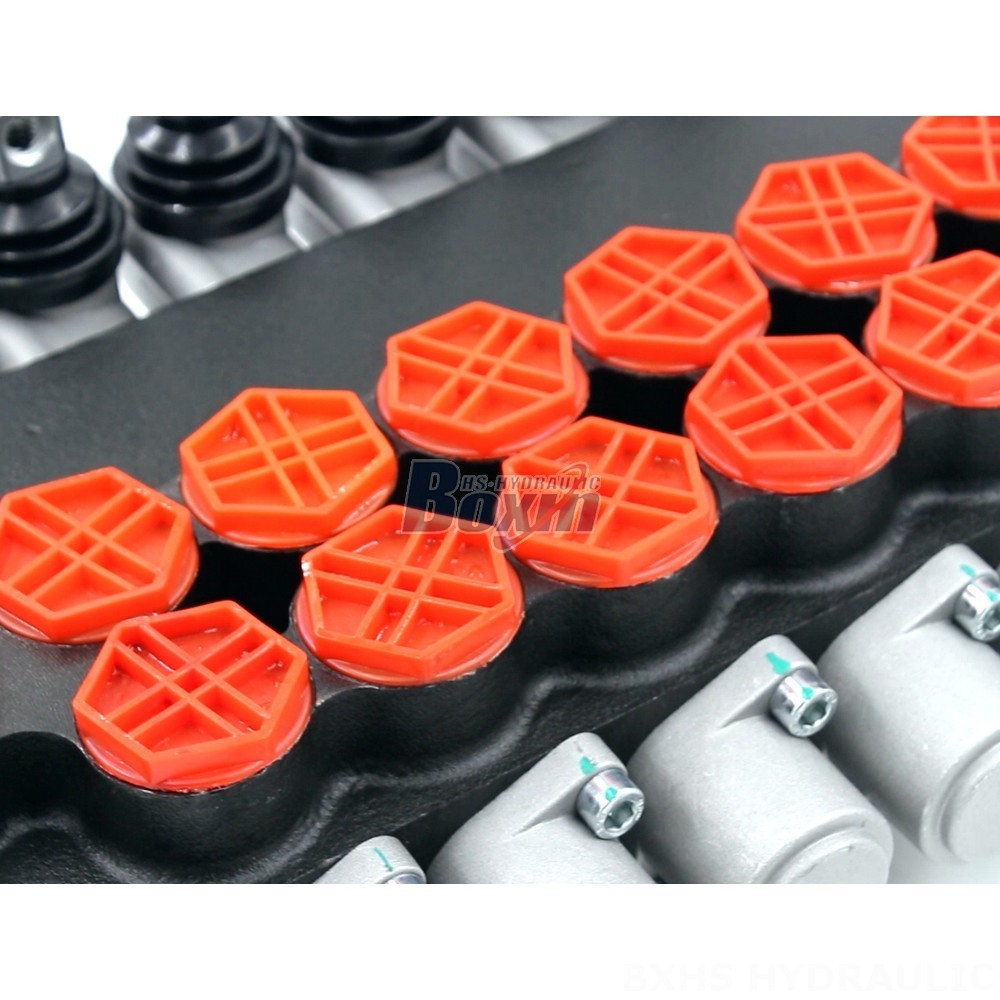

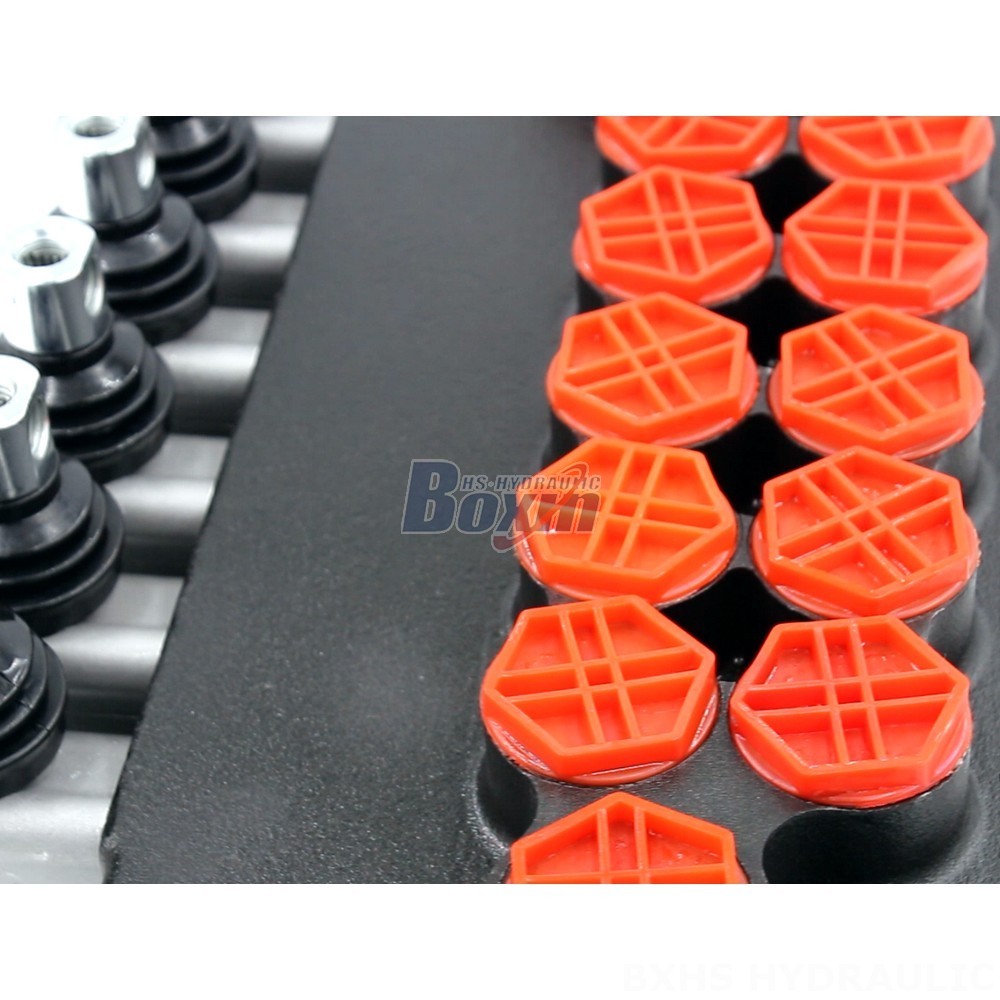

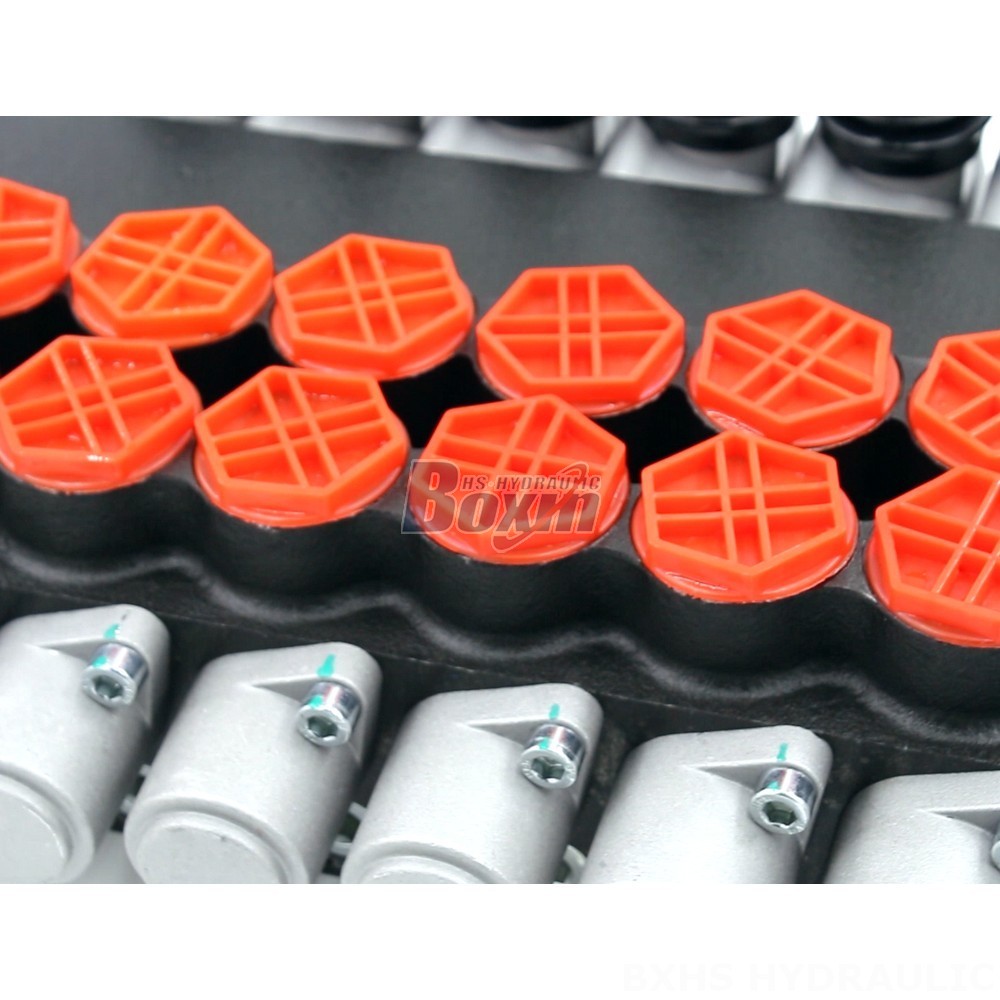

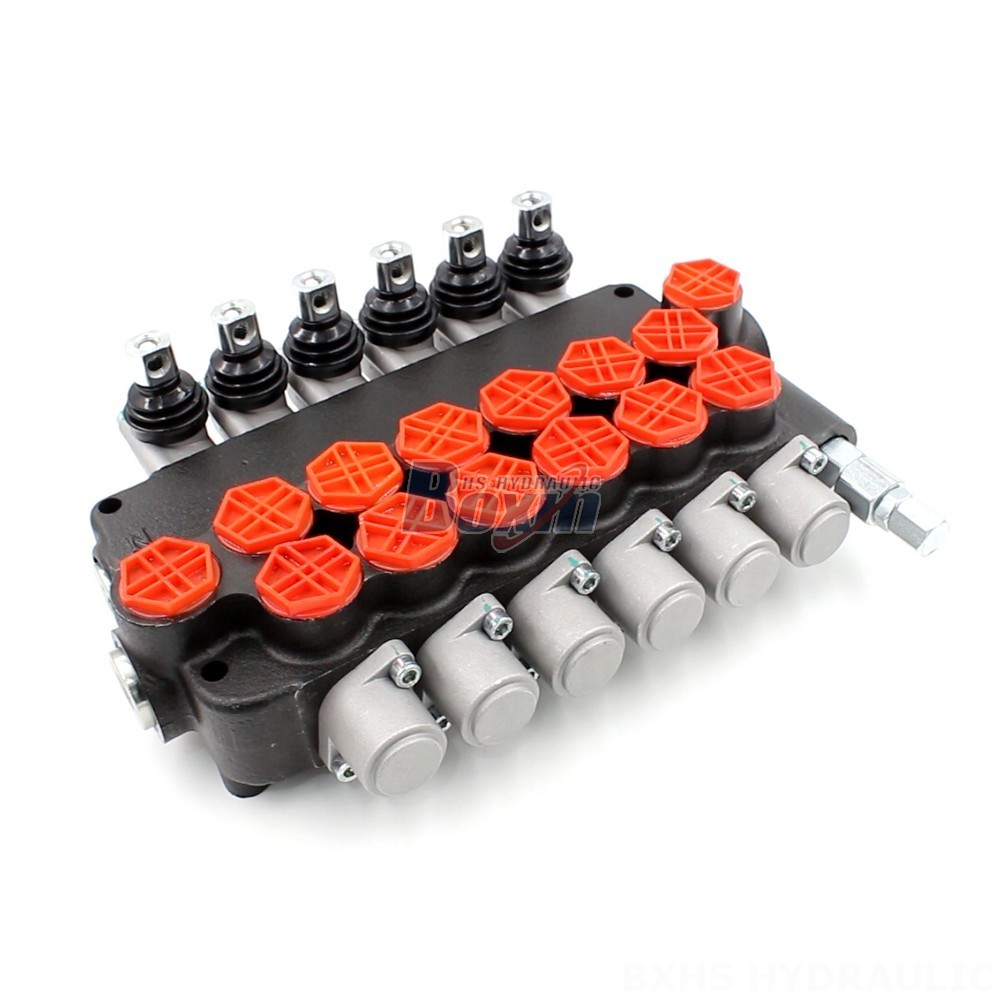

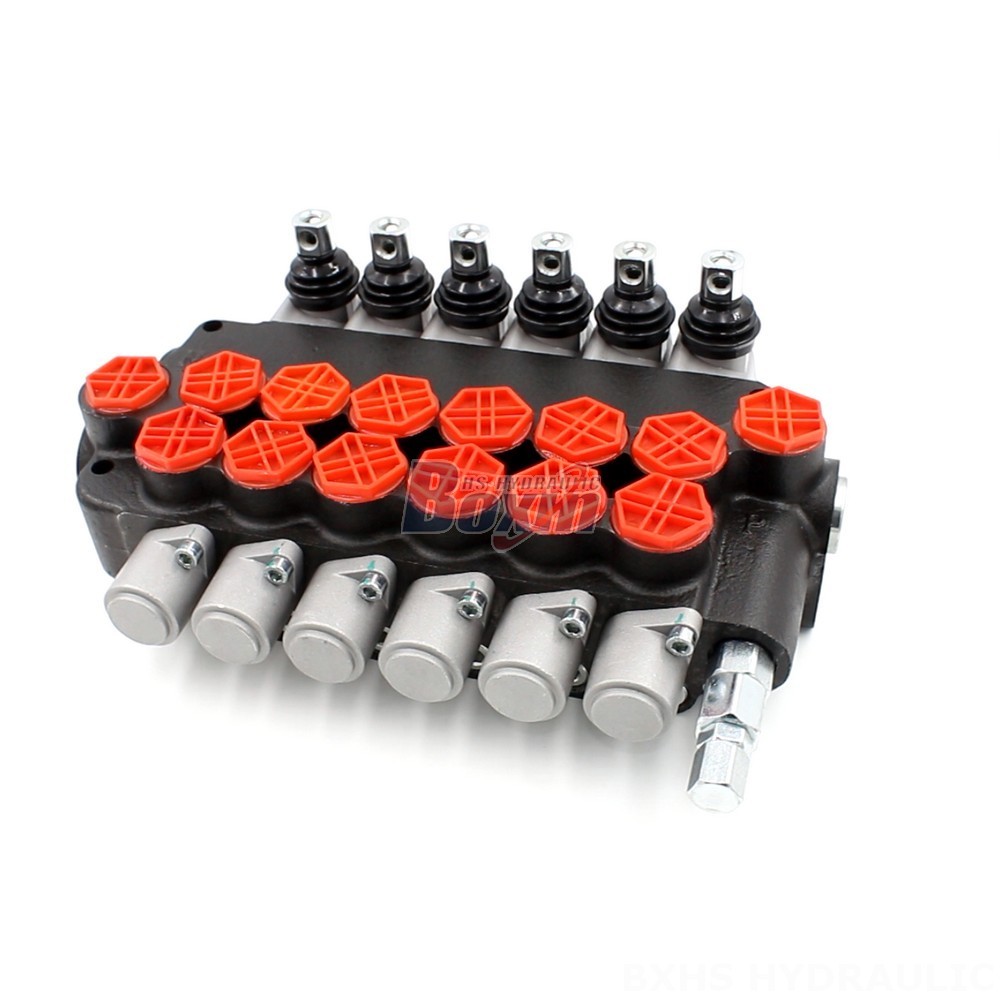

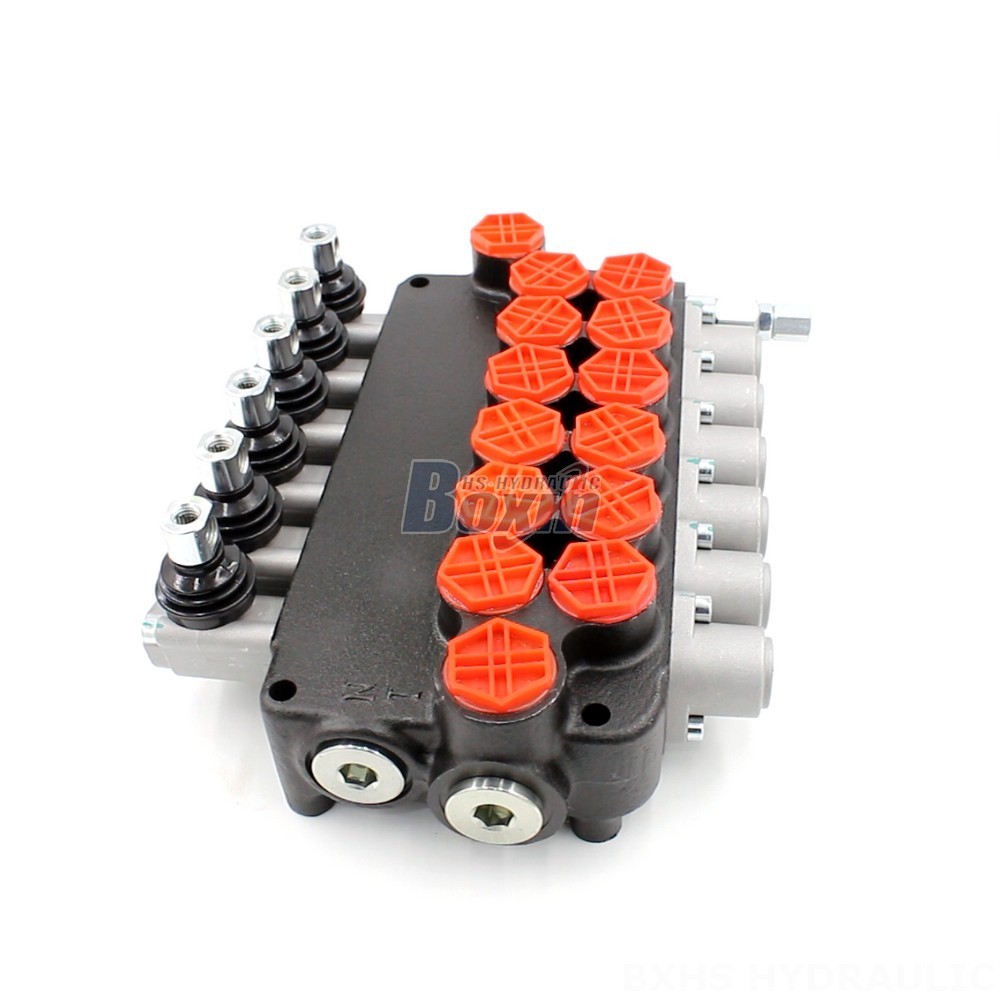

The P80-G34 6-Spool Hydraulic Directional Valve is a precision-engineered hydraulic valve designed for demanding applications in various industries. It features a robust monoblock construction, manual control, and a high flow rate of up to 80 L/min. The valve can withstand pressures up to 250 bar and operates within a wide viscosity range. Its versatility makes it suitable for material handling, construction, agriculture, and industrial vehicles.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**P80-G34 6-Spool Hydraulic Directional Valve**
**Key Features:**
* Monoblock construction for durability and compactness
* Manual control for precise operation
* High flow rate of up to 80 L/min (21.2 US gpm)
* Max pressure of 250 bar (3600 psi)
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F)
* 6 spool design for versatile flow control
**Applications:**
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Mini-Excavators
* Skid Steer Loaders
* Compact Wheel Loaders
This Hydraulic Directional Valve is an essential component for hydraulic systems in a wide range of industries, offering precise flow control, reliability, and performance.
