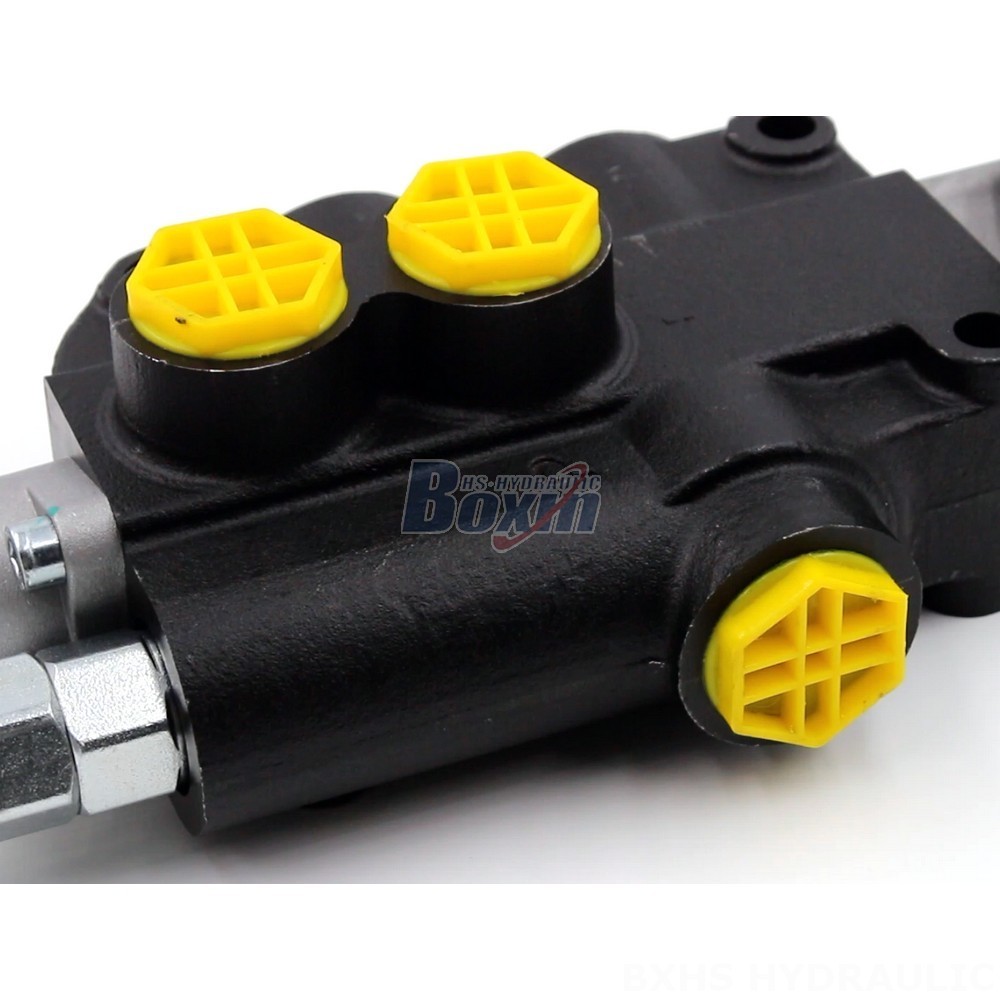

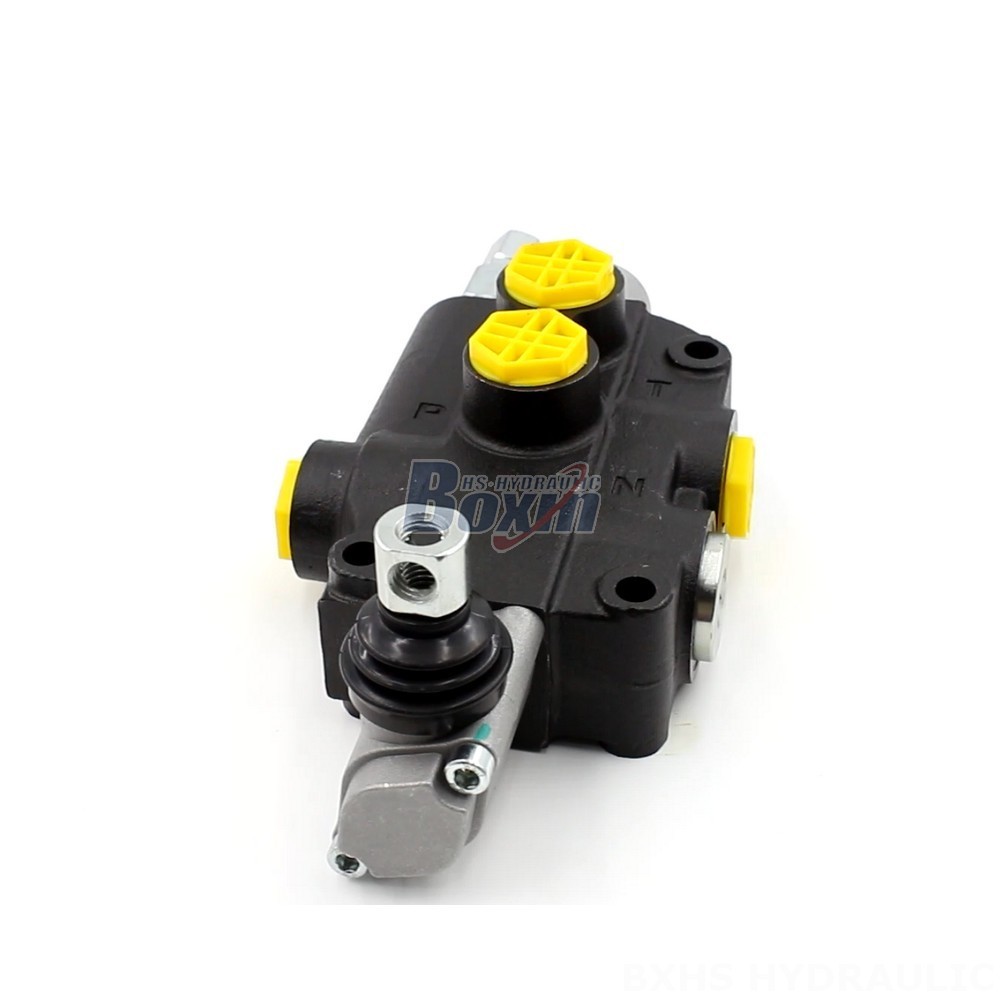

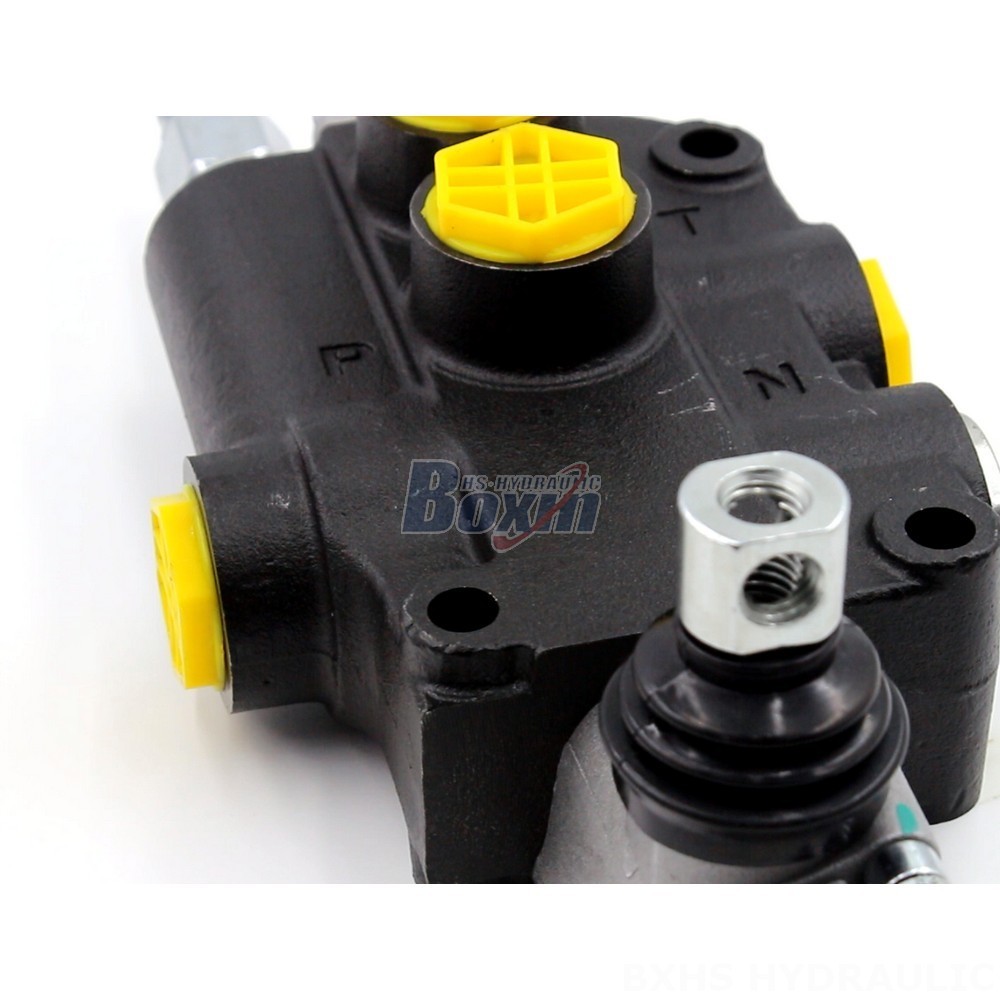

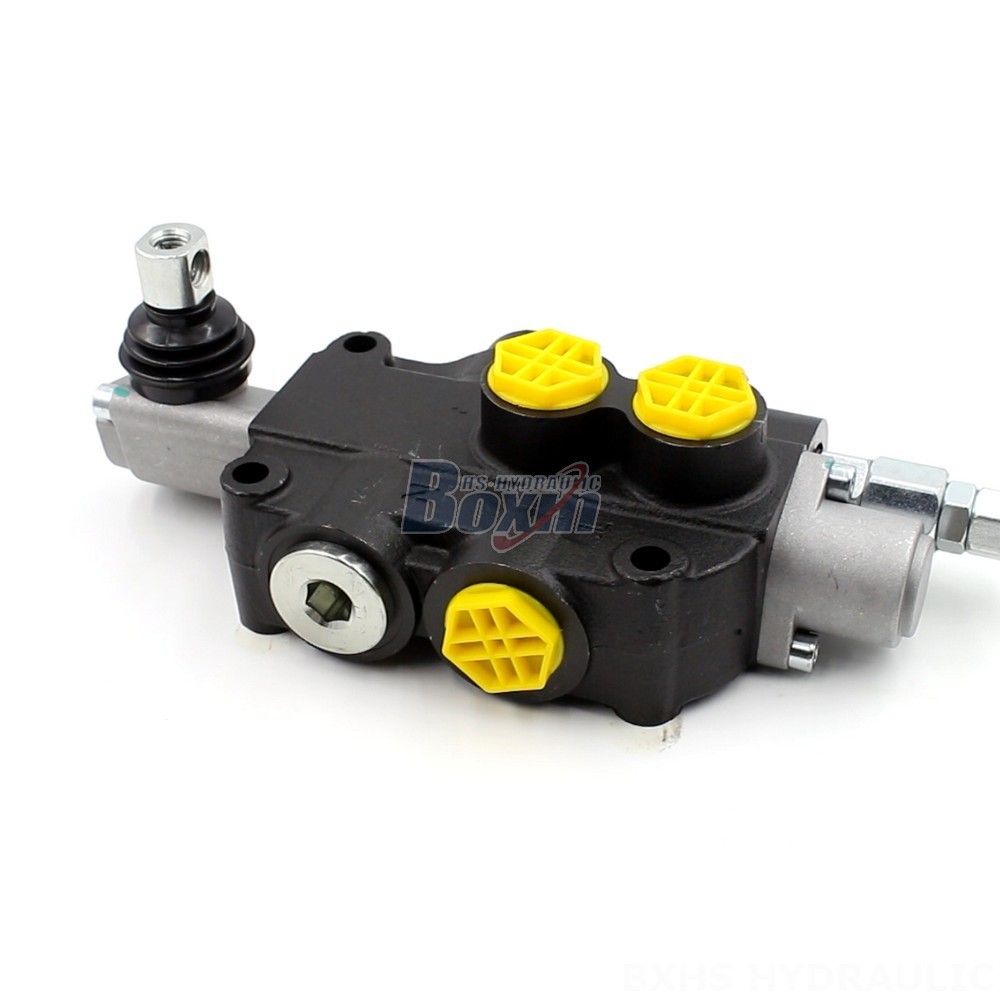

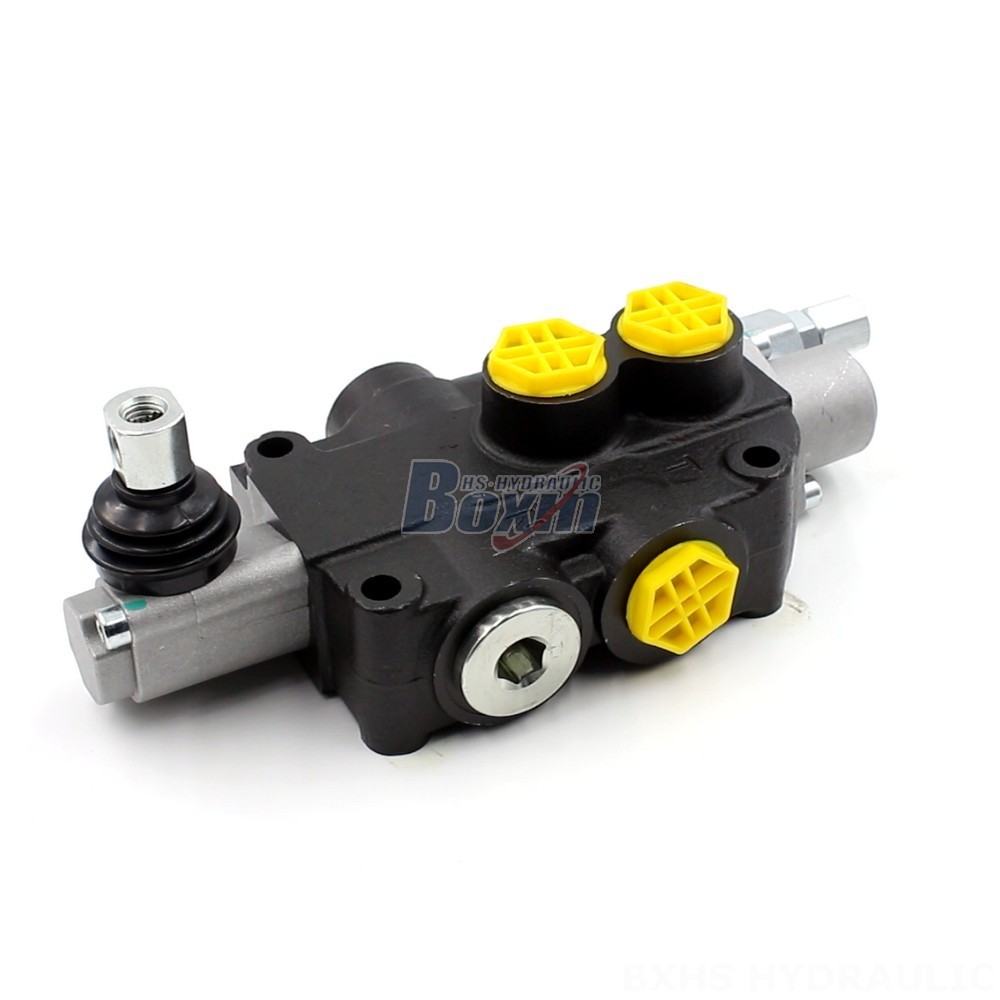

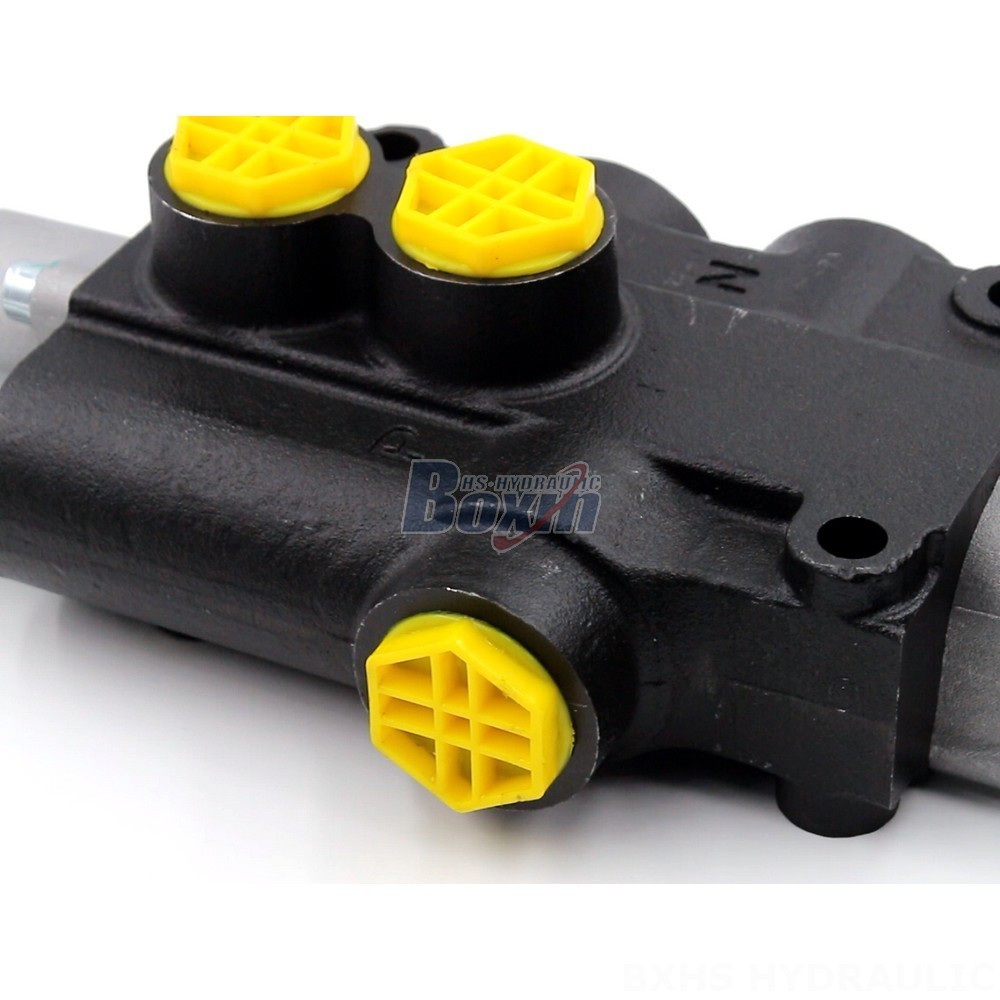

P80-G12 Manual 1 Spool Monoblock Directional Valve | Hydraulic Supplier

Método de control:Manual

Carrete:1 carrete

Flujo Nominal:80 l/min (21,2 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G1/2

Puerto de Salida:G1/2

Tamaño de Puerto:G1/2

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P80 Válvula Direccional Monobloque

Tamaño del embalaje:26*15*11

Peso bruto:5.00 kg

Disponibilidad: En stock

1190 personas están viendo este producto

P80-G12 Manual 1 Spool Monoblock Directional Valve | Hydraulic Supplier

P80-G12 Manual 1 Spool Monoblock Directional Valve | Hydraulic Supplier

P80-G12 Manual 1 Spool Monoblock Directional Valve | Hydraulic Supplier drawing image

The P80-G12 Manual 1 Spool Monoblock Directional Valve is a reliable and durable hydraulic component designed for use in various applications, including material handling, construction, and agriculture. This manual control valve features a single spool and a maximum pressure rating of 250 bar, making it suitable for a wide range of hydraulic systems.

Serie P80 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 80 l/min (21,2 gal EE. UU./min)
Presión Máxima 315 bar (4600 psi)
Puerto de Entrada G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Puerto de Salida G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Tamaño de Puerto G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80-G12 Manual 1 Spool Monoblock Directional Valve is a high-quality hydraulic component manufactured for global markets. This valve is designed for manual control with a single spool and a monoblock structure, offering a compact and efficient design. It has a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), making it suitable for various demanding applications. The operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and it can operate in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). This valve is specifically designed for use in various applications, including material handling, construction, and agriculture. It is compatible with a wide range of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, and compact wheel loaders. As a leading hydraulic product manufacturer, we offer a comprehensive range of services including manufacturing, OEM, private labeling, customization, and wholesale. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
