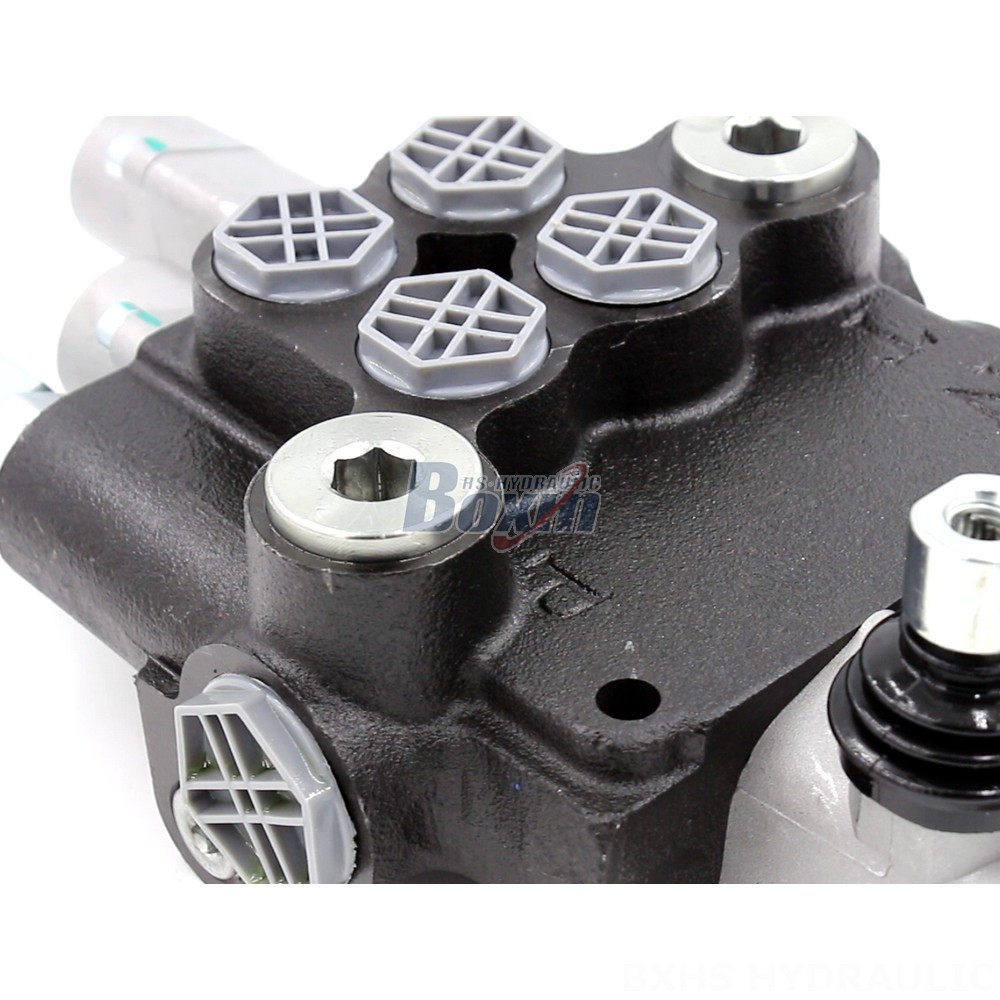

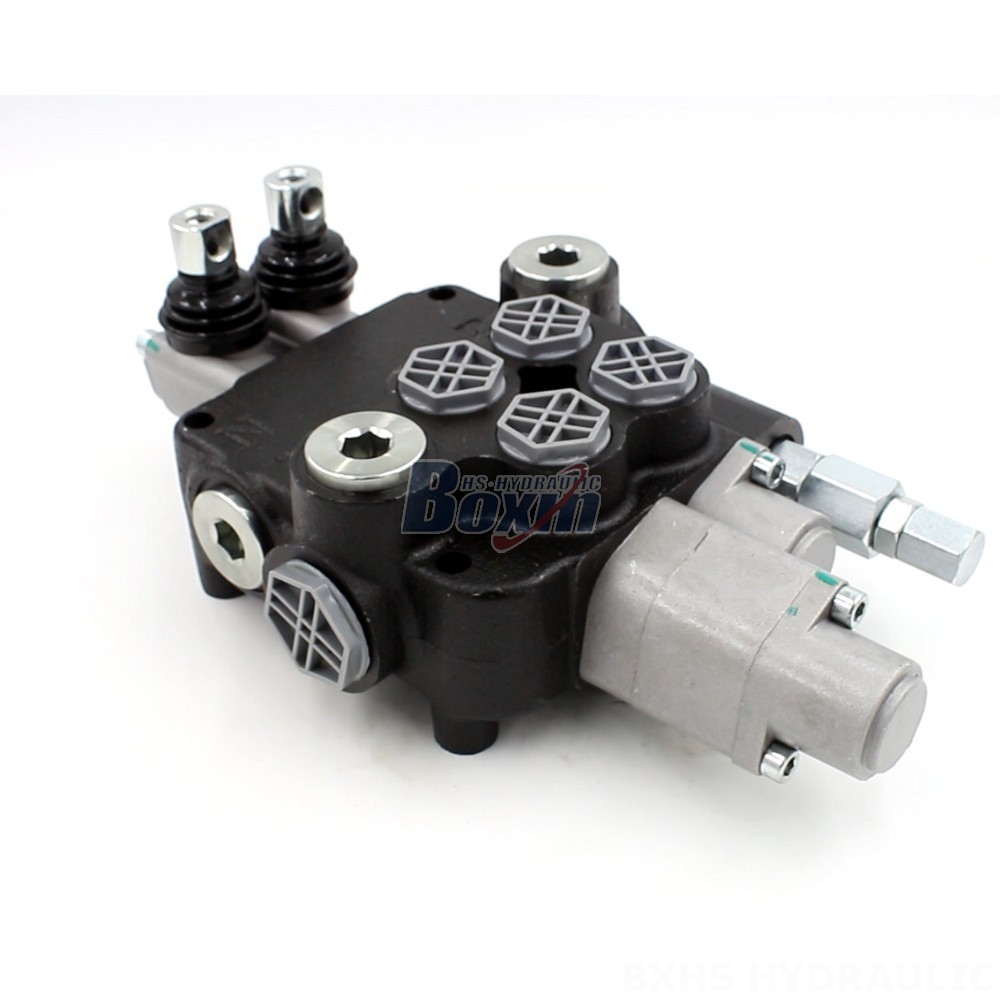

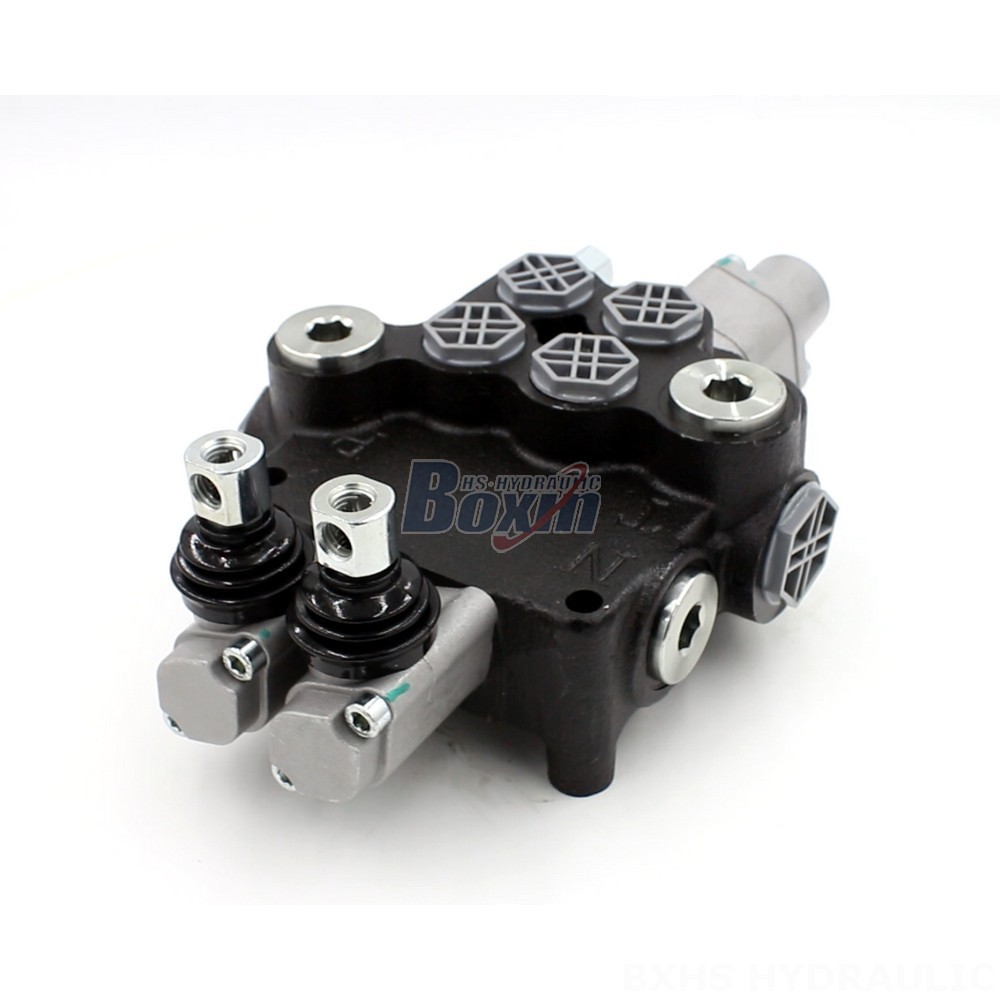

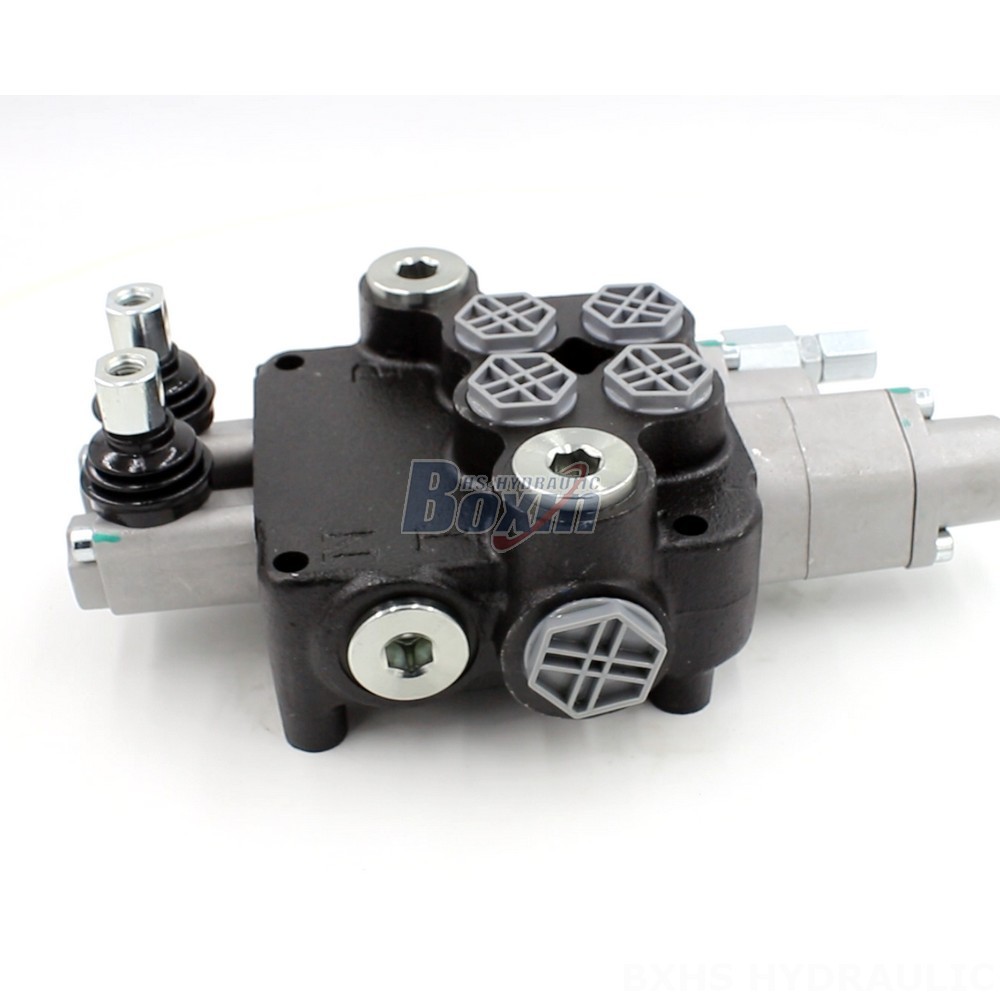

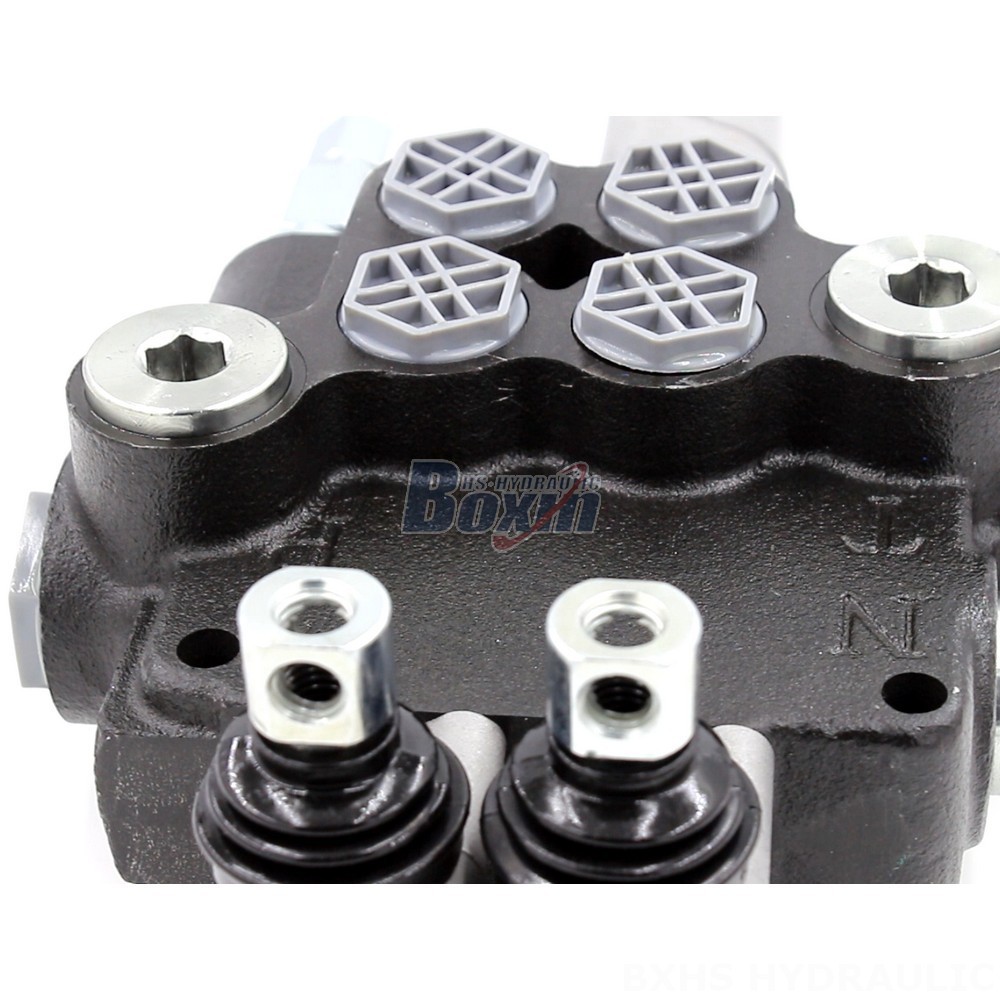

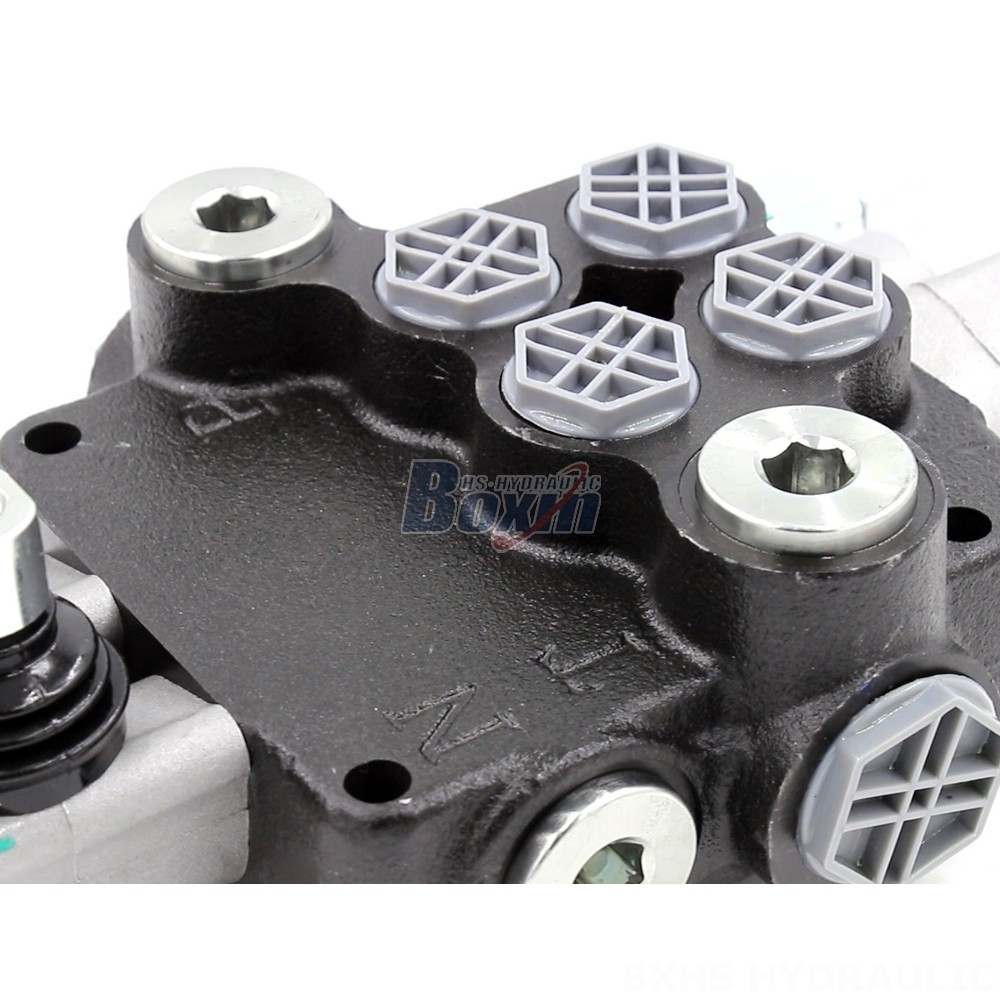

The P80-G12-G34 Hydraulic Lift Valve is a high-quality, durable valve designed for various applications in construction, material handling, agriculture, and industrial vehicles. Manufactured to the highest standards, this 2-section, monoblock valve delivers reliable performance with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). Available for factory wholesale supply from the source.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This P80 series hydraulic lift valve is a manual control, 2-section, monoblock valve with a 2-spool design. It is ideal for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. It features a rated flow of 80 L/min (21.2 US gpm), a maximum pressure of 250 bar (3600 psi), and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). The valve is designed to operate in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). As a manufacturer and direct supplier, we offer factory wholesale pricing and are committed to providing high-quality hydraulic products.
