P80-G12-G34 Hydraulic Valve | Premium Performance & Reliable Operation

Método de control:Manual

Carrete:6 carretes

Flujo Nominal:80 l/min (21,2 gal EE. UU./min)

Presión Máxima:250 bar (3600 psi)

Puerto de Entrada:G1/2

Puerto de Salida:G3/4

Tamaño de Puerto:G1/2

Marca:BXHS

Tipo de producto:Válvula Direccional Monobloque

Serie de productos:Serie P80 Válvula Direccional Monobloque

Tamaño del embalaje:26*36*11

Peso bruto:18.60 kg

Disponibilidad: En stock

1012 personas están viendo este producto

P80-G12-G34 Hydraulic Valve | Premium Performance & Reliable Operation

P80-G12-G34 Hydraulic Valve | Premium Performance & Reliable Operation

P80-G12-G34 Hydraulic Valve | Premium Performance & Reliable Operation drawing image

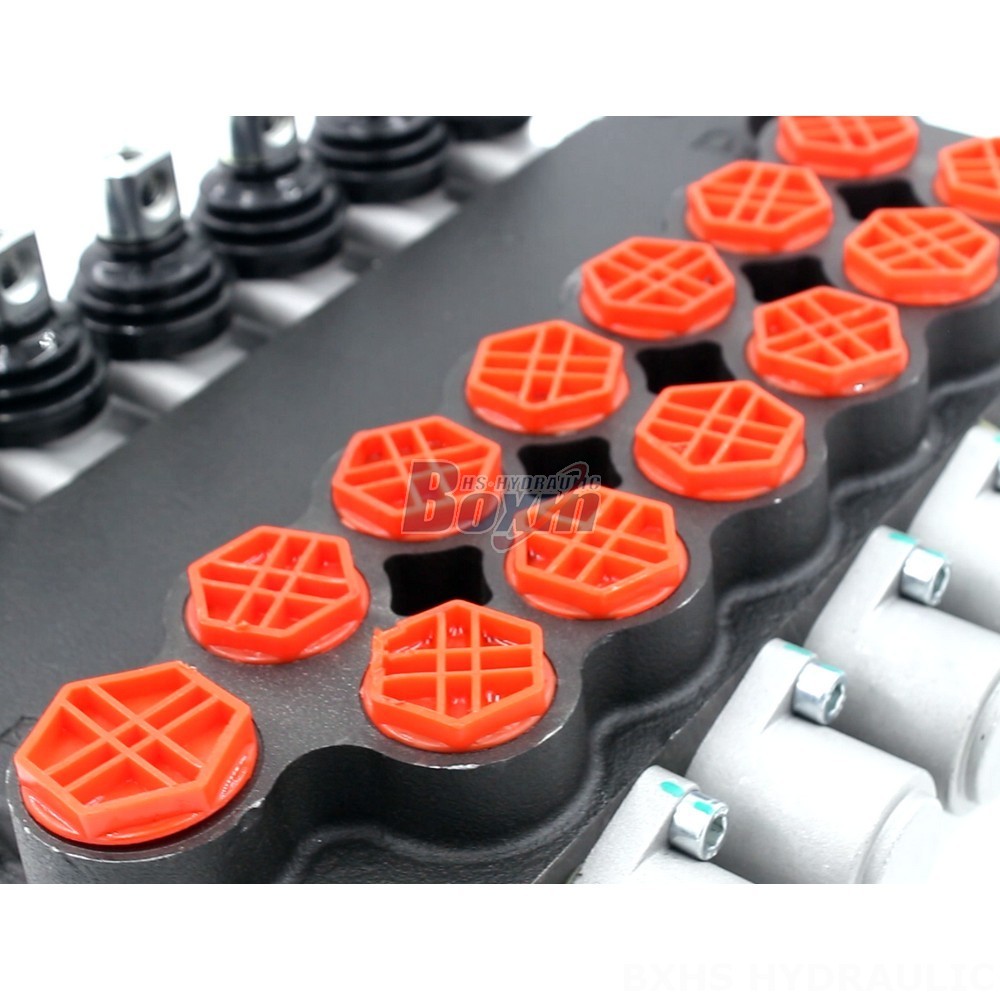

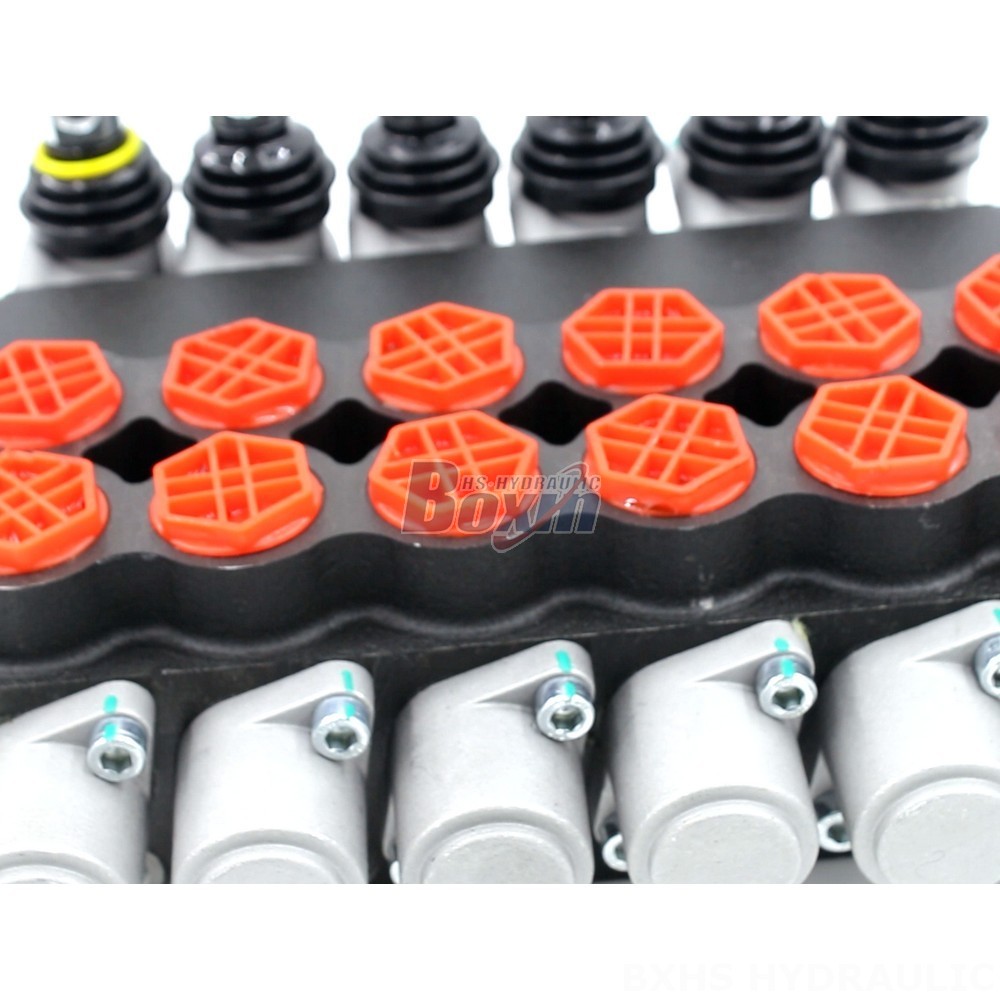

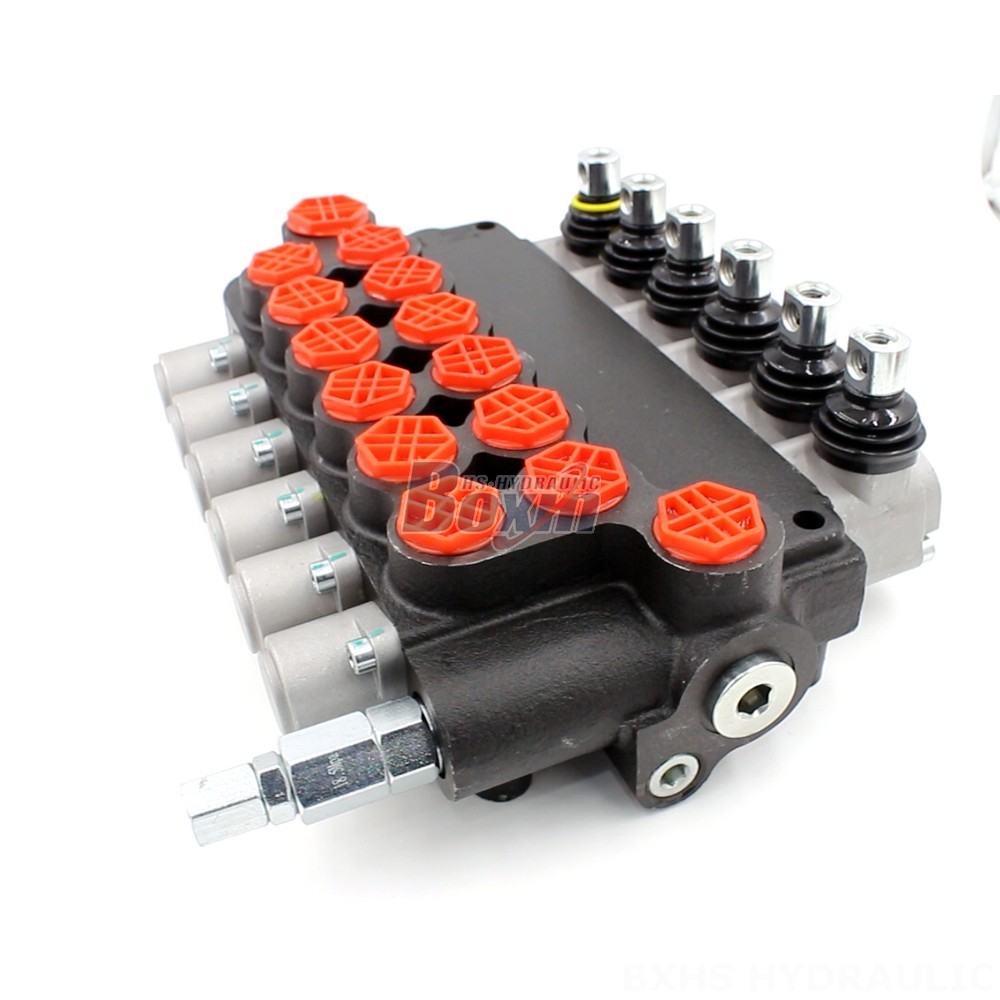

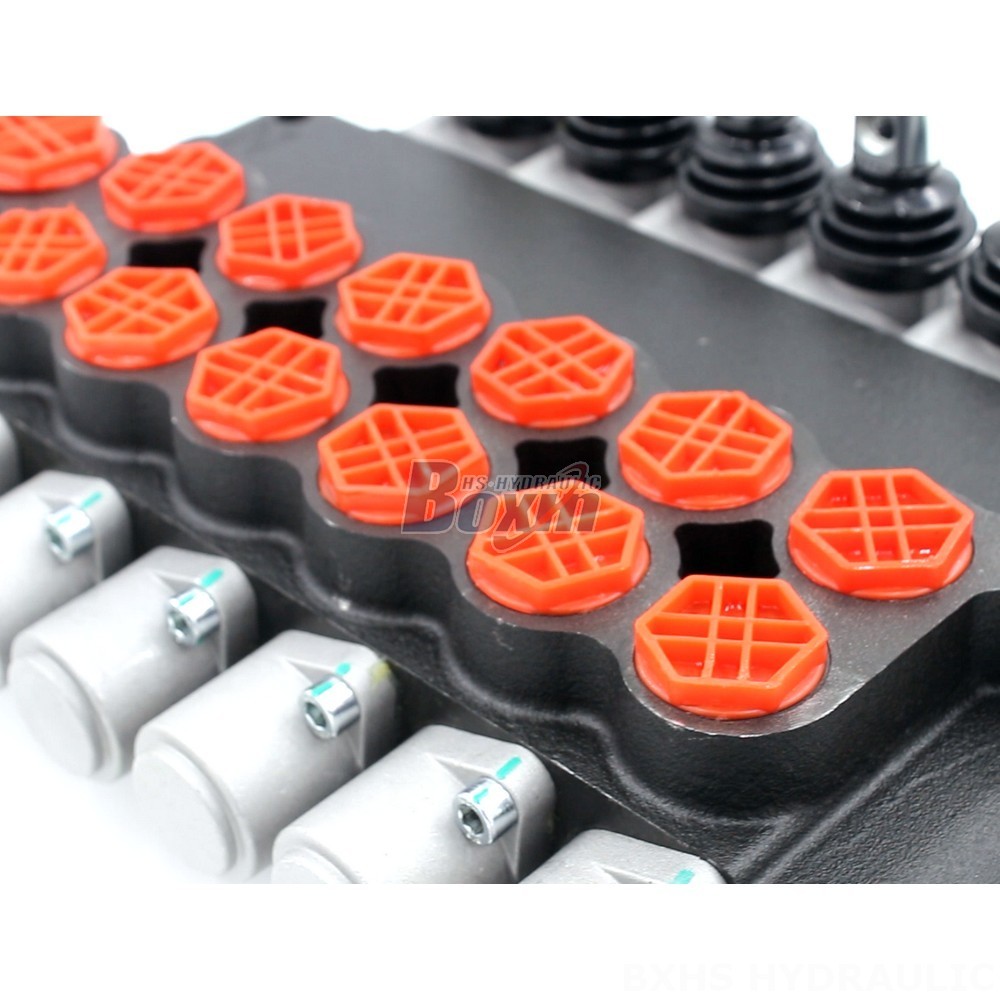

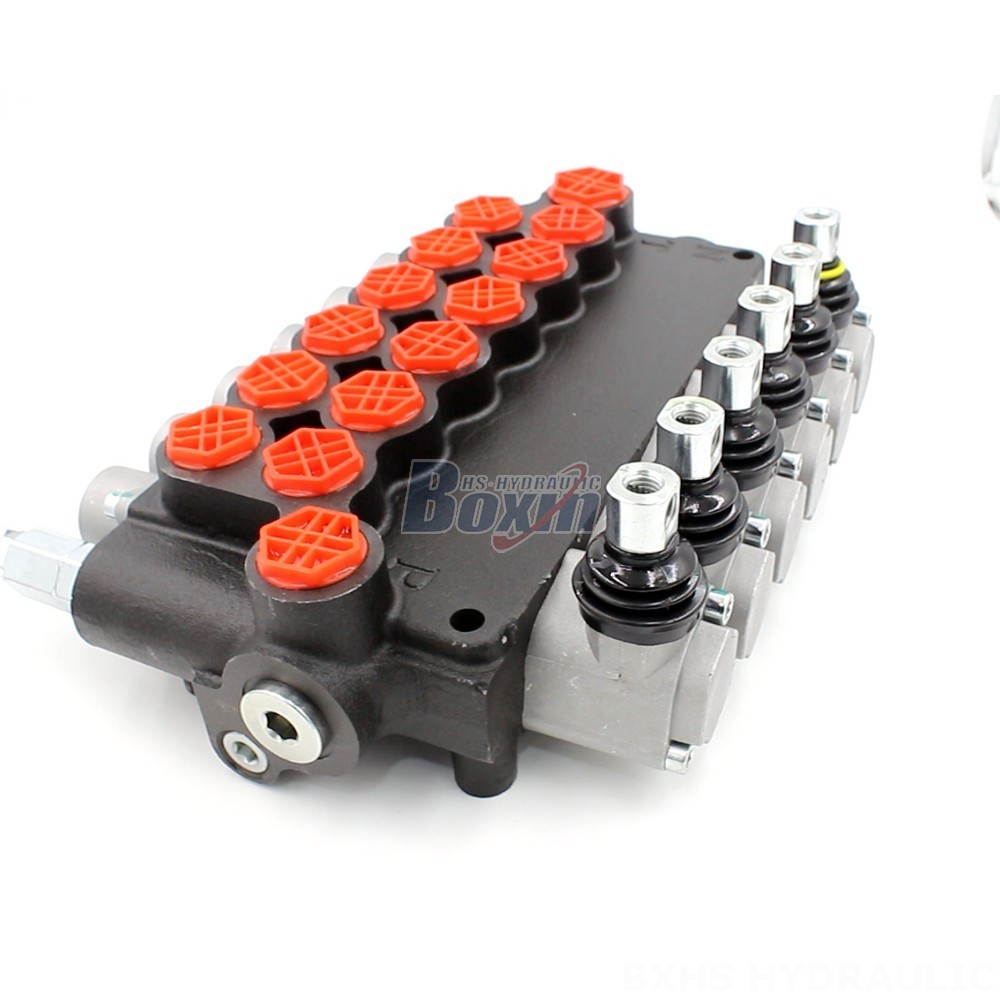

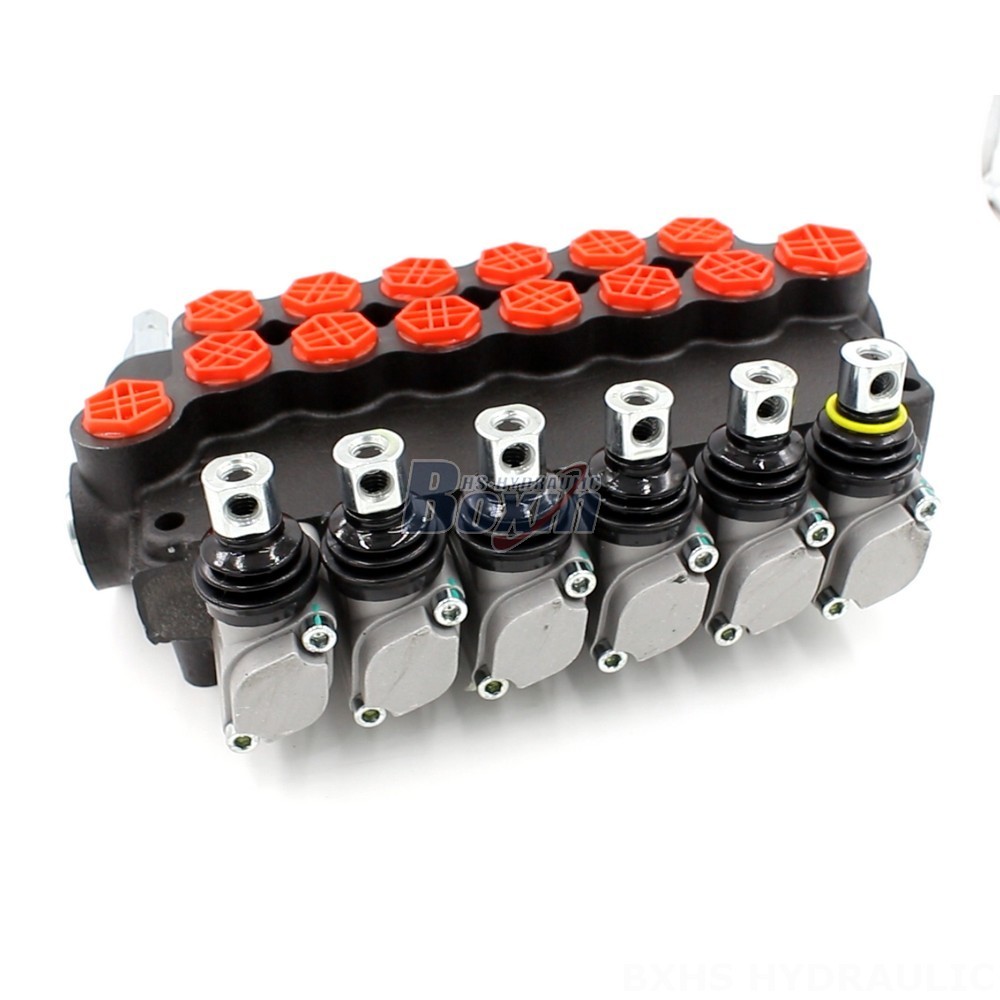

The P80-G12-G34 Loader Control Valve is a high-performance hydraulic valve designed for construction, agriculture, and material handling applications. It features a robust monoblock construction, manual control, and a rated flow of 80 L/min.

Serie P80 Válvula Direccional Monobloque Parámetros
Método de control Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick
Carrete 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes
Rango de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estructura Válvulas monobloc
Sección 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones
Rango de viscosidad de funcionamiento 15 - 75 mm²/s (15 cSt a 75 cSt)
Flujo Nominal 80 l/min (21,2 gal EE. UU./min)
Presión Máxima 315 bar (4600 psi)
Puerto de Entrada G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Puerto de Salida G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Tamaño de Puerto G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80-G12-G34 Loader Control Valve is a premium-quality hydraulic valve designed for demanding applications in construction, agriculture, and material handling. This 6-section, monoblock valve offers reliable operation with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi). Its manual control method provides precise operation. The P80-G12-G34 is specifically designed for use in various equipment models including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. This valve operates efficiently within a wide temperature range of -40°C to +80°C (-40°F to +176°F) and a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Its robust design and premium construction ensure long-lasting performance and reliability.
