Producción y entrega
Plazo de ejecución de producción de 15 a 30 días
La innovación impulsa el desarrollo; tecnología forja futuro
1015 personas están viendo este producto

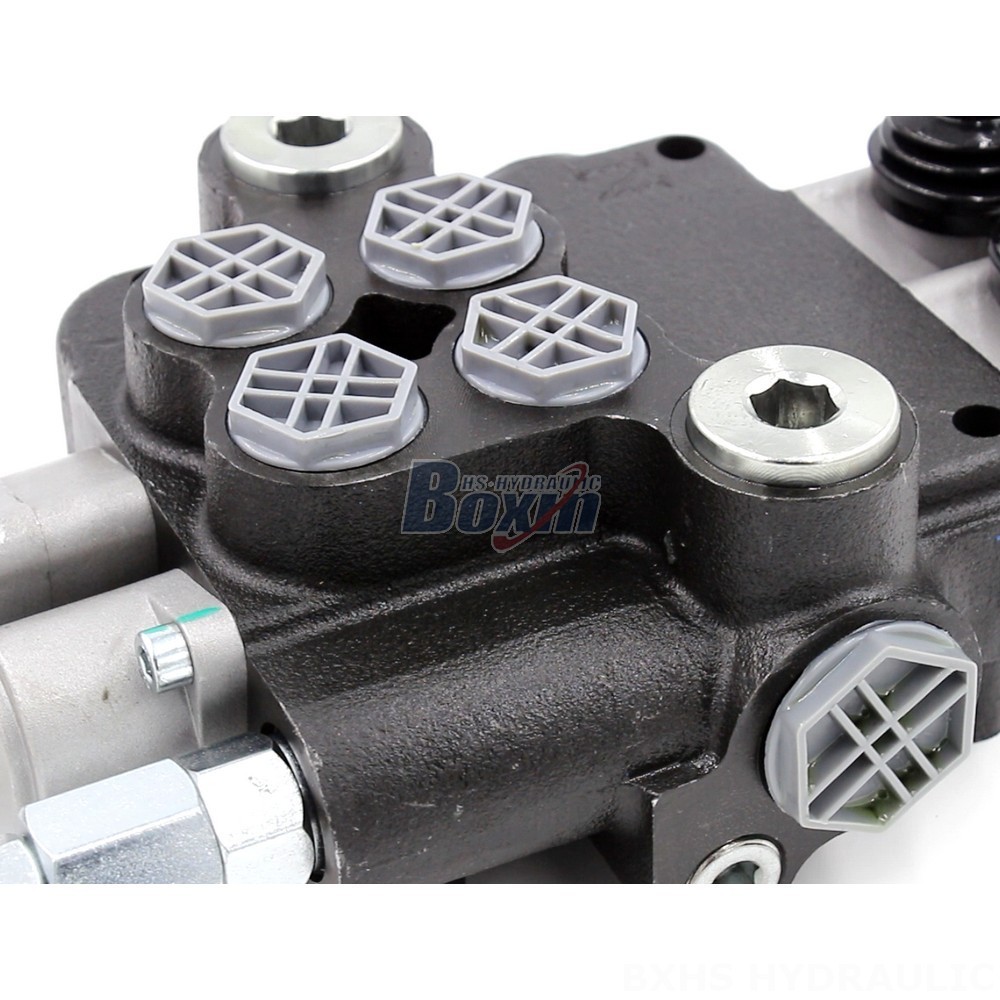

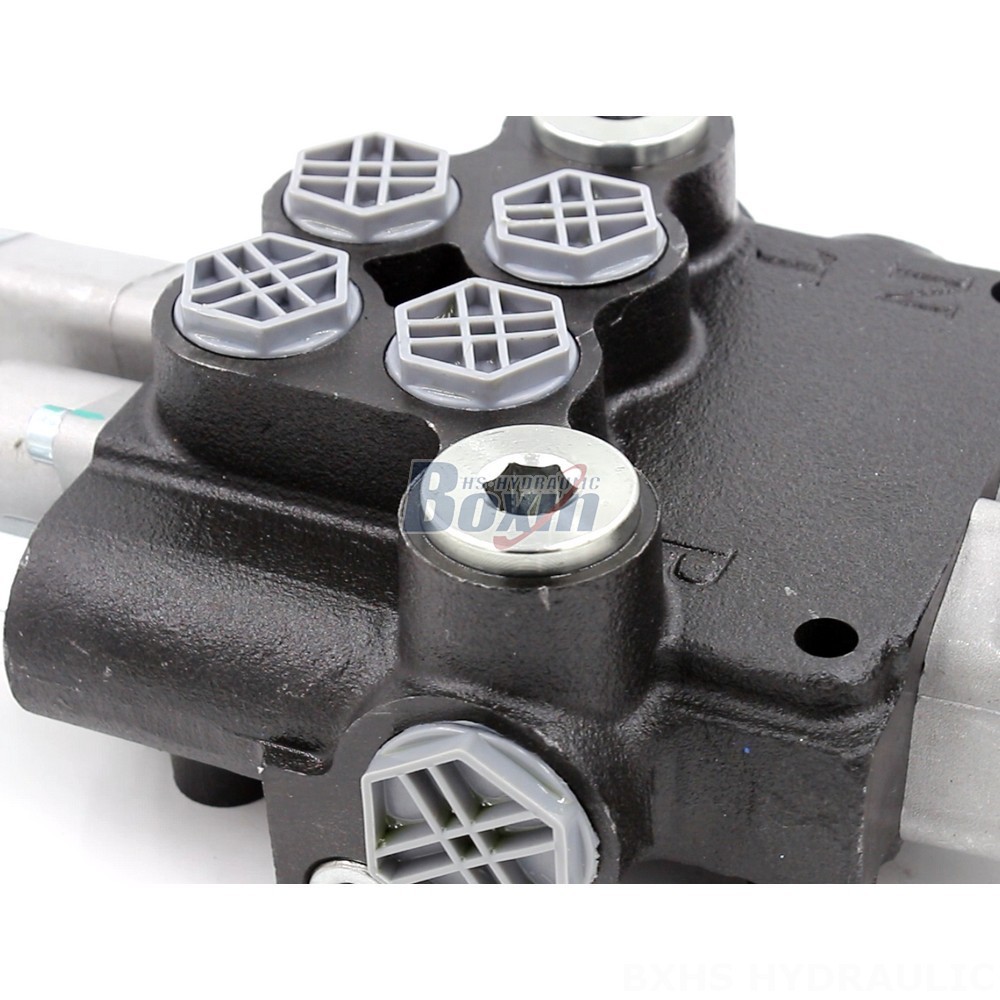

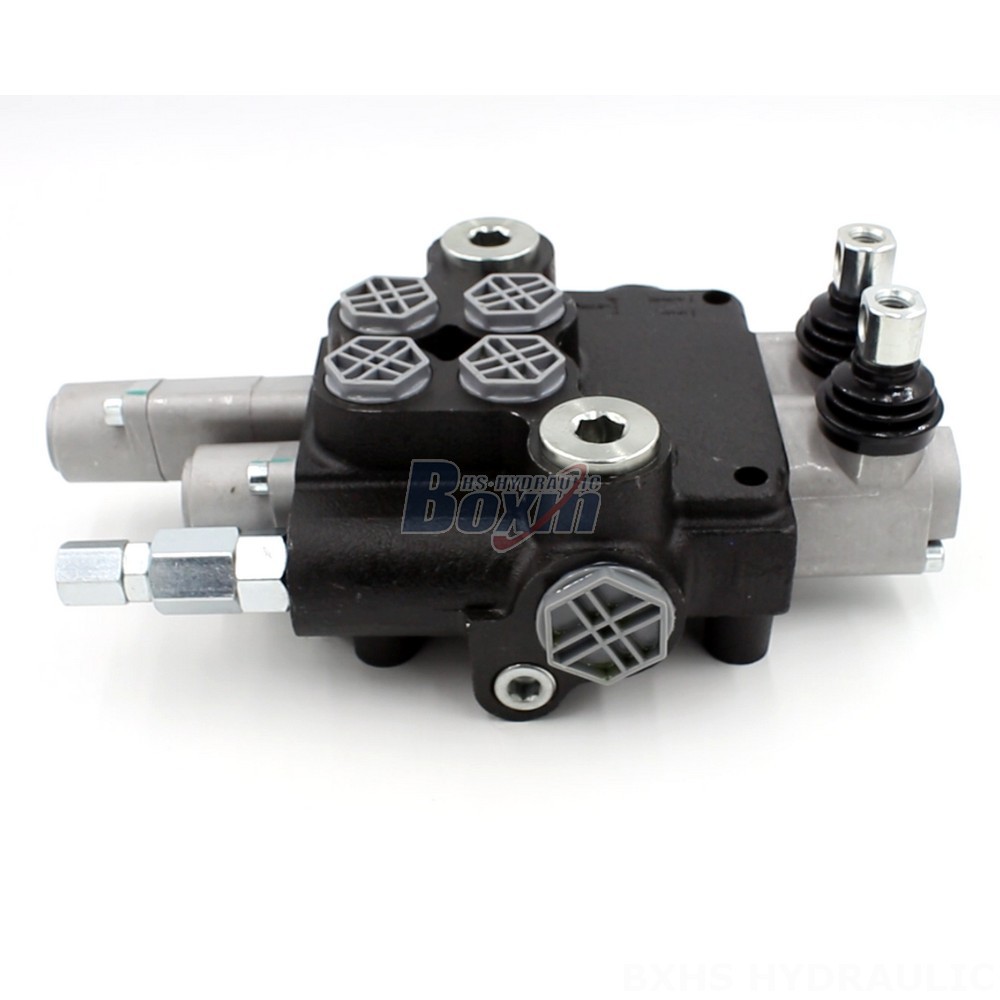

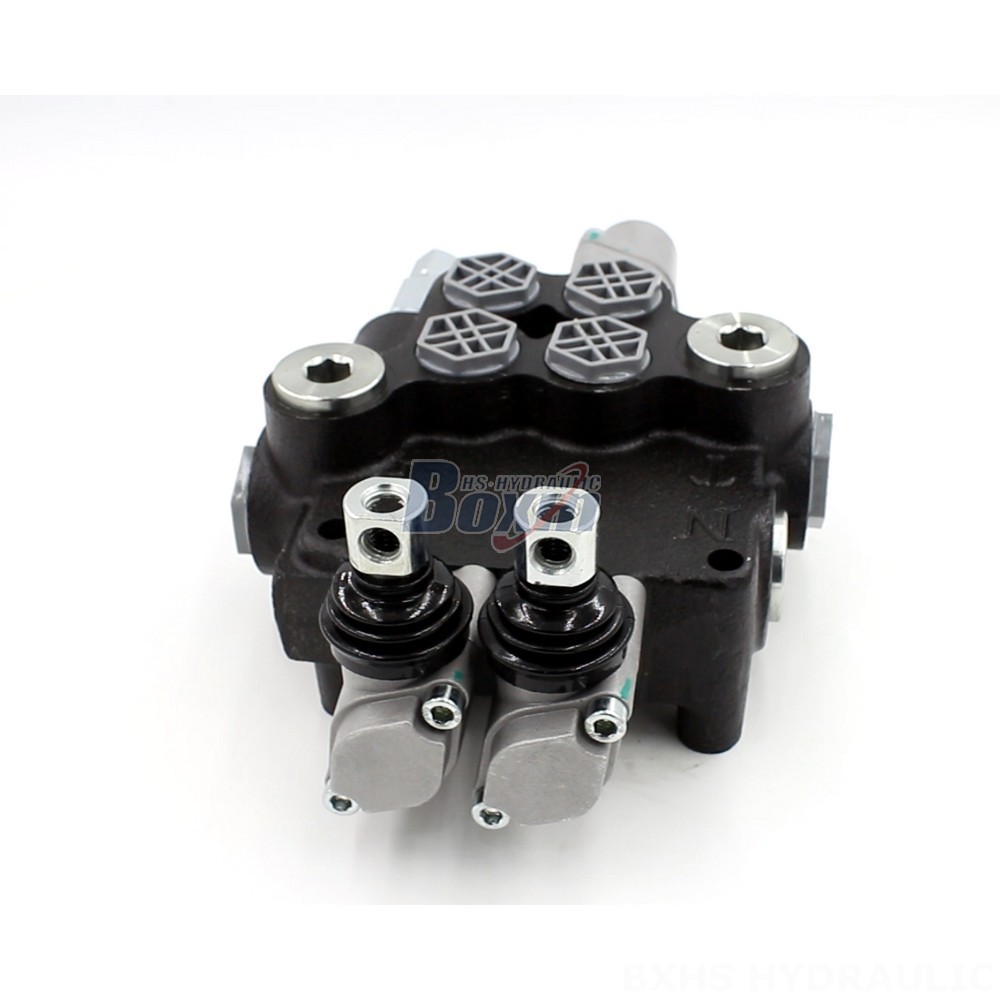

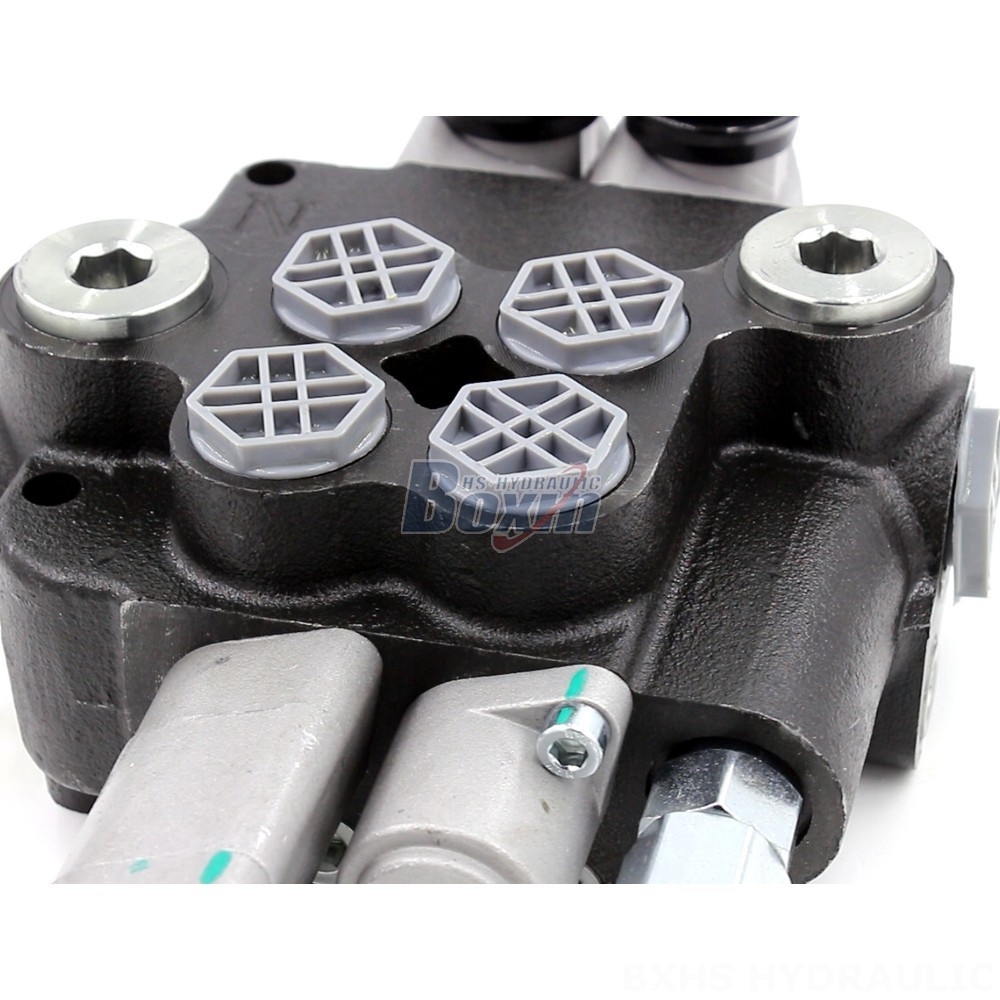

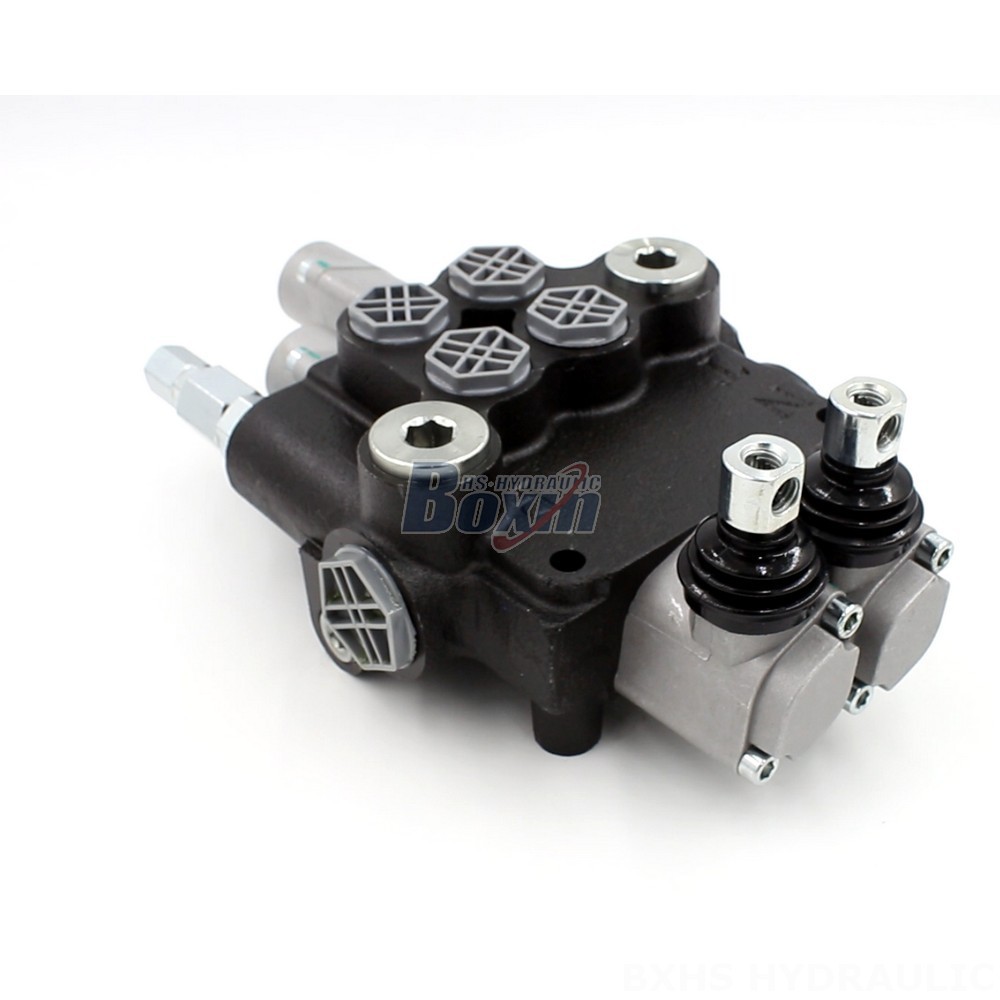

The P80-G12-G34 Hydraulic Valve is a high-performance manual valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This 2-section, monoblock valve offers reliable operation with a rated flow of 80 L/min and a maximum pressure of 250 bar.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This P80 Series manual valve features a robust monoblock construction and is designed for demanding applications. It is suitable for use in various equipment including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, and skid steer loaders. The valve has a 2-section design with a rated flow of 80 L/min and a maximum pressure of 250 bar. It operates within a viscosity range of 15 to 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. The P80-G12-G34 Hydraulic Valve is a high-quality, reliable solution for a wide range of applications.
