The P80-G12-G34-2OT Valve is a hydraulic valve designed for use in various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is a monoblock valve with two sections and two spools, and it has a rated flow of 80 L/min and a maximum pressure of 250 bar. The valve is manually controlled and has an operating viscosity range of 15 - 75 mm²/s.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

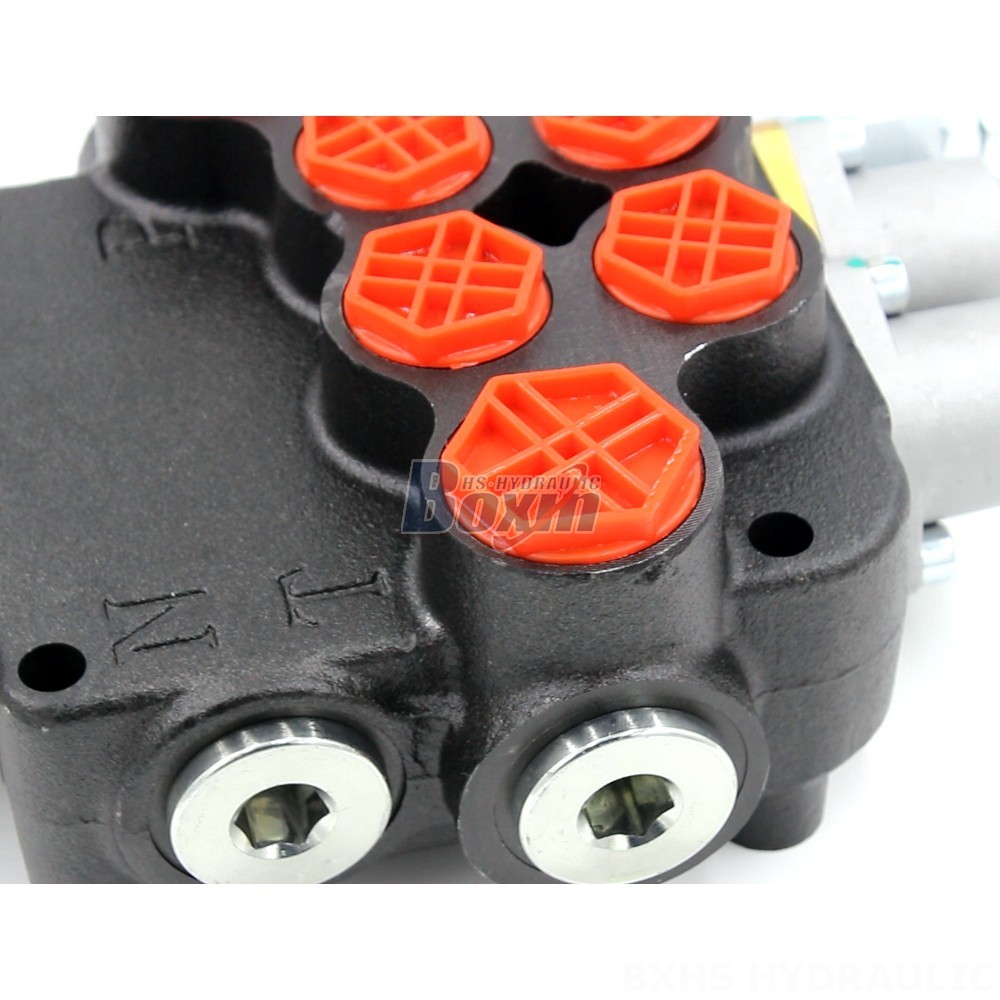

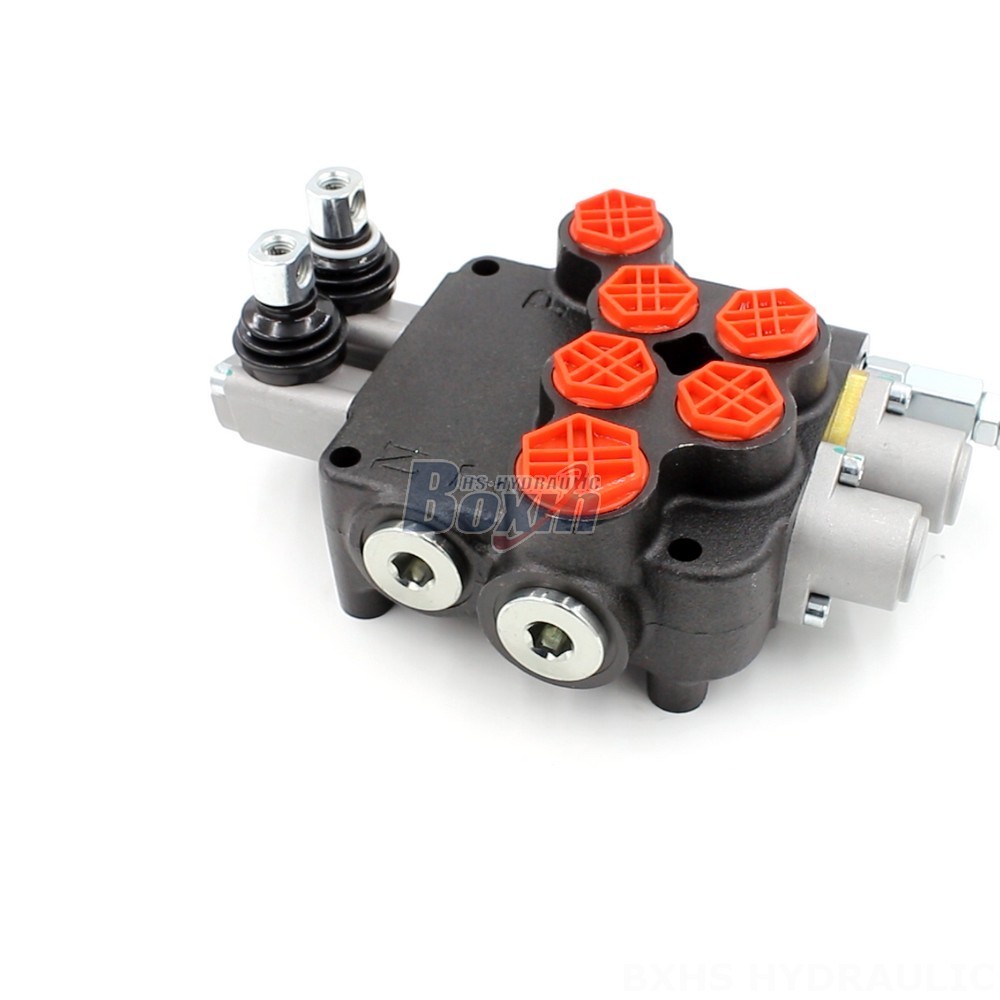

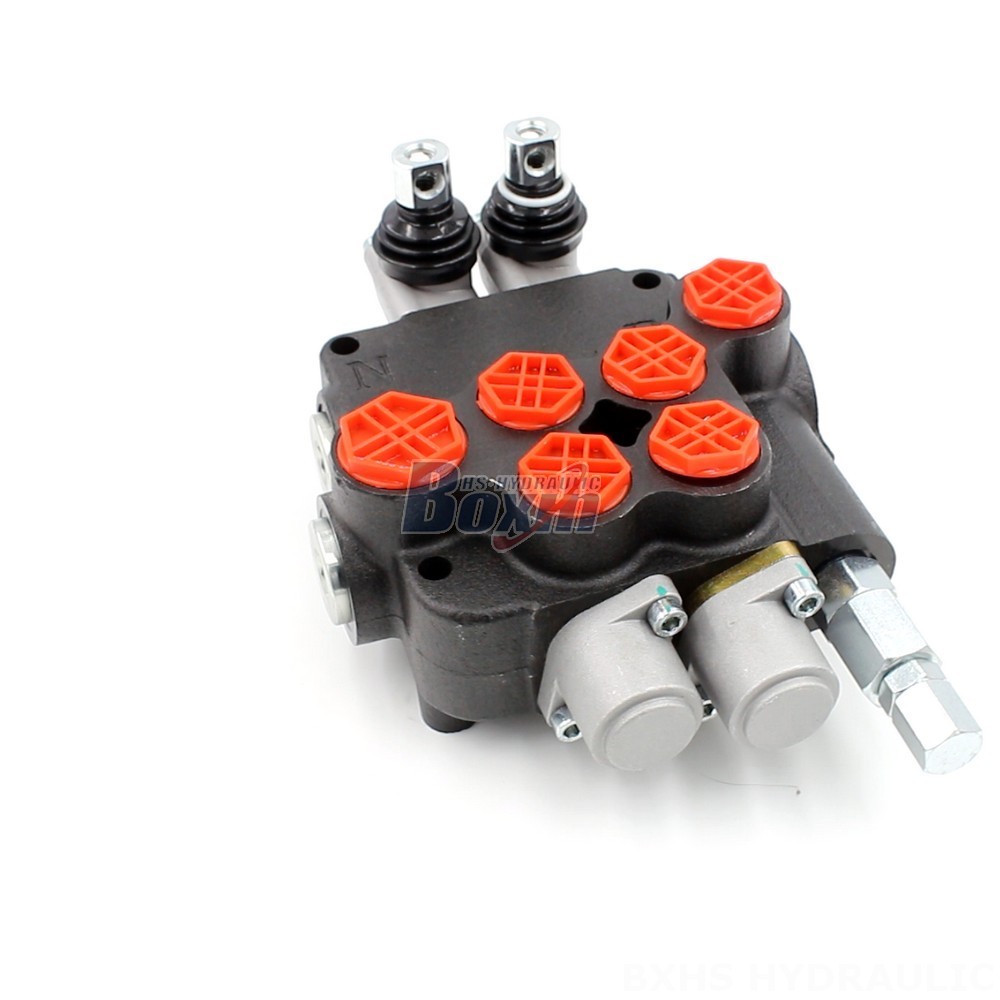

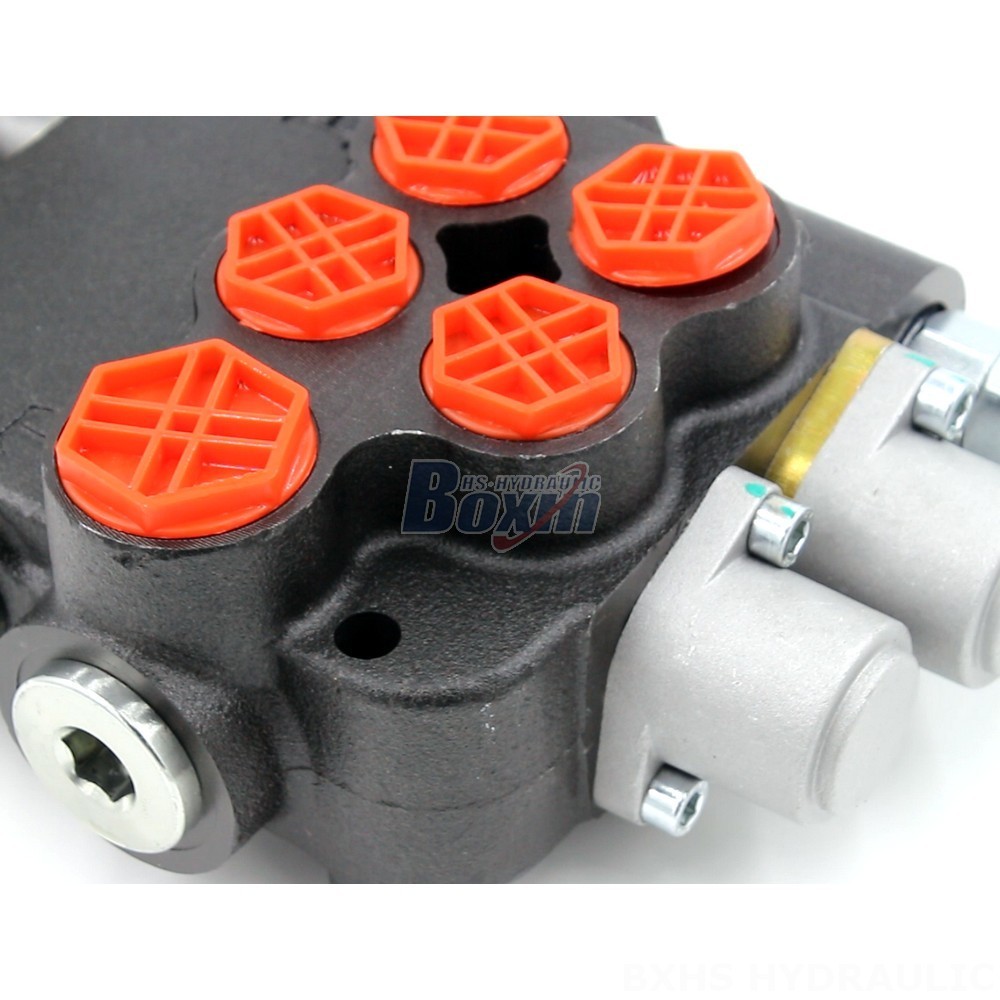

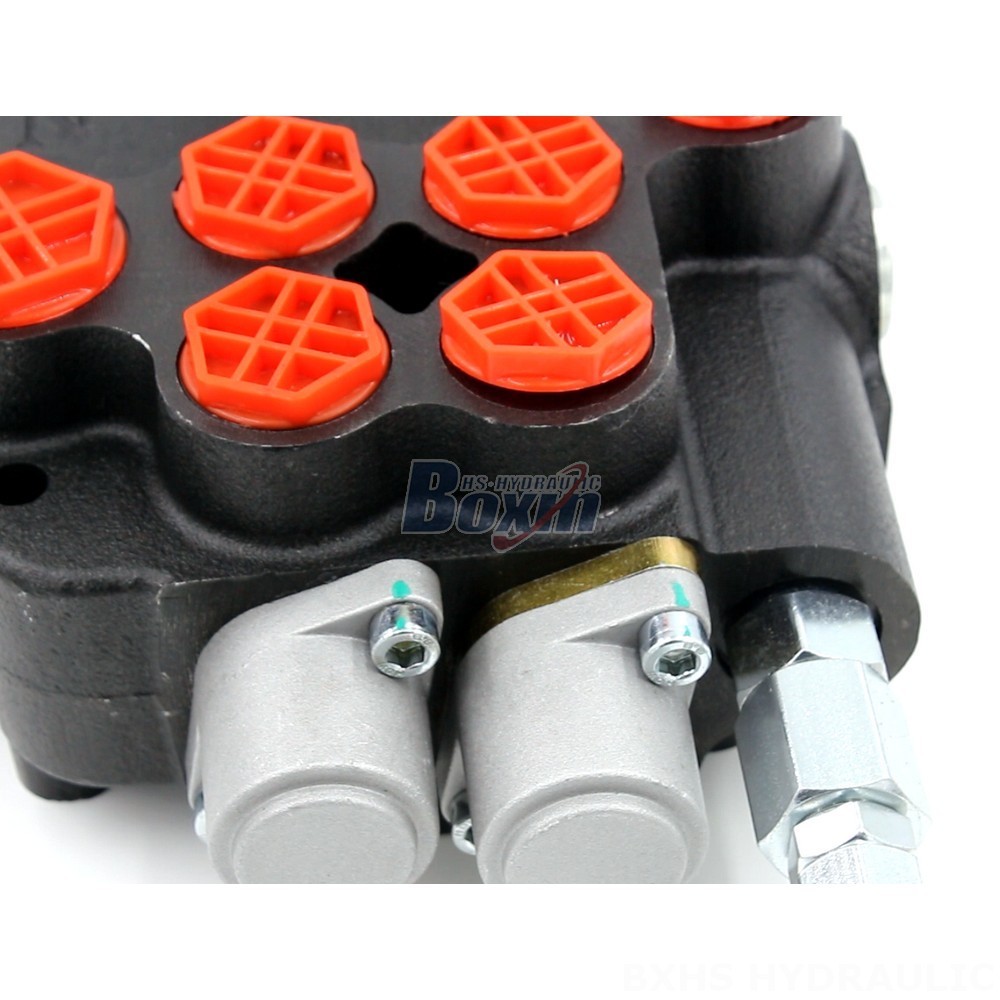

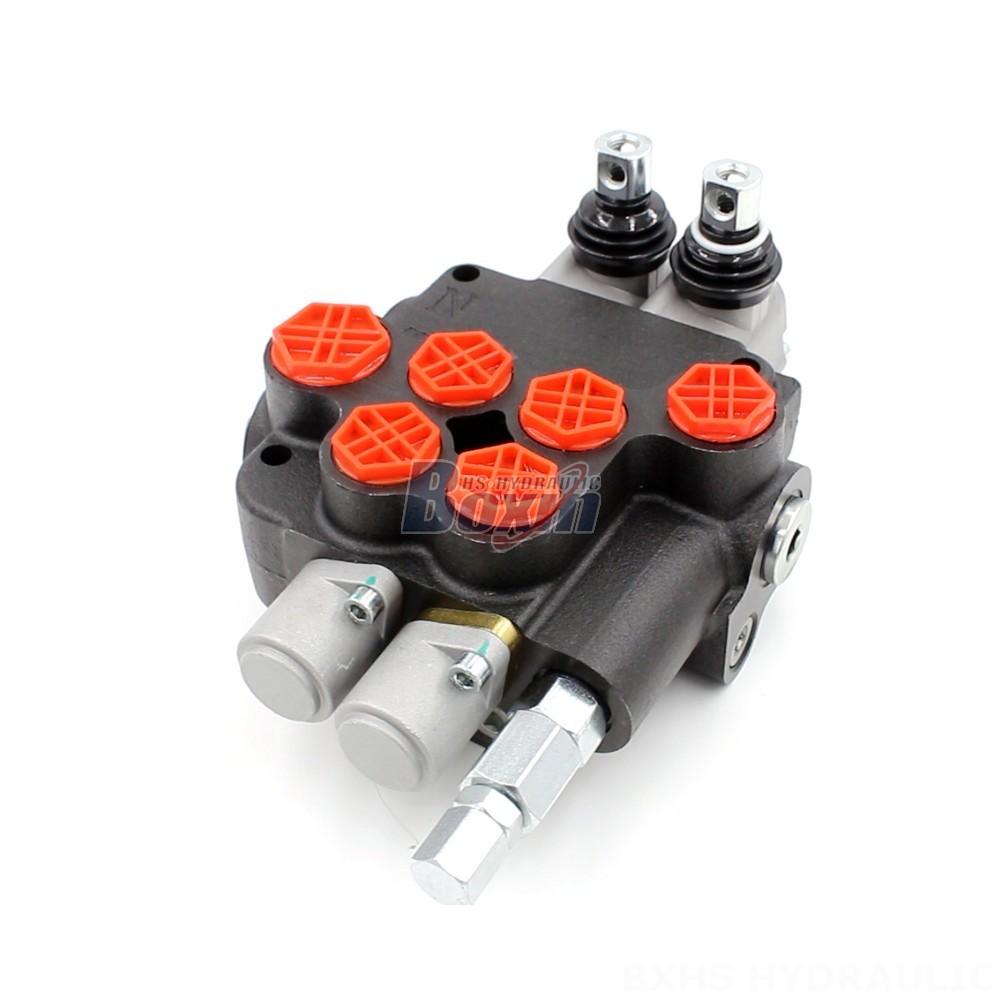

**P80-G12-G34-2OT Valve**
The P80-G12-G34-2OT Valve is a hydraulic valve that is designed for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
**Key Features:**
* Monoblock valve with two sections and two spools
* Rated flow of 80 L/min
* Maximum pressure of 250 bar
* Operating viscosity range of 15 - 75 mm²/s
* Manual control
**Applications:**
The P80-G12-G34-2OT Valve is suitable for use in a wide range of applications, including:
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Compact wheel loaders
* Wheel loaders
* Backhoe loaders
* Harvesters
* Bale wrappers
* Seeding machines
