The P80 Electro-hydraulic 3 Spool Monoblock Directional Valve is a high-performance valve designed for use in demanding hydraulic systems. It features a robust monoblock construction, electro-hydraulic control, and a flow rate of 80 L/min. The valve is suitable for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

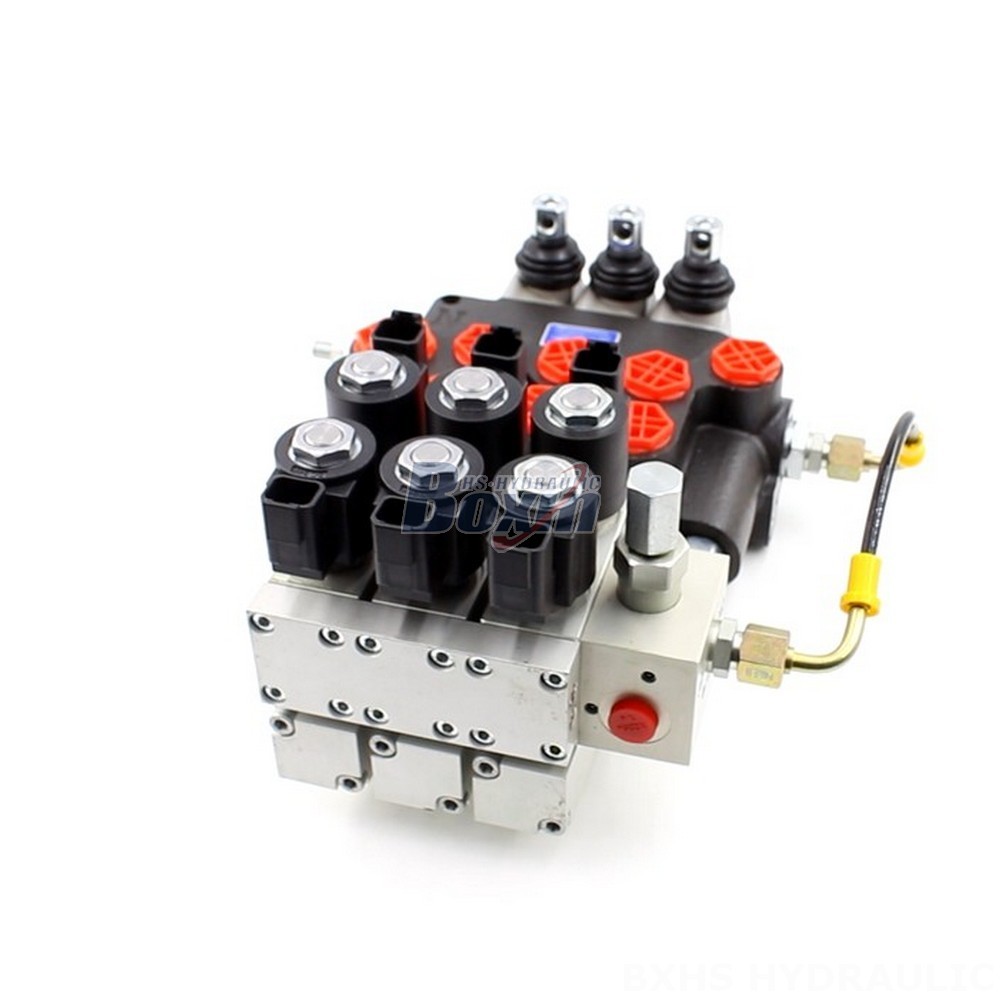

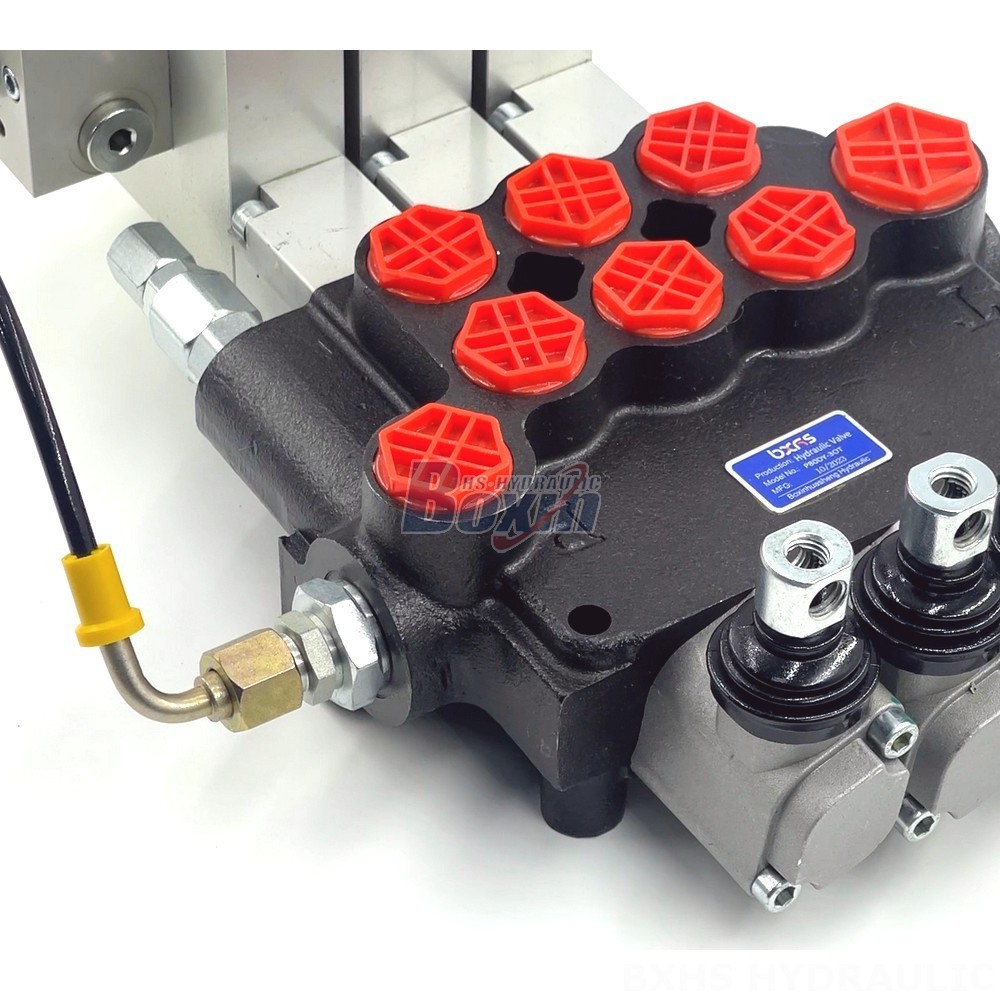

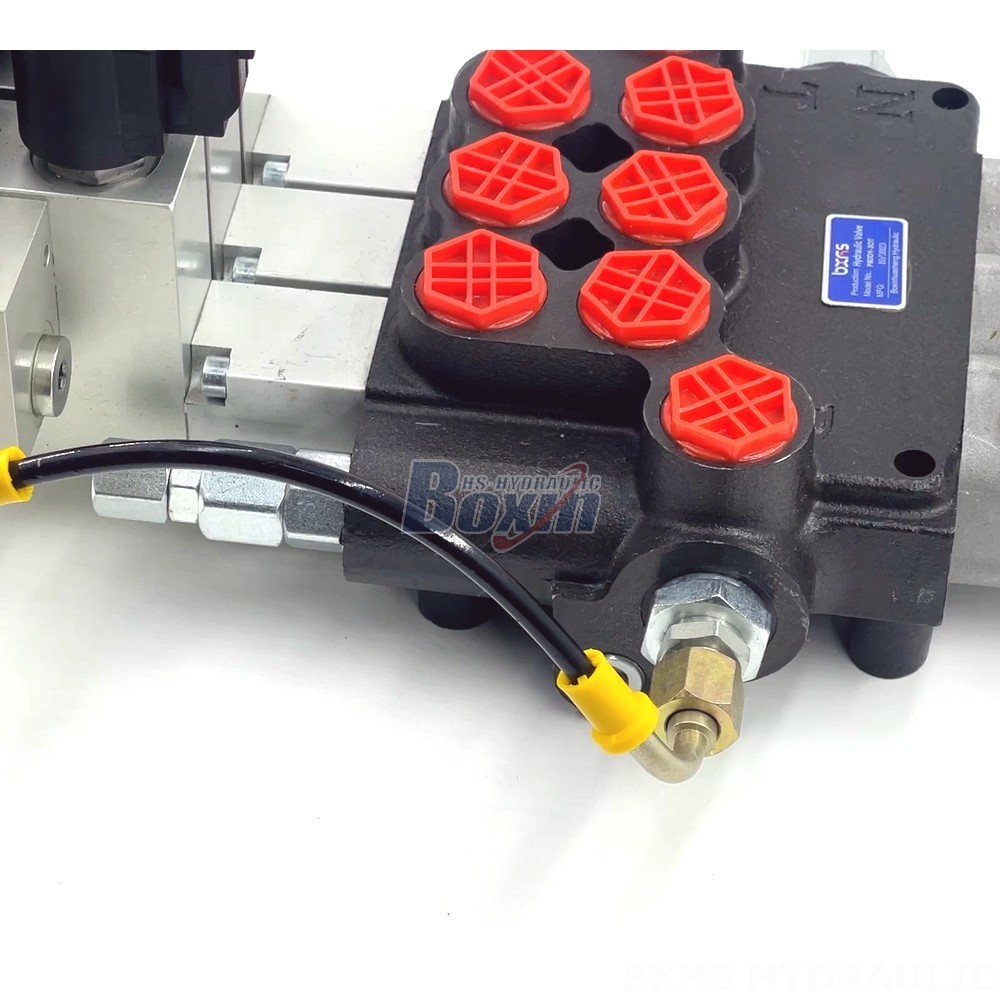

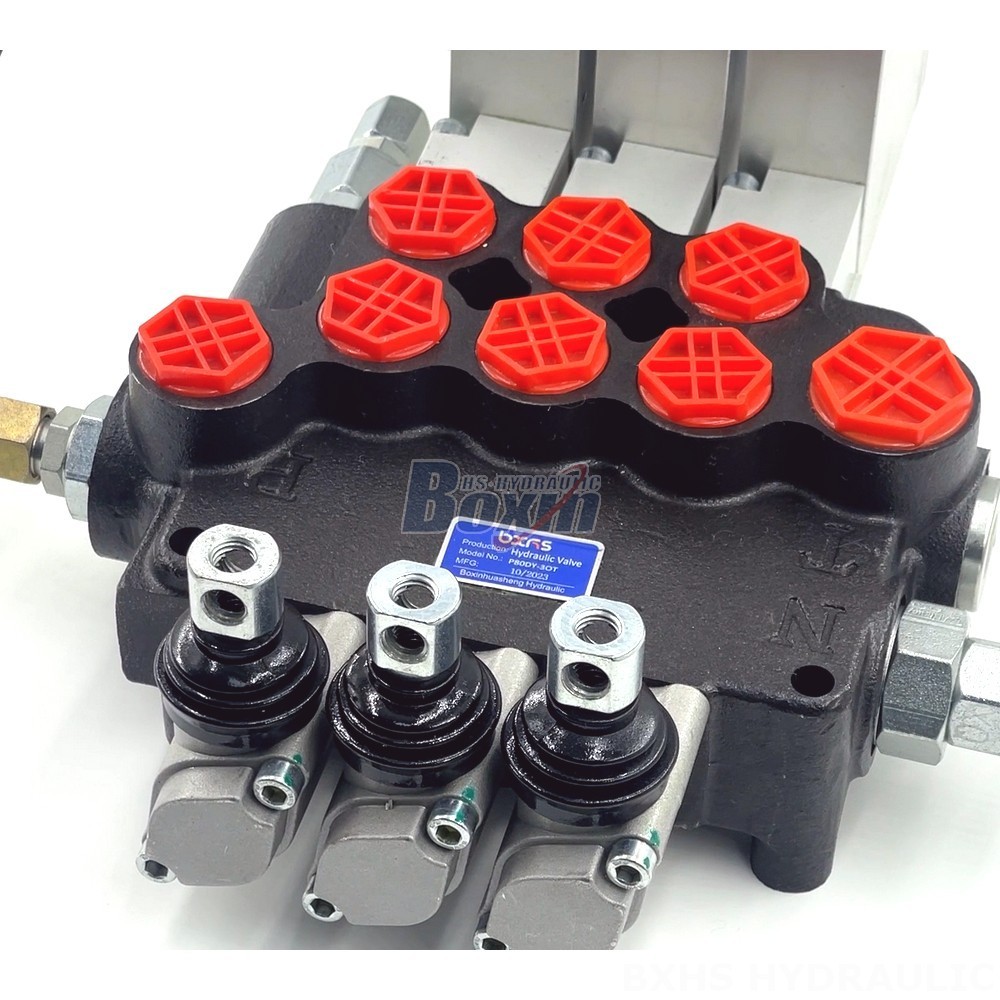

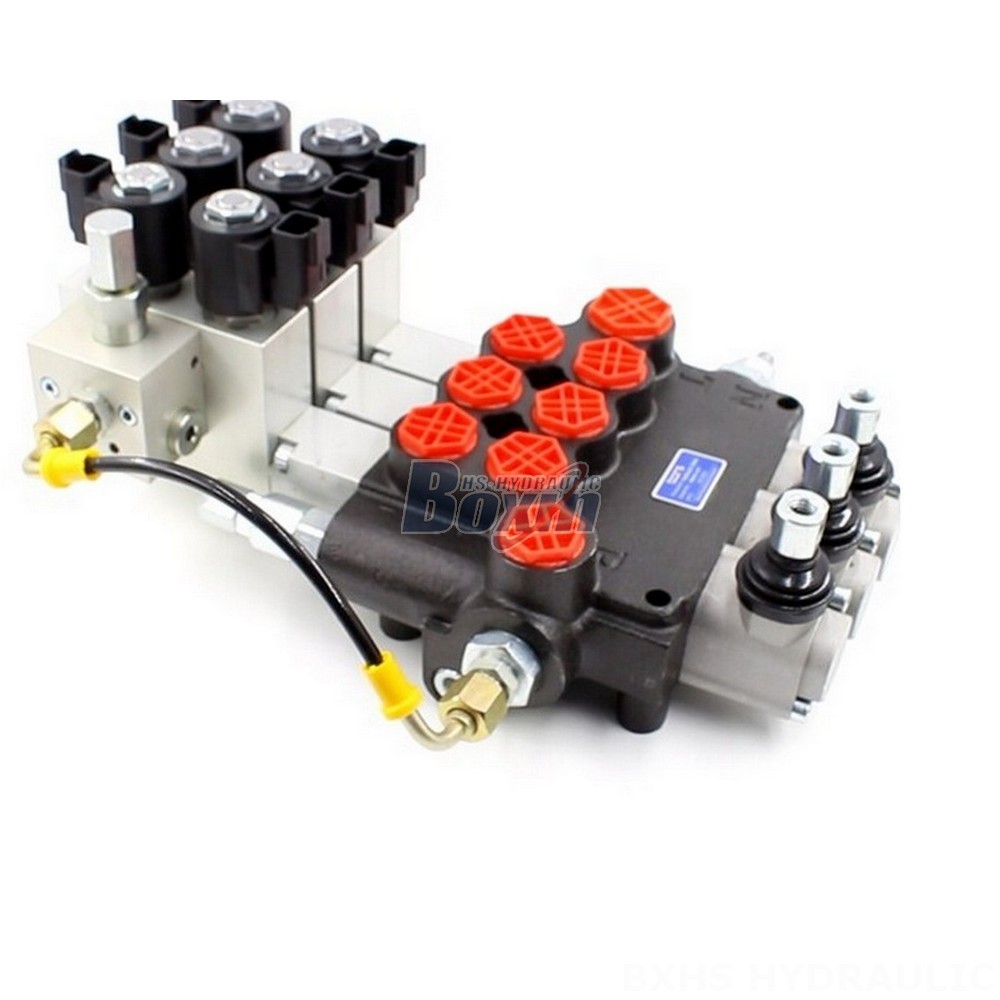

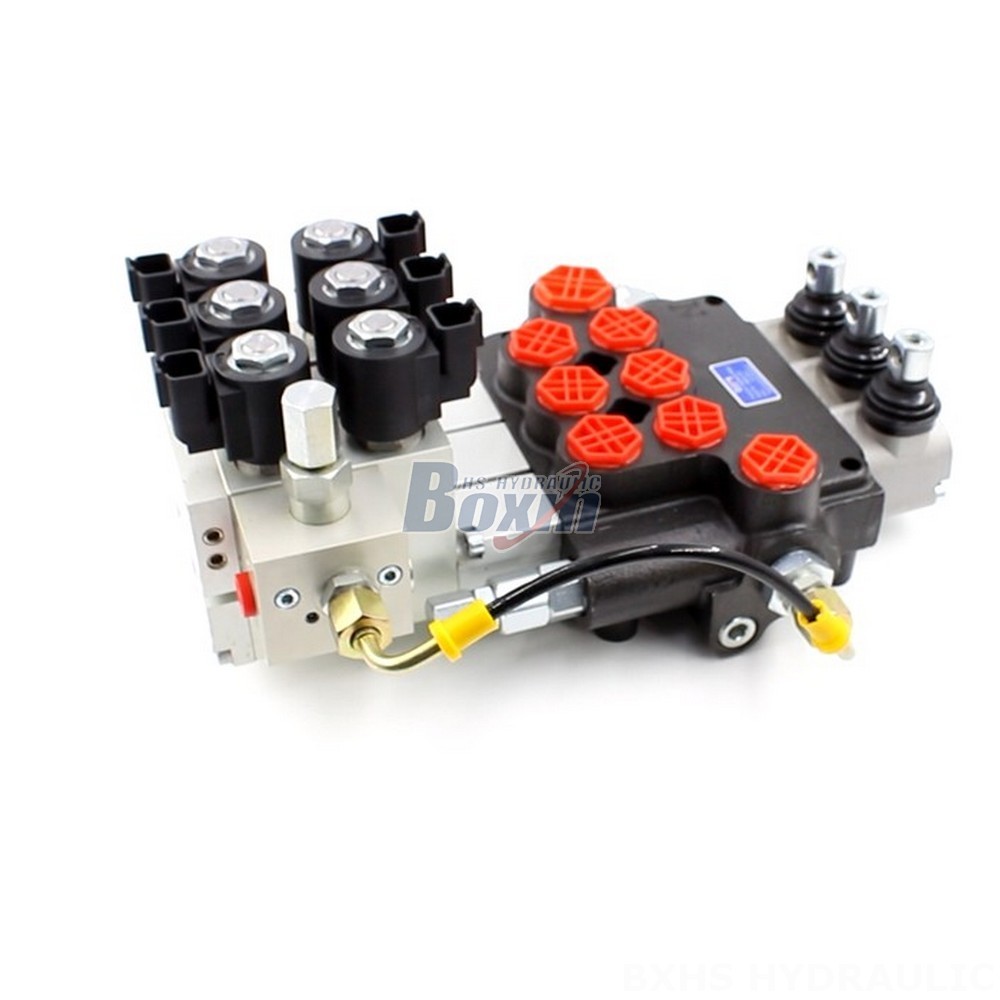

**P80 Electro-hydraulic 3 Spool Monoblock Directional Valve**
The P80 Electro-hydraulic 3 Spool Monoblock Directional Valve is a versatile and reliable valve that is ideal for use in a variety of hydraulic systems. It features a robust monoblock construction that provides excellent strength and durability. The valve is also equipped with electro-hydraulic control, which allows for precise and responsive operation. With a flow rate of 80 L/min and a maximum pressure of 250 bar, the P80 valve is capable of handling even the most demanding applications.
**Key Features:**
* Monoblock construction for strength and durability
* Electro-hydraulic control for precise and responsive operation
* Flow rate of 80 L/min
* Maximum pressure of 250 bar
* Suitable for a wide range of applications
**Applications:**
* Material handling
* Construction
* Agriculture
* Industrial vehicles
