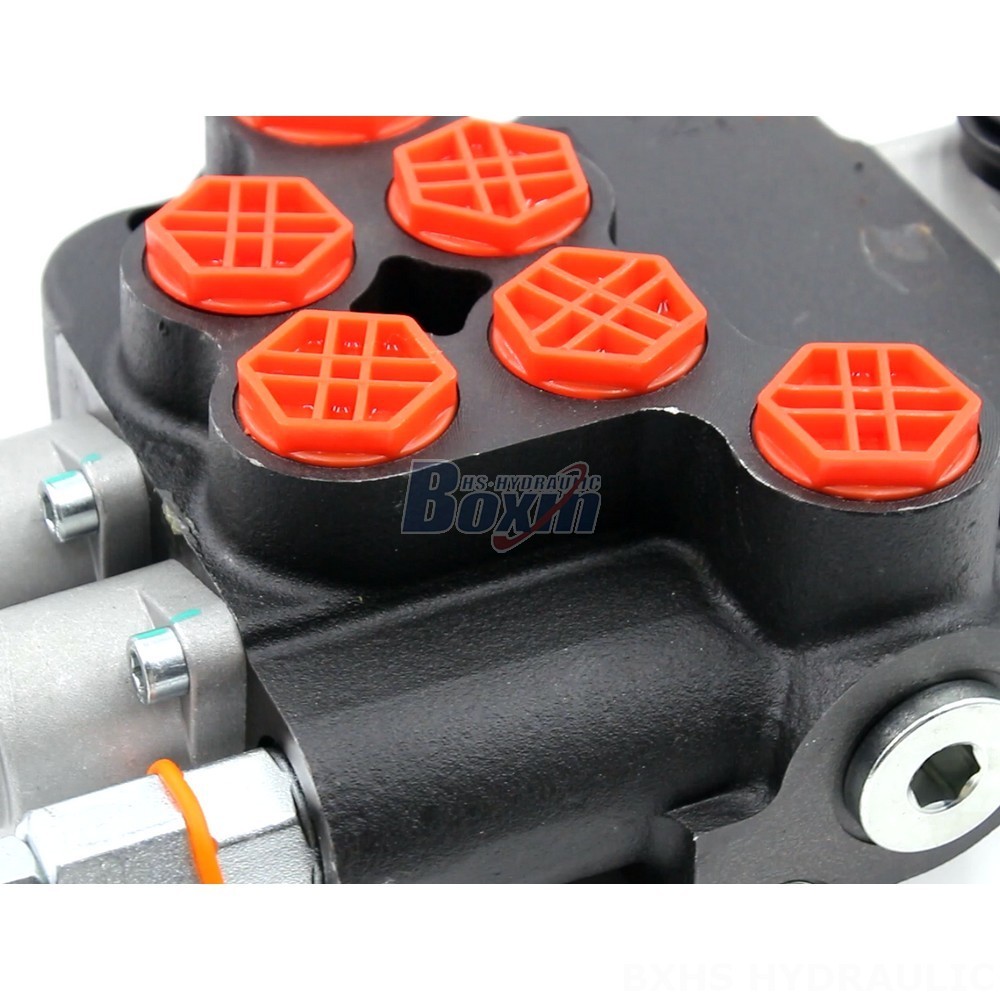

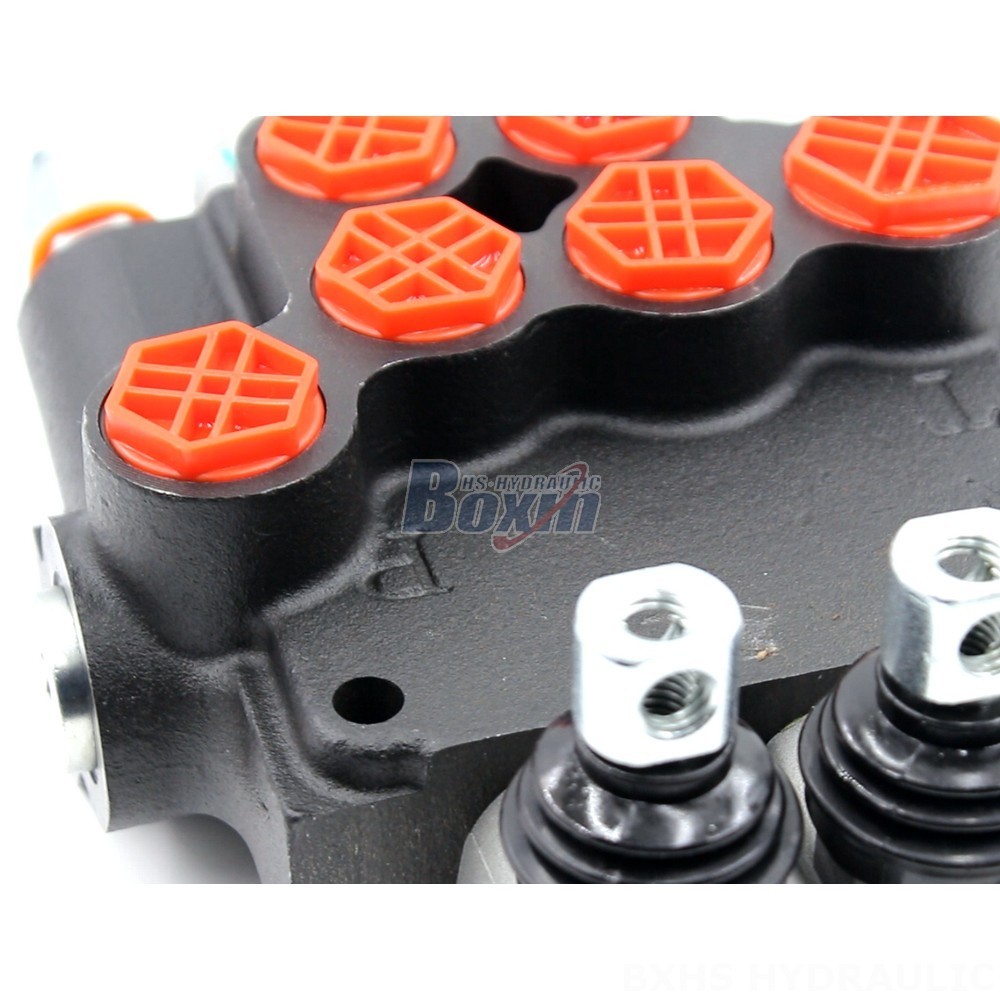

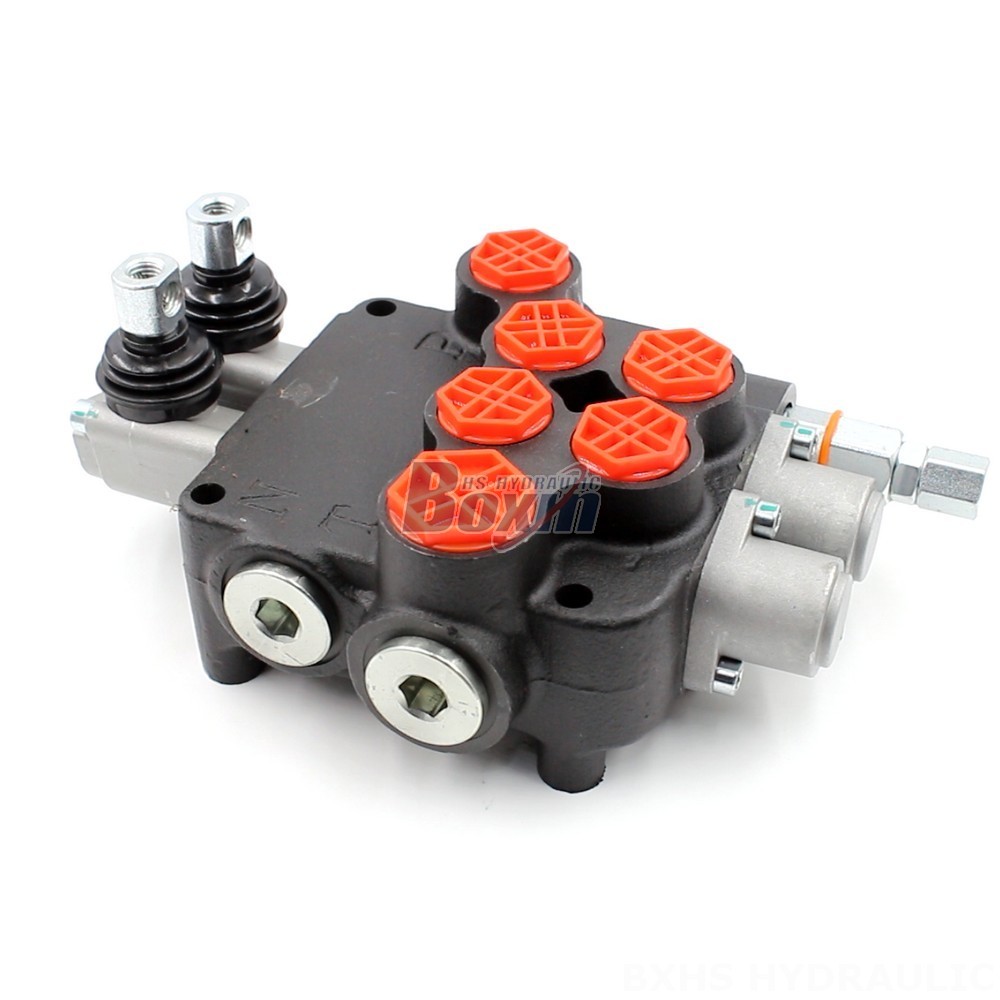

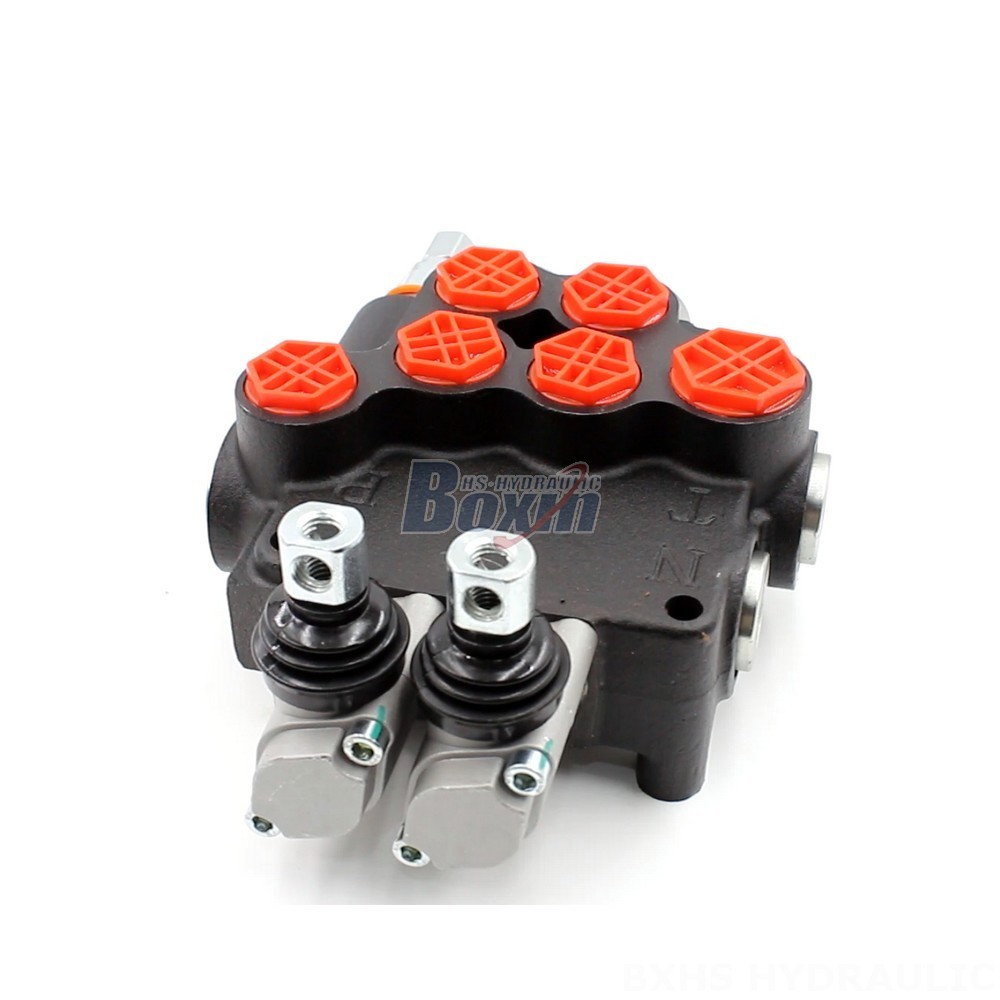

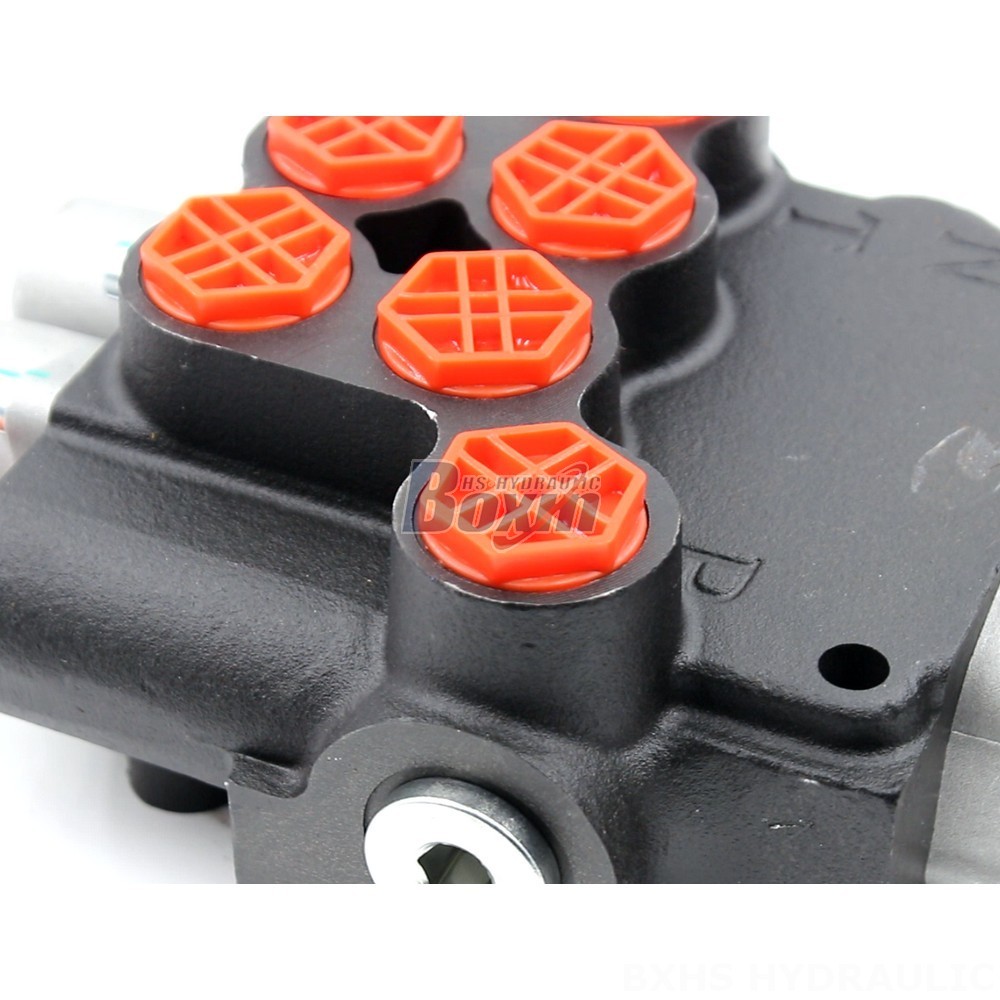

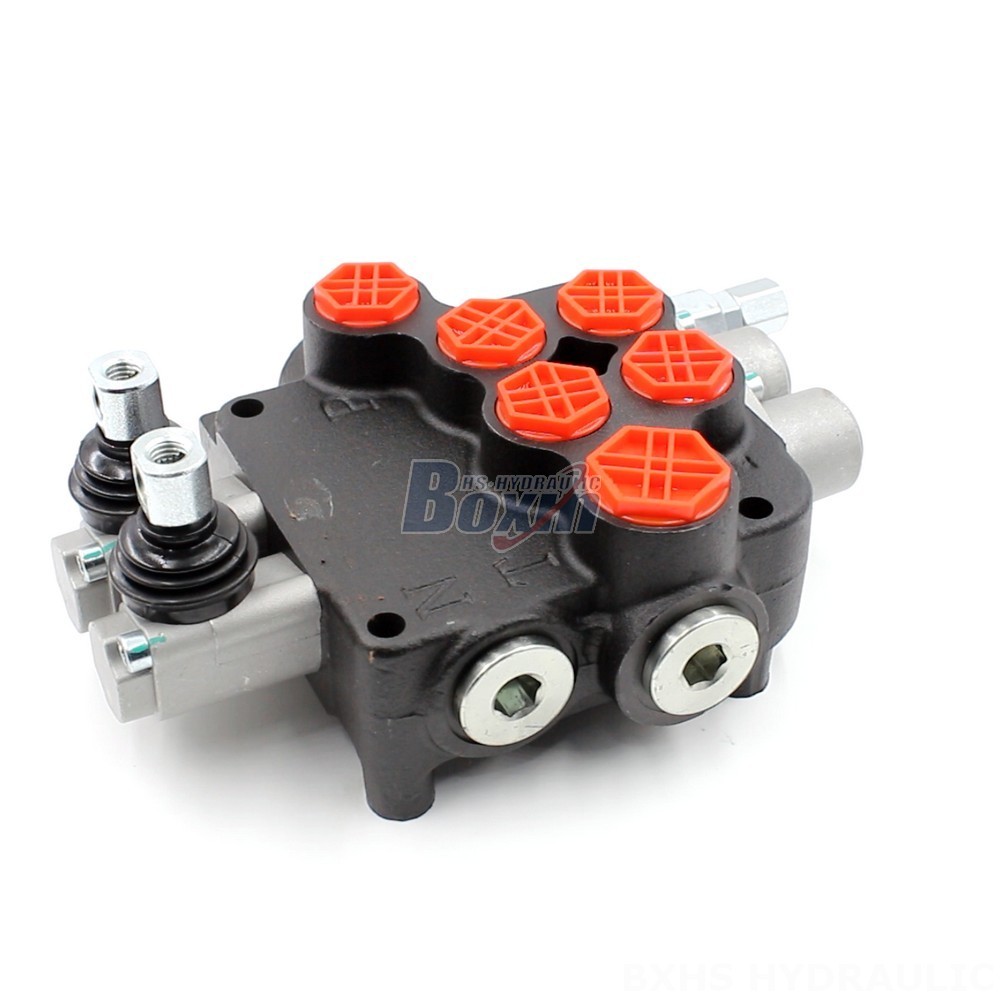

The P80-AQF-G34-G12-2OT Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding industrial applications. It features a manual control method, a compact monoblock structure, and a rated flow capacity of 80 L/min (21.2 US gpm). With a maximum pressure rating of 250 bar (3600 psi), this valve can withstand high system pressures.
| Serie P80 Válvula Direccional Monobloque Parámetros | |
|---|---|
| Método de control | Manual, Neumático, Electoneumático, Electrohidráulico, Solenoide, Hidráulico, Hidráulico y Manual, Cable, Joystick, Manual y joystick |
| Carrete | 1 carrete, 2 carretes, 3 carretes, 4 carretes, 5 carretes, 6 carretes, 7 carretes |
| Rango de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estructura | Válvulas monobloc |
| Sección | 1 sección, 2 secciones, 3 secciones, 4 secciones, 5 secciones, 6 secciones, 7 secciones |
| Rango de viscosidad de funcionamiento | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Flujo Nominal | 80 l/min (21,2 gal EE. UU./min) |
| Presión Máxima | 315 bar (4600 psi) |
| Puerto de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Puerto de Salida | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamaño de Puerto | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
* Manual control for precise operation
* Monoblock construction for compact and robust design
* 2 spool configuration for versatile flow control
* Rated flow capacity of 80 L/min (21.2 US gpm) for high flow applications
* Maximum pressure rating of 250 bar (3600 psi) for demanding hydraulic systems
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
* Wide ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in challenging environments
**Applications:**
The P80-AQF-G34-G12-2OT Manual 2 Spool Monoblock Directional Valve is widely used in various industrial applications, including:
* Material handling equipment
* Construction and earth moving machinery
* Agricultural machinery
* Industrial vehicles
* Telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors and front-end loaders, harvesters, bale wrappers, backhoes, seeding machines, sprayers, balers
